Transporto priemonė: L 328; VIN numerio dalis: 328009

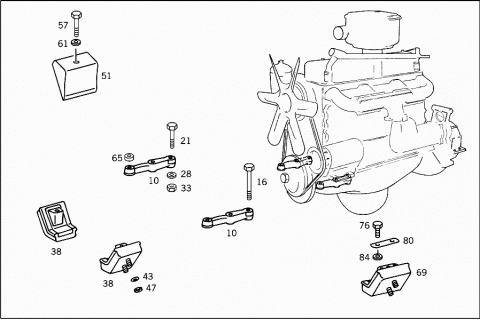

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3122230804 | ENGINE SUPPORT |
| LEFT AND RIGHT | ||
| 010 | A 3122230804 | ENGINE SUPPORT |
| RIGHT | ||
| A 3222230104 | ENGINE SUPPORT | |
| LEFT | ||
| A 3222230204 | ENGINE SUPPORT | |
| LEFT | ||
| 016 | N 900170014033 | SCREW |
| N 900170014018 | SCREW | |
| N 000960014263 | SCREW | |
| 021 | N 900170014005 | SCREW |
| 021 | N 900170014005 | SCREW |
| N 900170014006 | SCREW | |
| N 900170014007 | SCREW | |
| N 900170014017 | SCREW | |
| 028 | N 912004014100 | LOCK WASHER |
| N 000125015000 | WASHER | |
| 033 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 033 | N 308673014001 | NUT |
| N 000936014010 | NUT | |
| Repalced by: N 308675014000 | ||
| N 308675014000 | NUT | |
| Repalced by: N 308675014002 | ||
| N 308675014002 | NUT | |
| OIL FILLER NECK BRACKET TO ENGINE | ||
| 038 | A 3122401017 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| A 3122201517 | RUBBER MOUNTING | |
| Repalced by: A 3122201717 | ||
| 038 | A 3122201717 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 043 | N 912004010102 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 047 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 047 | N 308673010000 | NUT |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| A 3122400045 | PROTECTIVE PLATE | |
| Repalced by: A 3222400145 | ||
| A 3222410112 | RETAINER | |
| Repalced by: A 3222400145 | ||
| 051 | A 3222400145 | PROTECTIVE PLATE |
| ENGINE FRONT SUSPENSION | ||
| 051 | A 3222400145 | PROTECTIVE PLATE |
| ENGINE FRONT SUSPENSION | ||
| A 3222400045 | PROTECTIVE PLATE | |
| ENGINE FRONT SUSPENSION | ||
| A 3222400045 | PROTECTIVE PLATE | |
| ENGINE FRONT SUSPENSION | ||
| 057 | N 000961014054 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 061 | N 912004014100 | LOCK WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 065 | A 3529901040 | WASHER |
| 069 | A 3122201717 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| N 912004010102 | LOCK WASHER | |
| N 000934010015 | NUT | |
| Repalced by: N 308673010000 | ||
| N 308673010000 | NUT | |
| N 000961012151 | SCREW | |
| 076 | N 000961012122 | SCREW |
| 080 | A 3129940132 | LOCK |
| 084 | A 3129900540 | WASHER |
| Repalced by: N 007349013003 | ||
| 084 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 084 | N 007349013005 | WASHER |
