Transporto priemonė: L 328; VIN numerio dalis: 328009

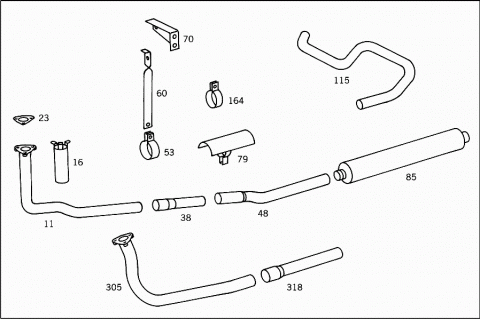

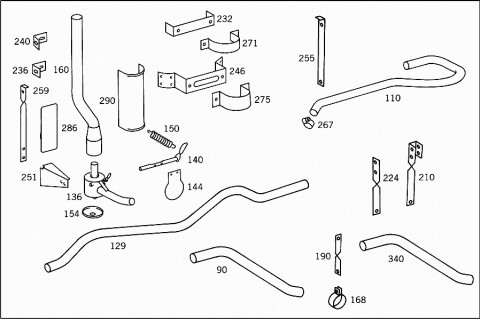

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| EXHAUST MUFFLER AND EXHAUST PIPES | ||
| A 3214901020 | EXHAUST PIPE | |
| FRONT,FRONT PART | ||
| 011 | A 3224901220 | EXHAUST PIPE |
| Repalced by: A 3404900020 | ||
| 011 | A 3404900020 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| A 3224900130 | PROTECTIVE PLATE | |
| 016 | A 3404900030 | PROTECTIVE PLATE |
| Repalced by: A 3834900130 | ||
| 016 | A 3834900130 | PROTECTIVE PLATE |
| Repalced by: A 3834922530 | ||
| 016 | A 3834922530 | PROTECTIVE PLATE |
| N 000931010282 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X40 | ||
| N 000931010271 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X60 | ||
| N 000934010014 | NUT | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 023 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 023 | A 4424920280 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 3124921259 | FLEXIBLE METAL TUBE | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| A 3124921160 | END PIECE | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| N 071555070500 | CLAMP | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 70.5 MM | ||
| N 000933010105 | SCREW | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| N 912004010102 | LOCK WASHER | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| N 000934010014 | NUT | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| A 3124921740 | CLAMP | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| N 304032008006 | NUT | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| A 3224920307 | CONNECTOR | |
| Repalced by: A 3124921259 | ||
| A 3124921259 | FLEXIBLE METAL TUBE | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 038 | A 3224920707 | CONNECTOR |
| Repalced by: A 3224920207 | ||
| 038 | A 3224920207 | CONNECTOR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 038 | A 3224920207 | CONNECTOR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| N 071555065501 | CLAMP | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| N 912004008102 | LOCK WASHER | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| N 304032008006 | NUT | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| A 3224920301 | FRONT EXHAUST PIPE | |
| Repalced by: A 3124921301 | ||
| A 3124921301 | FRONT EXHAUST PIPE | |
| REAR PART | ||
| A 3224921501 | FRONT EXHAUST PIPE | |
| REAR PART | ||
| 048 | A 3224922201 | FRONT EXHAUST PIPE |
| REAR PART | ||
| A 3224920201 | FRONT EXHAUST PIPE | |
| REAR PART | ||
| A 3224921601 | FRONT EXHAUST PIPE | |
| REAR PART | ||
| A 3224922701 | FRONT EXHAUST PIPE | |
| REAR PART | ||
| 053 | N 071555065501 | CLAMP |
| FRONT EXHAUST PIPE TO BRACKET | ||
| 65.5 MM | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| FRONT EXHAUST PIPE TO BRACKET | ||
| N 304032008006 | NUT | |
| FRONT EXHAUST PIPE TO BRACKET | ||
| A 3124912019 | BRACKET | |
| AT SUPPORT | ||
| 185 MM | ||
| A 3224911341 | BRACKET | |
| Repalced by: A 3224922819 | ||
| 060 | A 3224922819 | BRACKET |
| AT SUPPORT | ||
| 210 MM | ||
| A 3124913619 | BRACKET | |
| AT SUPPORT | ||
| 225 MM | ||
| A 3224920419 | BRACKET | |
| Repalced by: A 3124922119 | ||
| A 3124922119 | BRACKET | |
| AT SUPPORT | ||
| 265 MM | ||
| A 3224923319 | BRACKET | |
| AT SUPPORT | ||
| 290 MM | ||
| N 000933008145 | SCREW | |
| BRACKET TO SUPPORT | ||
| M 8X18 | ||
| N 000933008145 | SCREW | |
| BRACKET TO CROSS MEMBER | ||
| M 8X18 | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO SUPPORT | ||
| N 304032008006 | NUT | |
| BRACKET TO SUPPORT | ||
| 070 | A 3124911016 | SUPPORT |
| AT SIDE MEMBER | ||
| 070 | A 3124911716 | SUPPORT |
| AT SIDE MEMBER | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8X22 | ||
| N 000933008116 | SCREW | |
| Repalced by: N 000933008337 | ||
| N 000933008337 | SCREW | |
| Repalced by: A 0099900101 | ||
| A 0099900101 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8X28 | ||
| N 912004008102 | LOCK WASHER | |
| SUPPORT TO SIDE MEMBER | ||
| N 304032008006 | NUT | |
| SUPPORT TO SIDE MEMBER | ||
| 079 | A 3214900230 | PROTECTIVE PLATE |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| HEAT SHIELD MOUNTING | ||
| N 304032008006 | NUT | |
| HEAT SHIELD MOUNTING | ||
| 085 | A 3224900201 | EXHAUST MUFFLER |
| Repalced by: A 3834900001 | ||
| 085 | A 3604900101 | EXHAUST MUFFLER |
| Repalced by: A 3834900001 | ||
| 085 | A 3834900001 | EXHAUST MUFFLER |
| A 3224904701 | EXHAUST MUFFLER | |
| 090 | A 3224920404 | REAR EXHAUST PIPE |
| A 3214922401 | FRONT EXHAUST PIPE | |
| REAR | ||
| A 3224920604 | REAR EXHAUST PIPE | |
| A 3404920804 | REAR EXHAUST PIPE | |
| A 3224920604 | REAR EXHAUST PIPE | |
| A 3224920204 | REAR EXHAUST PIPE | |
| 110 | A 3224928204 | REAR EXHAUST PIPE |
| A 3224928104 | REAR EXHAUST PIPE | |
| A 3224922404 | REAR EXHAUST PIPE | |
| A 3224925604 | REAR EXHAUST PIPE | |
| A 3224922404 | REAR EXHAUST PIPE | |
| 115 | A 3224925604 | REAR EXHAUST PIPE |
| A 3224920304 | REAR EXHAUST PIPE | |
| A 3224925104 | REAR EXHAUST PIPE | |
| A 3284920004 | REAR EXHAUST PIPE | |
| Repalced by: A 3284920104 | ||
| A 3284920104 | REAR EXHAUST PIPE | |
| Repalced by: A 3284920704 | ||
| A 3284920704 | REAR EXHAUST PIPE | |
| A 3284920604 | REAR EXHAUST PIPE | |
| Repalced by: A 3284920704 | ||
| A 3284920704 | REAR EXHAUST PIPE | |
| A 3284920104 | REAR EXHAUST PIPE | |
| Repalced by: A 3284920704 | ||
| A 3284920704 | REAR EXHAUST PIPE | |
| A 3284920704 | REAR EXHAUST PIPE | |
| A 3224923304 | REAR EXHAUST PIPE | |
| 129 | A 3224923504 | REAR EXHAUST PIPE |
| Repalced by: A 3224926104 | ||
| 129 | A 3224926104 | REAR EXHAUST PIPE |
| 129 | A 3224926604 | REAR EXHAUST PIPE |
| Repalced by: A 3224926104 | ||
| 129 | A 3224926104 | REAR EXHAUST PIPE |
| 129 | A 3224926104 | REAR EXHAUST PIPE |
| A 3224926204 | REAR EXHAUST PIPE | |
| 136 | A 3224900204 | THROTTLE HOUSING |
| 140 | A 3224900132 | LEVER |
| 144 | A 3224920037 | FLAP |
| N 912004006102 | LOCK WASHER | |
| N 000933006229 | SCREW | |
| 150 | A 3229930410 | SPRING |
| 154 | A 3224920041 | COVER |
| N 912004010102 | LOCK WASHER | |
| N 000933010145 | SCREW | |
| 160 | A 3364900021 | EXHAUST PIPE |
| REAR | ||
| 164 | A 3274920040 | CLAMP |
| Repalced by: N 071555063500 | ||
| 164 | N 071555063500 | CLAMP |
| REAR EXHAUST MUFFLER | ||
| 63.5 MM | ||
| 168 | N 071555060500 | CLAMP |
| Repalced by: N 000000001642 | ||
| 168 | N 000000001642 | CLAMP |
| REAR EXHAUST MUFFLER | ||
| 168 | N 000000001642 | CLAMP |
| REAR EXHAUST MUFFLER | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| CLAMP TO BRACKET | ||
| N 304032008006 | NUT | |
| CLAMP TO BRACKET | ||
| A 3124912019 | BRACKET | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 185 MM | ||
| A 3224911341 | BRACKET | |
| Repalced by: A 3224922819 | ||
| A 3224922819 | BRACKET | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 210 MM | ||
| A 3124913619 | BRACKET | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 225 MM | ||
| N 000933008145 | SCREW | |
| BRACKET TO SUPPORT | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO SUPPORT | ||
| N 304032008006 | NUT | |
| BRACKET TO SUPPORT | ||
| A 3124911016 | SUPPORT | |
| AT SIDE MEMBER | ||
| A 3124911716 | SUPPORT | |
| AT SIDE MEMBER | ||
| N 000933008145 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8X18 | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8X22 | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| N 912004008102 | LOCK WASHER | |
| SUPPORT TO SIDE MEMBER | ||
| N 304032008006 | NUT | |
| SUPPORT TO SIDE MEMBER | ||
| 190 | A 3214921519 | BRACKET |
| Repalced by: A 3224920919 | ||
| 190 | A 3224920919 | BRACKET |
| AT SUPPORT | ||
| 195 MM | ||
| A 3224923419 | BRACKET | |
| AT SUPPORT | ||
| 220 MM | ||
| A 3224920019 | BRACKET | |
| Repalced by: A 3604920619 | ||
| A 3604920619 | BRACKET | |
| AT SUPPORT | ||
| 147 MM | ||
| A 3224920119 | BRACKET | |
| Repalced by: A 3584920419 | ||
| A 3584920419 | BRACKET | |
| AT SUPPORT | ||
| 230 MM | ||
| N 000933008145 | SCREW | |
| BRACKET TO SUPPORT | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO SUPPORT | ||
| N 304032008006 | NUT | |
| BRACKET TO SUPPORT | ||
| A 3284920016 | SUPPORT | |
| AT SIDE MEMBER | ||
| A 3124911016 | SUPPORT | |
| AT SIDE MEMBER | ||
| N 000933008145 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8X18 | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| N 912004008102 | LOCK WASHER | |
| SUPPORT TO SIDE MEMBER | ||
| N 304032008006 | NUT | |
| SUPPORT TO SIDE MEMBER | ||
| N 000933010105 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| SUPPORT TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| SUPPORT TO SIDE MEMBER | ||
| A 3284920219 | BRACKET | |
| REAR EXHAUST PIPE | ||
| 204 MM | ||
| 210 | A 3214900040 | BRACKET |
| REAR EXHAUST PIPE | ||
| 264 MM | ||
| A 3124911016 | SUPPORT | |
| AT FRAME | ||
| A 3124924119 | BRACKET | |
| AT SUPPORT | ||
| A 3214922319 | BRACKET | |
| EXHAUST PIPE TO REAR CROSS MEMBER | ||
| A 3284920119 | BRACKET | |
| EXHAUST PIPE TO REAR CROSS MEMBER | ||
| 224 | A 3124922019 | BRACKET |
| REAR EXHAUST PIPE | ||
| A 3224900240 | BRACKET | |
| REAR EXHAUST PIPE | ||
| N 000933008145 | SCREW | |
| BRACKET TO SUPPORT | ||
| M 8X18 | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO SUPPORT | ||
| M 8X22 | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO SUPPORT | ||
| N 304032008006 | NUT | |
| BRACKET TO SUPPORT | ||
| 232 | A 3364920419 | BRACKET |
| 236 | A 3364920519 | BRACKET |
| 240 | A 3364920619 | BRACKET |
| A 3364920719 | BRACKET | |
| A 3224925319 | BRACKET | |
| 246 | A 3284920419 | BRACKET |
| A 0009904497 | RIVET | |
| 251 | A 3124911016 | SUPPORT |
| EXHAUST | ||
| 255 | A 3224924119 | BRACKET |
| REAR EXHAUST PIPE | ||
| 259 | A 3224924319 | BRACKET |
| CHANGE-OVER FLAP | ||
| A 3224924219 | BRACKET | |
| CHANGE-OVER FLAP | ||
| N 000933008145 | SCREW | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| N 912004008102 | LOCK WASHER | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| N 304032008006 | NUT | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 267 | A 3274920040 | CLAMP |
| Repalced by: N 071555063500 | ||
| 267 | N 071555063500 | CLAMP |
| CHANGE-OVER FLAP | ||
| 271 | A 3364920040 | CLAMP |
| 275 | A 3224920540 | CLAMP |
| N 000931008266 | SCREW | |
| TO CLAMP PIPE CLAMPS | ||
| M 8X40 | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| TO CLAMP PIPE CLAMPS | ||
| M 8X16 | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| TO CLAMP PIPE CLAMPS | ||
| M 8X20 | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| TO CLAMP PIPE CLAMPS | ||
| M 8X25 | ||
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| TO CLAMP PIPE CLAMPS | ||
| N 912004008102 | LOCK WASHER | |
| TO CLAMP PIPE CLAMPS | ||
| N 304032008006 | NUT | |
| TO CLAMP PIPE CLAMPS | ||
| 286 | A 3364900030 | PROTECTIVE PLATE |
| 290 | A 3364900130 | PROTECTIVE PLATE |
| N 000084006137 | SCREW | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 009021006205 | WASHER | |
| Repalced by: N 009021006208 | ||
| N 009021006208 | WASHER | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 000934006007 | NUT | |
| PROTECTIVE PLATE TO BRACKET | ||
| N 000934006007 | NUT | |
| PROTECTIVE PLATE TO BRACKET | ||
| A 3224900720 | EXHAUST PIPE | |
| FRONT,FRONT PART | ||
| 305 | A 3224901320 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| A 3224920030 | PROTECTIVE PLATE | |
| A 3224920530 | PROTECTIVE PLATE | |
| Repalced by: A 3834900330 | ||
| A 3834900330 | PROTECTIVE PLATE | |
| Repalced by: A 3834922530 | ||
| A 3834922530 | PROTECTIVE PLATE | |
| N 000933006010 | SCREW | |
| HEAT SHIELD MOUNTING | ||
| N 000125006421 | WASHER | |
| HEAT SHIELD MOUNTING | ||
| N 912004006102 | LOCK WASHER | |
| HEAT SHIELD MOUNTING | ||
| A 3214920080 | FLANGE GASKET | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 000960012342 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 000960012189 | SCREW | |
| Repalced by: N 308676012031 | ||
| N 308676012031 | SCREW | |
| Repalced by: N 308676012011 | ||
| N 308676012011 | SCREW | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 000934012022 | NUT | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 318 | A 3224920107 | CONNECTOR |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| N 071555085500 | CLAMP | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| 85.5 MM | ||
| N 000933010157 | SCREW | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| N 000934010014 | NUT | |
| FRONT EXHAUST PIPE FRONT PART TO REAR PART | ||
| A 3224921201 | FRONT EXHAUST PIPE | |
| REAR PART | ||
| N 071555085500 | CLAMP | |
| FRONT EXHAUST PIPE | ||
| 85.5 MM | ||
| N 000933010157 | SCREW | |
| TO CLAMP PIPE CLAMPS | ||
| N 000934010014 | NUT | |
| TO CLAMP PIPE CLAMPS | ||
| A 3214922019 | BRACKET | |
| AT SUPPORT | ||
| 186 MM | ||
| A 3224920719 | BRACKET | |
| Repalced by: A 3124922119 | ||
| A 3124922119 | BRACKET | |
| AT SUPPORT | ||
| 265 MM | ||
| N 000933008145 | SCREW | |
| BRACKET TO SUPPORT | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO SUPPORT | ||
| N 304032008006 | NUT | |
| BRACKET TO SUPPORT | ||
| A 3124911016 | SUPPORT | |
| AT FRAME | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| N 912004008102 | LOCK WASHER | |
| SUPPORT TO SIDE MEMBER | ||
| N 304032008006 | NUT | |
| SUPPORT TO SIDE MEMBER | ||
| A 3224905201 | EXHAUST MUFFLER | |
| A 3224905201 | EXHAUST MUFFLER | |
| A 3524900101 | EXHAUST MUFFLER | |
| 340 | A 3224921504 | REAR EXHAUST PIPE |
| 340 | A 3224928604 | REAR EXHAUST PIPE |
| Repalced by: A 3224928804 | ||
| 340 | A 3224928804 | REAR EXHAUST PIPE |
| 340 | A 3224928704 | REAR EXHAUST PIPE |
| Repalced by: A 3224928804 | ||
| 340 | A 3224928804 | REAR EXHAUST PIPE |
| 340 | A 3224921704 | REAR EXHAUST PIPE |
| 340 | A 3224928804 | REAR EXHAUST PIPE |
| A 3224921304 | REAR EXHAUST PIPE | |
| N 071555085500 | CLAMP | |
| REAR EXHAUST PIPE | ||
| 85.5 MM | ||
| N 071555070500 | CLAMP | |
| REAR EXHAUST PIPE | ||
| 70.5 MM | ||
| N 071555089500 | CLAMP | |
| REAR EXHAUST PIPE | ||
| 89.5 MM | ||
| N 071555073500 | CLAMP | |
| REAR EXHAUST PIPE | ||
| 73.5 MM | ||
| N 000933010157 | SCREW | |
| TO CLAMP PIPE CLAMPS | ||
| N 000934010014 | NUT | |
| TO CLAMP PIPE CLAMPS | ||
| A 3214922019 | BRACKET | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 186 MM | ||
| A 3224924819 | BRACKET | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 196 MM | ||
| A 3224925019 | BRACKET | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 236 MM | ||
| A 3124924119 | BRACKET | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 233 MM | ||
| A 3224920919 | BRACKET | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 195 MM | ||
| A 3224924919 | BRACKET | |
| Repalced by: A 3424920019 | ||
| A 3424920019 | BRACKET | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 202 MM | ||
| N 000933008145 | SCREW | |
| BRACKET TO SUPPORT | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO SUPPORT | ||
| N 304032008006 | NUT | |
| BRACKET TO SUPPORT | ||
| A 3224920819 | BRACKET | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| A 3224921319 | BRACKET | |
| Repalced by: A 3124922019 | ||
| A 3124922019 | BRACKET | |
| REAR EXHAUST PIPE TO SUPPORT | ||
| N 000933008145 | SCREW | |
| BRACKET TO SUPPORT | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO SUPPORT | ||
| N 304032008006 | NUT | |
| BRACKET TO SUPPORT | ||
| A 3124911016 | SUPPORT | |
| AT FRAME | ||
| N 000933008145 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8X18 | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| M 8X22 | ||
| N 912004008102 | LOCK WASHER | |
| SUPPORT TO SIDE MEMBER | ||
| N 304032008006 | NUT | |
| SUPPORT TO SIDE MEMBER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
