Transporto priemonė: L 328; VIN numerio dalis: 328009
Grupė: 33 FRONT AXLE

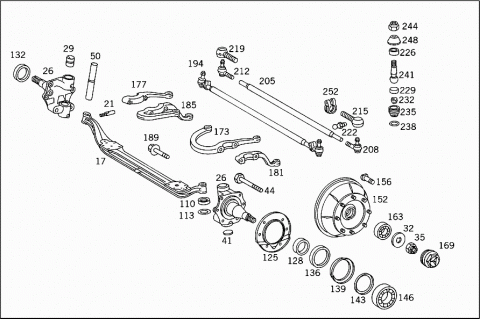

36070

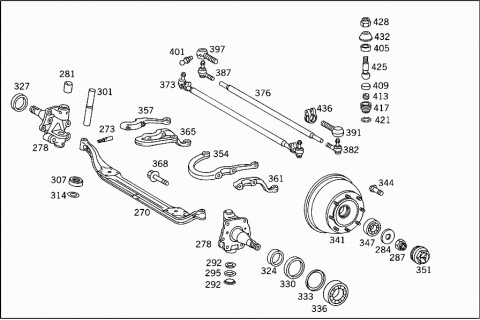

36071
# Kodas Pavadinimas
A 3283300100 FRONT AXLE
WITH BRAKES, BRAKE DRUMS, STEERING ARMS AND TIE ROD
A 3283300200 FRONT AXLE
WITH BRAKES, BRAKE DRUMS, STEERING ARMS AND TIE ROD
017 A 3283310401 FRONT AXLE BEAM
021 A 3129900137 BOLT
026 A 3123301820 STEERING KNUCKLE
029 A 3123321749 BUSHING
Repalced by: A 3533320048
029 A 3533320048 BUSHING
032 A 3123321862 THRUST WASHER
035 N 000935024000 NUT
N 000094005005 COTTER PIN
N 071412010300 GREASE NIPPLE
IN FRONT STEERING KNUCKLES, TOP
N 071412010200 GREASE NIPPLE
IN FRONT STEERING KNUCKLES, BOTTOM
041 A 3129971125 EXPANSION PLUG
044 A 3129902801 SCREW
Repalced by: N 000960012197
044 N 000960012197 SCREW
55 MM
044 A 3129902901 SCREW
50 MM
050 A 3285860033 REPAIR KIT
Repalced by: A 3283300019
050 A 3283300019 KING PIN
STANDARD
30 MM
050 A 3283320106 KINGPIN
STANDARD SIZE I
30.3 MM
050 A 3283320206 KINGPIN
REPAIR SIZE I
30.6 MM
A 3123322862 THRUST WASHER
TOP
A 3123324162 THRUST WASHER
TOP;REPAIR SIZE:
I,II
110 A 0009811118 ROLLER BEARING
113 A 3123323062 THRUST WASHER
AS REQUIRED
8.1 MM
113 A 3123323162 THRUST WASHER
AS REQUIRED
8.2 MM
113 A 3123323262 THRUST WASHER
AS REQUIRED
8.3 MM
113 A 3123323362 THRUST WASHER
AS REQUIRED
8.4 MM
113 A 3123323462 THRUST WASHER
AS REQUIRED
8.5 MM
113 A 3123324262 THRUST WASHER
AS REQUIRED
8.6 MM
113 A 3123324362 THRUST WASHER
AS REQUIRED
8.7 MM
113 A 3123323562 THRUST WASHER
AS REQUIRED
8.0 MM
113 A 3123323662 THRUST WASHER
AS REQUIRED
8.1 MM
113 A 3123323762 THRUST WASHER
AS REQUIRED
8.2 MM
113 A 3123323862 THRUST WASHER
AS REQUIRED
8.3 MM
113 A 3123323962 THRUST WASHER
AS REQUIRED
8.4 MM
113 A 3123324562 THRUST WASHER
AS REQUIRED
8.6 MM
113 A 3123324662 THRUST WASHER
AS REQUIRED
8.7 MM
113 A 3123324762 THRUST WASHER
AS REQUIRED
8.8 MM
113 A 3123324862 THRUST WASHER
AS REQUIRED
8.9 MM
113 A 3123324962 THRUST WASHER
AS REQUIRED
9.0 MM
113 A 3123326562 THRUST WASHER
AS REQUIRED
9.1 MM
113 A 3123326662 THRUST WASHER
AS REQUIRED
9.2 MM
113 A 3403320362 THRUST WASHER
AS REQUIRED
3.8 MM
113 A 3403320562 THRUST WASHER
AS REQUIRED
4.0 MM
113 A 3403320762 THRUST WASHER
AS REQUIRED
4.2 MM
113 A 3403320962 THRUST WASHER
AS REQUIRED
4.4 MM
113 A 3403321162 THRUST WASHER
AS REQUIRED
4.6 MM
113 A 3403321362 THRUST WASHER
AS REQUIRED
4.8 MM
113 A 3403321562 THRUST WASHER
AS REQUIRED
5.0 MM
113 A 3143320352 SPACER WASHER
AS REQUIRED
0.9 MM
113 A 3143320452 SPACER WASHER
AS REQUIRED
1.0 MM
113 A 3143320552 SPACER WASHER
AS REQUIRED
1.1 MM
113 A 3143320652 SPACER WASHER
AS REQUIRED
1.2 MM
113 A 3143320752 SPACER WASHER
AS REQUIRED
1.3 MM
113 A 3143320852 SPACER WASHER
AS REQUIRED
1.4 MM
113 A 3143320952 SPACER WASHER
AS REQUIRED
1.5 MM
113 A 3143321052 SPACER WASHER
AS REQUIRED
1.6 MM
113 A 3143321152 SPACER WASHER
AS REQUIRED
1.7 MM
125 A 3123341082 OIL COLLECTOR
128 A 3123341315 RING
LEFT
132 A 3123341615 RING
RIGHT
136 A 0009976347 SEAL RING
139 A 3123341058 SEAL HOLDER
143 A 3123341251 SPACER RING
146 A 0019818405 TAPERED ROLLER BEARING
INSIDE, MAKE SKF
146 A 0019818605 TAPERED ROLLER BEARING
MAKE KUGELFISCHER
146 A 0029812405 TAPERED ROLLER BEARING
MAKE DUERKOPP
152 A 3123342104 DRUM HUB
FRONT
156 A 3274010071 WHEEL MOUNTING BOLT
Repalced by: A 3184020271
156 A 3184020271 WHEEL MOUNTING BOLT
163 A 0019818305 TAPERED ROLLER BEARING
OUTSIDE
SKF
163 A 0019818705 TAPERED ROLLER BEARING
OUTSIDE
163 A 0009819505 TAPERED ROLLER BEARING
OUTSIDE
169 A 3183340025 HUB CAP
173 A 3283380308 STEERING ARM
LEFT
177 A 3283380106 STEERING ARM
RIGHT
181 A 3283380205 STEERING ARM
LEFT
185 A 3283380108 STEERING ARM
RIGHT
185 A 3283380408 STEERING ARM
RIGHT
189 A 3289900013 SCREW
N 000094003005 COTTER PIN
X XXXXXXXXXXXX PART NAME MISSING
TIE ROD
194 A 3533300503 TIE ROD
LEMFOERDER
205 A 0003382615 TIE ROD
208 A 0003308535 JOINT
WITH R.H. THREAD
212 A 0003308635 JOINT
L.H. THREAD
215 A 0003383930 BALL SOCKET HOUSING
WITH R.H. THREAD
219 A 0003384030 BALL SOCKET HOUSING
L.H. THREAD
222 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
222 N 071412008102 GREASE NIPPLE
222 N 071412010100 GREASE NIPPLE
226 A 0003380427 BALL SOCKET
229 A 0003380182 RUBBER RING
232 A 0003380693 SPRING
235 A 0003380531 LOCKING CAP
238 A 0009941237 SNAP RING
241 A 0003380025 BALL PIN
244 N 000979016006 NUT
Repalced by: N 000979016007
244 N 000979016007 NUT
N 000094004004 COTTER PIN
248 A 0004631796 BOOT
A 0003380063 CLAMPING RING
252 A 0003380545 CLAMP
X XXXXXXXXXXXX PART NAME MISSING
H.D. FRONT AXLE USED FOR TYPE:
L 328
A 3283300500 FRONT AXLE
WITH BRAKES, BRAKE DRUMS, STEERING ARMS AND TIE ROD
A 3283300600 FRONT AXLE
WITH BRAKES, BRAKE DRUMS, STEERING ARMS AND TIE ROD
270 A 3223310601 FRONT AXLE BEAM
273 A 3279900137 BOLT
278 A 3273300520 STEERING KNUCKLE
Repalced by: A 3273320401
278 A 3273320401 STEERING KNUCKLE
A 3213320249 BUSHING
Repalced by: A 3213320048
281 A 3213320048 BUSHING
284 A 3273321662 THRUST WASHER
287 N 000937032000 NUT
292 A 3273320029 SEALING CAP
295 A 3279970145 SEAL RING
301 A 3273300019 KING PIN
STANDARD
35 MM
301 A 3273300119 KING PIN
STANDARD SIZE I
35.3 MM
301 A 3273300219 KING PIN
REPAIR SIZE I
35.6 MM
301 A 3273300319 KING PIN
Repalced by: A 3273320306
301 A 3273320306 KINGPIN
REPAIR SIZE II
35.9 MM
307 A 0009814505 TAPERED ROLLER BEARING
Repalced by: A 0009812818
307 A 0009812818 ROLLER BEARING
Repalced by: A 0009811918
307 A 0009811918 ROLLER BEARING
35 MM
307 A 3279810805 TAPERED ROLLER BEARING
Repalced by: A 0019814118
307 A 0019814118 ROLLER BEARING
STANDARD SIZE I
35.3 MM
307 A 3279810905 TAPERED ROLLER BEARING
Repalced by: A 0019814218
307 A 0019814218 ROLLER BEARING
REPAIR SIZE I
35.6 MM
307 A 3279811005 TAPERED ROLLER BEARING
Repalced by: A 0019814318
307 A 0019814318 ROLLER BEARING
REPAIR SIZE II
35.9 MM
307 A 0019817305 TAPERED ROLLER BEARING
Repalced by: A 0019814318
307 A 0019814318 ROLLER BEARING
REPAIR SIZE II
36 MM
314 A 3403320452 SPACER WASHER
TOP
1.3 MM
314 A 3403320552 SPACER WASHER
TOP
1.4 MM
314 A 3403320652 SPACER WASHER
TOP
1.5 MM
314 A 3403320752 SPACER WASHER
TOP
1.6 MM
314 A 3403320852 SPACER WASHER
TOP
1.7 MM
324 A 3213340115 RING
LEFT
327 A 3213340215 RING
RIGHT
330 A 0009973446 SEAL RING
333 A 3213340051 SPACER RING
336 A 0029810205 TAPERED ROLLER BEARING
336 A 0009818905 TAPERED ROLLER BEARING
336 A 0019819705 TAPERED ROLLER BEARING
341 A 3223340204 DRUM HUB
FRONT
344 A 3124021071 WHEEL MOUNTING BOLT
Repalced by: A 3524020171
344 A 3524020171 WHEEL MOUNTING BOLT
347 A 0019817005 TAPERED ROLLER BEARING
351 A 3213340225 HUB CAP
X XXXXXXXXXXXX PART NAME MISSING
H.D. STEERING ARMS USED FOR TYPE:
L 328
354 A 3273381908 STEERING ARM
LEFT
357 A 3523380108 STEERING ARM
Repalced by: A 3603380706
357 A 3603380706 STEERING ARM
RIGHT
361 A 3603380805 STEERING ARM
LEFT
365 A 3223381108 STEERING ARM
RIGHT
368 A 3273320171 SCREW
X XXXXXXXXXXXX PART NAME MISSING
H.D. TIE ROD USED FOR TYPE:
L 328
373 A 3583300703 TIE ROD
LEMFOERDER
376 A 0003382415 TIE ROD
EMPTY
382 A 0003309735 JOINT
R.H. THREAD
387 A 0003309835 JOINT
L.H. THREAD
391 A 0003383530 BALL SOCKET HOUSING
R.H. THREAD
397 A 0003383630 BALL SOCKET HOUSING
L.H. THREAD
401 N 071412008100 GREASE NIPPLE
401 N 071412010100 GREASE NIPPLE
405 A 0005860033 REPAIR KIT
409 A 0003380026 BALL SOCKET
Repalced by: A 0004630061
409 A 0004630061 SPRING RETAINER
413 A 0003380493 SPRING
Repalced by: A 0009930105
A 0009930105 SPRING
413 A 0003380593 SPRING
417 A 0003380431 LOCKING CAP
421 A 0009940537 SNAP RING
425 N 071831030000 BALL PIVOT
428 N 000937018003 NUT
N 000094004065 COTTER PIN
432 A 0003381656 DUST CAP
432 A 0003382256 DUST CAP
436 A 0009957044 CLAMP
436 A 0003380545 CLAMP
