Transporto priemonė: L 328; VIN numerio dalis: 328009

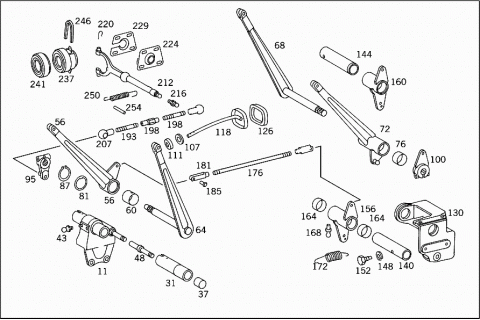

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3212900619 | BEARING BRACKET | |
| Repalced by: A 3222900519 | ||
| 011 | A 3222900519 | BEARING BRACKET |
| FRONT | ||
| A 3222901119 | BEARING BRACKET | |
| FRONT | ||
| A 3222900019 | BEARING BRACKET | |
| Repalced by: A 3222900619 | ||
| 011 | A 3222900619 | BEARING BRACKET |
| FRONT | ||
| A 3222901019 | BEARING BRACKET | |
| FRONT | ||
| A 3212940004 | BEARING TUBE | |
| Repalced by: A 3222940204 | ||
| 031 | A 3222940204 | BEARING TUBE |
| A 3222940104 | BEARING TUBE | |
| Repalced by: A 3222940304 | ||
| 031 | A 3222940304 | BEARING TUBE |
| 037 | A 3122941250 | BUSHING |
| Repalced by: A 3529920901 | ||
| 037 | A 3529920901 | BUSHING |
| PEDAL BEARING | ||
| 037 | A 3529922001 | BUSHING |
| PEDAL BEARING | ||
| N 000417012000 | HEADLESS SETSCREW | |
| TO SECURE BEARING TUBE IN PLACE | ||
| 043 | N 071412010100 | GREASE NIPPLE |
| 048 | A 3273230074 | PIN |
| N 000933010145 | SCREW | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| N 000931010424 | SCREW | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 056 | A 3212901318 | PEDAL |
| Repalced by: A 3382900118 | ||
| 056 | A 3382900118 | PEDAL |
| BRAKE | ||
| 060 | A 3122911250 | BUSHING |
| Repalced by: A 3529920901 | ||
| 060 | A 3529920901 | BUSHING |
| PEDAL BEARING | ||
| 060 | A 3529922001 | BUSHING |
| 064 | A 3222901016 | PEDAL |
| CLUTCH | ||
| 068 | A 3222901618 | PEDAL |
| BRAKE | ||
| 072 | A 3222900316 | PEDAL |
| CLUTCH | ||
| 076 | A 3122911550 | BUSHING |
| N 071803016202 | BALL PIVOT | |
| 081 | A 3202940051 | SPACER RING |
| Repalced by: A 3202940251 | ||
| 081 | A 3202940251 | SPACER RING |
| AS REQUIRED | ||
| 3 MM | ||
| A 3202940151 | SPACER RING | |
| AS REQUIRED | ||
| 3.25 MM | ||
| A 3202940251 | SPACER RING | |
| AS REQUIRED | ||
| 3.50 MM | ||
| 087 | N 000471040002 | LOCK RING |
| A 3039910345 | RING | |
| A 3222900134 | LEVER | |
| Repalced by: A 3402900134 | ||
| 095 | A 3402900134 | LEVER |
| CLUTCH | ||
| N 071803016202 | BALL PIVOT | |
| 100 | A 3222900034 | LEVER |
| BRAKE | ||
| N 000931010258 | SCREW | |
| CLUTCH PEDAL AND CLUTCH LEVER ON PEDAL SHAFT | ||
| N 000931010258 | SCREW | |
| CLUTCH PEDAL AND CLUTCH LEVER ON PEDAL SHAFT | ||
| N 912004010102 | LOCK WASHER | |
| N 000934010014 | NUT | |
| A 3222930077 | WASHER | |
| Repalced by: A 3226880024 | ||
| 107 | A 3226880024 | WASHER |
| 111 | A 3122911197 | SEAL WASHER |
| Repalced by: A 3182910084 | ||
| 111 | A 3182910084 | SEAL RING |
| N 000933010105 | SCREW | |
| CLUTCH PEDAL TO LEVER | ||
| N 000933010105 | SCREW | |
| CLUTCH PEDAL TO LEVER | ||
| A 3122911474 | PIN | |
| CLUTCH PEDAL TO LEVER | ||
| A 3212900024 | PEDAL PLATE | |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 118 | A 3222900824 | PEDAL PLATE |
| Repalced by: A 3222901324 | ||
| 118 | A 3222901324 | PEDAL PLATE |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| A 3222900024 | PEDAL PLATE | |
| Repalced by: A 3222900924 | ||
| A 3222900924 | PEDAL PLATE | |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| A 3222900324 | PEDAL PLATE | |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 118 | A 3222900924 | PEDAL PLATE |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 118 | A 3222900924 | PEDAL PLATE |
| CLUTCH PEDAL | ||
| A 3222901424 | PEDAL PLATE | |
| A 3222900924 | PEDAL PLATE | |
| BRAKE PEDAL | ||
| 126 | A 3202925082 | PAD |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 130 | A 3122943001 | BEARING BRACKET |
| REAR | ||
| A 3222940001 | BEARING BRACKET | |
| REAR | ||
| A 3224310140 | BRACKET | |
| REAR | ||
| N 000933010128 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 000933010164 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| BEARING BRACKET TO SIDE MEMBER | ||
| 140 | A 3122941704 | BEARING TUBE |
| BRAKE COMPENSATING LEVER TO BEARING BRACKET | ||
| 144 | A 3222940004 | BEARING TUBE |
| BRAKE COMPENSATING LEVER TO BEARING BRACKET | ||
| 148 | N 912004012100 | LOCK WASHER |
| BRAKE COMPENSATING LEVER TO BEARING BRACKET | ||
| 152 | A 3129900017 | SCREW |
| BRAKE COMPENSATING LEVER TO BEARING BRACKET | ||
| 156 | A 3222900828 | LEVER |
| BRAKE LINKAGE COMPENSATION | ||
| 160 | A 3222901028 | LEVER |
| BRAKE LINKAGE COMPENSATION | ||
| 164 | A 3122911550 | BUSHING |
| 168 | N 071412010100 | GREASE NIPPLE |
| 172 | A 3129931510 | SPRING |
| BRAKE | ||
| 176 | N 900331010654 | PULL ROD |
| FROM PEDAL LEVER TO COMPENSATING LEVER | ||
| N 000934010014 | NUT | |
| FROM PEDAL LEVER TO COMPENSATING LEVER | ||
| 181 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 181 | A 0009961501 | YOKE |
| N 001434010009 | PIN | |
| 185 | A 3529910007 | PIN |
| PULL ROD TO PEDAL LEVER AND TO COMPENSATING LEVER | ||
| N 900055010002 | SPRING WASHER | |
| Repalced by: N 000137010205 | ||
| N 000137010205 | SPRING WASHER | |
| N 000433010505 | WASHER | |
| Repalced by: N 000433010510 | ||
| N 000433010510 | WASHER | |
| N 000094003219 | COTTER PIN | |
| A 3212900739 | ROD | |
| AT CLUTCH LEVER | ||
| A 3212900739 | ROD | |
| AT CLUTCH LEVER | ||
| 193 | A 3219961425 | ROD |
| FRONT | ||
| N 000934010035 | NUT | |
| 198 | N 001479010000 | TURNBUCKLE |
| N 000934010014 | NUT | |
| A 3219961525 | ROD | |
| REAR | ||
| 207 | A 0009916222 | BALL SOCKET |
| N 071805016300 | SNAP RING | |
| A 3272900129 | RELEASE YOKE | |
| Repalced by: A 3272501213 | ||
| 212 | A 3272501213 | RELEASE LEVER |
| Repalced by: A 3272930111 | ||
| 212 | A 3272930111 | RELEASE YOKE |
| Repalced by: A 3402500013 | ||
| 212 | A 3402500013 | RELEASE LEVER |
| CLUTCH | ||
| A 3179910515 | BALL PIVOT | |
| Repalced by: A 3029910015 | ||
| 216 | A 3029910015 | BALL PIVOT |
| RELEASE LEVER | ||
| 216 | A 3529910415 | BALL PIVOT |
| RELEASE LEVER | ||
| 220 | A 3402540013 | SPRING LOCK |
| RELEASE YOKE TO RELEASE BEARING | ||
| 224 | A 3522900031 | BEARING |
| OUTSIDE | ||
| 224 | A 3522900131 | BEARING |
| OUTSIDE | ||
| 229 | A 3522930012 | BRACKET |
| INSIDE | ||
| 229 | A 3522930112 | BRACKET |
| INSIDE | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BEARING TO BELL HOUSING | ||
| N 912004008102 | LOCK WASHER | |
| BEARING TO BELL HOUSING | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| BEARING TO BELL HOUSING | ||
| 237 | A 3222500215 | RELEASE BEARING |
| Repalced by: A 3522500115 | ||
| 237 | A 3522500115 | RELEASE BEARING |
| Repalced by: A 3402500215 | ||
| 237 | A 3402500215 | RELEASE BEARING |
| CLUTCH | ||
| 241 | A 0002540020 | RELEASE BEARING |
| 241 | A 0002540120 | RELEASE BEARING |
| 246 | A 3129870110 | STRIP |
| Repalced by: A 3409830010 | ||
| 246 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| TO 322 250 02 15,352 250 01 15 | ||
| 246 | A 3409830010 | STRIP |
| RELEASE BEARING | ||
| TO 340 250 02 15 | ||
| A 3052540033 | COVER | |
| TO 352 250 01 15 | ||
| 250 | A 3129932510 | SPRING |
| BRAKE | ||
| 254 | A 3122911040 | BRACKET |
