Transporto priemonė: L 328; VIN numerio dalis: 328009
Grupė: 26 TRANSMISSION

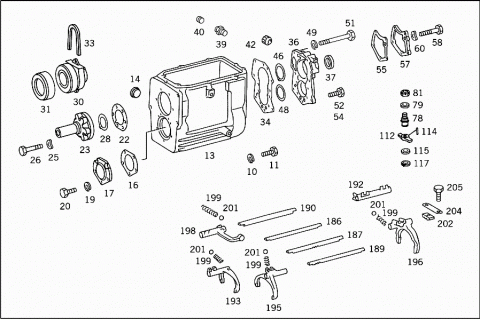

19160

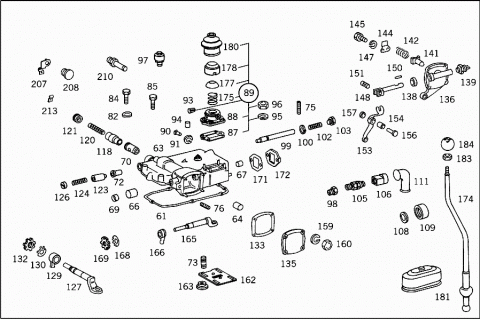

19176

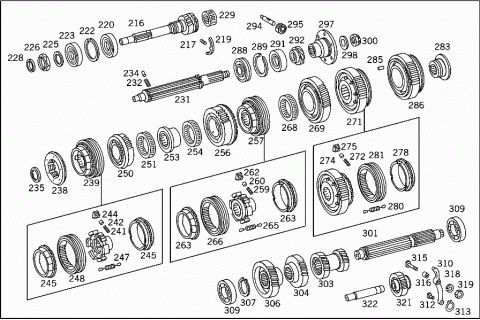

19161

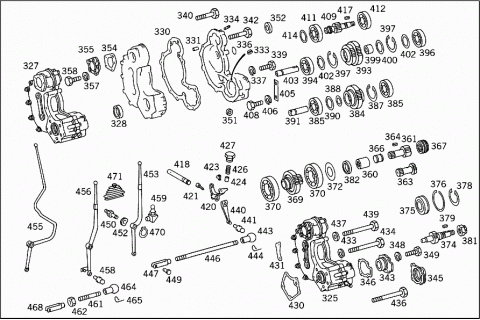

19162

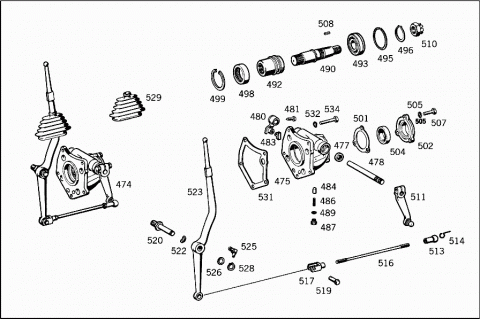

19163

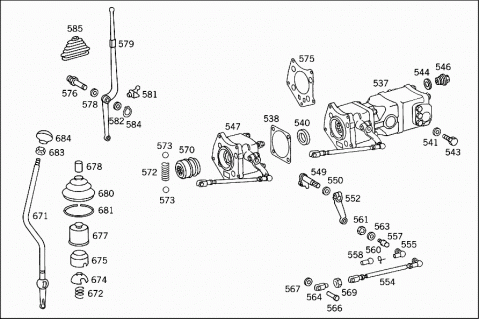

19164

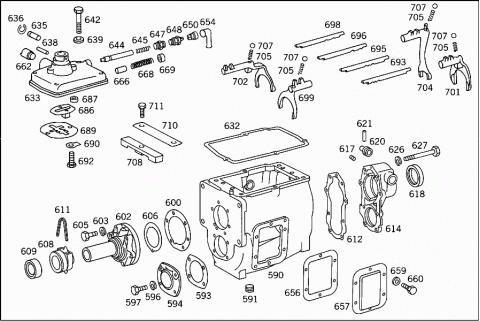

19165

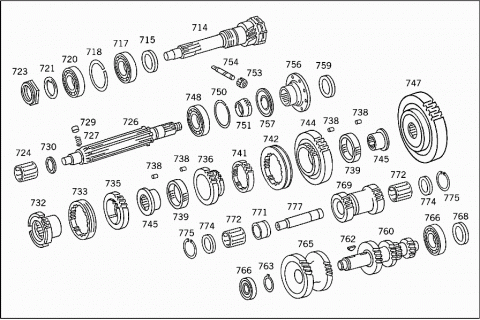

19166

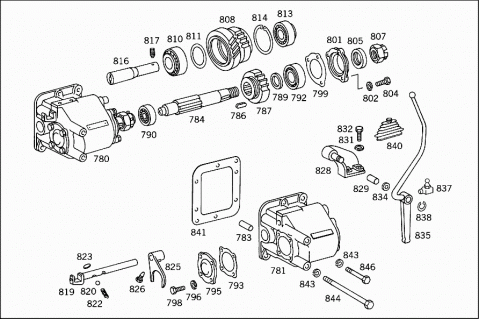

19167

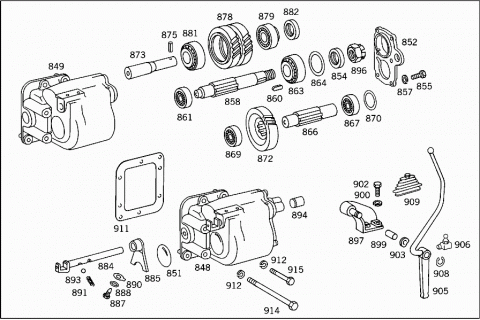

19168

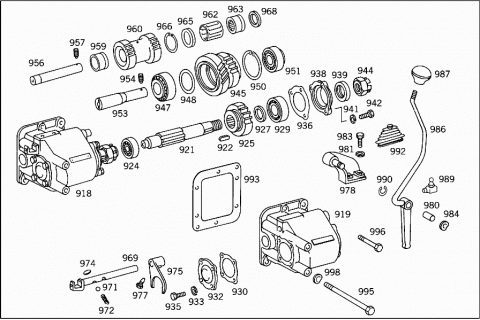

19169
# Kodas Pavadinimas
A 3222603100 TRANSMISSION
G 32
A 3222601700 TRANSMISSION
Repalced by: A 3222606100
A 3222606100 TRANSMISSION
LESS SHIFT LEVER AND BREATHER
A 3222604400 TRANSMISSION
Repalced by: A 3222606600
A 3222606600 TRANSMISSION
LESS SHIFT LEVER AND BREATHER
A 3232600800 TRANSMISSION
Repalced by: A 3232602000
A 3232602000 TRANSMISSION
LESS SHIFT LEVER AND BREATHER
A 3222603200 TRANSMISSION
G 32
A 3222601800 TRANSMISSION
Repalced by: A 3222606200
A 3222606200 TRANSMISSION
LESS SHIFT LEVER AND BREATHER
A 3232600900 TRANSMISSION
Repalced by: A 3232602100
A 3232602100 TRANSMISSION
LESS SHIFT LEVER AND BREATHER
010 N 912004014100 LOCK WASHER
TRANSMISSION TO BELL HOUSING
011 N 000933014014 SCREW
TRANSMISSION TO BELL HOUSING
M 14X40
013 A 3522600011 TRANSMISSION CASE
Repalced by: A 3022600611
013 A 3022600311 TRANSMISSION CASE
Repalced by: A 3022600611
013 A 3022600611 TRANSMISSION CASE
N 000007010028 CYLINDRICAL PIN
014 A 1869970032 SCREW PLUG
OIL FILLING
A 3215841024 UNIT IDENTIFICATION PLATE
Repalced by: A 3855845824
A 3855845824 UNIT IDENTIFICATION PLATE
Repalced by: A 6755840024
A 6755840024 UNIT IDENTIFICATION PLATE
N 001476003007 GROOVED NAIL
016 A 3212610779 GASKET
Repalced by: A 3522611280
016 A 3522611280 GASKET
Repalced by: A 3522611880
016 A 3522611880 GASKET
FRONT
017 A 3212610133 COVER
TRANSMISSION FRONT SEALING
019 N 912004008102 LOCK WASHER
TRANSMISSION FRONT SEALING
020 N 000933008147 SCREW
Repalced by: N 304017008021
020 N 304017008021 SCREW
TRANSMISSION FRONT SEALING
022 A 3122612179 GASKET
Repalced by: A 3122611180
022 A 3122611180 GASKET
TRANSMISSION FRONT SEALING
A 3212610218 TRANSMISSION CASE COVER
Repalced by: A 3212610318
023 A 3212610318 TRANSMISSION CASE COVER
Repalced by: A 3212610418
023 A 3212610418 TRANSMISSION CASE COVER
FRONT
025 N 912004008102 LOCK WASHER
026 N 000931008246 SCREW
Repalced by: N 304017008028
026 N 304017008028 SCREW
028 A 3122625362 SEAL RING
AS REQUIRED
2.85 MM
028 A 3122625462 SEAL RING
AS REQUIRED
2.90 MM
028 A 3122625562 SEAL RING
AS REQUIRED
2.95 MM
028 A 3122623462 SEAL RING
AS REQUIRED
3.00 MM
028 A 3122624362 SEAL RING
AS REQUIRED
3.05 MM
028 A 3122624462 SEAL RING
AS REQUIRED
3.10 MM
028 A 3122623562 SEAL RING
AS REQUIRED
3.15 MM
028 A 3122623662 SEAL RING
AS REQUIRED
3.20 MM
028 A 3122623762 SEAL RING
AS REQUIRED
3.25 MM
030 A 3122501315 RELEASE BEARING
Repalced by: A 3522500115
030 A 3522500115 RELEASE BEARING
Repalced by: A 3402500215
030 A 3402500215 RELEASE BEARING
CLUTCH
031 A 3122501016 FLANGED BEARING
Repalced by: A 0002540020
031 A 0002540020 RELEASE BEARING
FRONT
031 A 0002540120 RELEASE BEARING
FRONT
033 A 3129870110 STRIP
Repalced by: A 3409830010
033 A 3409830010 STRIP
RELEASE BEARING
TO 312 250 13 15,352 250 01 15
033 A 3409830010 STRIP
RELEASE BEARING
TO 340 250 02 15
A 3052540033 COVER
RELEASE BEARING
TO 352 250 01 15
034 A 3212611379 GASKET
Repalced by: A 3812610480
034 A 3812610480 GASKET
Repalced by: A 3812610780
034 A 3812610780 GASKET
REAR
A 3212610320 TRANSMISSION CASE COVER
Repalced by: A 3212610420
A 3212610420 TRANSMISSION CASE COVER
REAR
036 A 3372610120 TRANSMISSION CASE COVER
Repalced by: A 3372610220
036 A 3372610220 TRANSMISSION CASE COVER
REAR
037 N 006503058200 SEAL RING
Repalced by: A 0089971146
037 A 0089971146 SEAL RING
REAR
039 A 3212610031 THREADED BUSHING
SPEEDOMETER DRIVE
A 1202610080 GASKET
Repalced by: A 1152740060
040 A 0119976647 SEAL RING
Repalced by: A 1152740060
040 A 1152740060 SEAL RING
Repalced by: A 0119976447
040 A 0119976447 SEAL RING
042 N 071022024000 SLOTTED PLUG
046 A 3212620862 SEAL RING
AS REQUIRED
2.90MM
046 A 3212620962 SEAL RING
AS REQUIRED
3.00MM
046 A 3212621062 SEAL RING
AS REQUIRED
3.10MM
046 A 3212621162 SEAL RING
AS REQUIRED
3.20MM
046 A 3212621262 SEAL RING
AS REQUIRED
3.30MM
046 A 3212621362 SEAL RING
AS REQUIRED
3.40MM
046 A 3212621462 SEAL RING
AS REQUIRED
3.50MM
046 A 3212621562 SEAL RING
AS REQUIRED
3.60 MM
048 A 3122831752 SPACER WASHER
AS REQUIRED
0.05 MM
048 A 3122831052 SPACER WASHER
AS REQUIRED
0.10 MM
048 A 3122831152 SPACER WASHER
AS REQUIRED
0.20 MM
048 A 3122831252 SPACER WASHER
AS REQUIRED
0.40MM
048 A 3122832152 SPACER WASHER
AS REQUIRED
0.80 MM
049 N 912004008102 LOCK WASHER
TRANSMISSION CASE REAR COVER TO TRANSMISSION CASE
051 N 000931008123 SCREW
TRANSMISSION CASE REAR COVER TO TRANSMISSION CASE
M 8X85
052 N 000933008152 SCREW
Repalced by: N 304017008027
052 N 304017008027 SCREW
TRANSMISSION CASE REAR COVER TO TRANSMISSION CASE
M 8X30
054 N 000931008327 SCREW
Repalced by: N 304017008043
054 N 304017008043 SCREW
TRANSMISSION CASE REAR COVER TO TRANSMISSION CASE
M 8X55
055 A 3212611479 GASKET
Repalced by: A 3522611180
055 A 3522611180 GASKET
Repalced by: A 3522611680
055 A 3522611680 GASKET
Repalced by: A 3522611980
055 A 3522611980 GASKET
COVER TO CASE REAR COVER
057 A 3212610333 COVER
AT TRANSMISSION CASE REAR COVER
058 N 000931008266 SCREW
COVER TO CASE REAR COVER
060 N 000137008204 SPRING WASHER
COVER TO CASE REAR COVER
N 912004006102 LOCK WASHER
COVER TO CASE REAR COVER
061 A 3212611279 GASKET
Repalced by: A 3812610880
061 A 3812610880 GASKET
063 A 3222601714 TRANSMISSION CASE COVER
Repalced by: A 3222605914
063 A 3222605914 TRANSMISSION CASE COVER
TOP
A 3222601814 TRANSMISSION CASE COVER
Repalced by: A 3222606014
A 3222606014 TRANSMISSION CASE COVER
TOP
064 A 3212610050 BUSHING
26X30 MM
064 A 3212610050 BUSHING
26X30 MM
066 A 3212610150 BUSHING
20X30 MM
066 A 3212610150 BUSHING
20X30 MM
067 A 3212610350 BUSHING
26X25 MM
069 N 000443020000 EXPANSION PLUG
GUIDE PLATE TO SUBSTRUCTURE
069 N 000443020000 EXPANSION PLUG
GUIDE PLATE TO SUBSTRUCTURE
070 A 3212650250 BUSHING
TRANSMISSION CASE TOP COVER
072 A 3212650150 BUSHING
TRANSMISSION CASE TOP COVER
073 N 000835008007 STUD
Repalced by: N 000835008077
073 N 000835008077 STUD
TRANSMISSION CASE TOP COVER
M 8X18
075 N 000835008064 STUD
TRANSMISSION CASE TOP COVER
M 8X15
076 N 000835008008 STUD
TRANSMISSION CASE TOP COVER
M 8X20
078 A 3212650474 PIN
TRANSMISSION CASE TOP COVER
079 N 000125013008 WASHER
081 N 000937012001 NUT
TRANSMISSION CASE TOP COVER
N 000094003219 COTTER PIN
TRANSMISSION CASE TOP COVER
082 N 000137008204 SPRING WASHER
TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE
084 N 000931008266 SCREW
TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE
M 8X40
085 N 000931008246 SCREW
Repalced by: N 304017008028
085 N 304017008028 SCREW
TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE
M 8X50
087 A 3212611979 GASKET
088 A 3222603214 TRANSMISSION CASE COVER
Repalced by: A 3232600614
089 A 3232600614 REPAIR KIT
SHIFTING PARTS
090 A 3212670025 SLIDING BLOCK
091 N 009045008002 SNAP RING
093 N 001473005012 GROOVED PIN
094 N 000007008205 CYLINDRICAL PIN
095 N 912004008102 LOCK WASHER
SHIFTING DOME TO TRANSMISSION CASE TOP COVER
096 N 304032008006 NUT
SHIFTING DOME TO TRANSMISSION CASE TOP COVER
097 A 1112600058 BREATHER
098 A 1369970830 SCREW PLUG
A 3212610274 PIN
Repalced by: A 3172610174
099 A 3172610174 PIN
USED ON VEHICLES HAVING BACK-UP LIGHT SWITCH
N 900055005300 LOCK RING
Repalced by: A 0019946341
100 A 0019946341 LOCK
102 A 3129934201 SPRING
USED ON VEHICLES HAVING BACK-UP LIGHT SWITCH
103 A 3219970330 SCREW PLUG
Repalced by: N 007604018101
103 N 007603018101 SEAL RING
A 0005450306 SWITCH
Repalced by: A 0005455011
105 A 0005455011 SWITCH
BACK-UP LIGHT
106 A 0005455028 PLUG
Repalced by: A 3805450026
106 A 3805450026 PLUG SOCKET
108 A 0009906840 WASHER
TRANSMISSION CASE TOP COVER
109 A 0009902054 NUT
TRANSMISSION CASE TOP COVER
A 0005460035 BOOT
TRANSMISSION CASE TOP COVER
111 A 0005450645 BOOT
Repalced by: A 0005400481
111 A 0005400481 PLUG SOCKET
Repalced by: A 3805400181
111 A 3805400181 PLUG SOCKET
Repalced by: A 3805402181
111 A 3805402181 PLUG SOCKET
TRANSMISSION CASE TOP COVER
A 3212650007 LEVER
Repalced by: A 3372650007
112 A 3372650007 LEVER
1ST SPEED SHIFTING FORK
114 N 005402302104 CYLINDRICAL ROLLER
TRANSMISSION CASE TOP COVER
115 N 000433017000 WASHER
TRANSMISSION CASE TOP COVER
117 N 900055017300 LOCK RING
TRANSMISSION CASE TOP COVER
118 A 3212650316 THRUST PIECE
Repalced by: A 3212650416
118 A 3212650416 THRUST PIECE
Repalced by: A 3802650016
118 A 3802650016 THRUST PIECE
TRANSMISSION CASE TOP COVER
120 A 3219931701 SPRING
TRANSMISSION CASE TOP COVER
121 A 3219970103 PLUG
TRANSMISSION CASE TOP COVER
123 A 3212650248 INTERLOCK PIN
TRANSMISSION CASE TOP COVER
124 A 3219930601 SPRING
TRANSMISSION CASE TOP COVER
126 N 071022024000 SLOTTED PLUG
TRANSMISSION CASE TOP COVER
A 3212681329 SHIFTING ROD
Repalced by: A 3225860126
127 A 3222601433 SHIFTING ROD
Repalced by: A 3225860126
A 3222680029 SHIFTING ROD
Repalced by: A 3225860226
127 A 3222601533 SHIFTING ROD
Repalced by: A 3225860226
A 3225860126 REPAIR KIT
Repalced by: A 3222602233
A 3222602233 REPAIR KIT
Repalced by: A 3222602533
A 3222602533 SHIFTING ROD
SHIFTING ROD
A 3225860226 REPAIR KIT
Repalced by: A 3222601933
A 3222601933 REPAIR KIT
Repalced by: A 3222602333
A 3222602333 SHIFTING ROD
SHIFTING ROD
N 006888005006 WOODRUFF KEY
129 A 3212680533 SHIFTING FINGER
130 N 070952020101 LOCK PLATE
132 A 3219900160 NUT
A 3212612179 GASKET
Repalced by: A 3222610080
133 A 3222610080 GASKET
Repalced by: A 3972610180
133 A 3972610180 GASKET
A 3212610533 COVER
Repalced by: A 3222610133
135 A 3222610133 COVER
Repalced by: A 3972610033
135 A 3972610033 COVER
136 A 3222610033 COVER
138 N 003760016100 RADIAL SEAL RING
139 A 0005455011 SWITCH
141 A 3222640116 PAWL
142 A 3219931401 SPRING
144 A 3222640186 STOP RING
145 N 000933008147 SCREW
Repalced by: N 304017008021
145 N 304017008021 SCREW
147 N 912004008102 LOCK WASHER
148 A 3222600031 SHIFTING ROD
150 N 000007004207 CYLINDRICAL PIN
151 A 3222640074 PIN
153 A 3222600237 LEVER
154 A 0019920001 BUSHING
156 N 001434012041 PIN
157 N 000433013000 WASHER
N 000094004024 COTTER PIN
159 N 000137008204 SPRING WASHER
160 N 304032008006 NUT
A 3212600646 PLATE
Repalced by: A 3212600846
A 3212600746 PLATE
Repalced by: A 3212600846
162 A 3212600846 PLATE
163 A 3212650350 BUSHING
N 900055008002 SPRING WASHER
N 000979008000 NUT
N 000094002033 COTTER PIN
165 A 3212681229 SHIFTING ROD
Repalced by: A 3225860626
A 3225860626 REPAIR KIT
Repalced by: A 3222602933
A 3222602933 SHIFTING ROD
PARTS KIT
N 006888005006 WOODRUFF KEY
166 A 3212650430 SELECTOR LEVER
A 3222650030 SELECTOR LEVER
168 N 070952020101 LOCK PLATE
169 A 3219900160 NUT
A 3212612079 GASKET
Repalced by: A 3222610180
171 A 3222610180 GASKET
A 3212610433 COVER
Repalced by: A 3222610233
172 A 3222610233 COVER
N 000137008204 SPRING WASHER
N 304032008006 NUT
174 A 3222601139 SHIFT LEVER
Repalced by: A 3222602939
174 A 3222602939 SHIFT LEVER
174 A 3222601339 SHIFT LEVER
175 A 3179930501 SPRING
A 3172670108 SPHERICAL PIECE
Repalced by: A 3022670008
177 A 3022670008 SPHERICAL PIECE
178 A 3372680005 COVER
Repalced by: A 3142680005
178 A 3142680005 COVER
180 A 3372670096 BOOT
Repalced by: A 3522670196
181 A 3222670096 BOOT
Repalced by: A 3522670296
181 A 3522670296 BOOT
FLOOR COVERING
181 A 3522670396 BOOT
FLOOR COVERING
183 N 000936010010 NUT
184 A 3222600040 HANDLE
186 A 3212650805 SHIFTING ROD
1ST SPEED
187 A 3212651805 SHIFTING ROD
2ND AND 3RD SPEED
189 A 3212651905 SHIFTING ROD
4TH AND 5TH SPEED
A 3212651705 SHIFTING ROD
REVERSE SPEED
190 A 3222650305 SHIFTING ROD
REVERSE SPEED
192 A 3222650123 SHIFTING DOG
1ST SPEED
193 A 3212651202 SHIFTING FORK
2ND AND 3RD SPEED
195 A 3212650802 SHIFTING FORK
4TH AND 5TH SPEED
A 3212650401 SHIFTING FORK
Repalced by: A 3212651301
196 A 3212651301 SHIFTING FORK
1ST SPEED
198 A 3212650403 SHIFTING FORK
REVERSE SPEED
199 A 3129931001 SPRING
201 N 005401311000 BALL
202 A 3122651236 BRACKET
204 A 3129940332 LOCK
205 N 000931008007 SCREW
207 A 3215421340 BRACKET
208 A 3215420071 SCREW
M 18 X 1.5
210 A 3212640074 PIN
213 A 3215420440 BRACKET
N 000933006102 SCREW
N 912004006102 LOCK WASHER
N 000934006007 NUT
A 3212620602 DRIVE SHAFT
Repalced by: A 3222620102
A 3212620802 DRIVE SHAFT
Repalced by: A 3222620102
216 A 3222620102 DRIVE SHAFT
Repalced by: A 3222620802
216 A 3222620802 DRIVE SHAFT
217 A 3219931201 SPRING
219 A 3212620073 LOCK
A 3122621852 SPACER WASHER
A 0009816201 CYLINDR. ROLLER BEARING
Repalced by: A 0019813101
A 0009817101 CYLINDR. ROLLER BEARING
Repalced by: A 0019813101
A 0009817201 CYLINDR. ROLLER BEARING
Repalced by: A 0019813101
220 A 0019813101 CYLINDR. ROLLER BEARING
A 0019818701 CYLINDR. ROLLER BEARING
O.D.,85.50 MM
222 N 005417085001 SNAP RING
AS REQUIRED
1.70 MM
A 0009943435 SNAP RING
AS REQUIRED
1.80 MM
A 0009942835 SNAP RING
AS REQUIRED
1.90 MM
223 A 0009810527 ANGULAR CONTACT BEARING
Repalced by: A 0009812827
223 A 0009812827 ANGULAR CONTACT BEARING
DRIVE SHAFT
223 A 0009814327 ANGULAR CONTACT BEARING
DRIVE SHAFT
223 A 0019811627 ANGULAR CONTACT BEARING
DRIVE SHAFT
A 3122621852 SPACER WASHER
225 A 3122623162 SEAL RING
226 A 3122621172 NUT
L.H. THREAD
N 073102035100 PISTON RING
228 A 0029971346 SEAL RING
Repalced by: A 0089970146
228 A 0089970146 SEAL RING
Repalced by: A 0159977747
228 A 0159977747 SEAL RING
228 A 0159977647 SEAL RING
228 A 0179971447 SEAL RING
A 0009812612 ROLLER ASSEMBLY
229 A 0009814312 ROLLER ASSEMBLY
229 A 0009814512 ROLLER ASSEMBLY
229 A 0009814612 ROLLER ASSEMBLY
A 3212620505 MAIN SHAFT
Repalced by: A 3222620505
231 A 3222620005 MAIN SHAFT
Repalced by: A 3222620505
231 A 3222620505 MAIN SHAFT
Repalced by: A 3222620705
231 A 3222620705 MAIN SHAFT
232 A 3129931701 SPRING
MAIN SHAFT
234 A 3212620374 PIN
Repalced by: A 3852621074
234 A 3852621074 PIN
MAIN SHAFT
235 A 3212622162 SEAL RING
Repalced by: A 3212623862
235 A 3212623862 SEAL RING
AS REQUIRED
6.90 MM
235 A 3212622062 SEAL RING
Repalced by: A 3212623762
235 A 3212623762 SEAL RING
AS REQUIRED
7.00 MM
235 A 3212621962 SEAL RING
Repalced by: A 3212623662
235 A 3212623662 SEAL RING
AS REQUIRED
7.10 MM
235 A 3212621862 SEAL RING
Repalced by: A 3212623562
235 A 3212623562 SEAL RING
AS REQUIRED
7.20 MM
235 A 3212621762 SEAL RING
Repalced by: A 3212623462
235 A 3212623462 SEAL RING
AS REQUIRED
7.30 MM
235 A 3212620462 SEAL RING
Repalced by: A 3212623962
235 A 3212623962 SEAL RING
AS REQUIRED
7.40 MM
235 A 3212622862 SEAL RING
Repalced by: A 3212624662
235 A 3212624662 SEAL RING
AS REQUIRED
7.45 MM
235 A 3212620562 SEAL RING
Repalced by: A 3212624062
235 A 3212624062 SEAL RING
AS REQUIRED
7.50 MM
235 A 3212622962 SEAL RING
Repalced by: A 3212624762
235 A 3212624762 SEAL RING
AS REQUIRED
7.55 MM
235 A 3212620662 SEAL RING
Repalced by: A 3212624162
235 A 3212624162 SEAL RING
AS REQUIRED
7.60 MM
235 A 3212623062 SEAL RING
Repalced by: A 3212624862
235 A 3212624862 SEAL RING
AS REQUIRED
7.65 MM
235 A 3212620762 SEAL RING
Repalced by: A 3212624262
235 A 3212624262 SEAL RING
AS REQUIRED
7.70 MM
235 A 3212622562 SEAL RING
Repalced by: A 3212624362
235 A 3212624362 SEAL RING
AS REQUIRED
7.80 MM
235 A 3212622662 SEAL RING
Repalced by: A 3212624462
235 A 3212624462 SEAL RING
AS REQUIRED
7.90 MM
235 A 3212622762 SEAL RING
Repalced by: A 3212624562
235 A 3212624562 SEAL RING
AS REQUIRED
8.00 MM
A 3212620634 SYNCHRONIZER RING
5TH SPEED
238 A 3222620034 SYNCHRONIZER RING
Repalced by: A 3222620434
238 A 3222620434 SYNCHRONIZER RING
5TH SPEED
A 3212601445 SYNCHRONIZER BODY
4TH AND 5TH SPEED
A 3222600645 SYNCHRONIZER BODY
4TH AND 5TH SPEED
239 A 3222600845 SYNCHRONIZER BODY
4TH AND 5TH SPEED
A 3222620735 SYNCHRONIZER BODY
4TH AND 5TH SPEED
241 A 3219930701 SPRING
4TH AND 5TH SPEED
242 A 3212620774 PIN
4TH AND 5TH SPEED
244 A 3212621040 FOLLOWER
4TH AND 5TH SPEED
245 A 3212621537 SYNCHRONIZER CONE
Repalced by: A 3222620137
A 3222620137 SYNCHRONIZER CONE
4TH AND 5TH SPEED
247 A 3212600469 SPRING
WITH SPHERICAL WASHER
A 3212620823 SLIDING COLLAR
Repalced by: A 3212621223
248 A 3212621223 SLIDING COLLAR
4TH AND 5TH SPEED
A 3212601744 GEAR
Repalced by: A 3222600244
250 A 3222600244 GEAR
4TH SPEED
251 A 3229810612 ROLLER ASSEMBLY
Repalced by: A 3529810012
251 A 3229810812 ROLLER ASSEMBLY
Repalced by: A 3529810012
251 A 3529810012 ROLLER ASSEMBLY
4TH SPEED
253 A 3222624050 BUSHING
Repalced by: A 3222626550
253 A 3222626550 BUSHING
4TH SPEED
44.50 MM
A 3222624150 BUSHING
Repalced by: A 3222626650
A 3222626650 BUSHING
4TH SPEED
44.60 MM
254 A 3229810512 ROLLER ASSEMBLY
Repalced by: A 3529810112
254 A 3229810712 ROLLER ASSEMBLY
Repalced by: A 3529810112
254 A 3529810112 ROLLER ASSEMBLY
4TH SPEED
A 3212620313 GEAR
Repalced by: A 3222600644
A 3222600044 GEAR
Repalced by: A 3222600644
256 A 3222600644 GEAR
Repalced by: A 3222602444
256 A 3222602444 GEAR
3RD SPEED
A 3222600045 SYNCHRONIZER BODY
2ND AND 3RD SPEED
A 3222600545 SYNCHRONIZER BODY
2ND AND 3RD SPEED
257 A 3222600745 SYNCHRONIZER BODY
2ND AND 3RD SPEED
A 3222620635 SYNCHRONIZER BODY
2ND AND 3RD SPEED
259 A 3219930701 SPRING
2ND AND 3RD SPEED
260 A 3212620774 PIN
2ND AND 3RD SPEED
262 A 3212621040 FOLLOWER
2ND AND 3RD SPEED
263 A 3212621537 SYNCHRONIZER CONE
Repalced by: A 3222620137
A 3222620137 SYNCHRONIZER CONE
2ND AND 3RD SPEED
265 A 3212600469 SPRING
WITH SPHERICAL WASHER
A 3212620823 SLIDING COLLAR
Repalced by: A 3212621223
266 A 3212621223 SLIDING COLLAR
2ND AND 3RD SPEED
268 A 3229810512 ROLLER ASSEMBLY
Repalced by: A 3529810112
268 A 3229810712 ROLLER ASSEMBLY
Repalced by: A 3529810112
268 A 3529810112 ROLLER ASSEMBLY
2ND SPEED
A 3212620212 GEAR
Repalced by: A 3222620112
269 A 3222620112 GEAR
Repalced by: A 3222620412
269 A 3222620412 GEAR
2ND SPEED
271 A 3222600425 GEAR
REVERSE SPEED
271 A 3222600625 GEAR
REVERSE SPEED
271 A 3222600925 GEAR
REVERSE SPEED
A 3222630433 REVERSE IDLER GEAR
272 A 3219930701 SPRING
1ST SPEED
274 A 3212620674 PIN
1ST SPEED
275 A 3212620940 FOLLOWER
1ST SPEED
A 3212620376 BALL SOCKET
Repalced by: A 3142620076
A 3142620076 BALL SOCKET
A 3212621537 SYNCHRONIZER CONE
Repalced by: A 3222620137
278 A 3222620137 SYNCHRONIZER CONE
1ST SPEED
280 A 3212600469 SPRING
A 3212620723 SLIDING COLLAR
Repalced by: A 3212621123
281 A 3212621123 SLIDING COLLAR
1ST SPEED
283 A 3212620750 BUSHING
AS REQUIRED
44.20 MM
283 A 3212620850 BUSHING
AS REQUIRED
44.30 MM
283 A 3212620950 BUSHING
AS REQUIRED
44.40 MM
283 A 3212620350 BUSHING
AS REQUIRED
44.50 MM
283 A 3212621050 BUSHING
Repalced by: A 3222626650
283 A 3222626650 BUSHING
AS REQUIRED
44.60 MM
283 A 3212621150 BUSHING
AS REQUIRED
44.70 MM
283 A 3212621250 BUSHING
AS REQUIRED
44.80 MM
283 A 3212621350 BUSHING
AS REQUIRED
44.90 MM
283 A 3222621150 BUSHING
Repalced by: A 3222625650
283 A 3222625650 BUSHING
AS REQUIRED
44.20 MM
283 A 3222621250 BUSHING
Repalced by: A 3222625750
283 A 3222625750 BUSHING
AS REQUIRED
44.30 MM
283 A 3222621350 BUSHING
Repalced by: A 3222625850
283 A 3222625850 BUSHING
AS REQUIRED
44.40 MM
283 A 3222621450 BUSHING
Repalced by: A 3222625950
283 A 3222625950 BUSHING
AS REQUIRED
44.50 MM
283 A 3222621550 BUSHING
Repalced by: A 3222626050
283 A 3222626050 BUSHING
AS REQUIRED
44.60 MM
283 A 3222621650 BUSHING
Repalced by: A 3222626150
283 A 3222626150 BUSHING
AS REQUIRED
44.70 MM
283 A 3222621750 BUSHING
Repalced by: A 3222626250
283 A 3222626250 BUSHING
AS REQUIRED
44.80 MM
283 A 3222621850 BUSHING
Repalced by: A 3222626350
283 A 3222626350 BUSHING
AS REQUIRED
44.90 MM
285 N 005402004203 CYLINDRICAL ROLLER
1ST AND 2ND SPEED
A 3212620253 SPACER TUBE
Repalced by: A 3529810112
A 3529810112 ROLLER ASSEMBLY
1ST AND 2ND SPEED
A 3212620511 GEAR
Repalced by: A 3222620211
286 A 3222620111 GEAR
Repalced by: A 3222620211
286 A 3222620211 GEAR
Repalced by: A 3222620511
286 A 3222620511 GEAR
1ST AND 2ND SPEED
286 A 3212620611 GEAR
1ST AND 2ND SPEED
288 A 0009811201 CYLINDR. ROLLER BEARING
1ST AND 2ND SPEED
A 0019818901 CYLINDR. ROLLER BEARING
O.D.,
100.50MM
289 A 3219940040 SNAP RING
AS REQUIRED
2.68 MM
289 A 3219940140 SNAP RING
AS REQUIRED
2.73 MM
289 A 3219940240 SNAP RING
AS REQUIRED
2.78 MM
289 A 3219940340 SNAP RING
AS REQUIRED
2.83 MM
289 A 3219940440 SNAP RING
AS REQUIRED
2.88 MM
289 A 3219940540 SNAP RING
AS REQUIRED
2.93 MM
291 A 0009810627 ANGULAR CONTACT BEARING
Repalced by: A 0009812927
291 A 0009812927 ANGULAR CONTACT BEARING
291 A 0009814227 ANGULAR CONTACT BEARING
291 A 0019811527 ANGULAR CONTACT BEARING
292 A 3212640430 DRIVE GEAR
Repalced by: A 3522640130
292 A 3212640630 DRIVE GEAR
Repalced by: A 3522640130
292 A 3522640130 DRIVE GEAR
SPEEDOMETER
294 A 3212640532 SHAFT
Repalced by: A 3142640032
294 A 3142640032 SHAFT
Repalced by: A 3142640332
294 A 3142640332 SHAFT
SPEEDOMETER
295 A 3212640331 DRIVE GEAR
Repalced by: A 3212640631
295 A 3212640631 DRIVE GEAR
Repalced by: A 3812640031
295 A 3812640031 DRIVE GEAR
SPEEDOMETER
297 A 3212600217 FLANGE
Repalced by: A 3222620045
A 3212620263 PROTECTIVE PLATE
297 A 3222620045 FLANGE
298 A 3219900240 WASHER
300 N 000937028000 NUT
N 000094005017 COTTER PIN
A 3222620072 NUT
A 3212630202 COUNTERSHAFT
Repalced by: A 3222630102
A 3222630102 COUNTERSHAFT
301 A 3222630202 COUNTERSHAFT
Repalced by: A 3222630302
301 A 3222630302 COUNTERSHAFT
A 3212630502 COUNTERSHAFT
A 3212630313 GEAR
Repalced by: A 3222630313
303 A 3222630313 GEAR
Repalced by: A 3222630513
303 A 3222630513 GEAR
2ND AND 3RD SPEED
A 3212630414 GEAR
Repalced by: A 3222630314
304 A 3222630314 GEAR
4TH SPEED
A 3212630210 GEAR
Repalced by: A 3222630010
306 A 3222630010 GEAR
Repalced by: A 3222630610
306 A 3222630610 GEAR
CONSTANT
307 N 900055052300 LOCK RING
309 A 0019819205 TAPERED ROLLER BEARING
Repalced by: A 0019813105
309 A 0019813105 TAPERED ROLLER BEARING
COUNTERSHAFT
309 A 0069814305 TAPERED ROLLER BEARING
COUNTERSHAFT
309 A 0019815005 TAPERED ROLLER BEARING
COUNTERSHAFT
309 A 0069815305 TAPERED ROLLER BEARING
COUNTERSHAFT
A 0039814605 TAPERED ROLLER BEARING
COUNTERSHAFT,FRONT
90.50 MM
A 0039816305 TAPERED ROLLER BEARING
COUNTERSHAFT,REAR
90.50 MM
310 A 3212650208 LEVER
REVERSE SPEED
312 A 3212650449 SLIDE
Repalced by: A 3142650349
312 A 3142650349 SLIDE
313 N 000471010001 LOCK RING
A 3212650574 PIN
Repalced by: A 3212650074
315 A 3212650074 PIN
LEVER TO TRANSMISSION CASE
316 A 3212650050 BUSHING
318 N 912004010102 LOCK WASHER
319 N 000934010014 NUT
A 3222600025 GEAR
Repalced by: A 3222600325
321 A 3222600325 GEAR
Repalced by: A 3222600825
321 A 3222600825 GEAR
REVERSE SPEED
322 A 3212630430 REVERSE IDLER SHAFT
Repalced by: A 3212630630
322 A 3212630630 REVERSE IDLER SHAFT
A 3212600105 P.T.O.
Repalced by: A 3522600005
A 3222600305 P.T.O.
Repalced by: A 3522600005
325 A 3522600005 P.T.O.
(LESS SHIFT LEVER),RATIO 1:1,51
A 3212600205 P.T.O.
Repalced by: A 3522600105
A 3222600205 P.T.O.
Repalced by: A 3522600105
A 3222600405 P.T.O.
Repalced by: A 3522600105
A 3522600105 P.T.O.
LESS SHIFT LEVER,RATIO 1:1,023
A 3222601305 P.T.O.
Repalced by: A 3522600205
A 3522600205 P.T.O.
LESS SHIFT LEVER,RATIO 1:0,73
A 3212600805 P.T.O.
Repalced by: A 3522600305
A 3222600505 P.T.O.
Repalced by: A 3522600305
A 3522600305 P.T.O.
LESS SHIFT LEVER,RATIO,TOP,1:1,51;RATIO,BOTTOM,1:0,395
A 3212600905 P.T.O.
Repalced by: A 3522600405
A 3222600605 P.T.O.
Repalced by: A 3522600405
A 3522600405 P.T.O.
LESS SHIFT LEVER;RATIO,TOP,1:1,023;RATIO,BOTTOM,1:0,395
A 3222601405 P.T.O.
Repalced by: A 3522600505
A 3522600505 P.T.O.
LESS SHIFT LEVER;RATIO,TOP,1:0,73 RATIO,BOTTOM,1:0,395
A 3212600410 CASE
P.T.O.
327 A 3522600012 TRANSMISSION CASE
P.T.O.
A 3212640087 RING
HOUSING FRONT HALF
328 A 3212640187 RING
HOUSING FRONT HALF
330 A 3212640179 GASKET
HOUSING FRONT HALF
331 N 000007006207 CYLINDRICAL PIN
HOUSING FRONT HALF
333 N 000443016000 EXPANSION PLUG
HOUSING FRONT HALF
334 N 000907010000 CORE BAR
HOUSING FRONT HALF
336 N 000470034000 EXPANSION PLUG
HOUSING FRONT HALF
N 000931008209 SCREW
CASE PART I TO CASE PART II
M 8X95
N 000931008257 SCREW
CASE PART I TO CASE PART II
M 8X115
N 912004008102 LOCK WASHER
CASE PART I TO CASE PART II
N 304032008006 NUT
CASE PART I TO CASE PART II
337 N 912004008102 LOCK WASHER
CASE PART I TO CASE PART II
339 N 000931008221 SCREW
CASE PART I TO CASE PART II
M 8X38
340 N 000931008248 SCREW
Repalced by: N 304017008053
340 N 304017008053 SCREW
CASE PART I TO CASE PART II
M 8X60
342 N 000931008189 SCREW
343 A 3222640011 COVER
345 A 3212640111 COVER
346 A 3212640379 GASKET
348 N 912004008102 LOCK WASHER
349 N 000933008154 SCREW
Repalced by: N 304017008021
349 N 304017008021 SCREW
351 N 006503016100 SEAL RING
352 N 006503030103 SEAL RING
354 A 3212640279 GASKET
Repalced by: A 3212640080
354 A 3212640080 GASKET
355 A 3212640103 TRANSMISSION CASE COVER
357 N 912004008102 LOCK WASHER
358 N 000933008154 SCREW
Repalced by: N 304017008021
358 N 304017008021 SCREW
A 3212640039 END PIECE
A 3222640033 CONNECTOR
Repalced by: A 3812640133
360 A 3812640133 CONNECTOR
A 3212640506 DRIVE SHAFT
Repalced by: A 3212640006
A 3212640006 DRIVE SHAFT
Repalced by: A 3222600720
A 3222600720 DRIVE SHAFT
A 3222640006 DRIVE SHAFT
Repalced by: A 3812641306
361 A 3812641306 DRIVE SHAFT
A 3212640706 DRIVE SHAFT
Repalced by: A 3812641406
363 A 3812641406 DRIVE SHAFT
364 N 005402003303 CYLINDRICAL ROLLER
366 A 3212640353 SPACER TUBE
N 005407011016 ROLLER ASSEMBLY
Repalced by: A 0009816312
A 0009816312 ROLLER ASSEMBLY
IN DRIVE SHAFT
367 A 3212640123 SLIDING COLLAR
A 3212640020 GEAR
Repalced by: A 3222600720
A 3222600720 DRIVE SHAFT
DRIVE SHAFT
369 A 3212640120 GEAR
DRIVE SHAFT
N 000625006208 GROOVED BALL BEARING
370 N 000625006011 GROOVED BALL BEARING
372 A 3122831752 SPACER WASHER
AS REQUIRED
0.05 MM
372 A 3122831052 SPACER WASHER
AS REQUIRED
0.10MM
372 A 3122831152 SPACER WASHER
AS REQUIRED
0.20MM
372 A 3122831252 SPACER WASHER
AS REQUIRED
0.40MM
372 A 3122832152 SPACER WASHER
AS REQUIRED
0.80MM
N 000472080000 LOCK RING
TO GROOVED BALL BEARING IN CASE FRONT HALF
374 A 3212640606 DRIVE SHAFT
375 N 000625506207 GROOVED BALL BEARING
376 N 005417072001 SNAP RING
378 N 900055035301 LOCK RING
379 N 006885008002 KEY
381 N 000937024002 NUT
N 000094005016 COTTER PIN
382 A 3222640086 STOP RING
384 A 3212640121 GEAR
DRIVE
385 N 005412402306 CYLINDR. ROLLER BEARING
387 N 000472072000 LOCK RING
DRIVE
388 A 3212640452 SPACER WASHER
AS REQUIRED
2.85 MM
288 A 3212640552 SPACER WASHER
AS REQUIRED
3.10 MM
390 A 3122642552 SPACER WASHER
AS REQUIRED
0.10 MM
390 A 3122642652 SPACER WASHER
AS REQUIRED
0.20 MM
390 A 3122642752 SPACER WASHER
AS REQUIRED
0.40 MM
391 A 3212640318 SHAFT
Repalced by: A 3812640618
A 3812640618 SHAFT
BOTTOM
A 0049975048 SEAL RING
393 A 3212640221 GEAR
NUMBER OF TEETH:
33/41
393 A 3212640321 GEAR
NUMBER OF TEETH:
33/37
A 3222640021 GEAR
NUMBER OF TEETH:
33
394 N 005412400306 CYLINDR. ROLLER BEARING
FRONT
396 N 005412402306 CYLINDR. ROLLER BEARING
REAR
397 N 000472072000 LOCK RING
399 A 3212640253 SPACER TUBE
Repalced by: A 3812640153
399 A 3812640153 SPACER TUBE
400 A 3212640452 SPACER WASHER
AS REQUIRED
2.85 MM
400 A 3212640552 SPACER WASHER
AS REQUIRED
3.10 MM
402 A 3122642552 SPACER WASHER
AS REQUIRED
0.10 MM
402 A 3122642652 SPACER WASHER
AS REQUIRED
0.20 MM
402 A 3122642752 SPACER WASHER
AS REQUIRED
0.40 MM
403 A 3212640218 SHAFT
Repalced by: A 3812640518
403 A 3812640518 SHAFT
TOP
A 0049975048 SEAL RING
405 A 3212640141 BRACKET
CASE,REAR
406 N 912004008102 LOCK WASHER
BRACKET TO TRANSMISSION
408 N 000933008145 SCREW
409 A 3212640206 DRIVE SHAFT
NUMBER OF TEETH:
12
A 3212640306 DRIVE SHAFT
NUMBER OF TEETH:
16
A 3222640206 DRIVE SHAFT
NUMBER OF TEETH:
20
411 N 000720030206 TAPERED ROLLER BEARING
412 N 000720032206 TAPERED ROLLER BEARING
Repalced by: A 0019816505
412 A 0019816505 TAPERED ROLLER BEARING
414 A 3212641852 SPACER WASHER
AS REQUIRED
0.05 MM
414 A 3212640052 SPACER WASHER
AS REQUIRED
4.00MM
414 A 3212640152 SPACER WASHER
AS REQUIRED
4.10MM
414 A 3212640252 SPACER WASHER
AS REQUIRED
4.20MM
414 A 3212640352 SPACER WASHER
Repalced by: A 3212640852
414 A 3212640852 SPACER WASHER
AS REQUIRED
4.30 MM
414 A 3212640752 SPACER WASHER
Repalced by: A 3212640852
414 A 3212640852 SPACER WASHER
AS REQUIRED
4.40 MM
414 A 3212640852 SPACER WASHER
AS REQUIRED
4.50MM
414 A 3212640952 SPACER WASHER
AS REQUIRED
4.60MM
414 A 3212641052 SPACER WASHER
Repalced by: A 3212641152
414 A 3212641152 SPACER WASHER
AS REQUIRED
4.70 MM
414 A 3212641152 SPACER WASHER
AS REQUIRED
4.80MM
414 A 3212641252 SPACER WASHER
Repalced by: A 3212641452
414 A 3212641452 SPACER WASHER
AS REQUIRED
4.90 MM
414 A 3212641352 SPACER WASHER
AS REQUIRED
5.00MM
414 A 3212641452 SPACER WASHER
AS REQUIRED
5.10MM
414 A 3212641552 SPACER WASHER
AS REQUIRED
5.20MM
414 A 3212641652 SPACER WASHER
AS REQUIRED
5.30MM
414 A 3212641752 SPACER WASHER
AS REQUIRED
5.40MM
417 N 006885008002 KEY
N 000937024002 NUT
N 000094005016 COTTER PIN
418 A 3212640025 SHIFTING ROD
A 3212640040 LOCK-OUT
420 A 3222640026 SHIFTING FORK
A 3212640026 SHIFTING FORK
421 A 3122641071 SCREW
423 A 1212630123 COLLAR
N 005401311000 BALL
424 A 3222840148 INTERLOCK PIN
A 3129931001 SPRING
426 A 3229931701 SPRING
N 071022014000 SLOTTED PLUG
427 A 3229970330 SCREW PLUG
N 007603014103 SEAL RING
A 3215844224 UNIT IDENTIFICATION PLATE
FOR RATIO 1:1,51
A 3525840524 UNIT IDENTIFICATION PLATE
FOR RATIO 1:1,51
A 3215844324 UNIT IDENTIFICATION PLATE
FOR RATIO 1:1,023
A 3225840324 UNIT IDENTIFICATION PLATE
FOR RATIO 1:1,023
A 3525840624 UNIT IDENTIFICATION PLATE
FOR RATIO 1:1,023
A 3525840724 UNIT IDENTIFICATION PLATE
FOR RATIO 1:0,73
A 3215844724 UNIT IDENTIFICATION PLATE
FOR RATIOS 1:1,51 AND 1:0,395
A 3525840824 UNIT IDENTIFICATION PLATE
FOR RATIOS 1:1,51 AND 1:0,395
A 3215844824 UNIT IDENTIFICATION PLATE
FOR RATIOS 1:1,023 AND 1:0,395
A 3525840924 UNIT IDENTIFICATION PLATE
FOR RATIOS 1:1,023 AND 1:0,395
A 3525841024 UNIT IDENTIFICATION PLATE
RATIO:
1:0.73; 1:0.395
N 001476003007 GROOVED NAIL
LEVER TO BRACKET
430 A 3212611479 GASKET
Repalced by: A 3522611180
430 A 3522611180 GASKET
Repalced by: A 3522611680
430 A 3522611680 GASKET
Repalced by: A 3522611980
430 A 3522611980 GASKET
P.T.O. TO TRANSMISSION
431 A 3212611579 GASKET
Repalced by: A 3522611380
431 A 3522611380 GASKET
Repalced by: A 3522611780
431 A 3522611780 GASKET
P.T.O. TO TRANSMISSION
433 N 000137008204 SPRING WASHER
P.T.O. TO TRANSMISSION
434 N 000931008209 SCREW
P.T.O. TO TRANSMISSION
M 8X95
436 N 000931008220 SCREW
Repalced by: N 304017008067
436 N 304017008067 SCREW
P.T.O. TO TRANSMISSION
M 8X110
N 000931008394 SCREW
P.T.O. TO TRANSMISSION
M 8X155
437 N 912004008102 LOCK WASHER
P.T.O. TO TRANSMISSION
439 N 000931008328 SCREW
P.T.O. TO TRANSMISSION
M 8X130
A 3212600137 LEVER
GEARSHIFT MECHANISM
440 A 3212600337 LEVER
GEARSHIFT MECHANISM
A 3212600237 LEVER
GEARSHIFT MECHANISM
441 N 071803013207 BALL PIVOT
LEVER
N 000931008047 SCREW
Repalced by: N 304017008018
N 304017008018 SCREW
SHIFT LEVER TO SHAFT
N 912004008102 LOCK WASHER
SHIFT LEVER TO SHAFT
N 304032008006 NUT
SHIFT LEVER TO SHAFT
443 N 071805013203 BALL SOCKET
CASE PART I TO CASE PART II
N 071805013300 SNAP RING
SHIFT LEVER TO SHAFT
444 N 071805013402 SECURING CLIP
SHIFT LEVER TO SHAFT
N 304032008006 NUT
SHIFT LEVER TO SHAFT
446 N 900331008420 PULL ROD
SHIFT LEVER TO SHAFT
N 304032008006 NUT
SHIFT LEVER TO SHAFT
447 N 071752008002 YOKE
SHIFT LEVER TO SHAFT
449 N 001434008020 PIN
SHIFT LEVER TO SHAFT
N 000433008406 WASHER
SHIFT LEVER TO SHAFT
N 000094002059 COTTER PIN
SHIFT LEVER TO SHAFT
450 A 3212640074 PIN
SHIFT LEVER TO SHAFT
452 A 3129900148 WASHER
SHIFT LEVER TO SHAFT
453 A 3222640124 SHIFT LEVER
Repalced by: A 3222603039
453 A 3222603039 SHIFT LEVER
P.T.O.
455 A 3222640424 SHIFT LEVER
P.T.O.
456 A 3222640324 SHIFT LEVER
P.T.O.
456 A 3222601639 SHIFT LEVER
Repalced by: A 3222603039
456 A 3222603039 SHIFT LEVER
P.T.O.
458 N 071803013207 BALL PIVOT
SHIFT LEVER
459 N 071412008302 GREASE NIPPLE
FROM SHIFT LEVER TO P.T.O.
461 N 900331008077 PULL ROD
FROM SHIFT LEVER TO P.T.O.
462 N 000935008000 NUT
FROM SHIFT LEVER TO P.T.O.
464 N 071805013203 BALL SOCKET
FROM SHIFT LEVER TO P.T.O.
N 071805013302 SNAP RING
FROM SHIFT LEVER TO P.T.O.
465 N 071805013402 SECURING CLIP
FROM SHIFT LEVER TO P.T.O.
468 N 071752008002 YOKE
FROM SHIFT LEVER TO P.T.O.
N 000433015005 WASHER
470 N 000471015000 LOCK RING
471 A 3222640096 BOOT
A 3222640016 PAWL
N 912004006102 LOCK WASHER
N 000933006130 SCREW
X XXXXXXXXXXXX PART NAME MISSING
CENTRAL P.T.O.
A 3212600405 P.T.O.
Repalced by: A 3222601005
474 A 3222601005 P.T.O.
WITH SHIFT LEVER RATIO 1:0,395
A 3212600605 P.T.O.
Repalced by: A 3222601205
474 A 3222601205 P.T.O.
WITH SHIFT LEVER;RATIO 1:0,395
A 3212600305 P.T.O.
Repalced by: A 3522600605
A 3222600705 P.T.O.
Repalced by: A 3522600605
A 3522600605 P.T.O.
LESS SHIFT LEVER;RATIO 1:0,395
475 A 3522640101 CASE
A 3525841124 UNIT IDENTIFICATION PLATE
N 001476003007 GROOVED NAIL
477 N 006503016100 SEAL RING
478 A 3212640125 SHIFTING ROD
480 A 3212640140 LOCK-OUT
481 A 3122641071 SCREW
483 A 1212630123 COLLAR
N 005401311000 BALL
484 A 3222840148 INTERLOCK PIN
A 3129931001 SPRING
486 A 3229931701 SPRING
N 071022014000 SLOTTED PLUG
487 A 3229970330 SCREW PLUG
489 N 007603014103 SEAL RING
A 3212640005 INTERMEDIATE SHAFT
DRIVE SHAFT
A 3212640406 DRIVE SHAFT
490 A 3222640106 DRIVE SHAFT
A 3212640023 SLIDING COLLAR
DRIVE SHAFT
492 A 3222640023 SLIDING COLLAR
A 3212640274 PIN
N 000471009000 LOCK RING
N 000625006206 GROOVED BALL BEARING
Repalced by: N 000625900201
N 000625900201 GROOVED BALL BEARING
REAR DRIVE SHAFT
493 N 000625506007 GROOVED BALL BEARING
495 A 0009940034 SNAP RING
496 N 900055035301 LOCK RING
REAR DRIVE SHAFT
N 000625006007 GROOVED BALL BEARING
FRONT DRIVE SHAFT
498 A 0019810010 NEEDLE BEARING
FRONT DRIVE SHAFT
499 N 000472062000 LOCK RING
Repalced by: A 0039945241
499 A 0039945241 LOCK
FRONT DRIVE SHAFT
501 A 3122641279 GASKET
CASE,LEFT
501 A 3222640079 GASKET
CASE,LEFT
502 A 3212640011 COVER
COVER TO P.T.O. CASE
502 A 3522640011 COVER
COVER TO P.T.O. CASE
504 N 006503030103 SEAL RING
COVER TO P.T.O. CASE
504 N 006504035100 RADIAL SEAL RING
COVER TO P.T.O. CASE
TO 009 997 51 47
505 A 0099975147 SEAL RING
COVER TO P.T.O. CASE
505 N 912004008102 LOCK WASHER
COVER TO P.T.O. CASE
507 N 000933008153 SCREW
Repalced by: N 304017008034
507 N 304017008034 SCREW
COVER TO P.T.O. CASE
508 N 006885008025 KEY
COVER TO P.T.O. CASE
510 N 000937024002 NUT
COVER TO P.T.O. CASE
N 000094005045 COTTER PIN
COVER TO P.T.O. CASE
511 A 3212600237 LEVER
SHIFT LEVER TO SHAFT
N 071803013207 BALL PIVOT
N 000931008046 SCREW
Repalced by: N 304017008018
N 304017008018 SCREW
SHIFT LEVER TO SHAFT
N 912004008102 LOCK WASHER
SHIFT LEVER TO SHAFT
N 304032008006 NUT
SHIFT LEVER TO SHAFT
513 N 071805013203 BALL SOCKET
N 071805013302 SNAP RING
514 N 071805013402 SECURING CLIP
N 304032008006 NUT
516 N 900331008043 PULL ROD
N 304032008006 NUT
517 N 071752008002 YOKE
519 N 001434008020 PIN
N 000433008406 WASHER
N 000094002032 COTTER PIN
520 A 3212640074 PIN
522 A 3129900148 WASHER
523 A 3222640124 SHIFT LEVER
Repalced by: A 3222603039
523 A 3222603039 SHIFT LEVER
523 A 3222640424 SHIFT LEVER
525 N 071412008302 GREASE NIPPLE
526 N 000433015005 WASHER
528 N 000471015000 LOCK RING
529 A 3222640096 BOOT
531 A 3212611479 GASKET
Repalced by: A 3522611180
531 A 3522611180 GASKET
Repalced by: A 3522611680
531 A 3522611680 GASKET
Repalced by: A 3522611980
531 A 3522611980 GASKET
532 N 912004008102 LOCK WASHER
534 N 000931008266 SCREW
X XXXXXXXXXXXX PART NAME MISSING
MEILLER DUMPER PUMP
A 3282640000 HYDRAULIC PUMP
WITH CONTROL MECHANISM AND WITH LINKAGE
A 3282640100 HYDRAULIC PUMP
WITH CONTROL MECHANISM AND WITH LINKAGE
537 A 0002362805 HYDRAULIC PUMP
WITH CONTROL MECHANISM AND WITH LINKAGE
A 0009979430 SCREW PLUG
A 0002360735 VALVE
A 0002360817 PISTON
Repalced by: A 0002361117
A 0002361117 PISTON
A 0002361160 SEAL RING
A 0049936301 SPRING
A 0002360376 WASHER
A 0049936401 SPRING
A 0019814085 BALL
Repalced by: A 0019815085
A 0019815085 BALL
12.70 MM
A 0002360935 VALVE
A 0002363005 HYDRAULIC PUMP
WITH CONTROL MECHANISM AND WITH LINKAGE
A 0009974430 SCREW PLUG
Repalced by: A 0019974430
A 0019974430 SCREW PLUG
A 0049936101 SPRING
N 005401310000 BALL
10 MM
A 0002360835 VALVE
A 0049936201 SPRING
A 0002361060 SEAL RING
A 0002360717 PISTON
A 0002360635 VALVE
A 0002360380 GASKET
A 0002640479 GASKET
A 0079977446 SEAL RING
538 A 0002360180 GASKET
A 0002360380 GASKET
540 A 0059977246 SEAL RING
A 0079977446 SEAL RING
541 N 007603010107 SEAL RING
543 A 0002360271 SCREW
544 N 007603022101 SEAL RING
N 007603022102 SEAL RING
546 A 0009979430 SCREW PLUG
A 0019970630 SCREW PLUG
A 0002640602 HOUSING
SHIFTING UNIT
A 0002640702 HOUSING
SHIFTING UNIT
547 A 0002300045 FLANGE
SHIFTING UNIT
A 0002640502 HOUSING
HYDRAULIC PUMP
N 006503016100 SEAL RING
HYDRAULIC PUMP
16X28 MM
N 006503032102 SEAL RING
HYDRAULIC PUMP
32X47 MM
A 0002640450 BUSHING
HYDRAULIC PUMP
549 A 0002300120 LEVER
Repalced by: A 0002300220
A 0002300220 LEVER
HYDRAULIC PUMP
550 A 0019978346 SEAL RING
HYDRAULIC PUMP
A 0002640324 SHIFT LEVER
HYDRAULIC PUMP
N 071803013207 BALL PIVOT
HYDRAULIC PUMP
552 A 0002300020 LEVER
HYDRAULIC PUMP
N 000472032000 LOCK RING
Repalced by: N 000472032001
N 000472032001 LOCK RING
HYDRAULIC PUMP
N 006888003006 WOODRUFF KEY
HYDRAULIC PUMP
N 000931008266 SCREW
HYDRAULIC PUMP
M 8X40
N 000933008150 SCREW
Repalced by: N 304017008018
N 304017008018 SCREW
HYDRAULIC PUMP
M 8X35
N 912004008102 LOCK WASHER
HYDRAULIC PUMP
N 304032008006 NUT
A 0002600089 PULL ROD
271 MM
554 A 0002300021 ROD
255 MM
N 071805013100 BALL SOCKET
N 071805013302 SNAP RING
555 N 071802013200 ANGLE JOINT
557 N 071803013100 BALL PIVOT
558 N 071805013200 BALL SOCKET
N 071805013302 SNAP RING
560 N 071805013400 SECURING CLIP
561 N 304032008006 NUT
563 N 000137008200 SPRING WASHER
564 N 071752008002 YOKE
566 A 0009910305 PIN
567 N 000433008406 WASHER
N 000094002032 COTTER PIN
569 N 304032008006 NUT
A 0002640123 SLIDING COLLAR
A 0002640223 SLIDING COLLAR
570 A 0002300023 DRIVE
572 A 0029932701 SPRING
573 N 005401308000 BALL
575 A 0002640279 GASKET
576 A 3212640074 PIN
578 A 3129900148 WASHER
579 A 3222640124 SHIFT LEVER
Repalced by: A 3222603039
579 A 3222603039 SHIFT LEVER
A 3222640424 SHIFT LEVER
581 N 071412008302 GREASE NIPPLE
582 N 000433015005 WASHER
584 N 000471015000 LOCK RING
585 A 3222640096 BOOT
A 3232601600 TRANSMISSION
WITH COUPLING FLANGE AND GEARSHIFT LEVER
A 3232601700 TRANSMISSION
WITH COUPLING FLANGE AND GEARSHIFT LEVER
A 3122606700 TRANSMISSION
WITH COUPLING FLANGE,LESS GEARSHIFT LEVER
A 3122607300 TRANSMISSION
WITH COUPLING FLANGE,LESS GEARSHIFT LEVER
N 912004014100 LOCK WASHER
N 000931014009 SCREW
590 A 3122611701 TRANSMISSION CASE
591 A 1869970032 SCREW PLUG
593 A 3122611079 GASKET
Repalced by: A 3142610580
593 A 3142610580 GASKET
Repalced by: A 3142611680
593 A 3142611680 GASKET
594 A 3122611633 COVER
Repalced by: A 3142610433
594 A 3142610433 COVER
596 N 912004008102 LOCK WASHER
597 N 000933008147 SCREW
Repalced by: N 304017008021
597 N 304017008021 SCREW
597 N 000933008154 SCREW
Repalced by: N 304017008021
597 N 304017008021 SCREW
600 A 3122612179 GASKET
Repalced by: A 3122611180
600 A 3122611180 GASKET
602 A 3122611918 TRANSMISSION CASE COVER
FRONT
603 N 912004008102 LOCK WASHER
605 N 000931008246 SCREW
Repalced by: N 304017008028
605 N 304017008028 SCREW
606 A 3122623362 SEAL RING
AS REQUIRED
2.85 MM
606 A 3122625462 SEAL RING
AS REQUIRED
2.90 MM
606 A 3122625562 SEAL RING
AS REQUIRED
2.95 MM
606 A 3122623462 SEAL RING
AS REQUIRED
3.00 MM
606 A 3122624362 SEAL RING
AS REQUIRED
3.05 MM
606 A 3122624462 SEAL RING
AS REQUIRED
3.10 MM
606 A 3122623562 SEAL RING
AS REQUIRED
3.15 MM
606 A 3122623662 SEAL RING
AS REQUIRED
3.20 MM
606 A 3122623762 SEAL RING
AS REQUIRED
3.25 MM
608 A 3122501315 RELEASE BEARING
Repalced by: A 3522500115
608 A 3522500115 RELEASE BEARING
Repalced by: A 3402500215
608 A 3402500215 RELEASE BEARING
CLUTCH
609 A 3122501016 FLANGED BEARING
Repalced by: A 0002540020
609 A 0002540020 RELEASE BEARING
609 A 0002540120 RELEASE BEARING
611 A 3129870110 STRIP
Repalced by: A 3409830010
611 A 3409830010 STRIP
RELEASE BEARING
TO 312 250 13 15,352 250 01 15
611 A 3409830010 STRIP
RELEASE BEARING
TO 340 250 02 15
A 3052540033 COVER
TO 352 250 01 15
612 A 3122611279 GASKET
614 A 3122601916 TRANSMISSION CASE COVER
SPEEDOMETER DRIVE
614 A 3122611520 TRANSMISSION CASE COVER
EMPTY
617 A 1532640055 PLUG
A 0009976647 SEAL RING
Repalced by: A 0019973247
618 A 0099976347 SEAL RING
618 A 0019973247 SEAL RING
Repalced by: A 0119977447
618 A 0119977447 SEAL RING
618 A 0129972947 SEAL RING
620 A 3122611131 THREADED BUSHING
621 N 001473004016 GROOVED PIN
626 N 912004008102 LOCK WASHER
627 N 000931008244 SCREW
M 8 X 45
627 N 000931008081 SCREW
M 8 X 45
627 N 000933008116 SCREW
Repalced by: N 000933008337
627 N 000933008337 SCREW
Repalced by: A 0099900101
627 A 0099900101 SCREW
M 8 X 28
632 A 3122611179 GASKET
A 3122602114 TRANSMISSION CASE COVER
Repalced by: A 3122602214
633 A 3122602214 TRANSMISSION CASE COVER
TOP
635 A 3129911162 DOWEL PIN
636 N 009045007000 SNAP RING
638 N 001473005010 GROOVED PIN
639 N 000125008400 WASHER
642 N 000931008246 SCREW
Repalced by: N 304017008028
642 N 304017008028 SCREW
M 8 X 50
642 N 000931008327 SCREW
Repalced by: N 304017008043
642 N 304017008043 SCREW
M 8 X 55
644 A 3122611074 PIN
645 A 3129934201 SPRING
647 N 007604018109 SCREW PLUG
A 0005450306 SWITCH
Repalced by: A 0005455011
648 A 0005455011 SWITCH
BACK-UP LIGHT
650 A 0005455028 PLUG
Repalced by: A 3805450026
650 A 3805450026 PLUG SOCKET
A 0009906840 WASHER
A 0009902054 NUT
A 0005460035 BOOT
654 A 0005450645 BOOT
Repalced by: A 0005400481
654 A 0005400481 PLUG SOCKET
Repalced by: A 3805400181
654 A 3805400181 PLUG SOCKET
Repalced by: A 3805402181
654 A 3805402181 PLUG SOCKET
656 A 3122611080 GASKET
A 3122611019 TRANSMISSION CASE COVER
Repalced by: A 3162710005
657 A 3162710005 COVER
LEFT LATERAL
659 N 912004010102 LOCK WASHER
660 N 000933010238 SCREW
Repalced by: N 304017010028
660 N 304017010028 SCREW
662 A 3122651316 THRUST PIECE
A 3129932301 SPRING
A 3129971103 PLUG
666 A 3122651148 INTERLOCK PIN
668 A 3129931901 SPRING
669 N 071022024000 SLOTTED PLUG
671 A 3232600239 SHIFT LEVER
A 3232600139 SHIFT LEVER
672 A 3129936501 SPRING
SHIFT LEVER TO TRANSMISSION TOP COVER
674 A 3122671308 SPHERICAL PIECE
SHIFT LEVER TO TRANSMISSION TOP COVER
675 A 3122671006 COVER
SHIFT LEVER TO TRANSMISSION TOP COVER
677 A 3122671096 BOOT
SHIFT LEVER TO TRANSMISSION TOP COVER
678 A 3129970982 HOSE
SHIFT LEVER TO TRANSMISSION TOP COVER
680 A 1362670296 BOOT
SHIFT LEVER TO TRANSMISSION TOP COVER
681 A 1369940035 SNAP RING
SHIFT LEVER TO TRANSMISSION TOP COVER
683 N 000936010010 NUT
GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER
A 3122601340 HANDLE
Repalced by: A 3222600040
684 A 3222600040 HANDLE
686 A 3122601446 PLATE
Repalced by: A 3122601646
686 A 3122601646 PLATE
687 A 3129911035 SPACER RING
689 A 3122651445 SHIFTING GUIDE
690 N 000093008402 LOCK PLATE
SHIFT GUIDE TO CASE TOP COVER
692 N 000933008147 SCREW
Repalced by: N 304017008021
692 N 304017008021 SCREW
SHIFT GUIDE TO CASE TOP COVER
693 A 3122652905 SHIFTING ROD
4TH AND 5TH SPEED
695 A 3122652805 SHIFTING ROD
2ND AND 3RD SPEED
696 A 3122652705 SHIFTING ROD
1ST SPEED
698 A 3122653005 SHIFTING ROD
REVERSE SPEED
699 A 3122652602 SHIFTING FORK
4TH AND 5TH SPEED
701 A 3122652502 SHIFTING FORK
2ND AND 3RD SPEED
702 A 3122652402 SHIFTING FORK
1ST SPEED
704 A 3122651503 SHIFTING FORK
REVERSE SPEED
705 A 3129931001 SPRING
1ST THRU 4TH SPEED,REVERSE SPEED
707 N 005401311000 BALL
1ST THRU 4TH SPEED,REVERSE SPEED
708 A 3122651236 BRACKET
1ST THRU 4TH SPEED,REVERSE SPEED
710 A 3129940332 LOCK
1ST THRU 4TH SPEED,REVERSE SPEED
711 N 000933008153 SCREW
Repalced by: N 304017008034
711 N 304017008034 SCREW
1ST THRU 4TH SPEED,REVERSE SPEED
A 3235840024 UNIT IDENTIFICATION PLATE
TRANSMISSION CASE TOP COVER
N 001476003007 GROOVED NAIL
TRANSMISSION CASE TOP COVER
714 A 3122622202 DRIVE SHAFT
715 A 3122621852 SPACER WASHER
DRIVE SHAFT
717 A 0019813101 CYLINDR. ROLLER BEARING
COVER TO BEARING BRACKET
718 N 005417085001 SNAP RING
720 A 0009810527 ANGULAR CONTACT BEARING
Repalced by: A 0009812827
720 A 0009812827 ANGULAR CONTACT BEARING
720 A 0009814327 ANGULAR CONTACT BEARING
720 A 0019811627 ANGULAR CONTACT BEARING
721 A 3122623162 SEAL RING
723 A 3122621172 NUT
L.H. THREAD
724 A 0009810112 ROLLER ASSEMBLY
724 A 0009811012 ROLLER ASSEMBLY
726 A 3122622105 MAIN SHAFT
727 A 3129931701 SPRING
729 A 3122621074 PIN
730 A 3122622762 SEAL RING
AS REQUIRED
8.00 MM
730 A 3122624262 SEAL RING
AS REQUIRED
8.05 MM
730 A 3122623262 SEAL RING
AS REQUIRED
8.10 MM
730 A 3122624162 SEAL RING
AS REQUIRED
8.15 MM
730 A 3122623362 SEAL RING
AS REQUIRED
8.20 MM
732 A 3122622536 FOLLOWER RING
4TH AND 5TH SPEED
733 A 3122621923 SLIDING COLLAR
735 A 3122621614 GEAR
4TH SPEED
736 A 3122622213 GEAR
3RD SPEED
738 N 005402004203 CYLINDRICAL ROLLER
739 A 3122621453 SPACER TUBE
Repalced by: A 0019819810
A 0019819810 NEEDLE BEARING
741 A 3122622436 FOLLOWER RING
2ND AND 3RD SPEED
742 A 3122621723 SLIDING COLLAR
744 A 3122622112 GEAR
2ND SPEED
745 A 3122621750 BUSHING
747 A 3122621611 GEAR
1ST SPEED
748 A 3129811325 BALL BEARING
750 N 005417090001 SNAP RING
A 3122641630 DRIVE GEAR
Repalced by: A 3122641830
751 A 3122641830 DRIVE GEAR
SPEEDOMETER
753 A 3122641231 DRIVE GEAR
Repalced by: A 3122641331
753 A 3122641331 DRIVE GEAR
Repalced by: A 6732640031
753 A 6732640031 DRIVE GEAR
SPEEDOMETER
A 3122641232 SHAFT
Repalced by: A 3142640032
754 A 3142640032 SHAFT
Repalced by: A 6732640032
754 A 6732640032 SHAFT
SPEEDOMETER
756 A 3122601517 FLANGE
757 A 3122621063 PROTECTIVE PLATE
759 A 3129901740 WASHER
N 000937028000 NUT
N 000094005017 COTTER PIN
760 A 3122632502 COUNTERSHAFT
762 N 006888008001 WOODRUFF KEY
763 N 900055045300 LOCK RING
765 A 3122631814 GEAR
4TH SPEED
766 N 000720030306 TAPERED ROLLER BEARING
766 A 0009819805 TAPERED ROLLER BEARING
768 A 3122632152 SPACER WASHER
AS REQUIRED
0.05 MM
768 A 3122631452 SPACER WASHER
AS REQUIRED
0.125 MM
768 A 3122631552 SPACER WASHER
AS REQUIRED
0.24 MM
768 A 3122631652 SPACER WASHER
AS REQUIRED
0.50MM
A 3122632052 SPACER WASHER
FOR REPAIR PURPOSES ONLY
769 A 3122631831 REVERSE IDLER GEAR
771 A 3122631153 SPACER TUBE
772 A 0009810712 ROLLER ASSEMBLY
774 A 3122631262 THRUST WASHER
775 N 000472042001 LOCK RING
777 A 3122631830 REVERSE IDLER SHAFT
A 3232600010 P.T.O.
WITH SHIFT LEVER
780 A 3122603710 P.T.O.
LESS SHIFT LEVER;RATIO 0.62 X ENGINE SPEED
781 A 3122601112 TRANSMISSION CASE
783 N 000007010103 CYLINDRICAL PIN
A 3122641106 DRIVE SHAFT
Repalced by: A 3142640206
784 A 3142640206 DRIVE SHAFT
786 N 006885008002 KEY
A 3122641022 GEAR
Repalced by: A 3142640122
787 A 3142640122 GEAR
MAIN SHAFT
789 A 3122641052 SPACER WASHER
AS REQUIRED
3.85 MM
789 A 3122641152 SPACER WASHER
AS REQUIRED
4.00 MM
789 A 3122641252 SPACER WASHER
AS REQUIRED
4.15 MM
789 A 3122643452 SPACER WASHER
AS REQUIRED
7.00MM
789 A 3122643552 SPACER WASHER
AS REQUIRED
7.15 MM
789 A 3122643652 SPACER WASHER
AS REQUIRED
7.30MM
790 N 005412400304 CYLINDR. ROLLER BEARING
792 N 005412402206 CYLINDR. ROLLER BEARING
793 A 3122641179 GASKET
A 3122641010 COVER
Repalced by: A 3122641410
795 A 3122641410 COVER
796 N 912004008102 LOCK WASHER
N 000931008007 SCREW
798 N 000933008147 SCREW
Repalced by: N 304017008021
798 N 304017008021 SCREW
799 A 3122641279 GASKET
A 3122641011 COVER
Repalced by: A 3122641311
801 A 3122641311 COVER
REAR
802 N 912004008102 LOCK WASHER
804 N 000931008017 SCREW
805 A 0039977746 SEAL RING
807 N 000937024002 NUT
N 000094005016 COTTER PIN
808 A 3122641321 GEAR
(INTERMEDIATE GEAR)
810 A 0019818305 TAPERED ROLLER BEARING
810 A 0019818705 TAPERED ROLLER BEARING
810 A 0009819505 TAPERED ROLLER BEARING
811 A 3122642552 SPACER WASHER
AS REQUIRED
0.10MM
811 A 3122642652 SPACER WASHER
AS REQUIRED
0.20MM
811 A 3122642752 SPACER WASHER
AS REQUIRED
0.40 MM
813 N 000720032305 TAPERED ROLLER BEARING
LATERAL P.T.O. WITH REVERSE SPEED
814 N 000472062001 LOCK RING
LATERAL P.T.O. WITH REVERSE SPEED
816 A 3122641118 SHAFT
LATERAL P.T.O. WITH REVERSE SPEED
817 N 000417008001 HEADLESS SETSCREW
LATERAL P.T.O. WITH REVERSE SPEED
819 A 3122641025 SHIFTING ROD
LATERAL P.T.O. WITH REVERSE SPEED
820 N 005401311000 BALL
LATERAL P.T.O. WITH REVERSE SPEED
822 A 3129931001 SPRING
LATERAL P.T.O. WITH REVERSE SPEED
823 N 000470014000 EXPANSION PLUG
LATERAL P.T.O. WITH REVERSE SPEED
825 A 3122641326 SHIFTING FORK
LATERAL P.T.O. WITH REVERSE SPEED
826 A 3122641071 SCREW
LATERAL P.T.O. WITH REVERSE SPEED
A 3125841224 UNIT IDENTIFICATION PLATE
LATERAL P.T.O. WITH REVERSE SPEED
N 001476003007 GROOVED NAIL
LATERAL P.T.O. WITH REVERSE SPEED
828 A 3122601094 BEARING BRACKET
LATERAL P.T.O. WITH REVERSE SPEED
829 A 3122681074 PIN
831 N 912004008102 LOCK WASHER
832 N 000931008007 SCREW
834 A 3129900148 WASHER
835 A 3232640024 SHIFT LEVER
A 3232600439 SHIFT LEVER
837 N 071412008302 GREASE NIPPLE
838 N 000471015000 LOCK RING
840 A 3222640096 BOOT
841 A 3122641079 GASKET
Repalced by: A 3142640080
841 A 3142640080 GASKET
Repalced by: A 3142640180
841 A 3142640180 GASKET
Repalced by: A 3122611080
841 A 3122611080 GASKET
843 N 912004010102 LOCK WASHER
844 N 914141010113 SCREW
846 N 900170010001 SCREW
A 3122603510 P.T.O.
LATERAL,WITH SHIFT LEVER
848 A 3122641100 P.T.O.
LATERAL,LESS SHIFT LEVER;RATIO 1.37 X ENGINE SPEED
849 A 0002600412 TRANSMISSION CASE
851 N 000470056000 EXPANSION PLUG
N 000007010106 CYLINDRICAL PIN
852 A 0002640211 COVER
854 A 0009977347 SEAL RING
855 N 000931008007 SCREW
857 N 912004008102 LOCK WASHER
858 A 0002640306 DRIVE SHAFT
860 N 006885008002 KEY
861 N 000720032304 TAPERED ROLLER BEARING
Repalced by: A 0019819005
861 A 0019819005 TAPERED ROLLER BEARING
863 N 000720030206 TAPERED ROLLER BEARING
864 A 0002640152 SPACER WASHER
866 A 0002640305 INTERMEDIATE SHAFT
867 N 000720032206 TAPERED ROLLER BEARING
Repalced by: A 0019816505
867 A 0019816505 TAPERED ROLLER BEARING
869 N 000720032305 TAPERED ROLLER BEARING
A 0002640252 SPACER WASHER
1.50 MM
870 A 0002640152 SPACER WASHER
872 A 0002640422 GEAR
(INTERMEDIATE GEAR)
873 A 0002640118 SHAFT
INTERMEDIATE SHAFT
875 N 001481008012 CLAMPING SLEEVE
LATERAL P.T.O
875 N 001481005006 CLAMPING SLEEVE
LATERAL P.T.O
878 A 0002640321 GEAR
LATERAL P.T.O
879 N 000720032305 TAPERED ROLLER BEARING
LATERAL P.T.O
881 N 000720032306 TAPERED ROLLER BEARING
LATERAL P.T.O
882 A 0002640051 SPACER RING
LATERAL P.T.O
884 A 0002640425 SHIFTING ROD
LATERAL P.T.O
885 A 0002640326 SHIFTING FORK
LATERAL P.T.O
887 A 0002640071 SCREW
LATERAL P.T.O
888 N 915035000022 SEAL RING
LATERAL P.T.O
890 N 000093010500 LOCK PLATE
LATERAL P.T.O
891 A 0009934101 SPRING
LATERAL P.T.O
893 N 005401308000 BALL
LATERAL P.T.O
N 000551010002 HEADLESS SETSCREW
LATERAL P.T.O
894 A 0002640057 LOCKING CAP
896 N 000937020001 NUT
N 000094004065 COTTER PIN
897 A 3122601294 BEARING BRACKET
899 A 3122681174 PIN
900 N 912004008102 LOCK WASHER
902 N 000931008007 SCREW
903 A 3129900148 WASHER
905 A 3232640224 SHIFT LEVER
906 N 071412008302 GREASE NIPPLE
908 N 000471015000 LOCK RING
909 A 3222640096 BOOT
911 A 3122641079 GASKET
Repalced by: A 3142640080
911 A 3142640080 GASKET
Repalced by: A 3142640180
911 A 3142640180 GASKET
Repalced by: A 3122611080
911 A 3122611080 GASKET
912 N 912004010102 LOCK WASHER
LATERAL P.T.O
914 N 000931010146 SCREW
LATERAL P.T.O
915 N 900170010001 SCREW
LATERAL P.T.O
N 000939010006 STUD BOLT
LATERAL P.T.O
N 912004010102 LOCK WASHER
LATERAL P.T.O
N 000934010014 NUT
LATERAL P.T.O
A 3232600110 P.T.O.
WITH REVERSE SPEED AND WITH SHIFT LEVER
918 A 3122602510 P.T.O.
WITH REVERSE SPEED;LESS SHIFT LEVER
919 A 3122601412 TRANSMISSION CASE
N 000007010106 CYLINDRICAL PIN
921 A 3122641306 DRIVE SHAFT
922 N 006885008002 KEY
924 N 005412400304 CYLINDR. ROLLER BEARING
925 A 3122641122 GEAR
MAIN SHAFT OUTPUT
927 A 3122641052 SPACER WASHER
AS REQUIRED
3.85 MM
927 A 3122641152 SPACER WASHER
AS REQUIRED
4.00MM
927 A 3122641252 SPACER WASHER
AS REQUIRED
4.15 MM
927 A 3122642952 SPACER WASHER
AS REQUIRED
4.30 MM
927 A 3122643452 SPACER WASHER
AS REQUIRED
7.00MM
927 A 3122643552 SPACER WASHER
AS REQUIRED
7.15 MM
927 A 3122643652 SPACER WASHER
AS REQUIRED
7.30MM
927 A 3122643752 SPACER WASHER
AS REQUIRED
7.45 MM
929 N 005412402206 CYLINDR. ROLLER BEARING
930 A 3122641179 GASKET
A 3122641010 COVER
Repalced by: A 3122641410
932 A 3122641410 COVER
933 N 912004008102 LOCK WASHER
N 000931008007 SCREW
935 N 000933008147 SCREW
Repalced by: N 304017008021
935 N 304017008021 SCREW
936 A 3122641279 GASKET
A 3122641011 COVER
Repalced by: A 3122641311
938 A 3122641311 COVER
REAR
939 A 0039977746 SEAL RING
941 N 912004008102 LOCK WASHER
942 N 000931008007 SCREW
944 N 000937024002 NUT
N 000094005005 COTTER PIN
945 A 3122641421 GEAR
(INTERMEDIATE GEAR)
947 A 0019818305 TAPERED ROLLER BEARING
947 A 0019818705 TAPERED ROLLER BEARING
947 A 0009819505 TAPERED ROLLER BEARING
948 A 3122642552 SPACER WASHER
AS REQUIRED
0.10MM
948 A 3122642652 SPACER WASHER
AS REQUIRED
0.20MM
948 A 3122642752 SPACER WASHER
AS REQUIRED
0.40MM
950 N 000472062001 LOCK RING
951 N 000720032305 TAPERED ROLLER BEARING
953 A 3122641118 SHAFT
(INTERMEDIATE GEAR)
954 N 000417008001 HEADLESS SETSCREW
956 A 3122641218 SHAFT
REVERSE IDLER GEAR
957 N 000417008001 HEADLESS SETSCREW
A 3122641218 SHAFT
959 A 3122641253 SPACER TUBE
960 A 3122641020 GEAR
REVERSE SPEED
962 N 005407011028 ROLLER ASSEMBLY
963 A 3122641153 SPACER TUBE
965 A 3122642852 SPACER WASHER
LATERAL P.T.O
966 A 3129940041 LOCK
LATERAL P.T.O
968 A 3122641462 THRUST WASHER
LATERAL P.T.O
969 A 3122641235 BEARING BRACKET
LATERAL P.T.O
971 N 005401311000 BALL
LATERAL P.T.O
972 A 3129931001 SPRING
LATERAL P.T.O
974 N 915015014000 PLUG
LATERAL P.T.O
975 A 3122641126 SHIFTING FORK
LATERAL P.T.O
977 A 3122641071 SCREW
LATERAL P.T.O
A 3125841224 UNIT IDENTIFICATION PLATE
P.T.O.
N 001476003007 GROOVED NAIL
P.T.O.
978 A 3122601194 BEARING BRACKET
LATERAL P.T.O
980 A 3122681074 PIN
LATERAL P.T.O
981 N 912004008102 LOCK WASHER
LATERAL P.T.O
983 N 000933008153 SCREW
Repalced by: N 304017008034
983 N 304017008034 SCREW
LATERAL P.T.O
984 A 3129900148 WASHER
986 A 3232640124 SHIFT LEVER
A 3122601540 HANDLE
Repalced by: A 3372600040
987 A 3372600040 HANDLE
N 000936010010 NUT
989 N 071412008302 GREASE NIPPLE
990 N 000471015000 LOCK RING
992 A 3222640096 BOOT
993 A 3122641079 GASKET
Repalced by: A 3142640080
993 A 3142640080 GASKET
Repalced by: A 3142640180
993 A 3142640180 GASKET
Repalced by: A 3122611080
993 A 3122611080 GASKET
995 N 914141010113 SCREW
996 N 900170010001 SCREW
N 000939010005 STUD BOLT
998 N 912004010102 LOCK WASHER
N 000934010014 NUT
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
