Transporto priemonė: L 911 B; VIN numerio dalis: 353004
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

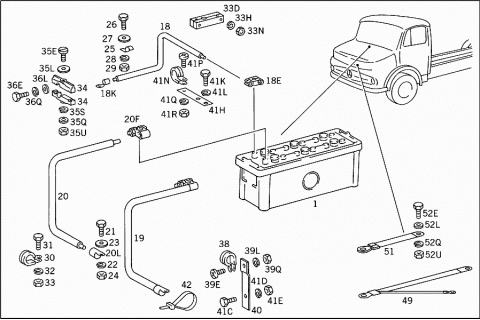

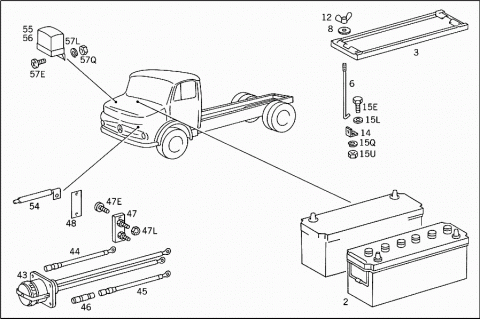

| 001 | A 0005417801 | BATTERY |
| Repalced by: A 3875400901 | ||
| 001 | A 3875400901 | BATTERY |
| Repalced by: A 0035410201 | ||
| 001 | A 0035410201 | BATTERY |
| Repalced by: A 0015419701 | ||
| 001 | A 0015419701 | BATTERY |
| Repalced by: A 0025411701 | ||
| 001 | A 0025411701 | BATTERY |
| 12V/143 AH | ||
| 002 | A 0005418001 | BATTERY |
| Repalced by: A 3875400801 | ||
| 002 | A 3875400801 | BATTERY |
| Repalced by: A 0035410101 | ||
| 002 | A 0035410101 | BATTERY |
| Repalced by: A 0035411801 | ||
| 002 | A 0035411801 | BATTERY |
| Repalced by: A 0025412301 | ||
| 002 | A 0025412301 | BATTERY |
| 12 V/135 AH | ||
| 002 | A 0025412301 | BATTERY |
| 12 V/135 AH | ||
| 003 | A 3148900063 | FRAME |
| BATTERY MOUNTING | ||
| 006 | A 3148950371 | SCREW |
| Repalced by: A 3098950371 | ||
| 006 | A 3098950371 | SCREW |
| BATTERY MOUNTING | ||
| 008 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 008 | N 009021006208 | WASHER |
| BATTERY MOUNTING | ||
| 012 | N 000315006001 | NUT |
| BATTERY MOUNTING | ||
| 014 | A 3525410025 | ANGLE |
| BATTERY MOUNTING | ||
| 015E | N 000931008266 | SCREW |
| BATTERY MOUNTING | ||
| 015L | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 015L | N 000125008443 | WASHER |
| BATTERY MOUNTING | ||
| 015Q | N 912004008102 | LOCK WASHER |
| BATTERY MOUNTING | ||
| 015U | N 304032008006 | NUT |
| BATTERY MOUNTING | ||
| A 3275400130 | POSITIVE CABLE | |
| Repalced by: N 072551095880 | ||
| A 3225403130 | POSITIVE CABLE | |
| Repalced by: N 072551095880 | ||
| A 3605400330 | POSITIVE CABLE | |
| Repalced by: N 072551095880 | ||
| A 3225400430 | POSITIVE CABLE | |
| Repalced by: N 072551095880 | ||
| 018 | A 3185400030 | POSITIVE CABLE |
| Repalced by: N 072551095880 | ||
| 018 | A 3605400430 | POSITIVE CABLE |
| Repalced by: N 072551095880 | ||
| 018 | A 3605403730 | POSITIVE CABLE |
| Repalced by: N 072551095880 | ||
| 018 | N 072551095880 | ELECTRIC CABLE |
| Repalced by: N 922002095000 | ||
| 018 | N 922002095000 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 018E | N 072332015100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 018K | N 046234010006 | CABLE SHOE |
| STARTING MOTOR | ||
| N 912004010102 | LOCK WASHER | |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| N 913021010001 | NUT | |
| Repalced by: N 304035010001 | ||
| N 304035010001 | NUT | |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| 019 | A 3525400531 | NEG. CABLE |
| FROM BATTERY TO CAB CROSS MEMBER | ||
| A 3525403031 | NEG. CABLE | |
| Repalced by: N 072551095880 | ||
| A 3185400131 | NEG. CABLE | |
| Repalced by: N 072551095880 | ||
| 020 | A 3525401931 | NEG. CABLE |
| Repalced by: N 072551095880 | ||
| 020 | A 3215402631 | NEG. CABLE |
| Repalced by: N 072551095880 | ||
| 020 | N 072551095880 | ELECTRIC CABLE |
| Repalced by: N 922002095000 | ||
| 020 | N 922002095000 | ELECTRIC CABLE |
| FROM BATTERY TO CAB CROSS MEMBER | ||
| 020F | N 072332015200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 020L | N 046234010006 | CABLE SHOE |
| NEG. CABLE | ||
| 021 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 021 | N 304017010002 | SCREW |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| 022 | N 912004010102 | LOCK WASHER |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| 023 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 023 | N 009021010209 | WASHER |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| 024 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 024 | N 304032010003 | NUT |
| NEG. CABLE TO CAB CROSS MEMBER | ||
| A 3525460085 | PROTECTIVE TUBE | |
| A 3529950201 | CLAMP | |
| Repalced by: A 6739950101 | ||
| A 6739950101 | CLAMP | |
| CABLE CONDUIT TO CAB FLOOR | ||
| N 912004008102 | LOCK WASHER | |
| CLAMP MOUNTING | ||
| N 304032008006 | NUT | |
| CLAMP MOUNTING | ||
| 025 | A 6219950120 | CLAMP |
| CABLE CONDUIT TO BRACKET | ||
| 026 | N 000933006102 | SCREW |
| CLAMP MOUNTING | ||
| 027 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 027 | N 009021006208 | WASHER |
| CLAMP MOUNTING | ||
| 028 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 029 | N 000934006007 | NUT |
| CLAMP MOUNTING | ||
| A 3275465482 | BRACKET | |
| CABLE CONDUIT | ||
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| BRACKET MOUNTING | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET MOUNTING | ||
| 030 | N 916016022206 | CLAMP |
| BATTERY CABLE TO BATTERY CASE SIDE AND TO CAB CROSS MEMBER | ||
| 031 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 031 | N 304017006020 | SCREW |
| CLAMP MOUNTING | ||
| 032 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 033 | N 000934006007 | NUT |
| CLAMP MOUNTING | ||
| 033D | A 3525460044 | CLAMPING PIECE |
| BATTERY CABLE THRU CAB FLOOR | ||
| 033H | N 912004006102 | LOCK WASHER |
| BATTERY CABLE THRU CAB FLOOR | ||
| 033N | N 000934006007 | NUT |
| BATTERY CABLE THRU CAB FLOOR | ||
| 034 | A 3525460744 | CLAMPING PIECE |
| Repalced by: A 3185460044 | ||
| 034 | A 3185460044 | CLAMPING PIECE |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 035E | N 000084006198 | SCREW |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 035L | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 035L | N 009021006208 | WASHER |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 035Q | N 912004006102 | LOCK WASHER |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 035S | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 035S | N 000125008443 | WASHER |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 035U | N 000934006007 | NUT |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 036E | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 036E | N 304017008027 | SCREW |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 036L | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 036L | N 009021006208 | WASHER |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 036Q | N 912004008102 | LOCK WASHER |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 038 | N 916016019200 | CLAMP |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 039E | N 007985008110 | SCREW |
| CLAMP MOUNTING | ||
| 039E | N 007985008142 | SCREW |
| CLAMP MOUNTING | ||
| 039L | N 912004008102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 039Q | N 304032008006 | NUT |
| CLAMP MOUNTING | ||
| 040 | A 3605460043 | BRACKET |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 041C | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 041C | N 304017008016 | SCREW |
| BRACKET MOUNTING | ||
| 041D | N 912004008102 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 041E | N 304032008006 | NUT |
| BRACKET MOUNTING | ||
| 041H | A 3525462243 | BRACKET |
| Repalced by: A 3184923441 | ||
| 041H | A 3184923441 | BRACKET |
| BATTERY CABLE TO STARTING MOTOR | ||
| 041K | N 000933010125 | SCREW |
| BRACKET MOUNTING | ||
| 041L | N 912004010102 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 041N | N 916016018201 | CLAMP |
| CLAMP TO BRACKET | ||
| 041P | N 007988005159 | SCREW |
| CLAMP TO BRACKET | ||
| 041Q | N 912004005101 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 041R | N 304032005005 | NUT |
| CLAMP TO BRACKET | ||
| 042 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 042 | A 0019974390 | LOOM TIE |
| BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING | ||
| 043 | A 3285400081 | PLUG SOCKET |
| WITH ELECTRIC CABLES | ||
| N 072593035100 | PLUG SOCKET | |
| N 922002050000 | ELECTRIC CABLE | |
| Repalced by: A 6735460011 | ||
| A 6735460011 | ELECTRIC CABLE | |
| N 046234010008 | CABLE SHOE | |
| 044 | A 3285401330 | POSITIVE CABLE |
| 045 | A 3285401331 | NEG. CABLE |
| 046 | A 0005450050 | BUSHING |
| 047 | A 3045400243 | CABLE CONNECTOR |
| Repalced by: A 3045460141 | ||
| 047 | A 3045460141 | CABLE CONNECTOR |
| 047E | N 000084010108 | SCREW |
| 047L | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 047L | N 304035010001 | NUT |
| 048 | A 3045460168 | PART NAME MISSING |
| 049 | A 3521500032 | GROUND CABLE |
| FROM ALTERNATOR TO FRAME SIDE MEMBER | ||
| 051 | A 3525400141 | GROUND STRAP |
| Repalced by: A 3525400041 | ||
| 051 | A 3525400041 | GROUND STRAP |
| FROM ALTERNATOR TO FRAME SIDE MEMBER | ||
| 052E | N 000933010105 | SCREW |
| Repalced by: N 304017010019 | ||
| 052E | N 304017010019 | SCREW |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 052L | N 009021010100 | WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 052Q | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 052U | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 052U | N 304032010003 | NUT |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 054 | A 0005460620 | GROUND STRAP |
| Repalced by: A 0005460720 | ||
| 054 | A 0005460720 | GROUND STRAP |
| FROM ENGINE BLOCK TO RADIATOR | ||
| 055 | A 0011548406 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021543606 | ||
| 055 | A 0021543606 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021547406 | ||
| 055 | A 0021547406 | REGULATOR AND CUT-OUT |
| 056 | A 0011548506 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021542806 | ||
| 056 | A 0021542806 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021543606 | ||
| 056 | A 0021543606 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021547406 | ||
| 056 | A 0021547406 | REGULATOR AND CUT-OUT |
| SHIELDED | ||
| 057E | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 057E | N 000000001145 | SCREW |
| REGULATOR MOUNTING | ||
| 057L | N 912004006102 | LOCK WASHER |
| REGULATOR MOUNTING | ||
| 057Q | N 000934006007 | NUT |
| REGULATOR MOUNTING | ||

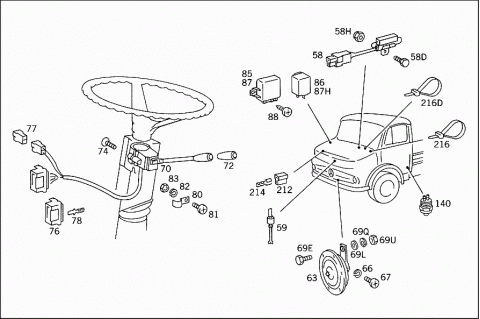

| 058 | A 0015452518 | RESISTOR |
| CHARGE CONTROL | ||
| 058D | N 000933005058 | SCREW |
| RESISTOR TO WINDSHIELD WIPER MOUNTING PLATE | ||
| M 5X10 | ||
| 058H | N 913004005001 | NUT |
| RESISTOR TO WINDSHIELD WIPER MOUNTING PLATE | ||
| 059 | A 0001567801 | CONDENSER |
| Repalced by: A 0001569601 | ||
| 059 | A 0001569601 | CONDENSER |
| Repalced by: A 0011566701 | ||
| 059 | A 0011566701 | CONDENSER |
| FOR ALTERNATOR INTERFERENCE SUPPRESSION, TERMINAL B+ | ||
| 059 | A 0001568201 | CONDENSER |
| FOR WINDSHIELD WIPER MOTOR INTERFERENCE SUPPRESSION | ||
| 063 | A 0015428020 | HORN |
| Repalced by: A 0025426220 | ||
| 063 | A 0015427920 | HORN |
| Repalced by: A 0025426220 | ||
| 063 | A 0025426220 | HORN |
| Repalced by: A 0035423220 | ||
| 063 | A 0035423220 | HORN |
| Repalced by: A 6315420120 | ||
| 063 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 063 | A 0035422720 | HORN |
| Repalced by: A 6315420120 | ||
| 063 | A 6315420120 | HORN |
| 063 | A 0015428320 | HORN |
| Repalced by: A 0025426420 | ||
| 063 | A 0025425320 | HORN |
| Repalced by: A 0025426420 | ||
| 063 | A 0025426420 | HORN |
| Repalced by: A 6315420120 | ||
| 063 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 063 | A 0035422720 | HORN |
| Repalced by: A 6315420120 | ||
| 063 | A 6315420120 | HORN |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 063 | ||
| 066 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE TO HORN | ||
| 067 | N 007985004101 | SCREW |
| ELECTRIC CABLE TO HORN | ||
| 068 | A 3219950040 | CLAMP |
| Repalced by: A 0005460875 | ||
| 068 | A 0005460875 | CLAMP |
| BRANCH-OFF TO SIGNAL HORN TO RADIATOR STIFFENING STRUT | ||
| 069E | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 069E | N 304017010002 | SCREW |
| HORN TO ENGINE FRONT CROSS MEMBER | ||
| 069L | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 069L | N 000125010532 | WASHER |
| HORN TO ENGINE FRONT CROSS MEMBER | ||
| 069Q | N 912004010102 | LOCK WASHER |
| HORN TO ENGINE FRONT CROSS MEMBER | ||
| 069U | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 069U | N 304032010003 | NUT |
| HORN TO ENGINE FRONT CROSS MEMBER | ||
| 070 | A 0025453524 | SWITCH,AUTOMATIC |
| Repalced by: A 0035458124 | ||
| 070 | A 0035458124 | SWITCH,AUTOMATIC |
| Repalced by: A 0035458324 | ||
| 070 | A 0035458324 | SWITCH,AUTOMATIC |
| WITH BRIGHT LIGHT/DIMMED LIGHT AND HORN CONTACT | ||
| 072 | A 0005452637 | BUTTON |
| 074 | N 000966005027 | SCREW |
| M 5X20 | ||
| 076 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 077 | A 0015457928 | PLUG HOUSING |
| BIPOLAR | ||
| TO 003 545 83 24 | ||
| 078 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 078 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 080 | A 3129952020 | CLAMP |
| CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET | ||
| 081 | N 007985005128 | SCREW |
| CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET | ||
| 082 | N 912004005103 | LOCK WASHER |
| CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET | ||
| 083 | N 304032005005 | NUT |
| CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET | ||
| 085 | A 0015441232 | SENDER UNIT |
| Repalced by: A 0005449932 | ||
| 085 | A 0005449932 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 24 V | ||
| 085 | A 0015440632 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 085 | A 0015447532 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 085 | A 0015445032 | SENDER UNIT |
| Repalced by: A 0025447732 | ||
| 085 | A 0025440732 | SENDER UNIT |
| Repalced by: A 0025447732 | ||
| 085 | A 0025447732 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 085 | A 0015448032 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 085 | A 0025440932 | SENDER UNIT |
| Repalced by: A 0025447332 | ||
| 085 | A 0015447932 | SENDER UNIT |
| Repalced by: A 0025447332 | ||
| 085 | A 0025447332 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 086 | A 0035440032 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 086 | A 0025448532 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| A 0015445232 | SENDER UNIT | |
| Repalced by: A 0025447632 | ||
| 087 | A 0025440832 | SENDER UNIT |
| Repalced by: A 0025447632 | ||
| 087 | A 0025447632 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 087 | A 0025441032 | SENDER UNIT |
| Repalced by: A 0025447232 | ||
| 087 | A 0025447232 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 087H | A 0025448732 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| 088 | N 007981004279 | SHEET METAL SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| A 3525400273 | BRACKET | |
| Repalced by: A 3525405773 | ||
| A 3525405373 | BRACKET | |
| Repalced by: A 3525405773 | ||
| A 3525405773 | BRACKET | |
| LEFT TAIL LAMP | ||

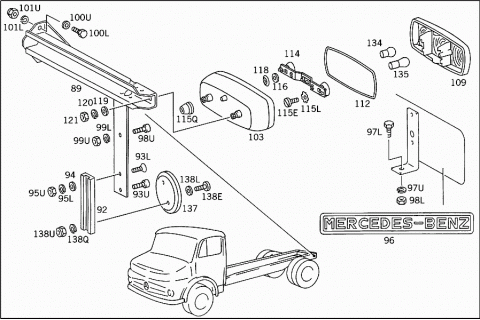

| 089 | A 3525405173 | BRACKET |
| LEFT TAIL LAMP | ||
| A 3525400373 | BRACKET | |
| Repalced by: A 3525405873 | ||
| A 3525405473 | BRACKET | |
| Repalced by: A 3525405873 | ||
| A 3525405873 | BRACKET | |
| RIGHT TAIL LAMP | ||
| A 3525405273 | BRACKET | |
| RIGHT TAIL LAMP | ||
| 092 | A 3525440538 | BRACKET |
| REFLECTOR | ||
| 093L | N 000963006005 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 093U | N 000084006137 | SCREW |
| BRACKET TO TAIL LAMP BRACKET | ||
| 094 | A 3525440084 | SHIM |
| Repalced by: N 000125006421 | ||
| 094 | N 000125006421 | WASHER |
| BRACKET TO TAIL LAMP BRACKET | ||
| 095L | N 912004006102 | LOCK WASHER |
| BRACKET TO TAIL LAMP BRACKET | ||
| 095U | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 095U | N 913002006009 | NUT |
| BRACKET TO TAIL LAMP BRACKET | ||
| 096 | A 3605840025 | NAME PLATE |
| 097L | N 000933008145 | SCREW |
| NAME PLATE TO BRACKET | ||
| 097U | N 912004008102 | LOCK WASHER |
| NAME PLATE TO BRACKET | ||
| 098L | N 304032008006 | NUT |
| NAME PLATE TO BRACKET | ||
| 098U | N 000084006426 | SCREW |
| LICENSE PLATE TO BRACKET | ||
| 099L | N 912004006102 | LOCK WASHER |
| LICENSE PLATE TO BRACKET | ||
| 099U | N 000934006007 | NUT |
| LICENSE PLATE TO BRACKET | ||
| 100L | N 000933010164 | SCREW |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 100L | N 000933010157 | SCREW |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 100U | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 100U | N 000125010532 | WASHER |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 101L | N 912004010102 | LOCK WASHER |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 101U | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 101U | N 910113010000 | NUT |
| TAIL LAMP BRACKET AND LICENSE PLATE TO FRAME | ||
| 103 | A 0015440003 | TAIL LAMP |
| Repalced by: A 0015444003 | ||
| 103 | A 0005447803 | TAIL LAMP |
| Repalced by: A 0015444003 | ||
| 103 | A 0015444003 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 103 | A 0015440403 | TAIL LAMP |
| Repalced by: A 0015444503 | ||
| 103 | A 0005447003 | TAIL LAMP |
| Repalced by: A 0015444503 | ||
| 103 | A 0015444503 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 103 | A 0015449603 | TAIL LAMP |
| Repalced by: A 0015444003 | ||
| 103 | A 0015444003 | TAIL LAMP |
| LEFT | ||
| ZIZALA | ||
| 103 | A 0005449903 | TAIL LAMP |
| Repalced by: A 0015444103 | ||
| 103 | A 0005447703 | TAIL LAMP |
| Repalced by: A 0015444103 | ||
| 103 | A 0015444103 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 103 | A 0015440503 | TAIL LAMP |
| Repalced by: A 0015444603 | ||
| 103 | A 0005447103 | TAIL LAMP |
| Repalced by: A 0015444603 | ||
| 103 | A 0015444603 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 103 | A 0015449703 | TAIL LAMP |
| RIGHT | ||
| ZIZALA | ||
| 103 | A 0015444203 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 103 | A 0005447303 | TAIL LAMP |
| Repalced by: A 0015444803 | ||
| 103 | A 0015441803 | TAIL LAMP |
| Repalced by: A 0015444803 | ||
| 103 | A 0015444803 | TAIL LAMP |
| RIGHT | ||
| R & S | ||
| 103 | A 0015449903 | TAIL LAMP |
| RIGHT | ||
| ZIZALA | ||
| 103 | A 0015444303 | TAIL LAMP |
| Repalced by: A 0015445903 | ||
| 103 | A 0015445903 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| 103 | A 0015441703 | TAIL LAMP |
| Repalced by: A 0015444903 | ||
| 103 | A 0015444903 | TAIL LAMP |
| Repalced by: A 0005447403 | ||
| 103 | A 0005447403 | TAIL LAMP |
| Repalced by: A 0015446103 | ||
| 103 | A 0015446103 | TAIL LAMP |
| LEFT | ||
| R & S | ||
| 103 | A 0025440003 | TAIL LAMP |
| LEFT | ||
| ZIZALA | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 103 | ||
| A 3435401238 | ELECTRIC CABLE | |
| A 3435401338 | ELECTRIC CABLE | |
| 109 | A 0015444890 | LENS |
| Repalced by: A 0015445590 | ||
| 109 | A 0015445590 | LENS |
| HELLA | ||
| 109 | A 0015444590 | LENS |
| Repalced by: A 0015445990 | ||
| 109 | A 0015446290 | LENS |
| Repalced by: A 0015445990 | ||
| 109 | A 0015445990 | LENS |
| R & S | ||
| 109 | A 0015447190 | LENS |
| R & S | ||
| 109 | A 0015447290 | LENS |
| Repalced by: A 0015445990 | ||
| 109 | A 0015445990 | LENS |
| R & S | ||
| 109 | A 0015449890 | LENS |
| LEFT | ||
| ZIZALA | ||
| 109 | A 0015449990 | LENS |
| RIGHT | ||
| ZIZALA | ||
| 112 | A 0005447880 | GASKET |
| 112 | A 0005448080 | GASKET |
| 112 | A 0005448480 | GASKET |
| HELLA | ||
| 112 | A 0005447580 | GASKET |
| R & S | ||
| N 007985006238 | SCREW | |
| R & S | ||
| 114 | A 0005444393 | LAMP SOCKET |
| HELLA | ||
| 114 | A 0005445293 | LAMP SOCKET |
| HELLA | ||
| 114 | A 0005444293 | LAMP SOCKET |
| R & S | ||
| 114 | A 0005444893 | LAMP SOCKET |
| R & S | ||
| 114 | A 0005445193 | LAMP SOCKET |
| R & S | ||
| 115E | N 000085004101 | SCREW |
| HELLA | ||
| 115E | N 000084004103 | SCREW |
| R & S | ||
| 115L | N 006797004130 | TOOTHED WASHER |
| R & S | ||
| 115Q | A 0009978081 | GROMMET |
| HELLA | ||
| 115Q | A 0019971581 | GROMMET |
| R & S | ||
| A 6019972181 | GROMMET | |
| ZIZALA | ||
| 116 | A 0019904040 | WASHER |
| HELLA | ||
| 116 | A 0005440376 | WASHER |
| Repalced by: A 0005440476 | ||
| 118 | A 0005440476 | WASHER |
| 119 | A 0019901940 | WASHER |
| 120 | N 912004008102 | LOCK WASHER |
| 121 | N 304032008006 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 109 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 112 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 114 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 115 E | ||
| 134 | N 072601012160 | BULB |
| BLINKER AND STOP LIGHTS | ||
| 18 W | ||
| 134 | N 072601012190 | BULB |
| BLINKER AND STOP LIGHTS | ||
| 21 W | ||
| 135 | N 072601012702 | BULB |
| TAIL LIGHT | ||
| 10 W | ||
| 137 | A 0005441605 | REFLECTOR |
| Repalced by: A 0005443305 | ||
| 137 | A 0005443305 | REFLECTOR |
| 138E | N 007985005146 | SCREW |
| REFLECTOR TO BRACKET | ||
| 138L | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 138L | N 000433005304 | WASHER |
| REFLECTOR TO BRACKET | ||
| 138Q | N 912004005103 | LOCK WASHER |
| REFLECTOR TO BRACKET | ||
| 138U | N 913004005001 | NUT |
| REFLECTOR TO BRACKET | ||
| 140 | A 0005452209 | SWITCH |
| IN BRAKE MASTER CYLINDER | ||
| 140 | A 0005452209 | SWITCH |
| IN DUMPER VALVE | ||
| 140 | A 0005454709 | SWITCH |
| Repalced by: A 0005455909 | ||
| 140 | A 0005455009 | SWITCH |
| Repalced by: A 0005455909 | ||
| 140 | A 0005455909 | SWITCH |
| IN BRAKE MASTER CYLINDER | ||
| 140 | A 0005455909 | SWITCH |
| IN DUMPER VALVE | ||

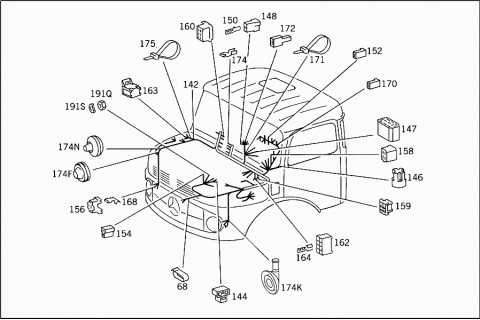

| 142 | A 3525403505 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 142 | A 3525407205 | CABLE HARNESS |
| Repalced by: A 3525409805 | ||
| 142 | A 3525409805 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 142 | A 3525400506 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 142 | A 3525401806 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 142 | A 3525401706 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 142 | A 3525403605 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 142 | A 3525407305 | CABLE HARNESS |
| Repalced by: A 3525409705 | ||
| 142 | A 3525409705 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 142 | A 3525400606 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 142 | A 3525401906 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 142 | A 3525402206 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 144 | A 0025459528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| A 0025451728 | PIN BUSHING HOUSING | |
| 146 | A 0045451428 | PLUG |
| HAZARD WARNING LIGHT SWITCH | ||
| 147 | A 6115450128 | PIN BUSHING HOUSING |
| HAZARD WARNING LIGHT SWITCH | ||
| 148 | A 0015457928 | PLUG HOUSING |
| BIPOLAR | ||
| 150 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 150 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 152 | A 0025451128 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 154 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 156 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 156 | A 0055456428 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 158 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 159 | A 0015454128 | PIN BUSHING HOUSING |
| 4-POLE; BUZZER | ||
| 160 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 162 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 163 | A 0065451428 | PIN BUSHING HOUSING |
| RELAY | ||
| 164 | A 0005454526 | PLUG SOCKET |
| Repalced by: A 0005453726 | ||
| 164 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 164 | A 0075458426 | PIN BUSHING |
| 2.5 MM2 | ||
| 164 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 164 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 164 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 164 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 164 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 164 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 164 | A 0025454026 | FLAT PIN BUSHING |
| Repalced by: A 0035455326 | ||
| 164 | A 0035455326 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 168 | A 0005453626 | PIN BUSHING |
| Repalced by: A 0075457426 | ||
| 168 | A 0075457426 | PIN BUSHING |
| 170 | A 0005451645 | BOOT |
| 170 | A 0005451745 | BOOT |
| 171 | A 0019978390 | LOOM TIE |
| 172 | A 0025451528 | PLUG CONNECTOR |
| 174 | A 0005463440 | CABLE SHOE |
| A 3229970581 | GROMMET | |
| 174F | A 1109970481 | GROMMET |
| 174K | A 3149970181 | GROMMET |
| 174N | A 3529970681 | GROMMET |
| 175 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| N 000084006132 | SCREW | |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| N 912004006102 | LOCK WASHER | |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||

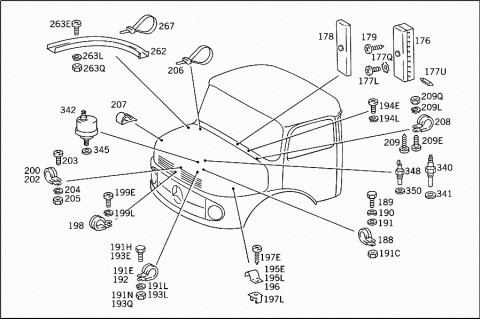

| 176 | A 3145450001 | FUSE BOX |
| TERMINALS 1-2-3,5-6,7-8,9-10 BRIDGED OVER | ||
| 176 | A 3355450001 | FUSE BOX |
| TERMINALS 1-2,3-4,5-6,AND 8-12 BRIDGED OVER | ||
| 177L | N 914028004100 | COMBINATION BOLT |
| Repalced by: N 007985004136 | ||
| 177L | N 007985004136 | SCREW |
| CABLE TO FUSE BOX | ||
| 177Q | N 006797004333 | TOOTHED WASHER |
| CABLE TO FUSE BOX | ||
| 177U | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 177U | N 072581008101 | FUSE |
| 178 | A 0005450903 | CAP |
| FUSE BOX | ||
| 178 | A 0005451203 | CAP |
| FUSE BOX | ||
| 179 | N 007981004258 | SHEET METAL SCREW |
| FUSE BOX | ||

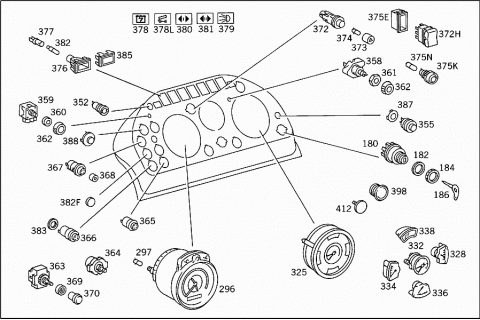

| 180 | A 0005453013 | SWITCH |
| (IGNITION AND LIGHT SWITH) | ||
| 182 | A 0005450176 | WASHER |
| Repalced by: A 0005450376 | ||
| 182 | A 0005450376 | WASHER |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 184 | A 0005450672 | NUT |
| Repalced by: A 0005451072 | ||
| 184 | A 0005451072 | NUT |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 186 | A 0005451235 | KEY |
| IGNITION AND LIGHT SWITCH | ||
| A 0005830296 | RING | |
| IGNITION AND LIGHT SWITCH | ||
| 188 | A 0009952101 | CLAMP |
| Repalced by: N 916016012200 | ||
| 188 | N 916016012200 | CLAMP |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 189 | N 000933005059 | SCREW |
| CLAMP MOUNTING | ||
| 190 | N 000137005102 | SPRING WASHER |
| CLAMP MOUNTING | ||
| 191 | N 009021005100 | WASHER |
| CLAMP MOUNTING | ||
| 191C | N 304032005005 | NUT |
| CLAMP MOUNTING | ||
| 191E | N 916016012200 | CLAMP |
| MAIN CABLE HARNESS TO ALTERNATOR | ||
| 191H | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 191H | N 304017008021 | SCREW |
| CLAMP MOUNTING | ||
| 191L | N 912004008102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 191N | N 304032008006 | NUT |
| CLAMP MOUNTING | ||
| 191Q | N 000934006007 | NUT |
| CABLE TO ALTERNATOR | ||
| N 304032008006 | NUT | |
| CABLE TO ALTERNATOR | ||
| 191S | N 000137006204 | SPRING WASHER |
| CABLE TO ALTERNATOR | ||
| N 000137008107 | SPRING WASHER | |
| Repalced by: N 000137008204 | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| 192 | N 916016012201 | CLAMP |
| ALTERNATOR BRANCH-OFF | ||
| 193E | N 000933006102 | SCREW |
| ALTERNATOR BRANCH-OFF | ||
| 193L | N 912004006102 | LOCK WASHER |
| ALTERNATOR BRANCH-OFF | ||
| 193Q | N 000934006007 | NUT |
| ALTERNATOR BRANCH-OFF | ||
| 194E | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 194E | N 000000001145 | SCREW |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 194L | N 912004006102 | LOCK WASHER |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 195E | A 1369950135 | CLAMP |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 26 MM | ||
| 195L | A 1369950137 | CLAMP |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 31 MM | ||
| 196 | N 916016012200 | CLAMP |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 15 MM | ||
| 197E | N 007981004279 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| 197L | A 0009941845 | LOCK |
| CABLE HARNESS MOUNTING | ||
| 198 | N 916016012200 | CLAMP |
| MAIN CABLE HARNESS TO BRACKET UNDER HEATING DUCT | ||
| 15 MM | ||
| 199E | N 007985005109 | SCREW |
| MAIN CABLE HARNESS TO BRACKET UNDER HEATING DUCT | ||
| 199L | N 912004005103 | LOCK WASHER |
| MAIN CABLE HARNESS TO BRACKET UNDER HEATING DUCT | ||
| 200 | N 916016012200 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 202 | N 916016025201 | CLAMP |
| MAIN CABLE HARNESS TO CAB WINDOW SILL | ||
| 203 | N 007985005174 | SCREW |
| CLAMP MOUNTING | ||
| 204 | N 912004005103 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 205 | N 304032005005 | NUT |
| CLAMP MOUNTING | ||
| 206 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 207 | A 0009883478 | CLIP |
| MAIN CABLE HARNESS TO RIGHT SIDE PART | ||
| 208 | N 916016018201 | CLAMP |
| MAIN CABLE HARNESS BEHIND INSTRUMENT PANEL,LEFT | ||
| 208 | N 916016018201 | CLAMP |
| MAIN CABLE HARNESS TO CAB WINDOW SILL | ||
| 209 | N 007981004279 | SHEET METAL SCREW |
| CLAMP MOUNTING | ||
| 209E | N 007985005174 | SCREW |
| CLAMP MOUNTING | ||
| 209L | N 912004005103 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 209Q | N 304032005005 | NUT |
| CLAMP MOUNTING | ||
| A 3605402237 | ELECTRIC CABLE | |
| FROM PLUG CONNECT.TO COOLG.-WATER TEMPER. SWITCH & TEMPER.GAUGE SENDER UNIT | ||
| 211 | A 3605408437 | ELECTRIC CABLE |
| FROM BIPOLAR PLUG CONNECTION TO TEMPERATURE SWITCH WITH WARNING CONTACT | ||
| 212 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 214 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 214 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 214 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 214 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 216 | A 0009951159 | SHACKLE |
| Repalced by: A 0019978390 | ||
| 216 | A 0019978390 | LOOM TIE |
| TO MOUNT MAIN CABLE HARNESS | ||
| 216D | A 0019978490 | LOOM TIE |
| TO MOUNT MAIN CABLE HARNESS | ||
| 217 | A 3525405237 | ELECTRIC CABLE |
| FROM HAZARD WARNING LIGHT SWITCH TO BLINKER SENDER UNIT AND GROUND | ||

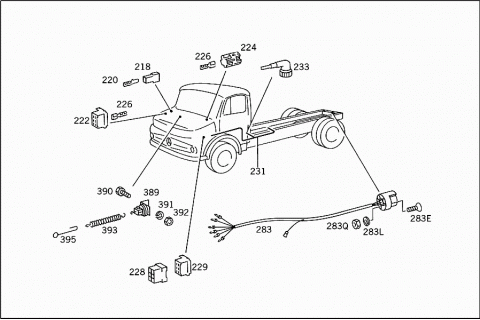

| 218 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| 220 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 222 | A 0035451028 | PLUG |
| Repalced by: A 0015458128 | ||
| 222 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 224 | A 0045451428 | PLUG |
| 8-POLE | ||
| 226 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 226 | A 0075458226 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 226 | A 0005454026 | PIN BUSHING |
| 4-6 MM2 | ||
| 228 | A 0015456028 | PLUG HOUSING |
| 6-POLE;FRONT CABLE CONNECTOR | ||
| 229 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 231 | A 3605400337 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECT. TO OIL-PRESS. SWITCH & GROUND AT FRAME CROSS MEMBER | ||
| A 0005400581 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| 233 | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 233 | A 3805402281 | PLUG SOCKET |
| REPAIR SIZE | ||

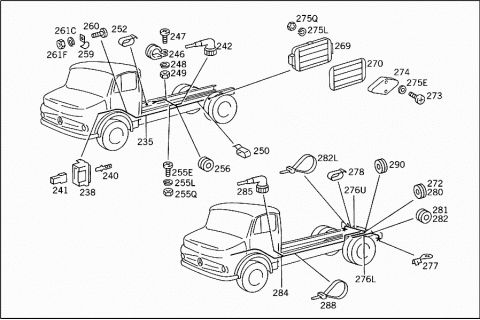

| 235 | A 3585406227 | ELECTRIC CABLE |
| Repalced by: A 3585406427 | ||
| 235 | A 3585406427 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 235 | A 3585401527 | ELECTRIC CABLE |
| Repalced by: A 3585401427 | ||
| 235 | A 3525406427 | ELECTRIC CABLE |
| Repalced by: A 3585401427 | ||
| 235 | A 3525406527 | ELECTRIC CABLE |
| Repalced by: A 3585401427 | ||
| 235 | A 3585401427 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| A 3605403227 | ELECTRIC CABLE | |
| Repalced by: A 3605404327 | ||
| 235 | A 3605404527 | ELECTRIC CABLE |
| Repalced by: A 3605404327 | ||
| 235 | A 3605403427 | ELECTRIC CABLE |
| Repalced by: A 3605404327 | ||
| 235 | A 3605404427 | ELECTRIC CABLE |
| Repalced by: A 3605404327 | ||
| 235 | A 3605404327 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 235 | A 3525406927 | ELECTRIC CABLE |
| Repalced by: A 3585401827 | ||
| 235 | A 3525407127 | ELECTRIC CABLE |
| Repalced by: A 3585401827 | ||
| 235 | A 3525407227 | ELECTRIC CABLE |
| Repalced by: A 3585401827 | ||
| 235 | A 3585401827 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 235 | A 3585401927 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 235 | A 3605403627 | ELECTRIC CABLE |
| Repalced by: A 3605404127 | ||
| 235 | A 3605404727 | ELECTRIC CABLE |
| Repalced by: A 3605404127 | ||
| 235 | A 3605403827 | ELECTRIC CABLE |
| Repalced by: A 3605404127 | ||
| 235 | A 3605404627 | ELECTRIC CABLE |
| Repalced by: A 3605404127 | ||
| 235 | A 3605404127 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 235 | A 3535406127 | ELECTRIC CABLE |
| Repalced by: A 3535406227 | ||
| 235 | A 3535406227 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 235 | A 3535407027 | ELECTRIC CABLE |
| Repalced by: A 3535407127 | ||
| 235 | A 3535407127 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 235 | A 3605408727 | ELECTRIC CABLE |
| Repalced by: A 3605408827 | ||
| 235 | A 3605408827 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 235 | A 3535406427 | ELECTRIC CABLE |
| Repalced by: A 3535406527 | ||
| 235 | A 3535406527 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 235 | A 3535407327 | ELECTRIC CABLE |
| Repalced by: A 3535407427 | ||
| 235 | A 3535407427 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 235 | A 3605409627 | ELECTRIC CABLE |
| Repalced by: A 3605409027 | ||
| 235 | A 3605409027 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 238 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 240 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 240 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 241 | A 0025451328 | PIN BUSHING HOUSING |
| UNIPOLAR | ||
| A 0005400581 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| 242 | A 3805400281 | PLUG SOCKET |
| Repalced by: A 3805402281 | ||
| 242 | A 3805402281 | PLUG SOCKET |
| REPAIR VERSION; NOT FOR DANGER CATEGORY VEHICLES | ||
| 246 | N 916016018201 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 247 | N 007985006143 | SCREW |
| CLAMP MOUNTING | ||
| 248 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 249 | N 000934006007 | NUT |
| CLAMP MOUNTING | ||
| 250 | A 3529950040 | CLAMP |
| Repalced by: A 3099950140 | ||
| 250 | A 3099950140 | CLAMP |
| ELECTRIC CABLE TO FRAME LEFT SIDE MEMBER | ||
| 252 | A 3219950040 | CLAMP |
| Repalced by: A 0005460875 | ||
| 252 | A 0005460875 | CLAMP |
| TO MOUNT CABLE BRANCH TO FUEL GAUGE SENDER UNIT & TO STOP LIGHT SWITCH | ||
| 254 | A 0009881678 | CLIP |
| TO MOUNT CABLE BRANCH TO FUEL GAUGE SENDER UNIT & TO STOP LIGHT SWITCH | ||
| 255E | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 255E | N 000000001146 | SCREW |
| TO MOUNT CABLE BRANCH TO FUEL GAUGE SENDER UNIT & TO STOP LIGHT SWITCH | ||
| M 6X16 | ||
| 255L | N 912004006102 | LOCK WASHER |
| TO MOUNT CABLE BRANCH TO FUEL GAUGE SENDER UNIT & TO STOP LIGHT SWITCH | ||
| 255Q | N 000934006007 | NUT |
| TO MOUNT CABLE BRANCH TO FUEL GAUGE SENDER UNIT & TO STOP LIGHT SWITCH | ||
| 256 | A 3129970481 | GROMMET |
| CABLE BRANCH-OFF TO FUEL GAUGE SENDER UNIT THRU SIDE MEMBER | ||
| 258 | A 3239970081 | GROMMET |
| CABLE BRANCH-OFF TO FUEL GAUGE SENDER UNIT THRU SIDE MEMBER | ||
| 259 | N 072571001012 | CLAMP |
| CABLE TO REAR CABLE CONNECTOR AND TO STARTING MOTOR TO BRACKET ON CAB | ||
| 260 | N 007985005113 | SCREW |
| CLAMP MOUNTING | ||
| 261C | N 912004005103 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 261F | N 304032005005 | NUT |
| CLAMP MOUNTING | ||
| 262 | A 3605460080 | CABLE GUIDE |
| 263E | N 007985005109 | SCREW |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 263E | N 007985005160 | SCREW |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 263L | N 912004005103 | LOCK WASHER |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 263Q | N 304032005005 | NUT |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 265 | A 3605460243 | BRACKET |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 267 | A 0019974290 | LOOM TIE |
| Repalced by: A 0019974390 | ||
| 267 | A 0019974390 | LOOM TIE |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 267 | A 0019978490 | LOOM TIE |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 269 | A 0005466141 | CABLE CONNECTOR |
| 6-POLE | ||
| 270 | A 0005460781 | COVERING |
| WITH GASKET | ||
| 271 | A 3145460043 | BRACKET |
| CABLE CONNECTOR | ||
| N 007985004168 | SCREW | |
| CABLE CONNECTOR TO BRACKET | ||
| A 3525462643 | BRACKET | |
| CABLE CONNECTOR | ||
| N 000933010164 | SCREW | |
| BRACKET TO LEFT SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO LEFT SIDE MEMBER | ||
| N 000934010014 | NUT | |
| Repalced by: N 304032010003 | ||
| N 304032010003 | NUT | |
| BRACKET TO LEFT SIDE MEMBER | ||
| 272 | A 0009973481 | GROMMET |
| ELECTRIC CABLES THRU REAR CROSS MEMBER | ||
| 273 | N 007985004160 | SCREW |
| CABLE CONNECTOR | ||
| 273 | N 007985004165 | SCREW |
| CABLE CONNECTOR | ||
| 273 | N 007985004115 | SCREW |
| CABLE CONNECTOR | ||
| 273 | N 007985004180 | SCREW |
| CABLE CONNECTOR | ||
| 274 | A 3275425038 | SHIM |
| CABLE CONNECTOR | ||
| 275E | N 000125004100 | WASHER |
| CABLE CONNECTOR | ||
| 275L | N 912004004102 | LOCK WASHER |
| CABLE CONNECTOR | ||
| 275Q | N 000934004006 | NUT |
| CABLE CONNECTOR | ||
| N 000934004006 | NUT | |
| CABLE CONNECTOR | ||
| 276L | A 3525400007 | CABLE HARNESS |
| Repalced by: A 3145400007 | ||
| 276L | A 3145400007 | CABLE HARNESS |
| Repalced by: A 3525400507 | ||
| 276L | A 3525400507 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 276L | A 3605400307 | CABLE HARNESS |
| Repalced by: A 3145400607 | ||
| 276L | A 3145400607 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 276U | A 3525400107 | CABLE HARNESS |
| Repalced by: A 3145400007 | ||
| 276U | A 3145400007 | CABLE HARNESS |
| Repalced by: A 3525400507 | ||
| 276U | A 3525400507 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 276U | A 3605400807 | CABLE HARNESS |
| Repalced by: A 3145400607 | ||
| 276U | A 3145400607 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 277 | N 046225010101 | CABLE SHOE |
| FROM REAR CABLE CONNECTOR TO TAIL LAMP | ||
| 278 | A 3529950040 | CLAMP |
| Repalced by: A 3099950140 | ||
| 278 | A 3099950140 | CLAMP |
| RIGHT TAIL LAMP CABLE TO REAR CROSS MEMBER | ||
| 280 | A 3239970081 | GROMMET |
| TAIL LAMP CABLES THRU FRAME SIDE MEMBERS | ||
| 281 | A 3529970281 | GROMMET |
| TAIL LAMP CABLES THRU REAR CROSS MEMBER | ||
| 282 | A 8339970281 | GROMMET |
| Repalced by: A 0009973381 | ||
| 282 | A 0009973381 | GROMMET |
| RIGHT TAIL LAMP CABLE TO REAR CROSS MEMBER | ||
| 282L | A 0019978490 | LOOM TIE |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 283 | A 3525400207 | CABLE HARNESS |
| WITH TRAILER PLUG SOCKET | ||
| 283E | N 000091005225 | SCREW |
| TRAILER PLUG SOCKET TO SUPPORT | ||
| 283L | N 912004005103 | LOCK WASHER |
| TRAILER PLUG SOCKET TO SUPPORT | ||
| 283Q | N 304032005005 | NUT |
| TRAILER PLUG SOCKET TO SUPPORT | ||
| 284 | A 3555403527 | ELECTRIC CABLE |
| FROM FRONT END TO BACK-UP LIGHT SWITCH & TO BACK-UP LAMP | ||
| 285 | A 0005400181 | PLUG SOCKET |
| Repalced by: A 3805400181 | ||
| 285 | A 0005400481 | PLUG SOCKET |
| Repalced by: A 3805400181 | ||
| 285 | A 3805400181 | PLUG SOCKET |
| Repalced by: A 3805402181 | ||
| 285 | A 3805402181 | PLUG SOCKET |
| REPAIR SIZE | ||
| A 3529950040 | CLAMP | |
| Repalced by: A 3099950140 | ||
| A 3099950140 | CLAMP | |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 288 | A 0005460543 | BRACKET |
| Repalced by: A 0039971490 | ||
| 288 | A 0039971490 | LOOM TIE |
| ELECTRIC CABLE TO COMPRESSED AIR LINE | ||
| 290 | A 3129970481 | GROMMET |
| ELECTRIC CABLE THRU REAR CROSS MEMBER | ||
| 294 | A 0005421347 | COUPLER |
| 296 | A 0055424410 | TACHOGRAPH |
| ONE-DAY REGISTRATION; READING IN KILOMETERS; MEASURING RANGE,100KM/H | ||
| 296 | A 0075429410 | TACHOGRAPH |
| Repalced by: A 0085422710 | ||
| 296 | A 0085422710 | TACHOGRAPH |
| Repalced by: A 0085425310 | ||
| 296 | A 0085425310 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| 297 | N 072601012800 | BULB |
| 2 W | ||
| 297 | A 0015442594 | BULB |
| Repalced by: A 0005453419 | ||
| 297 | A 0005453419 | SOCKET LAMP |
| 12 V 1,2 W | ||
| A 3285841040 | DECALCOMANIA | |
| SHOWING GEARSHIFT PATTERN;WITH REAR AXLE RATIO 40:7;7.50-20 TIRES | ||
| A 3525843940 | DECALCOMANIA | |
| SHOWING GEARSHIFT PATTERN FOR USE WITH REAR AXLE RATIO 7:40 AND WITH 7.50-20 TIRES | ||
| A 3285840740 | DECALCOMANIA | |
| SHOWING GEARSHIFT PATTERN; WITH REAR AXLE RATIO 48:7;7.5-20 TIRES | ||
| A 3525843540 | DECALCOMANIA | |
| SHOWING GEARSHIFT PATTERN; WITH REAR AXLE RATIO 48:7;7.5-20 TIRES | ||
| A 3285840240 | DECALCOMANIA | |
| SHOWING GEARSHIFT PATTERN(FOR USE WITH REAR AXLE RATIO 7:48 AND WITH 8.25-20 TIRES) | ||
| A 3525843540 | DECALCOMANIA | |
| SHOWING GEARSHIFT PATTERN FOR USE WITH REAR AXLE RATIO 7:48 AND WITH 8.25-20 TIRES | ||

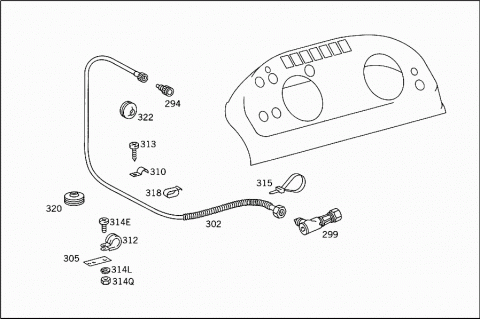

| 299 | A 0005422930 | ANGLE DRIVE |
| FOR USE WITH REAR AXLE RATIO 40:7 AND WITH 7.50-20 TIRES | ||
| 299 | A 0005429330 | ANGLE DRIVE |
| USED WITH REAR AXLE RATIO 48:7 AND WITH 7.50-20 TIRES | ||
| 299 | A 0005422730 | ANGLE DRIVE |
| Repalced by: A 0015429430 | ||
| 299 | A 0015429430 | ANGLE DRIVE |
| USED WITH REAR AXLE RATIO 48:7 AND WITH 8.25-20 TIRES | ||
| 302 | A 0015427507 | FLEXIBLE SHAFT |
| Repalced by: A 0055425007 | ||
| 302 | A 0055425007 | FLEXIBLE SHAFT |
| A 0015428707 | FLEXIBLE SHAFT | |
| Repalced by: A 0045420507 | ||
| A 0045420507 | FLEXIBLE SHAFT | |
| 305 | A 3124292440 | BRACKET |
| Repalced by: A 3124761535 | ||
| 305 | A 3124761535 | BRACKET |
| FLEXIBLE SHAFT | ||
| 310 | A 3129952020 | CLAMP |
| FLEXIBLE SHAFT TO BRACKET | ||
| 312 | N 916016012201 | CLAMP |
| FLEXIBLE SHAFT TO BRACKET | ||
| 313 | N 007981004279 | SHEET METAL SCREW |
| CLAMP MOUNTING | ||
| 314E | N 007985005175 | SCREW |
| CLAMP MOUNTING | ||
| 314L | N 912004005103 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 314Q | N 304032005005 | NUT |
| CLAMP MOUNTING | ||
| 315 | A 0005460443 | STRAP |
| Repalced by: A 0019974390 | ||
| 315 | A 0019974390 | LOOM TIE |
| FLEXIBLE SHAFT TO CAB | ||
| 318 | A 3635460175 | CLAMP |
| FLEXIBLE SHAFT TO FRAME SIDE MEMBER | ||
| 320 | A 3229971681 | GROMMET |
| Repalced by: A 3359970081 | ||
| 320 | A 3219970081 | GROMMET |
| Repalced by: A 3359970081 | ||
| 320 | A 3359970081 | GROMMET |
| FLEXIBLE SHAFT THRU TOEBOARD | ||
| A 3529971381 | GROMMET | |
| FLEXIBLE SHAFT THRU TOEBOARD | ||
| 322 | A 3529970881 | GROMMET |
| Repalced by: A 3529970681 | ||
| 322 | A 3529970681 | GROMMET |
| FLEXIBLE SHAFT AND HOSE FOR STARTER PILOT THRU WINDOW LEVEL GIRDER | ||
| 325 | A 0015407747 | INSTRUMENT CLUSTER |
| Repalced by: A 0015407347 | ||
| 325 | A 0015407347 | INSTRUMENT CLUSTER |
| WITH INSCRIPTION IN GERMAN | ||
| 325 | A 0015407347 | INSTRUMENT CLUSTER |
| WITH INSCRIPTION IN GERMAN | ||
| 325 | A 0025402047 | INSTRUMENT CLUSTER |
| WITH INSCRIPTION IN GERMAN | ||
| 328 | A 0025426705 | TEMPERATURE GAUGE |
| Repalced by: A 0025426005 | ||
| 328 | A 0025426005 | TEMPERATURE GAUGE |
| CENTIGRADE SCALE | ||
| 328 | A 0025427305 | TEMPERATURE GAUGE |
| Repalced by: A 0025426005 | ||
| 328 | A 0025426005 | TEMPERATURE GAUGE |
| CENTIGRADE SCALE | ||
| 328 | A 0035421005 | TEMPERATURE GAUGE |
| CENTIGRADE SCALE | ||
| 332 | A 0005427508 | AIR PRESSURE GAUGE |
| Repalced by: A 0005429108 | ||
| 332 | A 0005429108 | AIR PRESSURE GAUGE |
| GRADUATION IN KG/CM2 | ||
| 334 | A 0015424102 | OIL PRESSURE GAUGE |
| GRADUATION IN KG/CM2 | ||
| 336 | A 0005428503 | FUEL GAUGE DASH UNIT |
| 338 | A 0005420332 | TELL-TALE LAMP |
| BRAKE PRESSURE | ||
| N 007603014405 | SEAL RING | |
| AT UPPER COOLING WATER LINE | ||
| A 0005420392 | CONNECTOR | |
| AT UPPER COOLING WATER LINE | ||
| A 0009972881 | GROMMET | |
| TEMPERATURE GAUGE CAPILLARY TUBE THRU WINDOW LEVEL GIRDER | ||
| 340 | A 0015422317 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 340 | A 0075420917 | SENDER UNIT |
| Repalced by: A 0025427317 | ||
| 340 | A 0025427317 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 341 | N 007603014104 | SEAL RING |
| 342 | A 0015424917 | SENDER UNIT |
| Repalced by: A 0045428917 | ||
| 342 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| 345 | N 007603014400 | SEAL RING |
| 348 | A 0025457824 | SWITCH,AUTOMATIC |
| Repalced by: A 0045455524 | ||
| 348 | A 0045455524 | SWITCH,AUTOMATIC |
| COOLING WATER TEMPERATURE CONTROL | ||
| 350 | N 007603014403 | SEAL RING |
| 352 | A 0005453526 | PLUG SOCKET |
| Repalced by: A 0015458526 | ||
| 352 | A 0005453926 | PLUG SOCKET |
| Repalced by: A 0015458526 | ||
| 352 | A 0005454426 | PLUG SOCKET |
| Repalced by: A 0015458526 | ||
| 352 | A 0015458526 | PLUG SOCKET |
| HAND LAMP | ||
| 355 | A 0005453914 | SWITCH |
| Repalced by: A 0005456314 | ||
| 355 | A 0005456314 | SWITCH |
| Repalced by: A 0015450214 | ||
| 355 | A 0015450214 | SWITCH |
| Repalced by: A 0015454914 | ||
| 355 | A 0015454914 | SWITCH |
| STARTING IN CAB | ||
| 358 | A 0005420825 | POTENTIOMETER |
| FOR INSTRUMENT LIGHTING | ||
| 358 | A 0005421425 | POTENTIOMETER |
| Repalced by: A 3015420025 | ||
| 358 | A 3015420025 | POTENTIOMETER |
| FOR INSTRUMENT LIGHTING | ||
| 358 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 359 | A 0005421325 | POTENTIOMETER |
| HOT AIR BLOWER | ||
| 360 | A 0005450272 | NUT |
| INSTRUMENT LIGHTING | ||
| 360 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| 360 | A 0005450372 | NUT |
| HOT AIR BLOWER | ||
| 361 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| 362 | A 0005421189 | KNOB |
| Repalced by: A 0005421889 | ||
| 362 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING SWITCH | ||
| A 0005421289 | KNOB | |
| Repalced by: A 3095420189 | ||
| 362 | A 3095420189 | KNOB |
| HOT AIR BLOWER | ||
| 363 | A 0005457711 | SWITCH |
| PANE WIPER | ||
| 364 | A 0005457611 | SWITCH |
| CAB LIGHTING AND BLOWER | ||
| 365 | A 0005459311 | SWITCH |
| PANE WIPER | ||
| 366 | A 0005459211 | SWITCH |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 367 | A 0005459111 | SWITCH |
| CAB LAMP | ||
| 367 | A 0005459111 | SWITCH |
| HOT AIR BLOWER | ||
| 368 | A 0005451483 | CAP |
| WINDSHIELD WIPER O F F O N | ||
| 368 | A 0005451583 | CAP |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 368 | A 0005451883 | CAP |
| CAB LAMP | ||
| 368 | A 0005451783 | CAP |
| HOT AIR BLOWER | ||
| 369 | A 0005450272 | NUT |
| A 0005450537 | BUTTON | |
| Repalced by: A 0005450837 | ||
| 370 | A 0005450837 | BUTTON |
| A 0035453924 | SWITCH,AUTOMATIC | |
| Repalced by: A 0025457124 | ||
| 372 | A 0025457124 | SWITCH,AUTOMATIC |
| HAZARD WARNING LIGHT | ||
| 372H | A 0055459324 | HAZARD WARNG.LIGHT SWITCH |
| N 072601012230 | BULB | |
| 373 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 374 | N 072601012110 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 12 V/2 W | ||
| 375E | A 6115400066 | ADAPTER FRAME |
| HAZARD WARNING LIGHT SWITCH | ||
| 375K | A 0005458415 | TELL-TALE LAMP |
| Repalced by: A 0015451115 | ||
| 375K | A 0015451115 | TELL-TALE LAMP |
| TO HAND BRAKE | ||
| 375N | N 072601012800 | BULB |
| 376 | A 0015450615 | TELL-TALE LAMP |
| Repalced by: A 0005451630 | ||
| 376 | A 0005451630 | SHELL |
| LESS LENS | ||
| 377 | A 0005452319 | SOCKET |
| 377 | A 0005452319 | SOCKET |
| 377 | A 0005452319 | SOCKET |
| 378 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| 378L | A 0005450790 | LENS |
| DUMPER PLATFORM SUBSTRUCTURE | ||
| 379 | A 0005451190 | LENS |
| HIGH BEAM | ||
| 380 | A 0005451290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 381 | A 0005451390 | LENS |
| TRAILER BLINKER | ||
| 382 | N 072601012800 | BULB |
| TO TELL-TALE LAMPS | ||
| 382F | A 3199970281 | GROMMET |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 383 | A 3099970144 | SEAL RING |
| SWITCH | ||
| 385 | A 0009973535 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 387 | A 0009970425 | EXPANSION PLUG |
| PUSHBUTTON SWITCH | ||
| 388 | A 0009970525 | EXPANSION PLUG |
| PUSH BUTTON SWITCH | ||
| 389 | A 0005452009 | SWITCH |
| Repalced by: A 0015453709 | ||
| 389 | A 0015453709 | SWITCH |
| TRAILER BRAKE AT CYLINDER CRANKCASE | ||
| 390 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 390 | N 304017006018 | SCREW |
| SWITCH | ||
| 391 | N 912004006102 | LOCK WASHER |
| SWITCH | ||
| 392 | N 000934006007 | NUT |
| SWITCH | ||
| 393 | A 1869932610 | SPRING |
| 395 | A 3215450078 | EXTENSION |
| 398 | A 3819970486 | PLUG |
| TRANSFER CASE | ||
| A 0005500083 | PUMP | |
| Repalced by: A 0005500883 | ||
| A 0009815685 | BALL | |
| A 0029930201 | SPRING | |
| Repalced by: A 0005500955 | ||
| A 0049979145 | SEAL RING | |
| Repalced by: A 0025500955 | ||
| A 0025500955 | VALVE | |
| REPAIR KIT | ||
| N 007603008112 | SEAL RING | |
| A 0009977972 | FITTING | |
| A 0009903767 | SEAL CONE | |
| Repalced by: A 0009909454 | ||
| A 0009903454 | NUT | |
| Repalced by: A 0009909454 | ||
| A 0009909454 | NUT | |
| REPAIR KIT | ||
| A 0049979245 | SEAL RING | |
| A 0005550076 | WASHER | |
| A 0005550018 | STRAINER | |
| A 0009944335 | SNAP RING | |
| 412 | A 3226890030 | CAP |
| 420 | A 0005500883 | PUMP |
| Repalced by: A 0005501083 | ||
| 420 | A 0005501083 | PUMP |
| Repalced by: A 0005502383 | ||
| 420 | A 0005502383 | PUMP |
| STARTER PILOT | ||
| 420 | A 0005502383 | PUMP |
| STARTER PILOT | ||
| 422 | A 0005550240 | HANDLE |
| Repalced by: A 0005550440 | ||
| 422 | A 0005550440 | HANDLE |
| 423 | A 0005550072 | NUT |
| Repalced by: A 0005550372 | ||
| 423 | A 0005550372 | NUT |
| A 0009908867 | SEAL CONE | |
| Repalced by: A 0005550618 | ||
| 424C | A 0005550618 | SEAL CONE |
| REPAIR KIT | ||
| 424H | A 0019970578 | SCREW CONNECTION |
| 425 | A 0019900040 | WASHER |
| Repalced by: A 3359900240 | ||
| 425 | A 3359900240 | WASHER |
| 428 | A 3359971282 | HOSE |
| Repalced by: A 3359972282 | ||
| 428 | A 3359972282 | HOSE |
| 4X1 MM(ORDER BY THE METER) | ||
| A 0005500604 | CAPSULE BORER | |
| Repalced by: A 0005501104 | ||
| A 0079976445 | SEAL RING | |
| A 0009931120 | SPRING | |
| A 0009911561 | DOWEL PIN | |
| A 0005550093 | SPRING | |
| A 0009900332 | SCREW | |
| A 0005550080 | GASKET | |
| Repalced by: A 0005500180 | ||
| A 0005550008 | PRIMER CAPSULE | |
| Repalced by: A 0005500180 | ||
| A 0009902330 | SCREW | |
| Repalced by: A 0005500180 | ||
| A 0005550212 | NOZZLE | |
| Repalced by: A 0005500180 | ||
| A 0005500180 | OIL TANK | |
| Repalced by: A 0005500280 | ||
| A 0005500280 | OIL TANK | |
| REPAIR KIT | ||
| A 0005550105 | CAPSULE BORER | |
| A 0009903620 | SCREW | |
| A 0005550118 | STRAINER | |
| A 0009941537 | SNAP RING | |
| A 0005550059 | PIPE | |
| A 0029976240 | SEAL RING | |
| A 0009815685 | BALL | |
| A 0029930201 | SPRING | |
| Repalced by: A 0005500955 | ||
| A 0005500955 | VALVE | |
| REPAIR KIT | ||
| A 0005550030 | CONNECTOR | |
| A 0005550130 | CONNECTOR | |
| N 006798008101 | SERRATED WASHER | |
| N 000934008021 | NUT | |
| A 0009903767 | SEAL CONE | |
| Repalced by: A 0009909454 | ||
| A 0009903454 | NUT | |
| Repalced by: A 0009909454 | ||
| A 0009909454 | NUT | |
| REPAIR KIT | ||
| 445 | A 0005501104 | CAPSULE BORER |
| Repalced by: A 0005501404 | ||
| 445 | A 0005501404 | PRIMER CAPSULE |
| 445 | A 0005501404 | PRIMER CAPSULE |
| 447 | N 006798008101 | SERRATED WASHER |
| 449 | N 000934008021 | NUT |
| 455 | A 0009903767 | SEAL CONE |
| Repalced by: A 0009909454 | ||
| 458 | A 0009903454 | NUT |
| Repalced by: A 0009909454 | ||
| 459 | A 0009909454 | NUT |
| REPAIR KIT | ||
| A 3365450340 | BRACKET | |
| 461D | N 000933006102 | SCREW |
| 461H | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 461H | N 009021006208 | WASHER |
| 461N | N 912004006102 | LOCK WASHER |
| 461R | N 000934006007 | NUT |
| A 0005550004 | CAPSULE | |
| CONTAINING 5 PIECES | ||
| 463 | A 0005550010 | FILLING CYLINDER |
| STARTER PILOT | ||
| 463 | A 0005550010 | FILLING CYLINDER |
| STARTER PILOT | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
