Transporto priemonė: L 911 B; VIN numerio dalis: 353004

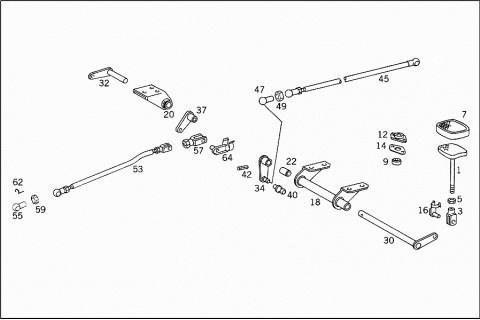

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
001	A 3524300318	BRAKE PEDAL
003	N 071752008002	YOKE
005	N 304032008006	NUT
007	A 3203015082	PAD
009	A 3524340123	GUIDE
		BRAKE PEDAL THRU CAB FLOOR
	A 3524340140	BRACKET
		BRAKE PEDAL THRU CAB FLOOR
012	A 3524341040	BRACKET
		BRAKE PEDAL THRU CAB FLOOR
	A 3524340087	SHIM
		BRAKE PEDAL THRU CAB FLOOR
014	A 3524340187	SHIM
		BRAKE PEDAL THRU CAB FLOOR
	N 000571006000	WOOD SCREW
		BRACKET TO CAB FLOOR
016	N 918001008000	PIN
		BRAKE PEDAL TO EXHAUST BRAKE SHAFT
	N 900055008000	SPRING WASHER
018	A 3524300438	BEARING
020	A 3524300538	BEARING
022	A 3524340150	BUSHING
024	N 071412010100	GREASE NIPPLE
	N 000933008212	SCREW
	Repalced by: N 304017008016
	N 304017008016	SCREW
		EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER
	N 912004008102	LOCK WASHER
		EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER
	N 304032008006	NUT
		EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER
030	A 3524301446	INTERMEDIATE SHAFT
032	A 3524301546	INTERMEDIATE SHAFT
034	A 3524300523	LEVER
037	A 3524300923	LEVER
040	N 071803010209	BALL PIVOT
	Repalced by: A 3129910120
040	A 3129910120	BALL PIVOT
042	N 001481004017	CLAMPING SLEEVE
	Repalced by: N 308752004001
042	N 308752004001	CLAMPING PIN
045	A 3604302092	ROD
047	A 0009910522	BALL SOCKET
	Repalced by: A 0009912422
047	A 0009912422	BALL SOCKET
049	N 000934006007	NUT
	N 071805010403	SECURING CLIP
	N 071805010204	BALL SOCKET
	N 000934006007	NUT
053	A 3524301192	ROD
055	N 071805010204	BALL SOCKET
057	N 071752006006	YOKE
059	N 000934006007	NUT
062	N 071805010403	SECURING CLIP
064	N 918001006004	PIN
