Transporto priemonė: L 911 B; VIN numerio dalis: 353004

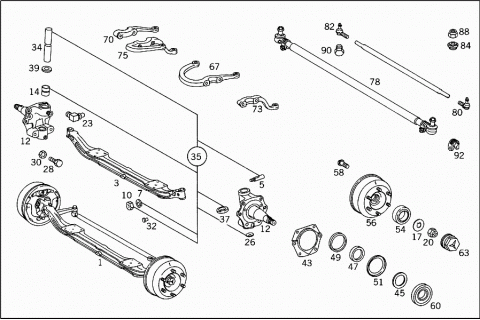

Grupė: 33 FRONT AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3533302700 | FRONT AXLE |
| WITH BRAKE | ||
| 001 | A 3533302800 | FRONT AXLE |
| WITH BRAKE | ||
| 003 | A 3533310201 | FRONT AXLE BEAM |
| 005 | A 3129900137 | BOLT |
| 007 | N 912004008102 | LOCK WASHER |
| 010 | N 304032008006 | NUT |
| 012 | A 3533320001 | STEERING KNUCKLE |
| 014 | A 3123321749 | BUSHING |
| Repalced by: A 3533320048 | ||
| 014 | A 3533320048 | BUSHING |
| 017 | A 3123321862 | THRUST WASHER |
| 020 | A 3143340072 | NUT |
| Repalced by: A 6753300088 | ||
| 020 | A 6753300088 | NUT |
| N 000912008096 | SCREW | |
| Repalced by: N 000912008202 | ||
| N 000912008202 | SCREW | |
| 023 | N 071412010100 | GREASE NIPPLE |
| N 071412010200 | GREASE NIPPLE | |
| 026 | A 3129971125 | EXPANSION PLUG |
| 028 | A 3129902801 | SCREW |
| Repalced by: N 000960012197 | ||
| 028 | N 000960012197 | SCREW |
| Repalced by: N 000960012384 | ||
| 028 | N 000960012384 | SCREW |
| M 12 X 50 | ||
| 028 | A 3129902901 | SCREW |
| M 12 X 55 | ||
| 030 | N 000934012022 | NUT |
| 032 | N 900083010000 | PLUG |
| 034 | A 3283320006 | KINGPIN |
| Repalced by: A 3285860033 | ||
| 035 | A 3285860033 | REPAIR KIT |
| Repalced by: A 3283300019 | ||
| 035 | A 3283300019 | KING PIN |
| STANDARD | ||
| 30 MM | ||
| 035 | A 3283320106 | KINGPIN |
| STANDARD SIZE I | ||
| 30.30 MM | ||
| 035 | A 3283320206 | KINGPIN |
| REPAIR SIZE I | ||
| 30.60 MM | ||
| 035 | A 3283320306 | KINGPIN |
| REPAIR SIZE II | ||
| 31 MM | ||
| 037 | A 0009811118 | ROLLER BEARING |
| 039 | A 3143320352 | SPACER WASHER |
| 0.90 MM | ||
| 039 | A 3143320452 | SPACER WASHER |
| 1.00 MM | ||
| 039 | A 3143320552 | SPACER WASHER |
| 1.10 MM | ||
| 039 | A 3143320652 | SPACER WASHER |
| 1.20 MM | ||
| 039 | A 3143320752 | SPACER WASHER |
| 1.30 MM | ||
| 039 | A 3143320852 | SPACER WASHER |
| 1.40 MM | ||
| 039 | A 3143320952 | SPACER WASHER |
| 1.50 MM | ||
| 039 | A 3143321052 | SPACER WASHER |
| 1.60 MM | ||
| 039 | A 3143321152 | SPACER WASHER |
| 1.70 MM | ||
| 039 | A 3143321452 | SPACER WASHER |
| Repalced by: A 3143320452 | ||
| 039 | A 3143321552 | SPACER WASHER |
| 2.10 MM | ||
| 043 | A 3533340182 | OIL COLLECTOR |
| 043 | A 3533340382 | OIL COLLECTOR |
| 045 | A 3123341315 | RING |
| 045 | A 3123341615 | RING |
| 047 | A 0009976347 | SEAL RING |
| 047 | A 0119972546 | SEAL RING |
| 049 | A 3123341058 | SEAL HOLDER |
| 051 | A 3123341251 | SPACER RING |
| 051 | A 3163340151 | SPACER RING |
| 054 | A 0019818305 | TAPERED ROLLER BEARING |
| 054 | A 0019818705 | TAPERED ROLLER BEARING |
| 054 | A 0009819505 | TAPERED ROLLER BEARING |
| 056 | A 3533340304 | DRUM HUB |
| 058 | A 3184020271 | WHEEL MOUNTING BOLT |
| 060 | A 0019818405 | TAPERED ROLLER BEARING |
| 060 | A 0019818605 | TAPERED ROLLER BEARING |
| 060 | A 0029812405 | TAPERED ROLLER BEARING |
| 060 | A 0009807502 | TAPERED ROLLER BEARING |
| 060 | A 0029818205 | TAPERED ROLLER BEARING |
| 060 | A 0009808302 | TAPERED ROLLER BEARING |
| 063 | A 3183340025 | HUB CAP |
| 063 | A 3183340025 | HUB CAP |
| 063 | A 3533300057 | HUB CAP |
| 067 | A 3533380007 | STEERING ARM |
| 070 | A 3283380106 | STEERING ARM |
| 073 | A 3533380005 | STEERING ARM |
| 075 | A 3533380108 | STEERING ARM |
| 078 | A 3533300303 | TIE ROD |
| Repalced by: A 3533300503 | ||
| 078 | A 3533300503 | TIE ROD |
| LEMFOERDER | ||
| 080 | A 0003300635 | JOINT |
| Repalced by: A 0003308535 | ||
| 080 | A 0003308535 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 082 | A 0003300735 | JOINT |
| Repalced by: A 0003308635 | ||
| 082 | A 0003308635 | JOINT |
| L.H. THREAD | ||
| LEMFOERDER | ||
| 084 | A 0004631796 | BOOT |
| LEMFOERDER | ||
| 088 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 088 | N 000979016007 | NUT |
| N 000094004023 | COTTER PIN | |
| 090 | N 900087008000 | PLUG |
| 092 | A 0009957044 | CLAMP |
