Transporto priemonė: L 911 B; VIN numerio dalis: 353004
Grupė: 47 FUEL SYSTEM

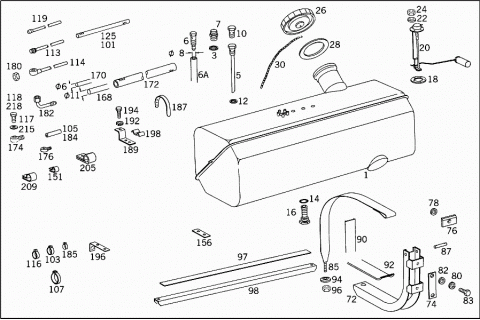

56542

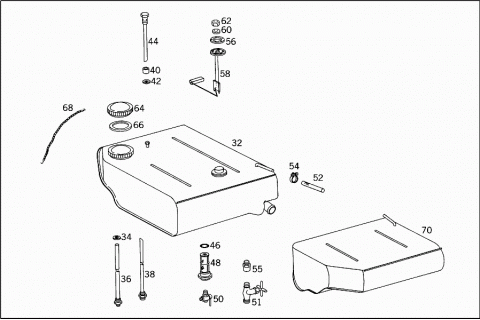

56543
# Kodas Pavadinimas
001 A 3524700101 FUEL TANK
Repalced by: A 3834700601
001 A 3834700601 FUEL TANK
Repalced by: A 6734701201
001 A 6734701201 FUEL TANK
105 L
001 A 3524701001 FUEL TANK
Repalced by: A 3834700701
001 A 3834700701 FUEL TANK
Repalced by: A 6734701001
001 A 6734701001 FUEL TANK
105 L
003 N 915035000014 SEAL RING
FUEL LINE TO TANK
A 3524700226 RISING PIPE
Repalced by: A 3374700126
A 3374700126 RISING PIPE
FUEL LINE TO TANK
005 A 3604700226 RISING PIPE
Repalced by: A 3609900263
005 A 3464705126 RISING PIPE
Repalced by: A 3609900263
005 A 3524700078 HOLLOW SCREW
Repalced by: A 3609900263
006 A 3609900263 HOLLOW SCREW
FUEL LINE TO TANK
006A A 0089975482 HOSE
FUEL LINE TO TANK
337 MM
007 A 3214710220 FITTING
FUEL LINE TO TANK
010 N 915036012203 HOLLOW SCREW
FUEL LINE TO TANK
012 A 0029971640 SEAL RING
Repalced by: A 0009971548
012 A 0009971548 SEAL RING
FUEL LINE TO TANK
N 007604014106 SCREW PLUG
Repalced by: N 007604014110
N 007604014110 SCREW PLUG
AT TANK
N 007603014405 SEAL RING
AT TANK
014 A 0029977245 SEAL RING
FUEL STRAINER SCREEN TO FUEL TANK
016 A 3214700006 FUEL STRAINER
Repalced by: A 3604700006
016 A 3604700006 FUEL STRAINER
Repalced by: A 3074700106
016 A 3074700106 FUEL STRAINER
016 A 0004710235 FUEL STRAINER
018 A 3524710080 GASKET
Repalced by: A 4044710080
018 A 4044710080 GASKET
FUEL GAUGE SENDER UNIT TO FUEL TANK
018 A 0119970745 SEAL RING
FUEL GAUGE SENDER UNIT TO FUEL TANK
020 A 0015422017 SENDER UNIT
FUEL GAUGE
020 A 0045424517 SENDER UNIT
Repalced by: A 0055423317
020 A 0055423317 SENDER UNIT
Repalced by: A 0085427617
020 A 0085427617 SENDER UNIT
FUEL GAUGE
022 A 0669970640 SEAL RING
FUEL GAUGE SENDER UNIT TO FUEL TANK
024 N 304032005005 NUT
FUEL GAUGE SENDER UNIT TO FUEL TANK
026 A 3044700005 FILLER CAP
Repalced by: A 3094700005
026 A 3524700405 FILLER CAP
Repalced by: A 3094700005
026 A 3094700005 FILLER CAP
026 A 0004710530 FILLER CAP
Repalced by: A 0004717930
026 A 0004717930 FILLER CAP
Repalced by: A 0004700305
026 A 0004718030 FILLER CAP
Repalced by: A 0004700305
026 A 0004700305 FILLER CAP
026 A 0004700105 FILLER CAP
Repalced by: A 0004700305
028 A 3049970340 SEAL RING
030 A 3034700031 CHAIN
AT TANK
032 A 3224704901 FUEL TANK
Repalced by: A 3524703901
032 A 3524703801 FUEL TANK
Repalced by: A 3524703901
032 A 3524703901 FUEL TANK
65 L
034 N 915035000014 SEAL RING
FUEL LINE TO TANK
036 A 3524700926 RISING PIPE
FUEL LINE TO TANK
038 A 3224700026 RISING PIPE
Repalced by: A 3374700126
038 A 3374700126 RISING PIPE
FUEL LINE TO TANK
040 A 3284710053 SPACER TUBE
FUEL LINE TO TANK
042 N 007603014405 SEAL RING
FUEL LINE TO TANK
N 915035000014 SEAL RING
044 A 3224700426 RISING PIPE
Repalced by: A 3284700226
044 A 3284700226 RISING PIPE
FUEL LINE TO TANK
044 A 3284700226 RISING PIPE
FUEL LINE TO TANK
048 A 3124701506 FUEL STRAINER
048 A 3604700206 FUEL STRAINER
051 N 900121006100 VALVE
052 A 3124761426 HOSE
Repalced by: A 3054760126
052 A 3054760126 HOSE
CONNECTION OF FUEL TANKS
054 N 916026010000 CLAMP
Repalced by: N 000000000665
054 N 000000000665 CLAMP
CONNECTION OF FUEL TANKS
N 007603014405 SEAL RING
FUEL STRAINER SCREEN
055 A 3604710320 FITTING
FUEL STRAINER SCREEN
056 A 3524710080 GASKET
Repalced by: A 4044710080
056 A 4044710080 GASKET
FUEL GAUGE SENDER UNIT TO FUEL TANK
058 A 0005428517 SENDER UNIT
060 A 0669970640 SEAL RING
FUEL GAUGE SENDER UNIT TO FUEL TANK
062 N 304032005005 NUT
FUEL GAUGE SENDER UNIT TO FUEL TANK
064 A 3044700005 FILLER CAP
Repalced by: A 3094700005
064 A 3524700405 FILLER CAP
Repalced by: A 3094700005
064 A 3094700005 FILLER CAP
066 A 3049970340 SEAL RING
068 A 3034700031 CHAIN
070 A 3224705101 FUEL TANK
Repalced by: A 3524704001
070 A 3524704001 FUEL TANK
40 L
072 A 3524700042 SUPPORT
FUEL TANK
072 A 3524702142 SUPPORT
Repalced by: A 3524703242
072 A 3524703242 SUPPORT
Repalced by: A 3834701442
072 A 3834701442 SUPPORT
Repalced by: A 3834701842
072 A 3834701842 SUPPORT
FUEL TANK
072 A 3524702342 SUPPORT
Repalced by: A 3834701542
072 A 3834701542 SUPPORT
Repalced by: A 3834701942
072 A 3834701542 SUPPORT
Repalced by: A 3834701942
072 A 3834701942 SUPPORT
FUEL TANK
072 A 3524701942 SUPPORT
Repalced by: A 3524703142
072 A 3524703142 SUPPORT
Repalced by: A 3534700042
072 A 3534700042 SUPPORT
Repalced by: A 3534700242
072 A 3534700242 SUPPORT
FUEL TANK
072 A 3534700242 SUPPORT
FUEL TANK
A 3214750084 SHIM
Repalced by: N 007349013003
N 007349013003 WASHER
Repalced by: N 007349013005
N 007349013005 WASHER
CONSOLES TO SIDE MEMBER
074 A 3604750084 SHIM
Repalced by: A 6245611240
074 A 6245611240 BRACKET
CONSOLES TO SIDE MEMBER
074 A 3604750284 SHIM
076 A 3524750084 SHIM
Repalced by: A 3604750484
076 A 3604750484 SHIM
CONSOLES TO SIDE MEMBER
076 A 3604750484 SHIM
076 A 3604750484 SHIM
078 N 007349013003 WASHER
Repalced by: N 007349013005
078 N 007349013005 WASHER
CONSOLES TO SIDE MEMBER
078 N 007349015003 WASHER
CONSOLES TO SIDE MEMBER
080 N 912004012100 LOCK WASHER
CONSOLES TO SIDE MEMBER
080 N 912004014100 LOCK WASHER
CONSOLES TO SIDE MEMBER
082 A 3209906040 WASHER
CONSOLES TO SIDE MEMBER
082 A 3529900640 WASHER
CONSOLES TO SIDE MEMBER
082 A 3609900640 WASHER
CONSOLES TO SIDE MEMBER
082 A 3839900440 WASHER
CONSOLES TO SIDE MEMBER
083 N 000961012151 SCREW
CONSOLES TO SIDE MEMBER
083 N 000961012052 SCREW
Repalced by: N 308676012012
083 N 308676012012 SCREW
CONSOLES TO SIDE MEMBER
M 12X1.5X25
083 N 000961012097 SCREW
Repalced by: N 308676012026
083 N 308676012026 SCREW
CONSOLES TO SIDE MEMBER
M 12X1.5X35
083 N 000961012122 SCREW
CONSOLES TO SIDE MEMBER
M 12X1.5X40
083 N 000961012151 SCREW
CONSOLES TO SIDE MEMBER
M 12X1.5X30
083 N 000961014050 SCREW
Repalced by: N 308676014020
083 N 308676014020 SCREW
CONSOLES TO SIDE MEMBER
M 14X1.5X35
083 N 000961014028 SCREW
M 14X1.5X40
083 N 000961012099 SCREW
CONSOLES TO SIDE MEMBER
M 12X1.5X42
083 N 000961012097 SCREW
Repalced by: N 308676012026
083 N 308676012026 SCREW
CONSOLES TO SIDE MEMBER
M 12X1.5X35
083 N 000961012069 SCREW
Repalced by: N 308676012015
083 N 308676012015 SCREW
CONSOLES TO SIDE MEMBER
M 12X1.5X45
083 N 000961014054 SCREW
CONSOLES TO SIDE MEMBER
M14X45
083 N 000960012049 SCREW
CONSOLES TO SIDE MEMBER
M 12X48
083 N 000960012049 SCREW
CONSOLES TO SIDE MEMBER
M 12X48
085 A 3524700040 STRAP
FUEL TANK
085 A 3604700140 STRAP
Repalced by: A 3834700340
085 A 3834700340 STRAP
FUEL TANK
085 A 3834700040 STRAP
Repalced by: A 6174700340
085 A 6174700340 STRAP
087 N 001443016203 PIN
STRAP TO SUPPORT
N 000094004065 COTTER PIN
STRAP TO SUPPORT
A 3609870014 RUBBER STRIP
FUEL TANK TO CONSOLE
A 3529870014 RUBBER STRIP
FUEL TANK TO CONSOLE
090 A 4044750220 PAD
Repalced by: A 3634750320
090 A 3634750320 PAD
FUEL TANK TO CONSOLE
092 A 4044750120 PAD
Repalced by: A 3634750220
092 A 3634750220 PAD
FUEL TANK TO CONSOLE
094 A 3609970126 WASHER
FUEL TANK TO CONSOLE
096 N 000934012022 NUT
FUEL TANK TO CONSOLE
M 12X1.5
096 N 000934012021 NUT
FUEL TANK TO CONSOLE
M 12
A 3604292940 BRACKET
AT CONSOLE
A 3604293040 BRACKET
Repalced by: A 3604293140
A 3604293140 BRACKET
AT CONSOLE
A 3604700206 FUEL STRAINER
FUEL TANK
N 900121006100 VALVE
FUEL TANK
097 A 3224750020 PAD
FUEL TANK
098 A 3224750140 CLAMPING RAIL
FUEL TANK
A 3224750240 CLAMPING RAIL
FUEL TANK
A 3224700440 STRAP
FUEL TANK
N 000933008212 SCREW
Repalced by: N 304017008016
N 304017008016 SCREW
FUEL TANK
N 912004008102 LOCK WASHER
FUEL TANK
N 304032008006 NUT
FUEL TANK
N 000934010014 NUT
Repalced by: N 304032010003
N 304032010003 NUT
FUEL TANK
101 A 3224760026 HOSE
Repalced by: A 3054760126
101 A 3054760126 HOSE
FUEL TANK BREATHING
103 N 912006016100 LOCK WASHER
FUEL TANK BREATHING
A 3224760826 HOSE
FUEL HOSE TO FUEL LINE
105 A 3604760126 HOSE
Repalced by: A 3524760226
105 A 3524760226 HOSE
FUEL HOSE TO FUEL LINE
107 N 900269049100 CLAMP
FUEL HOSE TO FUEL LINE
107 N 916002039100 CLAMP
FUEL HOSE TO FUEL LINE
107 N 916002039100 CLAMP
FUEL HOSE TO FUEL LINE
A 3524701564 LINE
Repalced by: A 3404702165
A 3404702165 LINE
FROM TANK TO RUBBER HOSE
3000 MM
A 3584701564 LINE
Repalced by: A 3404702165
A 3224709065 LINE
Repalced by: A 3404701965
A 3224709165 LINE
Repalced by: A 3404701965
A 3404701965 LINE
FROM TANK TO RUBBER HOSE
1000 MM
N 900121008000 VALVE
113 A 3524701664 LINE
Repalced by: A 3404702165
113 A 3404702165 LINE
FROM TANK TO SCREW CONNECTION
3000 MM
113 A 3404701965 LINE
FROM TANK TO SCREW CONNECTION
1000 MM
113 A 3524701764 LINE
Repalced by: A 3404702665
113 A 3404702665 LINE
FROM TANK TO SCREW CONNECTION
1000 MM
114 A 3524701864 LINE
Repalced by: A 3404701265
114 A 3524701964 LINE
Repalced by: A 3404701265
114 A 3404701265 LINE
FROM RUBBER HOSE TO FEED PUMP
1000 MM
114 A 3404701265 LINE
FROM RUBBER HOSE TO FEED PUMP
1000 MM
A 3124700065 LINE
Repalced by: A 3054760126
A 3054760126 HOSE
TO CONNECT THE FUEL LINES
A 3054760126 HOSE
TO CONNECT THE FUEL LINES
116 N 900269016100 CLAMP
TO CONNECT THE FUEL LINES
117 N 007603014405 SEAL RING
FUEL LINES TO ENGINE
117 N 007603014405 SEAL RING
FUEL LINES TO ENGINE
118 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
118 N 915036010108 HOLLOW SCREW
FUEL LINES TO ENGINE
118 N 915036010108 HOLLOW SCREW
FUEL LINES TO ENGINE
119 A 3524702064 LINE
Repalced by: A 3404702165
119 A 3404702165 LINE
FROM FILTER TO HOSE
3000 MM
119 A 3404702165 LINE
FROM FILTER TO HOSE
3000 MM
119 A 3524702164 LINE
Repalced by: A 3404701965
119 A 3404701965 LINE
FROM FILTER TO HOSE
1000 MM
N 007603014405 SEAL RING
N 007603014405 SEAL RING
A 3524702264 LINE
Repalced by: A 3404702165
119 A 3404702165 LINE
FROM RUBBER HOSE TO TANK
3000 MM
A 3224762302 LINE
Repalced by: A 3404761202
A 3404761202 LINE
Repalced by: A 0004290901
A 0004290901 LINE
FROM RUBBER HOSE TO RUBBER HOSE
1000 MM
A 3524700764 LINE
Repalced by: A 3404701965
119 A 3404701965 LINE
FROM RUBBER HOSE TO TANK
1000 MM
125 A 3124760026 HOSE
Repalced by: A 3054760126
125 A 3054760126 HOSE
TO CONNECT THE FUEL LINES
125 A 3054760126 HOSE
TO CONNECT THE FUEL LINES
N 900269016100 CLAMP
TO CONNECT THE FUEL LINES
N 900269016100 CLAMP
TO CONNECT THE FUEL LINES
A 3524702364 LINE
Repalced by: A 3404702665
A 3404702665 LINE
FROM RUBBER HOSE TO SCREW CONNECTION
1000 MM
A 3524702464 LINE
Repalced by: A 3404702165
119 A 3404702165 LINE
FROM SCREW CONNECTION TO TANK
3000 MM
119 A 3404701965 LINE
FROM SCREW CONNECTION TO TANK
1000 MM
A 3125421083 HOSE
Repalced by: N 073379006203
N 073379006203 HOSE
LEAK LINE TO CYLINDER HEAD
N 073379006203 HOSE
LEAK LINE TO CYLINDER HEAD
N 900288010000 CLAMP
LEAK LINE TO CYLINDER HEAD
A 3524706265 LINE
FROM CYLINDER HEAD TO TANK
A 3584701064 LINE
FROM CYLINDER HEAD TO RUBBER HOSE
A 3124760026 HOSE
Repalced by: A 3054760126
A 3054760126 HOSE
TO CONNECT THE FUEL LINES
N 900269016100 CLAMP
TO CONNECT THE FUEL LINES
A 3584700864 LINE
Repalced by: A 3404701965
119 A 3404701965 LINE
FROM RUBBER HOSE TO TANK
1000 MM
N 915035000014 SEAL RING
TO CONNECT THE FUEL LINES
A 3214710220 FITTING
TO CONNECT THE FUEL LINES
A 3524702664 LINE
Repalced by: A 3404702665
A 3404702665 LINE
FROM CYLINDER HEAD TO HOSE
1000 MM
A 3124760026 HOSE
Repalced by: A 3054760126
A 3054760126 HOSE
TO CONNECT THE FUEL LINES
A 3054760126 HOSE
TO CONNECT THE FUEL LINES
N 900269016100 CLAMP
TO CONNECT THE FUEL LINES
N 900269016100 CLAMP
TO CONNECT THE FUEL LINES
A 3524702864 LINE
Repalced by: A 3404702665
A 3404702665 LINE
FROM RUBBER HOSE TO SCREW CONNECTION
A 3524702964 LINE
Repalced by: A 3404702165
119 A 3404702165 LINE
FROM SCREW CONNECTION TO TANK
3000 MM
119 A 3404701965 LINE
FROM SCREW CONNECTION TO TANK
1000 MM
A 3524760036 BRACKET
Repalced by: A 3274925819
A 3274925819 BRACKET
FUEL LINES
A 3274925819 BRACKET
FUEL LINES
A 3125420038 SHIM
Repalced by: A 3184924841
A 3184924841 BRACKET
FUEL LINES
A 3184924841 BRACKET
FUEL LINES
A 3184924841 BRACKET
FUEL LINES
N 000933010164 SCREW
FUEL LINE TO SIDE MEMBER
N 912004010102 LOCK WASHER
FUEL LINE TO SIDE MEMBER
N 000934010014 NUT
Repalced by: N 304032010003
N 304032010003 NUT
FUEL LINE TO SIDE MEMBER
A 3124761236 BRACKET
Repalced by: A 3604293140
A 3604293140 BRACKET
FUEL LINES
A 3604293140 BRACKET
FUEL LINES
151 A 3609950301 CLAMP
FUEL LINE TO BRACKET
151 A 3609950301 CLAMP
FUEL LINE TO BRACKET
N 000084006107 SCREW
FUEL LINE TO BRACKET
N 912004006102 LOCK WASHER
FUEL LINE TO BRACKET
N 000934006007 NUT
FUEL LINE TO BRACKET
A 3524760836 BRACKET
FUEL LINE TO ENGINE SUPPORT
156 A 3124761236 BRACKET
Repalced by: A 3604293140
156 A 3604293140 BRACKET
FUEL LINE TO ENGINE SUPPORT
N 000933008152 SCREW
Repalced by: N 304017008027
N 304017008027 SCREW
FUEL LINE TO ENGINE SUPPORT
N 912004008102 LOCK WASHER
FUEL LINE TO ENGINE SUPPORT
N 000934008013 NUT
FUEL LINE TO ENGINE SUPPORT
A 3124761036 BRACKET
Repalced by: A 3124761236
A 3124761236 BRACKET
Repalced by: A 3604293140
A 3604293140 BRACKET
LEAK LINE TO RETURN LINE
A 3604293140 BRACKET
LEAK LINE TO RETURN LINE
A 3179950832 CLAMP
LEAK LINE TO RETURN LINE
A 3179950832 CLAMP
LEAK LINE TO RETURN LINE
N 000084006107 SCREW
LEAK LINE TO RETURN LINE
N 912004006102 LOCK WASHER
LEAK LINE TO RETURN LINE
N 000934006007 NUT
LEAK LINE TO RETURN LINE
168 A 0089975482 HOSE
FEED LINE AND RETURN LINE
8X11 MM
168 A 0089975482 HOSE
FEED LINE AND RETURN LINE
8X11 MM
170 A 0089976082 HOSE
Repalced by: A 0009872627
170 A 0009872627 PLASTIC PIPE
LEAK LINE
4X6 MM
170 A 0009872627 PLASTIC PIPE
LEAK LINE
4X6 MM
172 N 040621025200 INSULATING HOSE
FUEL LINES
172 N 040621025200 INSULATING HOSE
FUEL LINES
N 040621011200 INSULATING HOSE
FEED LINE
A 3879900078 CONNECTOR
Repalced by: N 915062008000
N 915062008000 SLEEVE
FEED LINE AND RETURN LINE
A 3054760126 HOSE
FEED LINE AND RETURN LINE
A 0029978790 CLIP
FEED LINE AND RETURN LINE
174 N 915052008016 BANJO UNION
FUEL LINE TO FEED PUMP
14 MM
A 0009904188 BANJO UNION
Repalced by: N 915052008001
N 915052008019 BANJO UNION
RISING PIPE TO FUEL TANK
A 0009905088 BANJO UNION
Repalced by: N 915052008019
N 915052008019 BANJO UNION
16 MM
176 A 0009904288 BANJO UNION
Repalced by: N 915052004002
176 N 915052004019 BANJO UNION
LEAK LINE TO TANK
A 0009908188 BANJO UNION
FEED LINE
A 0019974972 FITTING
FOR LINES
8 MM
A 0019975072 FITTING
FOR LINES
4 MM
A 0019975272 FITTING
FOR LINES
8 MM
A 0019975272 FITTING
RETURN LINE
8 MM
A 0019900270 T-FITTING
FEED LINE
180 N 915017010201 UNION NUT
FOR LINES
N 915017006200 UNION NUT
FOR LINES
N 915017008201 UNION NUT
FOR LINES
N 915017008201 UNION NUT
RETURN LINE
A 3604700062 ELBOW FITTING
FOR LINES
182 A 0004760524 ELBOW FITTING
FOR LINES
182 A 0004760524 ELBOW FITTING
FOR LINES
184 N 073379006203 HOSE
LEAK LINE
184 N 073379006203 HOSE
LEAK LINE
A 0009920105 BUSHING
Repalced by: N 915062004000
N 915062004000 SLEEVE
LEAK LINE
185 N 900288010001 CLAMP
LEAK LINE
185 N 900288010001 CLAMP
LEAK LINE
A 0089979082 HOSE
FUEL LINE TO SENDER UNIT
500 MM
N 916026010000 CLAMP
Repalced by: N 000000000665
N 000000000665 CLAMP
FUEL LINE TO SENDER UNIT
187 A 0009972490 LOOM TIE
Repalced by: A 0009974390
187 A 0009974390 LOOM TIE
FOR LINES
187 A 0009974390 LOOM TIE
FOR LINES
A 0019978390 LOOM TIE
FOR LINES
280 MM
A 0019978490 LOOM TIE
FOR LINES
376 MM
A 0019978490 LOOM TIE
FOR LINES
376 MM
189 A 3164290040 BRACKET
FOR LINES
189 A 3164290040 BRACKET
FOR LINES
192 N 912004010102 LOCK WASHER
BRACKET TO FRAME
192 N 912004010102 LOCK WASHER
BRACKET TO FRAME
194 N 304017010027 SCREW
BRACKET TO FRAME
194 N 304017010027 SCREW
BRACKET TO FRAME
196 A 3354292640 BRACKET
FUEL LINE TO FRAME
A 3604292940 BRACKET
FUEL LINES
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
FUEL LINES
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
FUEL LINES
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
FUEL LINE TO FRAME
A 3604280243 ANGLE
AT BELL HOUSING
A 0019978490 LOOM TIE
AT BELL HOUSING
198 A 3179950832 CLAMP
FUEL LINE TO BRACKET
198 A 3179950832 CLAMP
FUEL LINE TO BRACKET
N 000933006102 SCREW
FUEL LINE TO BRACKET
N 000933006102 SCREW
FUEL LINE TO BRACKET
N 912004006102 LOCK WASHER
FUEL LINE TO BRACKET
N 912004006102 LOCK WASHER
FUEL LINE TO BRACKET
N 000934006007 NUT
FUEL LINE TO BRACKET
N 000934006007 NUT
FUEL LINE TO BRACKET
205 A 3609951701 CLAMP
Repalced by: N 916016018202
205 N 916016018202 CLAMP
FUEL LINE TO BRACKET
205 N 916016018202 CLAMP
FUEL LINE TO BRACKET
N 000933008046 SCREW
FUEL LINE TO FRAME
N 000933008046 SCREW
FUEL LINE TO FRAME
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
FUEL LINE TO BRACKET
N 000125008443 WASHER
FUEL LINE TO BRACKET
N 304032008006 NUT
FUEL LINE TO BRACKET
N 304032008006 NUT
FUEL LINE TO BRACKET
209 A 3609950701 CLAMP
Repalced by: N 916016018202
209 N 916016018202 CLAMP
FUEL LINE TO FRAME
N 000933006122 SCREW
Repalced by: N 304017006034
N 304017006034 SCREW
FUEL LINE TO FRAME
N 912004006102 LOCK WASHER
FUEL LINE TO FRAME
N 000934006007 NUT
FOR LINES
215 N 007603014405 SEAL RING
FUEL LINES TO ENGINE
215 N 007603014405 SEAL RING
FUEL LINES TO ENGINE
218 N 915036010204 HOLLOW SCREW
Repalced by: N 915036010108
218 N 915036010108 HOLLOW SCREW
FUEL LINES TO ENGINE
218 N 915036010108 HOLLOW SCREW
FUEL LINES TO ENGINE
A 0019978390 LOOM TIE
FUEL LINES TO ENGINE
A 3879970181 GROMMET
FUEL LINES
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
