Transporto priemonė: L 911 B; VIN numerio dalis: 353004
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3582600600 | TRANSMISSION |
| Repalced by: A 3582605900 | ||
| 001 | A 3582600800 | TRANSMISSION |
| Repalced by: A 3582605900 | ||
| 001 | A 3582605900 | TRANSMISSION |
| G 32 | ||
| 001 | A 3582600700 | TRANSMISSION |
| Repalced by: A 3582606000 | ||
| 001 | A 3582600900 | TRANSMISSION |
| Repalced by: A 3582606000 | ||
| 001 | A 3582606000 | TRANSMISSION |
| Repalced by: A 3802601100 | ||
| 003 | N 912004014100 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| 004 | N 000933014014 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 007 | A 0005861126 | REPAIR KIT |
| Repalced by: A 0002600400 | ||
| 007 | A 0002600400 | GASKET KIT |
| Repalced by: A 0002606800 | ||
| 007 | A 0002606800 | GASKET KIT |
| (GASKET KIT) | ||
| 009 | A 3522600011 | TRANSMISSION CASE |
| Repalced by: A 3022600611 | ||
| 009 | A 3022600311 | TRANSMISSION CASE |
| Repalced by: A 3022600611 | ||
| 009 | A 3022600611 | TRANSMISSION CASE |
| 012 | N 000007010239 | CYLINDRICAL PIN |
| Repalced by: N 000007010102 | ||
| 012 | N 000007010102 | CYLINDRICAL PIN |
| TRANSMISSION CASE COVER TO TRANSMISSION CASE | ||
| 015 | A 1869970032 | SCREW PLUG |
| Repalced by: A 3529970032 | ||
| 015 | A 3529970032 | SCREW PLUG |
| OIL FILLING | ||
| 017 | A 0009971332 | SCREW PLUG |
| Repalced by: A 0009972632 | ||
| 017 | A 0009972632 | SCREW PLUG |
| OIL DRAIN | ||
| 017 | A 0009973432 | SCREW PLUG |
| OIL DRAIN | ||
| 018 | A 3215841024 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 3855845824 | ||
| 018 | A 3855841824 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 3855845824 | ||
| 018 | A 3855845824 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 6755840024 | ||
| 018 | A 6755840024 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 6755841024 | ||
| 018 | A 6755841024 | UNIT IDENTIFICATION PLATE |
| 020 | N 001476003007 | GROOVED NAIL |
| UNIT IDENTIFICATION PLATE TO TRANSMISSION CASE | ||
| A 3022650074 | PIN | |
| LEVER TO TRANSMISSION CASE | ||
| 022 | A 3212610779 | GASKET |
| Repalced by: A 3522611280 | ||
| 022 | A 3522611280 | GASKET |
| Repalced by: A 3522611880 | ||
| 022 | A 3522611880 | GASKET |
| FRONT BOTTOM | ||
| 025 | A 3212610133 | COVER |
| FRONT BOTTOM | ||
| 027 | N 912004008102 | LOCK WASHER |
| COVER TO SHIFT CASE,BOTTOM | ||
| 029 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 029 | N 304017008021 | SCREW |
| COVER TO SHIFT CASE,BOTTOM | ||
| 031 | A 3122612179 | GASKET |
| Repalced by: A 3122611180 | ||
| 031 | A 3122611180 | GASKET |
| FRONT TOP | ||
| 031 | A 3212610318 | TRANSMISSION CASE COVER |
| Repalced by: A 3212610418 | ||
| 033 | A 3212610418 | TRANSMISSION CASE COVER |
| FRONT TOP | ||
| 035 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 035 | N 000137008212 | SPRING WASHER |
| CASE COVER TO TRANSMISSION | ||
| 037 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 037 | N 304017008028 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| 039 | A 3122625362 | THRUST WASHER |
| AS REQUIRED | ||
| 2.85 MM | ||
| 039 | A 3122625462 | THRUST WASHER |
| AS REQUIRED | ||
| 2.90 MM | ||
| 039 | A 3122625562 | THRUST WASHER |
| AS REQUIRED | ||
| 2.95 MM | ||
| 039 | A 3122623462 | THRUST WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 039 | A 3122624362 | THRUST WASHER |
| AS REQUIRED | ||
| 3.05 MM | ||
| 039 | A 3122624462 | THRUST WASHER |
| AS REQUIRED | ||
| 3.10 MM | ||
| 039 | A 3122623562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.15 MM | ||
| 039 | A 3122623662 | THRUST WASHER |
| AS REQUIRED | ||
| 3.20 MM | ||
| 039 | A 3122623762 | THRUST WASHER |
| AS REQUIRED | ||
| 3.25 MM | ||
| 042 | A 3212611379 | GASKET |
| Repalced by: A 3812610480 | ||
| 042 | A 3812610480 | GASKET |
| Repalced by: A 3812610780 | ||
| 042 | A 3812610780 | GASKET |
| REAR | ||
| 044 | A 3372610120 | TRANSMISSION CASE COVER |
| Repalced by: A 3372610220 | ||
| 044 | A 3372610220 | TRANSMISSION CASE COVER |
| REAR | ||
| 045 | A 0089971146 | SEAL RING |
| 047 | A 3212610031 | THREADED BUSHING |
| 049 | A 0119976647 | SEAL RING |
| Repalced by: A 1152740060 | ||
| 049 | A 1152740060 | SEAL RING |
| Repalced by: A 0119976447 | ||
| 049 | A 0119976447 | SEAL RING |
| 051 | N 915015024000 | PLUG |
| 053 | A 3122832452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 053 | A 3212620962 | THRUST WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 053 | A 3212621162 | THRUST WASHER |
| AS REQUIRED | ||
| 3.20 MM | ||
| 053 | A 3212621362 | THRUST WASHER |
| AS REQUIRED | ||
| 3.40 MM | ||
| 053 | A 3212621562 | THRUST WASHER |
| AS REQUIRED | ||
| 3.60 MM | ||
| 056 | A 3122831752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 056 | A 3122831052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 056 | A 3122831152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 056 | A 3122831252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| 056 | A 3122832152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 059 | N 912004008102 | LOCK WASHER |
| REAR COVER TO TRANSMISSION | ||
| 060 | N 000931008123 | SCREW |
| REAR COVER TO TRANSMISSION | ||
| M 8X85 | ||
| 062 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 062 | N 304017008027 | SCREW |
| REAR COVER TO TRANSMISSION | ||
| M 8X30 | ||
| 064 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 064 | N 304017008043 | SCREW |
| REAR COVER TO TRANSMISSION | ||
| M 8X55 | ||
| 066 | A 3212611479 | GASKET |
| Repalced by: A 3522611180 | ||
| 066 | A 3522611180 | GASKET |
| Repalced by: A 3522611680 | ||
| 066 | A 3522611680 | GASKET |
| Repalced by: A 3522611980 | ||
| 066 | A 3522611980 | GASKET |
| Repalced by: A 6752611280 | ||
| 066 | A 6752611280 | GASKET |
| COVER TO CASE REAR COVER | ||
| 068 | A 3212610333 | COVER |
| TRANSMISSION CASE REAR COVER | ||
| 069 | N 000931008266 | SCREW |
| COVER TO CASE REAR COVER | ||
| M 8X40 | ||
| 071 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 071 | N 000137008212 | SPRING WASHER |
| COVER TO CASE REAR COVER | ||
| 073 | A 3212611279 | GASKET |
| Repalced by: A 3812610880 | ||
| 073 | A 3812610880 | GASKET |
| CASE COVER | ||
| 075 | A 3522601214 | TRANSMISSION CASE COVER |
| Repalced by: A 3522601914 | ||
| 075 | A 3522601714 | TRANSMISSION CASE COVER |
| Repalced by: A 3522601914 | ||
| 075 | A 3522601914 | TRANSMISSION CASE COVER |
| Repalced by: A 3522603114 | ||
| 075 | A 3522603114 | TRANSMISSION CASE COVER |
| TOP | ||
| 075 | A 3522601314 | TRANSMISSION CASE COVER |
| Repalced by: A 3522601814 | ||
| 075 | A 3522601814 | TRANSMISSION CASE COVER |
| Repalced by: A 3522603014 | ||
| 075 | A 3522603014 | TRANSMISSION CASE COVER |
| TOP | ||
| 077 | A 3212610050 | BUSHING |
| 26 MM | ||
| 077 | A 3212610050 | BUSHING |
| 26 MM | ||
| 079 | A 3212610150 | BUSHING |
| 20 MM | ||
| 079 | A 3212610150 | BUSHING |
| 20 MM | ||
| 081 | A 3212610350 | BUSHING |
| 26 MM | ||
| 083 | N 000443020000 | EXPANSION PLUG |
| TRANSMISSION CASE TOP COVER | ||
| 083 | N 000443020000 | EXPANSION PLUG |
| TRANSMISSION CASE TOP COVER | ||
| 085 | A 3212650250 | BUSHING |
| RIGHT INSIDE FRONT | ||
| 087 | A 3212650150 | BUSHING |
| FRONT RIGHT TOP | ||
| 089 | N 000835008007 | STUD |
| Repalced by: N 000835008077 | ||
| 089 | N 000835008077 | STUD |
| 090 | A 1362650247 | INTERLOCK PLUG |
| Repalced by: A 3142650044 | ||
| 090 | A 3142650044 | GUIDE PIN |
| 091 | N 000835008067 | STUD |
| M 8X18 | ||
| 091 | N 000835008067 | STUD |
| TO 352 260 12 14,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14 | ||
| 093 | N 000835008008 | STUD |
| M 8X20 | ||
| 093 | N 000835008008 | STUD |
| TO 352 260 12 14,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14 | ||
| 095 | A 3212650474 | PIN |
| SHIFT CASE | ||
| 095 | A 3212650474 | PIN |
| SHIFT CASE | ||
| TO 352 260 12 14,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14 | ||
| 097 | N 000125013008 | WASHER |
| 097 | N 000125013008 | WASHER |
| TO 352 260 12 14,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14 | ||
| 099 | N 000979012001 | NUT |
| SHIFT CASE | ||
| 099 | N 000979012001 | NUT |
| SHIFT CASE | ||
| TO 352 260 12 14,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14 | ||
| N 000094003219 | COTTER PIN | |
| SHIFT CASE | ||
| N 000094003219 | COTTER PIN | |
| SHIFT CASE | ||
| TO 352 260 12 14,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14 | ||
| A 3852611450 | BUSHING | |
| SHIFTING SHAFT | ||
| 13X36 MM,TO 352 260 31 14 | ||
| A 3102680035 | BEARING | |
| SHIFT LEVER | ||
| TO 352 260 31 14 | ||
| A 3192670050 | BUSHING | |
| DETENT | ||
| TO 352 260 31 14 | ||
| A 3219970035 | PLUG | |
| SHIFT CASE | ||
| TO 352 260 31 14 | ||
| A 1369970830 | SCREW PLUG | |
| SHIFTING DOME | ||
| TO 352 260 31 14 | ||
| N 001473005010 | GROOVED PIN | |
| TO 352 260 31 14 | ||
| 101 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 101 | N 000137008212 | SPRING WASHER |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 103 | N 000931008266 | SCREW |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| M 8X40 | ||
| 105 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 105 | N 304017008028 | SCREW |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| M 8X50 | ||
| 107 | A 3212611979 | GASKET |
| SHIFTING DOME | ||
| 109 | A 3222603214 | TRANSMISSION CASE COVER |
| Repalced by: A 3232600614 | ||
| 110 | A 3232600614 | REPAIR KIT |
| SHIFTING PARTS | ||
| 111 | A 3212670025 | SLIDING BLOCK |
| SHIFTING DOME | ||
| 113 | N 009045008002 | SNAP RING |
| SHIFTING DOME | ||
| 115 | N 001473005012 | GROOVED PIN |
| SHIFTING DOME | ||
| 117 | N 000007008205 | CYLINDRICAL PIN |
| SHIFTING DOME | ||
| 119 | N 912004008102 | LOCK WASHER |
| SHIFT CASE | ||
| 121 | N 304032008006 | NUT |
| SHIFT CASE | ||
| 123 | A 1112600058 | BREATHER |
| SHIFT CASE | ||
| 125 | A 1369970830 | SCREW PLUG |
| SHIFT CASE | ||
| 127 | A 3212610274 | PIN |
| Repalced by: A 3172610174 | ||
| 127 | A 3172610174 | PIN |
| SHIFT CASE | ||
| 129 | A 0019946341 | LOCK |
| SHIFT CASE | ||
| 131 | A 3129934201 | SPRING |
| SHIFT CASE | ||
| 133 | A 3219970330 | SCREW PLUG |
| Repalced by: N 007604018101 | ||
| 133 | N 007603018101 | SEAL RING |
| SHIFT CASE | ||
| 135 | A 0005455011 | SWITCH |
| BACK-UP LIGHT | ||
| 137 | A 3372650007 | LEVER |
| 1ST SPEED SHIFTING FORK | ||
| 139 | N 005402302104 | CYLINDRICAL ROLLER |
| SHIFT CASE,TOP | ||
| 141 | N 000433017004 | WASHER |
| SHIFT CASE,TOP | ||
| 143 | N 900055017300 | LOCK RING |
| SHIFT CASE,TOP | ||
| 145 | A 3212650316 | THRUST PIECE |
| Repalced by: A 3212650416 | ||
| 145 | A 3212650416 | THRUST PIECE |
| Repalced by: A 3802650016 | ||
| 145 | A 3802650016 | THRUST PIECE |
| HOUSING,TOP | ||
| 147 | A 3219931701 | SPRING |
| HOUSING,TOP | ||
| 149 | A 3219970103 | PLUG |
| HOUSING,TOP | ||
| 151 | A 3212650248 | INTERLOCK PIN |
| HOUSING,TOP | ||
| 153 | A 3219930601 | SPRING |
| HOUSING,TOP | ||
| 155 | N 071022024000 | SLOTTED PLUG |
| HOUSING,TOP | ||
| A 3142670125 | SLIDING BLOCK | |
| TO 352 260 31 14 | ||
| N 007993006100 | SNAP RING | |
| TO 352 260 31 14 | ||
| A 3212681329 | SHIFTING ROD | |
| Repalced by: A 3225860126 | ||
| A 3222601433 | SHIFTING ROD | |
| Repalced by: A 3225860126 | ||
| A 3222680029 | SHIFTING ROD | |
| Repalced by: A 3225860226 | ||
| A 3222601533 | SHIFTING ROD | |
| Repalced by: A 3225860226 | ||
| 157 | A 3225860126 | REPAIR KIT |
| Repalced by: A 3222602233 | ||
| 157 | A 3222602233 | REPAIR KIT |
| Repalced by: A 3222602533 | ||
| 157 | A 3222602533 | SHIFTING ROD |
| SHIFTING ROD | ||
| 157 | A 3225860226 | REPAIR KIT |
| Repalced by: A 3222601933 | ||
| 157 | A 3222601933 | REPAIR KIT |
| Repalced by: A 3222602333 | ||
| 157 | A 3222602333 | SHIFTING ROD |
| SHIFTING ROD | ||
| 160 | N 006888005006 | WOODRUFF KEY |
| 162 | A 3212680533 | SHIFTING FINGER |
| FRONT,ADDITIONAL GEAR CLUSTER | ||
| 164 | N 070952020101 | LOCK PLATE |
| SHIFTING FINGER TO SHIFTING ROD | ||
| 166 | A 3219900160 | NUT |
| SHIFTING FINGER TO SHIFTING ROD | ||
| 168 | A 3222610080 | GASKET |
| Repalced by: A 3972610180 | ||
| 168 | A 3972610180 | GASKET |
| LATERAL | ||
| 170 | A 3222610133 | COVER |
| Repalced by: A 3972610033 | ||
| 170 | A 3972610033 | COVER |
| LATERAL | ||
| 172 | N 912004008102 | LOCK WASHER |
| COVER TO TRANSMISSION | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| TO 352 260 31 14 | ||
| 174 | N 304032008006 | NUT |
| COVER TO TRANSMISSION | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| TO 352 260 31 14 | ||
| 176 | A 3212600846 | PLATE |
| CASE COVER | ||
| 176 | A 3852600046 | PLATE |
| CASE COVER | ||
| 178 | A 3212650350 | BUSHING |
| CASE COVER | ||
| 180 | N 900055008002 | SPRING WASHER |
| CASE COVER | ||
| 182 | N 000979008000 | NUT |
| CASE COVER | ||
| N 000094002008 | COTTER PIN | |
| CASE COVER | ||
| 183 | A 1369908240 | WASHER |
| CASE COVER | ||
| 183B | A 1362650272 | NUT |
| CASE COVER | ||
| 184 | A 3212681229 | SHIFTING ROD |
| Repalced by: A 3225860626 | ||
| A 3225860626 | REPAIR KIT | |
| Repalced by: A 3222602933 | ||
| A 3222602933 | SHIFTING ROD | |
| PARTS KIT | ||
| 186 | N 006888005006 | WOODRUFF KEY |
| SHIFTING ROD | ||
| 188 | A 3212650430 | SELECTOR LEVER |
| SHIFTING ROD | ||
| 190 | N 070952020101 | LOCK PLATE |
| SHIFTING ROD | ||
| 192 | A 3219900160 | NUT |
| SHIFTING ROD | ||
| 194 | A 3212612079 | GASKET |
| Repalced by: A 3222610180 | ||
| 194 | A 3222610180 | GASKET |
| CASE COVER | ||
| 194 | A 3222610180 | GASKET |
| CASE COVER | ||
| TO 352 260 12 14,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14 | ||
| 194 | A 3522611580 | GASKET |
| TO 352 260 31 14 | ||
| 196 | A 3212610433 | COVER |
| Repalced by: A 3222610233 | ||
| 196 | A 3222610233 | COVER |
| AT TRANSMISSION CASE REAR COVER | ||
| 196 | A 3222610233 | COVER |
| AT TRANSMISSION CASE REAR COVER | ||
| TO 352 260 12 14,352 260 17 14, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 352 260 19 14 | ||
| 196 | A 3522610533 | COVER |
| TO 352 260 31 14 | ||
| 198 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 198 | N 000137008212 | SPRING WASHER |
| COVER TO CASE REAR COVER | ||
| 200 | N 304032008006 | NUT |
| COVER TO CASE REAR COVER | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| TO 352 260 31 14 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 488 | ||
| 204 | A 3179930501 | SPRING |
| SHIFT LEVER TO BEARING BRACKET | ||
| 206 | A 3022670008 | SPHERICAL PIECE |
| SHIFT LEVER TO BEARING BRACKET | ||
| 208 | A 3142680005 | COVER |
| SHIFT LEVER TO BEARING BRACKET | ||
| 210 | A 3372670096 | BOOT |
| Repalced by: A 3522670196 | ||
| 210 | A 3522670196 | BOOT |
| SHIFTING DOME,TOP | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 500 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 502 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 504 | ||
| 218 | A 3212650805 | SHIFTING ROD |
| 1ST SPEED | ||
| 220 | A 3212651805 | SHIFTING ROD |
| 2ND AND 3RD SPEED | ||
| 222 | A 3212651905 | SHIFTING ROD |
| 4TH AND 5TH SPEED | ||
| 224 | A 3222650305 | SHIFTING ROD |
| REVERSE SPEED | ||
| 226 | A 3222650123 | SHIFTING DOG |
| 1ST SPEED | ||
| 228 | A 3212651202 | SHIFTING FORK |
| 2ND AND 3RD SPEED | ||
| 230 | A 3212650802 | SHIFTING FORK |
| 4TH AND 5TH SPEED | ||
| 232 | A 3212651301 | SHIFTING FORK |
| 1ST SPEED | ||
| 234 | A 3212650403 | SHIFTING FORK |
| REVERSE SPEED | ||
| 236 | A 3129931001 | SPRING |
| SHIFTING FORK | ||
| 238 | N 005401311000 | BALL |
| SHIFTING FORK | ||
| 240 | A 3122651236 | BRACKET |
| SHIFTING ROD | ||
| 242 | A 3129940332 | LOCK |
| BRACKET TO TRANSMISSION CASE | ||
| 244 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 244 | N 304017008034 | SCREW |
| BRACKET TO TRANSMISSION CASE | ||
| 246 | A 3215421340 | BRACKET |
| SPEEDOMETER DRIVE | ||
| 248 | A 3215420071 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 250 | A 3215420440 | BRACKET |
| SPEEDOMETER DRIVE | ||
| N 000933006102 | SCREW | |
| BRACKET TO TRANSMISSION | ||
| N 000934006007 | NUT | |
| BRACKET TO TRANSMISSION | ||
| 254 | N 912004006102 | LOCK WASHER |
| BRACKET TO TRANSMISSION | ||

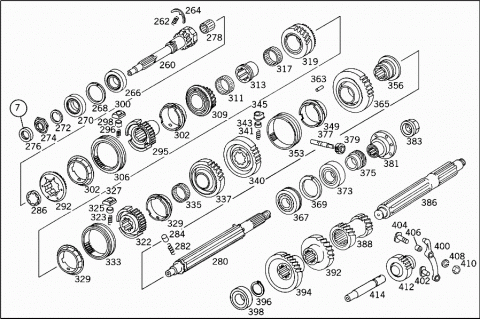

| 260 | A 3222620802 | DRIVE SHAFT |
| 262 | A 3219931201 | SPRING |
| OUTPUT SHAFT | ||
| 264 | A 3212620073 | LOCK |
| OUTPUT SHAFT | ||
| 266 | A 0019813101 | CYLINDR. ROLLER BEARING |
| STANDARD | ||
| 85 MM | ||
| 266 | A 0019818701 | CYLINDR. ROLLER BEARING |
| 268 | N 005417085001 | SNAP RING |
| AS REQUIRED | ||
| 1.70 MM | ||
| 268 | A 0009943435 | SNAP RING |
| AS REQUIRED | ||
| 1.80 MM | ||
| 268 | A 0009942835 | SNAP RING |
| AS REQUIRED | ||
| 1.90 MM | ||
| 270 | A 0009812827 | ANGULAR CONTACT BEARING |
| 270 | A 0009814327 | ANGULAR CONTACT BEARING |
| 270 | A 0019811627 | ANGULAR CONTACT BEARING |
| 272 | A 3122623162 | THRUST WASHER |
| 274 | A 3122621172 | NUT |
| L.H. THREAD | ||
| 276 | A 0029971346 | SEAL RING |
| Repalced by: A 0089970146 | ||
| 276 | A 0089970146 | SEAL RING |
| Repalced by: A 0159977747 | ||
| 276 | A 0159977747 | SEAL RING |
| OUTPUT SHAFT | ||
| 276 | A 0159977647 | SEAL RING |
| OUTPUT SHAFT | ||
| 276 | A 0179971447 | SEAL RING |
| OUTPUT SHAFT | ||
| 278 | A 0009814312 | ROLLER ASSEMBLY |
| 278 | A 0009814512 | ROLLER ASSEMBLY |
| 278 | A 0009814612 | ROLLER ASSEMBLY |
| 280 | A 3222620005 | MAIN SHAFT |
| Repalced by: A 3222620705 | ||
| 280 | A 3222620505 | MAIN SHAFT |
| Repalced by: A 3222620705 | ||
| 280 | A 3222620705 | MAIN SHAFT |
| 282 | A 3129931701 | SPRING |
| MAIN SHAFT | ||
| 284 | A 3212620374 | PIN |
| Repalced by: A 3852621074 | ||
| 284 | A 3852621074 | PIN |
| MAIN SHAFT | ||
| 286 | A 3212622162 | THRUST WASHER |
| Repalced by: A 3212623862 | ||
| 286 | A 3212623862 | THRUST WASHER |
| AS REQUIRED | ||
| 6.90 MM | ||
| 286 | A 3212622062 | THRUST WASHER |
| Repalced by: A 3212623762 | ||
| 286 | A 3212623762 | THRUST WASHER |
| AS REQUIRED | ||
| 7.00 MM | ||
| 286 | A 3212621962 | THRUST WASHER |
| Repalced by: A 3212623662 | ||
| 286 | A 3212623662 | THRUST WASHER |
| AS REQUIRED | ||
| 7.10 MM | ||
| 286 | A 3212621862 | THRUST WASHER |
| Repalced by: A 3212623562 | ||
| 286 | A 3212623562 | THRUST WASHER |
| AS REQUIRED | ||
| 7.20 MM | ||
| 286 | A 3212621762 | THRUST WASHER |
| Repalced by: A 3212623462 | ||
| 286 | A 3212623462 | THRUST WASHER |
| AS REQUIRED | ||
| 7.30 MM | ||
| 286 | A 3212620462 | THRUST WASHER |
| Repalced by: A 3212623962 | ||
| 286 | A 3212623962 | THRUST WASHER |
| AS REQUIRED | ||
| 7.40 MM | ||
| 286 | A 3212622862 | THRUST WASHER |
| Repalced by: A 3212624662 | ||
| 286 | A 3212624662 | THRUST WASHER |
| AS REQUIRED | ||
| 7.45 MM | ||
| 286 | A 3212620562 | THRUST WASHER |
| Repalced by: A 3212624062 | ||
| 286 | A 3212624062 | THRUST WASHER |
| AS REQUIRED | ||
| 7.50 MM | ||
| 286 | A 3212622962 | THRUST WASHER |
| Repalced by: A 3212624762 | ||
| 286 | A 3212624762 | THRUST WASHER |
| AS REQUIRED | ||
| 7.55 MM | ||
| 286 | A 3212620662 | THRUST WASHER |
| Repalced by: A 3212624162 | ||
| 286 | A 3212624162 | THRUST WASHER |
| AS REQUIRED | ||
| 7.60 MM | ||
| 286 | A 3212623062 | THRUST WASHER |
| Repalced by: A 3212624862 | ||
| 286 | A 3212624862 | THRUST WASHER |
| AS REQUIRED | ||
| 7.65 MM | ||
| 286 | A 3212620762 | THRUST WASHER |
| Repalced by: A 3212624262 | ||
| 286 | A 3212624262 | THRUST WASHER |
| AS REQUIRED | ||
| 7.70 MM | ||
| 286 | A 3212622562 | THRUST WASHER |
| Repalced by: A 3212624362 | ||
| 286 | A 3212624362 | THRUST WASHER |
| AS REQUIRED | ||
| 7.80 MM | ||
| 286 | A 3212622662 | THRUST WASHER |
| Repalced by: A 3212624462 | ||
| 286 | A 3212624462 | THRUST WASHER |
| AS REQUIRED | ||
| 7.90 MM | ||
| 286 | A 3212622762 | THRUST WASHER |
| Repalced by: A 3212624562 | ||
| 286 | A 3212624562 | THRUST WASHER |
| AS REQUIRED | ||
| 8.00 MM | ||
| 292 | A 3222620034 | SYNCHRONIZER RING |
| Repalced by: A 3222620434 | ||
| 292 | A 3222620434 | SYNCHRONIZER RING |
| 4TH AND 5TH SPEED | ||
| 294 | A 3222600645 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 294 | A 3222600845 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 295 | A 3222620735 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 296 | A 3219930701 | SPRING |
| 4TH AND 5TH SPEED | ||
| 298 | A 3212620774 | PIN |
| 4TH AND 5TH SPEED | ||
| 300 | A 3212621040 | FOLLOWER |
| 4TH AND 5TH SPEED | ||
| 302 | A 3222620137 | SYNCHRONIZER CONE |
| 4TH AND 5TH SPEED | ||
| 304 | A 3212600469 | SPRING |
| 4TH AND 5TH SPEED | ||
| 306 | A 3212620823 | SLIDING COLLAR |
| Repalced by: A 3212621223 | ||
| 306 | A 3212621223 | SLIDING COLLAR |
| 4TH AND 5TH SPEED | ||
| 309 | A 3222600244 | GEAR |
| Repalced by: A 3222602044 | ||
| 309 | A 3222601744 | GEAR |
| Repalced by: A 3222602044 | ||
| 309 | A 3222602044 | GEAR |
| 4TH SPEED | ||
| 311 | A 3229810612 | ROLLER ASSEMBLY |
| Repalced by: A 3529810012 | ||
| 311 | A 3229810812 | ROLLER ASSEMBLY |
| Repalced by: A 3529810012 | ||
| 311 | A 3529810012 | ROLLER ASSEMBLY |
| 4TH SPEED | ||
| 313 | A 3222624050 | BUSHING |
| Repalced by: A 3222626550 | ||
| 313 | A 3222626550 | BUSHING |
| AS REQUIRED | ||
| 44.50 MM | ||
| 313 | A 3222624150 | BUSHING |
| Repalced by: A 3222626650 | ||
| 313 | A 3222626650 | BUSHING |
| AS REQUIRED | ||
| 44.60MM | ||
| 317 | A 3229810512 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 317 | A 3229810712 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 317 | A 3529810112 | ROLLER ASSEMBLY |
| 3RD SPEED | ||
| 319 | A 3222600644 | GEAR |
| Repalced by: A 3222602444 | ||
| 319 | A 3222601944 | GEAR |
| Repalced by: A 3222602444 | ||
| 319 | A 3222602444 | GEAR |
| 3RD SPEED | ||
| 321 | A 3222600545 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 321 | A 3222600745 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 322 | A 3222620635 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 323 | A 3219930701 | SPRING |
| 2ND AND 3RD SPEED | ||
| 325 | A 3212620774 | PIN |
| 2ND AND 3RD SPEED | ||
| 327 | A 3212621040 | FOLLOWER |
| 2ND AND 3RD SPEED | ||
| 329 | A 3222620137 | SYNCHRONIZER CONE |
| 2ND AND 3RD SPEED | ||
| 331 | A 3212600469 | SPRING |
| 2ND AND 3RD SPEED | ||
| 333 | A 3212620823 | SLIDING COLLAR |
| Repalced by: A 3212621223 | ||
| 333 | A 3212621223 | SLIDING COLLAR |
| 2ND AND 3RD SPEED | ||
| 335 | A 3229810512 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 335 | A 3229810712 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 335 | A 3529810112 | ROLLER ASSEMBLY |
| 3RD SPEED | ||
| 337 | A 3222620112 | GEAR |
| Repalced by: A 3222620412 | ||
| 337 | A 3222620412 | GEAR |
| 2ND SPEED | ||
| 339 | A 3222600625 | GEAR |
| REVERSE IDLER GEAR | ||
| 339 | A 3222600925 | GEAR |
| REVERSE IDLER GEAR | ||
| 340 | A 3222630433 | REVERSE IDLER GEAR |
| 341 | A 3219930701 | SPRING |
| 1ST SPEED | ||
| 343 | A 3212620674 | PIN |
| 1ST SPEED | ||
| 345 | A 3212620940 | FOLLOWER |
| 1ST SPEED | ||
| 347 | A 3212620376 | BALL SOCKET |
| Repalced by: A 3142620076 | ||
| 347 | A 3142620076 | BALL SOCKET |
| 349 | A 3222620137 | SYNCHRONIZER CONE |
| 351 | A 3212600469 | SPRING |
| 353 | A 3212620723 | SLIDING COLLAR |
| Repalced by: A 3212621123 | ||
| 353 | A 3212621123 | SLIDING COLLAR |
| 1ST SPEED | ||
| 356 | A 3222621350 | BUSHING |
| Repalced by: A 3222625850 | ||
| 356 | A 3222625850 | BUSHING |
| AS REQUIRED | ||
| 44.40 MM | ||
| 356 | A 3222621450 | BUSHING |
| Repalced by: A 3222625950 | ||
| 356 | A 3222625950 | BUSHING |
| AS REQUIRED | ||
| 44.50 MM | ||
| 356 | A 3222621550 | BUSHING |
| Repalced by: A 3222626050 | ||
| 356 | A 3222626050 | BUSHING |
| AS REQUIRED | ||
| 44.60 MM | ||
| 356 | A 3222621650 | BUSHING |
| Repalced by: A 3222626150 | ||
| 356 | A 3222626150 | BUSHING |
| AS REQUIRED | ||
| 44.70 MM | ||
| 363 | N 005402004203 | CYLINDRICAL ROLLER |
| 1ST SPEED GEAR | ||
| 365 | A 3222620211 | GEAR |
| Repalced by: A 3222620511 | ||
| 365 | A 3222620511 | GEAR |
| 1ST SPEED | ||
| 367 | A 0009811201 | CYLINDR. ROLLER BEARING |
| STANDARD | ||
| 100 MM | ||
| 367 | A 0019818901 | CYLINDR. ROLLER BEARING |
| REPAIR SIZE | ||
| 100.50 MM | ||
| 369 | A 3219940040 | SNAP RING |
| AS REQUIRED | ||
| 2.68 MM | ||
| 369 | A 3219940140 | SNAP RING |
| AS REQUIRED | ||
| 2.73 MM | ||
| 369 | A 3219940240 | SNAP RING |
| AS REQUIRED | ||
| 2.78 MM | ||
| 369 | A 3219940340 | SNAP RING |
| AS REQUIRED | ||
| 2.83 MM | ||
| 369 | A 3219940440 | SNAP RING |
| AS REQUIRED | ||
| 2.88 MM | ||
| 369 | A 3219940540 | SNAP RING |
| AS REQUIRED | ||
| 2.93 MM | ||
| 373 | A 0009814227 | ANGULAR CONTACT BEARING |
| 373 | A 0009810627 | ANGULAR CONTACT BEARING |
| Repalced by: A 0009812927 | ||
| 373 | A 0009812927 | ANGULAR CONTACT BEARING |
| 373 | A 0019811527 | ANGULAR CONTACT BEARING |
| 375 | A 3212640630 | DRIVE GEAR |
| Repalced by: A 3522640130 | ||
| 375 | A 3522640130 | DRIVE GEAR |
| SPEEDOMETER | ||
| 377 | A 3212640532 | SHAFT |
| Repalced by: A 3142640032 | ||
| 377 | A 3142640032 | SHAFT |
| Repalced by: A 3142640332 | ||
| 377 | A 3142640332 | SHAFT |
| SPEEDOMETER | ||
| 379 | A 3212640631 | DRIVE GEAR |
| Repalced by: A 3812640031 | ||
| 379 | A 3812640031 | DRIVE GEAR |
| SPEEDOMETER | ||
| 381 | A 3222620045 | FLANGE |
| REAR DRIVE SHAFT | ||
| A 3219900240 | WASHER | |
| FLANGE TO MAIN SHAFT | ||
| N 000937028000 | NUT | |
| FLANGE TO MAIN SHAFT | ||
| N 000094005017 | COTTER PIN | |
| FLANGE TO MAIN SHAFT | ||
| 383 | A 3222620072 | NUT |
| FLANGE TO MAIN SHAFT | ||
| 386 | A 3222630202 | COUNTERSHAFT |
| Repalced by: A 3222630302 | ||
| 386 | A 3222630302 | COUNTERSHAFT |
| 388 | A 3222630313 | GEAR |
| Repalced by: A 3222630513 | ||
| 388 | A 3222630513 | GEAR |
| 2ND AND 3RD SPEED | ||
| 392 | A 3222630314 | GEAR |
| Repalced by: A 3222630614 | ||
| 392 | A 3222630514 | GEAR |
| Repalced by: A 3222630614 | ||
| 392 | A 3222630614 | GEAR |
| 4TH SPEED | ||
| 394 | A 3222630010 | GEAR |
| Repalced by: A 3222630610 | ||
| 394 | A 3222630610 | GEAR |
| CONSTANT | ||
| 396 | N 900055052300 | LOCK RING |
| COUNTERSHAFT | ||
| 398 | A 0019813105 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 398 | A 0019815005 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 398 | A 0069814305 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 398 | A 0069815305 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| A 0039814605 | TAPERED ROLLER BEARING | |
| COUNTERSHAFT,FRONT | ||
| 90.50 MM | ||
| A 0039816305 | TAPERED ROLLER BEARING | |
| COUNTERSHAFT,REAR | ||
| 90.50 MM | ||
| 400 | A 3212650208 | LEVER |
| REVERSE SPEED | ||
| 402 | A 3212650449 | SLIDE |
| Repalced by: A 3142650349 | ||
| 402 | A 3142650349 | SLIDE |
| REVERSE SPEED | ||
| 404 | A 3212650074 | PIN |
| REVERSE SPEED | ||
| 406 | A 3212650050 | BUSHING |
| REVERSE SPEED | ||
| 408 | N 912004010102 | LOCK WASHER |
| REVERSE SPEED | ||
| 410 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 410 | N 304032010003 | NUT |
| REVERSE SPEED | ||
| 413 | A 3222600325 | GEAR |
| Repalced by: A 3222600825 | ||
| 412 | A 3222600725 | GEAR |
| Repalced by: A 3222600825 | ||
| 412 | A 3222600825 | GEAR |
| REVERSE IDLER GEAR | ||
| 414 | A 3212630430 | REVERSE IDLER SHAFT |
| Repalced by: A 3212630630 | ||
| 414 | A 3212630530 | REVERSE IDLER SHAFT |
| Repalced by: A 3212630630 | ||
| 414 | A 3212630630 | REVERSE IDLER SHAFT |

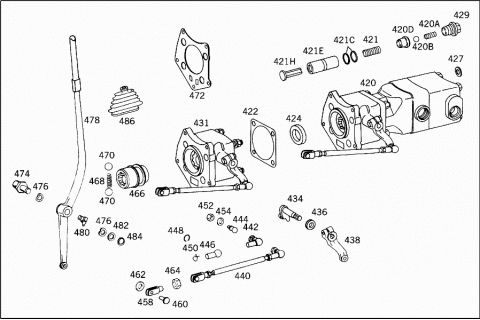

| 420 | A 0002362405 | HYDRAULIC PUMP |
| WITH CONTROL MECHANISM AND WITH LINKAGE | ||
| 420 | A 0002363005 | HYDRAULIC PUMP |
| WITH CONTROL MECHANISM AND WITH LINKAGE | ||
| 420A | A 0049936301 | SPRING |
| REAR | ||
| 420A | A 0049936101 | SPRING |
| REAR | ||
| 420B | A 0019814085 | BALL |
| Repalced by: A 0019815085 | ||
| 420B | A 0019815085 | BALL |
| VALVE | ||
| 12.70 MM | ||
| 420B | N 005401310000 | BALL |
| VALVE | ||
| 10 MM | ||
| 420D | A 0002360935 | VALVE |
| REAR | ||
| 420D | A 0002360835 | VALVE |
| REAR | ||
| 421 | A 0049936401 | SPRING |
| FRONT | ||
| 421 | A 0049936201 | SPRING |
| FRONT | ||
| 421C | A 0002361160 | SEAL RING |
| VALVE | ||
| 421C | A 0002361060 | SEAL RING |
| VALVE | ||
| 421E | A 0002360817 | PISTON |
| Repalced by: A 0002361117 | ||
| 421E | A 0002361117 | PISTON |
| MEILLER DUMPER PUMP | ||
| 421E | A 0002360717 | PISTON |
| MEILLER DUMPER PUMP | ||
| 421H | A 0002360735 | VALVE |
| FRONT | ||
| 421H | A 0002360635 | VALVE |
| FRONT | ||
| 422 | A 0002360180 | GASKET |
| MEILLER DUMPER PUMP | ||
| 422 | A 0002360380 | GASKET |
| MEILLER DUMPER PUMP | ||
| A 0059977246 | SEAL RING | |
| MEILLER DUMPER PUMP | ||
| A 0002360376 | WASHER | |
| MEILLER DUMPER PUMP | ||
| 424 | A 0079977446 | SEAL RING |
| MEILLER DUMPER PUMP | ||
| N 007603010107 | SEAL RING | |
| MEILLER DUMPER PUMP | ||
| A 0002360271 | SCREW | |
| MEILLER DUMPER PUMP | ||
| N 007603022101 | SEAL RING | |
| MEILLER DUMPER PUMP | ||
| 427 | N 007603022102 | SEAL RING |
| MEILLER DUMPER PUMP | ||
| A 0009979430 | SCREW PLUG | |
| MEILLER DUMPER PUMP | ||
| 429 | A 0009974430 | SCREW PLUG |
| Repalced by: A 0019974430 | ||
| 429 | A 0019974430 | SCREW PLUG |
| MEILLER DUMPER PUMP | ||
| 431 | A 0002300045 | FLANGE |
| MEILLER DUMPER PUMP | ||
| 434 | A 0002300120 | LEVER |
| Repalced by: A 0002300220 | ||
| 434 | A 0002300220 | LEVER |
| MEILLER DUMPER PUMP CONTROL | ||
| 436 | A 0019978346 | SEAL RING |
| MEILLER DUMPER PUMP CONTROL | ||
| 438 | A 0002300020 | LEVER |
| MEILLER DUMPER PUMP CONTROL | ||
| N 000933008150 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| MEILLER DUMPER PUMP CONTROL | ||
| N 912004008102 | LOCK WASHER | |
| MEILLER DUMPER PUMP CONTROL | ||
| N 304032008006 | NUT | |
| MEILLER DUMPER PUMP CONTROL | ||
| 440 | A 0002300021 | ROD |
| MEILLER DUMPER PUMP CONTROL | ||
| 442 | N 071802013203 | ANGLE JOINT |
| MEILLER DUMPER PUMP CONTROL | ||
| 444 | N 071803013102 | BALL PIVOT |
| MEILLER DUMPER PUMP CONTROL | ||
| 446 | N 071805013203 | BALL SOCKET |
| MEILLER DUMPER PUMP CONTROL | ||
| 448 | N 071805013302 | SNAP RING |
| MEILLER DUMPER PUMP CONTROL | ||
| 450 | N 071805013402 | SECURING CLIP |
| MEILLER DUMPER PUMP CONTROL | ||
| 452 | N 304032008006 | NUT |
| MEILLER DUMPER PUMP CONTROL | ||
| 454 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 454 | N 000137008212 | SPRING WASHER |
| MEILLER DUMPER PUMP CONTROL | ||
| 458 | N 071752008002 | YOKE |
| MEILLER DUMPER PUMP CONTROL | ||
| 460 | A 0009910305 | PIN |
| MEILLER DUMPER PUMP CONTROL | ||
| 462 | N 000433008406 | WASHER |
| MEILLER DUMPER PUMP CONTROL | ||
| N 000094002059 | COTTER PIN | |
| MEILLER DUMPER PUMP CONTROL | ||
| 464 | N 304032008006 | NUT |
| MEILLER DUMPER PUMP CONTROL | ||
| 466 | A 0002300023 | DRIVE |
| MEILLER DUMPER PUMP | ||
| 468 | A 0029932701 | SPRING |
| P.T.O. | ||
| 470 | N 005401308000 | BALL |
| P.T.O. | ||
| 8 MM | ||
| 472 | A 0002640279 | GASKET |
| MEILLER DUMPER PUMP TO P.T.O. CASE | ||
| 474 | A 3212640074 | PIN |
| SHIFT LEVER PIVOT PIN,BOTTOM | ||
| 476 | A 3129900148 | WASHER |
| SHIFT LEVER TO PIVOT PIN | ||
| 478 | A 3222640124 | SHIFT LEVER |
| Repalced by: A 3222603039 | ||
| 478 | A 3222603039 | SHIFT LEVER |
| MEILLER DUMPER PUMP | ||
| 478 | A 3222640424 | SHIFT LEVER |
| MEILLER DUMPER PUMP | ||
| 480 | N 071412008302 | GREASE NIPPLE |
| SHIFT LEVER BEARING | ||
| 482 | N 000433015005 | WASHER |
| SHIFT LEVER TO PIVOT PIN | ||
| 484 | N 000471015000 | LOCK RING |
| SHIFT LEVER TO PIVOT PIN | ||
| 486 | A 3222640096 | BOOT |
| SHIFT LEVER TO PIVOT PIN | ||
| 488 | A 3222601139 | SHIFT LEVER |
| Repalced by: A 3222602939 | ||
| 488 | A 3222602939 | SHIFT LEVER |
| 488 | A 3222601339 | SHIFT LEVER |
| 500 | A 3222670096 | BOOT |
| Repalced by: A 3522670296 | ||
| 500 | A 3222670296 | BOOT |
| Repalced by: A 3522670296 | ||
| 500 | A 3522670096 | BOOT |
| Repalced by: A 3522670296 | ||
| 500 | A 3522670296 | BOOT |
| SHIFT LEVER LOWER PART | ||
| 500 | A 3522670396 | BOOT |
| SHIFT LEVER LOWER PART | ||
| 502 | N 000936010010 | NUT |
| SHIFT LEVER UPPER PART | ||
| 504 | A 3222600040 | HANDLE |
| SHIFT LEVER UPPER PART | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
