Transporto priemonė: OF 1113; VIN numerio dalis: 358082
Grupė: 42 BRAKE - 001 BRAKES
43319
43320
43321
43322
43323
43324
43325
43326
43327
43328
43329
43330
43331
43332
# Kodas Pavadinimas

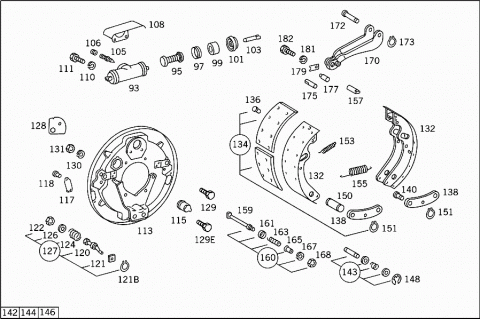

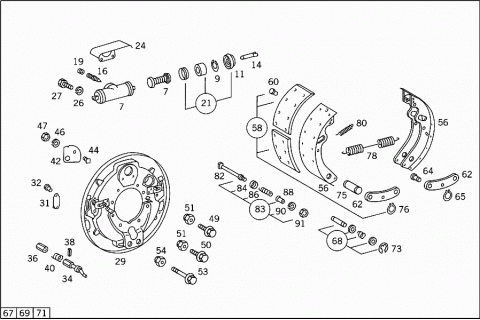

A 0024201918 WHEEL BRAKE CYLINDER
Repalced by: A 0034207818
A 0024207718 WHEEL BRAKE CYLINDER
Repalced by: A 0034207818
A 0024207818 WHEEL BRAKE CYLINDER
Repalced by: A 0034207818
005 A 0034207818 WHEEL BRAKE CYLINDER
44.45 MM
007 A 0004232493 SPRING
009 N 000472045000 LOCK RING
011 A 0004232187 PROTECTIVE CAP
A 0004212987 PROTECTIVE CAP
SHEET METAL VERSION
014 A 0004231088 THRUST PIN
016 A 0004310265 VALVE
Repalced by: A 3075530107
016 A 3075530107 VALVE
019 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
019 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
019 A 0004210887 PROTECTIVE CAP
021 A 0005863142 REPAIR KIT
A 3414210020 PROTECTIVE PLATE
AT FRONT BRAKE CYLINDER
024 A 3024210020 PROTECTIVE PLATE
AT FRONT BRAKE CYLINDER
026 N 912004010102 LOCK WASHER
027 N 000933010105 SCREW
029 A 3524200016 BRAKE ANCHOR PLATE
031 A 3124211068 INSPECTION HOLE COVER
032 A 3129900096 RIVET
034 A 3024200738 ADJUSTER
Repalced by: A 3025860342
036 A 3024230275 HEXAGONAL PIECE
038 N 001473006012 GROOVED PIN
040 A 3129934901 SPRING
042 A 3024210173 LOCK
044 A 3024210071 SCREW
046 N 912004012100 LOCK WASHER
047 N 000934012022 NUT
A 3025860342 REPAIR KIT
Repalced by: A 3024203038
A 3024203038 REPAIR KIT
BRAKE READJUSTMENT
A 3559900004 SCREW
Repalced by: N 900170012001
049 N 900170012001 SCREW
BRAKE ANCHOR PLATE TO STEERING KNUCKLE
A 3559900104 SCREW
Repalced by: N 900170012019
050 N 900170012055 SCREW
BRAKE ANCHOR PLATE TO STEERING KNUCKLE
051 N 000935012003 NUT
BRAKE ANCHOR PLATE TO STEERING KNUCKLE
N 000094003219 COTTER PIN
BRAKE ANCHOR PLATE TO STEERING KNUCKLE
A 3413320071 SCREW
BRAKE ANCHOR PLATE AND STEERING ARM TO STEERING KNUCKLE
053 A 3523320071 SCREW
BRAKE ANCHOR PLATE AND STEERING ARM TO STEERING KNUCKLE
054 N 000935018001 NUT
BRAKE ANCHOR PLATE AND STEERING ARM TO STEERING KNUCKLE
N 000094004065 COTTER PIN
BRAKE ANCHOR PLATE AND STEERING ARM TO STEERING KNUCKLE
A 3414200620 BRAKE SHOE
Repalced by: A 3414200319
A 3414200720 BRAKE SHOE
Repalced by: A 3414200319
A 3414200820 BRAKE SHOE
Repalced by: A 3414200319
056 A 3414200319 BRAKE SHOE
Repalced by: A 3414201019
056 A 3414201019 BRAKE SHOE
058 A 3414230810 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.30 MM,8X 341 423 00 10)
058 A 3414234510 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.30 MM,8X 341 423 42 10)
058 A 3414230910 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.30 MM,8X 341 423 01 10)
058 A 3414234610 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.30 MM,8X 341 423 43 10)
058 A 3414231010 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.30 MM,8X 341 423 02 10)
058 A 3414234710 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.30 MM,8X 341 423 44 10)
N 007338008305 RIVET
Repalced by: A 3079900197
060 A 3079900197 RIVET
062 A 3024210013 SHACKLE
Repalced by: A 3385860042
A 3385860042 REPAIR KIT
Repalced by: A 3384200289
A 3384200289 REPAIR KIT
064 A 3024210174 PIN
065 N 900055025301 LOCK RING
067 A 3124231174 PIN
Repalced by: A 3385860342
068 A 3385860342 REPAIR KIT
Repalced by: A 3384200082
068 A 3384200082 REPAIR KIT
BRAKE SHOE SHACKLE SPACER PIN
069 A 3024210052 SPACER WASHER
Repalced by: A 3385860342
071 A 3029930201 SPRING
Repalced by: A 3385860342
073 A 3124211073 LOCK
075 A 3024210118 PIVOT PIN
076 N 900055025301 LOCK RING
078 A 3524210192 SPRING
080 A 3029930310 SPRING
082 A 3414210174 PIN
Repalced by: A 3585860242
A 3415860042 REPAIR KIT
Repalced by: A 3585860242
083 A 3585860242 REPAIR KIT
Repalced by: A 3584200182
083 A 3584200182 REPAIR KIT
BRAKE SHOE MOUNTING BOLT
084 A 3124231089 FILLER
PLANE
086 A 3529930501 SPRING
088 A 3124231189 FILLER
HIGH
090 N 912004008102 LOCK WASHER
091 N 304032008006 NUT
A 0024201918 WHEEL BRAKE CYLINDER
Repalced by: A 0034207818
A 0024207718 WHEEL BRAKE CYLINDER
Repalced by: A 0034207818
093 A 0034207818 WHEEL BRAKE CYLINDER
44.45 MM
095 A 0004232493 SPRING
097 A 0004230886 CUP
099 A 0004232083 PISTON
N 000472045000 LOCK RING
101 A 0004232187 PROTECTIVE CAP
103 A 0004231088 THRUST PIN
105 A 0004310265 VALVE
Repalced by: A 3075530107
105 A 3075530107 VALVE
106 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
106 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
106 A 0004210887 PROTECTIVE CAP
A 0005863142 REPAIR KIT
TO 003 420 78 18
A 3414210020 PROTECTIVE PLATE
108 A 3024210020 PROTECTIVE PLATE
110 N 912004010102 LOCK WASHER
111 N 000933010164 SCREW
A 3584200017 BRAKE ANCHOR PLATE
Repalced by: A 3584200417
113 A 3584200417 BRAKE ANCHOR PLATE
Repalced by: A 3584200817
113 A 3584200817 BRAKE ANCHOR PLATE
LEFT
A 3584200117 BRAKE ANCHOR PLATE
Repalced by: A 3584200517
A 3584200517 BRAKE ANCHOR PLATE
Repalced by: A 3584200917
A 3584200917 BRAKE ANCHOR PLATE
RIGHT
115 A 3024270054 PIPE SOCKET
117 A 3124211068 INSPECTION HOLE COVER
118 A 3129900096 RIVET
N 000934014019 NUT
Repalced by: N 308673014001
N 308673014001 NUT
A 3024230019 ADJUSTING PIN
Repalced by: A 3024230619
120 A 3024230619 ADJUSTING PIN
Repalced by: A 3025860042
121 A 3024210329 SLIDE
121B A 3124211073 LOCK
122 A 3589900051 NUT
124 A 3129934901 SPRING
126 A 3029900340 WASHER
127 A 3025860042 REPAIR KIT
Repalced by: A 3024202938
127 A 3024202938 REPAIR KIT
BRAKE READJUSTMENT
128 A 3024210173 LOCK
N 001473004012 GROOVED PIN
129 N 308676012012 SCREW
BRAKE ANCHOR PLATES TO REAR AXLE CASING
129E N 308676012010 SCREW
BRAKE ANCHOR PLATES TO REAR AXLE CASING
130 N 912004012100 LOCK WASHER
BRAKE ANCHOR PLATES TO REAR AXLE CASING
131 N 000934012023 NUT
Repalced by: N 308673012002
131 N 308673012002 NUT
BRAKE ANCHOR PLATES TO REAR AXLE CASING
A 3414200620 BRAKE SHOE
Repalced by: A 3414200319
A 3414200720 BRAKE SHOE
Repalced by: A 3414200319
A 3414200820 BRAKE SHOE
Repalced by: A 3414200319
132 A 3414200319 BRAKE SHOE
Repalced by: A 3414201019
132 A 3414201019 BRAKE SHOE
134 A 3414230810 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.30 MM,8X 341 423 00 10)
134 A 3414234510 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.30 MM,8X 341 423 42 10)
134 A 3414230910 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.30 MM,8X 341 423 01 10)
134 A 3414234610 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.30 MM,8X 341 423 43 10)
134 A 3414231010 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.30 MM,8X 341 423 02 10)
134 A 3414234710 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.30 MM,8X 341 423 44 10)
136 A 3079900197 RIVET
138 A 3024210013 SHACKLE
Repalced by: A 3385860042
A 3385860042 REPAIR KIT
Repalced by: A 3384200289
A 3384200289 REPAIR KIT
140 A 3024210174 PIN
142 A 3124231174 PIN
Repalced by: A 3385860342
143 A 3385860342 REPAIR KIT
Repalced by: A 3384200082
143 A 3384200082 REPAIR KIT
BRAKE SHOE SHACKLE SPACER PIN
144 A 3024210052 SPACER WASHER
Repalced by: A 3385860342
146 A 3029930201 SPRING
Repalced by: A 3385860342
148 A 3124211073 LOCK
150 A 3024210118 PIVOT PIN
151 N 900055025301 LOCK RING
153 A 3029930310 SPRING
SHORT
155 A 3029930610 SPRING
LONG
A 3024230018 PIVOT PIN
Repalced by: A 3024230518
157 A 3024230518 PIVOT PIN
BRAKE SHAFT TO BRAKE SHOE
N 000094004023 COTTER PIN
159 A 3414210174 PIN
Repalced by: A 3585860242
A 3415860042 REPAIR KIT
Repalced by: A 3585860242
160 A 3585860242 REPAIR KIT
Repalced by: A 3584200182
160 A 3584200182 REPAIR KIT
BRAKE SHOE MOUNTING BOLT
161 A 3124231089 FILLER
PLANE
163 A 3529930501 SPRING
165 A 3124231189 FILLER
HIGH
167 N 912004008102 LOCK WASHER
168 N 304032008006 NUT
A 3024200119 THRUST SHACKLE
Repalced by: A 3024201419
170 A 3024201419 THRUST SHACKLE
Repalced by: A 3834200389
170 A 3834200389 SHACKLE
172 A 3024230774 PIN
THRUST SHACKLE TO BRAKE SHOE
173 N 000471018000 LOCK RING
175 A 3024230174 PIN
N 000094004065 COTTER PIN
177 A 3024230874 PIN
Repalced by: A 3024230974
177 A 3024230974 PIN
BRAKE SHAFT TO THRUST SHACKLE
179 A 3029940109 LOCK
181 N 912004008102 LOCK WASHER
182 N 000933008130 SCREW
Repalced by: N 304017008039
182 N 304017008039 SCREW

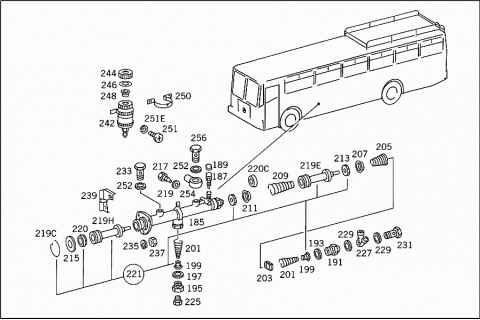

185 A 0014306801 BRAKE MASTER CYLINDER
Repalced by: A 0024301901
185 A 0024301901 BRAKE MASTER CYLINDER
TEVES
A 0014305101 BRAKE MASTER CYLINDER
TEVES
187 A 3075530107 VALVE
189 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
189 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
189 A 0004210887 PROTECTIVE CAP
191 A 0004310522 THREADED UNION
FRONT
193 N 007603040102 SEAL RING
FRONT
195 A 0004310475 THREADED UNION
BOTTOM
197 N 007603032101 SEAL RING
BOTTOM
199 A 0004300381 VALVE
201 A 0009930605 SPRING
203 A 0004312676 WASHER
205 A 0004317393 SPRING
A 0004314393 SPRING
207 A 0004312089 SPRING RETAINER
A 0004310989 SPRING RETAINER
209 A 0004317493 SPRING
A 0004315493 SPRING
211 A 0004312089 SPRING RETAINER
A 0004310989 SPRING RETAINER
213 A 0004310585 FILLER RING
215 A 0004311176 WASHER
217 A 0004310671 SCREW
219 N 007603008109 SEAL RING
219C A 0004310194 LOCK
N 000177001000 WIRE
300 MM
A 0005840910 INSTRUCTION PLATE
219E A 0004314683 PISTON
FRONT AXLE BRAKE CIRCUIT
219H A 0004314583 PISTON
REAR AXLE BRAKE CIRCUIT
220 A 0039975246 SEAL RING
220C A 0004315886 CUP
221 A 0005864943 REPAIR KIT
TO 001 430 68 01,002 430 19 01,TEVES
A 0005864643 REPAIR KIT
TO 001 430 51 01,TEVES
A 0024308801 BRAKE MASTER CYLINDER
Repalced by: A 0024308201
A 0024308201 BRAKE MASTER CYLINDER
KUGELFISCHER
A 0024308901 BRAKE MASTER CYLINDER
KUGELFISCHER
A 0004319360 SEAL RING
A 0004319260 SEAL RING
A 0009933705 SPRING
A 0009933805 SPRING
A 0009934005 SPRING
A 0009933905 SPRING
A 0009934105 SPRING
A 0004319160 SEAL RING
A 0004202155 BLEEDER VALVE
Repalced by: A 0004310265
A 0004310265 VALVE
Repalced by: A 3075530107
A 3075530107 VALVE
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
A 0005869543 REPAIR KIT
Repalced by: A 0004303083
A 0004303083 PISTON
TO 002 430 88 01,002 430 82 01
A 0005869443 REPAIR KIT
TO 002 430 89 01,KUGELFISCHER
225 A 0004230184 FITTING
AT BRAKE MASTER CYLINDER
A 0019978772 FITTING
AT BRAKE MASTER CYLINDER
227 A 0004280124 DISTRIBUTOR
AT BRAKE MASTER CYLINDER
A 0004310330 BANJO UNION
AT BRAKE MASTER CYLINDER
229 N 007603014405 SEAL RING
AT BRAKE MASTER CYLINDER
231 A 0004280026 HOLLOW SCREW
AT BRAKE MASTER CYLINDER
A 0009902963 HOLLOW SCREW
AT BRAKE MASTER CYLINDER
233 A 0004280032 SCREW PLUG
AT BRAKE MASTER CYLINDER
A 0004311956 SCREW PLUG
AT BRAKE MASTER CYLINDER
235 N 912004010102 LOCK WASHER
AT BRAKE MASTER CYLINDER
237 N 000934010014 NUT
AT BRAKE MASTER CYLINDER
239 A 3524310740 BRACKET
AT BRAKE MASTER CYLINDER
A 3524310940 BRACKET
AT BRAKE MASTER CYLINDER
N 000933010157 SCREW
AT BRAKE MASTER CYLINDER
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
AT BRAKE MASTER CYLINDER
N 912004010102 LOCK WASHER
AT BRAKE MASTER CYLINDER
N 000934010014 NUT
AT BRAKE MASTER CYLINDER
242 A 0004314702 RESERVOIR
A 0014312902 RESERVOIR
244 A 0004315433 FILLER CAP
BUTTRESS THREAD
A 0002950237 SCREW PLUG
Repalced by: A 0004315433
246 A 0009972940 SEAL RING
43.7X30 MM
A 0039976440 SEAL RING
42X21.5 MM
248 A 0004313734 STRAINER
Repalced by: A 0004314334
248 A 0004314334 STRAINER
250 A 0004311040 CLAMP
251 N 007985006157 SCREW
Repalced by: N 000000001145
251 N 000000001145 SCREW
FLUID RESERVOIR
251E N 912004006102 LOCK WASHER
FLUID RESERVOIR
252 N 007603022102 SEAL RING
AT BRAKE MASTER CYLINDER
254 A 0004280130 CONNECTOR
AT BRAKE MASTER CYLINDER
256 A 0004280126 HOLLOW SCREW
AT BRAKE MASTER CYLINDER
258 A 3524204829 LINE
Repalced by: A 3524209529
260 A 3524209529 LINE
BETWEEN RESERVOIR AND BRAKE MASTER CYLINDER
262 A 0009978952 HOSE
BETWEEN RESERVOIR AND BRAKE MASTER CYLINDER
300 MM
N 900288015000 CLAMP
264 A 0004292201 LINE
BETWEEN RESERVOIR AND BRAKE MASTER CYLINDER
266 A 0004292201 LINE
BETWEEN RESERVOIR AND BRAKE MASTER CYLINDER
268 A 0009978952 HOSE
BETWEEN RESERVOIR AND BRAKE MASTER CYLINDER
45 MM
N 900288015000 CLAMP

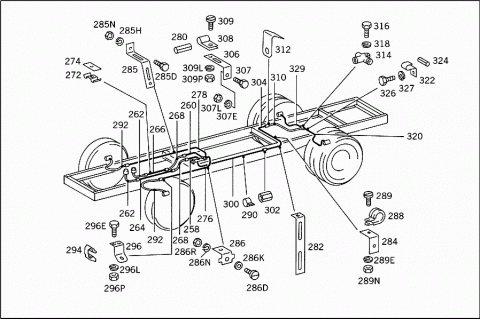

BRAKE LINE MOUNTING
270 A 0009972481 GROMMET
BRAKE LINE THRU CAB FLOOR
272 A 3379950332 CLAMP
BRAKE LINE MOUNTING
274 A 3124761036 BRACKET
Repalced by: A 3124761236
274 A 3124761236 BRACKET
Repalced by: A 3604293140
274 A 3604293140 BRACKET
BRAKE LINE MOUNTING
N 007981004245 SHEET METAL SCREW
Repalced by: N 007981004339
N 007981004339 SHEET METAL SCREW
Repalced by: N 000000000459
N 000000000459 SHEET METAL SCREW
BRAKE LINE MOUNTING
N 000084004164 SCREW
BRAKE LINE MOUNTING
N 000084005302 SCREW
BRAKE LINE MOUNTING
N 000084006197 SCREW
BRAKE LINE MOUNTING
N 912004006102 LOCK WASHER
BRAKE LINE MOUNTING
N 912004005103 LOCK WASHER
BRAKE LINE MOUNTING
N 000934006007 NUT
BRAKE LINE MOUNTING
N 000937005008 NUT
BRAKE LINE MOUNTING
A 3524203328 LINE
Repalced by: A 3404201529
276 A 3404201529 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
A 3404203129 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
278 A 3404203129 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
A 3404201529 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
280 A 3129970582 HOSE
SIDE MEMBER,FRONT
A 3859970081 GROMMET
SIDE MEMBER,FRONT
282 A 3524290740 BRACKET
BRAKE LINE MOUNTING
284 A 3604280243 ANGLE
BRAKE LINE MOUNTING
285 A 3604312640 BRACKET
BRAKE LINE MOUNTING
285D N 000933008147 SCREW
Repalced by: N 304017008021
285D N 304017008021 SCREW
BRAKE LINE MOUNTING
285H N 912004008102 LOCK WASHER
BRAKE LINE MOUNTING
285N N 304032008006 NUT
BRAKE LINE MOUNTING
286 A 3604280143 ANGLE
BRAKE LINE MOUNTING
286D N 000084006197 SCREW
BRAKE LINE MOUNTING
286K N 000125006421 WASHER
BRAKE LINE MOUNTING
286N N 912004006102 LOCK WASHER
BRAKE LINE MOUNTING
286R N 000934006007 NUT
BRAKE LINE MOUNTING
288 A 3604300143 CLAMP
Repalced by: N 916016008200
288 N 916016008200 CLAMP
BRAKE LINE MOUNTING
289 N 000084006197 SCREW
BRAKE LINE MOUNTING
289E N 912004006102 LOCK WASHER
BRAKE LINE MOUNTING
289N N 000934006007 NUT
BRAKE LINE MOUNTING
290 A 3129950935 CLAMP
BRAKE LINE MOUNTING
N 000084004151 SCREW
BRAKE LINE MOUNTING
N 000934004006 NUT
BRAKE LINE MOUNTING
292 A 0004288235 BRAKE HOSE
550 MM
294 A 0004280473 BRACKET
Repalced by: A 6525040038
294 A 6525040038 MOUNTING PLATE
BRAKE HOSE,FRONT
296 A 3224280140 BRACKET
BRAKE HOSE,FRONT
296E N 000933008147 SCREW
Repalced by: N 304017008021
296E N 304017008021 SCREW
BRAKE HOSE,FRONT
296L N 912004008102 LOCK WASHER
BRAKE HOSE,FRONT
296P N 304032008006 NUT
BRAKE HOSE,FRONT
A 3404205529 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
5600 MM
A 3404205129 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
4800 MM
A 3404205629 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
5800 MM
A 3404205229 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
5000 MM
300 A 3404202029 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE
1150 MM
A 3404201329 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE
800 MM
302 A 0004292736 CONNECTOR
304 A 3404204629 LINE
FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE
3800 MM
A 3404204529 LINE
FROM INTERMEDIATE PIECE TO REAR AXLE II BRAKE HOSE
3600 MM
A 3404203729 LINE
FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE
2000 MM
A 3404204329 LINE
FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE
3200 MM
306 A 3524281740 BRACKET
Repalced by: A 3184280240
306 A 3184280240 BRACKET
BRAKE LINE MOUNTING
306 A 3524282840 BRACKET
BRAKE LINE MOUNTING
307 N 000933008147 SCREW
Repalced by: N 304017008021
307 N 304017008021 SCREW
FROM INTERMEDIATE PIECE TO REAR AXLE II BRAKE HOSE
307E N 912004008102 LOCK WASHER
FROM INTERMEDIATE PIECE TO REAR AXLE II BRAKE HOSE
307L N 304032008006 NUT
FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE
A 0019978490 LOOM TIE
BRAKE LINE MOUNTING
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE
308 A 3609950601 CLAMP
FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE
309 N 000084006197 SCREW
FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE
309L N 912004006102 LOCK WASHER
FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE
309P N 000934006007 NUT
FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE
A 0024280735 BRAKE HOSE
600 MM
310 A 0004288935 BRAKE HOSE
650 MM
310 A 0014284835 BRAKE HOSE
650 MM
A 0004280473 BRACKET
Repalced by: A 6525040038
A 6525040038 MOUNTING PLATE
BRAKE HOSE,REAR
312 A 3834280140 BRACKET
BRAKE HOSE,REAR
A 3224280140 BRACKET
BRAKE HOSE,REAR
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRAKE HOSE,REAR
N 912004008102 LOCK WASHER
BRAKE HOSE,REAR
N 304032008006 NUT
BRAKE HOSE,REAR
314 A 0004290437 DISTRIBUTOR
314 A 0004294337 DISTRIBUTOR
316 N 000933008152 SCREW
Repalced by: N 304017008027
316 N 304017008027 SCREW
DISTRIBUTOR TO REAR AXLE
318 N 912004008102 LOCK WASHER
DISTRIBUTOR TO REAR AXLE
320 A 3404202429 LINE
AT LEFT WHEEL CYLINDER
1350 MM
322 A 3129951020 CLAMP
BETWEEN THE LINES
324 A 3129973482 HOSE
BETWEEN THE LINES
326 N 000933008212 SCREW
Repalced by: N 304017008016
326 N 304017008016 SCREW
BETWEEN THE LINES
327 N 912004008102 LOCK WASHER
BETWEEN THE LINES
329 A 3404201029 LINE
AT RIGHT WHEEL CYLINDER
650 MM
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
BRAKE LINE TO REAR AXLE
A 3854294040 BRACKET
Repalced by: A 3812711640
A 3812711640 BRACKET
BRAKE LINE TO REAR AXLE
N 000933008290 SCREW
BRACKET TO REAR AXLE
N 912004008102 LOCK WASHER
BRACKET TO REAR AXLE
N 000084006197 SCREW
BRACKET TO REAR AXLE HOUSING
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
BRACKET TO REAR AXLE HOUSING

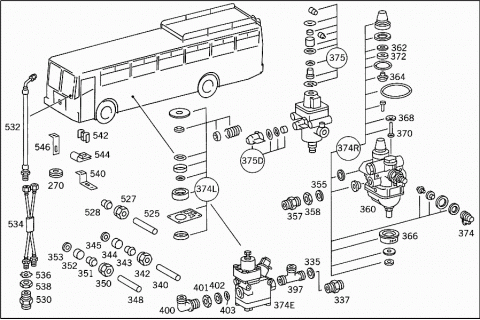

335 N 007603022102 SEAL RING
AT AIR COMPRESSOR
N 074305022202 NUT
AT AIR COMPRESSOR
A 0009870446 SEALING CORD
AT AIR COMPRESSOR
A 0004290227 THRUST RING
AT AIR COMPRESSOR
337 N 074313018201 FITTING
AT AIR COMPRESSOR
N 074301026202 ELBOW FITTING
AT AIR COMPRESSOR
340 A 0005516456 TUBE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
18 MM
342 N 915018018000 UNION NUT
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
343 N 003861018003 GLAND
Repalced by: A 0019901167
343 A 0019901167 SEAL CONE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
344 N 915065018101 THRUST RING
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
345 N 915045014100 SEAL RING
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
A 3609950601 CLAMP
AIR COMPRESSOR CONNECTION
N 000084006402 SCREW
AIR COMPRESSOR CONNECTION
N 912004006102 LOCK WASHER
AIR COMPRESSOR CONNECTION
N 000125006421 WASHER
AIR COMPRESSOR CONNECTION
N 000934006007 NUT
AIR COMPRESSOR CONNECTION
348 A 0005516256 TUBE
15 MM
350 N 915018015000 UNION NUT
351 N 003861015004 GLAND
352 N 915065015101 THRUST RING
353 N 915045012100 SEAL RING
355 N 007603022102 SEAL RING
357 N 074299026300 DOUBLE FITTING
AT PRESSURE REGULATOR
358 N 074305026202 NUT
PRESSURE REGULATOR TO FRAME
360 A 0004314006 VALVE
Repalced by: A 0004319106
360 A 0004319106 PRESSURE REGULATOR
360 A 0004314906 VALVE
Repalced by: A 0004319206
360 A 0004319206 PRESSURE REGULATOR
Repalced by: A 0004319106
360 A 0004319106 PRESSURE REGULATOR
362 A 0004318360 SEAL RING
364 A 0007630553 SLEEVE
366 A 0004311434 STRAINER
368 A 0004310681 VALVE DISC
370 A 0004311381 VALVE DISC
372 A 0004311081 VALVE DISC
374 A 0009979486 PLUG
374E A 0014314106 PRESSURE REGULATOR
Repalced by: A 0024313506
374E A 0024313506 PRESSURE REGULATOR
Repalced by: A 0024315906
374E A 0014314306 PRESSURE REGULATOR
Repalced by: A 0024316006
374E A 0014312206 PRESSURE REGULATOR
Repalced by: A 0024316006
374E A 0014314206 PRESSURE REGULATOR
Repalced by: A 0024315906
374E A 0024315906 PRESSURE REGULATOR
"BOSCH"
A 0025866043 REPAIR KIT
TO 001 431 42 06,GRAU
374E A 0024316006 PRESSURE REGULATOR
WABCO
374L A 0015868543 REPAIR KIT
Repalced by: A 0004301407
374L A 0004301407 REPAIR KIT
TO 001 431 41 06,BOSCH 0 481 039 102
A 0025864243 REPAIR KIT
TO 000 431 91 06,BOSCH 0 481 039 011
A 0025864143 REPAIR KIT
TO 000 431 92 06,40 06,49 06
A 0025864143 REPAIR KIT
BOSCH 0 481 039 012/007/008
374R A 0025865043 REPAIR KIT
TO 000 431 92 06,91 06,40 06,49 06
374R A 0025865043 REPAIR KIT
BOSCH 0 481 039 012/011/007/008
A 0015864343 REPAIR KIT
Repalced by: A 0004301107
A 0004301107 REPAIR KIT
TO 001 431 22 06,WABCO 975 300 111 0
A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 22 06,WABCO 975 300 111 0
A 0014304960 REPAIR KIT
TO 002 431 60 06,WABCO 975 303 440 0
T YYYYYYYYYYYY PART NAME MISSING
TO 002 431 59 06,BOSCH 0 481 039 202
375 A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 35 06,BOSCH 0 481 039 222
375D A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 35 06,BOSCH 0 481 039 222
T YYYYYYYYYYYY PART NAME MISSING
TO 002 431 59 06,BOSCH 0 481 039 202
376 N 074298022203 DOUBLE FITTING
AT PRESSURE REGULATOR
378 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
381 A 0004317206 VALVE
383 A 0004311181 VALVE DISC
Repalced by: A 0004311981
383 A 0004311981 VALVE DISC
383 A 0004311981 VALVE DISC
A 0004311781 VALVE DISC
Repalced by: A 0004312081
A 0004312081 VALVE DISC
BOTTOM
385 A 0004312081 VALVE DISC
BOTTOM
387 A 0007630454 SEAL
389 A 0004315086 CUP
391 A 0019972372 FITTING
AT PRESSURE REGULATOR
N 074313018201 FITTING
AT PRESSURE REGULATOR
N 074313018201 FITTING
AT PRESSURE REGULATOR
393 N 074299022202 DOUBLE FITTING
AT PRESSURE REGULATOR
395 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
395 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
397 N 074302022202 T-FITTING
AT PRESSURE REGULATOR
399 N 074301022203 ELBOW FITTING
AT PRESSURE REGULATOR
400 A 0004293238 ELBOW FITTING
AT PRESSURE REGULATOR
401 N 074305022202 NUT
AT PRESSURE REGULATOR
401 N 074305022202 NUT
AT PRESSURE REGULATOR
402 A 0004290227 THRUST RING
AT PRESSURE REGULATOR
402 A 0004290227 THRUST RING
AT PRESSURE REGULATOR
403 A 0009870446 SEALING CORD
AT PRESSURE REGULATOR
403 A 0009870446 SEALING CORD
AT PRESSURE REGULATOR

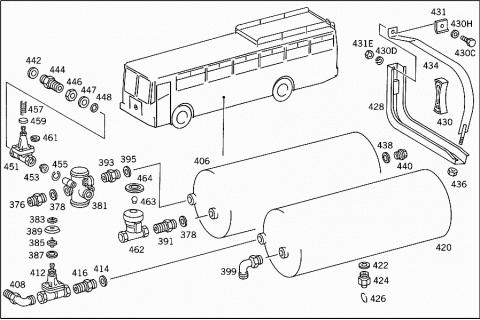

A 3124302905 RESERVOIR
INSIDE
A 3524304405 RESERVOIR
INSIDE
406 A 3604303105 RESERVOIR
INSIDE
408 N 074301022203 ELBOW FITTING
AT AIR RESERVOIR
N 074305022202 NUT
AT AIR RESERVOIR
A 0004290227 THRUST RING
AT AIR RESERVOIR
A 0009870446 SEALING CORD
AT AIR RESERVOIR
412 A 0004296444 VALVE
AT AIR RESERVOIR
414 N 007603022102 SEAL RING
AT AIR RESERVOIR
416 A 0019972372 FITTING
AT AIR RESERVOIR
N 074305022202 NUT
AT AIR RESERVOIR
A 0004290227 THRUST RING
AT AIR RESERVOIR
A 0009870446 SEALING CORD
AT AIR RESERVOIR
N 074281037000 AIR RESERVOIR
OUTSIDE
420 A 3214300205 RESERVOIR
Repalced by: A 0034322501
420 A 0034322501 RESERVOIR
N 007603022102 SEAL RING
AT AIR RESERVOIR
422 N 007603022102 SEAL RING
AT AIR RESERVOIR
A 0004320607 VALVE
Repalced by: A 0004321107
424 A 0004320407 VALVE
Repalced by: A 0004320807
424 A 0004322407 VALVE
AIR RESERVOIR
426 A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
A 3224300111 CONSOLE
Repalced by: A 3224320215
A 3224320215 CONSOLE
AIR RESERVOIR
A 3224320115 CONSOLE
AIR RESERVOIR
428 A 3604301311 CONSOLE
AIR RESERVOIR
428 A 3524302211 CONSOLE
AIR RESERVOIR
A 3214750084 SHIM
Repalced by: N 007349013003
N 007349013003 WASHER
Repalced by: N 007349013005
N 007349013005 WASHER
430 A 3354320218 BASE
430C N 000961012122 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.5X40
430C N 000961014028 SCREW
CONSOLE TO SIDE MEMBER
M 14X1.5X40
430C N 000961014054 SCREW
CONSOLE TO SIDE MEMBER
M 14X1.5X45
430D N 912004012100 LOCK WASHER
CONSOLE TO SIDE MEMBER
430H N 007349013003 WASHER
Repalced by: N 007349013005
430H N 007349013005 WASHER
CONSOLE TO SIDE MEMBER
431 A 3434320026 PLATE
CONSOLE TO SIDE MEMBER
N 000961012189 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.5X50
N 000961012097 SCREW
Repalced by: N 308676012026
N 308676012026 SCREW
CONSOLE TO SIDE MEMBER
M 12X1.5X55
431E N 000934012022 NUT
CONSOLE TO SIDE MEMBER
431E N 913004014002 NUT
Repalced by: N 910113014001
431E N 910113014001 NUT
CONSOLE TO SIDE MEMBER
A 3609900640 WASHER
CONSOLE TO SIDE MEMBER
N 007349015009 WASHER
CONSOLE TO SIDE MEMBER
A 0009870814 RUBBER STRIP
N 000931010282 SCREW
N 000934010014 NUT
N 001434010024 PIN
N 000094003219 COTTER PIN
A 3224300240 STRAP
RESERVOIR TO SUPPORT
A 3224300140 STRAP
RESERVOIR TO SUPPORT
434 A 3604300040 STRAP
RESERVOIR TO SUPPORT
436 N 000934010014 NUT
RESERVOIR TO SUPPORT
438 N 007603022102 SEAL RING
440 N 007604022100 SCREW PLUG
Repalced by: A 3469970230
440 A 3469970230 SCREW PLUG
442 N 007603022102 SEAL RING
444 A 0019972372 FITTING
446 N 074305022202 NUT
447 A 0004290227 THRUST RING
448 A 0009870446 SEALING CORD
451 A 0004298344 VALVE
Repalced by: A 0014294644
A 0014294644 VALVE
WABCO
453 A 0004290049 BUSHING
455 N 000472020000 LOCK RING
457 A 0014310793 SPRING
459 A 0004310328 DIAPHRAGM
461 N 000127006100 LOCK WASHER
A 0004295544 VALVE
Repalced by: A 0014294044
462 A 0014294044 VALVE
BOSCH
462 A 0014297444 VALVE
GRAU
463 A 0004290382 VALVE
464 A 0004290145 DIAPHRAGM
A 0005863642 REPAIR KIT
Repalced by: A 0005865842
A 0005865842 REPAIR KIT
TO 000 429 83 44,WABCO
A 0015862042 REPAIR KIT
TO 001 429 46 44,WABCO
A 0009870446 SEALING CORD
AT VALVE
465 A 0004311675 THREADED UNION
AT VALVE
467 A 3529970272 FITTING
AT VALVE
469 N 080705016003 NUT
AT VALVE
470 A 0009971548 SEAL RING
AT VALVE
471 A 0004310051 SPACER RING
AT VALVE

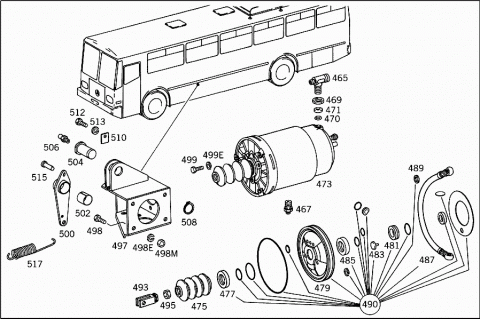

473 A 0004311314 BRAKE BOOSTER
Repalced by: A 0004318814
473 A 0004316114 BRAKE BOOSTER
Repalced by: A 0004318814
473 A 0004318814 BRAKE CYLINDER
475 A 0004317186 CUP
477 A 0004312886 SEAL RING
479 A 0004315583 PISTON
481 A 0004317060 SEAL RING
483 A 0003270032 VALVE PART
485 A 0004319460 SEAL RING
487 A 0004289535 BRAKE HOSE
505 MM
489 N 007603014405 SEAL RING
A 0004310336 FILTER BOTTOM
490 A 0025860143 REPAIR KIT
493 A 3604310267 YOKE
AT BRAKE BOOSTER
495 N 000936010010 NUT
A 3524300211 CONSOLE
BRAKE BOOSTER
497 A 3604302011 CONSOLE
BRAKE BOOSTER
A 3524300311 CONSOLE
BRAKE BOOSTER
A 3604302111 CONSOLE
BRAKE BOOSTER
498 N 000933010105 SCREW
CONSOLE TO FRAME
498E N 912004010102 LOCK WASHER
CONSOLE TO FRAME
498M N 000934010014 NUT
CONSOLE TO FRAME
499 N 000933010129 SCREW
Repalced by: N 304017010002
499 N 304017010002 SCREW
BRAKE BOOSTER TO CONSOLE
499E N 912004010102 LOCK WASHER
BRAKE BOOSTER TO CONSOLE
A 3524300223 LEVER
Repalced by: A 3524301323
500 A 3524301323 LEVER
A 3524300323 LEVER
Repalced by: A 3524301423
A 3524301423 LEVER
502 A 3529920801 BUSHING
A 3524310074 PIN
504 A 3604310074 PIN
506 N 071412010200 GREASE NIPPLE
DOUBLE LEVER TO CONSOLE
N 000988030005 FITTED WASHER
DOUBLE LEVER TO CONSOLE
508 N 000471030000 LOCK RING
DOUBLE LEVER TO CONSOLE
510 A 3149940101 LOCK
DOUBLE LEVER TO CONSOLE
512 N 000933008130 SCREW
Repalced by: N 304017008039
512 N 304017008039 SCREW
513 N 912004008102 LOCK WASHER
515 A 3529910007 PIN
N 000094003219 COTTER PIN
A 3529930010 SPRING
Repalced by: A 3529931010
517 A 3529931010 SPRING
525 A 0004290701 LINE
Repalced by: A 0004296201
525 A 0004296201 LINE
6 MM
527 N 915017006100 UNION NUT
528 N 003861006007 GLAND
Repalced by: A 0019901667
528 A 0019901667 SEAL CONE
530 N 074298012201 DOUBLE FITTING
BETWEEN THE LINES
530 N 074298012201 DOUBLE FITTING
BETWEEN THE LINES
532 A 3525420335 HOSE
BETWEEN THE LINES
A 3525407561 ELECTRIC CABLE
Repalced by: A 0089076082
534 A 0089976082 HOSE
Repalced by: A 0009872627
A 0009872627 PLASTIC PIPE
BRAKE PRESSURE CONTROL
6X4 MM
N 040621010200 INSULATING HOSE
BRAKE PRESSURE CONTROL
A 0019973572 FITTING
Repalced by: N 915059004000
N 915059004001 FITTING
BRAKE PRESSURE CONTROL
A 0019975072 FITTING
BRAKE PRESSURE CONTROL
N 915017006200 UNION NUT
BRAKE PRESSURE CONTROL
A 3819970881 GROMMET
BRAKE PRESSURE CONTROL
A 0019973472 FITTING
Repalced by: N 915059004001
N 915059004001 FITTING
BRAKE PRESSURE CONTROL
536 N 006797012153 TOOTHED WASHER
538 N 000936012005 NUT
Repalced by: N 308675012000
538 N 308675012000 NUT
540 A 3525422840 BRACKET
LINE MOUNTING
N 000933010128 SCREW
LINE MOUNTING
N 000127010206 LOCK WASHER
LINE MOUNTING
N 000934010014 NUT
LINE MOUNTING
542 A 3609950101 CLAMP
LINE MOUNTING
N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
N 000000000460 SHEET METAL SCREW
LINE MOUNTING
544 A 3609950101 CLAMP
LINE MOUNTING
N 000084006197 SCREW
LINE MOUNTING
N 912004006102 LOCK WASHER
LINE MOUNTING
N 000125006421 WASHER
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
546 A 3184280140 BRACKET
Repalced by: A 3184280240
546 A 3184280240 BRACKET
LINE MOUNTING
546 A 3184280240 BRACKET
LINE MOUNTING
N 000933010238 SCREW
Repalced by: N 304017010028
N 304017010028 SCREW
LINE MOUNTING
N 304017010028 SCREW
LINE MOUNTING
N 912004010102 LOCK WASHER
LINE MOUNTING
N 912004010102 LOCK WASHER
LINE MOUNTING
N 000934010014 NUT
LINE MOUNTING
N 000934010014 NUT
LINE MOUNTING

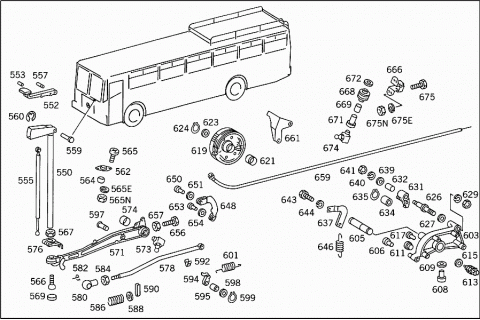

550 A 3524200184 PARKING BRAKE
552 A 3214270126 PAWL ROD HANDLE
553 A 3214270674 PIN
555 A 3524200674 ROD
557 A 3219900075 SCREW
559 A 3524270174 PIN
560 N 912007006001 CLIP
562 A 3214270841 BRACKET
564 A 3044270064 GUIDE BALL
565 N 007985008142 SCREW
565E N 912004008102 LOCK WASHER
565N N 304032008006 NUT
566 A 3214270183 SPHERICAL PIECE
567 A 3219900751 NUT
569 A 3214270283 SPHERICAL PIECE
571 A 3524200312 BRAKE LEVER
A 3524200912 BRAKE LEVER
Repalced by: A 3524201212
A 3524201212 BRAKE LEVER
573 N 071412008302 GREASE NIPPLE
574 A 3214270250 BUSHING
576 A 3524270073 LOCK
N 000933008135 SCREW
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
N 912004008102 LOCK WASHER
N 304032008006 NUT
578 A 3524270130 PAWL ROD
A 3524270230 PAWL ROD
A 3524270330 PAWL ROD
Repalced by: A 3524200288
A 3524200288 RATCHET ROD
580 N 071805013203 BALL SOCKET
N 071805013302 SNAP RING
582 N 071805013402 SECURING CLIP
584 N 304032008006 NUT
586 A 3529930001 SPRING
588 N 000125008418 WASHER
Repalced by: N 000125008443
588 N 000125008443 WASHER
590 A 3524270841 BRACKET
N 000085004114 SCREW
N 912004004102 LOCK WASHER
N 000934004006 NUT
592 A 3214271041 BRACKET
N 000660004041 RIVET
594 A 3224200292 PAWL
A 3224200392 PAWL
595 A 3229920201 BUSHING
597 A 3524270274 PIN
598 A 3524270176 WASHER
599 N 000471014000 LOCK RING
601 A 3529930610 SPRING
603 A 3524200578 BEARING BRACKET
A 3524200678 BEARING BRACKET
605 A 3214270374 PIN
606 A 3224270574 PIN
A 3404270474 PIN
608 A 3224271174 PIN
609 A 3224270176 WASHER
AS REQUIRED
1.0 MM
A 3224270276 WASHER
AS REQUIRED
1.5 MM
A 3224270376 WASHER
AS REQUIRED
2.0 MM
N 000094004065 COTTER PIN
611 A 3524270050 BUSHING
613 A 0005454009 SWITCH
615 A 3229900240 WASHER
617 A 3524270674 PIN
A 3214200293 CABLE PULLEY
Repalced by: A 3224200193
619 A 3224200193 CABLE PULLEY
A 3214200393 CABLE PULLEY
Repalced by: A 3224200293
619 A 3224200293 CABLE PULLEY
621 A 3214270250 BUSHING
623 A 3214270076 WASHER
AS REQUIRED
1.7 MM
A 3214270176 WASHER
AS REQUIRED
2.0 MM
A 3214270276 WASHER
AS REQUIRED
2.3 MM
624 N 000471030000 LOCK RING
A 3524270374 PIN
Repalced by: A 3524270974
626 A 3524270974 PIN
627 A 3524270176 WASHER
628 N 912004014100 LOCK WASHER
629 N 000936014010 NUT
Repalced by: N 308675014000
629 N 308675014000 NUT
Repalced by: N 308675014002
629 N 308675014002 NUT
631 A 3224200092 PAWL
A 3224200192 PAWL
632 A 3229920201 BUSHING
634 A 3224270114 ROLLER
AS REQUIRED
18.5 MM
A 3224270214 ROLLER
AS REQUIRED
19.0 MM
A 3224270314 ROLLER
AS REQUIRED
19.5 MM
635 N 000471010001 LOCK RING
N 000471014000 LOCK RING
A 3224271041 BRACKET
Repalced by: A 3524202386
A 3224271041 BRACKET
Repalced by: A 3524202486
637 A 3524202386 BRACKET
638 A 3524202486 BRACKET
639 A 3524270276 WASHER
640 N 912004010102 LOCK WASHER
641 N 000934010014 NUT
643 N 000933010128 SCREW
644 N 912004010102 LOCK WASHER
646 A 3529930610 SPRING
648 A 3224270013 LEVER
650 N 001434010001 PIN
651 N 000125010518 WASHER
Repalced by: N 000125010532
651 N 000125010532 WASHER
N 000094003219 COTTER PIN
653 A 3529911007 PIN
654 N 000125006421 WASHER
N 000094001518 COTTER PIN
656 N 000931008047 SCREW
Repalced by: N 304017008018
656 N 304017008018 SCREW
657 N 304032008006 NUT
659 A 3214200285 BRAKE CABLE
A 3524200185 BRAKE CABLE
661 A 3524270027 STOP
A 3524270127 STOP
663 A 3214200176 END PIECE
90 MM
664 N 000934010014 NUT
666 A 3604200278 BEARING BRACKET
A 3604200378 BEARING BRACKET
668 A 3524200093 CABLE PULLEY
669 A 3124272850 BUSHING
671 A 3404270074 PIN
672 N 000125013008 WASHER
N 000094003219 COTTER PIN
674 N 071412010300 GREASE NIPPLE
675 N 000933010128 SCREW
675E N 912004010102 LOCK WASHER
675N N 000934010014 NUT
N 001434010006 PIN
Repalced by: A 3529910007
676 A 3529910007 PIN
N 000094003219 COTTER PIN
678 A 3224203678 BEARING BRACKET
A 3404200278 BEARING BRACKET
680 A 3224270341 BRACKET
A 3524270241 BRACKET
682 N 000933010105 SCREW
683 N 000933010128 SCREW
683E N 912004010102 LOCK WASHER
683N N 000934010014 NUT
684 N 000933008145 SCREW
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
685 N 912004008102 LOCK WASHER
685E N 304032008006 NUT
686 A 3524200581 LEVER
FRONT
A 3524200781 LEVER
687 A 3529921201 BUSHING
688 N 071412010100 GREASE NIPPLE
690 A 3124261574 PIN
691 N 000471022000 LOCK RING
693 A 3379935010 SPRING
695 N 071752012002 YOKE
697 A 3529910107 PIN
698 N 000433013005 WASHER
Repalced by: N 000433013010
698 N 000433013010 WASHER
N 000094004065 COTTER PIN
700 N 900331012334 PULL ROD
N 900331012335 PULL ROD
702 N 001480012200 TURNBUCKLE
Repalced by: A 3859960034
702 A 3859960034 NUT
703 N 000934012021 NUT
705 N 900331012339 PULL ROD
706 N 000934012020 NUT
L.H. THREAD
M 12
708 A 3524200180 BRAKE INTERMEDIATE SHAFT
REAR
A 3524200280 BRAKE INTERMEDIATE SHAFT
Repalced by: A 3524201080
A 3524201080 BRAKE INTERMEDIATE SHAFT
REAR
710 A 3274270058 SEAL HOLDER
712 A 3279970040 SEAL RING
A 3584200478 BEARING BRACKET
Repalced by: A 3584201078
714 A 3584201078 BEARING BRACKET
715 A 3024260083 SPHERICAL PIECE
Repalced by: A 3025860242
716 N 000470052000 EXPANSION PLUG
717 A 3025860242 REPAIR KIT
Repalced by: A 3534200067
717 A 3534200067 REPAIR KIT
Repalced by: A 3534200167
717 A 3534200167 BALL CUP
BRAKE INTERMEDIATE SHAFT BEARING
717D N 000961012151 SCREW
BEARING BRACKET TO FRAME
717K N 912004012100 LOCK WASHER
BEARING BRACKET TO FRAME
717P N 000934012022 NUT
BEARING BRACKET TO FRAME

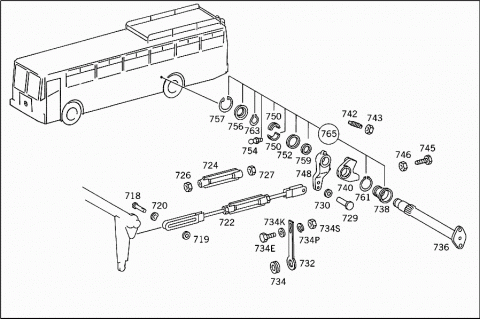

718 A 3529910207 PIN
719 N 000433013005 WASHER
Repalced by: N 000433013010
719 N 000433013010 WASHER
720 N 900055012001 SPRING WASHER
N 000094003210 COTTER PIN
A 3524201574 ROD
722 A 3604200774 ROD
724 N 001480012200 TURNBUCKLE
Repalced by: A 3859960034
724 A 3859960034 NUT
726 N 000934012020 NUT
727 N 000934012021 NUT
729 A 3529910107 PIN
730 N 000433013002 WASHER
N 000094003210 COTTER PIN
732 A 3524200086 BRACKET
A 3524200086 BRACKET
734 A 0009973481 GROMMET
734E N 000933008147 SCREW
Repalced by: N 304017008021
734E N 304017008021 SCREW
734K N 000125008418 WASHER
Repalced by: N 000125008443
734K N 000125008443 WASHER
734P N 912004008102 LOCK WASHER
734S N 304032008006 NUT
736 A 3544230036 BRAKE CAMSHAFT
738 A 3414230186 CUP
740 A 3024230037 ADJUSTING LEVER
LEFT
A 3024230137 ADJUSTING LEVER
RIGHT
742 A 3024230170 STUD
743 N 000936018006 NUT
745 A 3544230171 SCREW
746 N 000936012005 NUT
Repalced by: N 308675012000
746 N 308675012000 NUT
A 3524260011 LEVER
Repalced by: A 3604260611
A 3604260011 LEVER
Repalced by: A 3604260611
748 A 3604260611 LEVER
LEFT
A 3524260111 LEVER
Repalced by: A 3604260711
A 3604260111 LEVER
Repalced by: A 3604260711
A 3604260711 LEVER
RIGHT
750 A 3024260083 SPHERICAL PIECE
IN BEARING BRACKET
752 N 003760045300 RADIAL SEAL RING
IN BEARING BRACKET
754 N 071412010100 GREASE NIPPLE
IN BEARING BRACKET
756 A 3609970020 EXPANSION PLUG
IN BEARING BRACKET
757 N 000472062000 LOCK RING
Repalced by: A 0039945241
757 A 0039945241 LOCK
IN BEARING BRACKET
759 A 3024230153 SPACER TUBE
AS REQUIRED
11.0 MM
A 3024230253 SPACER TUBE
AS REQUIRED
11.5 MM
A 3024230353 SPACER TUBE
AS REQUIRED
12.0 MM
A 3024230453 SPACER TUBE
AS REQUIRED
12.5 MM
A 3024230553 SPACER TUBE
AS REQUIRED
13.0 MM
A 3024230653 SPACER TUBE
AS REQUIRED
13.5 MM
A 3024230753 SPACER TUBE
AS REQUIRED
10.5 MM
761 N 000471045000 LOCK RING
763 N 000471035000 LOCK RING
765 A 3025860142 REPAIR KIT
Repalced by: A 3024200067
765 A 3024200067 REPAIR KIT
BRAKE CAMSHAFT BEARING

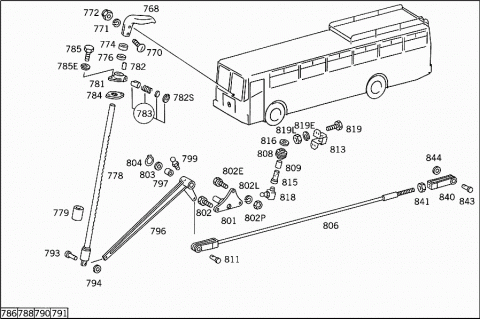

768 A 3124271220 HANDLE
770 N 000964006028 SCREW
N 006797006146 TOOTHED WASHER
771 N 912004006102 LOCK WASHER
772 N 001587006002 CAP NUT
774 A 3589900040 WASHER
N 001473005019 GROOVED PIN
776 A 3124271086 DAMPING RING
778 A 3584200488 RATCHET ROD
A 3584200588 RATCHET ROD
779 A 3534270095 PROTECTIVE CAP
A 3124201578 BEARING BRACKET
Repalced by: A 3124201178
A 3535860042 REPAIR KIT
Repalced by: A 3124201178
781 A 3124201178 BEARING BRACKET
A 3124271215 PAWL
Repalced by: A 3145860142
A 1539930701 SPRING
Repalced by: A 3145860142
A 3129900043 PLATE
Repalced by: A 3145860142
782 N 001473004023 GROOVED PIN
782S N 000472015000 LOCK RING
783 A 3145860142 REPAIR KIT
Repalced by: A 3144200092
783 A 3144200092 REPAIR KIT
PAWL
784 A 3584270084 SHIM
BEARING BRACKET TO COVER
785 N 007985008152 SCREW
BEARING BRACKET TO COVER
785E N 912004008102 LOCK WASHER
BEARING BRACKET TO COVER
N 304032008006 NUT
BEARING BRACKET TO COVER
N 007985008142 SCREW
COVER TO CAB FLOOR
N 912004008102 LOCK WASHER
COVER TO CAB FLOOR
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
783
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
783
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
783
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
783
793 A 3529910407 PIN
794 N 000433008406 WASHER
N 000094002059 COTTER PIN
796 A 3584200012 BRAKE LEVER
A 3584201212 BRAKE LEVER
A 3604200012 BRAKE LEVER
Repalced by: A 3524202312
A 3524202312 BRAKE LEVER
797 A 3529921201 BUSHING
799 N 071412010100 GREASE NIPPLE
801 A 3584200578 BEARING BRACKET
A 3584200678 BEARING BRACKET
802 N 000933010145 SCREW
BEARING BRACKET TO FRAME
802E N 000931010282 SCREW
BEARING BRACKET TO FRAME
802L N 912004010102 LOCK WASHER
BEARING BRACKET TO FRAME
802P N 000934010014 NUT
BEARING BRACKET TO FRAME
803 A 3129901540 WASHER
804 N 000471022000 LOCK RING
806 A 3604200285 BRAKE CABLE
808 A 3524200093 CABLE PULLEY
809 A 3124272850 BUSHING
811 A 3529910007 PIN
N 000094003219 COTTER PIN
813 A 3604200278 BEARING BRACKET
A 3604200378 BEARING BRACKET
815 A 3404270074 PIN
816 N 000125013008 WASHER
N 000094003219 COTTER PIN
818 N 071412010300 GREASE NIPPLE
819 N 000933010128 SCREW
BEARING BRACKET TO ENGINE CROSS MEMBER
819E N 912004010102 LOCK WASHER
BEARING BRACKET TO ENGINE CROSS MEMBER
819L N 000934010014 NUT
BEARING BRACKET TO ENGINE CROSS MEMBER

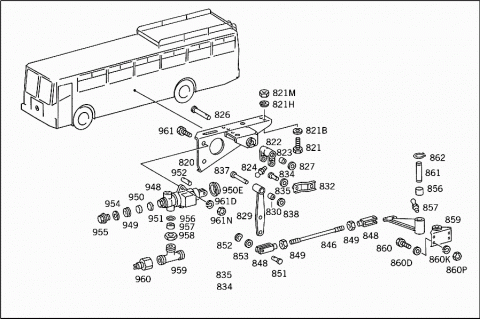

820 A 3604300310 BRACKET
N 000933010164 SCREW
BRACKET TO FRAME
821 N 000933010157 SCREW
BRACKET TO FRAME
821B N 000125010518 WASHER
Repalced by: N 000125010532
821B N 000125010532 WASHER
BRACKET TO FRAME
821H N 912004010102 LOCK WASHER
BRACKET TO FRAME
821M N 000934010014 NUT
BRACKET TO FRAME
822 A 3604200681 LEVER
TOP
823 A 3229920101 BUSHING
824 N 071412010100 GREASE NIPPLE
826 N 001434014052 PIN
UPPER LEVER TO BRACKET
827 N 000125015013 WASHER
Repalced by: N 000125015019
827 N 000125015019 WASHER
UPPER LEVER TO BRACKET
N 000094004065 COTTER PIN
UPPER LEVER TO BRACKET
829 A 3604200781 LEVER
BOTTOM
A 3604200881 LEVER
BOTTOM
830 A 3229920101 BUSHING
N 071412010100 GREASE NIPPLE
832 A 3604200089 SHACKLE
834 N 001434012078 PIN
835 N 000433013005 WASHER
Repalced by: N 000433013010
835 N 000433013010 WASHER
N 000094004065 COTTER PIN
837 N 001434014045 PIN
838 N 000125015013 WASHER
Repalced by: N 000125015019
838 N 000125015019 WASHER
N 000094004065 COTTER PIN
840 A 3214200176 END PIECE
841 N 000934010014 NUT
843 A 3529910007 PIN
BRAKE CABLE TO HAND BRAKE LEVER
844 N 000125010518 WASHER
Repalced by: N 000125010532
844 N 000125010532 WASHER
BRAKE CABLE TO HAND BRAKE LEVER
N 000094003219 COTTER PIN
BRAKE CABLE TO HAND BRAKE LEVER
846 N 900331010660 PULL ROD
N 900331010661 PULL ROD
848 A 0009961501 YOKE
849 N 000934010014 NUT
851 A 3529910007 PIN
852 N 900055010002 SPRING WASHER
Repalced by: N 000137010205
852 N 000137010205 SPRING WASHER
853 N 000433010505 WASHER
Repalced by: N 000433010510
853 N 000433010510 WASHER
N 000094003025 COTTER PIN
855 A 3524202381 LEVER
856 A 3529921201 BUSHING
857 N 071412010100 GREASE NIPPLE
859 A 3404200278 BEARING BRACKET
860 N 000933010129 SCREW
Repalced by: N 304017010002
860 N 304017010002 SCREW
BEARING BRACKET TO SIDE MEMBER
860D A 3609901240 WASHER
Repalced by: A 1159903140
860D A 1159903140 WASHER
BEARING BRACKET TO SIDE MEMBER
860K N 912004010102 LOCK WASHER
BEARING BRACKET TO SIDE MEMBER
860P N 000934010014 NUT
BEARING BRACKET TO SIDE MEMBER

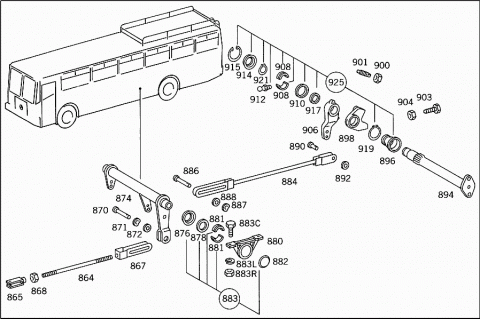

861 A 3124261574 PIN
862 N 000471022000 LOCK RING
864 N 900331010465 PULL ROD
Repalced by: N 900331010657
864 N 900331010657 PULL ROD
865 A 0009961501 YOKE
867 A 3224200247 YOKE
868 N 000934010014 NUT
870 A 3529910007 PIN
PULL ROD TO INTERMEDIATE LEVER
A 3149910207 PIN
PULL ROD TO INTERMEDIATE LEVER
871 N 900055010002 SPRING WASHER
Repalced by: N 000137010205
871 N 000137010205 SPRING WASHER
PULL ROD TO INTERMEDIATE LEVER
872 N 000433010505 WASHER
Repalced by: N 000433010510
872 N 000433010510 WASHER
PULL ROD TO INTERMEDIATE LEVER
N 000094003219 COTTER PIN
PULL ROD TO INTERMEDIATE LEVER
A 3604200080 BRAKE INTERMEDIATE SHAFT
874 A 3604200880 BRAKE INTERMEDIATE SHAFT
A 3524201480 BRAKE INTERMEDIATE SHAFT
A 3604200980 BRAKE INTERMEDIATE SHAFT
876 A 3274270058 SEAL HOLDER
HAND BRAKE
878 A 3279970040 SEAL RING
HAND BRAKE
880 A 3584201078 BEARING BRACKET
BRAKE INTERMEDIATE SHAFT
881 A 3024260083 SPHERICAL PIECE
Repalced by: A 3025860242
882 N 000470052000 EXPANSION PLUG
BRAKE INTERMEDIATE SHAFT
883 A 3025860242 REPAIR KIT
Repalced by: A 3534200067
883 A 3534200067 REPAIR KIT
Repalced by: A 3534200167
883 A 3534200167 BALL CUP
BRAKE INTERMEDIATE SHAFT BEARING
883C N 000961012151 SCREW
BRAKE INTERMEDIATE SHAFT BEARING
883L N 912004012100 LOCK WASHER
BRAKE INTERMEDIATE SHAFT BEARING
883R N 000934012022 NUT
BRAKE INTERMEDIATE SHAFT BEARING
884 A 3604200074 ROD
Repalced by: A 3604200474
884 A 3604200474 ROD
REAR
886 A 3529910207 PIN
PULL ROD TO INTERMEDIATE LEVER
887 N 900055012001 SPRING WASHER
PULL ROD TO INTERMEDIATE LEVER
888 N 000433013005 WASHER
Repalced by: N 000433013010
888 N 000433013010 WASHER
PULL ROD TO INTERMEDIATE LEVER
N 000094004065 COTTER PIN
PULL ROD TO INTERMEDIATE LEVER
890 A 3529910107 PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
890 A 3529910007 PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
892 N 000433013005 WASHER
Repalced by: N 000433013010
892 N 000433013010 WASHER
PULL ROD TO BRAKE LEVER,REAR AXLE
N 000094004065 COTTER PIN
PULL RODS TO BRAKE LEVERS
894 A 3544230036 BRAKE CAMSHAFT
896 A 3414230186 CUP
898 A 3024230037 ADJUSTING LEVER
LEFT
A 3024230137 ADJUSTING LEVER
RIGHT
900 A 3024230170 STUD
901 N 000936018006 NUT
903 A 3544230171 SCREW
904 N 000936012005 NUT
Repalced by: N 308675012000
904 N 308675012000 NUT
A 3524260011 LEVER
Repalced by: A 3604260611
A 3604260011 LEVER
Repalced by: A 3604260611
906 A 3604260611 LEVER
LEFT
A 3524260111 LEVER
Repalced by: A 3604260711
A 3604260111 LEVER
Repalced by: A 3604260711
A 3604260711 LEVER
RIGHT
908 A 3024260083 SPHERICAL PIECE
Repalced by: A 3025860142
910 N 003760045300 RADIAL SEAL RING
IN BEARING BRACKET
912 N 071412010100 GREASE NIPPLE
IN BEARING BRACKET
914 A 3609970020 EXPANSION PLUG
IN BEARING BRACKET
915 N 000472062000 LOCK RING
Repalced by: A 0039945241
915 A 0039945241 LOCK
IN BEARING BRACKET
917 A 3024230153 SPACER TUBE
AS REQUIRED
11.0 MM
A 3024230253 SPACER TUBE
AS REQUIRED
11.5 MM
A 3024230353 SPACER TUBE
AS REQUIRED
12.0 MM
A 3024230453 SPACER TUBE
AS REQUIRED
12.5 MM
A 3024230553 SPACER TUBE
AS REQUIRED
13.0 MM
A 3024230653 SPACER TUBE
AS REQUIRED
13.5 MM
A 3024230753 SPACER TUBE
AS REQUIRED
10.5 MM
919 N 000471045000 LOCK RING
921 N 000471035000 LOCK RING
925 A 3025860142 REPAIR KIT
Repalced by: A 3024200067
925 A 3024200067 REPAIR KIT
BRAKE CAMSHAFT BEARING
926 A 0005516256 TUBE
15 MM
928 A 0109975982 HOSE
Repalced by: A 0009872827
928 A 0009872827 PLASTIC PIPE
A 0049971772 FITTING
Repalced by: A 0029906171
A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
929 A 0009921505 BUSHING
Repalced by: N 915062009000
929 N 915062009000 SLEEVE
930 N 915017012100 UNION NUT
931 N 003861012007 GLAND
Repalced by: A 0019901967
931 A 0019901967 SEAL CONE
933 N 915018015000 UNION NUT
934 N 003861015004 GLAND
935 N 915065015101 THRUST RING
936 N 915045012100 SEAL RING
938 A 3524281740 BRACKET
Repalced by: A 3184280240
938 A 3184280240 BRACKET
940 A 0009954701 CLAMP
Repalced by: N 916016015202
940 N 916016015202 CLAMP
940E N 000933008147 SCREW
Repalced by: N 304017008021
940E N 304017008021 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
940M N 000084006197 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
940S N 912004008102 LOCK WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
941 N 912004006102 LOCK WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
941D N 304032008006 NUT
COMPRESSED AIR LINE TO CROSS MEMBER
941L N 000934006007 NUT
COMPRESSED AIR LINE TO CROSS MEMBER
942 A 0019978490 LOOM TIE
A 0019978390 LOOM TIE
944 A 3609901140 WASHER
946 N 007603022102 SEAL RING
947 N 074298022203 DOUBLE FITTING
948 A 0004310616 VALVE
949 A 0004317386 CUP
950 A 0004290695 AIR CLEANER
950E A 0004317087 PROTECTIVE CAP
951 A 0004350390 VALVE DISC
952 N 001433012015 PIN
N 000094004065 COTTER PIN
954 N 007603022102 SEAL RING
955 N 007604022201 SCREW PLUG
956 A 0009870446 SEALING CORD
957 A 0004290227 THRUST RING
958 N 074305022202 NUT
959 A 0004295032 T-FITTING
Repalced by: A 0009902970
959 A 0009902970 T-FITTING
960 A 0005455414 SWITCH
961 N 000931010272 SCREW
HAND BRAKE VALVE TO BRACKET
961D N 912004010102 LOCK WASHER
HAND BRAKE VALVE TO BRACKET
961N N 000934010014 NUT
HAND BRAKE VALVE TO BRACKET
962 N 007603016401 SEAL RING
A 0009970572 FITTING
Repalced by: N 074313010100
963 N 074313010100 FITTING
965 N 074315012100 FITTING
Repalced by: A 0019903371
965 A 0019903371 ELBOW FITTING
966 N 080705016003 NUT
967 A 0004290927 THRUST RING
968 A 0009971548 SEAL RING
970 A 0004318614 BRAKE CYLINDER
Repalced by: A 0004312414
970 A 0004312414 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR CYLINDER
BOSCH
970 A 0004317614 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR CYLINDER
KNORR
971 A 0004319586 CUP
TO 000 431 76 14;KNORR
971 A 0004318186 CUP
Repalced by: A 0015864342
972 A 0004317986 CUP
Repalced by: A 0004319286
972 A 0004319286 CUP
TO 000 431 24 14,BOSCH
A 0014310886 CUP
Repalced by: A 0014311186
972 A 0014311186 CUP
TO 000 431 24 14,BOSCH
A 0089977948 SEAL RING
TO 000 431 24 14,125X3.5 MM,BOSCH
A 0049971740 SEAL RING
TO 000 431 24 14,BOSCH
A 0004310736 FILTER BOTTOM
TO 000 431 24 14,BOSCH
A 0004310649 SLIDE
TO 000 431 24 14,BOSCH
A 0004317583 PISTON
TO 000 431 86 14,BOSCH
A 0014310860 SEAL RING
TO 000 431 86 14,BOSCH
A 0014310760 SEAL RING
TO 000 431 86 14,BOSCH
A 0049971148 SEAL RING
TO 000 431 86 14,BOSCH
A 0004318587 PROTECTIVE CAP
TO 000 431 86 14,BOSCH
A 0004313034 STRAINER
TO 000 431 86 14,BOSCH
A 0004301660 REPAIR KIT
TO 000 431 24 14,BOSCH
974 A 0015864342 REPAIR KIT
Repalced by: A 0034201724
974 A 0034201724 REPAIR KIT
TO 000 431 24 14,BOSCH
974 A 0014301660 REPAIR KIT
TO 000 431 76 14,KNORR
A 3604300811 CONSOLE
Repalced by: A 3164300111
A 3164300111 CONSOLE
SPRING LOAD ACCUMULATOR CYLINDER
975 A 3604302311 CONSOLE
SPRING LOAD ACCUMULATOR CYLINDER
976 N 000933010105 SCREW
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
976D N 912004010102 LOCK WASHER
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
976K N 000934010014 NUT
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
976R N 000933010129 SCREW
Repalced by: N 304017010002
976R N 304017010002 SCREW
CONSOLE TO CROSS MEMBER
977 A 3609900040 WASHER
Repalced by: A 4219905440
977 A 4219905440 WASHER
CONSOLE TO CROSS MEMBER
978 N 000125010518 WASHER
Repalced by: N 000125010532
978 N 000125010532 WASHER
CONSOLE TO CROSS MEMBER
979 N 912004010102 LOCK WASHER
CONSOLE TO CROSS MEMBER
980 N 000934010014 NUT
CONSOLE TO CROSS MEMBER
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
