Transporto priemonė: OF 1113; VIN numerio dalis: 358082

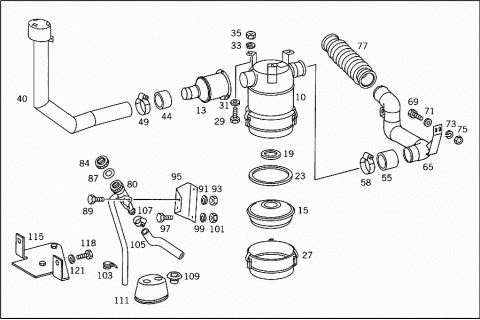

Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0050944902 | AIR CLEANER | |
| Repalced by: A 0070940902 | ||
| A 0060941102 | AIR CLEANER | |
| Repalced by: A 0070940902 | ||
| 010 | A 0070940902 | AIR CLEANER |
| A 0050945002 | AIR CLEANER | |
| Repalced by: A 0070940802 | ||
| A 0060940602 | AIR CLEANER | |
| Repalced by: A 0070940802 | ||
| 010 | A 0070940802 | AIR CLEANER |
| OIL BATH | ||
| MANN & HUMMEL | ||
| A 0050945102 | AIR CLEANER | |
| CYCLONE | ||
| MANN & HUMMEL | ||
| 013 | A 0060941402 | AIR CLEANER |
| CYCLONE | ||
| MANN & HUMMEL | ||
| 015 | A 0000948504 | FILTER ELEMENT |
| TO 007 094 08 02 | ||
| 019 | A 0000948380 | GASKET |
| INSIDE | ||
| TO 007 094 08 02 | ||
| 023 | A 0000948480 | GASKET |
| OUTSIDE | ||
| TO 007 094 08 02 | ||
| 027 | A 0000944203 | FILTER BOWL |
| TO 007 094 08 02 | ||
| 029 | N 000933008145 | SCREW |
| AIR CLEANER TO BRACKET | ||
| 031 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 031 | N 000125008443 | WASHER |
| AIR CLEANER TO BRACKET | ||
| 033 | N 912004008102 | LOCK WASHER |
| AIR CLEANER TO BRACKET | ||
| 035 | N 304032008006 | NUT |
| AIR CLEANER TO BRACKET | ||
| A 0000943908 | INTAKE PIPE | |
| Repalced by: A 0000945508 | ||
| A 0000944908 | INTAKE PIPE | |
| Repalced by: A 0000945508 | ||
| A 0000944008 | INTAKE PIPE | |
| Repalced by: A 0000945608 | ||
| A 0000945008 | INTAKE PIPE | |
| Repalced by: A 0000945608 | ||
| 040 | A 0000945508 | INTAKE PIPE |
| 040 | A 0000945608 | INTAKE PIPE |
| 044 | N 900271080003 | HOSE |
| Repalced by: A 3529972782 | ||
| 044 | A 3529972782 | HOSE |
| Repalced by: A 0009979183 | ||
| 044 | A 0009979183 | SLEEVE |
| 80 MM | ||
| 049 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 049 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 049 | A 0059972990 | CLAMP |
| A 3525280282 | HOSE | |
| Repalced by: A 3525282782 | ||
| 055 | A 3525282782 | HOSE |
| 055 | N 900271008043 | HOSE |
| A 0019972890 | LOOM TIE | |
| Repalced by: A 0009972290 | ||
| 058 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 058 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 058 | A 0059972990 | CLAMP |
| 065 | A 3525200901 | AIR INTAKE PIPE |
| Repalced by: A 3525202001 | ||
| 065 | A 3525202001 | AIR INTAKE PIPE |
| A 3525201001 | AIR INTAKE PIPE | |
| Repalced by: A 3525202101 | ||
| 067 | A 3525202101 | AIR INTAKE PIPE |
| 069 | N 000933008145 | SCREW |
| AIR INTAKE PIPE TO CAB | ||
| 071 | A 3129901940 | WASHER |
| AIR INTAKE PIPE TO CAB | ||
| 073 | N 912004008102 | LOCK WASHER |
| AIR INTAKE PIPE TO CAB | ||
| 075 | N 304032008006 | NUT |
| AIR INTAKE PIPE TO CAB | ||
| A 0000942982 | HOSE | |
| Repalced by: A 3520941008 | ||
| 077 | A 3520941008 | ACCORDION TUBE |
| 080 | A 3520101064 | OIL FILLER NECK |
| 080 | A 3520108364 | OIL FILLER NECK |
| 084 | A 0000180702 | CAP |
| 084 | A 1020180302 | CAP |
| OIL REFILLING | ||
| 084 | A 1020180402 | CAP |
| OIL REFILLING | ||
| 087 | A 0000180180 | GASKET |
| Repalced by: A 1020180080 | ||
| 087 | A 1020180080 | GASKET |
| Repalced by: A 1020180380 | ||
| 087 | A 1020180380 | GASKET |
| TO 000 018 07 01 | ||
| 089 | N 000933006102 | SCREW |
| OIL FILLER NECK TO BRACKET | ||
| 091 | N 912004006102 | LOCK WASHER |
| OIL FILLER NECK TO BRACKET | ||
| 093 | N 000934006007 | NUT |
| OIL FILLER NECK TO BRACKET | ||
| 095 | A 3525041940 | BRACKET |
| 097 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 097 | N 304017008016 | SCREW |
| OIL FILLER NECK TO BRACKET | ||
| 097 | N 000933006102 | SCREW |
| OIL FILLER NECK TO BRACKET | ||
| 099 | N 912004008102 | LOCK WASHER |
| OIL FILLER NECK TO BRACKET | ||
| 099 | N 912004006102 | LOCK WASHER |
| OIL FILLER NECK TO BRACKET | ||
| 101 | N 304032008006 | NUT |
| OIL FILLER NECK TO BRACKET | ||
| 101 | N 000934006007 | NUT |
| OIL FILLER NECK TO BRACKET | ||
| 103 | A 3520181140 | BRACKET |
| BREATHER PIPE | ||
| 105 | A 3520180082 | HOSE |
| FROM OIL FILTER NECK TO ENGINE | ||
| 105 | A 3520181982 | HOSE |
| FROM OIL FILTER NECK TO ENGINE | ||
| A 0019976690 | LOOM TIE | |
| Repalced by: A 0009971590 | ||
| 107 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 107 | N 000000000671 | CLAMP |
| 109 | A 3819970486 | PLUG |
| TRANSFER CASE | ||
| 111 | A 3602810064 | COVERING |
| COVER PLATE TO TRANSMISSION | ||
| A 3600100140 | BRACKET | |
| Repalced by: A 3600100440 | ||
| 115 | A 3600100440 | BRACKET |
| OIL DIPSTICK | ||
| 118 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 118 | N 304017008016 | SCREW |
| OIL DIPSTICK | ||
| 121 | N 912004008102 | LOCK WASHER |
| OIL DIPSTICK | ||
