Transporto priemonė: OF 1113; VIN numerio dalis: 358082
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

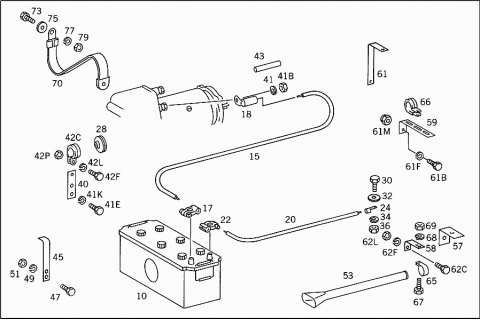

69877

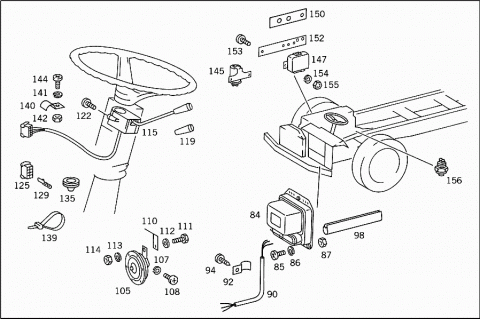

69878

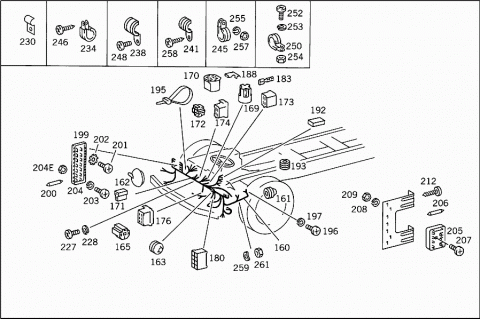

69879

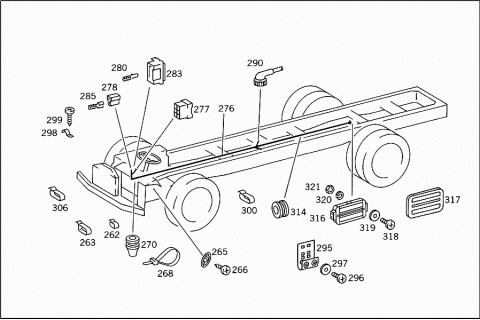

69880

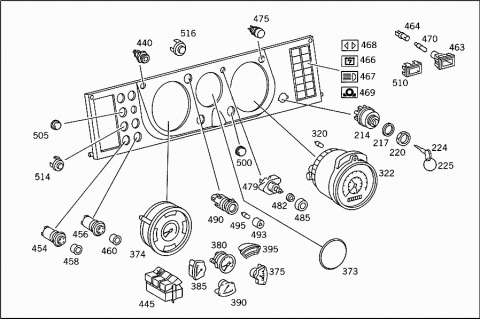

69881

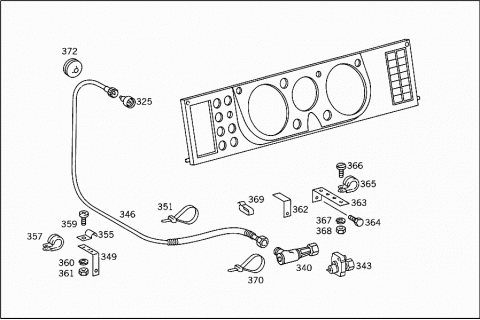

69882

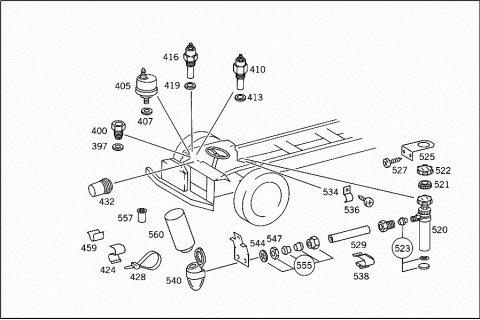

69883
# Kodas Pavadinimas
010 A 0005413001 BATTERY
Repalced by: A 0035410501
010 A 0035410501 BATTERY
Repalced by: A 0045415201
010 A 0045415201 BATTERY
12V/180 AH
A 3525404173 BRACKET
A 3525403973 BRACKET
A 3525404273 BRACKET
A 3525400021 TRAY
A 3525400221 TRAY
N 000961012027 SCREW
N 912004012102 LOCK WASHER
A 3209906040 WASHER
A 3525400019 MOUNTING BOW
A 3525400223 MOUNTING FRAME
A 3525400619 MOUNTING BOW
A 3525400419 MOUNTING BOW
A 3525400519 MOUNTING BOW
A 3525400719 MOUNTING BOW
N 304032008006 NUT
A 3129901940 WASHER
A 3525403030 POS.CABLE
Repalced by: N 072551095880
015 A 3215400530 POS.CABLE
Repalced by: N 072551095880
015 N 072551095880 ELECTRIC CABLE
Repalced by: N 922002095000
015 N 922002095000 ELECTRIC CABLE
FROM BATTERY TO STARTING MOTOR
017 N 072332015100 SOLDERING TERMINAL
POS. POLE
018 N 046234010006 CABLE SHOE
A 3525400731 NEG. CABLE
Repalced by: N 072551095880
020 A 3525402031 NEG. CABLE
Repalced by: N 072551095880
N 072551095880 ELECTRIC CABLE
Repalced by: N 922002095000
020 N 922002095000 ELECTRIC CABLE
FROM BATTERY TO GROUND AT SIDE MEMBER
022 N 072332015200 SOLDERING TERMINAL
NEG.POLE
024 N 046234010006 CABLE SHOE
028 A 3529970281 GROMMET
BATTERY CABLE THRU SIDE MEMBER
030 N 000933010105 SCREW
NEGATIVE CABLE TO SIDE MEMBER
032 N 009021010202 WASHER
Repalced by: N 009021010209
032 N 009021010209 WASHER
NEGATIVE CABLE TO SIDE MEMBER
034 N 912004010102 LOCK WASHER
NEGATIVE CABLE TO SIDE MEMBER
036 N 000934010014 NUT
NEGATIVE CABLE TO SIDE MEMBER
040 A 3525462243 BRACKET
Repalced by: A 3184923441
040 A 3184923441 BRACKET
BATTERY CABLE TO STARTING MOTOR
041 N 912004010102 LOCK WASHER
CABLE TO STARTING MOTOR,TERMINAL 30
041B N 913021010001 NUT
Repalced by: N 304035010001
041B N 304035010001 NUT
CABLE TO STARTING MOTOR,TERMINAL 30
041E N 304017010027 SCREW
041K N 912004010102 LOCK WASHER
042C N 916016018201 CLAMP
LINE TO SIDE MEMBER
042F N 007985005149 SCREW
LINE TO SIDE MEMBER
042L N 912004005103 LOCK WASHER
LINE TO SIDE MEMBER
042P N 304032005002 NUT
Repalced by: N 304032005005
042P N 304032005005 NUT
LINE TO SIDE MEMBER
043 N 900271028008 HOSE
BATTERY CABLE ABOVE STARTING MOTOR INTERMEDIATE FLANGE
045 A 3585460043 BRACKET
BATTERY CABLE TO STARTING MOTOR
047 N 000933008150 SCREW
Repalced by: N 304017008018
047 N 304017008018 SCREW
BATTERY CABLE TO STARTING MOTOR
049 N 912004008102 LOCK WASHER
BATTERY CABLE TO STARTING MOTOR
051 N 304032008006 NUT
BATTERY CABLE TO STARTING MOTOR
053 A 3225460585 PROTECTIVE TUBE
Repalced by: A 3055460385
053 A 3055460385 PROTECTIVE TUBE
057 A 3525410540 BRACKET
AT BRAKE BOOSTER
A 3525410440 BRACKET
EXHAUST PIPE SUSPENSION
057B A 3525420840 BRACKET
EXHAUST PIPE SUSPENSION
057B A 3525420840 BRACKET
AT BRAKE BOOSTER
A 3525422640 BRACKET
EXHAUST PIPE SUSPENSION
A 3525422640 BRACKET
EXHAUST PIPE SUSPENSION
058 A 3274925419 BRACKET
Repalced by: A 6205240340
058 A 6205240340 BRACKET
AT BRAKE BOOSTER
058 A 6205240340 BRACKET
ENGINE REAR SUPPORT
A 3464295940 BRACKET
Repalced by: A 3464296040
059 A 3464296040 BRACKET
BRACKET TO SIDE MEMBER
059 A 3464296040 BRACKET
ENGINE REAR SUPPORT
061 A 3524760036 BRACKET
Repalced by: A 3274925819
061 A 3274925819 BRACKET
ENGINE REAR SUPPORT
061 A 3274925819 BRACKET
EXHAUST PIPE SUSPENSION
061B N 000933010129 SCREW
Repalced by: N 304017010002
061B N 304017010002 SCREW
CABLE CONDUIT TO BRACKET
061F N 912004010102 LOCK WASHER
061M N 000934010014 NUT
062C N 000961012056 SCREW
Repalced by: N 308676012038
062C N 308676012038 SCREW
CABLE CONDUIT TO BRACKET
062F N 912004012102 LOCK WASHER
CABLE CONDUIT TO BRACKET
062L N 000934012023 NUT
Repalced by: N 308673012002
062L N 308673012002 NUT
065 A 3229950301 CLAMP
CABLE CONDUIT
066 N 916016010201 CLAMP
Repalced by: N 916016010211
066 N 916016010211 CLAMP
Repalced by: N 000000001045
066 N 000000001045 CLAMP
SPEEDOMETER CABLE TO BRACKET
067 N 000933006102 SCREW
068 N 912004006102 LOCK WASHER
069 N 000934006007 NUT
A 3525400241 GROUND STRAP
Repalced by: A 3525400041
070 A 3525400041 GROUND STRAP
AT BELL HOUSING
070 A 3525400041 GROUND STRAP
AT BELL HOUSING
073 N 000933010129 SCREW
Repalced by: N 304017010002
073 N 304017010002 SCREW
GROUND STRAP
075 N 009021010202 WASHER
Repalced by: N 009021010209
075 N 009021010209 WASHER
GROUND STRAP TO FRAME SIDE MEMBER
077 N 912004010102 LOCK WASHER
GROUND STRAP TO FRAME SIDE MEMBER
079 N 000934010014 NUT
GROUND STRAP TO FRAME SIDE MEMBER
084 A 0001545906 REGULATOR AND CUT-OUT
085 N 007985006154 SCREW
Repalced by: A 0029903712
085 A 0029903712 SCREW
Repalced by: N 000000001149
085 N 000000001149 SCREW
REGULATOR MOUNTING
085 N 000000001147 SCREW
REGULATOR MOUNTING
M 6X20
086 N 912004006102 LOCK WASHER
REGULATOR MOUNTING
087 N 000934006007 NUT
REGULATOR MOUNTING
090 A 3525401939 ELECTRIC CABLE
FROM ALTERNATOR TO REGULATOR
A 3525402139 ELECTRIC CABLE
FROM ALTERNATOR TO REGULATOR
092 A 3129952020 CLAMP
CABLE HARNESS MOUNTING
094 N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
094 N 000000000460 SHEET METAL SCREW
CABLE HARNESS MOUNTING
098 A 3529850185 EDGE GUARD SECTION
Repalced by: A 3309850151
098 A 3309850151 METAL SECTION
105 A 0015428020 HORN
Repalced by: A 0035423220
105 A 0015427920 HORN
Repalced by: A 0035423220
105 A 0025426220 HORN
Repalced by: A 0035423220
105 A 0035423220 HORN
Repalced by: A 6315420120
105 A 6315420120 HORN
Repalced by: A 0035422720
105 A 0035422720 HORN
105 A 0025425320 HORN
Repalced by: A 0025426420
105 A 0025426420 HORN
Repalced by: A 6315420120
105 A 6315420120 HORN
Repalced by: A 0035422720
105 A 0035422720 HORN
107 N 912004004102 LOCK WASHER
ELECTRIC CABLE TO HORN
108 N 007985004123 SCREW
ELECTRIC CABLE TO HORN
110 A 3525420540 BRACKET
HORN
111 N 000933010128 SCREW
BRACKET TO FRAME
111 N 000933010105 SCREW
HORN TO BRACKET
111 N 000933010164 SCREW
HORN TO ENGINE CROSS MEMBER
112 N 000125010518 WASHER
Repalced by: N 000125010532
112 N 000125010532 WASHER
113 N 912004010102 LOCK WASHER
114 N 000934010014 NUT
A 0025453524 SWITCH,AUTOMATIC
Repalced by: A 0035458324
A 0035458124 SWITCH,AUTOMATIC
Repalced by: A 0035458324
115 A 0035458324 SWITCH,AUTOMATIC
STEERING COLUMN MOUNTED
119 A 0005452637 BUTTON
122 N 000966005027 SCREW
125 A 0015458228 PLUG HOUSING
8-POLE
129 A 0015458628 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
129 A 0025450628 PLUG
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
A 3149970281 GROMMET
Repalced by: A 3359970081
135 A 3359970081 GROMMET
STEERING-COLUMN-MOUNTED-SWITCH CABLE THRU BODY
139 A 0019974390 LOOM TIE
376 MM
140 A 3129952020 CLAMP
CABLE FROM STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET
141 N 912004005103 LOCK WASHER
CABLE HARNESS MOUNTING
142 N 304032005002 NUT
Repalced by: N 304032005005
142 N 304032005005 NUT
CABLE HARNESS MOUNTING
144 N 007985005175 SCREW
CABLE HARNESS MOUNTING
145 A 0005449932 SENDER UNIT
HAZARD WARNING LIGHT
A 0015441232 SENDER UNIT
Repalced by: A 0015447532
145 A 0015447532 SENDER UNIT
HAZARD WARNING LIGHT
A 0015445032 SENDER UNIT
Repalced by: A 0025447732
A 0025440732 SENDER UNIT
Repalced by: A 0025447732
A 0025447732 SENDER UNIT
HAZARD WARNING LIGHT
147 A 0015448032 SENDER UNIT
HAZARD WARNING LIGHT
147 A 0025440932 SENDER UNIT
Repalced by: A 0025447332
A 0015447932 SENDER UNIT
Repalced by: A 0025447332
147 A 0025447332 SENDER UNIT
HAZARD WARNING LIGHT
150 A 3525422140 BRACKET
BLINKER SENDER UNIT MOUNTING
152 A 3525422440 BRACKET
BLINKER SENDER UNIT MOUNTING
153 N 007985005175 SCREW
BLINKER SENDER UNIT MOUNTING
5X16
154 N 912004005103 LOCK WASHER
BLINKER SENDER UNIT MOUNTING
155 N 304032005002 NUT
Repalced by: N 304032005005
155 N 304032005005 NUT
BLINKER SENDER UNIT MOUNTING
A 0005452209 SWITCH
Repalced by: A 0005456109
156 A 0005456109 SWITCH
Repalced by: A 0015450809
156 A 0015450809 SWITCH
STOP LIGHT
156 A 0005454709 SWITCH
Repalced by: A 0005455909
156 A 0005455009 SWITCH
Repalced by: A 0005455909
156 A 0005455909 SWITCH
STOP LIGHT
160 A 3525404505 CABLE HARNESS
CAB MAIN CABLE HARNESS
160 A 3585400005 CABLE HARNESS
CAB MAIN CABLE HARNESS
160 A 3585401005 CABLE HARNESS
MAIN CABLE HARNESS
160 A 3525404805 CABLE HARNESS
CAB MAIN CABLE HARNESS
160 A 3585400105 CABLE HARNESS
CAB MAIN CABLE HARNESS
160 A 3585401105 CABLE HARNESS
MAIN CABLE HARNESS
161 A 3609970081 GROMMET
MAIN CABLE HARNESS
162 A 3149970181 GROMMET
MAIN CABLE HARNESS
163 A 3609970281 GROMMET
MAIN CABLE HARNESS
165 A 0025451728 PIN BUSHING HOUSING
4-POLE
169 A 0045451428 PLUG
HAZARD WARNING LIGHT SWITCH
170 A 0065455528 PIN BUSHING HOUSING
HAZARD WARNING LIGHT SWITCH
171 A 0015458728 PIN BUSHING HOUSING
BIPOLAR
172 A 0015458528 PIN BUSHING HOUSING
3-POLE
173 A 0015458428 PIN BUSHING HOUSING
4-POLE
174 A 0015454128 PIN BUSHING HOUSING
176 A 0015458128 PIN BUSHING HOUSING
6-POLE
180 A 0015458328 PIN BUSHING HOUSING
8-POLE
183 A 0005454526 PIN BUSHING
Repalced by: A 0005453726
183 A 0005453726 PIN BUSHING
Repalced by: A 0075458426
183 A 0075458426 PIN BUSHING
WITH DETENT;LESS CATCH FOR HOUSING
2.5 MM2
183 A 0005453726 PIN BUSHING
Repalced by: A 0075458426
183 A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
183 A 0005453826 PIN BUSHING
Repalced by: A 0075458226
183 A 0075458226 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
183 A 0005454026 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
4-6 MM2
183 A 0005454626 PIN BUSHING
WITH DETENT;LESS CATCH FOR HOUSING
4-6 MM2
183 A 0025454026 FLAT PIN BUSHING
Repalced by: A 0035455326
183 A 0035455326 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
4-6 MM2
188 A 0005453626 PIN BUSHING
Repalced by: A 0075457426
188 A 0075457426 PIN BUSHING
4 MM2
192 A 0005451745 BOOT
193 A 3609970281 GROMMET
193 A 0059971981 GROMMET
A 0019979390 LOOM TIE
Repalced by: A 0019978320
A 0019979590 LOOM TIE
Repalced by: A 0019978390
195 A 0019978390 LOOM TIE
280 MM
195 A 0019974390 LOOM TIE
BRANCH-OFF TO HEADLAMPS
376 MM
196 N 000084006132 SCREW
CABLE TO STARTING MOTOR,TERMINAL 50
197 N 912004006102 LOCK WASHER
CABLE TO STARTING MOTOR,TERMINAL 50
199 A 3145450001 FUSE BOX
A 0005454834 FUSE
Repalced by: A 0005458334
200 A 0005458334 FUSE
16 A
201 N 007985004136 SCREW
CABLE TO FUSE BOX
202 N 006797004333 TOOTHED WASHER
203 N 007985005175 SCREW
FUSE BOX TO BRACKET
204 N 912004005103 LOCK WASHER
FUSE BOX TO BRACKET
204E N 304032005002 NUT
Repalced by: N 304032005005
204E N 304032005005 NUT
FUSE BOX TO BRACKET
205 A 0005457901 FUSE BOX
4-POLE
206 A 0005458234 FUSE
Repalced by: N 072581008101
206 N 072581008101 FUSE
207 N 007985005175 SCREW
FUSE BOX TO BRACKET
208 N 912004005103 LOCK WASHER
209 N 304032005002 NUT
Repalced by: N 304032005005
209 N 304032005005 NUT
210 A 3365450086 CLAMP
FUSE BOX
212 N 007981006208 SHEET METAL SCREW
214 A 0005453013 SWITCH
(IGNITION AND LIGHT SWITH)
A 0005450176 WASHER
Repalced by: A 0005450376
217 A 0005450376 WASHER
IGNITION SWITCH TO INSTRUMENT PANEL
A 0005450672 NUT
Repalced by: A 0005451072
220 A 0005451072 NUT
IGNITION SWITCH TO INSTRUMENT PANEL
224 A 0005451235 KEY
IGNITION AND LIGHT SWITCH
225 A 0005830296 RING
IGNITION AND LIGHT SWITCH
227 N 007985006157 SCREW
Repalced by: N 000000001145
227 N 000000001145 SCREW
MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART
228 N 912004006102 LOCK WASHER
MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART
230 N 072571001025 CLAMP
CABLE HARNESS MOUNTING
234 N 916016022206 CLAMP
CABLE HARNESS MOUNTING
238 A 1369950135 CLAMP
CABLE HARNESS MOUNTING
241 A 1869950037 CLAMP
CABLE HARNESS MOUNTING
245 N 916016012201 CLAMP
CABLE HARNESS MOUNTING
246 N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
246 N 000000000460 SHEET METAL SCREW
CABLE HARNESS MOUNTING
248 N 000000001147 SCREW
CABLE HARNESS MOUNTING
M 6X20
250 N 916016018201 CLAMP
CABLE HARNESS MOUNTING
250 N 916016012200 CLAMP
ALTERNATOR BRANCH-OFF
252 N 000966006009 SCREW
Repalced by: N 000966006044
252 N 000966006044 SCREW
CABLE HARNESS MOUNTING
253 N 912004006102 LOCK WASHER
CABLE HARNESS MOUNTING
254 N 000934006007 NUT
CABLE HARNESS MOUNTING
255 N 912004005103 LOCK WASHER
CLAMP MOUNTING
257 N 304032005002 NUT
Repalced by: N 304032005005
257 N 304032005005 NUT
CLAMP MOUNTING
258 N 007981004258 SHEET METAL SCREW
CABLE HARNESS MOUNTING
B 4.8X16
259 N 000137008204 SPRING WASHER
Repalced by: N 000137008212
259 N 000137008212 SPRING WASHER
CABLE TO ALTERNATOR
259 N 000137006204 SPRING WASHER
CABLE TO ALTERNATOR
261 N 304032008006 NUT
CABLE TO ALTERNATOR
261 N 000934006007 NUT
CABLE TO ALTERNATOR
A 3219950040 CLAMP
Repalced by: A 0005460875
262 A 0005460875 CLAMP
CABLE HARNESS MOUNTING
263 A 3529950040 CLAMP
Repalced by: A 3099950140
263 A 3099950140 CLAMP
CABLE HARNESS MOUNTING
265 A 3816820086 BRACKET
CABLE HARNESS MOUNTING
266 N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
266 N 000000000460 SHEET METAL SCREW
CABLE HARNESS MOUNTING
A 0019978590 LOOM TIE
Repalced by: A 0019978490
268 A 0019974390 LOOM TIE
CABLE HARNESS MOUNTING
376 MM
268 A 0019978390 LOOM TIE
CABLE HARNESS MOUNTING
280 MM
270 A 3219970281 GROMMET
Repalced by: A 3359970081
270 A 3359970081 GROMMET
MAIN CABLE HARNESS TO FIRE WALL
276 A 3525401638 ELECTRIC CABLE
Repalced by: A 3525402738
276 A 3525402738 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
276 A 3585405327 ELECTRIC CABLE
Repalced by: A 3585405727
276 A 3585405727 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
276 A 3585405227 ELECTRIC CABLE
Repalced by: A 3585405727
276 A 3585405727 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
276 A 3525401538 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
276 A 3525402338 ELECTRIC CABLE
Repalced by: A 3525402638
276 A 3525402638 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
276 A 3585406027 ELECTRIC CABLE
Repalced by: A 3585406427
276 A 3585406427 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
276 A 3525402238 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
276 A 3585406527 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
276 A 3585406227 ELECTRIC CABLE
Repalced by: A 3585406427
276 A 3585406427 ELECTRIC CABLE
FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR
277 A 0015456028 PLUG HOUSING
6-POLE
278 A 0015458728 PIN BUSHING HOUSING
BIPOLAR
280 A 0015458628 PLUG
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
280 A 0025450628 PLUG
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
283 A 0015458228 PLUG HOUSING
8-POLE
285 A 0005453826 PIN BUSHING
Repalced by: A 0075458226
285 A 0075458226 PIN BUSHING
LESS DETENT,BUT WITH CATCH FOR HOUSING
2.5 MM2
285 A 0005453726 PIN BUSHING
Repalced by: A 0075458426
285 A 0075458426 PIN BUSHING
WITH DETENT AND WITH CATCH FOR HOUSING
2.5 MM2
A 0005400181 PLUG SOCKET
Repalced by: A 3805400181
A 0005400481 PLUG SOCKET
Repalced by: A 3805400181
290 A 3805400181 PLUG SOCKET
Repalced by: A 3805402181
290 A 3805402181 PLUG SOCKET
REPAIR SIZE
M 24X1
A 0005400281 PLUG SOCKET
Repalced by: A 3805400281
A 0005400581 PLUG SOCKET
Repalced by: A 3805400281
A 3805400281 PLUG SOCKET
Repalced by: A 3805402281
290 A 3805402281 PLUG SOCKET
REPAIR SIZE
M 27X1
295 A 3525403073 BRACKET
CABLE HARNESS MOUNTING
296 N 000000001147 SCREW
CABLE HARNESS MOUNTING
M 6X20
297 N 912004006102 LOCK WASHER
CABLE HARNESS MOUNTING
298 N 072571001025 CLAMP
CABLE TO CAB LEFT FRONT STAY
299 N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
299 N 000000000460 SHEET METAL SCREW
CABLE TO CAB LEFT FRONT STAY
300 A 3529950040 CLAMP
Repalced by: A 3099950140
300 A 3099950140 CLAMP
ELECTRIC CABLE TO FRAME SIDE MEMBER
A 3129951040 CLAMP
Repalced by: A 0005460875
306 A 0005460875 CLAMP
CABLE BRANCH-OFF TO HORN TO FRAME SIDE MEMBER
A 3219950040 CLAMP
Repalced by: A 0005460875
N 007985006193 SCREW
Repalced by: N 000000001146
N 000000001146 SCREW
TO MOUNT FUEL-GAUGE-SENDER-UNIT CABLE BRANCH-OFF
M 6X16
N 912004006102 LOCK WASHER
TO MOUNT FUEL-GAUGE-SENDER-UNIT CABLE BRANCH-OFF
N 000934006007 NUT
TO MOUNT FUEL-GAUGE-SENDER-UNIT CABLE BRANCH-OFF
313 A 3559970081 GROMMET
CABLE BRANCH-OFF TO FUEL GAUGE SENDER UNIT THRU SIDE MEMBER
314 A 3129970481 GROMMET
CABLE BRANCH-OFF TO FUEL GAUGE SENDER UNIT THRU SIDE MEMBER
316 A 0005466141 CABLE CONNECTOR
6-POLE
317 A 0005460781 COVERING
WITH GASKET
318 N 007985004130 SCREW
319 N 009021004108 WASHER
Repalced by: N 009021004207
319 N 009021004207 WASHER
320 N 912004004102 LOCK WASHER
321 N 000934004006 NUT
A 0045421310 TACHOGRAPH
Repalced by: A 0055428810
322 A 0055428810 TACHOGRAPH
A 0075422906 SPEEDOMETER
Repalced by: A 0075429610
A 0075429610 TACHOGRAPH
Repalced by: A 0085425310
322 A 0085425310 TACHOGRAPH
325 A 0005421347 COUPLER
325 A 0005421347 COUPLER
325 A 0005422447 COUPLER
A 0005421994 DIAGRAM PAPER
SET = 100 PIECES
TO 005 542 88 10
A 0005423394 DIAGRAM PAPER
SET = 100 PIECES
TO 007 542 96 10,008 542 53 10,27 10
330 N 072601012800 BULB
2 W
330 A 0015442594 BULB
Repalced by: A 0005453419
330 A 0005453419 SOCKET LAMP
12 V 1.2 W
A 3405840340 DECALCOMANIA
MEASURING RANGE,90KM/H OR 60MPH; W/REAR AXLE RATIO 43:7 & 8.25-20 TIRES
A 3525843940 DECALCOMANIA
MEASURING RANGE,100 KM/H,OR 60 MPH FOR W/ AXLE RATIO 43:7 AND & 8.25-20 TIRES
340 A 0015429530 ANGLE DRIVE
USED WITH REAR AXLE RATIO 43:7 AND WITH 8.25-20 TIRES
343 A 3875422209 ADAPTER
346 A 0025426007 FLEXIBLE SHAFT
Repalced by: A 0045427207
346 A 0045427207 FLEXIBLE SHAFT
3050
346 A 0055420807 FLEXIBLE SHAFT
Repalced by: A 0025429807
346 A 0025429807 FLEXIBLE SHAFT
3120 MM
346 A 0015429507 FLEXIBLE SHAFT
2750 MM
346 A 0055425707 FLEXIBLE SHAFT
2990 MM
346 A 0025426207 FLEXIBLE SHAFT
Repalced by: A 0055422707
346 A 0055422707 FLEXIBLE SHAFT
Repalced by: A 0045424307
346 A 0045424307 FLEXIBLE SHAFT
3650 MM
346 A 0055422007 FLEXIBLE SHAFT
3890 MM
349 A 3525420440 BRACKET
Repalced by: A 3525422840
349 A 3525422840 BRACKET
FLEXIBLE SHAFT TO FRAME
351 A 0019974390 LOOM TIE
FLEXIBLE SHAFT TO FRAME
355 A 3129952020 CLAMP
FLEXIBLE SHAFT TO FRAME
357 N 916016008200 CLAMP
FLEXIBLE SHAFT TO FRAME
359 N 000084005180 SCREW
Repalced by: N 007985005175
359 N 007985005175 SCREW
FLEXIBLE SHAFT TO FRAME
360 N 912004005103 LOCK WASHER
CLAMP MOUNTING
361 N 304032005002 NUT
Repalced by: N 304032005005
361 N 304032005005 NUT
CLAMP MOUNTING
A 3874292940 BRACKET
Repalced by: A 3852670040
362 A 3852670040 BRACKET
ENGINE FRONT CROSS MEMBER
362 A 3852670040 BRACKET
FLEXIBLE SHAFT TO ENGINE MOUNTING
362 A 3852670040 BRACKET
FLEXIBLE SHAFT TO SUPPORT
363 A 3604292940 BRACKET
FLEXIBLE SHAFT TO SUPPORT
364 N 000933010105 SCREW
AT ENGINE FRONT CROSS MEMBER
365 N 916016028204 CLAMP
FLEXIBLE SHAFT TO FRAME
28 MM
365 N 916016012201 CLAMP
FLEXIBLE SHAFT TO FRAME
12 MM
366 N 000084006137 SCREW
FLEXIBLE SHAFT TO FRAME
366 N 000084006197 SCREW
FLEXIBLE SHAFT TO FRAME
367 N 912004006102 LOCK WASHER
368 N 000934006007 NUT
A 3529950040 CLAMP
Repalced by: A 3099950140
369 A 3099950140 CLAMP
AT LEFT SIDE MEMBER
370 A 0019974390 LOOM TIE
FLEXIBLE SHAFT MOUNTING
376 MM
A 0005460543 BRACKET
Repalced by: A 0039971490
A 0039971490 LOOM TIE
FLEXIBLE SHAFT
A 0039971490 LOOM TIE
FLEXIBLE SHAFT
A 3219970081 GROMMET
Repalced by: A 3359970081
372 A 3359970081 GROMMET
FLEXIBLE SHAFT THRU WINDOW SILL
372 A 1109970481 GROMMET
FLEXIBLE SHAFT THRU WINDOW SILL
373 A 3816890308 COVERING
Repalced by: A 3816890808
A 3819940045 LOCK
Repalced by: A 3816890808
373 A 3816890808 COVERING
TACHOMETER
374 A 0015408447 INSTRUMENT CLUSTER
374 A 0025402047 INSTRUMENT CLUSTER
A 0025426905 TEMPERATURE GAUGE
Repalced by: A 0025426005
375 A 0025426005 TEMPERATURE GAUGE
375 A 0035421005 TEMPERATURE GAUGE
A 0005427508 AIR PRESSURE GAUGE
Repalced by: A 0005429108
380 A 0005429108 AIR PRESSURE GAUGE
380 A 0005429108 AIR PRESSURE GAUGE
385 A 0015424102 OIL PRESSURE GAUGE
390 A 0005428503 FUEL GAUGE DASH UNIT
395 A 0005420332 TELL-TALE LAMP
BRAKE PRESSURE
397 N 007603014405 SEAL RING
400 A 0005420392 CONNECTOR
405 A 0015422117 SENDER UNIT
OIL PRESSURE GAUGE
M 10X1
A 0015424917 SENDER UNIT
Repalced by: A 0045428917
405 A 0045428917 SENDER UNIT
OIL PRESSURE GAUGE
M 14X1.5
407 N 007603014104 SEAL RING
410 A 0015422317 SENDER UNIT
TEMPERATURE GAUGE
413 N 007603014400 SEAL RING
A 0025456324 SWITCH,AUTOMATIC
Repalced by: A 0045455524
A 0025457824 SWITCH,AUTOMATIC
Repalced by: A 0045455524
416 A 0045455524 SWITCH,AUTOMATIC
COOLING WATER TEMPERATURE CONTROL
419 N 007603014403 SEAL RING
424 A 0009888878 CLIP
Repalced by: A 0039887978
424 A 0039887978 CLIP
Repalced by: A 0059888178
424 A 0059888178 CLIP
428 A 0009951159 SHACKLE
Repalced by: A 0019978390
428 A 0019978390 LOOM TIE
432 A 0005421023 BUZZER
COOLING WATER TEMPERATURE WARNING
432 A 0005423523 BUZZER
COOLING WATER TEMPERATURE WARNING
440 A 0005453526 PLUG SOCKET
Repalced by: A 0015458526
A 0005453926 PLUG SOCKET
Repalced by: A 0015458526
A 0005454426 PLUG SOCKET
Repalced by: A 0015458526
440 A 0015458526 PLUG SOCKET
HAND LAMP
445 A 0005454807 SWITCH
449 A 0029882278 CLIP
454 A 0005459311 SWITCH
WINDSHIELD WIPER O F F O N
456 A 0005459211 SWITCH
WINDSHIELD WIPER,"SLOW-FAST"
458 A 0005451483 CAP
WINDSHIELD WIPER O F F O N
459 A 0029882278 CLIP
460 A 0005451583 CAP
WINDSHIELD WIPER,"SLOW-FAST"
463 A 0015450615 TELL-TALE LAMP
Repalced by: A 0005451630
463 A 0005451630 SHELL
464 A 0005452319 SOCKET
466 A 0005450190 LENS
CHARGE CONTROL
467 A 0005451190 LENS
HIGH BEAM
468 A 0005451290 LENS
TRUCK-TRACTOR BLINKER
469 A 0005451790 LENS
PARKING BRAKE
470 N 072601012800 BULB
2 W
475 A 0005453914 SWITCH
Repalced by: A 0005456314
475 A 0005456314 SWITCH
Repalced by: A 0015450214
475 A 0015450214 SWITCH
Repalced by: A 0015454914
475 A 0015454914 SWITCH
STARTING IN CAB
479 A 0005421425 POTENTIOMETER
Repalced by: A 3015420025
479 A 3015420025 POTENTIOMETER
INSTRUMENT LIGHTING
479 A 6155420125 POTENTIOMETER
INSTRUMENT LIGHTING
482 A 0005450372 NUT
INSTRUMENT LIGHTING SWITCH
482 A 0029906251 NUT
INSTRUMENT LIGHTING SWITCH
A 0005420689 KNOB
Repalced by: A 0005421189
485 A 0005421189 KNOB
Repalced by: A 0005421889
485 A 0005421889 KNOB
INSTRUMENT LIGHTING SWITCH
A 0035453924 SWITCH,AUTOMATIC
Repalced by: A 0025457124
490 A 0025457124 SWITCH,AUTOMATIC
HAZARD WARNING LIGHT
490 A 0045450224 SWITCH
HAZARD WARNING LIGHT
493 A 0005453637 BUTTON
HAZARD WARNING LIGHT SWITCH
495 N 072601012110 BULB
HAZARD WARNING LIGHT SWITCH
2 W
500 A 3149870340 RUBBER BUFFER
TO PLUG THE FREE HOLES IN INSTRUMENT PANEL
505 A 3149870440 RUBBER BUFFER
TO PLUG THE FREE HOLES IN INSTRUMENT PANEL
510 A 0009973535 PLUG
TO PLUG THE FREE HOLES FOR TELL-TALE LAMP
514 A 0009970425 EXPANSION PLUG
PUSHBUTTON SWITCH
516 A 0009970525 EXPANSION PLUG
PUSH BUTTON SWITCH
A 0005500883 PUMP
Repalced by: A 0005501083
520 A 0005501083 PUMP
Repalced by: A 0005502383
520 A 0005502383 PUMP
521 A 0005550372 NUT
A 0005550240 HANDLE
Repalced by: A 0005550440
522 A 0005550440 HANDLE
A 0009908867 SEAL CONE
Repalced by: A 0005550618
523 A 0005550618 SEAL CONE
PARTS KIT
524 A 0019970578 SCREW CONNECTION
525 A 3145550040 BRACKET
527 N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
527 N 000000000460 SHEET METAL SCREW
529 A 3359972282 HOSE
534 N 072571002000 CLAMP
536 N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
536 N 000000000460 SHEET METAL SCREW
538 A 0009881778 CLIP
A 0005500604 CAPSULE BORER
Repalced by: A 0005501004
540 A 0005501104 PRIMER CAPSULE
Repalced by: A 0005501404
540 A 0005501404 PRIMER CAPSULE
544 N 006797008101 TOOTHED WASHER
547 N 000934008021 NUT
A 0009903767 SEAL CONE
Repalced by: A 0009909454
555 A 0009903454 NUT
Repalced by: A 0009909454
555 A 0009909454 NUT
PARTS KIT
557 A 0005550004 CAPSULE
560 A 0005550010 FILLING CYLINDER
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
