Transporto priemonė: OF 1113; VIN numerio dalis: 358082

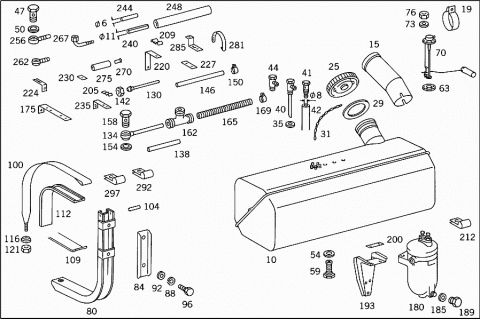

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3524700601 | FUEL TANK | |
| Repalced by: A 3524700101 | ||
| A 3524701401 | FUEL TANK | |
| Repalced by: A 3524701001 | ||
| 010 | A 3524700101 | FUEL TANK |
| Repalced by: A 3834700601 | ||
| 010 | A 3524700101 | FUEL TANK |
| 010 | A 3834700601 | FUEL TANK |
| Repalced by: A 6734701201 | ||
| 010 | A 6734701201 | FUEL TANK |
| 105 L. | ||
| 010 | A 3524701001 | FUEL TANK |
| Repalced by: A 3834700701 | ||
| 010 | A 3524701001 | FUEL TANK |
| 010 | A 3834700701 | FUEL TANK |
| Repalced by: A 6734701001 | ||
| 010 | A 6734701001 | FUEL TANK |
| 105 L. | ||
| 015 | A 3524700820 | FILLER NECK |
| A 3049970340 | SEAL RING | |
| FILLER PIPE TO FUEL TANK | ||
| 019 | A 3529950235 | CLAMP |
| FILLER PIPE TO FUEL TANK | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| FILLER PIPE TO FUEL TANK | ||
| N 912004008102 | LOCK WASHER | |
| FILLER PIPE TO FUEL TANK | ||
| N 304032008006 | NUT | |
| FILLER PIPE TO FUEL TANK | ||
| A 3044700005 | FILLER CAP | |
| Repalced by: A 3094700005 | ||
| A 3524700405 | FILLER CAP | |
| Repalced by: A 3094700005 | ||
| 025 | A 3094700005 | FILLER CAP |
| 025 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 025 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 025 | A 0004710530 | FILLER CAP |
| Repalced by: A 0004717930 | ||
| 025 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 025 | A 0004700305 | FILLER CAP |
| 029 | A 3049970340 | SEAL RING |
| 031 | A 3034700031 | CHAIN |
| 035 | N 915035000014 | SEAL RING |
| FUEL LINE TO TANK | ||
| 040 | A 3554700026 | RISING PIPE |
| 041 | A 3609900263 | HOLLOW SCREW |
| FUEL LINE TO TANK | ||
| 042 | A 0089975482 | HOSE |
| FUEL LINE TO TANK | ||
| 337 MM | ||
| 044 | A 0004710020 | FITTING |
| FUEL LINE TO TANK | ||
| 047 | N 915036012203 | HOLLOW SCREW |
| FUEL LINE TO TANK | ||
| 050 | A 0009971548 | SEAL RING |
| FUEL LINE TO TANK | ||
| N 007604014106 | SCREW PLUG | |
| Repalced by: N 007604014110 | ||
| N 007604014110 | SCREW PLUG | |
| AT TANK | ||
| N 007603014405 | SEAL RING | |
| AT TANK | ||
| 054 | A 0029977245 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 059 | A 3604700006 | FUEL STRAINER |
| Repalced by: A 3074700106 | ||
| 059 | A 3074700106 | FUEL STRAINER |
| A 0004710235 | FUEL STRAINER | |
| 063 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| A 0119970745 | SEAL RING | |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 070 | A 0015422017 | SENDER UNIT |
| FUEL GAUGE | ||
| A 0045424517 | SENDER UNIT | |
| Repalced by: A 0055423317 | ||
| A 0055423317 | SENDER UNIT | |
| Repalced by: A 0085427617 | ||
| A 0085427617 | SENDER UNIT | |
| FUEL GAUGE | ||
| 073 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 076 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 076 | N 304032005005 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| A 3524700242 | SUPPORT | |
| FUEL TANK | ||
| 080 | A 3524702542 | SUPPORT |
| Repalced by: A 3524703042 | ||
| 080 | A 3524703042 | SUPPORT |
| Repalced by: A 3834701442 | ||
| 080 | A 3834701442 | SUPPORT |
| Repalced by: A 3834701842 | ||
| 080 | A 3834701842 | SUPPORT |
| FUEL TANK | ||
| A 3524703942 | SUPPORT | |
| FUEL TANK | ||
| 084 | A 3584750026 | REINFORCEMENT |
| SUPPORT TO SIDE MEMBER | ||
| 088 | N 912004012100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 088 | N 912004014100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 092 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 092 | N 007349013005 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 092 | A 3604750284 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 092 | N 007349015003 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 096 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X1.5X30 | ||
| 096 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 096 | N 308676012026 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 096 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 096 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 096 | N 000961014028 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X40 | ||
| 100 | A 3524700240 | STRAP |
| FUEL TANK TO SUPPORT | ||
| 100 | A 3524700440 | STRAP |
| FUEL TANK TO SUPPORT | ||
| A 3834700040 | STRAP | |
| Repalced by: A 6174700340 | ||
| A 6174700340 | STRAP | |
| FUEL TANK TO SUPPORT | ||
| 104 | N 001443016203 | PIN |
| STRAP TO SUPPORT | ||
| N 000094004065 | COTTER PIN | |
| STRAP TO SUPPORT | ||
| A 3529870014 | RUBBER STRIP | |
| FUEL TANK TO SUPPORT | ||
| A 3529870114 | RUBBER STRIP | |
| FUEL TANK TO SUPPORT | ||
| 109 | A 3634750220 | PAD |
| FUEL TANK TO SUPPORT | ||
| 112 | A 3634750320 | PAD |
| FUEL TANK TO SUPPORT | ||
| 116 | A 3609970126 | WASHER |
| FUEL TANK TO SUPPORT | ||
| 121 | N 000934012022 | NUT |
| FUEL TANK TO SUPPORT | ||
| M 12X1.5 | ||
| N 000934012021 | NUT | |
| M 12 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FUEL LINES | ||
| A 3524702466 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524707265 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3584701264 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524705065 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524705265 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3584701664 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524705465 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524705665 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3584701464 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3584701864 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3584702064 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3584702264 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524706065 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524705865 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524703666 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524700867 | LINE | |
| Repalced by: A 3404702165 | ||
| 130 | A 3404702165 | LINE |
| WITH SEAL CONE | ||
| 3000 MM | ||
| 134 | A 3404701465 | LINE |
| WITH BANJO UNION | ||
| 3000 MM | ||
| 138 | A 0004290901 | LINE |
| LESS CONNECTIONS | ||
| 3000 MM | ||
| 142 | N 915017010201 | UNION NUT |
| 146 | A 3054760126 | HOSE |
| TO CONNECT THE FUEL LINES | ||
| 150 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 150 | A 0059970190 | LOOM TIE |
| 154 | N 007603014405 | SEAL RING |
| CONNECTION OF FUEL LINES | ||
| 158 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 158 | N 915036010108 | HOLLOW SCREW |
| CONNECTION OF FUEL LINES | ||
| 162 | N 007619008001 | T-FITTING |
| CONNECTION OF FUEL LINES | ||
| 165 | N 073379006203 | HOSE |
| LEAK LINE TO CYLINDER HEAD | ||
| 169 | N 900288010000 | CLAMP |
| LEAK LINE TO CYLINDER HEAD | ||
| 175 | A 3524760736 | BRACKET |
| FUEL LINE | ||
| 180 | A 0004774601 | FUEL FILTER |
| A 0014772901 | FUEL FILTER | |
| A 0014771901 | FUEL FILTER | |
| 185 | N 007603014405 | SEAL RING |
| AT FILTER OUTLET | ||
| 189 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 189 | N 007604014110 | SCREW PLUG |
| AT FILTER OUTLET | ||
| 193 | A 3524770241 | BRACKET |
| AT FRAME | ||
| N 000933010164 | SCREW | |
| BRACKET TO FRAME | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO FRAME | ||
| N 000934010014 | NUT | |
| BRACKET TO FRAME | ||
| N 000961012122 | SCREW | |
| FUEL FILTER TO BRACKET | ||
| N 912004012100 | LOCK WASHER | |
| FUEL FILTER TO BRACKET | ||
| N 000934012204 | NUT | |
| FUEL FILTER TO BRACKET | ||
| 200 | A 3524770084 | SHIM |
| FUEL FILTER TO BRACKET | ||
| 205 | A 3129950232 | CLAMP |
| Repalced by: A 4429955032 | ||
| 209 | A 3179950832 | CLAMP |
| Repalced by: A 3609950301 | ||
| 212 | A 3609950301 | CLAMP |
| FUEL LINE TO BRACKET AND TO CROSS MEMBER | ||
| N 000084006197 | SCREW | |
| FUEL LINE TO BRACKET AND TO CROSS MEMBER | ||
| N 912004006102 | LOCK WASHER | |
| FUEL LINE TO BRACKET AND TO CROSS MEMBER | ||
| N 000934006007 | NUT | |
| FUEL LINE TO BRACKET AND TO CROSS MEMBER | ||
| 220 | A 3525422840 | BRACKET |
| FUEL LINES | ||
| 224 | A 3524281740 | BRACKET |
| Repalced by: A 3184280240 | ||
| 224 | A 3184280240 | BRACKET |
| FUEL LINES | ||
| 227 | A 3124761236 | BRACKET |
| Repalced by: A 3604293140 | ||
| 227 | A 3604293140 | BRACKET |
| FUEL LINES | ||
| 230 | A 3124761036 | BRACKET |
| Repalced by: A 3124761236 | ||
| 230 | A 3124761236 | BRACKET |
| Repalced by: A 3604293140 | ||
| 230 | A 3604293140 | BRACKET |
| LEAK RETURN LINE TO RETURN LINE | ||
| 235 | A 3524760036 | BRACKET |
| Repalced by: A 3274925819 | ||
| 235 | A 3274925819 | BRACKET |
| FUEL LINES | ||
| N 000933010128 | SCREW | |
| FUEL LINE TO SIDE MEMBER | ||
| N 912004010102 | LOCK WASHER | |
| FUEL LINE TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| FUEL LINE TO SIDE MEMBER | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| CLAMP TO BRACKET | ||
| N 912004008102 | LOCK WASHER | |
| CLAMP TO BRACKET | ||
| N 304032008006 | NUT | |
| CLAMP TO BRACKET | ||
| 240 | A 0089975482 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 8X11 MM | ||
| 244 | A 0109977082 | HOSE |
| LEAK LINE TO TANK | ||
| 6X4 MM | ||
| 248 | N 040621025200 | INSULATING HOSE |
| FROM PUMP TO HEATER CASE | ||
| N 040621011200 | INSULATING HOSE | |
| FEED LINE | ||
| A 3879900078 | CONNECTOR | |
| Repalced by: N 915062008000 | ||
| N 915062008000 | SLEEVE | |
| FEED LINE AND RETURN LINE | ||
| A 3054760126 | HOSE | |
| FEED LINE AND RETURN LINE | ||
| A 0029978790 | CLIP | |
| FEED LINE AND RETURN LINE | ||
| A 0009905088 | BANJO UNION | |
| Repalced by: N 915052008019 | ||
| N 915052008019 | BANJO UNION | |
| RISING PIPE TO FUEL TANK | ||
| 16 MM | ||
| 256 | N 915052008019 | BANJO UNION |
| FROM RETURN LINE TO FUEL TANK | ||
| N 915052008016 | BANJO UNION | |
| FUEL LINE TO FEED PUMP | ||
| 262 | N 915052004019 | BANJO UNION |
| LEAK LINE | ||
| A 0009908188 | BANJO UNION | |
| FEED LINE | ||
| 267 | A 0004760524 | ELBOW FITTING |
| FOR LINES | ||
| A 0019975272 | FITTING | |
| RETURN LINE | ||
| N 915017008201 | UNION NUT | |
| RETURN LINE | ||
| N 915062004000 | SLEEVE | |
| 270 | N 915062004000 | SLEEVE |
| LEAK LINE | ||
| 275 | N 073379006203 | HOSE |
| LEAK LINE | ||
| N 900288010001 | CLAMP | |
| LEAK LINE | ||
| A 0089979082 | HOSE | |
| FUEL LINE TO SENDER UNIT | ||
| 500 MM | ||
| N 916026010000 | CLAMP | |
| Repalced by: N 000000000665 | ||
| N 000000000665 | CLAMP | |
| FUEL LINE TO SENDER UNIT | ||
| 281 | A 0009972490 | LOOM TIE |
| Repalced by: A 0009974390 | ||
| 281 | A 0009974390 | LOOM TIE |
| FUEL LINE | ||
| A 0019978390 | LOOM TIE | |
| FUEL LINE | ||
| 280 MM | ||
| A 0019978490 | LOOM TIE | |
| FUEL LINE | ||
| 376 MM | ||
| 285 | A 3164290040 | BRACKET |
| FUEL LINE | ||
| N 000933008130 | SCREW | |
| Repalced by: N 304017008039 | ||
| N 304017008039 | SCREW | |
| BRACKET TO ENGINE | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO ENGINE | ||
| A 3874760136 | BRACKET | |
| Repalced by: A 6454310740 | ||
| A 6454310740 | BRACKET | |
| AT BELL HOUSING | ||
| A 3604292940 | BRACKET | |
| FUEL LINES | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| FUEL LINES | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| FUEL LINES | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| FUEL LINE TO FRAME | ||
| A 3604280243 | ANGLE | |
| FUEL LINE | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| FUEL LINE | ||
| N 912004008102 | LOCK WASHER | |
| N 304032008006 | NUT | |
| A 3179950832 | CLAMP | |
| FUEL LINE TO BRACKET | ||
| N 000933006102 | SCREW | |
| FUEL LINE TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| FUEL LINE TO BRACKET | ||
| N 000934006007 | NUT | |
| FUEL LINE TO BRACKET | ||
| 292 | A 3609951701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 292 | N 916016018202 | CLAMP |
| FUEL LINE TO BRACKET AND TO CROSS MEMBER | ||
| N 000933008047 | SCREW | |
| FUEL LINE TO BRACKET AND TO CROSS MEMBER | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| FUEL LINE TO BRACKET AND TO CROSS MEMBER | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| FUEL LINE TO BRACKET AND TO CROSS MEMBER | ||
| N 304032008006 | NUT | |
| FUEL LINE TO BRACKET AND TO CROSS MEMBER | ||
| 297 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 297 | N 916016018202 | CLAMP |
| FUEL LINE TO FRAME | ||
| N 000933006102 | SCREW | |
| FUEL LINE TO FRAME | ||
| N 912004006102 | LOCK WASHER | |
| FUEL LINE TO FRAME | ||
| N 000934006007 | NUT | |
| FUEL LINE TO FRAME | ||
| N 007603014405 | SEAL RING | |
| FUEL LINES TO ENGINE | ||
| N 915036010204 | HOLLOW SCREW | |
| Repalced by: N 915036010108 | ||
| N 915036010108 | HOLLOW SCREW | |
| FUEL LINES TO ENGINE | ||
| A 4069975081 | GROMMET | |
| FUEL LINE TO SIDE MEMBER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
