Transporto priemonė: OF 1113; VIN numerio dalis: 358082
Grupė: 41 PROPELLER SHAFT

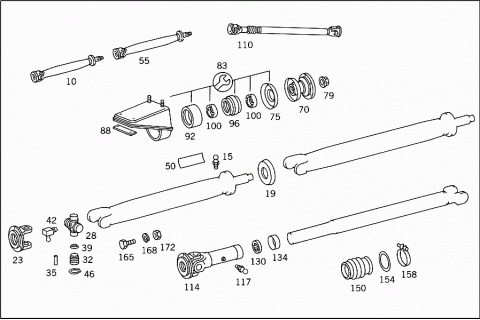

41193
# Kodas Pavadinimas
010 A 3224102401 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING
1926 MM
010 A 3224102201 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE BEARING I
816 MM
015 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
015 N 071412008102 GREASE NIPPLE
019 A 3124131361 PROTECTIVE CAP
023 A 3024110011 DRIVE FLANGE
028 A 3024100031 UNIVERSAL JOINT CROSS
Repalced by: A 3854100231
028 A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
032 A 3224100242 BEARING BUSHING
Repalced by: A 3224100542
032 A 3224100542 BEARING BUSHING
035 A 3189810287 NEEDLE
SET = 132 PIECES
039 A 3124111233 EXPANSION PLUG
042 N 071412008302 GREASE NIPPLE
046 A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
046 A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
046 A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
046 A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
046 A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
046 A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
050 A 3224110094 BALANCING PLATE
20 MM
055 A 3534100301 PROPELLER SHAFT
Repalced by: A 3244100301
055 A 3244100301 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
1531 MM
N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
N 071412008102 GREASE NIPPLE
A 3124131361 PROTECTIVE CAP
A 3524130061 PROTECTIVE CAP
A 3024110011 DRIVE FLANGE
A 3024100031 UNIVERSAL JOINT CROSS
Repalced by: A 3854100231
A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
A 3224100542 BEARING BUSHING
A 0009815087 NEEDLE
Repalced by: A 3189810287
A 3189810287 NEEDLE
SET = 132 PIECES
A 3124111233 EXPANSION PLUG
N 071412008302 GREASE NIPPLE
A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
A 3124101430 CENTERING FLANGE
A 3124101430 CENTERING FLANGE
A 3124101430 CENTERING FLANGE
070 A 3534100030 CENTERING FLANGE
A 3124131361 PROTECTIVE CAP
A 3124131361 PROTECTIVE CAP
A 3124131361 PROTECTIVE CAP
075 A 3524130061 PROTECTIVE CAP
079 A 3224110072 NUT
X XXXXXXXXXXXX PART NAME MISSING
INTERMEDIATE SHAFT BEARING
A 3224100540 BRACKET
Repalced by: A 3525860041
A 3525860041 REPAIR KIT
Repalced by: A 3524100010
083 A 3524100010 REPAIR KIT
INTERMEDIATE SHAFT BEARING
083 A 3524100010 REPAIR KIT
INTERMEDIATE SHAFT BEARING
083 A 3524100010 REPAIR KIT
INTERMEDIATE SHAFT BEARING
083 A 3524100540 BRACKET
Repalced by: A 3585860041
083 A 3585860041 REPAIR KIT
Repalced by: A 3584100010
083 A 3584100010 REPAIR KIT
INTERMEDIATE SHAFT BEARING
N 000961010042 SCREW
088 A 3524130011 REINFORCEMENT
N 912004010102 LOCK WASHER
N 913002010010 NUT
A 3124131112 RUBBER MOUNTING
A 3124131112 RUBBER MOUNTING
A 3124131112 RUBBER MOUNTING
092 A 3524130012 RUBBER MOUNTING
096 A 3524100051 BALL BEARING
100 A 3124131231 BEARING RING
110 A 3214103802 PROPELLER SHAFT
FROM INTERMEDIATE BEARING TO REAR AXLE
1790 MM
110 A 3584100102 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
1703 MM
114 A 3224101208 UNIVERSAL JOINT YOKE
117 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
117 N 071412008102 GREASE NIPPLE
A 3024110011 DRIVE FLANGE
A 3024100031 UNIVERSAL JOINT CROSS
Repalced by: A 3854100231
A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
A 3224100242 BEARING BUSHING
Repalced by: A 3224100542
A 3224100542 BEARING BUSHING
A 3189810287 NEEDLE
SET = 132 PIECES
A 3124111233 EXPANSION PLUG
N 071412008302 GREASE NIPPLE
A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
130 A 3374130080 SEAL RING
134 A 3214110158 SEAL HOLDER
A 3024110011 DRIVE FLANGE
A 3024100031 UNIVERSAL JOINT CROSS
Repalced by: A 3854100231
A 3854100231 UNIVERSAL JOINT CROSS
WITH BUSHINGS
A 3224100542 BEARING BUSHING
A 3189810287 NEEDLE
SET = 132 PIECES
A 3124111233 EXPANSION PLUG
N 071412008302 GREASE NIPPLE
A 3129941135 SNAP RING
AS REQUIRED
2.50 MM
A 3129941635 SNAP RING
AS REQUIRED
2.55 MM
A 3129941335 SNAP RING
AS REQUIRED
2.60 MM
A 3129941435 SNAP RING
AS REQUIRED
2.65 MM
A 3129941535 SNAP RING
AS REQUIRED
2.70 MM
A 3129941735 SNAP RING
AS REQUIRED
2.75 MM
150 A 3214100180 BOOT
Repalced by: A 3524100080
150 A 3524100080 BOOT
154 A 3214110053 WIRE RING
158 N 916002078100 CLAMP
165 A 3219901501 SCREW
Repalced by: A 3539900001
165 A 3539900001 SCREW
168 N 912004010102 LOCK WASHER
172 N 000934010010 NUT
