Transporto priemonė: OF 1113; VIN numerio dalis: 358082
Grupė: 35 REAR AXLE

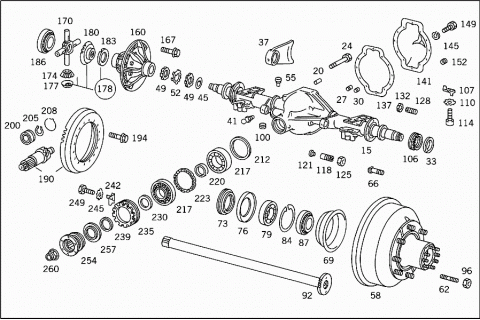

| # | Kodas | Pavadinimas |
|---|---|---|

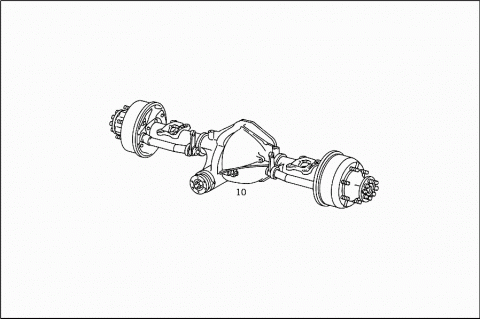

| 010 | A 3583501400 | REAR AXLE |
| 010 | A 3583508400 | REAR AXLE |
| Repalced by: A 3533501200 | ||
| 010 | A 3533501200 | REAR AXLE |
| 015 | A 3583500020 | AXLE HOUSING |
| 015 | A 3583500420 | AXLE HOUSING |
| 020 | N 000007006205 | CYLINDRICAL PIN |
| 024 | N 914126016005 | SCREW |
| BEARING COVER TO AXLE HOUSING | ||
| 027 | A 3523510174 | PIN |
| 030 | A 3129971002 | PLUG |
| 033 | A 3213570082 | OIL COLLECTOR |
| 037 | A 3534260008 | BEARING BRACKET |
| 041 | N 071412010100 | GREASE NIPPLE |
| 045 | A 3213560152 | SPACER WASHER |
| 049 | A 3213560126 | GROOVED NUT |
| 052 | A 3213560173 | LOCK PLATE |
| 055 | A 3123501090 | VALVE |
| Repalced by: A 3833510065 | ||
| 055 | A 3833510065 | FITTING |
| 058 | A 3583500347 | DRUM HUB |
| Repalced by: A 3583560102 | ||
| 058 | A 3583560202 | DRUM HUB |
| 062 | A 3129901605 | STUD |
| 066 | A 3524020171 | WHEEL MOUNTING BOLT |
| 069 | A 3213560082 | OIL COLLECTOR |
| 073 | A 0009977446 | SEAL RING |
| Repalced by: A 3813500068 | ||
| 073 | A 3813500068 | REPAIR KIT |
| 076 | A 3213560051 | SPACER RING |
| 079 | A 0009817205 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 079 | A 0009819405 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 079 | A 0069810605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 084 | N 000472120000 | LOCK RING |
| 087 | A 0009814605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 087 | A 0009814105 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 092 | A 3223572601 | REAR AXLE SHAFT |
| 096 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 096 | N 308673012002 | NUT |
| 100 | A 3529970032 | SCREW PLUG |
| 106 | A 3213530025 | SCREW COLLAR |
| 107 | A 3123531173 | LOCK |
| 110 | N 006797008120 | TOOTHED WASHER |
| 114 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 114 | N 304017008016 | SCREW |
| 118 | A 3223530176 | SET SCREW |
| Repalced by: A 3833530376 | ||
| 118 | A 3833530376 | SET SCREW |
| Repalced by: A 6743530076 | ||
| 118 | A 6743530076 | SET SCREW |
| 121 | A 3223530049 | SLIDE |
| Repalced by: A 3853530149 | ||
| 121 | A 3853530149 | SLIDE |
| 125 | A 3159900051 | NUT |
| 128 | A 3853370171 | SCREW |
| 132 | N 080705014002 | NUT |
| 137 | A 3223510180 | GASKET |
| Repalced by: A 6503510080 | ||
| 137 | A 6503510080 | GASKET |
| 137 | A 3023510180 | GASKET |
| Repalced by: A 6503510180 | ||
| 137 | A 6503510180 | GASKET |
| 141 | A 3223500421 | COVER |
| 141 | A 3023500221 | COVER |
| 145 | N 912004010102 | LOCK WASHER |
| 149 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 149 | N 304017010028 | SCREW |
| 152 | A 3529970032 | SCREW PLUG |
| 160 | A 3833502323 | DIFFERENTIAL GEAR |
| 167 | A 3229903001 | SCREW |
| 170 | A 3833530120 | DIFFERENTIAL SPIDER |
| 174 | A 3023530014 | DIFFERENTIAL PINION |
| 177 | A 3523530024 | SPHERICAL WASHER |
| 178 | A 3815860135 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 180 | A 3583530015 | SIDE GEAR |
| 183 | A 3223530162 | THRUST WASHER |
| Repalced by: A 6743530362 | ||
| 183 | A 6743530362 | THRUST WASHER |
| 2.00 MM | ||
| 186 | A 0029811605 | TAPERED ROLLER BEARING |
| 186 | A 0029812605 | TAPERED ROLLER BEARING |
| 186 | A 0009815705 | TAPERED ROLLER BEARING |
| 190 | A 3833500339 | RING GEAR AND PINION |
| Repalced by: A 3013500739 | ||
| 190 | A 3013500739 | RING GEAR AND PINION |
| 7 : 43 | ||
| 194 | A 3229902901 | SCREW |
| 200 | A 0029817901 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 200 | A 0029819501 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 200 | A 0029818201 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 205 | N 000471035000 | LOCK RING |
| 208 | A 3229940137 | SNAP RING |
| 212 | A 3273536252 | SPACER WASHER |
| Repalced by: A 6703530852 | ||
| 212 | A 6703530852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 212 | A 3273532262 | THRUST WASHER |
| Repalced by: A 6703530752 | ||
| A 6703530752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.15 MM | ||
| 212 | A 3273536352 | SPACER WASHER |
| Repalced by: A 6703530652 | ||
| A 6703530652 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.20 MM | ||
| 212 | A 3273536452 | SPACER WASHER |
| Repalced by: A 6703530552 | ||
| A 6703530552 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.50 MM | ||
| 212 | A 3273532362 | THRUST WASHER |
| Repalced by: A 6703533752 | ||
| A 6703533752 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.50 MM | ||
| 217 | A 0009814005 | TAPERED ROLLER BEARING |
| 217 | A 0029811105 | TAPERED ROLLER BEARING |
| 217 | A 0019819805 | TAPERED ROLLER BEARING |
| 220 | A 3223530051 | SPACER RING |
| 15.50 MM | ||
| 223 | A 6163530152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.10 MM | ||
| 223 | A 6163530352 | SPACER WASHER |
| AS REQUIRED | ||
| 10.14 MM | ||
| 223 | A 6163530552 | SPACER WASHER |
| AS REQUIRED | ||
| 10.18 MM | ||
| 223 | A 6163530752 | SPACER WASHER |
| AS REQUIRED | ||
| 10.22 MM | ||
| 223 | A 6163530952 | SPACER WASHER |
| AS REQUIRED | ||
| 10.26 MM | ||
| 223 | A 6163531152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.30 MM | ||
| 223 | A 6163531352 | SPACER WASHER |
| AS REQUIRED | ||
| 10.34 MM | ||
| 223 | A 6163531552 | SPACER WASHER |
| AS REQUIRED | ||
| 10.38 MM | ||
| 223 | A 6163531752 | SPACER WASHER |
| AS REQUIRED | ||
| 10.42 MM | ||
| 223 | A 6163531952 | SPACER WASHER |
| AS REQUIRED | ||
| 10.46 MM | ||
| 223 | A 6163532152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.50 MM | ||
| 230 | A 3213530762 | THRUST WASHER |
| 7 MM | ||
| 235 | A 3273531025 | SCREW COLLAR |
| 239 | A 0089970747 | SEAL RING |
| Repalced by: A 0169976847 | ||
| 239 | A 0169976847 | SEAL RING |
| 242 | A 3223530073 | LOCK |
| 245 | N 006797008120 | TOOTHED WASHER |
| 249 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 249 | N 304017008039 | SCREW |
| 254 | A 3583500045 | FLANGE |
| 257 | A 3273530291 | PROTECTIVE PLATE |
| 260 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 260 | A 3853510072 | NUT |
| Repalced by: A 3853510172 | ||
| 260 | A 3853510172 | NUT |
| A 0089979082 | HOSE | |
| AXLE BREATHING | ||
