Transporto priemonė: OF 1113; VIN numerio dalis: 358082

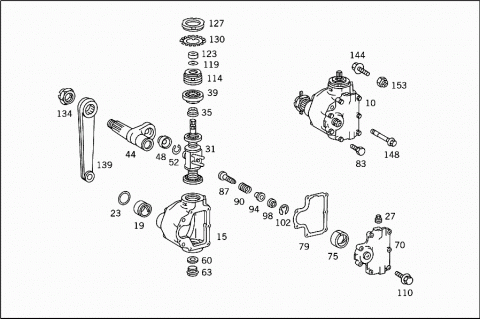

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3374601301 | STEERING BOX ASSEMBLY | |
| Repalced by: A 3374601601 | ||
| 010 | A 3374601601 | STEERING BOX ASSEMBLY |
| Repalced by: A 3444601101 | ||
| 010 | A 3444601101 | STEERING BOX ASSEMBLY |
| A 3374601201 | STEERING BOX ASSEMBLY | |
| Repalced by: A 3374601501 | ||
| A 3374601501 | STEERING BOX ASSEMBLY | |
| Repalced by: A 3374601701 | ||
| A 3374601701 | STEERING BOX ASSEMBLY | |
| 015 | A 3214601302 | STEERING BOX |
| A 3274600202 | STEERING BOX | |
| 019 | A 3214610350 | BUSHING |
| STANDARD | ||
| 47.1 MM | ||
| A 3214610550 | BUSHING | |
| REPAIR SIZE I | ||
| 47.6 MM | ||
| 023 | A 0019970645 | SEAL RING |
| A 0049976845 | SEAL RING | |
| 027 | N 000906016002 | SCREW PLUG |
| BOX COVER | ||
| A 3274602308 | STEERING WORM | |
| Repalced by: A 3094600708 | ||
| 031 | A 3094600708 | STEERING WORM |
| Repalced by: A 3094601018 | ||
| 031 | A 3094601018 | STEERING NUT |
| Repalced by: A 3094600708 | ||
| 031 | A 3094600708 | STEERING WORM |
| WITH WORM AND INCLINED SELF-ALIGNING ROLLER BEARING | ||
| A 3274602208 | STEERING WORM | |
| Repalced by: A 4064600118 | ||
| A 4064600118 | STEERING NUT | |
| Repalced by: A 4064600218 | ||
| A 4064600218 | STEERING NUT | |
| WITH WORM AND INCLINED SELF-ALIGNING ROLLER BEARING | ||
| 035 | A 3219970740 | SEAL RING |
| STEERING NUT BEARING | ||
| 039 | A 0009811306 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 039 | A 3459817006 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 039 | A 0009810806 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 044 | A 3214601111 | STEERG. WORM SECTOR SHAFT |
| 048 | A 3214620537 | BALL CUP |
| 052 | N 009045038001 | SNAP RING |
| A 3219970640 | SEAL RING | |
| STEERING BOX | ||
| A 3214600315 | OIL LEVEL CHECK PIPE | |
| STEERING BOX | ||
| 060 | N 007603030400 | SEAL RING |
| STEERING BOX | ||
| 063 | N 007604030201 | SCREW PLUG |
| Repalced by: N 007604030206 | ||
| 063 | N 007604030206 | SCREW PLUG |
| STEERING BOX | ||
| A 3274600214 | STEERING BOX COVER | |
| Repalced by: A 3214600414 | ||
| 070 | A 3214600414 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| A 3274600314 | STEERING BOX COVER | |
| Repalced by: A 3214600514 | ||
| A 3214600514 | STEERING BOX COVER | |
| STEERING WORM SECTOR SHAFT | ||
| 075 | A 3214620250 | BUSHING |
| 079 | A 3214610880 | GASKET |
| Repalced by: A 3524610180 | ||
| 079 | A 3524610180 | GASKET |
| COVER TO STEERING BOX | ||
| 083 | A 0019909101 | SCREW |
| COVER TO STEERING BOX | ||
| 087 | A 3214620171 | SCREW |
| STEERING WORM SECTOR SHAFT | ||
| 090 | A 3219932201 | SPRING |
| STEERING WORM SECTOR SHAFT | ||
| 094 | A 3214620185 | THRUST PIECE |
| STEERING WORM SECTOR SHAFT | ||
| 098 | A 3214610162 | THRUST WASHER |
| STEERING WORM SECTOR SHAFT | ||
| 102 | A 0009946041 | LOCK |
| STEERING WORM SECTOR SHAFT | ||
| A 0019976140 | SEAL RING | |
| COVER TO STEERING BOX | ||
| A 3219900050 | NUT | |
| COVER TO STEERING BOX | ||
| 110 | A 0029900251 | NUT |
| COVER TO STEERING BOX | ||
| 114 | A 3224620151 | RING |
| 119 | A 0029979845 | SEAL RING |
| COVER TO STEERING BOX | ||
| 123 | A 0029974346 | SEAL RING |
| COVER TO STEERING BOX | ||
| 127 | N 070852060000 | NUT |
| Repalced by: A 6743560226 | ||
| 127 | A 6743560226 | GROOVED NUT |
| COVER TO STEERING BOX | ||
| 130 | A 3229940115 | LOCK |
| COVER TO STEERING BOX | ||
| 134 | A 0009902555 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094006013 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| A 3524630801 | PITMAN ARM | |
| A 3524630901 | PITMAN ARM | |
| 139 | A 3584630001 | PITMAN ARM |
| A 3584630101 | PITMAN ARM | |
| A 3279900114 | SCREW | |
| STEERING TO STEERING BRACKET | ||
| A 3529900214 | SCREW | |
| STEERING TO STEERING BRACKET | ||
| 144 | A 3589901714 | SCREW |
| Repalced by: A 3279900114 | ||
| 144 | A 3279900114 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 148 | A 3589901814 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 153 | A 3279900050 | NUT |
| STEERING TO STEERING BRACKET | ||
| N 000094003222 | COTTER PIN | |
| STEERING TO STEERING BRACKET | ||

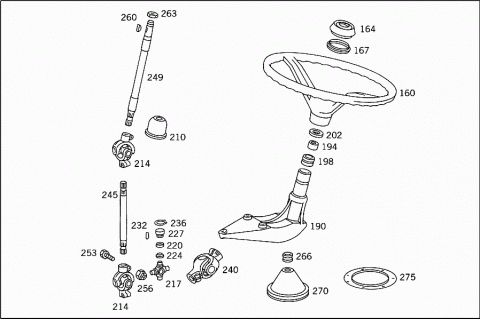

| 160 | A 0004640601 | STEERING WHEEL |
| Repalced by: A 0004641101 | ||
| 160 | A 0004641101 | STEERING WHEEL |
| A 0004641201 | STEERING WHEEL | |
| 164 | A 0004642631 | CAP |
| STEERING WHEEL | ||
| 167 | A 0004640177 | PROTECTIVE RING |
| STEERING WHEEL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING MOUNTING | ||
| A 3524600429 | STEERING BRACKET | |
| A 3524601029 | STEERING BRACKET | |
| Repalced by: A 3524602029 | ||
| 174 | A 3524602029 | STEERING BRACKET |
| A 3524600529 | STEERING BRACKET | |
| A 3524601129 | STEERING BRACKET | |
| Repalced by: A 3524602129 | ||
| A 3524602129 | STEERING BRACKET | |
| A 0029908201 | SCREW | |
| STEERING BRACKET TO FRAME | ||
| N 912004012100 | LOCK WASHER | |
| STEERING BRACKET TO FRAME | ||
| N 000934012023 | NUT | |
| Repalced by: N 308673012002 | ||
| N 308673012002 | NUT | |
| STEERING BRACKET TO FRAME | ||
| A 3559900501 | SCREW | |
| STEERING BRACKET TO FRAME | ||
| A 3529903701 | SCREW | |
| STEERING BRACKET TO FRAME | ||
| N 913004014001 | NUT | |
| STEERING BRACKET TO FRAME | ||
| 190 | A 3354600137 | BEARING |
| Repalced by: A 3354600337 | ||
| 190 | A 3354600337 | BEARING |
| Repalced by: A 3354600437 | ||
| 190 | A 3354600437 | BEARING |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 190 | A 3354600337 | BEARING |
| Repalced by: A 3354600437 | ||
| 190 | A 3354600437 | BEARING |
| STEERING SHAFT | ||
| 194 | A 3124621150 | BUSHING |
| Repalced by: A 0119815110 | ||
| 194 | A 0119815110 | NEEDLE BEARING |
| 198 | A 3214620165 | RING |
| 202 | A 3224620023 | COVER |
| N 000933010145 | SCREW | |
| UNIVERSAL JOINT COVERING | ||
| N 000931010282 | SCREW | |
| UNIVERSAL JOINT COVERING | ||
| N 000137010201 | SPRING WASHER | |
| UNIVERSAL JOINT COVERING | ||
| N 000125010518 | WASHER | |
| Repalced by: N 000125010532 | ||
| N 000125010532 | WASHER | |
| UNIVERSAL JOINT COVERING | ||
| A 3534620096 | BOOT | |
| UNIVERSAL JOINT COVERING | ||
| A 3534620075 | WASHER | |
| UNIVERSAL JOINT COVERING | ||
| N 000934010014 | NUT | |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 210 | A 3604620596 | BOOT |
| UNIVERSAL JOINT,TOP | ||
| 214 | A 3274600157 | UNIVERSAL JOINT |
| Repalced by: A 3524600057 | ||
| 217 | A 1884100231 | UNIVERSAL JOINT CROSS |
| 220 | A 1884110258 | SEAL HOLDER |
| 224 | A 1884110460 | RUBBER RING |
| 227 | A 1104110242 | BEARING BUSHING |
| A 1104110342 | BEARING BUSHING | |
| 232 | A 3229810087 | NEEDLE |
| SET = 192 PIECES | ||
| 236 | A 1889940534 | SNAP RING |
| AS REQUIRED | ||
| 1.45 MM | ||
| A 1889940034 | SNAP RING | |
| AS REQUIRED | ||
| 1.50 MM | ||
| A 1889940134 | SNAP RING | |
| AS REQUIRED | ||
| 1.55 MM | ||
| A 1889940234 | SNAP RING | |
| AS REQUIRED | ||
| 1.60 MM | ||
| A 1889940334 | SNAP RING | |
| AS REQUIRED | ||
| 1.65 MM | ||
| A 1889940434 | SNAP RING | |
| AS REQUIRED | ||
| 1.70 MM | ||
| A 3524600057 | UNIVERSAL JOINT | |
| 240 | A 3164600057 | UNIVERSAL JOINT |
| Repalced by: A 0004600057 | ||
| 240 | A 0004600057 | UNIVERSAL JOINT |
| A 3164600157 | UNIVERSAL JOINT | |
| Repalced by: A 0004600157 | ||
| A 0004600157 | UNIVERSAL JOINT | |
| A 4214600457 | UNIVERSAL JOINT | |
| Repalced by: A 3164600057 | ||
| A 3524620501 | STEERING SHAFT | |
| BOTTOM | ||
| A 3544625001 | STEERING SHAFT | |
| BOTTOM | ||
| 245 | A 3604621001 | STEERING SHAFT |
| BOTTOM | ||
| A 3604621901 | STEERING SHAFT | |
| BOTTOM | ||
| 249 | A 3524620001 | STEERING SHAFT |
| Repalced by: A 3524623901 | ||
| 249 | A 3524623901 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 249 | A 3524622601 | STEERING SHAFT |
| Repalced by: A 3524623101 | ||
| 249 | A 3524623101 | STEERING SHAFT |
| TOP | ||
| 249 | A 3524621801 | STEERING SHAFT |
| Repalced by: A 3524624101 | ||
| 249 | A 3524624101 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 249 | A 3524622801 | STEERING SHAFT |
| Repalced by: A 3524623601 | ||
| 249 | A 3524623601 | STEERING SHAFT |
| TOP | ||
| A 3219900401 | SCREW | |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 10X35 | ||
| 253 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X38 | ||
| 253 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| N 000463010502 | LOCK PLATE | |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| 256 | N 910113008001 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| 260 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 263 | N 000936022002 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 266 | A 3214620060 | SEAL RING |
| STEERING SHAFT THRU CAB | ||
| A 3604620096 | BOOT | |
| Repalced by: A 3604620496 | ||
| A 3604620296 | BOOT | |
| Repalced by: A 3604620496 | ||
| 270 | A 3604620496 | BOOT |
| STEERING SHAFT THRU CAB | ||
| N 900288140000 | CLAMP | |
| STEERING SHAFT THRU CAB | ||
| N 916017130000 | CLAMP | |
| Repalced by: N 000000000678 | ||
| N 000000000678 | CLAMP | |
| STEERING SHAFT THRU CAB | ||
| 275 | A 3524620095 | COVERING |
| N 000933006103 | SCREW | |
| Repalced by: N 304017006018 | ||
| N 304017006018 | SCREW | |
| COVERING TO CAB | ||
| N 912004006102 | LOCK WASHER | |
| COVERING TO CAB | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

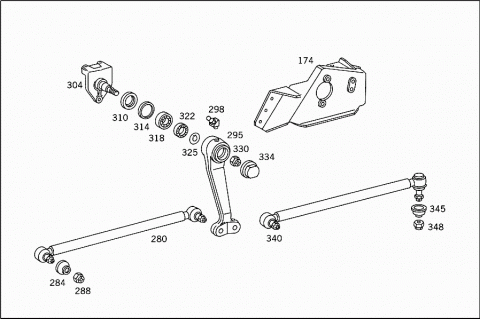

| DRAG LINK | ||
| A 3524601605 | DRAG LINK | |
| Repalced by: A 3524603105 | ||
| A 3524603105 | DRAG LINK | |
| Repalced by: A 3524605605 | ||
| A 3524605605 | DRAG LINK | |
| FRONT | ||
| 280 | A 3524603705 | DRAG LINK |
| Repalced by: A 3524606605 | ||
| 280 | A 3524606605 | DRAG LINK |
| FRONT | ||
| LEMFOERDER | ||
| 280 | A 3524607105 | DRAG LINK |
| FRONT | ||
| EHRENREICH | ||
| 284 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 284 | A 0003300885 | BOOT |
| 288 | N 000937018003 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094004065 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
| A 3524630010 | STEERING INTERMEDIATE ARM | |
| 295 | A 3524630110 | STEERING INTERMEDIATE ARM |
| 298 | N 071412010200 | GREASE NIPPLE |
| 304 | A 3524630011 | TRUNNION BEARING |
| N 000960012058 | SCREW | |
| INTERMEDIATE LEVER TO FRAME | ||
| N 000960012171 | SCREW | |
| INTERMEDIATE LEVER TO FRAME | ||
| N 000937012006 | NUT | |
| INTERMEDIATE LEVER TO FRAME | ||
| 310 | N 006504042100 | RADIAL SEAL RING |
| Repalced by: A 0079976446 | ||
| 310 | A 0079976446 | SEAL RING |
| STEERING INTERMEDIATE ARM | ||
| 314 | A 3174630052 | SPACER WASHER |
| STEERING INTERMEDIATE ARM | ||
| 318 | N 000720030206 | TAPERED ROLLER BEARING |
| STEERING INTERMEDIATE ARM | ||
| 322 | A 0059819105 | TAPERED ROLLER BEARING |
| STEERING INTERMEDIATE ARM | ||
| 325 | A 3174630062 | THRUST WASHER |
| STEERING INTERMEDIATE ARM | ||
| 330 | N 000937020001 | NUT |
| STEERING INTERMEDIATE ARM | ||
| N 000094004065 | COTTER PIN | |
| STEERING INTERMEDIATE ARM | ||
| 334 | A 3214630033 | CAP |
| STEERING INTERMEDIATE ARM | ||
| 340 | A 3524602705 | DRAG LINK |
| Repalced by: A 3524605405 | ||
| 340 | A 3524605405 | DRAG LINK |
| REAR | ||
| LEMFOERDER | ||
| 340 | A 3524604405 | DRAG LINK |
| REAR | ||
| EHRENREICH | ||
| 340 | A 3604600405 | DRAG LINK |
| Repalced by: A 3604602305 | ||
| 340 | A 3604602305 | DRAG LINK |
| REAR | ||
| LEMFOERDER | ||
| 340 | A 3604601405 | DRAG LINK |
| REAR | ||
| EHRENREICH | ||
| 340 | A 3524602805 | DRAG LINK |
| Repalced by: A 3524605705 | ||
| 340 | A 3524605705 | DRAG LINK |
| REAR | ||
| LEMFOERDER | ||
| 340 | A 3524604505 | DRAG LINK |
| REAR | ||
| EHRENREICH | ||
| 340 | A 3604600505 | DRAG LINK |
| Repalced by: A 3604602405 | ||
| 340 | A 3604602405 | DRAG LINK |
| REAR | ||
| LEMFOERDER | ||
| 340 | A 3604601105 | DRAG LINK |
| REAR | ||
| EHRENREICH | ||
| A 0003301435 | JOINT | |
| Repalced by: A 0003309335 | ||
| A 0003309335 | JOINT | |
| R.H. THREAD | ||
| LEMFOERDER | ||
| A 0003309535 | JOINT | |
| R.H. THREAD | ||
| EHRENREICH | ||
| 345 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 345 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| 345 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| A 0003300385 | BOOT | |
| Repalced by: A 0003301185 | ||
| A 0003301185 | BOOT | |
| A 0009954944 | CLAMP | |
| CLAMP, TWO-HOLE | ||
| A 0003382645 | CLAMP | |
| CLAMP, ONE-HOLE | ||
| LEMFOERDER | ||
| A 0003383545 | CLAMP | |
| Repalced by: A 0003382645 | ||
| A 0003382645 | CLAMP | |
| CLAMP, ONE-HOLE | ||
| EHRENREICH | ||
| N 000960012184 | SCREW | |
| CLAMP, TWO-HOLE | ||
| N 000960012453 | SCREW | |
| Repalced by: N 308676012017 | ||
| N 308676012017 | SCREW | |
| CLAMP, ONE-HOLE | ||
| N 000935012002 | NUT | |
| CLAMP, TWO-HOLE | ||
| N 913004012009 | NUT | |
| Repalced by: N 910113012003 | ||
| N 910113012003 | NUT | |
| CLAMP, ONE-HOLE | ||
| N 000094003226 | COTTER PIN | |
| DRAG LINK END TO DRAG LINK | ||
| 348 | N 000937018003 | NUT |
| DRAG LINK TO LEVER | ||
| N 000094004065 | COTTER PIN | |
| DRAG LINK TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
