Transporto priemonė: OF 1113; VIN numerio dalis: 358082
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|

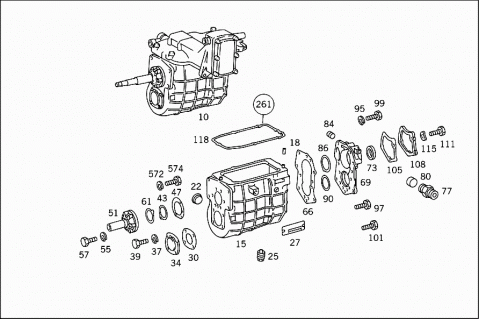

| 010 | A 3582601800 | TRANSMISSION |
| Repalced by: A 3582601400 | ||
| 010 | A 3582601400 | TRANSMISSION |
| 010 | A 3582601900 | TRANSMISSION |
| Repalced by: A 3582601500 | ||
| 010 | A 3582601500 | TRANSMISSION |
| Repalced by: A 3812602900 | ||
| 015 | A 3522600011 | TRANSMISSION CASE |
| Repalced by: A 3022600611 | ||
| 015 | A 3022600311 | TRANSMISSION CASE |
| Repalced by: A 3022600611 | ||
| 015 | A 3022600611 | TRANSMISSION CASE |
| 016 | A 3022650074 | PIN |
| 018 | N 000007010239 | CYLINDRICAL PIN |
| Repalced by: N 000007010102 | ||
| 018 | N 000007010102 | CYLINDRICAL PIN |
| 022 | A 1869970032 | SCREW PLUG |
| Repalced by: A 3529970032 | ||
| 022 | A 3529970032 | SCREW PLUG |
| OIL FILLING | ||
| 025 | A 0009971332 | SCREW PLUG |
| Repalced by: A 0009972632 | ||
| 025 | A 0009972632 | SCREW PLUG |
| OIL DRAIN | ||
| 025 | A 0009973432 | SCREW PLUG |
| OIL DRAIN | ||
| 027 | A 3215841024 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 3855845824 | ||
| 027 | A 3855841824 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 3855845824 | ||
| 027 | A 3855845824 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 6755840024 | ||
| 027 | A 6755840024 | UNIT IDENTIFICATION PLATE |
| TRANSMISSION CASE | ||
| N 001476003007 | GROOVED NAIL | |
| TRANSMISSION CASE | ||
| 030 | A 3212610779 | GASKET |
| Repalced by: A 3522611280 | ||
| 030 | A 3522611280 | GASKET |
| Repalced by: A 3522611880 | ||
| 030 | A 3522611880 | GASKET |
| TRANSMISSION CASE FRONT COVER | ||
| 034 | A 3212610133 | COVER |
| TRANSMISSION CASE FRONT COVER | ||
| 037 | N 912004008102 | LOCK WASHER |
| TRANSMISSION CASE FRONT COVER | ||
| 039 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 039 | N 304017008021 | SCREW |
| TRANSMISSION CASE FRONT COVER | ||
| 043 | A 3122831752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 043 | A 3122831052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 043 | A 3122831152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 043 | A 3122831252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| 043 | A 3122832152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 047 | A 3122612179 | GASKET |
| Repalced by: A 3122611180 | ||
| 047 | A 3122611180 | GASKET |
| FRONT | ||
| 051 | A 3212610318 | TRANSMISSION CASE COVER |
| Repalced by: A 3212610418 | ||
| 051 | A 3212610418 | TRANSMISSION CASE COVER |
| FRONT | ||
| 055 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 055 | N 000137008212 | SPRING WASHER |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 057 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 057 | N 304017008028 | SCREW |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 061 | A 3122625362 | SEAL RING |
| AS REQUIRED | ||
| 2.85 MM | ||
| 061 | A 3122625462 | SEAL RING |
| AS REQUIRED | ||
| 2.90 MM | ||
| 061 | A 3122625562 | SEAL RING |
| AS REQUIRED | ||
| 2.95 MM | ||
| 061 | A 3122623462 | SEAL RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 061 | A 3122624362 | SEAL RING |
| AS REQUIRED | ||
| 3.05 MM | ||
| 061 | A 3122624462 | SEAL RING |
| AS REQUIRED | ||
| 3.10 MM | ||
| 061 | A 3122623562 | SEAL RING |
| AS REQUIRED | ||
| 3.15 MM | ||
| 061 | A 3122623662 | SEAL RING |
| AS REQUIRED | ||
| 3.2 MM | ||
| 061 | A 3122623762 | SEAL RING |
| AS REQUIRED | ||
| 3.25 MM | ||
| 066 | A 3212611379 | GASKET |
| Repalced by: A 3812610480 | ||
| 066 | A 3812610480 | GASKET |
| Repalced by: A 3812610780 | ||
| 066 | A 3812610780 | GASKET |
| REAR | ||
| 069 | A 3372610120 | TRANSMISSION CASE COVER |
| Repalced by: A 3372610220 | ||
| 069 | A 3372610220 | TRANSMISSION CASE COVER |
| REAR | ||
| 073 | A 0089971146 | SEAL RING |
| REAR | ||
| 077 | A 3212610031 | THREADED BUSHING |
| REAR | ||
| 080 | A 1202610080 | GASKET |
| Repalced by: A 1152740060 | ||
| 080 | A 0119976647 | SEAL RING |
| Repalced by: A 1152740060 | ||
| 080 | A 1152740060 | SEAL RING |
| Repalced by: A 0119976447 | ||
| 080 | A 0119976447 | SEAL RING |
| CASE COVER | ||
| 084 | N 915015024000 | PLUG |
| SPEEDOMETER | ||
| 086 | A 3122832452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 086 | A 3212620862 | SEAL RING |
| AS REQUIRED | ||
| 2.90 MM | ||
| 086 | A 3212620962 | SEAL RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 086 | A 3212621062 | SEAL RING |
| AS REQUIRED | ||
| 3.10 MM | ||
| 086 | A 3212621162 | SEAL RING |
| AS REQUIRED | ||
| 3.20 MM | ||
| 086 | A 3212621262 | SEAL RING |
| AS REQUIRED | ||
| 3.30 MM | ||
| 086 | A 3212621362 | SEAL RING |
| AS REQUIRED | ||
| 3.40 MM | ||
| 086 | A 3212621462 | SEAL RING |
| AS REQUIRED | ||
| 3.50 MM | ||
| 086 | A 3212621562 | SEAL RING |
| AS REQUIRED | ||
| 3.60 MM | ||
| 090 | A 3122831752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 090 | A 3122831052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 090 | A 3122831152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 090 | A 3122831252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| 090 | A 3122832152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 095 | N 912004008102 | LOCK WASHER |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 097 | N 000931008123 | SCREW |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 099 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 099 | N 304017008043 | SCREW |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 101 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 101 | N 304017008027 | SCREW |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 105 | A 3212611479 | GASKET |
| Repalced by: A 3522611180 | ||
| 105 | A 3522611180 | GASKET |
| Repalced by: A 3522611680 | ||
| 105 | A 3522611680 | GASKET |
| Repalced by: A 3522611980 | ||
| 105 | A 3522611980 | GASKET |
| Repalced by: A 6752611280 | ||
| 105 | A 6752611280 | GASKET |
| TRANSMISSION CASE TOP COVER TO TRANSMISSSION CASE | ||
| 108 | A 3212610333 | COVER |
| REAR | ||
| 111 | N 000931008266 | SCREW |
| COVER TO TRANSMISSION CASE TOP COVER | ||
| 115 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 115 | N 000137008212 | SPRING WASHER |
| COVER TO TRANSMISSION CASE TOP COVER | ||
| 118 | A 3212611279 | GASKET |
| Repalced by: A 3812610880 | ||
| 118 | A 3812610880 | GASKET |
| COVER TO TRANSMISSION CASE TOP COVER | ||

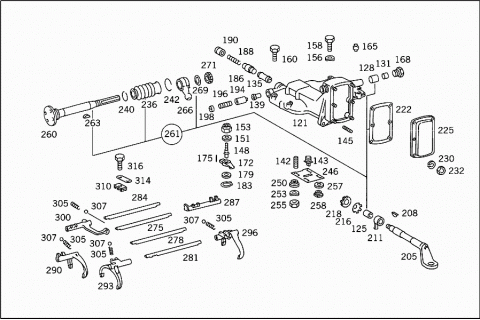

| 121 | A 3522600414 | TRANSMISSION CASE COVER |
| Repalced by: A 3522602914 | ||
| 121 | A 3522601514 | TRANSMISSION CASE COVER |
| Repalced by: A 3522602914 | ||
| 121 | A 3522602914 | TRANSMISSION CASE COVER |
| TOP | ||
| 121 | A 3522600514 | TRANSMISSION CASE COVER |
| Repalced by: A 3522603314 | ||
| 121 | A 3522601614 | TRANSMISSION CASE COVER |
| Repalced by: A 3522603314 | ||
| 121 | A 3522603314 | TRANSMISSION CASE COVER |
| TOP | ||
| 125 | A 3212610050 | BUSHING |
| SHIFTING SHAFT BEARING | ||
| 128 | A 3212610150 | BUSHING |
| SHIFTING SHAFT BEARING | ||
| 131 | N 000443020000 | EXPANSION PLUG |
| TOP | ||
| 135 | A 3212650250 | BUSHING |
| 139 | A 3212650150 | BUSHING |
| 142 | N 000835008007 | STUD |
| Repalced by: N 000835008077 | ||
| 142 | N 000835008077 | STUD |
| 143 | A 1362650247 | INTERLOCK PLUG |
| Repalced by: A 3142650044 | ||
| 143 | A 3142650044 | GUIDE PIN |
| 145 | N 000835008008 | STUD |
| 145 | N 000835008064 | STUD |
| 148 | A 3212650474 | PIN |
| 151 | N 000125013008 | WASHER |
| 153 | N 000979012001 | NUT |
| LEVER TO PIN | ||
| N 000094003219 | COTTER PIN | |
| LEVER TO PIN | ||
| 156 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 156 | N 000137008212 | SPRING WASHER |
| TRANSMISSION CASE TOP COVER | ||
| 158 | N 000931008266 | SCREW |
| TRANSMISSION CASE TOP COVER | ||
| 160 | N 000931008246 | SCREW |
| Repalced by: N 304017008028 | ||
| 160 | N 304017008028 | SCREW |
| TRANSMISSION CASE TOP COVER | ||
| N 000931008248 | SCREW | |
| Repalced by: N 304017008053 | ||
| N 304017008053 | SCREW | |
| TRANSMISSION CASE TOP COVER | ||
| 165 | A 1112600058 | BREATHER |
| 168 | A 1369970830 | SCREW PLUG |
| 172 | A 3372650007 | LEVER |
| 1ST SPEED SHIFTING FORK | ||
| 175 | N 005402302104 | CYLINDRICAL ROLLER |
| 1ST SPEED SHIFTING FORK | ||
| 179 | N 000433017004 | WASHER |
| 1ST SPEED SHIFTING FORK | ||
| 183 | N 900055017300 | LOCK RING |
| 1ST SPEED SHIFTING FORK | ||
| 186 | A 3212650316 | THRUST PIECE |
| Repalced by: A 3212650416 | ||
| 186 | A 3212650416 | THRUST PIECE |
| Repalced by: A 3802650016 | ||
| 186 | A 3802650016 | THRUST PIECE |
| TRANSMISSION CASE TOP COVER | ||
| 188 | A 3219931701 | SPRING |
| TRANSMISSION CASE TOP COVER | ||
| 190 | A 3219970103 | PLUG |
| TRANSMISSION CASE TOP COVER | ||
| 194 | A 3212650248 | INTERLOCK PIN |
| TRANSMISSION CASE TOP COVER | ||
| 196 | A 3219930601 | SPRING |
| TRANSMISSION CASE TOP COVER | ||
| 198 | N 071022024000 | SLOTTED PLUG |
| TRANSMISSION CASE TOP COVER | ||
| 205 | A 3522680429 | SHIFTING ROD |
| Repalced by: A 3522605433 | ||
| 205 | A 3522605433 | SHIFTING ROD |
| TRANSMISSION CASE TOP COVER | ||
| 205 | A 3522680529 | SHIFTING ROD |
| Repalced by: A 3522605533 | ||
| 205 | A 3522605533 | SHIFTING ROD |
| TRANSMISSION CASE TOP COVER | ||
| 208 | N 006888005006 | WOODRUFF KEY |
| TRANSMISSION CASE TOP COVER | ||
| A 3122623662 | SEAL RING | |
| TRANSMISSION CASE TOP COVER | ||
| 211 | A 3212680533 | SHIFTING FINGER |
| 216 | N 070952020101 | LOCK PLATE |
| TRANSMISSION CASE TOP COVER | ||
| 218 | A 3219900160 | NUT |
| TRANSMISSION CASE TOP COVER | ||
| 222 | A 3522610080 | GASKET |
| TRANSMISSION CASE TOP COVER | ||
| 222 | A 3522610280 | GASKET |
| TRANSMISSION CASE TOP COVER | ||
| 225 | A 3522610033 | COVER |
| TRANSMISSION CASE TOP COVER | ||
| 225 | A 3522610333 | COVER |
| TRANSMISSION CASE TOP COVER | ||
| 230 | N 912004008102 | LOCK WASHER |
| TRANSMISSION CASE TOP COVER | ||
| 232 | N 304032008006 | NUT |
| TRANSMISSION CASE TOP COVER | ||
| 236 | A 0002680497 | BOOT |
| TRANSMISSION CASE TOP COVER | ||
| 240 | N 009045028001 | SNAP RING |
| TRANSMISSION CASE TOP COVER | ||
| 242 | N 009045038001 | SNAP RING |
| TRANSMISSION CASE TOP COVER | ||
| 246 | A 3212600846 | PLATE |
| TRANSMISSION CASE TOP COVER | ||
| 246 | A 3852600046 | PLATE |
| TRANSMISSION CASE TOP COVER | ||
| 250 | A 3212650350 | BUSHING |
| TRANSMISSION CASE TOP COVER | ||
| 253 | N 900055008002 | SPRING WASHER |
| TRANSMISSION CASE TOP COVER | ||
| 255 | N 000979008000 | NUT |
| TRANSMISSION CASE TOP COVER | ||
| N 000094002077 | COTTER PIN | |
| TRANSMISSION CASE TOP COVER | ||
| 257 | A 1369908240 | WASHER |
| TRANSMISSION CASE TOP COVER | ||
| 258 | A 1362650272 | NUT |
| TRANSMISSION CASE TOP COVER | ||
| A 3212681029 | SHIFTING ROD | |
| Repalced by: A 3215860026 | ||
| 260 | A 3212601633 | SHIFTING ROD |
| Repalced by: A 3215860026 | ||
| 261 | A 3215860026 | REPAIR KIT |
| Repalced by: A 3212601933 | ||
| 261 | A 3212601933 | REPAIR KIT |
| Repalced by: A 3212602033 | ||
| 261 | A 3212602033 | SHIFTING ROD |
| PARTS KIT | ||
| N 007993024100 | SNAP RING | |
| SHIFTING ROD | ||
| 263 | N 006888005006 | WOODRUFF KEY |
| 266 | A 3522650030 | SELECTOR LEVER |
| 269 | N 070952020102 | LOCK PLATE |
| 271 | A 3219900160 | NUT |
| 275 | A 3212650805 | SHIFTING ROD |
| 1ST SPEED | ||
| 278 | A 3212651805 | SHIFTING ROD |
| 2ND AND 3RD SPEED | ||
| 281 | A 3212651905 | SHIFTING ROD |
| 4TH AND 5TH SPEED | ||
| 284 | A 3222650305 | SHIFTING ROD |
| REVERSE SPEED | ||
| 287 | A 3222650123 | SHIFTING DOG |
| 1ST SPEED | ||
| 290 | A 3212651202 | SHIFTING FORK |
| 2ND AND 3RD SPEED | ||
| 293 | A 3212650802 | SHIFTING FORK |
| 4TH AND 5TH SPEED | ||
| 296 | A 3212651301 | SHIFTING FORK |
| 1ST SPEED | ||
| 300 | A 3212650403 | SHIFTING FORK |
| REVERSE SPEED | ||
| 305 | A 3129931001 | SPRING |
| TRANSMISSION CASE | ||
| 307 | N 005401311000 | BALL |
| 11 MM | ||
| 310 | A 3122651236 | BRACKET |
| TRANSMISSION CASE | ||
| 314 | A 3129940332 | LOCK |
| TRANSMISSION CASE | ||
| 316 | N 000931008266 | SCREW |
| TRANSMISSION CASE | ||

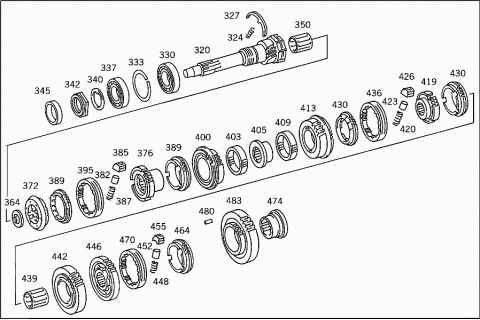

| 320 | A 3402620202 | DRIVE SHAFT |
| Repalced by: A 3402620502 | ||
| 320 | A 3402620402 | DRIVE SHAFT |
| Repalced by: A 3402620502 | ||
| 320 | A 3402620502 | DRIVE SHAFT |
| 324 | A 3219931201 | SPRING |
| 327 | A 3212620073 | LOCK |
| 330 | A 0009816201 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0019813101 | ||
| 330 | A 0009817101 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0019813101 | ||
| 330 | A 0009817201 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0019813101 | ||
| 330 | A 0019813101 | CYLINDR. ROLLER BEARING |
| STANDARD | ||
| 85 MM | ||
| A 0019818701 | CYLINDR. ROLLER BEARING | |
| 333 | N 005417085001 | SNAP RING |
| AS REQUIRED | ||
| 1.70 MM | ||
| 333 | A 0009943435 | SNAP RING |
| AS REQUIRED | ||
| 1.80 MM | ||
| 333 | A 0009942835 | SNAP RING |
| AS REQUIRED | ||
| 1.90 MM | ||
| 337 | A 0009810527 | ANGULAR CONTACT BEARING |
| Repalced by: A 0009812827 | ||
| 337 | A 0009812827 | ANGULAR CONTACT BEARING |
| OUTPUT SHAFT | ||
| 337 | A 0009814327 | ANGULAR CONTACT BEARING |
| OUTPUT SHAFT | ||
| 337 | A 0019811627 | ANGULAR CONTACT BEARING |
| OUTPUT SHAFT | ||
| 340 | A 3122623162 | SEAL RING |
| OUTPUT SHAFT | ||
| 342 | A 3122621172 | NUT |
| OUTPUT SHAFT | ||
| 345 | A 0029971346 | SEAL RING |
| Repalced by: A 0089970146 | ||
| 345 | A 0089970146 | SEAL RING |
| Repalced by: A 0159977747 | ||
| 345 | A 0159977747 | SEAL RING |
| OUTPUT SHAFT | ||
| 345 | A 0159977647 | SEAL RING |
| OUTPUT SHAFT | ||
| 345 | A 0179971447 | SEAL RING |
| OUTPUT SHAFT | ||
| 350 | A 0009814312 | ROLLER ASSEMBLY |
| OUTPUT SHAFT | ||
| 350 | A 0009814512 | ROLLER ASSEMBLY |
| OUTPUT SHAFT | ||
| 350 | A 0009814612 | ROLLER ASSEMBLY |
| OUTPUT SHAFT | ||
| 350 | A 0009819512 | ROLLER ASSEMBLY |
| OUTPUT SHAFT | ||
| 350 | A 0009819612 | ROLLER ASSEMBLY |
| OUTPUT SHAFT | ||
| 354 | A 3222620005 | MAIN SHAFT |
| Repalced by: A 3222620705 | ||
| 354 | A 3222620505 | MAIN SHAFT |
| Repalced by: A 3222620705 | ||
| 354 | A 3222620705 | MAIN SHAFT |
| 358 | A 3129931701 | SPRING |
| MAIN SHAFT | ||
| 360 | A 3212620374 | PIN |
| Repalced by: A 3852621074 | ||
| 360 | A 3852621074 | PIN |
| MAIN SHAFT | ||
| 364 | A 3212622162 | SEAL RING |
| Repalced by: A 3212623862 | ||
| 364 | A 3212623862 | SEAL RING |
| AS REQUIRED | ||
| 6.90 MM | ||
| 364 | A 3212622062 | SEAL RING |
| Repalced by: A 3212623762 | ||
| 364 | A 3212623762 | SEAL RING |
| AS REQUIRED | ||
| 7.00 MM | ||
| 364 | A 3212621962 | SEAL RING |
| Repalced by: A 3212623662 | ||
| 364 | A 3212623662 | SEAL RING |
| AS REQUIRED | ||
| 7.10 MM | ||
| 364 | A 3212621862 | SEAL RING |
| Repalced by: A 3212623562 | ||
| 364 | A 3212623562 | SEAL RING |
| AS REQUIRED | ||
| 7.20 MM | ||
| 364 | A 3212621762 | SEAL RING |
| Repalced by: A 3212623462 | ||
| 364 | A 3212623462 | SEAL RING |
| AS REQUIRED | ||
| 7.30 MM | ||
| 364 | A 3212620462 | SEAL RING |
| Repalced by: A 3212623962 | ||
| 364 | A 3212623962 | SEAL RING |
| AS REQUIRED | ||
| 7.40 MM | ||
| 364 | A 3212622862 | SEAL RING |
| Repalced by: A 3212624662 | ||
| 364 | A 3212624662 | SEAL RING |
| AS REQUIRED | ||
| 7.45 MM | ||
| 364 | A 3212620562 | SEAL RING |
| Repalced by: A 3212624062 | ||
| 364 | A 3212624062 | SEAL RING |
| AS REQUIRED | ||
| 7.50 MM | ||
| 364 | A 3212622962 | SEAL RING |
| Repalced by: A 3212624762 | ||
| 364 | A 3212624762 | SEAL RING |
| AS REQUIRED | ||
| 7.55 MM | ||
| 364 | A 3212620662 | SEAL RING |
| Repalced by: A 3212624162 | ||
| 364 | A 3212624162 | SEAL RING |
| AS REQUIRED | ||
| 7.60 MM | ||
| 364 | A 3212623062 | SEAL RING |
| Repalced by: A 3212624862 | ||
| 364 | A 3212624862 | SEAL RING |
| AS REQUIRED | ||
| 7.65 MM | ||
| 364 | A 3212620762 | SEAL RING |
| Repalced by: A 3212624262 | ||
| 364 | A 3212624262 | SEAL RING |
| AS REQUIRED | ||
| 7.70 MM | ||
| 364 | A 3212622562 | SEAL RING |
| Repalced by: A 3212624362 | ||
| 364 | A 3212624362 | SEAL RING |
| AS REQUIRED | ||
| 7.80 MM | ||
| 364 | A 3212622662 | SEAL RING |
| Repalced by: A 3212624462 | ||
| 364 | A 3212624462 | SEAL RING |
| AS REQUIRED | ||
| 7.90 MM | ||
| 364 | A 3212622762 | SEAL RING |
| Repalced by: A 3212624562 | ||
| 364 | A 3212624562 | SEAL RING |
| AS REQUIRED | ||
| 8.00 MM | ||
| 372 | A 3402620034 | SYNCHRONIZER RING |
| Repalced by: A 3402620134 | ||
| 372 | A 3402620134 | SYNCHRONIZER RING |
| 4TH AND 5TH SPEED | ||
| A 3222600645 | SYNCHRONIZER BODY | |
| 4TH AND 5TH SPEED | ||
| 375 | A 3222600845 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 376 | A 3222620735 | SYNCHRONIZER BODY |
| 4TH AND 5TH SPEED | ||
| 382 | A 3212620774 | PIN |
| 4TH AND 5TH SPEED | ||
| 385 | A 3212621040 | FOLLOWER |
| 4TH AND 5TH SPEED | ||
| 387 | A 3219930701 | SPRING |
| 4TH AND 5TH SPEED | ||
| 389 | A 3222620137 | SYNCHRONIZER CONE |
| 4TH AND 5TH SPEED | ||
| 392 | A 3212600469 | SPRING |
| 4TH AND 5TH SPEED | ||
| 395 | A 3212620823 | SLIDING COLLAR |
| Repalced by: A 3212621223 | ||
| 395 | A 3212621223 | SLIDING COLLAR |
| 4TH AND 5TH SPEED | ||
| 400 | A 3222600244 | GEAR |
| Repalced by: A 3222602044 | ||
| 400 | A 3222601744 | GEAR |
| Repalced by: A 3222602044 | ||
| 400 | A 3222602044 | GEAR |
| 4TH SPEED | ||
| 403 | A 3229810612 | ROLLER ASSEMBLY |
| Repalced by: A 3529810012 | ||
| 403 | A 3229810812 | ROLLER ASSEMBLY |
| Repalced by: A 3529810012 | ||
| 403 | A 3529810012 | ROLLER ASSEMBLY |
| 4TH SPEED | ||
| 405 | A 3222624050 | BUSHING |
| Repalced by: A 3222626550 | ||
| 405 | A 3222626550 | BUSHING |
| AS REQUIRED | ||
| 44.50 MM | ||
| 405 | A 3222624150 | BUSHING |
| Repalced by: A 3222626650 | ||
| 405 | A 3222626650 | BUSHING |
| AS REQUIRED | ||
| 44.60 MM | ||
| 409 | A 3229810512 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 409 | A 3229810712 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 409 | A 3529810112 | ROLLER ASSEMBLY |
| 3RD SPEED | ||
| 413 | A 3222600644 | GEAR |
| Repalced by: A 3222601944 | ||
| 413 | A 3222601944 | GEAR |
| Repalced by: A 3222602444 | ||
| 413 | A 3222602444 | GEAR |
| 3RD SPEED | ||
| A 3222600545 | SYNCHRONIZER BODY | |
| 2ND AND 3RD SPEED | ||
| 417 | A 3222600745 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 419 | A 3222620635 | SYNCHRONIZER BODY |
| 2ND AND 3RD SPEED | ||
| 420 | A 3219930701 | SPRING |
| 2ND AND 3RD SPEED | ||
| 423 | A 3212620774 | PIN |
| 2ND AND 3RD SPEED | ||
| 426 | A 3212621040 | FOLLOWER |
| 2ND AND 3RD SPEED | ||
| 430 | A 3222620137 | SYNCHRONIZER CONE |
| 2ND AND 3RD SPEED | ||
| 433 | A 3212600469 | SPRING |
| 2ND AND 3RD SPEED | ||
| 436 | A 3212620823 | SLIDING COLLAR |
| Repalced by: A 3212621223 | ||
| 436 | A 3212621223 | SLIDING COLLAR |
| 2ND AND 3RD SPEED | ||
| 439 | A 3229810512 | ROLLER ASSEMBLY |
| Repalced by: A 3529810112 | ||
| 439 | A 3529810112 | ROLLER ASSEMBLY |
| 2ND AND 3RD SPEED | ||
| 442 | A 3222620112 | GEAR |
| Repalced by: A 3222620412 | ||
| 442 | A 3222620412 | GEAR |
| 2ND SPEED | ||
| 445 | A 3222600625 | GEAR |
| REVERSE SPEED | ||
| 445 | A 3222600925 | GEAR |
| REVERSE SPEED | ||
| 446 | A 3222630433 | REVERSE IDLER GEAR |
| 448 | A 3219930701 | SPRING |
| 1ST SPEED | ||
| 452 | A 3212620674 | PIN |
| 1ST SPEED | ||
| 455 | A 3212620940 | FOLLOWER |
| 1ST SPEED | ||
| 460 | A 3212620376 | BALL SOCKET |
| Repalced by: A 3142620076 | ||
| 460 | A 3142620076 | BALL SOCKET |
| 464 | A 3222620137 | SYNCHRONIZER CONE |
| 1ST SPEED | ||
| 467 | A 3212600469 | SPRING |
| 470 | A 3212620723 | SLIDING COLLAR |
| Repalced by: A 3212621123 | ||
| 470 | A 3212621123 | SLIDING COLLAR |
| 1ST SPEED | ||
| 474 | A 3222621450 | BUSHING |
| Repalced by: A 3222625950 | ||
| 474 | A 3222625950 | BUSHING |
| AS REQUIRED | ||
| 44.50 MM | ||
| 474 | A 3222621550 | BUSHING |
| Repalced by: A 3222626050 | ||
| 474 | A 3222626050 | BUSHING |
| AS REQUIRED | ||
| 44.60 MM | ||
| 480 | N 005402004203 | CYLINDRICAL ROLLER |
| 1ST SPEED | ||
| 483 | A 3222620111 | GEAR |
| Repalced by: A 3222620211 | ||
| 483 | A 3222620211 | GEAR |
| Repalced by: A 3222620511 | ||
| 483 | A 3222620511 | GEAR |
| 1ST SPEED | ||
| 486 | A 0009811201 | CYLINDR. ROLLER BEARING |
| STANDARD | ||
| 100 MM | ||
| A 0019818901 | CYLINDR. ROLLER BEARING | |
| REPAIR SIZE | ||
| 100.50 MM | ||
| 490 | A 3219940040 | SNAP RING |
| AS REQUIRED | ||
| 2.68 MM | ||
| 490 | A 3219940140 | SNAP RING |
| AS REQUIRED | ||
| 2.73 MM | ||
| 490 | A 3219940240 | SNAP RING |
| AS REQUIRED | ||
| 2.78 MM | ||
| 490 | A 3219940340 | SNAP RING |
| AS REQUIRED | ||
| 2.83 MM | ||
| 490 | A 3219940440 | SNAP RING |
| AS REQUIRED | ||
| 2.88 MM | ||
| 490 | A 3219940540 | SNAP RING |
| AS REQUIRED | ||
| 2.93 MM | ||
| 495 | A 0009810627 | ANGULAR CONTACT BEARING |
| Repalced by: A 0009812927 | ||
| 495 | A 0009812927 | ANGULAR CONTACT BEARING |
| 495 | A 0009814227 | ANGULAR CONTACT BEARING |
| 495 | A 0019811527 | ANGULAR CONTACT BEARING |
| 500 | A 3212630630 | REVERSE IDLER SHAFT |
| Repalced by: A 3522640130 | ||
| 500 | A 3522640130 | DRIVE GEAR |
| SPEEDOMETER | ||
| 503 | A 3212640532 | SHAFT |
| Repalced by: A 3142640032 | ||
| 503 | A 3142640032 | SHAFT |
| Repalced by: A 3142640332 | ||
| 503 | A 3142640332 | SHAFT |
| SPEEDOMETER | ||
| 507 | A 3212640631 | DRIVE GEAR |
| Repalced by: A 3812640031 | ||
| 507 | A 3812640031 | DRIVE GEAR |
| SPEEDOMETER | ||
| 510 | A 3222620045 | FLANGE |
| A 3219900240 | WASHER | |
| MAIN SHAFT | ||
| N 000937028000 | NUT | |
| MAIN SHAFT | ||
| N 000094005045 | COTTER PIN | |
| MAIN SHAFT | ||
| 515 | A 3222620072 | NUT |
| MAIN SHAFT | ||
| 520 | A 3222630202 | COUNTERSHAFT |
| Repalced by: A 3222630302 | ||
| 520 | A 3222630302 | COUNTERSHAFT |
| 524 | A 3222630313 | GEAR |
| Repalced by: A 3222630513 | ||
| 524 | A 3222630513 | GEAR |
| 2ND AND 3RD SPEED | ||
| 528 | A 3222630314 | GEAR |
| Repalced by: A 3222630614 | ||
| 528 | A 3222630514 | GEAR |
| Repalced by: A 3222630614 | ||
| 528 | A 3222630614 | GEAR |
| 4TH SPEED | ||
| 532 | A 3402630010 | GEAR |
| Repalced by: A 3402630110 | ||
| 532 | A 3402630110 | GEAR |
| 4TH SPEED | ||
| 536 | N 900055052300 | LOCK RING |
| COUNTERSHAFT | ||
| 540 | A 0019813105 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 540 | A 0019815005 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 540 | A 0069814305 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| 540 | A 0069815305 | TAPERED ROLLER BEARING |
| COUNTERSHAFT | ||
| A 0039814605 | TAPERED ROLLER BEARING | |
| COUNTERSHAFT,FRONT | ||
| 90.50 MM | ||
| A 0039816305 | TAPERED ROLLER BEARING | |
| COUNTERSHAFT,REAR | ||
| 90.50 MM | ||
| 545 | A 3212650208 | LEVER |
| REVERSE SPEED | ||
| 548 | A 3212650449 | SLIDE |
| Repalced by: A 3142650349 | ||
| 548 | A 3142650349 | SLIDE |
| REVERSE SPEED | ||
| 552 | A 3212650074 | PIN |
| LEVER TO TRANSMISSION CASE | ||
| 556 | A 3212650050 | BUSHING |
| LEVER TO TRANSMISSION CASE | ||
| 560 | N 912004010102 | LOCK WASHER |
| LEVER TO TRANSMISSION CASE | ||
| 562 | N 000934010014 | NUT |
| LEVER TO TRANSMISSION CASE | ||
| A 3022650074 | PIN | |
| REVERSE SPEED | ||
| 566 | A 3222600325 | GEAR |
| Repalced by: A 3222600825 | ||
| 566 | A 3222600725 | GEAR |
| Repalced by: A 3222600825 | ||
| 566 | A 3222600825 | GEAR |
| REVERSE SPEED | ||
| 570 | A 3212630430 | REVERSE IDLER SHAFT |
| Repalced by: A 3212630630 | ||
| 570 | A 3212630530 | REVERSE IDLER SHAFT |
| Repalced by: A 3212630630 | ||
| 570 | A 3212630630 | REVERSE IDLER SHAFT |
| REVERSE SPEED | ||
| 572 | N 912004014100 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| 574 | N 000933014014 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||

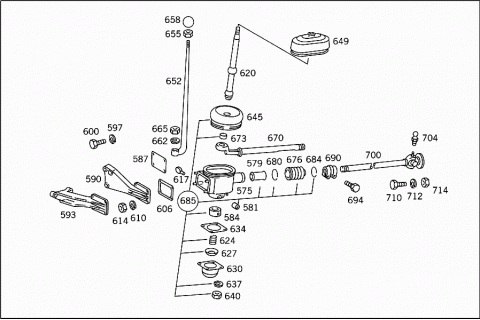

| 575 | A 3522600472 | SHIFT CASE |
| Repalced by: A 3522600872 | ||
| 575 | A 3522600872 | SHIFT CASE |
| REMOTE GEARSHIFT MECHANISM | ||
| 579 | A 3522680050 | BUSHING |
| SHIFT CASE | ||
| 581 | A 3522680250 | BUSHING |
| SHIFT CASE | ||
| 581 | A 3522680250 | BUSHING |
| SHIFT CASE | ||
| 584 | A 3522680035 | BEARING |
| Repalced by: A 3522680325 | ||
| 584 | A 3522680335 | BEARING |
| SHIFT CASE | ||
| 587 | A 3522680057 | COVER |
| SHIFT CASE | ||
| 590 | A 3522680236 | BRACKET |
| SHIFT CASE | ||
| 593 | A 3522680336 | BRACKET |
| SHIFT CASE | ||
| 597 | N 912004010102 | LOCK WASHER |
| SHIFT CASE | ||
| 600 | N 000931010100 | SCREW |
| SHIFT CASE | ||
| 606 | A 3522680079 | GASKET |
| SHIFT CASE TO BRACKET | ||
| 610 | N 912004008102 | LOCK WASHER |
| SHIFT CASE TO BRACKET | ||
| 614 | N 304032008006 | NUT |
| SHIFT CASE TO BRACKET | ||
| 617 | A 3142680149 | SLIDE |
| Repalced by: A 3142680249 | ||
| 617 | A 3142680249 | SLIDE |
| 620 | A 3522670002 | SHIFT LEVER LOWER PART |
| Repalced by: A 3142680102 | ||
| 620 | A 3522670102 | SHIFT LEVER LOWER PART |
| LOWER PART | ||
| 624 | A 3179930501 | SPRING |
| 627 | A 3022670008 | SPHERICAL PIECE |
| 630 | A 3522680005 | COVER |
| 634 | A 3522680179 | GASKET |
| SHIFT CASE | ||
| 637 | N 912004008102 | LOCK WASHER |
| SHIFT CASE | ||
| 640 | N 304032008006 | NUT |
| SHIFT CASE | ||
| 645 | A 3522680197 | BOOT |
| Repalced by: A 3522680497 | ||
| 645 | A 3522680497 | BOOT |
| SHIFT CASE | ||
| N 900263005000 | STRAP | |
| BOOT TO SHIFT CASE | ||
| 9.30MM | ||
| N 900262005100 | LOOM TIE | |
| BOOT TO SHIFT CASE | ||
| 649 | A 3222670096 | BOOT |
| Repalced by: A 3522670296 | ||
| 649 | A 3522670096 | BOOT |
| Repalced by: A 3522670296 | ||
| 649 | A 3522670296 | BOOT |
| BOOT TO CAB | ||
| 649 | A 3522670396 | BOOT |
| BOOT TO CAB | ||
| 652 | A 3522670201 | SHIFT LEVER |
| Repalced by: A 3522670401 | ||
| 652 | A 3522670401 | SHIFT LEVER |
| Repalced by: A 3522603139 | ||
| 652 | A 3522603139 | SHIFT LEVER |
| UPPER PART | ||
| 655 | N 000936010010 | NUT |
| UPPER PART | ||
| 658 | A 3222600040 | HANDLE |
| SHIFT LEVER | ||
| 662 | N 912004012100 | LOCK WASHER |
| SHIFT LEVER TO SHAFT | ||
| 665 | N 304032012001 | NUT |
| SHIFT LEVER TO SHAFT | ||
| 670 | A 3522602033 | SHIFTING ROD |
| FRONT | ||
| 673 | A 3522680450 | BUSHING |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 676 | A 3522680097 | BOOT |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 680 | N 009045055000 | SNAP RING |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 684 | N 009045028001 | SNAP RING |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 685 | A 3532600095 | BEARING |
| SHIFTING PARTS | ||
| 690 | A 3142680388 | CLAMPING PIECE |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 694 | N 000933010202 | SCREW |
| Repalced by: N 304017010047 | ||
| 694 | N 304017010047 | SCREW |
| FRONT SHIFTING ROD TO REAR SHIFTING ROD | ||
| 700 | A 3522602133 | SHIFTING ROD |
| REAR | ||
| 700 | A 3522602233 | SHIFTING ROD |
| REAR | ||
| 704 | N 071412006101 | GREASE NIPPLE |
| REAR SHIFTING ROD TO JOINT | ||
| 710 | A 3179900301 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| 712 | N 912004008102 | LOCK WASHER |
| SHIFTING TUBE TO TRANSMISSION | ||
| 714 | N 304032008006 | NUT |
| SHIFTING TUBE TO TRANSMISSION | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
