Transporto priemonė: OF 1113 INDONESIA; VIN numerio dalis: 684057

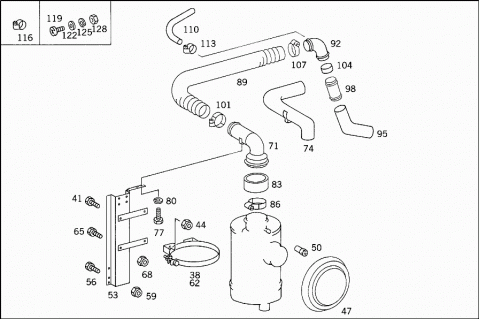

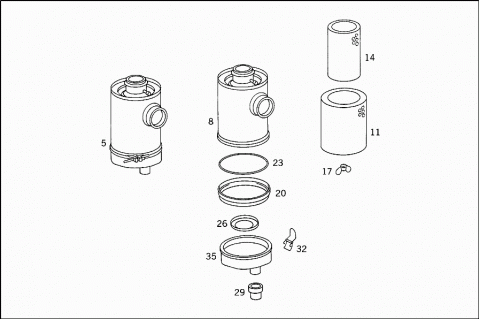

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE

#	Kodas	Pavadinimas
005	A 3860907101	AIR CLEANER
	Repalced by: A 3760908501
005	A 3760908501	AIR CLEANER
		DONALDSON
	A 3760908601	AIR CLEANER
		"MANN"
008	A 0000949903	FILTER BOWL
		TO 386 090 71 01
008	A 0010940403	FILTER BOWL
		TO 376 090 85 01
008	A 0000949603	FILTER BOWL
		TO 376 090 86 01
008	A 0010941103	FILTER BOWL
		TO 376 090 86 01
011	A 3860947004	FILTER ELEMENT
		TO 386 090 71 01,376 090 85 01
014	A 3860947104	FILTER ELEMENT
		TO 386 090 71 01,376 090 85 01
014	A 3450947304	FILTER ELEMENT
		TO 376 090 86 01
014	A 3450947404	FILTER ELEMENT
		TO 376 090 86 01
017	A 0000940875	NUT
		TO 386 090 71 01
017	A 0000940772	NUT
		TO 386 090 71 01
017	N 000936016003	NUT
		TO 376 090 86 01
017	A 3500947072	NUT
		TO 376 090 86 01
017	A 3760947072	NUT
		TO 376 090 85 01
020	A 0000940615	RETAINING RING
		TO 386 090 71 01
023	A 0009973648	SEAL RING
		TO 386 090 71 01
026	A 0000941020	SCREENING
		TO 386 090 71 01,376 090 85 01
029	A 3760947165	VALVE
		TO 376 090 86 01
029	A 3760947065	VALVE
		TO 386 090 71 01,376 090 85 01
032	A 0010940055	FASTENER
		TO 376 090 85 01,86 01
035	A 0450940006	COVER
		TO 376 090 86 01
038	A 0000941627	BRACKET
		TO 376 090 86 01
041	N 000084008172	SCREW
		TO 376 090 86 01
044	A 1109900052	NUT
		TO 376 090 86 01
047	A 3860907043	COVER
		TO 386 090 71 01,376 090 85 01
	A 3645407045	SWITCH
	Repalced by: A 6885407645
	A 6885407645	SWITCH
		TO 376 090 86 01
050	A 6840947168	VACUUM BOX
053	A 6845207841	BRACKET
		AIR CLEANER TO BODY
053	A 6845207941	BRACKET
		AIR CLEANER TO BODY
053	A 6845208341	BRACKET
		AIR CLEANER TO BODY
053	H YK3065200041	BRACKET
		AIR CLEANER TO BODY
056	N 000933010254	SCREW
		BRACKET TO FRAME SIDE MEMBER
059	N 913004010008	NUT
		BRACKET TO FRAME SIDE MEMBER
062	A 3860907081	STRAP
065	N 000933010254	SCREW
		AIR CLEANER TO BRACKET
068	N 913004010008	NUT
		AIR CLEANER TO BRACKET
071	A 6845207301	AIR INTAKE PIPE
		TO 386 090 71 01
071	A 6845207701	AIR INTAKE PIPE
		TO 386 090 71 01
071	A 6845208201	AIR INTAKE PIPE
		TO 376 090 85 01,86 01
074	A 6845208001	AIR INTAKE PIPE
074	A 6845208401	AIR INTAKE PIPE
077	N 000933008268	SCREW
		AIR INTAKE PIPE TO BRACKET
		M 8X16
077	N 000933008285	SCREW
		AIR INTAKE PIPE TO BRACKET
		M 8X12
080	N 912004008100	LOCK WASHER
		AIR INTAKE PIPE TO BRACKET
080	N 912004008100	LOCK WASHER
		AIR INTAKE PIPE TO BRACKET
083	A 6849977182	HOSE
		AIR INTAKE PIPE TO AIR CLEANER
		TO 386 090 71 01
083	N 900271100015	HOSE
		AIR INTAKE PIPE TO AIR CLEANER
		TO 376 090 85 01,86 01
086	A 6849977290	LOOM TIE
		AIR INTAKE PIPE TO AIR CLEANER
		TO 386 090 71 01
089	A 3450947082	HOSE
089	A 3640947782	HOSE
092	A 3845207101	AIR INTAKE PIPE
		LEFT
095	A 3529971382	HOSE
098	A 3445288708	AIR INTAKE PIPE
101	A 3449978090	CLAMP
101	A 3449978090	CLAMP
		HOSE TO AIR INTAKE PIPE
101	A 3449977990	LOOM TIE
104	N 900271100015	HOSE
		INTAKE PIPE TO ENGINE
107	A 6849977390	CLAMP
		INTAKE PIPE TO ENGINE
110	N 900271025023	HOSE
		INTAKE PIPE TO AIR COMPRESSOR
		25X34X1600 MM
113	A 3449977690	CLAMP
		INTAKE PIPE TO AIR COMPRESSOR
116	A 3449977290	LOOM TIE
		INTAKE PIPE TO AIR COMPRESSOR
119	N 007985006192	SCREW
		PARTITION PANEL TO BODY
122	N 000125006421	WASHER
		PARTITION PANEL TO BODY
125	N 000127006203	LOCK WASHER
		PARTITION PANEL TO BODY
128	N 000934006007	NUT
		PARTITION PANEL TO BODY
