Transporto priemonė: OF 1113 INDONESIA; VIN numerio dalis: 684057

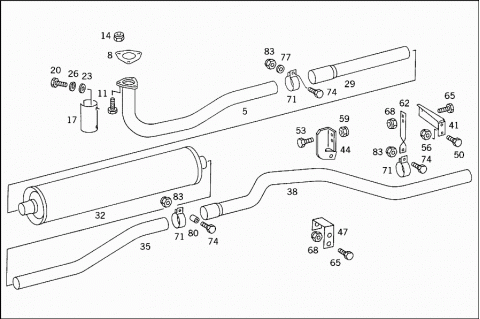

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3454909019 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 005 | A 6844907219 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 005 | A 6844907619 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 005 | A 6844907319 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 005 | A 6844907419 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 005 | A 6844907519 | EXHAUST PIPE |
| FRONT,FRONT PART | ||
| 008 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 008 | A 4424920280 | FLANGE GASKET |
| FRONT EXHAUST PIPE | ||
| 008 | A 3504920080 | FLANGE GASKET |
| Repalced by: A 6004920080 | ||
| 008 | A 6004920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE | ||
| 008 | A 6004920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE | ||
| 011 | N 000931010282 | SCREW |
| EXHAUST PIPE TO FLANGED ELBOW | ||
| M 10X40 | ||
| 011 | N 000931010399 | SCREW |
| EXHAUST PIPE TO FLANGED ELBOW | ||
| M 10X60 | ||
| 011 | N 000931012253 | SCREW |
| EXHAUST PIPE TO FLANGED ELBOW | ||
| M 12X65 | ||
| 014 | N 913004010000 | NUT |
| EXHAUST PIPE TO FLANGED ELBOW | ||
| 014 | N 913004012010 | NUT |
| EXHAUST PIPE TO FLANGED ELBOW | ||
| 017 | A 3224920530 | PROTECTIVE PLATE |
| 020 | N 000933006228 | SCREW |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 023 | N 000125006421 | WASHER |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 026 | N 000127006203 | LOCK WASHER |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 029 | A 3454928602 | FRONT EXHAUST PIPE |
| FRONT,REAR PART | ||
| 029 | A 3454928602 | FRONT EXHAUST PIPE |
| FRONT,REAR PART | ||
| 029 | H YK3064920002 | FRONT EXHAUST PIPE |
| FRONT,REAR PART | ||
| 029 | A 3844927103 | FRONT EXHAUST PIPE |
| FRONT,REAR PART | ||
| 032 | A 6174900301 | EXHAUST MUFFLER |
| 032 | A 6164900501 | EXHAUST MUFFLER |
| 032 | A 6844900001 | EXHAUST MUFFLER |
| 035 | A 3454927105 | REAR EXHAUST PIPE |
| REAR,FRONT PART | ||
| 035 | A 6844927005 | REAR EXHAUST PIPE |
| REAR,FRONT PART | ||
| 035 | A 6844927005 | REAR EXHAUST PIPE |
| REAR,FRONT PART | ||
| 035 | A 6844927107 | CONNECTOR |
| REAR,FRONT PART | ||
| 038 | A 3454929404 | REAR EXHAUST PIPE |
| REAR;REAR PART | ||
| 038 | A 6844927404 | REAR EXHAUST PIPE |
| REAR;REAR PART | ||
| 038 | A 6844927404 | REAR EXHAUST PIPE |
| REAR;REAR PART | ||
| 038 | H YK3064920004 | REAR EXHAUST PIPE |
| REAR;REAR PART | ||
| 038 | A 6844927204 | REAR EXHAUST PIPE |
| REAR;REAR PART | ||
| 041 | A 3454927316 | SUPPORT |
| EXHAUST PIPE SUSPENSION | ||
| 044 | H YK3064920016 | SUPPORT |
| EXHAUST PIPE SUSPENSION | ||
| 047 | A 3454928141 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 047 | A 3844927241 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 047 | A 3844927241 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| H YK3064920018 | BASE PLATE | |
| SUPPORT TO SIDE MEMBER | ||
| 050 | N 000933008270 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 050 | N 000933008152 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 053 | N 000933008271 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 056 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 059 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 062 | A 3444927119 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 062 | A 3444927119 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 062 | A 3444927119 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 062 | H YK3064920019 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 062 | A 3454927241 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 062 | A 3764920942 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 062 | A 3764920942 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 062 | A 3764920242 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 062 | A 3844927941 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 062 | A 3764924041 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 062 | A 3764924041 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 062 | A 3764920841 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 065 | N 000933008271 | SCREW |
| BRACKET TO SUPPORT | ||
| 068 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 071 | N 071555075500 | CLAMP |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| 071 | N 071555090500 | CLAMP |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| 071 | N 071555094500 | CLAMP |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| 071 | N 071555078500 | CLAMP |
| REAR EXHAUST PIPE | ||
| 074 | N 000933010129 | SCREW |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| 074 | N 000931008369 | SCREW |
| REAR EXHAUST PIPE TO SIDE MEMBER | ||
| 074 | N 000933008152 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 8X30 | ||
| 074 | N 000933008152 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X30 | ||
| 077 | N 000125008417 | WASHER |
| REAR EXHAUST PIPE TO BRACKET | ||
| 077 | N 000125008417 | WASHER |
| BRACKET TO SUPPORT | ||
| 080 | A 3028880026 | SLEEVE |
| REAR EXHAUST PIPE TO SIDE MEMBER | ||
| 083 | N 913004010008 | NUT |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| 083 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 083 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 083 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO SIDE MEMBER | ||
