Transporto priemonė: OF 1113 INDONESIA; VIN numerio dalis: 684057

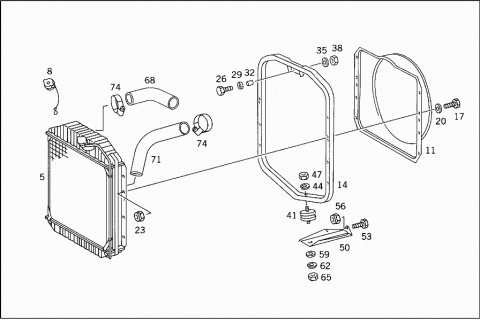

Grupė: 50 RADIATOR - 120 RADIATOR AND COOLING WATER LINES
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6845017101 | RADIATOR |
| 005 | A 6845017201 | RADIATOR |
| 008 | A 3455007006 | FILLER CAP |
| 011 | A 3525050155 | FAN SHROUD |
| 011 | A 6845057055 | FAN SHROUD |
| 014 | A 3455000527 | SUPPORT |
| RADIATOR MOUNTING | ||
| 014 | A 6845007127 | SUPPORT |
| RADIATOR MOUNTING | ||
| A 6845007031 | BRACKET | |
| RADIATOR MOUNTING | ||
| 017 | N 000933008145 | SCREW |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| 020 | N 000433008403 | WASHER |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| 023 | N 913004008001 | NUT |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| 026 | N 000933010268 | SCREW |
| BASE FRAME TO BRACKET | ||
| 026 | N 000931010422 | SCREW |
| BASE FRAME TO BRACKET | ||
| 029 | A 3275045082 | RUBBER RING |
| BASE FRAME TO BRACKET | ||
| 032 | A 3199910540 | SPACER TUBE |
| BASE FRAME TO BRACKET | ||
| 035 | N 009021010102 | WASHER |
| BASE FRAME TO BRACKET | ||
| 038 | N 000934010005 | NUT |
| BASE FRAME TO BRACKET | ||
| 041 | A 3605040012 | RUBBER MOUNTING |
| RADIATOR BASE FRAME & RADIATOR BLOCK TO FRAME | ||
| 044 | N 000127010202 | LOCK WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 047 | N 000934010005 | NUT |
| RUBBER BUFFER TO BASE FRAME | ||
| 050 | A 6845047001 | SUPPORT |
| LEFT | ||
| 050 | A 6845047101 | SUPPORT |
| RIGHT | ||
| 053 | N 000933010256 | SCREW |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 053 | N 000933010257 | SCREW |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 056 | N 913004010008 | NUT |
| SUPPORT TO ENGINE CROSS MEMBER | ||
| 059 | N 000125010517 | WASHER |
| RUBBER BUFFER TO CONSOLE AT BASE FRAME | ||
| 062 | N 000127010202 | LOCK WASHER |
| RUBBER BUFFER TO CONSOLE AT BASE FRAME | ||
| 065 | N 000934010005 | NUT |
| RUBBER BUFFER TO CONSOLE AT BASE FRAME | ||
| 068 | A 3525010682 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 068 | A 6845017082 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 071 | A 3525010382 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 074 | A 3449977790 | CLAMP |
| HOSE TO RADIATOR,THERMOSTAT,AND WATER PUMP | ||
| 074 | A 3449977790 | CLAMP |
| HOSE TO RADIATOR AND TO OIL COOLER | ||
| 074 | A 3459978190 | LOOM TIE |
| Repalced by: A 3459979190 | ||
| 074 | A 3459979190 | CLAMP |
| HOSE TO RADIATOR,THERMOSTAT,AND WATER PUMP | ||
| 074 | A 3459979190 | CLAMP |
| HOSE TO RADIATOR AND TO OIL COOLER | ||
| 074 | A 3509979190 | CLAMP |
| HOSE TO RADIATOR,THERMOSTAT,AND WATER PUMP | ||
| 074 | A 3509979190 | CLAMP |
| HOSE TO RADIATOR AND TO OIL COOLER | ||
