Transporto priemonė: OF 1113 INDONESIA; VIN numerio dalis: 684057

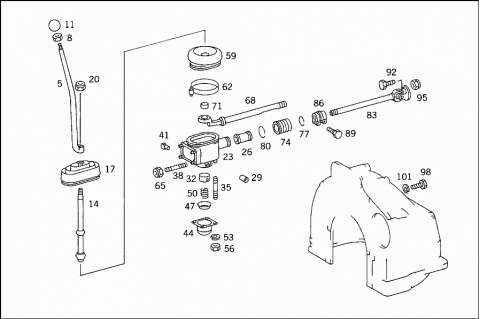

Grupė: 26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3522670401 | SHIFT LEVER |
| UPPER PART | ||
| 008 | N 000936010002 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 011 | A 3442600040 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 011 | A 3222600040 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 011 | A 3452607140 | HANDLE |
| SHIFT LEVER UPPER PART | ||
| 014 | A 3522670102 | SHIFT LEVER LOWER PART |
| LOWER PART | ||
| 017 | A 3522670296 | BOOT |
| SHIFT LEVER BEARING COVERING | ||
| 017 | A 3442677096 | BOOT |
| SHIFT LEVER BEARING COVERING | ||
| 020 | N 913004012012 | NUT |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 023 | A 3452600172 | SHIFT CASE |
| 026 | A 3522680050 | BUSHING |
| 029 | A 3522680250 | BUSHING |
| 032 | A 3522680335 | BEARING |
| 035 | N 000835008005 | STUD |
| SHIFT CASE,BOTTOM | ||
| M 8X18 | ||
| 038 | N 000835008008 | STUD |
| SHIFT CASE,SIDE | ||
| M 8X20 | ||
| 041 | A 3142680249 | SLIDE |
| SHIFT CASE | ||
| 044 | A 3522680005 | COVER |
| SHIFT CASE,BOTTOM | ||
| 047 | A 3022670008 | SPHERICAL PIECE |
| SHIFT CASE,BOTTOM | ||
| 050 | A 3179930501 | SPRING |
| SHIFT CASE,BOTTOM | ||
| 053 | N 912004008100 | LOCK WASHER |
| BOOT TO SHIFT CASE | ||
| 056 | N 000934008010 | NUT |
| BOOT TO SHIFT CASE | ||
| 059 | A 3522680497 | BOOT |
| SHIFT CASE | ||
| 062 | N 900264005524 | LOOM TIE |
| BOOT TO SHIFT CASE | ||
| 065 | N 913004008001 | NUT |
| SHIFT CASE TO BRACKET | ||
| 068 | A 3452600533 | SHIFTING ROD |
| FRONT | ||
| 071 | A 3522680450 | BUSHING |
| FRONT SHIFTING ROD | ||
| 074 | A 3522680097 | BOOT |
| FRONT SHIFTING ROD | ||
| 077 | N 009045028001 | SNAP RING |
| FRONT SHIFTING ROD | ||
| 080 | N 009045055000 | SNAP RING |
| FRONT SHIFTING ROD | ||
| 083 | A 3452607933 | SHIFTING ROD |
| REAR | ||
| 086 | A 3142680388 | CLAMPING PIECE |
| SHIFTING TUBE | ||
| 089 | N 000933010269 | SCREW |
| CLAMPING PIECE TO SHIFTING ROD | ||
| 092 | A 3179900301 | SCREW |
| SHIFTING TUBE TO TRANSMISSION | ||
| 095 | N 913004008001 | NUT |
| SHIFTING TUBE TO TRANSMISSION | ||
| 098 | N 000933014050 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 101 | N 000127014201 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING |
