Transporto priemonė: OF 1214; VIN numerio dalis: 341068

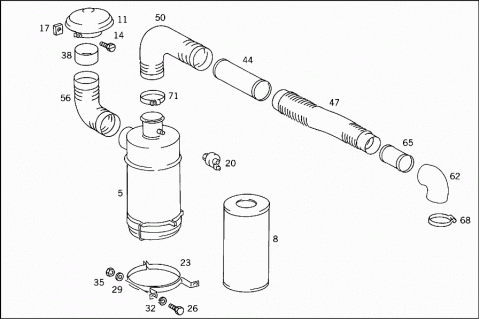

Grupė: 52 CHASSIS SHEET METAL - 120 AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3410947401 | AIR CLEANER |
| 008 | A 3410947004 | FILTER ELEMENT |
| 011 | A 3410947106 | COVER |
| 011 | A 0000949006 | COVER |
| 014 | A 0009905001 | SCREW |
| 017 | N 000557006000 | NUT |
| 020 | A 0000940368 | VACUUM BOX |
| 023 | A 3410947041 | BRACKET |
| AIR CLEANER | ||
| 026 | N 000933010128 | SCREW |
| AIR CLEANER TO FRAME | ||
| 029 | N 000125010517 | WASHER |
| AIR CLEANER TO FRAME | ||
| 032 | N 000127010202 | LOCK WASHER |
| AIR CLEANER TO FRAME | ||
| 035 | N 000934010040 | NUT |
| AIR CLEANER TO FRAME | ||
| 038 | A 3415287908 | AIR INTAKE PIPE |
| 041 | A 3415207306 | PIPE ELBOW |
| 044 | A 3415288008 | AIR INTAKE PIPE |
| H 983450940182 | HOSE | |
| Repalced by: A 3450947182 | ||
| 047 | A 3450747182 | GROMMET |
| 050 | A 0000947482 | HOSE |
| FROM AIR CLEANER TO AIR INTAKE PIPE | ||
| 053 | A 3450947082 | HOSE |
| FROM AIR CLEANER TO ENGINE | ||
| 053 | A 0010940182 | HOSE |
| FROM AIR CLEANER TO ENGINE | ||
| 056 | A 0000949682 | HOSE |
| RAIN DEFLECTOR TO DRY AIR CLEANER | ||
| 059 | A 3419977182 | HOSE |
| FROM AIR CLEANER TO ENGINE | ||
| 062 | A 3529971382 | HOSE |
| 062 | A 3909977882 | HOSE |
| 065 | A 3415287108 | AIR INTAKE PIPE |
| 068 | A 3419978090 | LOOM TIE |
| 80-95 MM | ||
| 068 | N 916018080000 | CLAMP |
| 80-100 MM | ||
| 071 | A 3419978190 | LOOM TIE |
| 100-115 MM | ||
| 071 | N 916018100000 | CLAMP |
| 100-120 MM | ||
