Transporto priemonė: OF 1214; VIN numerio dalis: 341068

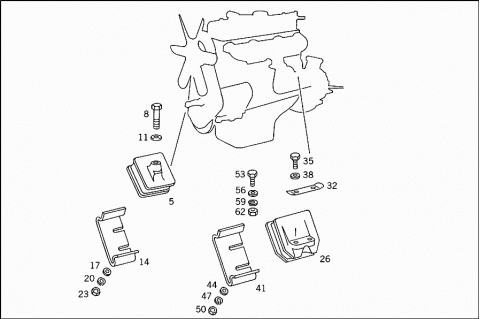

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3522400417 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 008 | N 000960016030 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 011 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 014 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 017 | N 009021013201 | WASHER |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 020 | N 000127012203 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 023 | N 000934012004 | NUT |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 026 | A 3522400318 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 026 | A 3452400018 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 032 | A 3529940032 | LOCK |
| ENGINE TO LEFT REAR RUBBER MOUNTING | ||
| 035 | N 000961014101 | SCREW |
| ENGINE TO REAR RUBBER MOUNTING | ||
| 038 | A 3609901840 | WASHER |
| ENGINE TO REAR RUBBER MOUNTING | ||
| 041 | A 3522420409 | ENGINE STAY |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 044 | N 009021013201 | WASHER |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 047 | N 000127012203 | LOCK WASHER |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 050 | N 000934012004 | NUT |
| RUBBER MOUNTING TO REAR CROSS MEMBER | ||
| 053 | N 000933010056 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 10X35 | ||
| 053 | N 000933010129 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 10X30 | ||
| 056 | N 000125010518 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 059 | N 000127010205 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 062 | N 000934010000 | NUT |
| CONSOLE TO SIDE MEMBER |
