Transporto priemonė: OF 1214; VIN numerio dalis: 341068

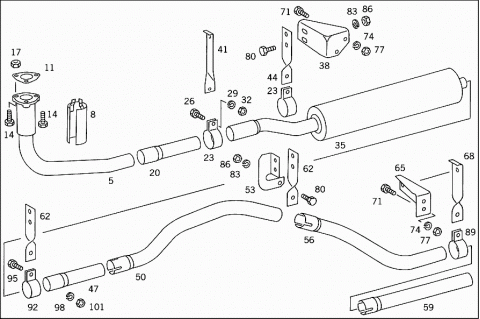

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3414907619 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 3414907130 | PROTECTIVE PLATE |
| 011 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 011 | A 4424920280 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | N 000931010282 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | N 000931010102 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | N 000934010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | A 3414929607 | CONNECTOR |
| 020 | A 3414927408 | COLLAR |
| 023 | N 071555065502 | CLAMP |
| EXHAUST MUFFLER AND EXHAUST PIPE TO FRONT BRACKET | ||
| 65.5 | ||
| 026 | N 000933008048 | SCREW |
| CLAMP TO CONNECTOR | ||
| 029 | N 912004008104 | LOCK WASHER |
| CLAMP TO CONNECTOR | ||
| 032 | N 000934008000 | NUT |
| CLAMP TO CONNECTOR | ||
| 035 | A 3414907216 | EXHAUST MUFFLER WITH PIPE |
| FRONT | ||
| 038 | A 3414910016 | SUPPORT |
| FRONT EXHAUST MUFFLER | ||
| 041 | A 3414927741 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 044 | A 3414928641 | BRACKET |
| FRONT EXHAUST MUFFLER | ||
| 047 | A 3414928505 | REAR EXHAUST PIPE |
| CONNECTING PIPE | ||
| 050 | A 3414928405 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 053 | A 3604921319 | BRACKET |
| CENTRAL PART | ||
| 056 | A 3414927005 | REAR EXHAUST PIPE |
| IN FRONT OF TAIL PIPE | ||
| 059 | A 3414929004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 062 | A 3414928641 | BRACKET |
| 065 | A 3414927016 | SUPPORT |
| REAR EXHAUST PIPES | ||
| 068 | A 3414927341 | BRACKET |
| REAR EXHAUST PIPES | ||
| 071 | N 000933008036 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 074 | N 912004008104 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 077 | N 000934008000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 080 | N 000933008025 | SCREW |
| BRACKET TO EXHAUST PIPE SUPPORT | ||
| 083 | N 912004008104 | LOCK WASHER |
| BRACKET TO EXHAUST PIPE SUPPORT | ||
| 086 | N 000934008000 | NUT |
| BRACKET TO EXHAUST PIPE SUPPORT | ||
| 089 | N 071555060503 | CLAMP |
| TAIL PIPE TO BRACKET | ||
| 60.5 | ||
| 092 | N 071555063502 | CLAMP |
| REAR EXHAUST PIPES | ||
| 63.5 | ||
| 092 | N 071555063502 | CLAMP |
| REAR EXHAUST PIPES | ||
| 63.5 | ||
| 092 | A 3414927440 | CLAMP |
| 62.5 | ||
| 095 | N 000933008153 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 098 | N 912004008104 | LOCK WASHER |
| CLAMP TO BRACKET AND TO PIPE | ||
| 101 | N 000934008000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
