Transporto priemonė: OF 1214; VIN numerio dalis: 341068

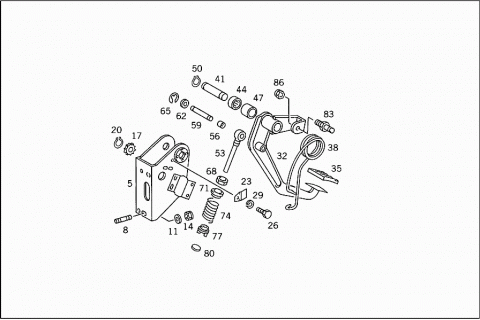

Grupė: 29 PEDALS - 050 CLUTCH PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3812901319 | BEARING BRACKET |
| CLUTCH | ||
| 008 | N 000939008148 | STUD BOLT |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 011 | N 000125008417 | WASHER |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 014 | N 913004008004 | NUT |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 017 | A 3812910186 | STOP |
| 020 | N 000471016001 | LOCK RING |
| STOP TO BEARING BRACKET | ||
| 023 | A 3812910073 | LOCK |
| 026 | N 000933006220 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 029 | N 000127006203 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 032 | A 3812900916 | PEDAL |
| 035 | A 1102910182 | PAD |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 107 291 01 82 | ||
| 038 | A 3819930710 | SPRING |
| 041 | A 3812940707 | PIVOT PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 044 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0019813410 | ||
| 044 | A 0119813410 | NEEDLE BEARING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 044 | A 0009811110 | NEEDLE BEARING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 047 | A 3812910053 | SPACER TUBE |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 050 | N 000471020001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 053 | A 3812910233 | ROD |
| 053 | A 3812910333 | ROD |
| 056 | A 0059814410 | NEEDLE BEARING |
| PUSH ROD TO PEDAL | ||
| 056 | A 0059813810 | NEEDLE BEARING |
| PUSH ROD TO PEDAL | ||
| 056 | A 0089811210 | NEEDLE BEARING |
| PUSH ROD TO PEDAL | ||
| 059 | A 3812910574 | PIN |
| PUSH ROD TO PEDAL | ||
| 062 | N 000433008403 | WASHER |
| PUSH ROD TO PEDAL | ||
| 065 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| 068 | N 000439010221 | NUT |
| SPRING TO PUSH ROD | ||
| 071 | A 1112910491 | SPRING RETAINER |
| TOP | ||
| 074 | A 1109930501 | SPRING |
| 077 | A 3092910091 | SPRING RETAINER |
| 080 | A 3413017041 | STOP |
| 083 | A 3812910274 | PIN |
| CLUTCH MASTER CYLINDER TO CLUTCH PEDAL | ||
| 086 | N 913002008001 | NUT |
| PIN TO CLUTCH PEDAL | ||
