Mercedes-benz | iAUTO.lt

Transporto priemonė: OF 1214; VIN numerio dalis: 341068

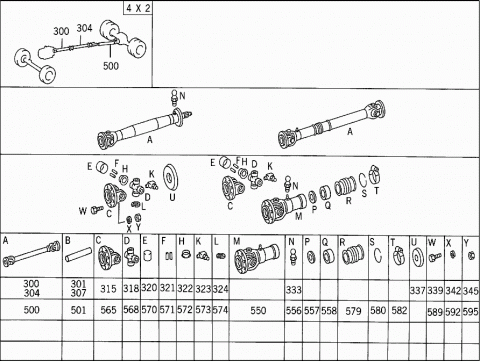

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
	A 3184100101	PROPELLER SHAFT
	Repalced by: A 3414103901
300	A 3414103901	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		873 MM
	A 3274101027	PROPELLER SHAFT TUBE
	Repalced by: A 3414100829
301	A 3414100829	PROPELLER SHAFT TUBE
	A 3414100304	PROPELLER SHAFT
	Repalced by: A 3414104601
304	A 3414104601	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
		1316 MM
	A 3414100229	PROPELLER SHAFT TUBE
	Repalced by: A 3414101229
307	A 3414101229	PROPELLER SHAFT TUBE
		1159 MM
307	A 3024100037	PROPELLER SHAFT TUBE
315	A 3524110011	DRIVE FLANGE
318	A 3854100231	UNIVERSAL JOINT CROSS
320	A 3224100542	BEARING BUSHING
321	A 0009815087	NEEDLE
322	A 3124111233	EXPANSION PLUG
323	N 071412008300	GREASE NIPPLE
323	A 3459977288	GREASE NIPPLE
324	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
324	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
324	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
324	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
324	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
324	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
333	N 071412008100	GREASE NIPPLE
337	A 3124131361	PROTECTIVE CAP
		TO 341 410 39 01
337	A 3524130061	PROTECTIVE CAP
		TO 341 410 46 01
339	A 3529900401	SCREW
	Repalced by: A 3529904701
339	A 3529904701	SCREW
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
342	N 000127010202	LOCK WASHER
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		TO 352 990 04 01
345	N 913002010010	NUT
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
	X XXXXXXXXXXXX	PART NAME MISSING

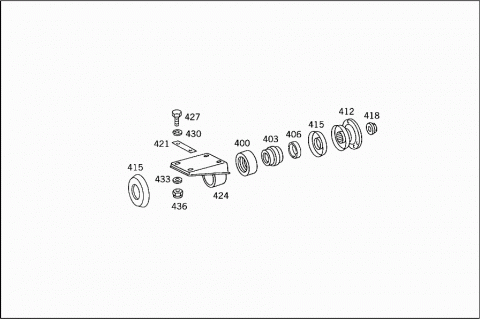

		PROPELLER SHAFT BEARINGS I AND II
400	A 3124131112	RUBBER MOUNTING
		PROPELLER SHAFT BEARING I
400	A 3524130012	RUBBER MOUNTING
		PROPELLER SHAFT BEARING II
403	A 3524100051	BALL BEARING
403	A 3454100051	BALL BEARING
406	A 3124131231	BEARING RING
412	A 3524100030	CENTERING FLANGE
		PROPELLER SHAFT BEARING I
412	A 3524100130	CENTERING FLANGE
		PROPELLER SHAFT BEARING II
415	A 3124131361	PROTECTIVE CAP
		PROPELLER SHAFT BEARING I
415	A 3524130061	PROTECTIVE CAP
		PROPELLER SHAFT BEARING II
418	A 3224110072	NUT
421	A 3524130011	REINFORCEMENT
		INTERMEDIATE BEARING
424	A 3224100540	BRACKET
		INTERMEDIATE BEARING
		"I,II"
427	N 000961010039	SCREW
		INTERMEDIATE BEARING
430	N 000127010202	LOCK WASHER
		INTERMEDIATE BEARING
433	N 007349010001	WASHER
		INTERMEDIATE BEARING
436	N 913002010010	NUT
		INTERMEDIATE BEARING
	A 3524100302	PROPELLER SHAFT
	Repalced by: A 3444101602
	A 3444101602	PROPELLER SHAFT
	Repalced by: A 3414106702
500	A 3414106702	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1775 MM
500	A 3414106702	PROPELLER SHAFT
		IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
		318 410 07 02; 1753 MM
	A 3224104727	PROPELLER SHAFT TUBE
	Repalced by: A 3444102227
501	A 3444102227	PROPELLER SHAFT TUBE
	A 3524100008	UNIVERSAL JOINT YOKE
	Repalced by: A 3444100008
	A 3444100008	UNIVERSAL JOINT YOKE
	Repalced by: A 3414100908
550	A 3414100908	UNIVERSAL JOINT YOKE
	A 3444110005	UNIVERSAL JOINT YOKE
	Repalced by: A 3024110405
550	A 3024110405	UNIVERSAL JOINT YOKE
556	N 071412008100	GREASE NIPPLE
557	A 3374130080	SEAL RING
558	A 3214110158	SEAL HOLDER
565	A 3524110011	DRIVE FLANGE
568	A 3854100231	UNIVERSAL JOINT CROSS
568	A 3024100031	UNIVERSAL JOINT CROSS
570	A 3224100542	BEARING BUSHING
571	A 0009815087	NEEDLE
572	A 3124111233	EXPANSION PLUG
573	N 071412008300	GREASE NIPPLE
573	A 3459977288	GREASE NIPPLE
574	A 3129941135	SNAP RING
		AS REQUIRED
		2.50 MM
574	A 3129941635	SNAP RING
		AS REQUIRED
		2.55 MM
574	A 3129941335	SNAP RING
		AS REQUIRED
		2.60 MM
574	A 3129941435	SNAP RING
		AS REQUIRED
		2.65 MM
574	A 3129941535	SNAP RING
		AS REQUIRED
		2.70 MM
574	A 3129941735	SNAP RING
		AS REQUIRED
		2.75 MM
	A 3524100080	BOOT
	Repalced by: A 3414100080
579	A 3414100080	BOOT
579	A 3454107280	BOOT
580	A 3214110053	WIRE RING
582	N 916002078100	CLAMP
582	A 3419977790	CLAMP
589	A 3529900401	SCREW
	Repalced by: A 3529904701
589	A 3529904701	SCREW
		FROM INTERMEDIATE BEARING II TO REAR AXLE
592	N 000127010202	LOCK WASHER
		FROM INTERMEDIATE BEARING II TO REAR AXLE
		TO 352 990 04 01
595	N 000934010042	NUT
		FROM INTERMEDIATE BEARING II TO REAR AXLE
