Transporto priemonė: OF 1214; VIN numerio dalis: 341068

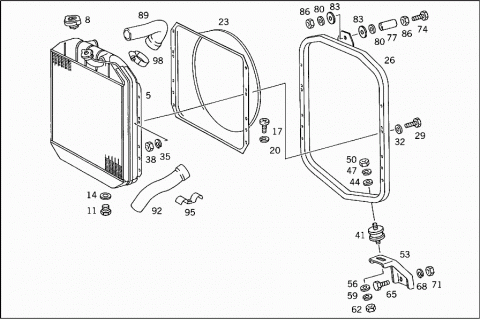

Grupė: 50 RADIATOR - 120 RADIATOR AND COOLING WATER LINES
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3415017601 | RADIATOR |
| 005 | A 3415017701 | RADIATOR |
| 008 | A 0005010215 | RADIATOR CAP |
| 008 | A 3445010315 | RADIATOR CAP |
| 011 | N 007604018102 | SCREW PLUG |
| 014 | N 007603018401 | SEAL RING |
| 017 | N 007985006193 | SCREW |
| 020 | N 912004006102 | LOCK WASHER |
| 023 | A 3415050055 | FAN SHROUD |
| 026 | A 3415007527 | SUPPORT |
| 029 | N 000933008036 | SCREW |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 032 | N 000125008413 | WASHER |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 035 | N 912004008104 | LOCK WASHER |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 038 | N 000934008000 | NUT |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 041 | A 3605040012 | RUBBER MOUNTING |
| 044 | N 000125010518 | WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 047 | N 000127010205 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORT | ||
| 050 | N 000934010000 | NUT |
| RUBBER MOUNTING TO SUPPORT | ||
| 053 | A 3415047140 | BRACKET |
| 056 | N 007349010001 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 059 | N 000127010205 | LOCK WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 062 | N 000934010000 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 065 | N 000933010105 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 065 | N 000933010128 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 068 | N 000127010205 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 071 | N 000934010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 074 | N 000933010115 | SCREW |
| Repalced by: N 000933010289 | ||
| 074 | N 000933010289 | SCREW |
| BASE FRAME TO BRACKET | ||
| 077 | A 3199910540 | SPACER TUBE |
| BASE FRAME TO BRACKET | ||
| 080 | N 009021010100 | WASHER |
| BASE FRAME TO BRACKET | ||
| 083 | A 3275045082 | RUBBER RING |
| 086 | N 000934010000 | NUT |
| BASE FRAME TO BRACKET | ||
| 089 | A 3405010082 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 092 | A 3405010482 | HOSE |
| Repalced by: A 3415017282 | ||
| A 3415010382 | HOSE | |
| Repalced by: A 3415017282 | ||
| A 3405010482 | HOSE | |
| Repalced by: A 3415017282 | ||
| 092 | A 3415017282 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 095 | A 3219950332 | CLAMP |
| 098 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 098 | N 000000000671 | CLAMP |
