Transporto priemonė: OF 1317; VIN numerio dalis: 352088

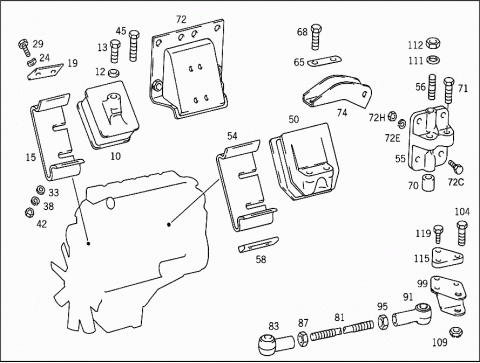

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3522400217 | RUBBER MOUNTING |
| Repalced by: A 3522400417 | ||
| 010 | A 3522400117 | RUBBER MOUNTING |
| Repalced by: A 3522400517 | ||
| 010 | A 3522400417 | RUBBER MOUNTING |
| FRONT | ||
| 010 | A 3522400517 | RUBBER MOUNTING |
| FRONT | ||
| 012 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 013 | N 000960016237 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M16X60 | ||
| 015 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 019 | A 3022420043 | STOP |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 019 | A 3022420043 | STOP |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 024 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 024 | N 000137008212 | SPRING WASHER |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 024 | N 000137008212 | SPRING WASHER |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 029 | N 000933008145 | SCREW |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| M8X18 | ||
| 029 | N 000933008145 | SCREW |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| M8X18 | ||
| 033 | N 009021013200 | WASHER |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 038 | N 912004012100 | LOCK WASHER |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 042 | N 000934012022 | NUT |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 045 | N 000960014237 | SCREW |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| M14X50 | ||
| 045 | N 000961016119 | SCREW |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| M16X48 | ||
| 045 | N 000960016237 | SCREW |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| M16X60 | ||
| N 000960014229 | SCREW | |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M14X55 | ||
| N 000960016249 | SCREW | |
| Repalced by: N 308676016004 | ||
| N 308676016004 | SCREW | |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M16X55 | ||
| N 000137014201 | SPRING WASHER | |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| N 912004016101 | LOCK WASHER | |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| A 3529901040 | WASHER | |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| A 3529902440 | WASHER | |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 050 | A 3522400318 | RUBBER MOUNTING |
| REAR | ||
| 050 | A 3522400218 | RUBBER MOUNTING |
| Repalced by: A 3522400518 | ||
| 050 | A 3522400518 | RUBBER MOUNTING |
| REAR | ||
| 054 | A 3522420409 | ENGINE STAY |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 055 | A 3522421209 | ENGINE STAY |
| ENGINE ALONGSIDE FIXING | ||
| 055 | A 3552420509 | ENGINE STAY |
| Repalced by: A 3552400410 | ||
| 055 | A 3552400410 | ENGINE STAY |
| ENGINE ALONGSIDE FIXING | ||
| 056 | A 3529900405 | STUD |
| ENGINE ALONGSIDE FIXING | ||
| 056 | A 3529900505 | STUD |
| ENGINE ALONGSIDE FIXING | ||
| A 3522421109 | ENGINE STAY | |
| REAR RIGHT | ||
| N 000961014116 | SCREW | |
| RUBBER MOUNT | ||
| A 3609901840 | WASHER | |
| RUBBER MOUNT | ||
| 058 | A 3022420143 | STOP |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 058 | A 3022420143 | STOP |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000933008145 | SCREW | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| M8X18 | ||
| N 000933008145 | SCREW | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| M8X18 | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000137008212 | SPRING WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 009021013200 | WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 912004012100 | LOCK WASHER | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| N 000934012022 | NUT | |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 065 | A 3529940032 | LOCK |
| ENGINE TO ENGINE REAR MOUNTING | ||
| N 000961014088 | SCREW | |
| Repalced by: N 308676014008 | ||
| N 308676014008 | SCREW | |
| ENGINE TO ENGINE REAR MOUNTING | ||
| M 14X35 | ||
| 068 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 068 | A 9429901304 | SCREW |
| ENGINE TO ENGINE REAR MOUNTING | ||
| M14X40 | ||
| 070 | A 3602420053 | SPACER TUBE |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 070 | A 3602420253 | SPACER TUBE |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 071 | N 000960014250 | SCREW |
| Repalced by: N 000961014158 | ||
| 071 | N 000961014158 | SCREW |
| Repalced by: N 308676014014 | ||
| 071 | N 308676014014 | SCREW |
| ENGINE TO ENGINE REAR MOUNTING | ||
| M 14X70 | ||
| 071 | N 000960016206 | SCREW |
| ENGINE TO ENGINE REAR MOUNTING | ||
| M 16X70 | ||
| 072 | A 3522400006 | CONSOLE |
| Repalced by: A 3522400010 | ||
| 072 | A 3522400010 | ENGINE STAY |
| ENGINE REAR SUSPENSION | ||
| 072C | A 3559900114 | SCREW |
| ENGINE STAY TO FLYWHEEL HOUSING | ||
| M 12X35 | ||
| N 912004014100 | LOCK WASHER | |
| ENGINE STAY TO FLYWHEEL HOUSING | ||
| N 308676012012 | SCREW | |
| ENGINE REAR SUSPENSION | ||
| M12X25 | ||
| 072E | N 912004012100 | LOCK WASHER |
| ENGINE REAR SUSPENSION | ||
| 072H | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 072H | N 308673012002 | HEXAGON NUT |
| ENGINE REAR SUSPENSION | ||
| 074 | A 3522420207 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 074 | A 3522420307 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| N 000961012151 | SCREW | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| M12X30 | ||
| N 912004012100 | LOCK WASHER | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| N 912004012100 | LOCK WASHER | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| N 000934012022 | NUT | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| N 000934012022 | NUT | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| N 910113012002 | NUT | |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| A 3522400125 | ROD | |
| ENGINE ALONGSIDE FIXING | ||
| A 3602400025 | ROD | |
| ENGINE ALONGSIDE FIXING | ||
| 081 | A 3522420037 | ROD |
| Repalced by: A 3522420237 | ||
| 081 | A 3522420237 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| 081 | A 3602420037 | ROD |
| ENGINE ALONGSIDE FIXING | ||
| 083 | A 0009961540 | ROD END |
| ENGINE ALONGSIDE FIXING | ||
| 087 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 087 | N 308673016001 | NUT |
| ENGINE ALONGSIDE FIXING | ||
| 091 | A 0009961740 | ROD END |
| ENGINE ALONGSIDE FIXING | ||
| 095 | N 000934016014 | NUT |
| ENGINE ALONGSIDE FIXING | ||
| 099 | A 3522400035 | BEARING BRACKET |
| ENGINE ALONGSIDE FIXING | ||
| 104 | A 3522420071 | SCREW |
| ROD TO FRONT AND REAR BRACKETS | ||
| 109 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 109 | N 000979016007 | NUT |
| ROD TO FRONT AND REAR BRACKETS | ||
| N 000094004065 | COTTER PIN | |
| ROD TO FRONT AND REAR BRACKETS | ||
| N 000961012151 | SCREW | |
| ROD TO FRONT AND REAR BRACKETS | ||
| M12X30 | ||
| 111 | N 000433017004 | WASHER |
| ROD TO ENGINE STAY | ||
| 112 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 112 | N 000979016007 | NUT |
| ROD TO ENGINE STAY | ||
| N 000094004065 | COTTER PIN | |
| ROD TO ENGINE STAY | ||
| 115 | A 3522420026 | SHIM |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| 119 | N 000960012342 | SCREW |
| Repalced by: N 308676012015 | ||
| 119 | N 308676012015 | SCREW |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| M12X45 | ||
| 119 | N 000961012122 | SCREW |
| BEARING BRACKET TO BRAKE BOOSTER CONSOLE | ||
| M 12X40 | ||
