Transporto priemonė: OF 1317; VIN numerio dalis: 352088

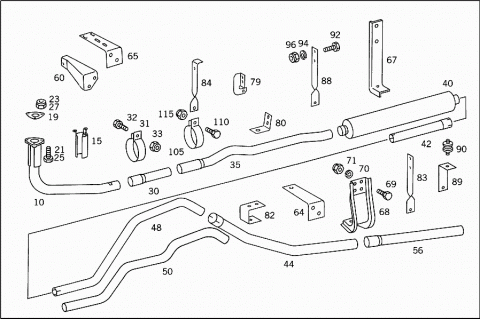

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3524900619 | EXHAUST PIPE |
| FRONT; FIRST PART | ||
| 010 | A 3604903919 | EXHAUST PIPE |
| FRONT; FIRST PART | ||
| 010 | A 3524900319 | EXHAUST PIPE |
| FRONT; FIRST PART | ||
| 010 | A 3524901319 | EXHAUST PIPE |
| FRONT; FIRST PART | ||
| A 3024900030 | PROTECTIVE PLATE | |
| Repalced by: A 3834900130 | ||
| A 3814920030 | PROTECTIVE PLATE | |
| Repalced by: A 3834900130 | ||
| 015 | A 3834900130 | PROTECTIVE PLATE |
| Repalced by: A 3834922530 | ||
| 015 | A 3834922530 | PROTECTIVE PLATE |
| 019 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 019 | A 4424920280 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 019 | A 3024900080 | FLANGE GASKET |
| Repalced by: A 4424920080 | ||
| 019 | A 4424920080 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 021 | N 000931010282 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 023 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 023 | N 910113010000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 025 | N 000931012132 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M12X50 | ||
| 025 | N 000931012182 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M12X55 | ||
| 027 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 3604920107 | CONNECTOR | |
| Repalced by: A 3024920509 | ||
| 030 | A 3024920509 | CONNECTOR |
| FRONT | ||
| A 3604920207 | CONNECTOR | |
| Repalced by: A 3224920207 | ||
| 030 | A 3224920207 | CONNECTOR |
| FRONT | ||
| 031 | N 071555075502 | CLAMP |
| CLAMP TO CONNECTOR | ||
| 032 | N 000933010105 | SCREW |
| CLAMP TO CONNECTOR | ||
| 033 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 033 | N 910113010000 | NUT |
| CLAMP TO CONNECTOR | ||
| 035 | A 3524923101 | FRONT EXHAUST PIPE |
| FRONT;SECOND PART | ||
| 035 | A 3604925201 | FRONT EXHAUST PIPE |
| FRONT;SECOND PART | ||
| 035 | A 3524922401 | FRONT EXHAUST PIPE |
| FRONT;SECOND PART | ||
| 035 | A 3604925301 | FRONT EXHAUST PIPE |
| FRONT;SECOND PART | ||
| 035 | A 3524924501 | FRONT EXHAUST PIPE |
| FRONT;SECOND PART | ||
| A 3604900001 | EXHAUST MUFFLER | |
| Repalced by: A 3834900201 | ||
| A 3834900101 | EXHAUST MUFFLER | |
| Repalced by: A 3834900201 | ||
| 040 | A 3834900201 | EXHAUST MUFFLER |
| A 3224900201 | EXHAUST MUFFLER | |
| Repalced by: A 3834900001 | ||
| A 3604900101 | EXHAUST MUFFLER | |
| Repalced by: A 3834900001 | ||
| 040 | A 3834900001 | EXHAUST MUFFLER |
| 042 | A 3604922507 | CONNECTOR |
| REAR | ||
| A 3604921607 | CONNECTOR | |
| Repalced by: A 3604921707 | ||
| 042 | A 3604921707 | CONNECTOR |
| REAR | ||
| 042 | A 3604921507 | CONNECTOR |
| REAR | ||
| A 3604922407 | CONNECTOR | |
| Repalced by: A 3834920907 | ||
| A 3604922807 | CONNECTOR | |
| Repalced by: A 3604921907 | ||
| 042 | A 3604921907 | CONNECTOR |
| REAR | ||
| A 3604922307 | CONNECTOR | |
| Repalced by: A 3834921007 | ||
| 042 | A 3834921007 | CONNECTOR |
| REAR | ||
| 044 | A 3604920704 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| A 3604920804 | REAR EXHAUST PIPE | |
| Repalced by: A 3604923505 | ||
| 044 | A 3604923505 | REAR EXHAUST PIPE |
| AT MUFFLER | ||
| 048 | A 3604924804 | REAR EXHAUST PIPE |
| CENTRAL | ||
| 048 | A 3604920805 | REAR EXHAUST PIPE |
| CENTRAL | ||
| 048 | A 3604925304 | REAR EXHAUST PIPE |
| CENTRAL | ||
| 048 | A 3604920905 | REAR EXHAUST PIPE |
| CENTRAL | ||
| 050 | A 3554920207 | CONNECTOR |
| CENTRAL | ||
| A 3524920214 | END PIECE | |
| Repalced by: A 3604921707 | ||
| A 3604920114 | END PIECE | |
| Repalced by: A 3604921707 | ||
| A 3524920114 | END PIECE | |
| Repalced by: A 3604921707 | ||
| 056 | A 3604921707 | CONNECTOR |
| REAR EXHAUST PIPE | ||
| A 3524920014 | END PIECE | |
| Repalced by: A 3834920907 | ||
| A 3604920214 | END PIECE | |
| Repalced by: A 3834920907 | ||
| 056 | A 3834920907 | CONNECTOR |
| REAR EXHAUST PIPE | ||
| 060 | A 3524910016 | SUPPORT |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 064 | A 3224910016 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 065 | A 3604910916 | SUPPORT |
| FRONT AND REAR EXHAUST MUFFLERS | ||
| 065 | A 3604910016 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 067 | A 3604910516 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 067 | A 3604910516 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 068 | A 3814910016 | SUPPORT |
| EXHAUST MUFFLER TO SUPPORT AND TO PIPE | ||
| 069 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 069 | N 304017008021 | SCREW |
| EXHAUST MUFFLER TO SUPPORT,FRONT | ||
| M 8X22 | ||
| 069 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 069 | N 304017008034 | SCREW |
| EXHAUST MUFFLER TO SUPPORT,FRONT | ||
| M 8X25 | ||
| 069 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 069 | N 304017008021 | SCREW |
| EXHAUST MUFFLER TO SUPPORT,FRONT | ||
| M 8X20 | ||
| 069 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 069 | N 304017010002 | SCREW |
| EXHAUST MUFFLER TO SUPPORT,FRONT | ||
| M 10X30 | ||
| 070 | N 912004008102 | LOCK WASHER |
| EXHAUST MUFFLER TO SUPPORT,FRONT | ||
| 071 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 071 | N 913004008001 | NUT |
| EXHAUST MUFFLER TO SUPPORT,FRONT | ||
| M 8 | ||
| 071 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 071 | N 910113010000 | NUT |
| EXHAUST MUFFLER TO SUPPORT,FRONT | ||
| M 10 | ||
| A 3524920819 | BRACKET | |
| REAR EXHAUST PIPE | ||
| A 3524920919 | BRACKET | |
| REAR EXHAUST PIPE | ||
| A 3604920319 | BRACKET | |
| Repalced by: A 3604921319 | ||
| 079 | A 3604921319 | BRACKET |
| AT CROSS MEMBER | ||
| A 3604921041 | BRACKET | |
| Repalced by: A 3094921819 | ||
| 080 | A 3094921819 | BRACKET |
| AT CROSS MEMBER | ||
| A 3604924341 | BRACKET | |
| Repalced by: A 3604924441 | ||
| 082 | A 3604924441 | BRACKET |
| AT CROSS MEMBER | ||
| 083 | A 3224921819 | BRACKET |
| EXHAUST PIPE | ||
| 084 | A 3524923319 | BRACKET |
| EXHAUST PIPE | ||
| 088 | A 3604921519 | BRACKET |
| EXHAUST PIPE | ||
| 089 | A 3814920041 | BRACKET |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 089 | A 3554920441 | BRACKET |
| Repalced by: A 3814921041 | ||
| 089 | A 3814921041 | BRACKET |
| Repalced by: A 3814923841 | ||
| 089 | A 3814923841 | BRACKET |
| EXHAUST PIPE | ||
| 155 MM | ||
| 089 | A 3524920441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 246 MM | ||
| A 3604921341 | BRACKET | |
| Repalced by: A 3814923841 | ||
| 089 | A 3814923841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 335 MM | ||
| A 0019873140 | RUBBER BUFFER | |
| Repalced by: A 0019875340 | ||
| 090 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 092 | N 000933008145 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X18 | ||
| 092 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 092 | N 304017008021 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X22 | ||
| 092 | N 000933010105 | SCREW |
| BRACKET TO SUPPORT | ||
| M 10X25 | ||
| 094 | N 912004008102 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 094 | N 912004010102 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 096 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 096 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 096 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 096 | N 304032010003 | NUT |
| BRACKET TO SUPPORT | ||
| 105 | N 071555060500 | CLAMP |
| Repalced by: N 000000001642 | ||
| 105 | N 000000001642 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 60.5MM | ||
| 105 | N 071555063500 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 63.5MM | ||
| 105 | N 071555065501 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 65.5MM | ||
| 105 | N 071555075502 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 75.5MM | ||
| 105 | N 071555078502 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 78.5MM | ||
| 110 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 110 | N 304017008021 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8X20 | ||
| 110 | N 000933010157 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X28 | ||
| 110 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 110 | N 304017008034 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8X25 | ||
| 110 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 110 | N 304017010002 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X30 | ||
| 110 | N 000933010105 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X25 | ||
| 115 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 115 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8 | ||
| 115 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 115 | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10 | ||
| 115 | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10 | ||
