Transporto priemonė: OF 1317; VIN numerio dalis: 352088

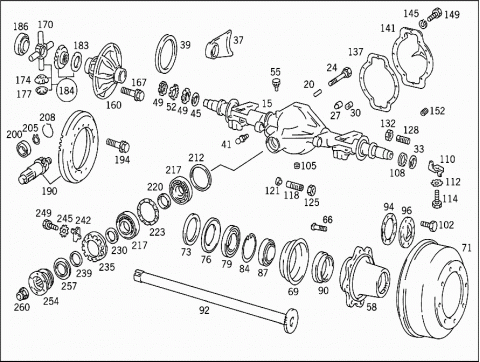

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3523502800 | REAR AXLE |
| 010 | A 3523505300 | REAR AXLE |
| 010 | A 3523506701 | REAR AXLE |
| 010 | A 3523506701 | REAR AXLE |
| 010 | A 3603501901 | REAR AXLE |
| 015 | A 3523500320 | AXLE HOUSING |
| 015 | A 3523501620 | AXLE HOUSING |
| 015 | A 3523502820 | AXLE HOUSING |
| 015 | A 3523502820 | AXLE HOUSING |
| 015 | A 3603500220 | AXLE HOUSING |
| 015 | A 3523504420 | AXLE HOUSING |
| WITH REAR AXLE TUBES AND DIFFERENTIAL CASE BEARING CAPS | ||
| 020 | N 000007006205 | CYLINDRICAL PIN |
| 024 | N 914126016005 | SCREW |
| BEARING COVER TO AXLE HOUSING | ||
| 027 | A 3523510174 | PIN |
| 027 | A 3523510174 | PIN |
| 027 | A 3523510074 | PIN |
| 030 | A 3129971002 | PLUG |
| 033 | A 3213570082 | OIL COLLECTOR |
| 033 | A 3213570082 | OIL COLLECTOR |
| 033 | A 3853570082 | OIL COLLECTOR |
| 037 | A 3534260008 | BEARING BRACKET |
| 037 | A 3534260008 | BEARING BRACKET |
| A 3024270341 | BRACKET | |
| 039 | A 3273560515 | THRUST RING |
| A 3273560615 | THRUST RING | |
| A 3603560415 | THRUST RING | |
| 041 | N 071412010100 | GREASE NIPPLE |
| 045 | A 3523560052 | SPACER WASHER |
| 049 | A 3223560126 | GROOVED NUT |
| N 070852075000 | NUT | |
| Repalced by: A 3853560026 | ||
| A 3853560026 | GROOVED NUT | |
| 052 | A 3223560173 | LOCK PLATE |
| 052 | A 3223560173 | LOCK PLATE |
| N 070952075103 | LOCK PLATE | |
| 055 | A 3123501090 | VALVE |
| Repalced by: A 3833510065 | ||
| 055 | A 3833510065 | FITTING |
| A 3523560401 | WHEEL HUB | |
| Repalced by: A 3523500935 | ||
| A 3523500935 | WHEEL HUB | |
| A 3523500935 | WHEEL HUB | |
| 058 | A 3603560201 | WHEEL HUB |
| 066 | A 3024020071 | WHEEL MOUNTING BOLT |
| 066 | A 3024020071 | WHEEL MOUNTING BOLT |
| 066 | A 3274010471 | WHEEL MOUNTING BOLT |
| Repalced by: A 3894010071 | ||
| 066 | A 3894010071 | WHEEL MOUNTING BOLT |
| 069 | A 3223560282 | OIL COLLECTOR |
| 069 | A 3223560282 | OIL COLLECTOR |
| 069 | A 3273560182 | OIL COLLECTOR |
| Repalced by: A 3853560282 | ||
| 069 | A 3853560282 | OIL COLLECTOR |
| 069 | A 3603560082 | OIL COLLECTOR |
| Repalced by: A 3853560282 | ||
| 069 | A 3853560282 | OIL COLLECTOR |
| 071 | A 3024230001 | BRAKE DRUM |
| 071 | A 3024230001 | BRAKE DRUM |
| 071 | A 3604230101 | BRAKE DRUM |
| 073 | A 0049977745 | SEAL RING |
| Repalced by: A 3833500068 | ||
| 073 | A 3833500068 | REPAIR KIT |
| 073 | A 3833500068 | REPAIR KIT |
| 073 | A 0059974446 | SEAL RING |
| Repalced by: A 3853500068 | ||
| 073 | A 3853500068 | REPAIR KIT |
| 073 | A 0069970546 | SEAL RING |
| A 3853500168 | REPAIR KIT | |
| Repalced by: A 3853500268 | ||
| A 3853500268 | REPAIR KIT | |
| (PARTS KIT),REAR WHEEL HUB SEALING | ||
| 076 | A 3223560051 | SPACER RING |
| 076 | A 3023560051 | SPACER RING |
| 076 | A 3603560051 | SPACER RING |
| 079 | A 0029811805 | TAPERED ROLLER BEARING |
| 079 | A 0029811805 | TAPERED ROLLER BEARING |
| 079 | A 0029811705 | TAPERED ROLLER BEARING |
| 079 | A 0029811705 | TAPERED ROLLER BEARING |
| 079 | A 0039811405 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 079 | A 0039811805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 079 | A 0009804002 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 084 | N 000472125000 | LOCK RING |
| 084 | N 000472125000 | LOCK RING |
| 087 | A 0029815605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 087 | A 0029815605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 087 | A 0029815505 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 087 | A 0029815505 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 087 | A 0009809602 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 087 | A 0029819005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 087 | A 0039818605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 087 | A 0029818605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 087 | A 0029818905 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 090 | A 3223560253 | SPACER TUBE |
| 090 | A 3223560253 | SPACER TUBE |
| 092 | A 3833570601 | REAR AXLE SHAFT |
| 092 | A 3833570601 | REAR AXLE SHAFT |
| 092 | A 3023570201 | REAR AXLE SHAFT |
| 092 | A 3853570501 | REAR AXLE SHAFT |
| 094 | A 3223560179 | GASKET |
| 094 | A 3223560179 | GASKET |
| 094 | A 3273560180 | GASKET |
| Repalced by: A 9433340080 | ||
| 094 | A 9433340080 | GASKET |
| 096 | A 3223560020 | HUB CAP |
| Repalced by: A 3003560020 | ||
| 096 | A 3003560020 | HUB CAP |
| 096 | A 3003560020 | HUB CAP |
| 096 | A 3273560120 | HUB CAP |
| N 912004008102 | SPRING LOCK WASHER | |
| 102 | N 000933008145 | SCREW |
| 105 | A 3529970032 | SCREW PLUG |
| 108 | A 3213530025 | SCREW COLLAR |
| 110 | A 3123531173 | LOCK |
| 112 | N 006797008120 | TOOTHED WASHER |
| 114 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 114 | N 304017008016 | SCREW |
| 118 | A 3833530376 | SET SCREW |
| Repalced by: A 6743530076 | ||
| 118 | A 6743530076 | SET SCREW |
| 121 | A 3853530149 | SLIDE |
| 125 | A 3159900051 | NUT |
| 128 | A 3853370171 | SCREW |
| 132 | N 080705014002 | NUT |
| 137 | A 3223510180 | GASKET |
| Repalced by: A 6503510080 | ||
| 137 | A 6503510080 | GASKET |
| TO 352 351 05 05 | ||
| 137 | A 6503510080 | GASKET |
| TO 352 351 05 05 | ||
| 137 | A 3023510180 | GASKET |
| Repalced by: A 6503510180 | ||
| 137 | A 6503510180 | GASKET |
| TO 360 351 00 05 | ||
| 137 | A 6503510180 | GASKET |
| TO 360 351 00 05 | ||
| 141 | A 3223500421 | COVER |
| TO 352 351 05 05 | ||
| 141 | A 3223500421 | COVER |
| TO 352 351 05 05 | ||
| A 3023500221 | COVER | |
| A 3023500221 | COVER | |
| 145 | N 912004010102 | LOCK WASHER |
| 149 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 149 | N 304017010028 | HEXAGON HEAD BOLT |
| 152 | A 3529970032 | SCREW PLUG |
| 160 | A 3833502123 | DIFFERENTIAL GEAR |
| Repalced by: A 6763501923 | ||
| 160 | A 6763501923 | DIFFERENTIAL GEAR |
| A 3223500927 | DIFFERENTIAL CASE | |
| 167 | A 3229903001 | SCREW |
| 170 | A 3833530120 | DIFFERENTIAL SPIDER |
| 174 | A 3023530014 | DIFFERENTIAL PINION |
| 177 | A 3523530024 | SPHERICAL WASHER |
| 183 | A 3223530162 | THRUST WASHER |
| Repalced by: A 6743530362 | ||
| 183 | A 6743530362 | THRUST WASHER |
| 2.00 MM | ||
| 184 | A 3585860035 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 186 | A 0029811605 | TAPERED ROLLER BEARING |
| 186 | A 0029812605 | TAPERED ROLLER BEARING |
| 186 | A 0009815705 | TAPERED ROLLER BEARING |
| 190 | A 3833500339 | RING GEAR AND PINION |
| Repalced by: A 3013500739 | ||
| 190 | A 3013500739 | RING GEAR AND PINION |
| 7:43 | ||
| 194 | A 3229902901 | SCREW |
| 200 | A 0029817901 | CYLINDR. ROLLER BEARING |
| 200 | A 0029819501 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 200 | A 0029818201 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 205 | N 000471035000 | LOCK RING |
| 208 | A 3229940137 | SNAP RING |
| 212 | A 3273536252 | SPACER WASHER |
| Repalced by: A 6703530852 | ||
| 212 | A 6703530852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 212 | A 3273532262 | THRUST WASHER |
| Repalced by: A 6703530752 | ||
| 212 | A 6703530752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 212 | A 3273536352 | SPACER WASHER |
| Repalced by: A 6703530652 | ||
| 212 | A 6703530652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 212 | A 3273536452 | SPACER WASHER |
| Repalced by: A 6703530552 | ||
| 212 | A 6703530552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 212 | A 3273532362 | THRUST WASHER |
| Repalced by: A 6703533752 | ||
| 212 | A 6703533752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 217 | A 0009814005 | TAPERED ROLLER BEARING |
| 217 | A 0029811105 | TAPERED ROLLER BEARING |
| 217 | A 0019819805 | TAPERED ROLLER BEARING |
| 220 | A 3223530051 | SPACER RING |
| AS REQUIRED | ||
| 15.5 MM | ||
| 223 | A 6163530152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.10 MM | ||
| 223 | A 6163530352 | SPACER WASHER |
| AS REQUIRED | ||
| 10.14 MM | ||
| 223 | A 6163530552 | SPACER WASHER |
| AS REQUIRED | ||
| 10.18 MM | ||
| 223 | A 6163530752 | SPACER WASHER |
| AS REQUIRED | ||
| 10.22 MM | ||
| 223 | A 6163530952 | SPACER WASHER |
| AS REQUIRED | ||
| 10.26 MM | ||
| 223 | A 6163531152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.30 MM | ||
| 223 | A 6163531352 | SPACER WASHER |
| AS REQUIRED | ||
| 10.34 MM | ||
| 223 | A 6163531552 | SPACER WASHER |
| AS REQUIRED | ||
| 10.38 MM | ||
| 223 | A 6163531752 | SPACER WASHER |
| AS REQUIRED | ||
| 10.42 MM | ||
| 223 | A 6163531952 | SPACER WASHER |
| AS REQUIRED | ||
| 10.46 | ||
| 223 | A 6163532152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.50 MM | ||
| 230 | A 3213530762 | THRUST WASHER |
| 7 MM | ||
| 235 | A 3273531025 | SCREW COLLAR |
| 239 | A 0089970747 | SEAL RING |
| Repalced by: A 0169976847 | ||
| 239 | A 0169976847 | SEAL RING |
| 242 | A 3223530073 | LOCK |
| 245 | N 006797008120 | TOOTHED WASHER |
| 249 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 249 | N 304017008039 | SCREW |
| 254 | A 3523500045 | FLANGE |
| Repalced by: A 3603500045 | ||
| 254 | A 3603500045 | FLANGE |
| 257 | A 3273530291 | PROTECTIVE PLATE |
| 260 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 260 | A 3853510072 | NUT |
| Repalced by: A 3853510172 | ||
| 260 | A 3853510172 | NUT |

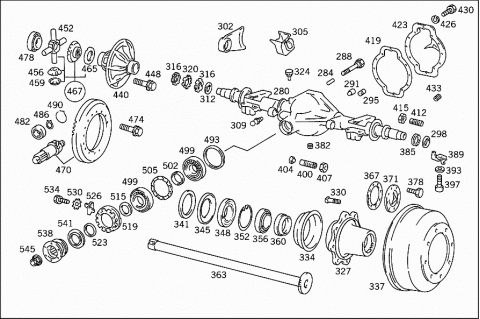

| A 3523507300 | REAR AXLE | |
| 7:40 | ||
| A 3523505600 | REAR AXLE | |
| 8:39 | ||
| A 3523508500 | REAR AXLE | |
| 7:40 | ||
| A 3603502500 | REAR AXLE | |
| 8:39 | ||
| A 3603509900 | REAR AXLE | |
| 8:39 | ||
| A 3603501901 | REAR AXLE | |
| 7:43 | ||
| 280 | A 3523501620 | AXLE HOUSING |
| 280 | A 3523502820 | AXLE HOUSING |
| 280 | A 3603500220 | AXLE HOUSING |
| A 3523504420 | AXLE HOUSING | |
| WITH REAR AXLE TUBES AND DIFFERENTIAL CASE BEARING CAPS | ||
| 284 | N 000007006205 | CYLINDRICAL PIN |
| 288 | N 914126016005 | SCREW |
| BEARING COVER TO AXLE HOUSING | ||
| 291 | A 3523510174 | PIN |
| 291 | A 3523510074 | PIN |
| 295 | A 3129971002 | PLUG |
| 298 | A 3213570082 | OIL COLLECTOR |
| 298 | A 3853570082 | OIL COLLECTOR |
| 302 | A 3534260008 | BEARING BRACKET |
| 302 | A 3424260008 | BEARING BRACKET |
| 305 | A 3024270341 | BRACKET |
| 305 | A 3523201043 | BRACKET |
| A 3603560415 | THRUST RING | |
| LEFT | ||
| A 3603560415 | THRUST RING | |
| RIGHT | ||
| 309 | N 071412010100 | GREASE NIPPLE |
| 312 | A 3523560052 | SPACER WASHER |
| 316 | A 3223560126 | GROOVED NUT |
| 316 | A 3223560126 | GROOVED NUT |
| N 070852075000 | NUT | |
| Repalced by: A 3853560026 | ||
| A 3853560026 | GROOVED NUT | |
| 320 | A 3223560173 | LOCK PLATE |
| 320 | A 3223560173 | LOCK PLATE |
| N 070952075103 | LOCK PLATE | |
| 324 | A 3833510065 | FITTING |
| A 3523560401 | WHEEL HUB | |
| Repalced by: A 3523500935 | ||
| 327 | A 3523500935 | WHEEL HUB |
| 327 | A 3703560101 | WHEEL HUB |
| FORGED | ||
| A 3853560101 | WHEEL HUB | |
| Repalced by: A 3853561101 | ||
| 327 | A 3853561101 | WHEEL HUB |
| CASTING | ||
| 330 | A 3524020071 | WHEEL MOUNTING BOLT |
| 330 | A 3024020071 | WHEEL MOUNTING BOLT |
| 330 | A 3814010371 | WHEEL MOUNTING BOLT |
| Repalced by: A 3894010171 | ||
| 330 | A 3894010171 | WHEEL MOUNTING BOLT |
| TO 370 356 01 01 | ||
| 330 | A 3814011171 | WHEEL MOUNTING BOLT |
| TO 385 356 01 01 | ||
| 334 | A 3223560282 | OIL COLLECTOR |
| 334 | A 3273560182 | OIL COLLECTOR |
| Repalced by: A 3853560282 | ||
| 334 | A 3853560282 | OIL COLLECTOR |
| 334 | A 3603560082 | OIL COLLECTOR |
| Repalced by: A 3853560282 | ||
| 334 | A 3853560282 | OIL COLLECTOR |
| 337 | A 3024230001 | BRAKE DRUM |
| 337 | A 3604230101 | BRAKE DRUM |
| 341 | A 0049977745 | SEAL RING |
| Repalced by: A 3833500068 | ||
| 341 | A 3833500068 | REPAIR KIT |
| 341 | A 0059974446 | SEAL RING |
| Repalced by: A 3853500068 | ||
| 341 | A 3853500068 | REPAIR KIT |
| 341 | A 0069970546 | SEAL RING |
| A 3853500168 | REPAIR KIT | |
| Repalced by: A 3853500268 | ||
| A 3853500268 | REPAIR KIT | |
| (PARTS KIT),REAR WHEEL HUB SEALING | ||
| 345 | A 3223560051 | SPACER RING |
| 345 | A 3023560051 | SPACER RING |
| 345 | A 3603560051 | SPACER RING |
| 348 | A 0029811705 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 348 | A 0029811805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 348 | A 0009804002 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 348 | A 0039811405 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 348 | A 0039811805 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 348 | A 0029818605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 348 | A 0029818905 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 352 | N 900055125311 | LOCK RING |
| 352 | N 900055125311 | LOCK RING |
| 356 | A 0029815505 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 356 | A 0029815605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 356 | A 0009809602 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 356 | A 0029819005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 356 | A 0039818605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 360 | A 3223560253 | SPACER TUBE |
| 360 | A 3223560253 | SPACER TUBE |
| 363 | A 3833570601 | REAR AXLE SHAFT |
| 363 | A 3053570001 | REAR AXLE SHAFT |
| Repalced by: A 3023570201 | ||
| 363 | A 3023570201 | REAR AXLE SHAFT |
| 363 | A 3603571001 | REAR AXLE SHAFT |
| Repalced by: A 3853570501 | ||
| 363 | A 3853570501 | REAR AXLE SHAFT |
| 367 | A 3223560179 | GASKET |
| 367 | A 3273560180 | GASKET |
| Repalced by: A 9433340080 | ||
| 367 | A 9433340080 | GASKET |
| 371 | A 3223560020 | HUB CAP |
| Repalced by: A 3003560020 | ||
| 371 | A 3003560020 | HUB CAP |
| 371 | A 3273560120 | HUB CAP |
| N 912004008102 | SPRING LOCK WASHER | |
| 378 | N 000933008145 | SCREW |
| 382 | A 3529970032 | SCREW PLUG |
| 385 | A 3213530025 | SCREW COLLAR |
| 389 | A 3123531173 | LOCK |
| 393 | N 006797008120 | TOOTHED WASHER |
| 397 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 397 | N 304017008016 | SCREW |
| 400 | A 3833530376 | SET SCREW |
| Repalced by: A 6743530076 | ||
| 400 | A 6743530076 | SET SCREW |
| 404 | A 3853530149 | SLIDE |
| 407 | A 3159900051 | NUT |
| 412 | A 3853370171 | SCREW |
| 415 | N 080705014002 | NUT |
| 419 | A 3223510180 | GASKET |
| Repalced by: A 6503510080 | ||
| 419 | A 6503510080 | GASKET |
| TO 352 351 05 05 | ||
| 419 | A 3023510180 | GASKET |
| Repalced by: A 6503510180 | ||
| 419 | A 6503510180 | GASKET |
| TO 360 351 00 05 | ||
| 423 | A 3223500421 | COVER |
| TO 352 351 05 05 | ||
| 423 | A 3023500221 | COVER |
| TO 360 351 00 05 | ||
| 426 | N 912004010102 | LOCK WASHER |
| 430 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 430 | N 304017010028 | HEXAGON HEAD BOLT |
| 433 | A 1869970032 | SCREW PLUG |
| Repalced by: A 3529970032 | ||
| 433 | A 3529970032 | SCREW PLUG |
| 440 | A 3833502123 | DIFFERENTIAL GEAR |
| Repalced by: A 6763501923 | ||
| 440 | A 6763501923 | DIFFERENTIAL GEAR |
| A 3223500927 | DIFFERENTIAL CASE | |
| 448 | A 3229903001 | SCREW |
| 452 | A 3833530120 | DIFFERENTIAL SPIDER |
| 456 | A 3023530014 | DIFFERENTIAL PINION |
| 459 | A 3523530024 | SPHERICAL WASHER |
| 465 | A 3223530162 | THRUST WASHER |
| Repalced by: A 6743530362 | ||
| 465 | A 6743530362 | THRUST WASHER |
| 2.00 MM | ||
| 467 | A 3585860035 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 470 | A 3013500639 | RING GEAR AND PINION |
| 7:40 | ||
| 470 | A 3833500639 | RING GEAR AND PINION |
| 8:39 | ||
| 470 | A 3833500639 | RING GEAR AND PINION |
| 8:39 | ||
| 470 | A 3013500639 | RING GEAR AND PINION |
| 7:40 | ||
| 470 | A 3833500339 | RING GEAR AND PINION |
| Repalced by: A 3013500739 | ||
| 470 | A 3013500739 | RING GEAR AND PINION |
| 7:43 | ||
| 474 | A 3229902901 | SCREW |
| 478 | A 0029811605 | TAPERED ROLLER BEARING |
| 478 | A 0029812605 | TAPERED ROLLER BEARING |
| 478 | A 0009815705 | TAPERED ROLLER BEARING |
| 482 | A 0029817901 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 482 | A 0029818201 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 482 | A 0029819501 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 486 | N 000471035000 | LOCK RING |
| 490 | A 3229940137 | SNAP RING |
| 493 | A 3273536252 | SPACER WASHER |
| Repalced by: A 6703530852 | ||
| 493 | A 6703530852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 493 | A 3273532262 | THRUST WASHER |
| Repalced by: A 6703530752 | ||
| 493 | A 6703530752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 493 | A 3273536352 | SPACER WASHER |
| Repalced by: A 6703530652 | ||
| 493 | A 6703530652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 493 | A 3273536452 | SPACER WASHER |
| Repalced by: A 6703530552 | ||
| 493 | A 6703530552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 493 | A 3273532362 | THRUST WASHER |
| Repalced by: A 6703533752 | ||
| 493 | A 6703533752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 499 | A 0009814005 | TAPERED ROLLER BEARING |
| 499 | A 0029811105 | TAPERED ROLLER BEARING |
| 499 | A 0019819805 | TAPERED ROLLER BEARING |
| 502 | A 3223530051 | SPACER RING |
| 505 | A 6163530152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.10 MM | ||
| 505 | A 6163530352 | SPACER WASHER |
| AS REQUIRED | ||
| 10.14 MM | ||
| 505 | A 6163530552 | SPACER WASHER |
| AS REQUIRED | ||
| 10.18 MM | ||
| 505 | A 6163530752 | SPACER WASHER |
| AS REQUIRED | ||
| 10.22 MM | ||
| 505 | A 6163530952 | SPACER WASHER |
| AS REQUIRED | ||
| 10.26 MM | ||
| 505 | A 6163531152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.30 MM | ||
| 505 | A 6163531352 | SPACER WASHER |
| AS REQUIRED | ||
| 10.34 MM | ||
| 505 | A 6163531552 | SPACER WASHER |
| AS REQUIRED | ||
| 10.38 MM | ||
| 505 | A 6163531752 | SPACER WASHER |
| AS REQUIRED | ||
| 10.42 MM | ||
| 505 | A 6163531952 | SPACER WASHER |
| AS REQUIRED | ||
| 10.46 MM | ||
| 505 | A 6163532152 | SPACER WASHER |
| AS REQUIRED | ||
| 10.50 MM | ||
| 515 | A 3213530762 | THRUST WASHER |
| 519 | A 3273531025 | SCREW COLLAR |
| 523 | A 0089970747 | SEAL RING |
| Repalced by: A 0169976847 | ||
| 523 | A 0169976847 | SEAL RING |
| 526 | A 3223530073 | LOCK |
| 530 | N 912004008102 | LOCK WASHER |
| 534 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 534 | N 304017008039 | SCREW |
| 538 | A 3603500045 | FLANGE |
| 541 | A 3273530291 | PROTECTIVE PLATE |
| 545 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 545 | A 3853510072 | NUT |
| Repalced by: A 3853510172 | ||
| 545 | A 3853510172 | NUT |
| A 0089979082 | HOSE | |
| AXLE BREATHING | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
