Transporto priemonė: OF 1319/44; VIN numerio dalis: 384233

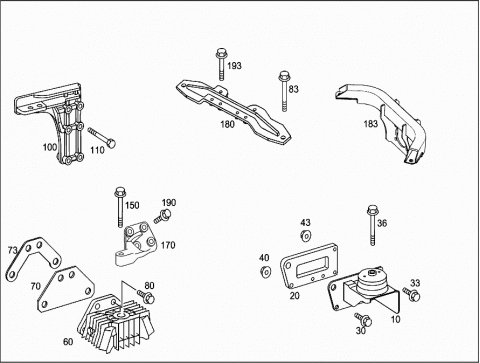

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3842400417 | RUBBER MOUNTING |
| ENGINE FRONT LEFT SUSPENSION | ||
| 010 | A 3842400517 | RUBBER MOUNTING |
| ENGINE SUSPENSION,RIGHT FRONT | ||
| 020 | A 3842410784 | SHIM |
| ENGINE FRONT LEFT SUSPENSION | ||
| 26 MM | ||
| 020 | A 3842410884 | SHIM |
| ENGINE SUSPENSION,RIGHT FRONT | ||
| 13 MM | ||
| 030 | N 000000005721 | HEXAGON HEAD BOLT |
| LEFT AND RIGHT | ||
| M14X1.5X60 | ||
| 033 | N 910105020007 | SCREW |
| ENGINE MOUNTING IN FRAME | ||
| M20X1,5X60 MM | ||
| 036 | N 910105016005 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| M 16X1.5X60 | ||
| 040 | N 000000005662 | NUT |
| ENGINE MOUNTING IN FRAME | ||
| M14X1,5 | ||
| 043 | N 000000005740 | NUT |
| ENGINE MOUNTING IN FRAME | ||
| M20X1.5 | ||
| 060 | A 9702400418 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| Repalced by: A 3822400018 | ||
| 060 | A 3842400018 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| Repalced by: A 3822400018 | ||
| 060 | A 3842400118 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| Repalced by: A 3822400018 | ||
| 060 | A 3822400018 | ENGINE SUPPORT |
| ENGINE REAR SUSPENSION | ||
| 060 | A 9732400418 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| Repalced by: A 3822400118 | ||
| 060 | A 3822400118 | ENGINE SUPPORT |
| ENGINE REAR SUSPENSION | ||
| 060 | A 6932400218 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| Repalced by: A 3822400118 | ||
| 060 | A 3822400118 | ENGINE SUPPORT |
| ENGINE REAR SUSPENSION | ||
| 060 | A 6932400518 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| Repalced by: A 3822400118 | ||
| 060 | A 3822400118 | ENGINE SUPPORT |
| ENGINE REAR SUSPENSION | ||
| 070 | A 3823120084 | SHIM |
| ENGINE REAR SUSPENSION | ||
| 5 MM | ||
| 073 | A 3682410084 | SHIM |
| ENGINE REAR SUSPENSION | ||
| 080 | N 910105016013 | SCREW |
| ENGINE REAR MOUNTING, AT FRAME | ||
| M 16X1.5X30 | ||
| 080 | N 910105016004 | SCREW |
| ENGINE REAR MOUNTING, AT FRAME | ||
| M 16X1.5X30 | ||
| 083 | N 910105018021 | HEXAGON HEAD BOLT |
| CROSS MEMBER TO TRANSMISSION | ||
| M18X1.5X40 | ||
| 100 | A 3822661206 | SUPPORTING PLATE |
| LEFT | ||
| 100 | A 3822661306 | SUPPORTING PLATE |
| RIGHT | ||
| 110 | N 910105016009 | SCREW |
| BRACKET TO TRANSMISSION | ||
| M 16X1.5X100 | ||
| 150 | N 910105018024 | HEXAGON HEAD BOLT |
| FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET | ||
| M18X1.5X60 | ||
| 150 | N 910105018000 | HEXAGON HEAD BOLT |
| FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET | ||
| M 18X1.5X45 | ||
| 170 | A 3842410101 | ENGINE SUPPORT |
| REAR RIGHT,TOP | ||
| 170 | A 3842410201 | ENGINE SUPPORT |
| REAR LEFT,TOP | ||
| 180 | A 3843100032 | CROSS MEMBER |
| GEARSHIFT,AUTOMATIC TRANSMISSION | ||
| 183 | A 3843100232 | CROSS MEMBER |
| GEARSHIFT,AUTOMATIC TRANSMISSION | ||
| 190 | N 304017016010 | SCREW |
| REAR SUPPORT,AT TRANSMISSION | ||
| M16X50 MM | ||
| 193 | N 000931014073 | SCREW |
| CROSS MEMBER TO TRANSMISSION | ||
| M14X50 MM | ||
