Transporto priemonė: OF 1319/44; VIN numerio dalis: 384233

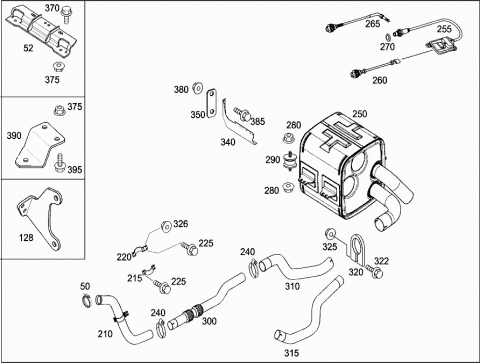

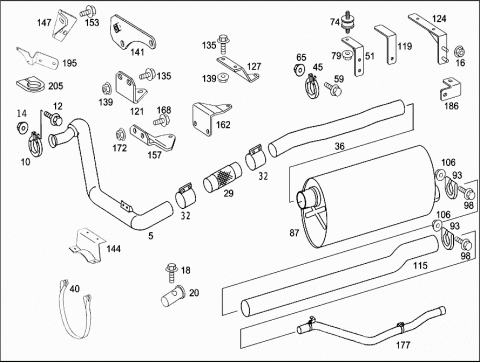

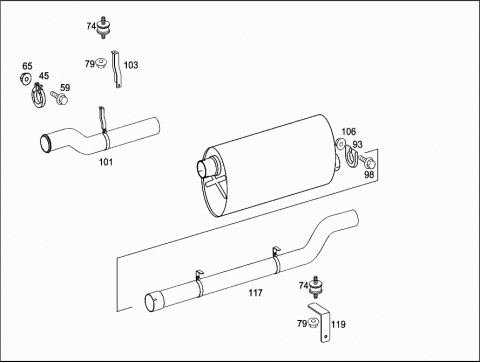

Grupė: 49 EXHAUST SYSTEM - 030 EXHAUST PIPE TO SUBSTRUCTURE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3844901119 | EXHAUST PIPE |
| FRONT EXHAUST PIPE | ||
| 005 | A 3844901019 | EXHAUST PIPE |
| FRONT EXHAUST PIPE | ||
| 010 | A 6209970490 | CLAMP |
| FASTENING FOR EXHAUST | ||
| 010 | A 6209970590 | CLAMP |
| FASTENING FOR EXHAUST | ||
| 010 | A 6209970590 | CLAMP |
| FASTENING FOR EXHAUST | ||
| 010 | A 6209970590 | CLAMP |
| FASTENING FOR EXHAUST | ||
| 010 | A 6209970590 | CLAMP |
| FASTENING FOR EXHAUST | ||
| 012 | N 910105008060 | SCREW |
| M8 X 35 | ||
| 012 | N 910105008060 | SCREW |
| M8 X 35 | ||
| 012 | N 910105008060 | SCREW |
| M8 X 35 | ||
| 012 | N 910105008060 | SCREW |
| M8 X 35 | ||
| 012 | N 910105008060 | SCREW |
| M8 X 35 | ||
| 014 | N 913023008003 | NUT |
| M8 | ||
| 014 | N 913023008003 | NUT |
| M8 | ||
| 014 | N 913023008003 | NUT |
| M8 | ||
| 014 | N 913023008003 | NUT |
| M8 | ||
| 014 | N 913023008003 | NUT |
| M8 | ||
| 016 | N 913023012002 | NUT |
| M10 | ||
| 018 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40 | ||
| 020 | A 3844920174 | BOLT, SPECIAL SHAPE |
| 029 | A 3684900065 | FLEXIBLE METAL TUBE |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 029 | A 3684900065 | FLEXIBLE METAL TUBE |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 029 | A 3684900065 | FLEXIBLE METAL TUBE |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 029 | A 3684900065 | FLEXIBLE METAL TUBE |
| EXHAUST LINE FLEXIBLE METAL TUBE | ||
| 032 | A 3689970190 | LOOM TIE |
| 032 | A 3689970190 | LOOM TIE |
| 032 | A 3689970190 | LOOM TIE |
| 032 | A 3689970190 | LOOM TIE |
| 036 | A 3844921801 | FRONT EXHAUST PIPE |
| 036 | A 3844922501 | FRONT EXHAUST PIPE |
| 040 | A 3844910221 | RETAINING STRAP |
| 045 | A 9584920040 | CLAMP |
| FASTENING FOR EXHAUST | ||
| 045 | A 9584920040 | CLAMP |
| FASTENING FOR EXHAUST | ||
| 045 | A 9584920040 | CLAMP |
| FASTENING FOR EXHAUST | ||
| 045 | A 9584920040 | CLAMP |
| FASTENING FOR EXHAUST | ||
| 045 | A 9584920040 | CLAMP |
| 045 | A 9584920040 | CLAMP |
| 050 | A 6959970090 | PIPE-HOSE CONNECTOR |
| FASTENING FOR EXHAUST | ||
| 051 | A 3844902940 | BRACKET |
| FASTENING FOR EXHAUST | ||
| 051 | A 3844902940 | BRACKET |
| FASTENING FOR EXHAUST | ||
| 052 | A 3844904140 | BRACKET |
| FASTENING FOR EXHAUST | ||
| 059 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40 | ||
| 059 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40 | ||
| 059 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40 | ||
| 059 | N 910105010011 | HEXAGON HEAD BOLT |
| M10X40 | ||
| 059 | N 910105010011 | HEXAGON HEAD BOLT |
| 059 | N 910105010011 | HEXAGON HEAD BOLT |
| 065 | N 913023010002 | NUT |
| M10 | ||
| 065 | N 913023010002 | NUT |
| M10 | ||
| 065 | N 913023010002 | NUT |
| M10 | ||
| 065 | N 913023010002 | NUT |
| M10 | ||
| 065 | N 913023010002 | NUT |
| 065 | N 913023010002 | NUT |
| 074 | A 0019873140 | RUBBER BUFFER |
| 074 | A 0019873140 | RUBBER BUFFER |
| 074 | A 0019873140 | RUBBER BUFFER |
| 074 | A 0019873140 | RUBBER BUFFER |
| 074 | A 3749877139 | RUBBER BUFFER |
| 074 | A 0019873140 | RUBBER BUFFER |
| 074 | A 0019873140 | RUBBER BUFFER |
| 079 | N 910112010001 | NUT |
| M10 | ||
| 079 | N 910112010001 | NUT |
| M10 | ||
| 079 | N 910112010001 | NUT |
| M10 | ||
| 079 | N 910112010001 | NUT |
| M10 | ||
| 079 | N 913023010002 | NUT |
| M10 | ||
| 079 | N 910112010001 | NUT |
| 079 | N 910112010001 | NUT |
| 087 | A 3844900701 | EXHAUST MUFFLER |
| 087 | A 3844900101 | EXHAUST MUFFLER |
| 093 | A 6744920040 | CLAMP |
| 093 | A 6744920040 | CLAMP |
| 093 | A 6744920040 | CLAMP |
| 093 | A 6744920040 | CLAMP |
| 093 | A 6744920040 | CLAMP |
| 093 | A 6744920040 | CLAMP |
| 098 | N 910105008061 | HEXAGON HEAD BOLT |
| M8X130 | ||
| 098 | N 910105008061 | HEXAGON HEAD BOLT |
| M8X130 | ||
| 098 | N 910105008061 | HEXAGON HEAD BOLT |
| M8X130 | ||
| 098 | N 910105008061 | HEXAGON HEAD BOLT |
| M8X130 | ||
| 098 | N 910105008061 | HEXAGON HEAD BOLT |
| M8X130 | ||
| 098 | N 910105008061 | HEXAGON HEAD BOLT |
| M8X130 | ||
| 098 | N 910105008061 | HEXAGON HEAD BOLT |
| 101 | A 6854900919 | EXHAUST PIPE |
| INTERMEDIATE PIPE | ||
| 103 | A 3844902940 | BRACKET |
| 106 | N 913023008003 | NUT |
| M8 | ||
| 106 | N 913023008003 | NUT |
| M8 | ||
| 106 | N 913023008003 | NUT |
| M8 | ||
| 106 | N 913023008003 | NUT |
| M8 | ||
| 106 | N 913023008003 | NUT |
| M8 | ||
| 106 | N 913023008003 | NUT |
| M8 | ||
| 106 | N 913023008003 | NUT |
| 115 | A 3844922201 | FRONT EXHAUST PIPE |
| 115 | A 3844922201 | FRONT EXHAUST PIPE |
| 117 | A 6854900031 | EXHAUST INTERMEDIATE PIPE |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 119 | A 3844924741 | BRACKET |
| FASTENING FOR EXHAUST | ||
| 119 | A 3844924741 | BRACKET |
| FASTENING FOR EXHAUST | ||
| 119 | A 3844924741 | BRACKET |
| 121 | A 3844922541 | BRACKET |
| INTERMEDIATE PIPE ON CROSS MEMBER | ||
| 124 | A 6954900140 | BRACKET |
| REAR EXHAUST PIPE TO MUFFLER SUPPORT | ||
| 127 | A 3844922641 | BRACKET |
| INTERMEDIATE PIPE ON CROSS MEMBER | ||
| 128 | A 3844923642 | BRACKET |
| 135 | N 910105010009 | SCREW |
| INTERMEDIATE PIPE ON CROSS MEMBER | ||
| M10 X 25 | ||
| 139 | N 913023010002 | NUT |
| INTERMEDIATE PIPE ON CROSS MEMBER | ||
| M10 | ||
| 139 | N 913023010002 | NUT |
| INTERMEDIATE PIPE ON CROSS MEMBER | ||
| M10 | ||
| 139 | N 913023010002 | NUT |
| INTERMEDIATE PIPE ON CROSS MEMBER | ||
| M10 | ||
| 141 | A 3844902640 | BRACKET |
| FASTENING FOR EXHAUST | ||
| 141 | A 3844902640 | BRACKET |
| FASTENING FOR EXHAUST | ||
| 141 | A 3844902640 | BRACKET |
| FASTENING FOR EXHAUST | ||
| 141 | A 3844902640 | BRACKET |
| FASTENING FOR EXHAUST | ||
| 144 | A 3844921642 | BRACKET |
| REAR EXHAUST PIPE TO MUFFLER STRAP | ||
| 147 | A 3844925641 | BRACKET |
| ATTACHMENT BRACKET AND EXHAUST PIPE | ||
| 147 | A 3844925741 | BRACKET |
| ATTACHMENT BRACKET AND EXHAUST PIPE | ||
| 153 | N 910105008026 | SCREW |
| M8 X 20 | ||
| 153 | N 910105008026 | HEXAGON HEAD BOLT |
| M8 X 20 | ||
| 153 | N 910105008026 | SCREW |
| M8 X 20 | ||
| 153 | N 910105008026 | SCREW |
| M8 X 20 | ||
| 157 | A 3844925341 | BRACKET |
| 162 | A 3844925841 | BRACKET |
| 168 | N 910105012007 | SCREW |
| M12 X 1.5 X 30 | ||
| 168 | N 910105012007 | SCREW |
| M12 X 1.5 X 30 | ||
| 172 | N 913023012002 | NUT |
| M12 X 1.5 | ||
| 172 | N 913023012002 | NUT |
| M12 X 1.5 | ||
| 177 | A 3844900427 | END PIECE |
| 186 | A 3844901540 | BRACKET |
| 195 | A 6854924241 | BRACKET |
| ATTACHMENT BRACKET AND EXHAUST PIPE | ||
| 205 | A 6859950102 | PIPE CLAMP F EXHAUST SYS. |
| U - 3.50 | ||
| 210 | A 3844901719 | EXHAUST GAS LINE |
| FRONT EXHAUST PIPE TO CATALYST | ||
| 215 | A 3844920640 | PIPE CLAMP |
| CLAMP TO EXHAUST PIPE | ||
| 220 | A 3844905440 | BRACKET |
| BRACKET EXHAUST SYSTEM | ||
| 225 | N 910105010007 | HEXAGON HEAD BOLT |
| BRACKET EXHAUST SYSTEM | ||
| M10 X 35 | ||
| Repalced by: N 910105006008 | ||
| 225 | N 910105006008 | HEXAGON HEAD BOLT |
| BRACKET EXHAUST SYSTEM | ||
| M6 X 25 | ||
| 240 | A 0009956202 | CLAMP |
| CLAMP TO EXHAUST PIPE | ||
| 240 | A 0009956202 | CLAMP |
| CLAMP TO EXHAUST PIPE | ||
| 250 | A 3844900114 | REDUCT. CATALYST CONV. |
| CATALYST | ||
| 255 | A 0061537328 | CONTROL UNIT |
| CATALYST | ||
| Repalced by: A 0091533628 | ||
| 255 | A 0091533628 | NOX SENSOR |
| CATALYST | ||
| 260 | A 0001507133 | ELECTRIC CABLE |
| CATALYST | ||
| 265 | A 0061530528 | SENDER UNIT |
| CATALYST | ||
| 270 | A 0005460522 | CLAMPING RING |
| CATALYST | ||
| 280 | N 910112010001 | NUT |
| BRACKET TO CATALYTIC CONVERTER | ||
| M10 | ||
| 290 | A 6349980041 | BUFFER |
| RUBBER MOUNTING TO SUPPORT | ||
| 300 | A 3844901819 | EXHAUST PIPE |
| EXHAUST PIPE | ||
| 310 | A 3844920404 | EXHAUST PIPE RR |
| REAR EXHAUST PIPE LEFT TO BODY | ||
| 315 | A 3844923601 | EXHAUST GAS LINE FRONT |
| REAR EXHAUST PIPE LEFT TO BODY | ||
| 320 | A 6744920040 | CLAMP |
| CLAMP TO EXHAUST PIPE | ||
| 320 | A 6744920040 | CLAMP |
| CLAMP TO EXHAUST PIPE | ||
| 322 | N 910105008061 | HEXAGON HEAD BOLT |
| CLAMP TO EXHAUST PIPE | ||
| M8X130 | ||
| 322 | N 910105008061 | HEXAGON HEAD BOLT |
| CLAMP TO EXHAUST PIPE | ||
| M8X130 | ||
| 325 | N 913023008003 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| M8 | ||
| 325 | N 913023008003 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| M8 | ||
| 326 | N 913023006002 | NUT |
| CLAMP TO EXHAUST PIPE | ||
| M8 | ||
| 340 | A 3844920316 | BEAM |
| BRACKET TO CATALYTIC CONVERTER | ||
| 340 | A 3844920416 | BEAM |
| BRACKET TO CATALYTIC CONVERTER | ||
| 350 | A 3844920018 | BASE |
| BRACKET TO CATALYTIC CONVERTER | ||
| 370 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M10X30 | ||
| 375 | N 913023010002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| M10 | ||
| 380 | N 910105014010 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M14 X 1,5 X 4 | ||
| 385 | N 913023014003 | NUT |
| BRACKET TO SIDE MEMBER | ||
| M14 X 1,5 | ||
| 390 | A 3844922641 | BRACKET |
| BRACKET TO SIDE MEMBER | ||
| 395 | N 910105010009 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
