Transporto priemonė: OF 1319/44; VIN numerio dalis: 384233
Grupė: 41 PROPELLER SHAFT

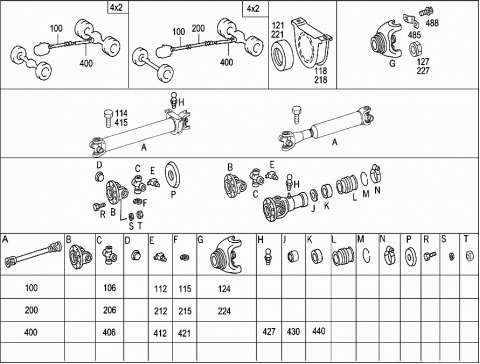

| # | Kodas | Pavadinimas |
|---|---|---|
| 100 | A 3844105901 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING | ||
| 1873 MM | ||
| 100 | A 3844106001 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1183 MM | ||
| 100 | A 3844106201 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1865 MM | ||
| 100 | A 3844106301 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 11175 MM | ||
| 100 | A 9584103301 | PROPELLER SHAFT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1403 MM | ||
| 100 | A 3844100417 | PROPELLER SHAFT FRT |
| FROM TRANSMISSION TO INTERMEDIATE BEARING I | ||
| 1403 MM | ||
| 106 | A 0004104631 | UNIVERSAL JOINT CROSS |
| 106 | A 0004104631 | UNIVERSAL JOINT CROSS |
| 106 | A 0004104631 | UNIVERSAL JOINT CROSS |
| 106 | A 0004102231 | UNIVERSAL JOINT CROSS |
| 106 | A 0004102231 | UNIVERSAL JOINT CROSS |
| 112 | A 0009976188 | GREASE NIPPLE |
| 112 | A 0009976188 | GREASE NIPPLE |
| 112 | A 0009976188 | GREASE NIPPLE |
| 112 | A 0009974788 | GREASE NIPPLE |
| 112 | A 0009974788 | GREASE NIPPLE |
| 114 | A 0069903601 | SCREW |
| 114 | A 0069903601 | SCREW |
| 115 | A 0039942135 | SNAP RING |
| 115 | A 0039942135 | SNAP RING |
| 115 | A 0039942135 | SNAP RING |
| 118 | A 0004100222 | INTERMEDIATE BEARING |
| 118 | A 0004100222 | INTERMEDIATE BEARING |
| 118 | A 0004100222 | INTERMEDIATE BEARING |
| 118 | A 0004100222 | INTERMEDIATE BEARING |
| 118 | A 0004100222 | INTERMEDIATE BEARING |
| 121 | A 0004130112 | RUBBER MOUNTING |
| 121 | A 0004130112 | RUBBER MOUNTING |
| 121 | A 0004130112 | RUBBER MOUNTING |
| 121 | A 0004130112 | RUBBER MOUNTING |
| 121 | A 0004130112 | RUBBER MOUNTING |
| 124 | A 0004100930 | CENTERING FLANGE |
| 124 | A 0004100930 | CENTERING FLANGE |
| 124 | A 0004100930 | CENTERING FLANGE |
| 124 | A 0004100430 | CENTERING FLANGE |
| 124 | A 0004100430 | CENTERING FLANGE |
| 127 | A 0009905050 | NUT |
| 127 | A 0009905050 | NUT |
| 127 | A 0009905050 | NUT |
| 127 | A 0009905050 | NUT |
| 127 | A 0009905050 | NUT |
| 200 | A 3844106001 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1183 MM | ||
| 200 | A 3844106301 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1175 MM | ||
| 200 | A 9584103301 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1403 MM | ||
| 200 | A 3844100417 | PROPELLER SHAFT FRT |
| FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II | ||
| 1403 MM | ||
| 206 | A 0004104631 | UNIVERSAL JOINT CROSS |
| 206 | A 0004104631 | UNIVERSAL JOINT CROSS |
| 212 | A 0009976188 | GREASE NIPPLE |
| 212 | A 0009976188 | GREASE NIPPLE |
| 215 | A 0039942135 | SNAP RING |
| 215 | A 0039942135 | SNAP RING |
| 218 | A 0004100222 | INTERMEDIATE BEARING |
| 218 | A 0004100222 | INTERMEDIATE BEARING |
| 221 | A 0004130112 | RUBBER MOUNTING |
| 221 | A 0004130112 | RUBBER MOUNTING |
| 224 | A 0004100930 | CENTERING FLANGE |
| 224 | A 0004100930 | CENTERING FLANGE |
| 227 | A 0009905050 | NUT |
| 227 | A 0009905050 | NUT |
| 400 | A 3844102202 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO REAR AXLE | ||
| 1712 MM | ||
| 400 | A 3844102602 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING I TO REAR AXLE | ||
| 1698 MM | ||
| 400 | A 3844102302 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1437 MM | ||
| 400 | A 3844102702 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1473 MM | ||
| 400 | A 3844102402 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1497 MM | ||
| 400 | A 9584105102 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1592 MM | ||
| 400 | A 3844103202 | PROPELLER SHAFT RR |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1592 MM | ||
| 406 | A 0004104631 | UNIVERSAL JOINT CROSS |
| 406 | A 0004104631 | UNIVERSAL JOINT CROSS |
| 406 | A 0004104631 | UNIVERSAL JOINT CROSS |
| 406 | A 0004102231 | UNIVERSAL JOINT CROSS |
| 406 | A 0004102231 | UNIVERSAL JOINT CROSS |
| 412 | A 0009976188 | GREASE NIPPLE |
| 412 | A 0009976188 | GREASE NIPPLE |
| 412 | A 0009976188 | GREASE NIPPLE |
| 412 | A 0009974788 | GREASE NIPPLE |
| 412 | A 0009974788 | GREASE NIPPLE |
| 415 | A 0069903601 | SCREW |
| 415 | A 0069903601 | SCREW |
| 421 | A 0039942135 | SNAP RING |
| 421 | A 0039942135 | SNAP RING |
| 421 | A 0039942135 | SNAP RING |
| 427 | A 0009974888 | GREASE NIPPLE |
| 427 | A 0009974888 | GREASE NIPPLE |
| 430 | A 0004110359 | SEAL RING |
| 430 | A 0004110359 | SEAL RING |
| 430 | A 0004110359 | SEAL RING |
| 440 | A 0004130780 | SEAL RING |
| 440 | A 0004130780 | SEAL RING |
| 485 | A 6959957010 | CLAMP |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 485 | A 3849957010 | CLAMP |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 485 | A 6959957010 | CLAMP |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 485 | A 6959957010 | CLAMP |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 485 | A 3849957010 | CLAMP |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 485 | A 3849957010 | CLAMP |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 485 | A 6959957010 | CLAMP |
| PROPELLER SHAFT TO REAR AXLE | ||
| 485 | A 3849957010 | CLAMP |
| PROPELLER SHAFT TO REAR AXLE | ||
| 488 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 488 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 488 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 488 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 488 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 488 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 488 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 488 | A 3849907801 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||

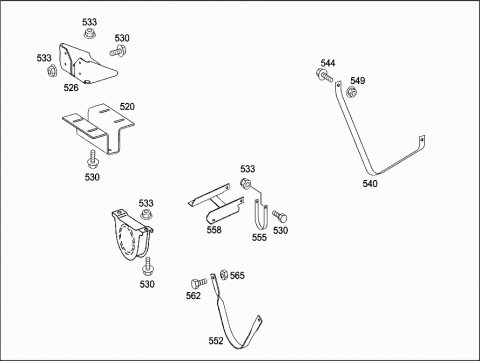

| 520 | A 3844131242 | BRACKET |
| PROPELLER SHAFT BEARING I | ||
| 520 | A 3844131342 | BRACKET |
| PROPELLER SHAFT BEARING I | ||
| 520 | A 3844131442 | BRACKET |
| PROPELLER SHAFT BEARING II | ||
| 526 | A 3844131542 | BRACKET |
| PROPELLER SHAFT BEARING | ||
| 530 | N 910105012007 | HEXAGON HEAD BOLT |
| BRACKET TO CROSS MEMBER | ||
| 530 | N 910105012007 | SCREW |
| BRACKET TO BRACKET | ||
| M 12X1,5X30 | ||
| 530 | N 910105012007 | SCREW |
| PROPELLER SHAFT BEARING TO BRACKET | ||
| M 12X1,5X30 | ||
| 530 | N 910105012007 | SCREW |
| REBOUND STRAP TO SUPPORT | ||
| M 12X1,5X30 | ||
| 533 | N 913023012002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 533 | N 913023012002 | NUT |
| BRACKET TO BRACKET | ||
| 533 | N 913023012002 | NUT |
| PROPELLER SHAFT BEARING TO BRACKET | ||
| 533 | N 913023012002 | NUT |
| REBOUND STRAP TO SUPPORT | ||
| 540 | A 3844110182 | REBOUND STRAP |
| FRONT PROPELLER SHAFT | ||
| 540 | A 3844110182 | REBOUND STRAP |
| REAR PROPELLER SHAFT | ||
| 540 | A 3844110182 | REBOUND STRAP |
| REAR PROPELLER SHAFT | ||
| 540 | A 3844110182 | REBOUND STRAP |
| REAR PROPELLER SHAFT | ||
| 540 | A 3844110182 | REBOUND STRAP |
| REAR PROPELLER SHAFT | ||
| 544 | N 910105014012 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 14X1,5X30 | ||
| 544 | N 910105014012 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 14X1,5X30 | ||
| 544 | N 910105014012 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 14X1,5X30 | ||
| 544 | N 910105014012 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 14X1,5X30 | ||
| 544 | N 910105014012 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 14X1,5X30 | ||
| 549 | N 913023014003 | NUT |
| REBOUND STRAP TO FRAME | ||
| 549 | N 913023014003 | NUT |
| REBOUND STRAP TO FRAME | ||
| 549 | N 913023014003 | NUT |
| REBOUND STRAP TO FRAME | ||
| 549 | N 913023014003 | NUT |
| REBOUND STRAP TO FRAME | ||
| 549 | N 913023014003 | NUT |
| REBOUND STRAP TO FRAME | ||
| 552 | A 3844110282 | REBOUND STRAP |
| FRONT PROPELLER SHAFT | ||
| 552 | A 3844110282 | REBOUND STRAP |
| FRONT PROPELLER SHAFT | ||
| 555 | A 3844110382 | REBOUND STRAP |
| CENTRAL PROPELLER SHAFT | ||
| 558 | A 3844100240 | BRACKET |
| FOR STRAP | ||
| 562 | N 910105010020 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 10X25 | ||
| 562 | N 910105010020 | SCREW |
| REBOUND STRAP TO FRAME | ||
| M 10X25 | ||
| 565 | N 913023010002 | NUT |
| REBOUND STRAP TO FRAME | ||
| 565 | N 913023010002 | NUT |
| REBOUND STRAP TO FRAME |
