Transporto priemonė: OF 1417; VIN numerio dalis: 352097

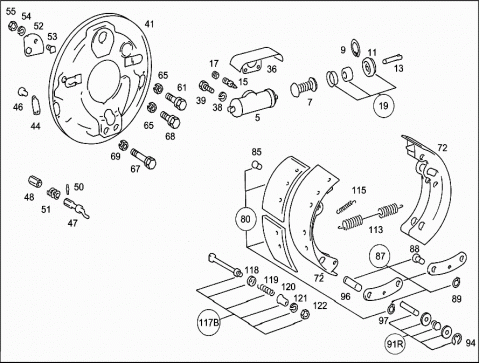

Grupė: 42 BRAKE - 001 BRAKES
43333
43334

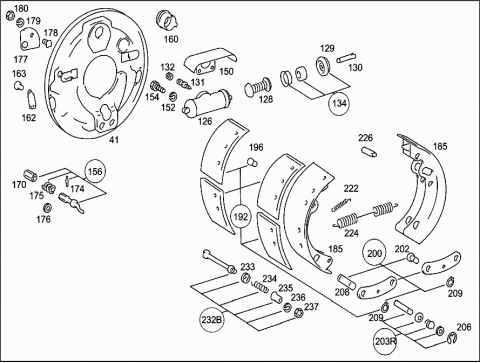

43335

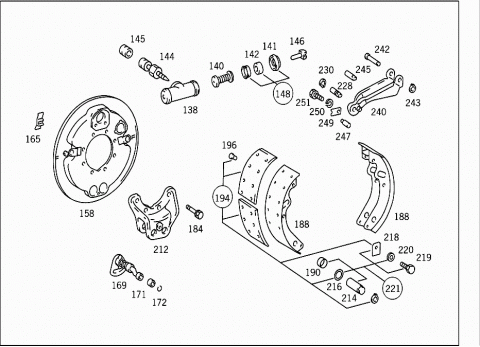

43336

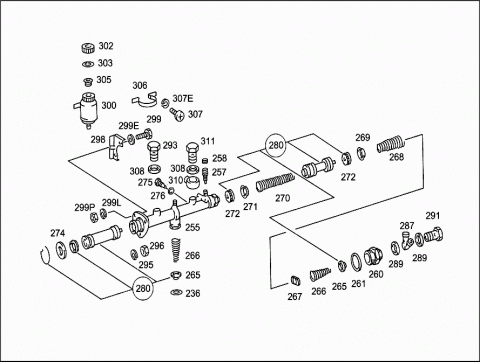

43337

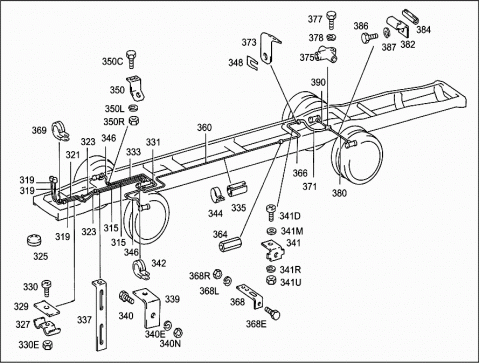

43338

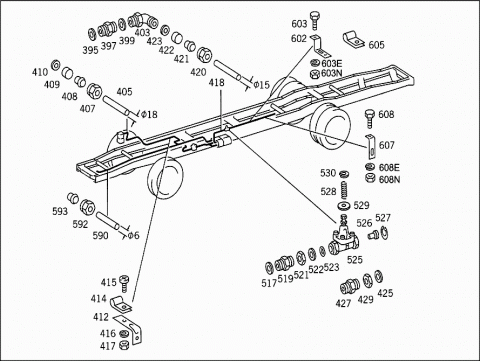

43339

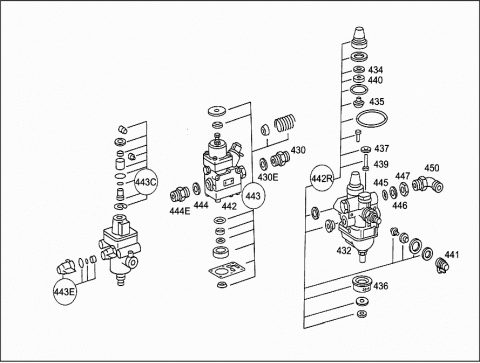

43340
43341
43342
43343

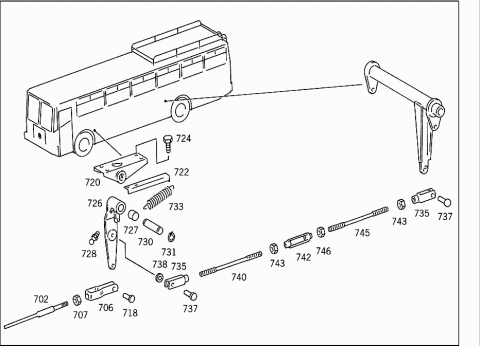

43344
43345
43346
43347
43348
43349

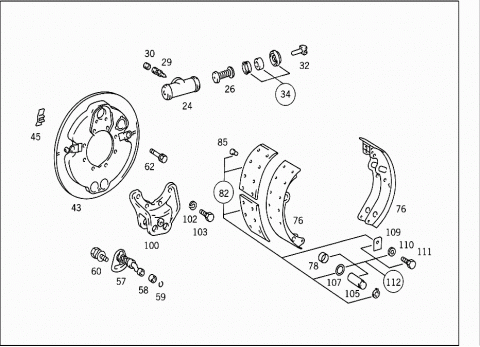

# Kodas Pavadinimas
A 0024201918 WHEEL BRAKE CYLINDER
Repalced by: A 0034207818
A 0024207718 WHEEL BRAKE CYLINDER
Repalced by: A 0034207818
A 0024207818 WHEEL BRAKE CYLINDER
Repalced by: A 0034207818
005 A 0034207818 WHEEL BRAKE CYLINDER
44.45 MM
005 A 0034207818 WHEEL BRAKE CYLINDER
44.45 MM
005 A 0034207818 WHEEL BRAKE CYLINDER
44.45 MM
007 A 0004232493 SPRING
007 A 0004232493 SPRING
007 A 0004232493 SPRING
009 N 000472045000 LOCK RING
009 N 000472045000 LOCK RING
007 N 000472045000 LOCK RING
011 A 0004232187 PROTECTIVE CAP
011 A 0004232187 PROTECTIVE CAP
011 A 0004232187 PROTECTIVE CAP
011 A 0004212987 PROTECTIVE CAP
SHEET METAL VERSION
011 A 0004212987 PROTECTIVE CAP
SHEET METAL VERSION
011 A 0004212987 PROTECTIVE CAP
SHEET METAL VERSION
013 A 0004231088 THRUST PIN
013 A 0004231088 THRUST PIN
013 A 0004231088 THRUST PIN
015 A 3075530107 VALVE
015 A 3075530107 VALVE
015 A 3075530107 VALVE
017 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
017 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
017 A 0004210887 PROTECTIVE CAP
017 A 0004210887 PROTECTIVE CAP
017 A 0004210887 PROTECTIVE CAP
019 A 0005863142 REPAIR KIT
019 A 0005863142 REPAIR KIT
019 A 0005863142 REPAIR KIT
A 0024207018 WHEEL BRAKE CYLINDER
Repalced by: A 0034207918
A 0024207018 WHEEL BRAKE CYLINDER
A 0024206918 WHEEL BRAKE CYLINDER
Repalced by: A 0034207918
A 0024206918 WHEEL BRAKE CYLINDER
A 0024209118 WHEEL BRAKE CYLINDER
Repalced by: A 0034207918
A 0024209118 WHEEL BRAKE CYLINDER
A 0004233193 SPRING
A 0004233193 SPRING
A 0004231686 CUP
A 0004231686 CUP
A 0004232187 PROTECTIVE CAP
A 0004232187 PROTECTIVE CAP
A 0004213087 PROTECTIVE CAP
TO 002 420 69 18,002 420 91 18
A 0004213087 PROTECTIVE CAP
TO 002 420 69 18,002 420 91 18
A 0004231088 THRUST PIN
TO 002 420 70 18,002 420 69 18
A 0004231088 THRUST PIN
TO 002 420 70 18,002 420 69 18
A 0004231388 THRUST PIN
TO 002 420 91 18
A 0004231388 THRUST PIN
TO 002 420 91 18
A 0004310265 VALVE
Repalced by: A 3075530107
A 3075530107 VALVE
A 3075530107 VALVE
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
A 0004210887 PROTECTIVE CAP
A 0005862842 REPAIR KIT
A 0005862842 REPAIR KIT
024 A 0034207918 WHEEL BRAKE CYLINDER
46.83 MM
024 A 0084203018 WHEEL BRAKE CYLINDER
46.83 MM
A 0004231686 CUP
026 A 0004233193 SPRING
A 0004232183 PISTON
A 0004232187 PROTECTIVE CAP
A 0004213087 PROTECTIVE CAP
029 A 3075530107 VALVE
030 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
030 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
030 A 0004210887 PROTECTIVE CAP
032 A 3024210088 THRUST PIN
034 A 0005862842 REPAIR KIT
036 A 3024210020 PROTECTIVE PLATE
AT FRONT BRAKE CYLINDER
038 N 912004012100 LOCK WASHER
039 N 000933010164 SCREW
041 A 3524200016 BRAKE ANCHOR PLATE
041 A 3524200016 BRAKE ANCHOR PLATE
A 3524200216 BRAKE ANCHOR PLATE
Repalced by: A 3524200516
A 3524200516 BRAKE ANCHOR PLATE
A 3554200016 BRAKE ANCHOR PLATE
A 3024200116 BRAKE ANCHOR PLATE
Repalced by: A 3024201316
A 3024201316 BRAKE ANCHOR PLATE
043 A 3024201116 BRAKE ANCHOR PLATE
044 A 3124211068 INSPECTION HOLE COVER
044 A 3124211068 INSPECTION HOLE COVER
045 A 3094210211 PLUG
046 A 3129900096 RIVET
047 A 3024200738 ADJUSTER
Repalced by: A 3025860342
048 A 3024230275 HEXAGONAL PIECE
048 A 3024230275 HEXAGONAL PIECE
A 3024230175 HEXAGONAL PIECE
050 N 001473006012 GROOVED PIN
050 N 001473006012 GROOVED PIN
051 A 3129934901 SPRING
051 A 3129934901 SPRING
052 A 3024210173 LOCK
052 A 3024210173 LOCK
053 A 3024210071 SCREW
053 A 3024210071 SCREW
054 N 912004012100 LOCK WASHER
054 N 912004012100 LOCK WASHER
055 N 000934012022 NUT
055 N 000934012022 NUT
A 3025860442 REPAIR KIT
Repalced by: A 3024203138
A 3024203138 REPAIR KIT
BRAKE READJUSTMENT
A 3025860342 REPAIR KIT
Repalced by: A 3024203038
A 3024203038 REPAIR KIT
Repalced by: A 3024202838
A 3024202838 ADJUSTER
BRAKE READJUSTMENT
A 3024202838 ADJUSTER
BRAKE READJUSTMENT
057 A 3024202038 ADJUSTER
058 A 3024210329 SLIDE
059 A 3124211073 LOCK
060 N 914001010002 COMBINATION BOLT
Repalced by: N 000933010164
N 000933010164 SCREW
ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE
A 3419900004 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
A 3419900004 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
061 A 3559900004 SCREW
Repalced by: N 900170012001
A 3029900804 SCREW
Repalced by: N 900170012001
062 N 900170012001 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
062 N 900170012001 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
A 3419900104 SCREW
A 3559900104 SCREW
Repalced by: N 900170012019
N 900170012055 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
N 900170012055 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
A 3029900204 SCREW
Repalced by: N 900170012007
N 900170012007 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
065 N 000935012003 NUT
FRONT WHEEL BRAKE TO STEERING KNUCKLE
N 000094003219 COTTER PIN
FRONT WHEEL BRAKE TO STEERING KNUCKLE
067 A 3413320071 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
067 A 3413320071 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
067 A 3553320071 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
067 A 3523320071 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
068 A 3603320171 SCREW
FRONT WHEEL BRAKE TO STEERING KNUCKLE
069 N 000935016004 NUT
FRONT WHEEL BRAKE TO STEERING KNUCKLE
069 N 000935018001 NUT
FRONT WHEEL BRAKE TO STEERING KNUCKLE
N 000094004065 COTTER PIN
FRONT WHEEL BRAKE TO STEERING KNUCKLE
A 3414200620 BRAKE SHOE
Repalced by: A 3414200319
A 3414200720 BRAKE SHOE
Repalced by: A 3414200319
A 3414200820 BRAKE SHOE
Repalced by: A 3414200319
072 A 3414200319 BRAKE SHOE
Repalced by: A 3414201019
072 A 3414201019 BRAKE SHOE
072 A 3414201019 BRAKE SHOE
A 3524200020 BRAKE SHOE
Repalced by: A 3384200019
A 3524200120 BRAKE SHOE
Repalced by: A 3384200019
A 3524200220 BRAKE SHOE
Repalced by: A 3384200019
A 3384200019 BRAKE SHOE
Repalced by: A 3384200219
A 3384200219 BRAKE SHOE
A 3544200020 BRAKE SHOE
Repalced by: A 3024200019
A 3544200120 BRAKE SHOE
Repalced by: A 3024200019
A 3544200220 BRAKE SHOE
Repalced by: A 3024200019
A 3024200019 BRAKE SHOE
Repalced by: A 3024203319
A 3024203319 BRAKE SHOE
A 3604206220 BRAKE SHOE
Repalced by: A 3024202019
A 3604206320 BRAKE SHOE
Repalced by: A 3024202019
A 3604206420 BRAKE SHOE
Repalced by: A 3024202019
076 A 3024202019 BRAKE SHOE
078 A 3024210150 BUSHING
Repalced by: A 3955860142
080 A 3604233010 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.70 MM,8X 360 423 00 10)
080 A 3604233610 BRAKE LINING
Repalced by: A 3604233910
080 A 3604233910 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.70 MM,8X 360 423 33 10)
080 A 3604233110 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.70 MM,8X 360 423 01 10)
080 A 3604233710 BRAKE LINING
Repalced by: A 3604234010
080 A 3604234010 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.70 MM,8X 360 423 34 10)
080 A 3604232910 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.70 MM,8X 360 423 02 10)
080 A 3604233810 BRAKE LINING
Repalced by: A 3604234110
080 A 3604234110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.70 MM,8X 360 423 35 10)
080 A 3414230810 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.30 MM,8X 341 423 00 10)
080 A 3414230810 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.30 MM,8X 341 423 00 10)
080 A 3414234510 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.30 MM,8X 341 423 42 10)
080 A 3414234510 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.30 MM,8X 341 423 42 10)
080 A 3414230910 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.30 MM,8X 341 423 01 10)
080 A 3414230910 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.30 MM,8X 341 423 01 10)
080 A 3414234610 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.30 MM,8X 341 423 43 10)
080 A 3414234610 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.30 MM,8X 341 423 43 10)
080 A 3414231010 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.30 MM,8X 341 423 02 10)
080 A 3414234710 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.30 MM,8X 341 423 44 10)
080 A 3414234710 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.30 MM,8X 341 423 44 10)
082 A 3604212410 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.70 MM,8X 360 421 06 10)
082 A 3604212510 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.70 MM,8X 360 421 07 10)
082 A 3604212610 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.70 MM,8X 360 421 08 10)
082 A 3524230310 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.30 MM,8X 352 423 00 10)
082 A 3524231110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.30 MM,8X 352 423 08 10)
082 A 3524231110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.30 MM,8X 352 423 08 10)
082 A 3524230410 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.30 MM,8X 352 423 01 10)
082 A 3524231210 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.30 MM,8X 352 423 09 10)
082 A 3524231210 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.30 MM,8X 352 423 09 10)
082 A 3524230510 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.30 MM,8X 352 423 02 10)
082 A 3524231310 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.30 MM,8X 352 423 10 10)
082 A 3524231310 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.30 MM,8X 352 423 10 10)
085 A 3079900197 RIVET
Repalced by: A 0009910433
085 A 0009910433 PANHEAD RIVET
A 3024210013 SHACKLE
Repalced by: A 3385860042
087 A 3385860042 REPAIR KIT
Repalced by: A 3384200289
087 A 3384200289 REPAIR KIT
BRAKE SHOE SHACKLE
087 A 3384200289 REPAIR KIT
BRAKE SHOE SHACKLE
088 A 3024210174 PIN
088 A 3024210174 PIN
089 N 900055025301 LOCK RING
089 N 900055025301 LOCK RING
A 3124231174 PIN
Repalced by: A 3385860342
091R A 3385860342 REPAIR KIT
Repalced by: A 3384200082
091R A 3384200082 REPAIR KIT
BRAKE SHOE SHACKLE SPACER PIN
091R A 3384200082 REPAIR KIT
BRAKE SHOE SHACKLE SPACER PIN
A 3024210052 SPACER WASHER
Repalced by: A 3385860342
A 3029930201 SPRING
Repalced by: A 3385860342
094 A 3124211073 LOCK
094 A 3124211073 LOCK
096 A 3024210118 PIVOT PIN
096 A 3024210118 PIVOT PIN
097 N 900055025301 LOCK RING
097 N 900055025301 LOCK RING
100 A 3024210606 BRAKE ANCHOR
102 N 912004010102 LOCK WASHER
103 N 304017010027 SCREW
105 A 3024211074 PIN
107 A 3029970445 SEAL RING
109 A 3029940209 LOCK
110 A 3029940010 LOCK
Repalced by: N 000093010502
110 N 000093010502 LOCK PLATE
BRAKE SHOE TO BRAKE ANCHOR
110 A 3469940209 LOCK
BRAKE SHOE TO BRAKE ANCHOR
111 N 304017010027 SCREW
BRAKE SHOE TO BRAKE ANCHOR
112 A 3955860142 REPAIR KIT
Repalced by: A 3954200041
112 A 3954200041 REPAIR KIT
BRAKE SHOE BEARING
113 A 3029930310 SPRING
113 A 3029930310 SPRING
115 A 3524210192 SPRING
A 3414210174 PIN
Repalced by: A 3585860242
A 3415860042 REPAIR KIT
Repalced by: A 3585860242
117B A 3585860242 REPAIR KIT
Repalced by: A 3584200182
117B A 3584200182 REPAIR KIT
BRAKE SHOE MOUNTING BOLT
117B A 3584200182 REPAIR KIT
BRAKE SHOE MOUNTING BOLT
118 A 3124231089 FILLER
PLANE
118 A 3124231089 FILLER
PLANE
119 A 3529930501 SPRING
119 A 3529930501 SPRING
120 A 3124231189 FILLER
HIGH
120 A 3124231189 FILLER
HIGH
121 N 912004008102 LOCK WASHER
121 N 912004008102 LOCK WASHER
122 N 304032008006 NUT
122 N 304032008006 NUT
A 0024202018 WHEEL BRAKE CYLINDER
Repalced by: A 0034207918
A 0004233193 SPRING
A 0004231686 CUP
A 0004232183 PISTON
N 000472047000 LOCK RING
A 0004232187 PROTECTIVE CAP
A 0004231388 THRUST PIN
A 0004310265 VALVE
Repalced by: A 3075530107
A 3075530107 VALVE
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
A 0005862842 REPAIR KIT
A 0024207018 WHEEL BRAKE CYLINDER
Repalced by: A 0034207918
126 A 0024206918 WHEEL BRAKE CYLINDER
Repalced by: A 0034207918
A 0034207918 WHEEL BRAKE CYLINDER
46.83 MM
A 0084203018 WHEEL BRAKE CYLINDER
46.83 MM
A 0084203018 WHEEL BRAKE CYLINDER
46.83 MM
A 0004231686 CUP
A 0004231686 CUP
128 A 0004233193 SPRING
128 A 0004233193 SPRING
A 0004232183 PISTON
A 0004232183 PISTON
129 A 0004232187 PROTECTIVE CAP
129 A 0004232187 PROTECTIVE CAP
A 0004213087 PROTECTIVE CAP
TO 002 420 69 18,003 420 79 18
A 0004213087 PROTECTIVE CAP
TO 002 420 69 18,003 420 79 18
130 A 0004231088 THRUST PIN
TO 002 420 69 18,002 420 70 18
130 A 0004231088 THRUST PIN
TO 002 420 69 18,002 420 70 18
131 A 0004310265 VALVE
Repalced by: A 3075530107
131 A 3075530107 VALVE
131 A 3075530107 VALVE
132 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
132 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
132 A 0004210887 PROTECTIVE CAP
132 A 0004210887 PROTECTIVE CAP
134 A 0005862842 REPAIR KIT
134 A 0005862842 REPAIR KIT
A 0024207118 WHEEL BRAKE CYLINDER
Repalced by: A 0034208018
A 0024209218 WHEEL BRAKE CYLINDER
Repalced by: A 0034208018
138 A 0034208018 WHEEL BRAKE CYLINDER
50.80 MM
138 A 0094204118 WHEEL BRAKE CYLINDER
50.80 MM
138 A 0094204118 WHEEL BRAKE CYLINDER
50.80 MM
140 A 0004231993 SPRING
140 A 0004231993 SPRING
141 A 0004232587 PROTECTIVE CAP
141 A 0004232587 PROTECTIVE CAP
142 A 0004232787 PROTECTIVE CAP
A 0004231088 THRUST PIN
A 0004231088 THRUST PIN
A 0004231388 THRUST PIN
A 0004231388 THRUST PIN
144 A 3075530107 VALVE
144 A 3075530107 VALVE
145 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
145 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
145 A 0004210887 PROTECTIVE CAP
145 A 0004210887 PROTECTIVE CAP
146 A 3024210088 THRUST PIN
148 A 0005862342 REPAIR KIT
TO 002 420 69 18;70 18,71 18;
150 A 3414210020 PROTECTIVE PLATE
150 A 3024210020 PROTECTIVE PLATE
152 N 912004010102 LOCK WASHER
154 N 000933010164 SCREW
154 N 000933010105 SCREW
156 A 3024201117 BRAKE ANCHOR PLATE
Repalced by: A 3024204217
156 A 3024204217 BRAKE ANCHOR PLATE
LEFT
156 A 3024204217 BRAKE ANCHOR PLATE
LEFT
A 3024202317 BRAKE ANCHOR PLATE
Repalced by: A 3024204017
A 3024204017 BRAKE ANCHOR PLATE
LEFT
A 3024202117 BRAKE ANCHOR PLATE
Repalced by: A 3024204417
A 3024204417 BRAKE ANCHOR PLATE
LEFT
158 A 3024203117 BRAKE ANCHOR PLATE
LEFT
158 A 3024203117 BRAKE ANCHOR PLATE
LEFT
A 3024201017 BRAKE ANCHOR PLATE
Repalced by: A 3024204117
A 3024204117 BRAKE ANCHOR PLATE
RIGHT
A 3024204117 BRAKE ANCHOR PLATE
RIGHT
A 3024202217 BRAKE ANCHOR PLATE
Repalced by: A 3024203917
A 3024203917 BRAKE ANCHOR PLATE
RIGHT
A 3024202017 BRAKE ANCHOR PLATE
Repalced by: A 3024204317
A 3024204317 BRAKE ANCHOR PLATE
RIGHT
A 3024203017 BRAKE ANCHOR PLATE
RIGHT
A 3024203017 BRAKE ANCHOR PLATE
RIGHT
160 A 3024270054 PIPE SOCKET
162 A 3124211068 INSPECTION HOLE COVER
162 A 3124211068 INSPECTION HOLE COVER
162 A 3124211068 INSPECTION HOLE COVER
163 A 3129900096 RIVET
163 A 3129900096 RIVET
163 A 3129900096 RIVET
165 A 3094210211 PLUG
165 A 3094210211 PLUG
A 3024200638 ADJUSTER
Repalced by: A 3025860442
A 3024200638 ADJUSTER
A 3024200638 ADJUSTER
169 A 3024201938 ADJUSTER
169 A 3024201938 ADJUSTER
170 A 3024230175 HEXAGONAL PIECE
170 A 3024230175 HEXAGONAL PIECE
170 A 3024230175 HEXAGONAL PIECE
171 A 3024210329 SLIDE
171 A 3024210329 SLIDE
172 A 3124211073 LOCK
172 A 3124211073 LOCK
174 N 001473006012 GROOVED PIN
174 N 001473006012 GROOVED PIN
174 N 001473006012 GROOVED PIN
175 A 3129934901 SPRING
175 A 3129934901 SPRING
175 A 3129934901 SPRING
176 A 3029900340 WASHER
176 A 3029900340 WASHER
176 A 3029900340 WASHER
177 A 3024210173 LOCK
177 A 3024210173 LOCK
177 A 3024210173 LOCK
178 A 3024210071 SCREW
178 A 3024210071 SCREW
178 A 3024210071 SCREW
179 N 912004012100 LOCK WASHER
179 N 912004012100 LOCK WASHER
179 N 912004012100 LOCK WASHER
180 N 000934012022 NUT
180 N 000934012022 NUT
180 N 000934012022 NUT
A 3025860442 REPAIR KIT
Repalced by: A 3024203138
A 3024203138 REPAIR KIT
BRAKE READJUSTMENT
N 914001010002 COMBINATION BOLT
Repalced by: N 000933010164
N 000933010164 SCREW
ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE
N 000933010164 SCREW
ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE
N 308676012012 SCREW
N 308676012012 SCREW
N 000960012017 SCREW
N 000961012106 SCREW
N 000961012106 SCREW
N 308676012010 SCREW
N 308676012010 SCREW
N 912004012100 LOCK WASHER
N 000934012023 NUT
Repalced by: N 308673012002
N 308673012002 HEXAGON NUT
184 A 3029900504 SCREW
184 A 3029900504 SCREW
N 000960016212 SCREW
Repalced by: N 000960016261
N 000960016261 SCREW
Repalced by: N 308676016014
N 308676016014 SCREW
N 912004016101 LOCK WASHER
N 912004016101 LOCK WASHER
N 000934016013 NUT
Repalced by: N 308673016001
N 308673016001 NUT
N 308673016001 NUT
A 3524200020 BRAKE SHOE
Repalced by: A 3384200019
A 3524200120 BRAKE SHOE
Repalced by: A 3384200019
A 3524200220 BRAKE SHOE
Repalced by: A 3384200019
185 A 3384200019 BRAKE SHOE
Repalced by: A 3384200219
185 A 3384200219 BRAKE SHOE
185 A 3384200219 BRAKE SHOE
A 3544200020 BRAKE SHOE
Repalced by: A 3024200019
A 3544200120 BRAKE SHOE
Repalced by: A 3024200019
A 3544200220 BRAKE SHOE
Repalced by: A 3024200019
188 A 3024200019 BRAKE SHOE
Repalced by: A 3024203319
188 A 3024203319 BRAKE SHOE
A 3604204520 BRAKE SHOE
Repalced by: A 3024202119
A 3604204520 BRAKE SHOE
A 3604204620 BRAKE SHOE
Repalced by: A 3024202119
A 3604204620 BRAKE SHOE
A 3604204720 BRAKE SHOE
Repalced by: A 3024202119
A 3604204720 BRAKE SHOE
A 3604205920 BRAKE SHOE
Repalced by: A 3024202119
A 3604206020 BRAKE SHOE
Repalced by: A 3024202119
A 3604206120 BRAKE SHOE
Repalced by: A 3024202119
A 3024202119 BRAKE SHOE
190 A 3024210150 BUSHING
Repalced by: A 3955860142
192 A 3524230310 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.30 MM,8X 352 423 00 10)
192 A 3524230310 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.30 MM,8X 352 423 00 10)
192 A 3524231110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.30 MM,8X 352 423 08 10)
192 A 3524231110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.30 MM,8X 352 423 08 10)
192 A 3524230410 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.30 MM,8X 352 423 01 10)
192 A 3524230410 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.30 MM,8X 352 423 01 10)
192 A 3524231210 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.30 MM,8X 352 423 09 10)
192 A 3524231210 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.30 MM,8X 352 423 09 10)
192 A 3524230510 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.30 MM,8X 352 423 02 10)
192 A 3524230510 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.30 MM,8X 352 423 02 10)
192 A 3524231310 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.30 MM,8X 352 423 10 10)
192 A 3524231310 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.30 MM,8X 352 423 10 10)
194 A 3604233010 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.70 MM,8X 360 423 00 10)
194 A 3604233010 BRAKE LINING
(PARTS KIT) (BRAKE LINING
15.70 MM,8X 360 423 00 10)
194 A 3604233610 BRAKE LINING
Repalced by: A 3604233910
194 A 3604233910 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.70 MM,8X 360 423 33 10)
194 A 3604233910 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
15.70 MM,8X 360 423 33 10)
194 A 3604233110 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.70 MM,8X 360 423 01 10)
194 A 3604233110 BRAKE LINING
(PARTS KIT) (BRAKE LINING
16.70 MM,8X 360 423 01 10)
194 A 3604233710 BRAKE LINING
Repalced by: A 3604234010
194 A 3604234010 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.70 MM,8X 360 423 34 10)
194 A 3604234010 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
16.70 MM,8X 360 423 34 10)
194 A 3604232910 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.7 MM,8X 360 423 02 10)
194 A 3604232910 BRAKE LINING
(PARTS KIT) (BRAKE LINING
17.7 MM,8X 360 423 02 10)
194 A 3604233810 BRAKE LINING
Repalced by: A 3604234110
194 A 3604234110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.70 MM,8X 360 423 35 10)
194 A 3604234110 BRAKE LINING
(PARTS KIT) (ASBESTOS-FREE BRAKE LINING)
17.70 MM,8X 360 423 35 10)
196 A 3079900197 RIVET
Repalced by: A 0009910433
196 A 0009910433 PANHEAD RIVET
A 3024210013 SHACKLE
Repalced by: A 3385860042
200 A 3385860042 REPAIR KIT
Repalced by: A 3384200289
200 A 3384200289 REPAIR KIT
BRAKE SHOE SHACKLE
200 A 3384200289 REPAIR KIT
BRAKE SHOE SHACKLE
200 A 3384200289 REPAIR KIT
BRAKE SHOE SHACKLE
202 A 3024210174 PIN
202 A 3024210174 PIN
202 A 3024210174 PIN
A 3124231174 PIN
Repalced by: A 3385860342
203R A 3385860342 REPAIR KIT
Repalced by: A 3384200082
203R A 3384200082 REPAIR KIT
BRAKE SHOE SHACKLE SPACER PIN
203R A 3384200082 REPAIR KIT
BRAKE SHOE SHACKLE SPACER PIN
203R A 3384200082 REPAIR KIT
BRAKE SHOE SHACKLE SPACER PIN
A 3024210052 SPACER WASHER
Repalced by: A 3385860342
A 3029930201 SPRING
Repalced by: A 3385860342
206 A 3124211073 LOCK
206 A 3124211073 LOCK
206 A 3124211073 LOCK
208 A 3024210118 PIVOT PIN
208 A 3024210118 PIVOT PIN
208 A 3024210118 PIVOT PIN
209 N 900055025301 LOCK RING
209 N 900055025301 LOCK RING
209 N 900055025301 LOCK RING
212 A 3024230806 BRAKE ANCHOR
212 A 3024230806 BRAKE ANCHOR
214 A 3024211074 PIN
214 A 3024211074 PIN
216 A 3029970145 SEAL RING
216 A 3029970145 SEAL RING
218 A 3029940209 LOCK
218 A 3029940209 LOCK
219 N 304017010027 SCREW
BRAKE SHOE TO BRAKE ANCHOR
219 N 304017010027 SCREW
BRAKE SHOE TO BRAKE ANCHOR
220 N 000093010502 LOCK PLATE
BRAKE SHOE TO BRAKE ANCHOR
220 N 000093010502 LOCK PLATE
BRAKE SHOE TO BRAKE ANCHOR
220 A 3469940209 LOCK
BRAKE SHOE TO BRAKE ANCHOR
220 A 3469940209 LOCK
BRAKE SHOE TO BRAKE ANCHOR
221 A 3955860142 REPAIR KIT
Repalced by: A 3954200041
221 A 3954200041 REPAIR KIT
BRAKE SHOE BEARING
222 A 3029930310 SPRING
SHORT
222 A 3029930310 SPRING
SHORT
222 A 3029930310 SPRING
SHORT
224 A 3029930610 SPRING
LONG
226 A 3024230018 PIVOT PIN
Repalced by: A 3024230518
226 A 3024230518 PIVOT PIN
BRAKE SHAFT TO BRAKE SHOE
226 A 3024230518 PIVOT PIN
BRAKE SHAFT TO BRAKE SHOE
226 A 3024230518 PIVOT PIN
BRAKE SHAFT TO BRAKE SHOE
228 A 3024230118 PIVOT PIN
Repalced by: A 3024230618
228 A 3024230618 PIVOT PIN
BRAKE SHAFT TO BRAKE SHOE
228 A 3024230618 PIVOT PIN
BRAKE SHAFT TO BRAKE SHOE
N 000094004023 COTTER PIN
N 000094004023 COTTER PIN
N 000094004023 COTTER PIN
230 A 3029940035 SNAP RING
230 A 3029940035 SNAP RING
A 3414210174 PIN
Repalced by: A 3585860242
A 3415860042 REPAIR KIT
Repalced by: A 3585860242
232B A 3585860242 REPAIR KIT
Repalced by: A 3584200182
232B A 3584200182 REPAIR KIT
BRAKE SHOE MOUNTING BOLT
233 A 3124231089 FILLER
PLANE
234 A 3529930501 SPRING
235 A 3124231189 FILLER
HIGH
236 N 912004008102 LOCK WASHER
237 N 304032008006 NUT
A 3024200119 THRUST SHACKLE
Repalced by: A 3024201419
240 A 3024201419 THRUST SHACKLE
Repalced by: A 3834200389
240 A 3834200389 SHACKLE
242 A 3024230074 PIN
Repalced by: A 3024230774
242 A 3024230774 PIN
THRUST SHACKLE TO BRAKE SHOE
243 N 000471018000 LOCK RING
245 A 3024230174 PIN
N 000094004065 COTTER PIN
247 A 3024230874 PIN
Repalced by: A 3024230974
247 A 3024230974 PIN
BRAKE SHAFT TO THRUST SHACKLE
249 A 3029940109 LOCK
250 N 912004008102 LOCK WASHER
251 N 000933008130 SCREW
Repalced by: N 304017008039
251 N 304017008039 SCREW
255 A 0014306801 BRAKE MASTER CYLINDER
Repalced by: A 0024301901
255 A 0024301901 BRAKE MASTER CYLINDER
TEVES
257 A 3075530107 VALVE
258 A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
258 A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
258 A 0004210887 PROTECTIVE CAP
260 A 0004310522 THREADED UNION
261 N 007603040102 SEAL RING
A 0004310475 THREADED UNION
N 007603032101 SEALING RING
265 A 0004300381 VALVE
Repalced by: A 0015861543
265 A 0015861543 REPAIR KIT
266 A 0009930605 SPRING
267 A 0004312676 WASHER
268 A 0004317393 SPRING
269 A 0004312089 SPRING RETAINER
270 A 0004317493 SPRING
271 A 0004312089 SPRING RETAINER
272 A 0004310585 FILLER RING
274 A 0004311176 WASHER
275 A 0004310671 SCREW
276 N 007603008109 SEAL RING
280 A 0005864943 REPAIR KIT
TO 001 430 68 01
A 0024308801 BRAKE MASTER CYLINDER
Repalced by: A 0024308201
A 0024308201 BRAKE MASTER CYLINDER
KUGELFISCHER
A 0004319360 SEAL RING
A 0004319260 SEAL RING
A 0009933705 SPRING
A 0004319160 SEAL RING
A 3075530107 VALVE
A 0004210887 PROTECTIVE CAP
Repalced by: A 0004217187
A 0004217187 PROTECTIVE CAP
Repalced by: A 0004210887
A 0004210887 PROTECTIVE CAP
A 0005869543 REPAIR KIT
Repalced by: A 0004303083
A 0004303083 PISTON
TO 002 430 88 01;002 430 82 01
A 0004230184 FITTING
AT BRAKE MASTER CYLINDER
TO 001 430 68 01
A 0019978772 FITTING
AT BRAKE MASTER CYLINDER
TO 002 430 8801
287 A 0004280124 DISTRIBUTOR
AT BRAKE MASTER CYLINDER
TO 001 430 68 01
A 0004310330 BANJO UNION
AT BRAKE MASTER CYLINDER
TO 002 430 88 01
289 N 007603014405 SEAL RING
AT BRAKE MASTER CYLINDER
291 A 0004280026 HOLLOW SCREW
AT BRAKE MASTER CYLINDER
TO 001 430 68 01
A 0009902963 HOLLOW SCREW
AT BRAKE MASTER CYLINDER
TO 002 430 88 01
293 A 0004280032 SCREW PLUG
AT BRAKE MASTER CYLINDER
TO 001 430 68 01
A 0004311956 SCREW PLUG
AT BRAKE MASTER CYLINDER
TO 002 430 88 01
295 N 912004010102 LOCK WASHER
AT BRAKE MASTER CYLINDER
296 N 000934010014 NUT
Repalced by: N 304032010003
296 N 304032010003 NUT
AT BRAKE MASTER CYLINDER
298 A 3524310740 BRACKET
AT BRAKE MASTER CYLINDER
A 3524310940 BRACKET
AT BRAKE MASTER CYLINDER
299 N 000933010157 SCREW
AT BRAKE MASTER CYLINDER
299E N 000125010518 WASHER
Repalced by: N 000125010532
299E N 000125010532 WASHER
AT BRAKE MASTER CYLINDER
299L N 912004010102 LOCK WASHER
AT BRAKE MASTER CYLINDER
299P N 000934010014 NUT
Repalced by: N 304032010003
299P N 304032010003 NUT
AT BRAKE MASTER CYLINDER
300 A 0004314702 RESERVOIR
300 A 0014312902 RESERVOIR
302 A 0004315433 FILLER CAP
BUTTRESS THREAD
A 0002950237 SCREW PLUG
Repalced by: A 0004315433
303 A 0009972940 SEAL RING
43.7X30 MM
A 0039976440 SEAL RING
42X21.5 MM
305 A 0004313734 STRAINER
Repalced by: A 0004314334
305 A 0004314334 STRAINER
306 A 0004311040 CLAMP
307 N 007985006157 SCREW
Repalced by: N 000000001145
307 N 000000001145 SCREW
FLUID RESERVOIR
307E N 912004006102 LOCK WASHER
FLUID RESERVOIR
308 N 007603022102 SEAL RING
AT BRAKE MASTER CYLINDER
310 A 0004280130 CONNECTOR
AT BRAKE MASTER CYLINDER
311 A 0004280126 HOLLOW SCREW
AT BRAKE MASTER CYLINDER
315 A 3524209529 LINE
BETWEEN RESERVOIR AND BRAKE MASTER CYLINDER
A 3524760036 BRACKET
Repalced by: A 3274925819
A 3274925819 BRACKET
LINE MOUNTING
319 A 3524280110 LINE
Repalced by: A 0004292201
321 A 0004292201 LINE
BETWEEN RESERVOIR AND BRAKE MASTER CYLINDER
9X0.7
323 A 0009978952 HOSE
BETWEEN RESERVOIR AND BRAKE MASTER CYLINDER
N 900288015000 CLAMP
BRAKE LINE MOUNTING
325 A 0009972481 GROMMET
BRAKE LINE THRU CAB FLOOR
327 A 3379950332 CLAMP
BRAKE LINE MOUNTING
329 A 3124761036 BRACKET
Repalced by: A 3124761236
329 A 3124761236 BRACKET
Repalced by: A 3604293140
329 A 3604293140 BRACKET
BRAKE LINE MOUNTING
N 007981004245 SHEET METAL SCREW
Repalced by: N 007981004339
N 007981004339 SHEET METAL SCREW
Repalced by: N 000000000459
N 000000000459 SHEET METAL SCREW
BRAKE LINE MOUNTING
N 000084005302 SCREW
BRAKE LINE MOUNTING
N 912004005103 LOCK WASHER
BRAKE LINE MOUNTING
N 304032005002 NUT
Repalced by: N 304032005005
N 304032005005 NUT
BRAKE LINE MOUNTING
N 000084004164 SCREW
BRAKE LINE MOUNTING
330 N 000084006197 SCREW
BRAKE LINE MOUNTING
N 912004006102 LOCK WASHER
BRAKE LINE MOUNTING
330E N 000934006007 NUT
BRAKE LINE MOUNTING
331 A 3404201529 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
A 3404203129 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
A 3404203029 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
A 3404201429 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
333 A 3404203129 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
A 3404201529 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
A 3404204129 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
A 3404203429 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
335 A 3129970582 HOSE
SIDE MEMBER,FRONT
A 3859970081 GROMMET
SIDE MEMBER,FRONT
337 A 3524290740 BRACKET
BRAKE LINE MOUNTING
339 A 3604280243 ANGLE
BRAKE LINE MOUNTING
339 A 3604280243 ANGLE
BRAKE LINE MOUNTING
A 3604312640 BRACKET
BRAKE LINE MOUNTING
N 000933008147 SCREW
Repalced by: N 304017008021
340 N 304017008021 SCREW
BRAKE LINE MOUNTING
340E N 912004008102 LOCK WASHER
BRAKE LINE MOUNTING
340N N 304032008006 NUT
BRAKE LINE MOUNTING
341 A 3604280143 ANGLE
BRAKE LINE MOUNTING
341D N 000084006197 SCREW
BRAKE LINE MOUNTING
341M N 000125006421 WASHER
BRAKE LINE MOUNTING
Repalced by: N 000125006449
341M N 000125006449 WASHER
BRAKE LINE MOUNTING
341R N 912004006102 LOCK WASHER
BRAKE LINE MOUNTING
341U N 000934006007 NUT
BRAKE LINE MOUNTING
342 A 3604300143 CLAMP
Repalced by: N 916016008200
342 N 916016008200 CLAMP
Repalced by: N 000000000319
342 N 000000000319 CLAMP
BRAKE LINE MOUNTING
N 000084006197 SCREW
BRAKE LINE MOUNTING
N 912004006102 LOCK WASHER
BRAKE LINE MOUNTING
N 000934006007 NUT
BRAKE LINE MOUNTING
344 A 3129950935 CLAMP
BRAKE LINE MOUNTING
N 000084004151 SCREW
BRAKE LINE MOUNTING
N 000934004006 NUT
BRAKE LINE MOUNTING
346 A 0004288235 BRAKE HOSE
550 MM
348 A 0004280473 BRACKET
Repalced by: A 6525040038
348 A 6525040038 MOUNTING PLATE
BRAKE LINE MOUNTING
350 A 3224280140 BRACKET
BRAKE LINE MOUNTING
350C N 000933008147 SCREW
Repalced by: N 304017008021
350C N 304017008021 SCREW
BRAKE LINE MOUNTING
350L N 912004008102 LOCK WASHER
BRAKE LINE MOUNTING
350R N 304032008006 NUT
BRAKE LINE MOUNTING
A 3404205629 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
5800 MM
A 3404206029 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
6600 MM
A 3404205629 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
5800 MM
A 3404204729 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
4000 MM
A 3404205229 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
5000 MM
A 3404204429 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
3400 MM
A 3404204929 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
4400 MM
A 3404204529 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
3600 MM
A 3404204829 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
A 3404204729 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
4000 MM
A 3404204429 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
3400 MM
A 3404204429 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE
3400 MM
360 A 3404202029 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE
1150 MM
360 A 3404202029 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE
1150 MM
A 3404203729 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE
2000 MM
A 3404204729 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE
4000 MM
A 3404201329 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE
800 MM
A 3404201329 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE
800 MM
A 3404201729 LINE
FROM MASTER CYLINDER TO INTERMEDIATE PIECE
1000 MM
364 A 0004292736 CONNECTOR
364 A 0004292736 CONNECTOR
A 3404202129 LINE
1200 MM
366 A 3404204629 LINE
FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE
3800 MM
366 A 3404201129 LINE
FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE
3600 MM
366 A 3404204729 LINE
FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE
4000 MM
366 A 3404205029 LINE
FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE
4600 MM
366 A 3404205029 LINE
FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE
4600 MM
366 A 3404205329 LINE
FROM INTERMEDIATE PIECE TO REAR AXLE BRAKE HOSE
5200 MM
368 A 3524281740 BRACKET
Repalced by: A 3184280240
368 A 3184280240 BRACKET
BRAKE LINE MOUNTING
368 A 3524282840 BRACKET
BRAKE LINE MOUNTING
368E N 000933008147 SCREW
Repalced by: N 304017008021
368E N 304017008021 SCREW
BRAKE LINE MOUNTING
368L N 912004008102 LOCK WASHER
BRAKE LINE MOUNTING
368R N 304032008006 NUT
BRAKE LINE MOUNTING
A 0019978490 LOOM TIE
BRAKE LINE MOUNTING
369 A 3604300143 CLAMP
Repalced by: N 916016008200
369 N 916016008200 CLAMP
Repalced by: N 000000000319
369 N 000000000319 CLAMP
BRAKE LINE MOUNTING
A 3609950601 CLAMP
BRAKE LINE MOUNTING
N 000084006197 SCREW
BRAKE LINE MOUNTING
N 912004006102 LOCK WASHER
BRAKE LINE MOUNTING
N 000934006007 NUT
BRAKE LINE MOUNTING
A 0024280735 BRAKE HOSE
600 MM
371 A 0004288935 BRAKE HOSE
650 MM
371 A 0014284835 BRAKE HOSE
650 MM
A 0004280473 BRACKET
Repalced by: A 6525040038
A 6525040038 MOUNTING PLATE
373 A 3834280140 BRACKET
BRAKE LINE MOUNTING
A 3224280140 BRACKET
BRAKE LINE MOUNTING
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRAKE LINE MOUNTING
N 912004008102 LOCK WASHER
BRAKE LINE MOUNTING
N 304032008006 NUT
BRAKE LINE MOUNTING
375 A 0004290437 DISTRIBUTOR
AT REAR AXLE
375 A 0004294337 DISTRIBUTOR
AT REAR AXLE
377 N 000933008152 SCREW
Repalced by: N 304017008027
377 N 304017008027 SCREW
AT REAR AXLE
378 N 912004008102 LOCK WASHER
AT REAR AXLE
380 A 3404202429 LINE
FROM DISTRIBUTOR TO LEFT REAR WHEEL
1350 MM
380 A 3404202029 LINE
FROM DISTRIBUTOR TO LEFT REAR WHEEL
1150 MM
382 A 3129951020 CLAMP
BRAKE LINE MOUNTING
384 A 3129973482 HOSE
BRAKE LINE MOUNTING
386 N 000933008212 SCREW
Repalced by: N 304017008016
386 N 304017008016 SCREW
BRAKE LINE MOUNTING
387 N 912004008102 LOCK WASHER
BRAKE LINE MOUNTING
390 A 3404201029 LINE
FROM DISTRIBUTOR TO RIGHT REAR WHEEL
650 MM
390 A 3404200729 LINE
FROM DISTRIBUTOR TO RIGHT REAR WHEEL
500 MM
A 3604300143 CLAMP
Repalced by: N 916016008200
N 916016008200 CLAMP
Repalced by: N 000000000319
N 000000000319 CLAMP
BRAKE LINE TO REAR AXLE
A 3854294040 BRACKET
Repalced by: A 3812711640
A 3812711640 BRACKET
BRAKE LINE TO REAR AXLE
N 000933008290 SCREW
BRACKET TO REAR AXLE
N 912004008102 LOCK WASHER
BRACKET TO REAR AXLE
N 000084006197 SCREW
BRACKET TO REAR AXLE HOUSING
N 913004006002 NUT
Repalced by: N 913004006001
N 913004006001 NUT
Repalced by: N 910113006000
N 910113006000 NUT
BRACKET TO REAR AXLE HOUSING
A 3184280140 BRACKET
Repalced by: A 3184280240
A 3184280240 BRACKET
AT BRAKE BOOSTER CONSOLE
N 000933010238 SCREW
Repalced by: N 304017010028
N 304017010028 HEXAGON HEAD BOLT
AT BRAKE BOOSTER CONSOLE
M10X20
N 912004010102 LOCK WASHER
AT BRAKE BOOSTER CONSOLE
N 000934010014 NUT
Repalced by: N 304032010003
N 304032010003 NUT
AT BRAKE BOOSTER CONSOLE
A 3609950101 CLAMP
PRESSURE GAUGE LINE TO BRACKET
N 007985006193 SCREW
Repalced by: N 000000001146
N 000000001146 SCREW
PRESSURE GAUGE LINE TO BRACKET
M 6X16
N 912004006102 LOCK WASHER
PRESSURE GAUGE LINE TO BRACKET
N 000934006007 NUT
PRESSURE GAUGE LINE TO BRACKET
395 N 007603022102 SEAL RING
AT AIR COMPRESSOR
N 074305022202 NUT
AT AIR COMPRESSOR
A 0009870446 O-RING
AT AIR COMPRESSOR
A 0004290227 THRUST RING
Repalced by: A 0009940203
A 0009940203 THRUST RING
AT AIR COMPRESSOR
397 N 074313018201 FITTING
AT AIR COMPRESSOR
N 074301026202 ELBOW FITTING
AT AIR COMPRESSOR
N 074313018201 FITTING
AT AIR COMPRESSOR
N 074313018201 FITTING
AT AIR COMPRESSOR
399 N 007603026104 SEAL RING
AT AIR COMPRESSOR
N 074305026202 NUT
AT AIR COMPRESSOR
403 A 0004293138 ELBOW FITTING
Repalced by: A 0004291838
403 A 0004291838 ELBOW FITTING
AT AIR COMPRESSOR
A 3524296702 LINE
Repalced by: A 0004290401
A 3524296802 LINE
Repalced by: A 0004290401
A 3524296701 LINE
Repalced by: A 0004290401
A 3524296801 LINE
Repalced by: A 0004290401
A 3524296903 LINE
Repalced by: A 0004290401
A 3524290504 LINE
Repalced by: A 0004290401
A 3524290604 LINE
Repalced by: A 0004290401
405 A 0004290401 LINE
Repalced by: A 0005516456
405 A 0005516456 TUBE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
18 MM
407 N 915018018000 UNION NUT
TO 18-MM-DIA. COMPRESSED AIR LINES
408 N 003861018003 GLAND
Repalced by: A 0019901167
408 A 0019901167 SEAL CONE
TO 18-MM-DIA. COMPRESSED AIR LINES
409 N 915065018101 THRUST RING
TO 18-MM-DIA. COMPRESSED AIR LINES
410 N 915045014100 SEAL RING
TO 18-MM-DIA. COMPRESSED AIR LINES
N 074313018201 FITTING
TO 18-MM-DIA. COMPRESSED AIR LINES
A 3524292040 BRACKET
Repalced by: A 3555420240
A 3555420240 BRACKET
Repalced by: A 6674290640
A 6674290640 BRACKET
BRACKET TO CYLINDER HEAD
N 304017010027 SCREW
BRACKET TO CYLINDER HEAD
N 912004010102 LOCK WASHER
BRACKET TO CYLINDER HEAD
A 3609950601 CLAMP
LINE TO BRACKET
A 3609950601 CLAMP
AIR COMPRESSOR CONNECTION
N 000084006197 SCREW
LINE TO BRACKET
N 912004006102 LOCK WASHER
LINE TO BRACKET
N 912004006102 LOCK WASHER
AIR COMPRESSOR CONNECTION
N 000934006007 NUT
LINE TO BRACKET
N 000934006007 NUT
AIR COMPRESSOR CONNECTION
412 A 3184291540 BRACKET
414 N 916016018201 CLAMP
AT SIDE MEMBER
415 N 000084006197 SCREW
AT SIDE MEMBER
N 000125006421 WASHER
AT SIDE MEMBER
Repalced by: N 000125006449
N 000125006449 WASHER
AT SIDE MEMBER
N 000125006421 WASHER
AIR COMPRESSOR CONNECTION
Repalced by: N 000125006449
N 000125006449 WASHER
AIR COMPRESSOR CONNECTION
416 N 912004006112 LOCK WASHER
AT SIDE MEMBER
N 912004006102 LOCK WASHER
AT SIDE MEMBER
417 N 000934006007 NUT
AT SIDE MEMBER
A 3524292140 BRACKET
A 3604312640 BRACKET
N 000084006197 SCREW
BRACKET TO ENGINE CROSS MEMBER
N 912004006102 LOCK WASHER
BRACKET TO ENGINE CROSS MEMBER
N 000934006007 NUT
BRACKET TO ENGINE CROSS MEMBER
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO CONSOLE
M 8X20
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
BRACKET TO CONSOLE
N 912004008102 LOCK WASHER
BRACKET TO CONSOLE
N 000934008020 NUT
BRACKET TO CONSOLE
418 A 0005516256 TUBE
15 MM
420 N 915018015000 UNION NUT
421 N 003861015004 GLAND
422 N 915065015101 THRUST RING
423 N 915045012100 SEAL RING
425 N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "1"
427 N 074299026300 DOUBLE FITTING
PRESSURE REGULATOR,CONNECTION "1"
429 N 074305026202 NUT
PRESSURE REGULATOR,CONNECTION "1"
429 N 074305026202 NUT
PRESSURE REGULATOR,CONNECTION "1"
N 000125028001 WASHER
430 N 074313018201 FITTING
PRESSURE REGULATOR,CONNECTION "1"
A 0029974372 FITTING
PRESSURE REGULATOR,CONNECTION "1"
430E N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "1"
430E N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "1"
A 0004293238 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION "1"
A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTION "1"
A 0004290227 THRUST RING
Repalced by: A 0009940203
A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTION "1"
432 A 0004314006 VALVE
Repalced by: A 0004319106
432 A 0004319106 PRESSURE REGULATOR
432 A 0004314906 VALVE
Repalced by: A 0004319206
432 A 0004319206 PRESSURE REGULATOR
Repalced by: A 0004319106
A 0004319106 PRESSURE REGULATOR
434 A 0004318360 SEAL RING
435 A 0007630253 SLEEVE
Repalced by: A 0007630553
435 A 0007630553 SLEEVE
436 A 0004311434 STRAINER
437 A 0004310681 VALVE DISC
439 A 0004311381 VALVE DISC
440 A 0004311081 VALVE DISC
441 A 0004314787 PROTECTIVE CAP
Repalced by: A 0009979486
441 A 0009979486 PROTECTIVE CAP
442 A 0014314106 PRESSURE REGULATOR
Repalced by: A 0024313506
442 A 0024313506 PRESSURE REGULATOR
Repalced by: A 0024315906
442 A 0014314306 PRESSURE REGULATOR
Repalced by: A 0024316006
442 A 0014312206 PRESSURE REGULATOR
Repalced by: A 0024316006
442 A 0024316006 PRESSURE REGULATOR
Repalced by: A 0024315906
442 A 0024315906 PRESSURE REGULATOR
WABCO
442 A 0024315906 PRESSURE REGULATOR
BOSCH
A 0025864143 REPAIR KIT
TO 000 431 92 06/40 06/49 06
A 0025864143 REPAIR KIT
BOSCH 0 481 039 012/007/008
442R A 0025865043 REPAIR KIT
TO 000 431 92 06/91 06/40 06/49 06
442R A 0025865043 REPAIR KIT
BOSCH 0 481 039 012/011/007/008
A 0025864243 REPAIR KIT
TO 000 431 91 06,BOSCH 0 481 039 011
A 0015864343 REPAIR KIT
Repalced by: A 0004301107
A 0004301107 REPAIR KIT
TO 001 431 22 06,WEST. 975 300 111 0
A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 22 06,WEST. 975 300 111 0
443 A 0015868543 REPAIR KIT
Repalced by: A 0004301407
443 A 0004301407 REPAIR KIT
TO 001 431 41 06,BOSCH 0 481 039 102
A 0014304960 REPAIR KIT
TO 002 431 60 06,WEST.975 303 440 0
443C A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 35 06,BOSCH 0 481 039 222
443C A 0004301768 REPAIR KIT
DIAPHRAGM
TO 002 431 59 06,BOSCH 0 481 039 202
443E A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 35 06,BOSCH 0 481 039 222
443E A 0004307960 REPAIR KIT
TIRE INFLATING CONNECTION
TO 002 431 59 06,BOSCH 0 481 039 202
A 3524316340 BRACKET
PRESSURE REGULATOR
N 000931008322 SCREW
PRESSURE REGULATOR TO BRACKET
M 8X80
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
BRACKET TO SIDE MEMBER
M 8X25
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
BRACKET TO SIDE MEMBER
N 000125028001 WASHER
ELBOW FITTING TO SIDE MEMBER
444 N 007603022102 SEAL RING
444E N 074298022203 DOUBLE FITTING
445 A 0009870446 O-RING
AT PRESSURE REGULATOR
446 A 0004290227 THRUST RING
Repalced by: A 0009940203
446 A 0009940203 THRUST RING
AT PRESSURE REGULATOR
447 N 074305022202 NUT
AT PRESSURE REGULATOR
450 N 074301022203 ELBOW FITTING
AT PRESSURE REGULATOR
452 N 074298022203 DOUBLE FITTING
TWO-CIRCUIT PROTECTIVE VALVE
454 N 007603022102 SEAL RING
TWO-CIRCUIT PROTECTIVE VALVE
458 A 0004317206 VALVE
Repalced by: A 0004316806
458 A 0004316806 VALVE
TWO-CIRCUIT PROTECTIVE VALVE
460 A 0004311981 VALVE DISC
TO 000 431 72 06,000 431 68 06
462 A 0004312081 VALVE DISC
BOTTOM
TO 000 431 72 06
464 A 0007630454 SEAL
466 A 0004315086 CUP
468 N 074313016401 FITTING
Repalced by: A 0019972372
468 A 0019972372 FITTING
TWO-CIRCUIT PROTECTIVE VALVE

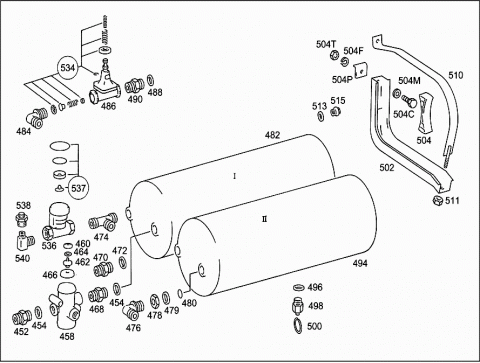

470 N 074298022203 DOUBLE FITTING
TWO-CIRCUIT PROTECTIVE VALVE
472 N 007603022102 SEAL RING
AT INSIDE AIR RESERVOIR
474 N 074302022202 T-FITTING
AT INSIDE AIR RESERVOIR
474 N 074302022202 T-FITTING
AT OUTSIDE AIR RESERVOIR
476 N 074301022203 ELBOW FITTING
AT INSIDE AIR RESERVOIR
476 N 074301022203 ELBOW FITTING
AT OUTSIDE AIR RESERVOIR
478 N 074305022202 NUT
AT INSIDE AIR RESERVOIR
479 A 0004290227 THRUST RING
Repalced by: A 0009940203
479 A 0009940203 THRUST RING
AT INSIDE AIR RESERVOIR
480 A 0009870446 O-RING
AT INSIDE AIR RESERVOIR
A 3124302905 RESERVOIR
INSIDE
A 3524304405 RESERVOIR
INSIDE
482 A 3604303105 RESERVOIR
INSIDE
484 N 074301022203 ELBOW FITTING
AT OVERFLOW VALVE
N 074305022202 NUT
AT OVERFLOW VALVE
A 0004290227 THRUST RING
Repalced by: A 0009940203
A 0009940203 THRUST RING
AT OVERFLOW VALVE
A 0009870446 O-RING
AT OVERFLOW VALVE
486 A 0004296444 VALVE
488 N 007603022102 SEAL RING
AT OVERFLOW VALVE
490 N 074313016401 FITTING
Repalced by: A 0019972372
490 A 0019972372 FITTING
AT OVERFLOW VALVE
N 074305022202 NUT
AT OVERFLOW VALVE
A 0004290227 THRUST RING
Repalced by: A 0009940203
A 0009940203 THRUST RING
AT OVERFLOW VALVE
A 0009870446 O-RING
AT OVERFLOW VALVE
N 074281037000 AIR RESERVOIR
OUTSIDE
494 A 3214300205 RESERVOIR
Repalced by: A 0034322501
494 A 0034322501 RESERVOIR
OUTSIDE
A 0009970934 UNION SCREW
AIR RESERVOIR,CONNECTIONS:
496 N 007603022102 SEAL RING
498 A 0004320607 VALVE
Repalced by: A 0004321107
498 A 0004321107 VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322407
498 A 0004322407 DRAIN VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322107
498 A 0004322107 DRAIN VALVE
AIR RESERVOIR DRAIN
A 0004320407 VALVE
Repalced by: A 0004320807
498 A 0004322107 VALVE
AIR RESERVOIR DRAIN
498 A 0004322407 VALVE
AIR RESERVOIR DRAIN
Repalced by: A 0004322107
498 A 0004322107 DRAIN VALVE
AIR RESERVOIR DRAIN
500 A 0005830296 RING
DRAIN VALVE
TO 000 432 08 07
A 3224300111 CONSOLE
Repalced by: A 3224320215
A 3224320215 CONSOLE
RESERVOIR
A 3224320115 CONSOLE
RESERVOIR
502 A 3604301311 CONSOLE
RESERVOIR
502 A 3524302211 CONSOLE
RESERVOIR
A 3214750084 SHIM
Repalced by: N 007349013003
N 007349013003 WASHER
Repalced by: N 007349013005
N 007349013005 WASHER
AIR RESERVOIR CONSOLE TO SIDE MEMBER
504 A 3354320218 BASE
AIR RESERVOIR CONSOLE TO SIDE MEMBER
504C N 000961012097 SCREW
Repalced by: N 308676012026
504C N 308676012026 SCREW
AIR RESERVOIR CONSOLE TO SIDE MEMBER
504F N 912004012100 LOCK WASHER
AIR RESERVOIR CONSOLE TO SIDE MEMBER
504M N 007349013003 WASHER
Repalced by: N 007349013005
504M N 007349013005 WASHER
AIR RESERVOIR CONSOLE TO SIDE MEMBER
504P A 3354320126 PLATE
Repalced by: A 3434320026
504P A 3434320026 PLATE
AIR RESERVOIR CONSOLE TO SIDE MEMBER
N 000961012189 SCREW
AIR RESERVOIR CONSOLE TO SIDE MEMBER
M 12X50
N 000960014230 SCREW
AIR RESERVOIR CONSOLE TO SIDE MEMBER
M 14X60
N 000961012097 SCREW
Repalced by: N 308676012026
N 308676012026 SCREW
AIR RESERVOIR CONSOLE TO SIDE MEMBER
M 12X55
N 000960014249 SCREW
AIR RESERVOIR CONSOLE TO SIDE MEMBER
M 14X55
504T N 000934012022 NUT
AIR RESERVOIR CONSOLE TO SIDE MEMBER
A 3609900640 WASHER
AIR RESERVOIR CONSOLE TO SIDE MEMBER
A 3978910010 WASHER
AIR RESERVOIR CONSOLE TO SIDE MEMBER
A 3219870214 RUBBER STRIP
Repalced by: A 0009870814
A 3589870014 RUBBER STRIP
Repalced by: A 0009870814
A 0009870814 RUBBER STRIP
N 000931010282 SCREW
N 000934010014 NUT
Repalced by: N 304032010003
N 304032010003 NUT
STRAP TO CONSOLE
N 001434010024 PIN
STRAP TO CONSOLE
N 000094003219 COTTER PIN
STRAP TO CONSOLE
A 3224300240 STRAP
RESERVOIR
A 3224300140 STRAP
RESERVOIR
510 A 3604300040 STRAP
RESERVOIR
511 N 000934010014 NUT
Repalced by: N 304032010003
511 N 304032010003 NUT
RESERVOIR
513 N 007603022102 SEAL RING
AT AIR RESERVOIR
515 N 007604022100 SCREW PLUG
Repalced by: A 3469970230
515 A 3469970230 SCREW PLUG
AT AIR RESERVOIR
A 0009904468 FITTING
AT OVERFLOW VALVE
A 0009970172 FITTING
Repalced by: A 0019970172
A 0019970172 FITTING
Repalced by: A 0009970171
A 0009970171 FITTING
AT OVERFLOW VALVE
N 915039008202 HOLLOW SCREW FITTING
AT OVERFLOW VALVE
N 007603012405 SEAL RING
AT OVERFLOW VALVE
A 0019972572 FITTING
AT OVERFLOW VALVE
Repalced by: N 000000006446
N 000000006446 FITTING
AT OVERFLOW VALVE
517 N 007603022102 SEAL RING
AT OVERFLOW VALVE
A 0009870446 O-RING
AT OVERFLOW VALVE
A 0004290227 THRUST RING
Repalced by: A 0009940203
A 0009940203 THRUST RING
COMPRESSED AIR LINE TO ANTI-FREEZE DEVICE
519 A 0019972372 FITTING
AT OVERFLOW VALVE
521 N 074305022202 NUT
AT OVERFLOW VALVE
522 A 0004290227 THRUST RING
Repalced by: A 0009940203
522 A 0009940203 THRUST RING
AT OVERFLOW VALVE
523 A 0009870446 O-RING
AT OVERFLOW VALVE
525 A 0004298344 VALVE
Repalced by: A 0014294644
525 A 0014294644 VALVE
526 A 0004290049 BUSHING
527 N 000472020000 LOCK RING
528 A 0014310793 SPRING
529 A 0004310328 DIAPHRAGM
530 N 000127006100 LOCK WASHER
A 0004295544 VALVE
Repalced by: A 0014294044
A 0014294044 VALVE
A 0004290382 VALVE
A 0004290145 DIAPHRAGM
A 0014297444 VALVE
A 0015862042 REPAIR KIT
TO 001 429 46 44,001 429 52 44
A 0009870446 O-RING
A 0004296344 VALVE
Repalced by: A 0014295244
534 A 0005863642 REPAIR KIT
Repalced by: A 0005865842
534 A 0005865842 REPAIR KIT
TO 000 429 63 44,000 429 83 44
536 A 0014295244 VALVE
(OVERFLOW VALVE)
536 A 0014299844 VALVE
(OVERFLOW VALVE)
536 A 0014297944 VALVE
(OVERFLOW VALVE)
536 A 0034290244 VALVE
(OVERFLOW VALVE)
KNORR
A 0024298844 VALVE
TO 001 429 79 44
A 0004290645 DIAPHRAGM
Repalced by: A 0004290745
A 0004290745 DIAPHRAGM
TO 001 429 79 44
A 0004303260 REPAIR KIT
TO 003 429 02 44
537 A 0015862642 REPAIR KIT
TO 001 429 98 44
538 A 0039972072 FITTING
540 A 3609900071 ELBOW FITTING
A 0004294137 DISTRIBUTOR
N 000908012003 SCREW PLUG
Repalced by: N 000908012009
N 000908012009 SCREW PLUG
AT DISTRIBUTOR
A 0039977572 FITTING
AT DISTRIBUTOR
N 915039008202 HOLLOW SCREW FITTING
AT DISTRIBUTOR
N 007603012405 SEAL RING
AT DISTRIBUTOR
N 000931006044 SCREW
N 913004006003 NUT
Repalced by: N 910113006001
N 910113006001 NUT
A 3604291440 BRACKET
DISTRIBUTOR
A 3604291540 BRACKET
DISTRIBUTOR
N 000933008153 SCREW
Repalced by: N 304017008034
N 304017008034 SCREW
DISTRIBUTOR TO SIDE MEMBER
N 304017008034 SCREW
DISTRIBUTOR TO SIDE MEMBER
N 913004008004 NUT
Repalced by: N 913004008001
N 913004008001 NUT
DISTRIBUTOR TO SIDE MEMBER
N 913004008001 NUT
DISTRIBUTOR TO SIDE MEMBER
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
DISTRIBUTOR TO SIDE MEMBER
542 A 0004311675 THREADED UNION
AT AIR BRAKE BOOSTER
544 A 3529970272 FITTING
AT AIR BRAKE BOOSTER
546 N 080705016003 NUT
AT AIR BRAKE BOOSTER
547 A 0009971548 SEAL RING
AT AIR BRAKE BOOSTER
548 A 0004310051 SPACER RING
AT AIR BRAKE BOOSTER
550 A 0004311514 BRAKE BOOSTER
Repalced by: A 0004318914
550 A 0004316214 BRAKE BOOSTER
Repalced by: A 0004318914
550 A 0004318914 BRAKE CYLINDER
AIR BRAKE BOOSTER
552 A 0004317186 CUP
554 A 0004312886 SEAL RING
556 A 0004315783 PISTON
Repalced by: A 0004316983
556 A 0004316983 PISTON
557 A 0004317060 SEAL RING
558 A 0003270032 VALVE PART
559 A 0004319460 SEAL RING
561 A 0004289535 BRAKE HOSE
505 MM
562 N 007603014405 SEAL RING
563 A 0004310336 FILTER BOTTOM
564 A 0025860043 REPAIR KIT
Repalced by: A 0004309160
564 A 0004309160 REPAIR KIT
TO 000 431 89 14
565 A 3604310267 YOKE
AT AIR BRAKE BOOSTER
565 A 3604310267 YOKE
AT AIR BRAKE BOOSTER
565 A 3604310167 YOKE
AT AIR BRAKE BOOSTER
566 N 000936010010 NUT
AT AIR BRAKE BOOSTER
A 3524300211 CONSOLE
AT BRAKE BOOSTER
568 A 3604302011 CONSOLE
AT BRAKE BOOSTER
A 3524300311 CONSOLE
AT BRAKE BOOSTER
A 3604302111 CONSOLE
AT BRAKE BOOSTER
568E N 000933010105 SCREW
CONSOLE TO FRAME
568N N 912004010102 LOCK WASHER
CONSOLE TO FRAME
568S N 000934010014 NUT
Repalced by: N 304032010003
568S N 304032010003 NUT
CONSOLE TO FRAME
569 N 000933010129 SCREW
Repalced by: N 304017010002
569 N 304017010002 SCREW
BRAKE BOOSTER TO CONSOLE
569E N 912004010102 LOCK WASHER
BRAKE BOOSTER TO CONSOLE
570 A 3524300223 LEVER
Repalced by: A 3524301323
570 A 3524301323 LEVER
AT BRAKE BOOSTER
A 3524300323 LEVER
Repalced by: A 3524301423
A 3524301423 LEVER
AT BRAKE BOOSTER
571S A 3529920801 BUSHING
A 3524310074 PIN
DOUBLE LEVER TO CONSOLE
573 A 3604310074 PIN
DOUBLE LEVER TO CONSOLE
575 N 071412010200 GREASE NIPPLE
DOUBLE LEVER TO CONSOLE
N 000988030005 FITTED WASHER
DOUBLE LEVER TO CONSOLE
577 N 000471030000 LOCK RING
DOUBLE LEVER TO CONSOLE
578 A 3149940101 LOCK
DOUBLE LEVER TO CONSOLE
579 N 000933008130 SCREW
Repalced by: N 304017008039
579 N 304017008039 SCREW
DOUBLE LEVER TO CONSOLE
580 N 912004008102 LOCK WASHER
DOUBLE LEVER TO CONSOLE
582 A 3529910007 PIN
582 A 3529910007 PIN
582 A 3529910107 PIN
N 000094003219 COTTER PIN
584 A 3529931010 SPRING
590 A 0004290701 LINE
Repalced by: A 0004296201
590 A 0004296201 LINE
6 MM
592 N 915017006100 UNION NUT
593 N 003861006007 GLAND
Repalced by: A 0019901667
593 A 0019901667 SEAL CONE
595 N 074298012201 DOUBLE FITTING
595 N 074298012201 DOUBLE FITTING
596 A 3525420335 HOSE
PRESSURE GAUGE LINES
597 A 3525407561 ELECTRIC CABLE
Repalced by: A 0089976082
A 0089976082 HOSE
Repalced by: A 0009872627
A 0009872627 PLASTIC PIPE
BLACK,BRAKE PRESSURE MONITORING
4X6 MM
N 040621010200 INSULATING HOSE
BRAKE PRESSURE CONTROL
A 0019973572 FITTING
Repalced by: N 915059004000
N 915059004001 FITTING
BRAKE PRESSURE CONTROL
A 0019975072 FITTING
BRAKE PRESSURE CONTROL
N 915017006200 UNION NUT
BRAKE PRESSURE CONTROL
A 3819970881 GROMMET
BRAKE PRESSURE CONTROL
A 0019973472 FITTING
Repalced by: N 915059004001
N 915059004001 FITTING
BRAKE PRESSURE CONTROL
598 N 006797012153 TOOTHED WASHER
LINE MOUNTING
599 N 000936012005 NUT
Repalced by: N 308675012000
599 N 308675012000 NUT
LINE MOUNTING
602 A 3525422840 BRACKET
LINE MOUNTING
603 N 000933010128 SCREW
LINE MOUNTING
603E N 912004010102 LOCK WASHER
LINE MOUNTING
603N N 000934010014 NUT
Repalced by: N 304032010003
603N N 304032010003 NUT
LINE MOUNTING
604 A 3609950101 CLAMP
LINE MOUNTING
N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
N 000000000460 SHEET METAL SCREW
LINE MOUNTING
605 A 3609950101 CLAMP
LINE MOUNTING
N 000084006197 SCREW
LINE MOUNTING
N 912004006102 LOCK WASHER
LINE MOUNTING
N 000125006421 WASHER
LINE MOUNTING
Repalced by: N 000125006449
N 000125006449 WASHER
LINE MOUNTING
N 000934006007 NUT
LINE MOUNTING
607 A 3144280240 BRACKET
BRACKET TO CONSOLE
608 N 000933010238 SCREW
Repalced by: N 304017010028
608 N 304017010028 HEXAGON HEAD BOLT
BRACKET TO CONSOLE
608E N 912004010102 LOCK WASHER
BRACKET TO CONSOLE
608N N 000934010014 NUT
Repalced by: N 304032010003
608N N 304032010003 NUT
BRACKET TO CONSOLE
610 A 3524200184 PARKING BRAKE
612 A 3214270126 PAWL ROD HANDLE
613 A 3214270674 PIN
615 A 3524200674 ROD
617 A 3219900075 SCREW
618 A 3524270174 PIN
AIR RESERVOIR
619 N 006799006001 LOCK PLATE
621 A 3214270841 BRACKET
DRIVER'S PEDESTAL
622 A 3044270064 GUIDE BALL
AIR RESERVOIR
623 N 007985008142 SCREW
DRIVER'S PEDESTAL
623E N 912004008102 LOCK WASHER
DRIVER'S PEDESTAL
623N N 304032008006 NUT
AIR RESERVOIR
624 A 3214270183 SPHERICAL PIECE
625 A 3219900751 NUT
627 A 3214270283 SPHERICAL PIECE
629 A 3524200312 BRAKE LEVER
A 3524200912 BRAKE LEVER
Repalced by: A 3524201212
A 3524201212 BRAKE LEVER
A 3524201212 BRAKE LEVER
N 071412008302 GREASE NIPPLE
631 A 3214270250 BUSHING
633 A 3524270073 LOCK
N 000933008135 SCREW
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
N 912004008102 LOCK WASHER
N 304032008006 NUT
635 A 3524270130 PAWL ROD
BRAKE LEVER
A 3524270230 PAWL ROD
BRAKE LEVER
A 3524270330 PAWL ROD
Repalced by: A 3524200288
A 3524200288 RATCHET ROD
BRAKE LEVER
A 3524200288 RATCHET ROD
BRAKE LEVER
636 N 071805013203 BALL SOCKET
N 071805013302 SNAP RING
637 N 071805013402 SECURING CLIP
638 N 304032008006 NUT
640 A 3529930001 SPRING
641 N 000125008418 WASHER
Repalced by: N 000125008443
641 N 000125008443 WASHER
642 A 3524270841 BRACKET
N 000085004114 SCREW
AT BRACKET
N 912004004102 LOCK WASHER
AT BRACKET
N 000934004006 NUT
AT BRACKET
644 A 3214271041 BRACKET
N 000660004041 RIVET
646 A 3224200292 PAWL
A 3224200392 PAWL
647 A 3229920201 BUSHING
649 A 3524270274 PIN
650 A 3524270176 WASHER
651 N 000471014000 LOCK RING
652 A 3529930610 SPRING
654 A 3524200578 BEARING BRACKET
A 3524200678 BEARING BRACKET
655 A 3214270374 PIN
656 A 3224270574 PIN
A 3404270474 PIN
657 A 3224271174 PIN
658 A 3224270176 WASHER
AS REQUIRED
1.00 MM
658 A 3224270276 WASHER
AS REQUIRED
1.50 MM
658 A 3224270376 WASHER
AS REQUIRED
2.00 MM
N 000094004065 COTTER PIN
660 A 3524270050 BUSHING
662 A 0005454009 SWITCH
663 A 3229900240 WASHER
664 A 3524270674 PIN
666 A 3214200293 CABLE PULLEY
Repalced by: A 3224200193
666 A 3224200193 CABLE PULLEY
A 3214200393 CABLE PULLEY
Repalced by: A 3224200293
A 3224200293 CABLE PULLEY
667 A 3214270250 BUSHING
668 A 3214270076 WASHER
AS REQUIRED
1.70 MM
668 A 3214270176 WASHER
AS REQUIRED
2.00 MM
668 A 3214270276 WASHER
AS REQUIRED
2.30 MM
670 N 000471030000 LOCK RING
A 3524270374 PIN
Repalced by: A 3524270974
672 A 3524270974 PIN
673 A 3524270176 WASHER
674 N 912004014100 LOCK WASHER
AT BEARING BRACKET
675 N 000936014010 NUT
Repalced by: N 308675014000
675 N 308675014000 NUT
Repalced by: N 308675014002
675 N 308675014002 NUT
AT BEARING BRACKET
677 A 3224200092 PAWL
677 A 3224200192 PAWL
678 A 3229920201 BUSHING
680 A 3224270114 ROLLER
AS REQUIRED
18.50 MM
680 A 3224270214 ROLLER
AS REQUIRED
19.00 MM
680 A 3224270314 ROLLER
AS REQUIRED
19.50 MM
681 N 000471010001 LOCK RING
N 000471014000 LOCK RING
A 3224271041 BRACKET
Repalced by: A 3524202386
683 A 3524202386 BRACKET
A 3224271041 BRACKET
Repalced by: A 3524202486
A 3524202486 BRACKET
684 A 3524270276 WASHER
685 N 912004010102 LOCK WASHER
686 N 000934010014 NUT
Repalced by: N 304032010003
686 N 304032010003 NUT
687 N 000933010128 SCREW
688 N 912004010102 LOCK WASHER
690 A 3529930610 SPRING
692 A 3224270013 LEVER
693 N 001434010001 PIN
694 N 000125010518 WASHER
Repalced by: N 000125010532
694 N 000125010532 WASHER
N 000094003219 COTTER PIN
696 A 3529911007 PIN
697 N 000125006421 WASHER
Repalced by: N 000125006449
697 N 000125006449 WASHER
N 000094001518 COTTER PIN
699 N 000931008047 SCREW
Repalced by: N 304017008018
699 N 304017008018 SCREW
700 N 304032008006 NUT
702 A 3214200285 BRAKE CABLE
A 3214200385 BRAKE CABLE
A 3524200185 BRAKE CABLE
A 3524200285 BRAKE CABLE
704 A 3524270027 STOP
A 3524270127 STOP
706 A 3214200176 END PIECE
90 MM
707 N 000934010014 NUT
Repalced by: N 304032010003
707 N 304032010003 NUT
710 A 3604200278 BEARING BRACKET
A 3604200378 BEARING BRACKET
711 A 3524200093 CABLE PULLEY
712 A 3124272850 BUSHING
714 A 3404270074 PIN
715 N 000125013008 WASHER
N 000094003219 COTTER PIN
716 N 071412010300 GREASE NIPPLE
N 000933010128 SCREW
BEARING BRACKET TO ENGINE CROSS MEMBER
N 912004010102 LOCK WASHER
BEARING BRACKET TO ENGINE CROSS MEMBER
N 000934010014 NUT
Repalced by: N 304032010003
N 304032010003 NUT
BEARING BRACKET TO ENGINE CROSS MEMBER
718 A 3529910007 PIN
N 000094003219 COTTER PIN
720 A 3224203678 BEARING BRACKET
A 3404200278 BEARING BRACKET
722 A 3224270341 BRACKET
A 3524270241 BRACKET
724 N 000933010105 SCREW
BEARING BRACKET TO CAB
N 000933010128 SCREW
BEARING BRACKET TO CAB
N 912004010102 LOCK WASHER
BEARING BRACKET TO CAB
N 000934010014 NUT
Repalced by: N 304032010003
N 304032010003 NUT
BEARING BRACKET TO CAB
N 000933008145 SCREW
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
N 912004008102 LOCK WASHER
N 304032008006 NUT
726 A 3524200581 LEVER
FRONT
727 A 3529921201 BUSHING
728 N 071412010100 GREASE NIPPLE
730 A 3124261574 PIN
731 N 000471022000 LOCK RING
733 A 3379935010 SPRING
735 N 071752012002 YOKE
737 A 3529910107 PIN
738 N 000433013005 WASHER
Repalced by: N 000433013010
738 N 000433013010 WASHER
N 000094004065 COTTER PIN
740 N 900331012335 PULL ROD
N 900331012336 PULL ROD
N 900331012335 PULL ROD
N 900331012334 PULL ROD
N 900331012264 PULL ROD
742 N 001480012200 TURNBUCKLE
Repalced by: A 3859960034
742 A 3859960034 NUT
743 N 000934012021 NUT
745 N 900331012339 PULL ROD
746 N 000934012020 NUT
LEFT
748 A 3524200180 BRAKE INTERMEDIATE SHAFT
REAR
A 3524200280 BRAKE INTERMEDIATE SHAFT
Repalced by: A 3524201080
A 3524201080 BRAKE INTERMEDIATE SHAFT
REAR
750 A 3274270058 SEAL HOLDER
751 A 3279970040 SEAL RING
A 3604200078 BEARING BRACKET
Repalced by: A 3604260005
A 3604260005 BEARING
753 A 3584200278 BEARING BRACKET
754 A 3024260083 SPHERICAL PIECE
Repalced by: A 3025860242
755 N 000470052000 EXPANSION PLUG
756 A 3025860242 REPAIR KIT
Repalced by: A 3534200067
756 A 3534200067 REPAIR KIT
Repalced by: A 3534200167
756 A 3534200167 BALL CUP
BRAKE INTERMEDIATE SHAFT BEARING
756E N 000961012151 SCREW
BEARING BRACKET TO FRAME
756N N 912004012100 LOCK WASHER
BEARING BRACKET TO FRAME
756S N 000934012022 NUT
BEARING BRACKET TO FRAME
757 A 3529910207 PIN
758 N 000433013005 WASHER
Repalced by: N 000433013010
758 N 000433013010 WASHER
759 N 900055012001 SPRING WASHER
N 000094004065 COTTER PIN
A 3524201474 ROD
Repalced by: A 3604200474
761 A 3604200474 ROD
763 A 3529910107 PIN
764 N 000433013002 WASHER
N 000094004065 COTTER PIN
766 A 3524200086 BRACKET
A 3524200186 BRACKET
A 3524201686 BRACKET
A 3524200086 BRACKET
A 3524200286 BRACKET
A 3524201786 BRACKET
768 A 0009973481 GROMMET
N 000933008147 SCREW
Repalced by: N 304017008021
N 304017008021 SCREW
BRACKET TO CROSS MEMBER
N 000125008418 WASHER
Repalced by: N 000125008443
N 000125008443 WASHER
BRACKET TO CROSS MEMBER
N 912004008102 LOCK WASHER
BRACKET TO CROSS MEMBER
N 304032008006 NUT
BRACKET TO CROSS MEMBER
770 A 3544230036 BRAKE CAMSHAFT
A 3024230636 BRAKE CAMSHAFT
772 A 3414230186 CUP
774 A 3024230037 ADJUSTING LEVER
LEFT
A 3024230137 ADJUSTING LEVER
RIGHT
776 A 3024230070 STUD
Repalced by: A 3024230170
776 A 3024230170 STUD
777 N 000936018006 NUT
779 A 3544230071 SCREW
Repalced by: A 3544230171
779 A 3544230171 SCREW
780 N 000936012005 NUT
Repalced by: N 308675012000
780 N 308675012000 NUT
782 A 3524260011 LEVER
Repalced by: A 3604260611
782 A 3604260011 LEVER
Repalced by: A 3604260611
782 A 3604260611 LEVER
LEFT
A 3524260111 LEVER
Repalced by: A 3604260711
A 3604260111 LEVER
Repalced by: A 3604260711
A 3604260711 LEVER
RIGHT
784 A 3024260083 SPHERICAL PIECE
Repalced by: A 3025860142
785 N 003760045300 RADIAL SEAL RING
IN BEARING BRACKET
786 N 071412010100 GREASE NIPPLE
IN BEARING BRACKET
788 A 3609970020 EXPANSION PLUG
IN BEARING BRACKET
789 N 000472062000 LOCK RING
Repalced by: A 0039945241
789 A 0039945241 LOCK
IN BEARING BRACKET
790 A 3024230153 SPACER TUBE
AS REQUIRED
11.00 MM
790 A 3024230253 SPACER TUBE
AS REQUIRED
11.50 MM
790 A 3024230353 SPACER TUBE
12.00 MM
790 A 3024230453 SPACER TUBE
AS REQUIRED
12.50 MM
790 A 3024230553 SPACER TUBE
AS REQUIRED
13.00 MM
790 A 3024230653 SPACER TUBE
AS REQUIRED
13.50 MM
790 A 3024230753 SPACER TUBE
AS REQUIRED
10.50 MM
792 N 000471045000 LOCK RING
793 N 000471035000 LOCK RING
795 A 3025860142 REPAIR KIT
Repalced by: A 3024200067
795 A 3024200067 REPAIR KIT
BRAKE CAMSHAFT BEARING
800 A 3124271220 HANDLE
802 N 000964006028 SCREW
N 006797006146 TOOTHED WASHER
803 N 912004006102 LOCK WASHER
804 N 001587006002 CAP NUT
805 A 3589900040 WASHER
N 001473005019 GROOVED PIN
807 A 3124271086 DAMPING RING
809 A 3584200488 RATCHET ROD
809 A 3584200488 RATCHET ROD
A 3584200588 RATCHET ROD
810 A 3534270095 PROTECTIVE CAP
812 A 3124201178 BEARING BRACKET
A 3124271215 PAWL
Repalced by: A 3145860142
A 1539930701 SPRING
Repalced by: A 3145860142
A 3129900043 PLATE
Repalced by: A 3145860142
812N N 000472015000 LOCK RING
813 N 001473004023 GROOVED PIN
814 A 3145860142 REPAIR KIT
Repalced by: A 3144200092
814 A 3144200092 REPAIR KIT
815 A 3584270084 SHIM
BEARING BRACKET TO COVER
815E N 007985008152 SCREW
BEARING BRACKET TO COVER
815N N 912004008102 LOCK WASHER
BEARING BRACKET TO COVER
N 304032008006 NUT
BEARING BRACKET TO COVER
N 007985008142 SCREW
COVER TO CAB FLOOR
N 912004008102 LOCK WASHER
COVER TO CAB FLOOR
N 912004008102 LOCK WASHER
SEE FIG. NO.:
814
N 912004008102 LOCK WASHER
SEE FIG. NO.:
814
N 912004008102 LOCK WASHER
SEE FIG. NO.:
814
N 912004008102 LOCK WASHER
SEE FIG. NO.:
812N
822 A 3529910407 PIN
823 N 000433008406 WASHER
N 000094002059 COTTER PIN
Repalced by: N 000094002060
N 000094002060 COTTER PIN
825 A 3584200012 BRAKE LEVER
825 A 3584200012 BRAKE LEVER
A 3584201212 BRAKE LEVER
A 3584201312 BRAKE LEVER
A 3604200012 BRAKE LEVER
Repalced by: A 3524202312
A 3524202312 BRAKE LEVER
A 3604200212 BRAKE LEVER
A 3604201412 BRAKE LEVER
827 A 3529921201 BUSHING
828 N 071412010100 GREASE NIPPLE
830 A 3584200578 BEARING BRACKET
A 3584200678 BEARING BRACKET
830E N 000933010145 SCREW
BEARING BRACKET TO FRAME
830N N 000931010282 SCREW
BEARING BRACKET TO FRAME
831 N 912004010102 LOCK WASHER
BEARING BRACKET TO FRAME
831E N 000934010014 NUT
Repalced by: N 304032010003
831E N 304032010003 NUT
BEARING BRACKET TO FRAME
832 A 3129901540 WASHER
BRAKE LEVER TO BEARING BRACKET
833 N 000471022000 LOCK RING
BRAKE LEVER TO BEARING BRACKET
834 A 3604200285 BRAKE CABLE
A 3604200385 BRAKE CABLE
836 A 3524200093 CABLE PULLEY
837 A 3124272850 BUSHING
839 A 3529910007 PIN
N 000094003219 COTTER PIN
841 A 3604200278 BEARING BRACKET
A 3604200378 BEARING BRACKET
843 A 3404270074 PIN
844 N 000125013008 WASHER
N 000094003219 COTTER PIN
845 N 071412010300 GREASE NIPPLE
845E N 000933010128 SCREW
BEARING BRACKET TO ENGINE CROSS MEMBER
845N N 912004010102 LOCK WASHER
BEARING BRACKET TO ENGINE CROSS MEMBER
845S N 000934010014 NUT
Repalced by: N 304032010003
845S N 304032010003 NUT
BEARING BRACKET TO ENGINE CROSS MEMBER
847 A 3604300310 BRACKET
N 000933010164 SCREW
BRACKET TO FRAME
848 N 000933010157 SCREW
BRACKET TO FRAME
848E N 000125010518 WASHER
Repalced by: N 000125010532
848E N 000125010532 WASHER
BRACKET TO FRAME
848N N 912004010102 LOCK WASHER
BRACKET TO FRAME
848S N 000934010014 NUT
Repalced by: N 304032010003
848S N 304032010003 NUT
BRACKET TO FRAME
849 A 3604200681 LEVER
TOP
850 A 3229920101 BUSHING
851 N 071412010100 GREASE NIPPLE
853 N 001434014052 PIN
UPPER LEVER TO BRACKET
854 N 000125015013 WASHER
Repalced by: N 000125015019
854 N 000125015019 WASHER
UPPER LEVER TO BRACKET
N 000094004065 COTTER PIN
UPPER LEVER TO BRACKET
856 A 3604200781 LEVER
BOTTOM
A 3604200881 LEVER
BOTTOM
858 A 3229920101 BUSHING
N 071412010100 GREASE NIPPLE
860 A 3604200089 SHACKLE
862 N 001434012078 PIN
863 N 000433013005 WASHER
Repalced by: N 000433013010
863 N 000433013010 WASHER
N 000094004065 COTTER PIN
865 N 001434014045 PIN
866 N 000125015013 WASHER
Repalced by: N 000125015019
866 N 000125015019 WASHER
N 000094004065 COTTER PIN
868 A 3214200176 END PIECE
869 N 000934010014 NUT
Repalced by: N 304032010003
869 N 304032010003 NUT
871 A 3529910007 PIN
BRAKE CABLE TO HAND BRAKE LEVER
872 N 000125010518 WASHER
Repalced by: N 000125010532
872 N 000125010532 WASHER
BRAKE CABLE TO HAND BRAKE LEVER
N 000094003219 COTTER PIN
BRAKE CABLE TO HAND BRAKE LEVER
874 N 900331010660 PULL ROD
N 900331010665 PULL ROD
N 900331010663 PULL ROD
N 900331010662 PULL ROD
876 A 0009961501 YOKE
877 N 000934010014 NUT
Repalced by: N 304032010003
877 N 304032010003 NUT
879 A 3529910007 PIN
880 N 900055010002 SPRING WASHER
Repalced by: N 000137010205
880 N 000137010205 SPRING WASHER
881 N 000433010505 WASHER
Repalced by: N 000433010510
881 N 000433010510 WASHER
N 000094003025 COTTER PIN
883 A 3524202381 LEVER
884 A 3529921201 BUSHING
885 N 071412010100 GREASE NIPPLE
887 A 3404200278 BEARING BRACKET
888 N 000933010129 SCREW
Repalced by: N 304017010002
888 N 304017010002 SCREW
BEARING BRACKET TO SIDE MEMBER
888E A 3609901240 WASHER
Repalced by: A 1159903140
888E A 1159903140 WASHER
BEARING BRACKET TO SIDE MEMBER
889 N 912004010102 LOCK WASHER
BEARING BRACKET TO SIDE MEMBER
889E N 000934010014 NUT
Repalced by: N 304032010003
889E N 304032010003 NUT
BEARING BRACKET TO SIDE MEMBER
890 A 3124261574 PIN
891 N 000471022000 LOCK RING
893 N 900331010657 PULL ROD
894 A 0009961501 YOKE
896 A 3224200247 YOKE
897 N 000934010014 NUT
Repalced by: N 304032010003
897 N 304032010003 NUT
900 A 3529910007 PIN
PULL ROD TO INTERMEDIATE LEVER
900 A 3529910107 PIN
PULL ROD TO INTERMEDIATE LEVER
901 N 900055010002 SPRING WASHER
Repalced by: N 000137010205
901 N 000137010205 SPRING WASHER
PULL ROD TO INTERMEDIATE LEVER
902 N 000433010505 WASHER
Repalced by: N 000433010510
902 N 000433010510 WASHER
PULL ROD TO INTERMEDIATE LEVER
N 000094003219 COTTER PIN
PULL ROD TO INTERMEDIATE LEVER
904 A 3604200080 BRAKE INTERMEDIATE SHAFT
904 A 3604200080 BRAKE INTERMEDIATE SHAFT
904 A 3604200880 BRAKE INTERMEDIATE SHAFT
904 A 3524201480 BRAKE INTERMEDIATE SHAFT
904 A 3524201480 BRAKE INTERMEDIATE SHAFT
904 A 3604200980 BRAKE INTERMEDIATE SHAFT
906 A 3274270058 SEAL HOLDER
HAND BRAKE
907 A 3279970040 SEAL RING
HAND BRAKE
908 A 3584201078 BEARING BRACKET
BRAKE INTERMEDIATE SHAFT
909 A 3024260083 SPHERICAL PIECE
Repalced by: A 3025860242
910 N 000470052000 EXPANSION PLUG
BRAKE INTERMEDIATE SHAFT
911 A 3025860242 REPAIR KIT
Repalced by: A 3534200067
911 A 3534200067 REPAIR KIT
Repalced by: A 3534200167
911 A 3534200167 BALL CUP
BRAKE INTERMEDIATE SHAFT BEARING
911E N 000961012151 SCREW
BEARING BRACKET TO FRAME
911N N 912004012100 LOCK WASHER
BEARING BRACKET TO FRAME
911S N 000934012022 NUT
BEARING BRACKET TO FRAME
912 A 3524201474 ROD
A 3529910207 PIN
PULL RODS TO BRAKE LEVERS
914 N 900055012001 SPRING WASHER
PULL RODS TO BRAKE LEVERS
915 N 000433013005 WASHER
Repalced by: N 000433013010
915 N 000433013010 WASHER
PULL ROD TO INTERMEDIATE LEVER
N 000094003210 COTTER PIN
PULL ROD TO INTERMEDIATE LEVER
A 3529910107 PIN
PULL RODS TO BRAKE LEVERS
N 000433013005 WASHER
Repalced by: N 000433013010
N 000433013010 WASHER
PULL RODS TO BRAKE LEVERS
N 000094003210 COTTER PIN
PULL RODS TO BRAKE LEVERS
917 A 3584200086 BRACKET
HAND BRAKE LINKAGE
917 A 3584200086 BRACKET
HAND BRAKE LINKAGE
A 3524200086 BRACKET
917E N 000933008147 SCREW
Repalced by: N 304017008021
917E N 304017008021 SCREW
HAND BRAKE LINKAGE
917N N 000125008418 WASHER
Repalced by: N 000125008443
917N N 000125008443 WASHER
HAND BRAKE LINKAGE
918 N 912004008102 LOCK WASHER
HAND BRAKE LINKAGE
918E N 304032008006 NUT
HAND BRAKE LINKAGE
919 A 0009973481 GROMMET
920 A 3544230036 BRAKE CAMSHAFT
920 A 3544230036 BRAKE CAMSHAFT
920 A 3024230636 BRAKE CAMSHAFT
922 A 3414230186 CUP
923 A 3024230037 ADJUSTING LEVER
LEFT
A 3024230137 ADJUSTING LEVER
RIGHT
925 A 3024230170 STUD
926 N 000936018006 NUT
927 A 3544230171 SCREW
928 N 000936012005 NUT
Repalced by: N 308675012000
928 N 308675012000 NUT
929 A 3524260011 LEVER
Repalced by: A 3604260611
929 A 3604260011 LEVER
Repalced by: A 3604260611
929 A 3604260611 LEVER
LEFT
A 3524260111 LEVER
Repalced by: A 3604260711
A 3604260111 LEVER
Repalced by: A 3604260711
A 3604260711 LEVER
RIGHT
931 A 3024260105 BEARING
A 3024200778 BEARING BRACKET
933 N 000960016052 SCREW
933 N 000960016052 SCREW
934 N 912004016101 LOCK WASHER
934 N 912004016101 LOCK WASHER
936 A 3024260083 SPHERICAL PIECE
Repalced by: A 3025860142
937 N 003760045300 RADIAL SEAL RING
IN BEARING BRACKET
938 N 071412010100 GREASE NIPPLE
IN BEARING BRACKET
939 A 3609970020 EXPANSION PLUG
IN BEARING BRACKET
940 N 000472062000 LOCK RING
Repalced by: A 0039945241
940 A 0039945241 LOCK
IN BEARING BRACKET
942 A 3024230153 SPACER TUBE
AS REQUIRED
11.00 MM
942 A 3024230253 SPACER TUBE
AS REQUIRED
11.50 MM
942 A 3024230353 SPACER TUBE
AS REQUIRED
12.00 MM
942 A 3024230453 SPACER TUBE
AS REQUIRED
12.50 MM
942 A 3024230553 SPACER TUBE
AS REQUIRED
13.00 MM
942 A 3024230653 SPACER TUBE
AS REQUIRED
13.50 MM
942 A 3024230753 SPACER TUBE
AS REQUIRED
10.50 MM
944 N 000471045000 LOCK RING
945 N 000471035000 LOCK RING
947 A 3025860142 REPAIR KIT
Repalced by: A 3024200067
947 A 3024200067 REPAIR KIT
BRAKE CAMSHAFT BEARING
950 A 0005516256 TUBE
15 MM
952 A 0109975982 HOSE
Repalced by: A 0009872827
952 A 0009872827 PLASTIC PIPE
A 0049971772 FITTING
Repalced by: A 0029906171
A 0029906171 FITTING
(PARTS KIT),LINE RUPTURE
TO 010 997 59 82
953 A 0009921505 BUSHING
Repalced by: N 915062009000
953 N 915062009000 SLEEVE
954 N 915017012100 UNION NUT
Repalced by: N 000000006239
954 N 000000006239 UNION NUT
955 N 003861012007 GLAND
Repalced by: A 0019901967
955 A 0019901967 SEAL CONE
957 N 915018015000 UNION NUT
958 N 003861015004 GLAND
959 N 915065015101 THRUST RING
960 N 915045012100 SEAL RING
Repalced by: N 007603012121
960 N 007603012121 SEAL RING
962 A 3524281740 BRACKET
Repalced by: A 3184280240
962 A 3184280240 BRACKET
964 A 0009954701 CLAMP
Repalced by: N 916016015202
964 N 916016015202 CLAMP
N 000933008147 SCREW
Repalced by: N 304017008021
964E N 304017008021 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
964N N 000084006197 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
964S N 912004008102 LOCK WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
965 N 912004006102 LOCK WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
965E N 304032008006 NUT
COMPRESSED AIR LINE TO CROSS MEMBER
965N N 000934006007 NUT
COMPRESSED AIR LINE TO CROSS MEMBER
966 A 0019978490 LOOM TIE
A 0019978390 LOOM TIE
967 A 3609901140 WASHER
968 N 007603022102 SEAL RING
969 N 074298022203 DOUBLE FITTING
971 A 0004310616 VALVE
971E A 0004317087 PROTECTIVE CAP
972 A 0004317386 CUP
973 A 0004290695 AIR CLEANER
974 A 0004350390 VALVE DISC
975 N 001433012015 PIN
N 000094004065 COTTER PIN
977 N 007603022102 SEAL RING
978 N 007604022201 SCREW PLUG
979 A 0009870446 O-RING
980 A 0004290227 THRUST RING
Repalced by: A 0009940203
980 A 0009940203 THRUST RING
981 N 074305022202 NUT
982 A 0004295032 T-FITTING
Repalced by: A 0009902970
982 A 0009902970 T-FITTING
983 A 0005455414 SWITCH
983E N 000931010272 SCREW
HAND BRAKE VALVE TO BRACKET
983N N 912004010102 LOCK WASHER
HAND BRAKE VALVE TO BRACKET
983S N 000934010014 NUT
Repalced by: N 304032010003
983S N 304032010003 NUT
HAND BRAKE VALVE TO BRACKET
N 000933010164 SCREW
M 10X22
N 000931010331 SCREW
M 10X65
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
N 912004010102 LOCK WASHER
N 000934010014 NUT
Repalced by: N 304032010003
N 304032010003 NUT
985 N 007603016401 SEAL RING
986 A 0009974172 FITTING
988 N 074315012100 FITTING
Repalced by: A 0019903371
988 A 0019903371 ELBOW FITTING
989 N 080705016003 NUT
990 A 0004290927 THRUST RING
991 A 0009971548 SEAL RING
993 A 0004312114 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR CYLINDER
BOSCH
993 A 0014311314 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR CYLINDER
WABCO
993 A 0004317714 BRAKE CYLINDER
SPRING LOAD ACCUMULATOR CYLINDER
KNORR
A 0004317486 CUP
Repalced by: A 0004319186
A 0004319186 CUP
Repalced by: A 0004312786
A 0014310786 CUP
Repalced by: A 0004312786
A 0004312786 CUP
TO 000 431 21 14
A 0004318583 PISTON
TO 000 431 21 14
A 0089977548 SEAL RING
TO 000 431 21 14
A 0049971740 SEAL RING
TO 000 431 21 14
A 0004318186 CUP
Repalced by: A 0015864342
A 0004310736 FILTER BOTTOM
TO 000 431 21 14
A 0004310649 SLIDE
TO 000 431 21 14
A 0004318587 PROTECTIVE CAP
TO 001 431 13 14
A 0004319586 CUP
TO 000 431 77 14
A 0004319686 CUP
TO 000 431 77 14
A 0004311880 GASKET
TO 000 431 77 14
A 0059971148 SEAL RING
TO 000 431 77 14
A 0014311160 SEAL RING
TO 000 431 77 14
997 A 0015864342 REPAIR KIT
Repalced by: A 0034201724
997 A 0034201724 REPAIR KIT
TO 000 431 21 14
997 A 0025861443 REPAIR KIT
TO 001 431 13 14
A 3604300811 CONSOLE
Repalced by: A 3164300111
A 3164300111 CONSOLE
SPRING LOAD ACCUMULATOR CYLINDER
A 3164300111 CONSOLE
SPRING LOAD ACCUMULATOR CYLINDER
998 A 3604302311 CONSOLE
SPRING LOAD ACCUMULATOR CYLINDER
998E N 000933010105 SCREW
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
998N N 912004010102 LOCK WASHER
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
998S N 000934010014 NUT
Repalced by: N 304032010003
998S N 304032010003 NUT
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
999C N 000933010129 SCREW
Repalced by: N 304017010002
999C N 304017010002 SCREW
CONSOLE TO CROSS MEMBER
999E A 3609900040 WASHER
Repalced by: A 4219905440
999E A 4219905440 WASHER
CONSOLE TO CROSS MEMBER
999K N 000125010518 WASHER
Repalced by: N 000125010532
999K N 000125010532 WASHER
CONSOLE TO CROSS MEMBER
999M N 912004010102 LOCK WASHER
CONSOLE TO CROSS MEMBER
999R N 000934010014 NUT
Repalced by: N 304032010003
999R N 304032010003 NUT
CONSOLE TO CROSS MEMBER
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
