Transporto priemonė: OF 1417; VIN numerio dalis: 352097

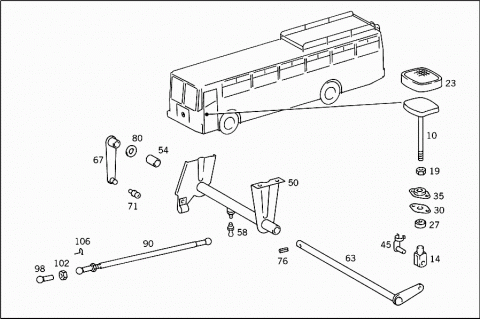

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3524300318 | BRAKE PEDAL |
| 014 | N 071752008002 | YOKE |
| 019 | N 304032008006 | NUT |
| 023 | A 3203015082 | PAD |
| 027 | A 3524340123 | GUIDE |
| AT CAB FLOOR | ||
| 030 | A 3524340187 | SHIM |
| AT CAB FLOOR | ||
| A 3524340140 | BRACKET | |
| AT CAB FLOOR | ||
| 035 | A 3524341040 | BRACKET |
| AT CAB FLOOR | ||
| N 000933006102 | SCREW | |
| BRACKET TO CAB FLOOR | ||
| N 912004006102 | LOCK WASHER | |
| BRACKET TO CAB FLOOR | ||
| N 000934006007 | NUT | |
| BRACKET TO CAB FLOOR | ||
| N 900055008002 | SPRING WASHER | |
| 045 | N 918001008000 | PIN |
| 050 | A 3524302738 | BEARING |
| EXHAUST BRAKE SHAFT | ||
| A 3524301138 | BEARING | |
| EXHAUST BRAKE SHAFT | ||
| 054 | A 3524340150 | BUSHING |
| 058 | N 071412010100 | GREASE NIPPLE |
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| AT CAB FLOOR | ||
| N 912004008102 | LOCK WASHER | |
| AT CAB FLOOR | ||
| N 304032008006 | NUT | |
| AT CAB FLOOR | ||
| 063 | A 3524300746 | INTERMEDIATE SHAFT |
| Repalced by: A 3524301246 | ||
| 063 | A 3524301246 | INTERMEDIATE SHAFT |
| 063 | A 3524301246 | INTERMEDIATE SHAFT |
| A 3524301746 | INTERMEDIATE SHAFT | |
| A 3524300846 | INTERMEDIATE SHAFT | |
| Repalced by: A 3524301346 | ||
| A 3524301346 | INTERMEDIATE SHAFT | |
| 067 | A 3524300023 | LEVER |
| EXHAUST BRAKE SHAFT | ||
| A 3524301623 | LEVER | |
| Repalced by: A 3524301723 | ||
| A 3524301723 | LEVER | |
| A 3524300423 | LEVER | |
| EXHAUST BRAKE SHAFT | ||
| 071 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 071 | A 3129910120 | BALL PIVOT |
| 071 | N 071803010100 | BALL PIVOT |
| Repalced by: N 071803010102 | ||
| N 071803010301 | BALL PIVOT | |
| Repalced by: N 000000004467 | ||
| N 000000004467 | SCREW | |
| N 912004006102 | LOCK WASHER | |
| N 000934006007 | NUT | |
| 076 | N 001481004017 | CLAMPING SLEEVE |
| Repalced by: N 308752004001 | ||
| 076 | N 308752004001 | CLAMPING PIN |
| INTERMEDIATE LEVER | ||
| 080 | N 000125013008 | WASHER |
| 090 | A 3604302292 | ROD |
| N 900331006618 | PULL ROD | |
| N 900331006618 | PULL ROD | |
| 098 | N 071805010204 | BALL SOCKET |
| 102 | N 000934006007 | NUT |
| 106 | N 071805010403 | SECURING CLIP |
| 120 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 120 | A 0004296201 | LINE |
| 3000 MM | ||
| 124 | A 0089975882 | HOSE |
| RED | ||
| 124 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 124 | A 0009872627 | PLASTIC PIPE |
| BLACK | ||
| 4X6 MM | ||
| 130 | N 915017006100 | UNION NUT |
| 134 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 134 | A 0019901667 | SEAL CONE |
| 140 | N 003905006001 | FITTING |
| Repalced by: A 0009907171 | ||
| 140 | A 0009907171 | ELBOW FITTING |
| A 0039979072 | FITTING | |
| Repalced by: A 0029906071 | ||
| A 0029906071 | FITTING | |
| 144 | A 3524281740 | BRACKET |
| Repalced by: A 3184280240 | ||
| 144 | A 3184280240 | BRACKET |
| COMPRESSED AIR LINE, BRAKE | ||
| 148 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 148 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 148 | N 000000000319 | CLAMP |
| COMPRESSED AIR LINE, BRAKE | ||
| A 0009952401 | CLAMP | |
| Repalced by: N 916016006201 | ||
| 152 | N 916016006208 | CLAMP |
| 157 | A 3129950033 | CLAMP |
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| COMPRESSED AIR LINE, BRAKE | ||
| N 000084008121 | SCREW | |
| COMPRESSED AIR LINE, BRAKE | ||
| N 912004008102 | LOCK WASHER | |
| COMPRESSED AIR LINE, BRAKE | ||
| N 304032008006 | NUT | |
| COMPRESSED AIR LINE, BRAKE | ||
| N 000084006197 | SCREW | |
| FROM OEVERFLOW VALVE TO FOOT OPERATED VALVE | ||
| N 912004006102 | LOCK WASHER | |
| FROM OEVERFLOW VALVE TO FOOT OPERATED VALVE | ||
| N 000934006007 | NUT | |
| FROM OEVERFLOW VALVE TO FOOT OPERATED VALVE | ||
| N 000084005131 | SCREW | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| N 912004005103 | LOCK WASHER | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| N 304032005002 | NUT | |
| Repalced by: N 304032005005 | ||
| N 304032005005 | NUT | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 165 | N 007603012405 | SEAL RING |
| 169 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 169 | A 0029906071 | FITTING |
| A 0004340201 | VALVE | |
| Repalced by: A 0004340301 | ||
| A 0004300509 | VALVE | |
| Repalced by: A 0004342201 | ||
| 180 | A 0004340601 | VALVE |
| Repalced by: A 0004342201 | ||
| 180 | A 0004340301 | VALVE |
| BOSCH | ||
| 180 | A 0004342201 | VALVE |
| WABCO | ||
| 182 | A 0004340586 | CUP |
| TO 000 434 22 01 | ||
| 183 | A 0009971977 | HANDLE |
| TO 000 434 22 01 | ||
| A 0005869743 | REPAIR KIT | |
| TO 000 434 06 01 | ||
| 185 | A 0025869843 | REPAIR KIT |
| TO 000 434 22 01 | ||
| 190 | A 3524314440 | BRACKET |
| N 080705026000 | NUT | |
| Repalced by: N 080705026003 | ||
| N 080705026003 | NUT | |
| FROM OEVERFLOW VALVE TO FOOT OPERATED VALVE | ||
| N 000933008145 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| FROM OEVERFLOW VALVE TO FOOT OPERATED VALVE | ||
| N 304032008006 | NUT | |
| FROM OEVERFLOW VALVE TO FOOT OPERATED VALVE | ||
| 200 | A 3524341047 | LEVER |
| A 3524340350 | BUSHING | |
| 208 | A 3604300050 | ROLLER |
| N 007341005108 | RIVET | |
| 215 | A 3529902101 | SCREW |
| N 304032008006 | HEXAGON NUT | |
| 225 | N 001434010092 | PIN |
| 229 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 229 | N 000433010510 | WASHER |
| N 000094003219 | COTTER PIN | |
| N 007603012405 | SEAL RING | |
| A 0039979072 | FITTING | |
| Repalced by: A 0029906071 | ||
| A 0029906071 | FITTING | |
