Transporto priemonė: OF 1417; VIN numerio dalis: 352097

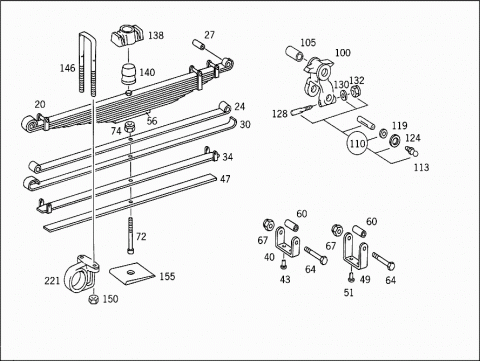

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 020 | A 3523200502 | FRONT SPRING |
| Repalced by: A 3523201902 | ||
| 020 | A 3523201902 | FRONT SPRING |
| 8-LEAF | ||
| 020 | A 3523201902 | FRONT SPRING |
| 8-LEAF | ||
| 020 | A 3553200302 | FRONT SPRING |
| 8-LEAF | ||
| 024 | A 3523201594 | SPRING LEAF |
| NO.1 | ||
| 024 | A 3523202494 | SPRING LEAF |
| NO.1 | ||
| 024 | A 3523202494 | SPRING LEAF |
| NO.1 | ||
| 024 | A 3553200294 | SPRING LEAF |
| NO.1 | ||
| 027 | A 3523220050 | BUSHING |
| 027 | A 3523220050 | BUSHING |
| 027 | A 3853220050 | BUSHING |
| 027 | A 3853220050 | BUSHING |
| 027 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 027 | A 3523250150 | BUSHING |
| 027 | A 3853250050 | BUSHING |
| 030 | A 3523210412 | SPRING LEAF |
| NO. 2 | ||
| 030 | A 3523211412 | SPRING LEAF |
| NO.2 | ||
| 030 | A 3523211412 | SPRING LEAF |
| NO.2 | ||
| 030 | A 3553210312 | SPRING LEAF |
| NO.2 | ||
| A 3523201694 | SPRING LEAF | |
| NO. 3 | ||
| 034 | A 3523202594 | SPRING LEAF |
| Repalced by: A 3523211412 | ||
| 034 | A 3523211412 | SPRING LEAF |
| NO.3 | ||
| 034 | A 3523211412 | SPRING LEAF |
| NO.3 | ||
| 034 | A 3553200394 | SPRING LEAF |
| NO.3 | ||
| 040 | A 0033212733 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 040 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 040 | A 3123240633 | SPRING CLAMP |
| 040 | A 3123240633 | SPRING CLAMP |
| 040 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 040 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 040 | A 6173210333 | SPRING CLAMP |
| 043 | N 000660008026 | RIVET |
| 8X20 MM | ||
| 043 | N 910006008024 | RIVET |
| 8X25 MM | ||
| A 3523210414 | SPRING LEAF | |
| NO. 4 | ||
| 047 | A 3523211414 | SPRING LEAF |
| NO.4 | ||
| 047 | A 3523211414 | SPRING LEAF |
| NO.4 | ||
| 047 | A 3553210314 | SPRING LEAF |
| NO.4 | ||
| 049 | A 0033212933 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 049 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 049 | A 3123240633 | SPRING CLAMP |
| 049 | A 3123240633 | SPRING CLAMP |
| 049 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 049 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 049 | A 6173210333 | SPRING CLAMP |
| FRONT SPRING | ||
| 051 | N 000660008026 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 051 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 056 | A 3523220184 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 056 | A 3523220184 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 060 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 060 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 060 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 060 | A 0003212553 | SPACER TUBE |
| Repalced by: A 0003212753 | ||
| 060 | A 0003212753 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 060 | A 0003212753 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 064 | N 000931008326 | SCREW |
| Repalced by: N 304014008009 | ||
| 064 | N 304014008009 | SCREW |
| SPRING CLAMP TO SPRING LEAF | ||
| M 8X100 | ||
| 064 | N 304014008009 | SCREW |
| SPRING CLAMP TO SPRING LEAF | ||
| M 8X100 | ||
| 064 | N 000931012144 | SCREW |
| SPRING CLAMP TO SPRING LEAF | ||
| M 12X115 | ||
| 067 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 067 | N 913004008001 | NUT |
| SPRING CLAMP TO SPRING LEAF | ||
| 067 | N 913004008001 | NUT |
| SPRING CLAMP TO SPRING LEAF | ||
| 067 | N 913002012004 | NUT |
| SPRING CLAMP TO SPRING LEAF | ||
| 072 | N 004626012240 | SPRING BOLT |
| FRONT SPRING | ||
| M 12X155 | ||
| 072 | N 004626012240 | SPRING BOLT |
| FRONT SPRING | ||
| M 12X155 | ||
| 072 | N 004626012164 | SPRING BOLT |
| FRONT SPRING | ||
| M 12X145 | ||
| 074 | N 000934012021 | NUT |
| SPRING BOLT | ||
| 074 | N 000934012021 | NUT |
| SPRING BOLT | ||
| 074 | N 000934012010 | NUT |
| SPRING BOLT | ||
| 100 | A 3523200063 | SHACKLE |
| Repalced by: A 6173200163 | ||
| 100 | A 6173200163 | SHACKLE |
| Repalced by: A 6173250120 | ||
| 100 | A 6173250120 | SHACKLE |
| FRONT SPRING TO SPRING BRACKET | ||
| 100 | A 6173250120 | SHACKLE |
| FRONT SPRING TO SPRING BRACKET | ||
| 100 | A 3553200062 | SHACKLE |
| Repalced by: A 3963200062 | ||
| 100 | A 3963200062 | SHACKLE |
| FRONT SPRING TO SPRING BRACKET | ||
| 105 | A 3523220050 | BUSHING |
| 105 | A 3523220050 | BUSHING |
| 105 | A 3853220050 | BUSHING |
| 105 | A 3853220050 | BUSHING |
| 105 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 105 | A 3523250150 | BUSHING |
| 105 | A 3853250050 | BUSHING |
| A 3523220530 | SHACKLE PIN | |
| Repalced by: A 3855860332 | ||
| A 3853220030 | SHACKLE PIN | |
| Repalced by: A 3855860332 | ||
| 110 | A 3855860032 | REPAIR KIT |
| Repalced by: A 3855860332 | ||
| 110 | A 3855860332 | REPAIR KIT |
| Repalced by: A 3853200165 | ||
| 110 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 110 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 110 | A 3855860132 | REPAIR KIT |
| Repalced by: A 3855860232 | ||
| 110 | A 3855860232 | REPAIR KIT |
| Repalced by: A 3853200065 | ||
| 110 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 113 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 113 | N 071412010200 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 113 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 119 | A 3523230176 | WASHER |
| Repalced by: A 3523230376 | ||
| 119 | A 3523230276 | WASHER |
| Repalced by: A 3523230376 | ||
| 119 | A 3523231476 | WASHER |
| Repalced by: A 3523230376 | ||
| 119 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 119 | A 3523231576 | WASHER |
| Repalced by: A 3523230476 | ||
| 119 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 119 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 124 | A 0029973140 | SEAL RING |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 124 | A 0029973140 | SEAL RING |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 124 | A 0029973040 | SEAL RING |
| REAR SPRING BRACKET | ||
| 128 | A 3529900337 | BOLT |
| REAR SPRING BRACKET | ||
| 130 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 130 | N 000125010532 | WASHER |
| SHACKLE PIN TO SHACKLE | ||
| 132 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 132 | N 910113010000 | NUT |
| SHACKLE PIN TO SHACKLE | ||
| 138 | A 3273225031 | PLATE |
| RUBBER BUFFER TO SPRING SEAT | ||
| 138 | A 3273225031 | PLATE |
| RUBBER BUFFER TO SPRING SEAT | ||
| 138 | A 3523220231 | PLATE |
| RUBBER BUFFER TO SPRING SEAT | ||
| 138 | A 3523220231 | PLATE |
| RUBBER BUFFER TO SPRING SEAT | ||
| 138 | A 3553220031 | PLATE |
| RUBBER BUFFER TO SPRING SEAT | ||
| 138 | A 3553220031 | PLATE |
| RUBBER BUFFER TO SPRING SEAT | ||
| 140 | A 3223310044 | RUBBER BUFFER |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 140 | A 3223310044 | RUBBER BUFFER |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 140 | A 3163240008 | HELPER SPRING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 140 | A 3163240008 | HELPER SPRING |
| SPRING STOP TO FRAME BOTTOM SIDE | ||
| 146 | A 3523510425 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 220 MM | ||
| 146 | A 3403510325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 230 MM | ||
| 150 | A 0029903551 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 155 | A 3583310128 | SHIM |
| FRONT AXLE,LEFT | ||
| 155 | A 3583310128 | SHIM |
| FRONT AXLE,RIGHT | ||
| 155 | A 3583310328 | SHIM |
| FRONT AXLE,LEFT | ||
| 155 | A 3583310328 | SHIM |
| FRONT AXLE,RIGHT | ||
| 160 | A 0013236500 | SHOCK ABSORBER |
| Repalced by: A 0033233700 | ||
| 160 | A 0033230200 | SHOCK ABSORBER |
| Repalced by: A 0033233700 | ||
| 160 | A 0033233700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 160 | A 0033239600 | SHOCK ABSORBER |
| 163 | A 0003232885 | RUBBER MOUNTING |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 163 | A 0003232885 | RUBBER MOUNTING |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 163 | A 0003230785 | RUBBER MOUNTING |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 167 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 167 | A 0003233150 | SPACER RING |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 167 | A 0003230553 | SPACER TUBE |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 171 | A 0003231553 | SPACER TUBE |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 175 | A 0003233185 | RUBBER MOUNTING |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 180 | A 3523200078 | CONSOLE |
| Repalced by: A 3523200478 | ||
| 180 | A 3523200378 | CONSOLE |
| Repalced by: A 3523200478 | ||
| 180 | A 3523200478 | CONSOLE |
| TOP | ||
| 184 | A 3523230074 | PIN |
| Repalced by: A 3523230274 | ||
| 184 | A 3523230274 | PIN |
| SHOCK ABSORBER TO CONSOLE | ||
| 184 | A 3523230374 | PIN |
| SHOCK ABSORBER TO CONSOLE | ||
| 187 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 187 | N 000125017016 | WASHER |
| CONSOLE TO FRAME | ||
| 189 | N 913001016000 | NUT |
| CONSOLE TO FRAME | ||
| 189 | N 910113016001 | NUT |
| CONSOLE TO FRAME | ||
| 191 | N 308676012010 | SCREW |
| TOP BEARING BRACKET TO FRAME | ||
| M 12X40 | ||
| 192 | N 912004012100 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 193 | N 000934012022 | NUT |
| CONSOLE TO FRAME | ||
| 193 | N 910113012003 | NUT |
| TOP BEARING BRACKET TO FRAME | ||
| 195 | A 3523200543 | BRACKET |
| Repalced by: A 3523200278 | ||
| 195 | A 3523200278 | CONSOLE |
| BOTTOM | ||
| 200 | N 000125013008 | WASHER |
| BEARING BRACKET TO FRONT AXLE | ||
| 200 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 200 | N 000125015019 | WASHER |
| BEARING BRACKET TO FRONT AXLE | ||
| 202 | N 000961012165 | SCREW |
| Repalced by: N 000961012051 | ||
| 202 | N 000961012051 | SCREW |
| BEARING BRACKET TO FRONT AXLE | ||
| 204 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO FRONT AXLE | ||
| 208 | A 3529901340 | WASHER |
| Repalced by: A 6249900040 | ||
| 208 | A 6249900040 | WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 208 | A 3523230052 | SPACER WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 210 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 210 | N 000979016007 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 210 | N 910113016001 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 212 | N 000094003023 | COTTER PIN |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 215 | A 3523230071 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 217 | N 912004016101 | LOCK WASHER |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 220 | A 3523231463 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 220 | A 3523231463 | BEARING BRACKET |

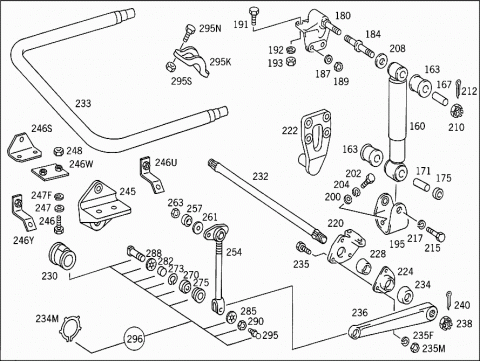

| TORSION BAR,FRONT | ||
| 220 | A 3553230163 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 221 | A 6173230163 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 222 | A 6163230063 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 224 | A 3603230083 | HOUSING |
| Repalced by: A 3523230283 | ||
| 224 | A 3523230283 | HOUSING |
| TORSION BAR TO BEARING BRACKET | ||
| 228 | A 3603230085 | RUBBER MOUNTING |
| TORSION BAR TO BEARING BRACKET | ||
| 230 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR TO BEARING BRACKET | ||
| 232 | A 3603230065 | TORSION BAR |
| FRONT | ||
| 233 | A 6173260065 | TORSION BAR |
| FRONT | ||
| 234 | A 3603230151 | SPACER RING |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 234M | N 000983068000 | LOCK RING |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 235 | N 000933010094 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| 235F | N 912004010102 | LOCK WASHER |
| HOUSING TO BEARING BRACKET | ||
| 235M | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 235M | N 304032010003 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 236 | A 3603230869 | LEVER |
| TORSION BAR | ||
| 238 | N 000937030000 | NUT |
| TORSION BAR | ||
| 240 | N 000094006317 | COTTER PIN |
| TORSION BAR | ||
| 245 | A 3523230963 | BEARING BRACKET |
| Repalced by: A 0003200089 | ||
| 245 | A 3523230963 | BEARING BRACKET |
| Repalced by: A 0003200089 | ||
| 245 | A 3553231863 | BEARING BRACKET |
| TORSION BAR TO FRAME | ||
| 246 | N 000961012122 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X40 | ||
| 246 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X25 | ||
| 246 | N 308676012012 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X25 | ||
| 246 | N 000961012025 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X32 | ||
| 246 | A 3589901914 | SCREW |
| Repalced by: A 3559900014 | ||
| 246 | A 3559900014 | SCREW |
| Repalced by: N 000961012106 | ||
| 246 | N 000961012106 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X35 | ||
| 246 | N 000961012106 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X35 | ||
| 246 | N 000961012106 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X35 | ||
| 246 | A 3589901914 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 246 | N 000961016118 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 246S | A 3553230073 | LOCK |
| BEARING BRACKET TO FRAME | ||
| 246U | A 3553200043 | BRACKET |
| BEARING BRACKET TO FRAME | ||
| 246W | A 3553200143 | BRACKET |
| BEARING BRACKET TO FRAME | ||
| 246Y | A 3553200243 | BRACKET |
| BEARING BRACKET TO FRAME | ||
| 247 | N 000125013008 | WASHER |
| BEARING BRACKET TO FRAME | ||
| 247 | N 006796012101 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 247 | N 006796012101 | CONICAL SPRING WASHER |
| ROD TO BEARING BRACKET | ||
| 247 | N 900055012001 | SPRING WASHER |
| BEARING BRACKET TO FRAME | ||
| 247 | N 900055016001 | SPRING WASHER |
| ROD TO BEARING BRACKET | ||
| 247F | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 248 | N 910113012003 | NUT |
| BEARING BRACKET TO FRAME | ||
| 248 | N 910113012003 | NUT |
| BEARING BRACKET TO FRAME | ||
| 248 | N 910113012003 | NUT |
| ROD TO FRAME | ||
| 254 | A 3603200289 | ROD |
| Repalced by: A 0003200089 | ||
| 254 | A 3603200289 | ROD |
| Repalced by: A 0003200089 | ||
| 254 | A 0003200089 | ROD |
| TORSION BAR,WITH BEARING BRACKET | ||
| 254 | A 0003200089 | ROD |
| TORSION BAR,WITH BEARING BRACKET | ||
| 254 | A 0003200389 | ROD |
| TORSION BAR,WITH BEARING BRACKET | ||
| 254 | A 6173200389 | ROD |
| TORSION BAR,LESS BEARING BRACKET | ||
| 257 | A 0003300185 | BOOT |
| Repalced by: A 0003300785 | ||
| 257 | A 0003300785 | BOOT |
| TO 360 320 02 89 | ||
| 261 | N 006796016102 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 261 | N 006796016102 | CONICAL SPRING WASHER |
| ROD TO BEARING BRACKET | ||
| 263 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 263 | N 910113014001 | NUT |
| ROD TO BEARING BRACKET | ||
| TO 360 320 02 89 | ||
| 263 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 263 | N 910113016002 | NUT |
| ROD TO FRAME | ||
| TO 000 320 00 89 | ||
| 263 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 263 | N 308673016001 | NUT |
| ROD TO BEARING BRACKET | ||
| 270 | A 0009810731 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 270 | A 0009810931 | JOINT BEARING |
| Repalced by: A 0009817331 | ||
| 270 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 270 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 270 | A 0019814631 | JOINT BEARING |
| A 0019814831 | JOINT BEARING | |
| 273 | N 007993035200 | SNAP RING |
| BRACKET TO STABILIZER ROD | ||
| 273 | N 000472035000 | LOCK RING |
| BRACKET TO STABILIZER ROD | ||
| 275 | A 3603230460 | SEAL RING |
| ROD TO TORSION BAR | ||
| A 3603230274 | PIN | |
| Repalced by: A 3605860032 | ||
| 282 | A 3603230153 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 285 | N 006797021201 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 288 | N 006797021101 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 290 | N 000936020010 | NUT |
| ROD TO TORSION BAR | ||
| 295 | N 071412010100 | GREASE NIPPLE |
| 295 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 295 | N 071412008102 | GREASE NIPPLE |
| 295K | A 6173230040 | BRACKET |
| TORSION BAR | ||
| 295N | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| 295S | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 296 | A 3605860032 | REPAIR KIT |
| Repalced by: A 3603200041 | ||
| 296 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||
| 296 | A 6173200128 | REPAIR KIT |
| TORSION BAR,FRONT | ||

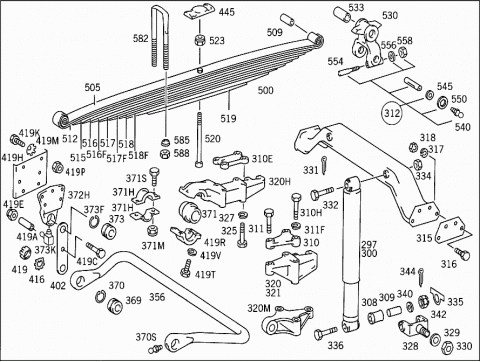

| 297 | A 0023269600 | SHOCK ABSORBER |
| REAR | ||
| 297 | A 0013266500 | SHOCK ABSORBER |
| Repalced by: A 0023269700 | ||
| 297 | A 0013263200 | SHOCK ABSORBER |
| Repalced by: A 0023269700 | ||
| 297 | A 0013267400 | SHOCK ABSORBER |
| Repalced by: A 0023269700 | ||
| 297 | A 0013267500 | SHOCK ABSORBER |
| Repalced by: A 0023269700 | ||
| 300 | A 0023269700 | SHOCK ABSORBER |
| Repalced by: A 0033264900 | ||
| 300 | A 0033264900 | SHOCK ABSORBER |
| REAR | ||
| 300 | A 0023265300 | SHOCK ABSORBER |
| Repalced by: A 0023269800 | ||
| 300 | A 0023269800 | SHOCK ABSORBER |
| Repalced by: A 0043260300 | ||
| 300 | A 0043260300 | SHOCK ABSORBER |
| REAR | ||
| 300 | A 0023265400 | SHOCK ABSORBER |
| Repalced by: A 0023269900 | ||
| 300 | A 0023269900 | SHOCK ABSORBER |
| Repalced by: A 0033268700 | ||
| 300 | A 0033268700 | SHOCK ABSORBER |
| REAR | ||
| A 0003233044 | RUBBER BUFFER | |
| Repalced by: A 0003233144 | ||
| A 0003233144 | RUBBER BUFFER | |
| TO 003 326 49 00,003 326 87 00 | ||
| Repalced by: A 0003238085 | ||
| A 0003238085 | RUBBER MOUNTING | |
| TO 003 326 49 00,003 326 87 00 | ||
| A 0003233085 | RUBBER MOUNTING | |
| Repalced by: A 0003230785 | ||
| A 0003260268 | RUBBER BUFFER | |
| Repalced by: A 0003230785 | ||
| A 0003230785 | RUBBER MOUNTING | |
| TO 001 326 32 00,001 326 65 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 326 74 00,001 326 75 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 53 00,002 326 54 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 96 00,002 326 97 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 98 00,002 326 99 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 326 03 00 | ||
| A 0003231653 | SPACER TUBE | |
| Repalced by: A 0003230553 | ||
| 308 | A 0003260750 | BUSHING |
| Repalced by: A 0003230553 | ||
| 309 | A 0003230553 | SPACER TUBE |
| TO 001 326 32 001,001 326 65 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 326 74 00,001 326 75 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 53 00,002 326 54 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 96 00,002 326 97 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 98 00,002 326 99 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 326 03 00,003 326 49 00 | ||
| 309 | A 0003234450 | BUSHING |
| TO 003 326 87 00 | ||
| 310 | A 3523260496 | SHIM |
| BRACKET TO SPRING SADDLE | ||
| 310 | A 3523260496 | SHIM |
| BRACKET TO SPRING SADDLE | ||
| 310E | A 3973260096 | SHIM |
| BRACKET TO SPRING SADDLE | ||
| 310E | A 3973260096 | SHIM |
| BRACKET TO SPRING SADDLE | ||
| 310H | N 000960014252 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X140 | ||
| 310H | N 000960014252 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X140 | ||
| 310H | N 000960014252 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X140 | ||
| 311 | N 000960014143 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X95 | ||
| 311 | N 000960014143 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X95 | ||
| 311F | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 311F | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 311F | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 311F | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 312 | A 3523100140 | CROSS MEMBER |
| Repalced by: A 3523101440 | ||
| 312 | A 3523101440 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 315 | A 3523120084 | SHIM |
| Repalced by: A 3123121557 | ||
| 315 | A 3123121557 | MOUNTING PLATE |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 316 | N 000933010157 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X28 | ||
| 316 | N 000933010157 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X28 | ||
| 316 | N 000933010157 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X28 | ||
| 316 | N 000933010157 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X28 | ||
| 316 | N 007991010000 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X30 | ||
| 316 | N 007991010000 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X30 | ||
| 317 | N 912004010102 | LOCK WASHER |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 317 | N 912004010102 | LOCK WASHER |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 318 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 318 | N 910113010000 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 318 | N 910113010000 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 318 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 318 | N 304032010003 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 318 | N 304032010003 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 320 | A 3403260140 | BRACKET |
| LEFT,FOR SHOCK ABSORBERS | ||
| 320 | A 3523261240 | BRACKET |
| LEFT,FOR SHOCK ABSORBERS | ||
| 320 | A 3523261240 | BRACKET |
| LEFT,FOR SHOCK ABSORBERS | ||
| 320H | A 3973260040 | BRACKET |
| LEFT,FOR SHOCK ABSORBERS | ||
| 320H | A 3973260040 | BRACKET |
| LEFT,FOR SHOCK ABSORBERS | ||
| 320M | A 3403260240 | BRACKET |
| RIGHT,FOR SHOCK ABSORBERS | ||
| 321 | A 3523261340 | BRACKET |
| RIGHT,FOR SHOCK ABSORBERS | ||
| 321 | A 3523261340 | BRACKET |
| RIGHT,FOR SHOCK ABSORBERS | ||
| 321 | A 3973260140 | BRACKET |
| RIGHT,FOR SHOCK ABSORBERS | ||
| 321 | A 3973260140 | BRACKET |
| RIGHT,FOR SHOCK ABSORBERS | ||
| 325 | N 308676014002 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X80 | ||
| 325 | N 000960014073 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X110 | ||
| 325 | N 000960014242 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X100 | ||
| 325 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| 327 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 328 | A 3523260040 | BRACKET |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 329 | N 000125025008 | WASHER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 330 | N 000937024002 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 331 | N 000094005016 | COTTER PIN |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 332 | A 3529901301 | SCREW |
| Repalced by: A 3979900001 | ||
| 332 | A 3529901301 | SCREW |
| Repalced by: A 3979900001 | ||
| 332 | A 3979900001 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 332 | A 3979900001 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 332 | A 3523260271 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 334 | N 000937020001 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 335 | A 3523260273 | LOCK |
| SHOCK ABSORBER TO BRACKET | ||
| 336 | A 3529901201 | SCREW |
| Repalced by: A 3859900101 | ||
| 336 | A 3529901201 | SCREW |
| Repalced by: A 3859900101 | ||
| 336 | A 3529901201 | SCREW |
| Repalced by: A 3859900101 | ||
| 336 | A 3529901201 | SCREW |
| Repalced by: A 3859900101 | ||
| 336 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 336 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 340 | A 3529901540 | WASHER |
| SHOCK ABSORBER TO BRACKET | ||
| 342 | N 000937020001 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 344 | N 000094004065 | COTTER PIN |
| SHOCK ABSORBER TO BRACKET | ||
| 344 | N 000094004065 | COTTER PIN |
| SHOCK ABSORBER TO BRACKET | ||
| 346 | A 3223260151 | SPACER RING |
| Repalced by: A 3523260751 | ||
| 346 | A 3523260751 | SPACER RING |
| TORSION BAR,REAR | ||
| 346 | A 3523260751 | SPACER RING |
| TORSION BAR,REAR | ||
| 350 | A 3523230251 | SPACER RING |
| TORSION BAR,REAR | ||
| 350 | A 3523230251 | SPACER RING |
| TORSION BAR,REAR | ||
| 355 | A 3223260065 | TORSION BAR |
| Repalced by: A 3523260665 | ||
| 355 | A 3523260665 | TORSION BAR |
| REAR | ||
| 355 | A 3523260665 | TORSION BAR |
| REAR | ||
| 356 | A 3833260065 | TORSION BAR |
| REAR | ||
| 356 | A 3833260065 | TORSION BAR |
| REAR | ||
| 358 | A 3523260181 | RUBBER MOUNTING |
| REAR OUTSIDE | ||
| 358 | A 3523260181 | RUBBER MOUNTING |
| REAR OUTSIDE | ||
| 361 | A 3403260082 | HOUSING |
| REAR OUTSIDE | ||
| 361 | A 3403260082 | HOUSING |
| REAR OUTSIDE | ||
| 364 | A 3523260081 | RUBBER MOUNTING |
| REAR INSIDE | ||
| 364 | A 3523260081 | RUBBER MOUNTING |
| REAR INSIDE | ||
| 368 | A 3403260182 | HOUSING |
| REAR INSIDE | ||
| 368 | A 3403260182 | HOUSING |
| REAR INSIDE | ||
| 369 | A 0009811231 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 369 | A 0009811231 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 369 | A 0009810831 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 369 | A 0009810831 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 370 | N 000472055000 | LOCK RING |
| 370 | N 000472055000 | LOCK RING |
| 370S | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 370S | N 071412008102 | GREASE NIPPLE |
| TORSION BAR,REAR | ||
| 370S | N 071412008102 | GREASE NIPPLE |
| TORSION BAR,REAR | ||
| 371 | A 3833260181 | RUBBER MOUNTING |
| TORSION BAR | ||
| 371 | A 3833260181 | RUBBER MOUNTING |
| TORSION BAR | ||
| 371H | A 3833260740 | BRACKET |
| TORSION BAR | ||
| 371H | A 3833260740 | BRACKET |
| TORSION BAR | ||
| 371M | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 371M | N 910113014001 | NUT |
| BRACKET TO TORSION BAR | ||
| 371M | N 910113014001 | NUT |
| BRACKET TO TORSION BAR | ||
| 371M | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 371S | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 371S | N 308676014020 | SCREW |
| BRACKET TO TORSION BAR | ||
| M 14X35 | ||
| 371S | N 308676014020 | SCREW |
| BRACKET TO TORSION BAR | ||
| M 14X35 | ||
| 371S | N 308676012012 | SCREW |
| BRACKET TO TORSION BAR | ||
| M 12X25 | ||
| 371W | N 000933010157 | SCREW |
| HOUSING | ||
| M 10X28 | ||
| 371W | N 000933010157 | SCREW |
| HOUSING | ||
| M 10X28 | ||
| 372 | N 912004010102 | LOCK WASHER |
| HOUSING | ||
| 372 | N 912004010102 | LOCK WASHER |
| HOUSING | ||
| 372E | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 372E | N 304032010003 | NUT |
| HOUSING | ||
| 372E | N 304032010003 | NUT |
| HOUSING | ||
| 372H | A 3833260163 | BEARING BRACKET |
| Repalced by: A 3833200678 | ||
| 372H | A 3833200678 | CONSOLE |
| TORSION BAR | ||
| 372H | A 3833200678 | CONSOLE |
| TORSION BAR | ||
| 373 | A 0009810831 | JOINT BEARING |
| 373 | A 0009810831 | JOINT BEARING |
| 373 | A 0009811231 | JOINT BEARING |
| 373 | A 0009811231 | JOINT BEARING |
| 373F | N 000472055000 | LOCK RING |
| 373F | N 000472055000 | LOCK RING |
| 373K | N 071412008302 | GREASE NIPPLE |
| 373K | N 071412008302 | GREASE NIPPLE |
| 374 | A 3223200027 | LEVER |
| TORSION BAR TO SHACKLE | ||
| 374H | A 0003261081 | RUBBER MOUNTING |
| LEVER | ||
| 374K | A 0003260350 | BUSHING |
| LEVER | ||
| 374S | A 0003260076 | WASHER |
| LEVER | ||
| 375 | N 000472050000 | LOCK RING |
| LEVER | ||
| 375D | A 0003260057 | SEAL RING |
| LEVER | ||
| 10 MM | ||
| 376 | A 0003260157 | SEAL RING |
| LEVER | ||
| 7.50 MM | ||
| 377 | A 3403260174 | PIN |
| Repalced by: A 3605860132 | ||
| 377 | N 000937020001 | NUT |
| LEVER | ||
| 378 | N 000094004065 | COTTER PIN |
| LEVER | ||
| 380 | A 3523260369 | LEVER |
| TORSION BAR TO SHACKLE | ||
| 380 | A 3523260369 | LEVER |
| TORSION BAR TO SHACKLE | ||
| 384 | A 0009810831 | JOINT BEARING |
| LEVER | ||
| 384 | A 0009810831 | JOINT BEARING |
| LEVER | ||
| 384 | A 0009811231 | JOINT BEARING |
| LEVER | ||
| 384 | A 0009811231 | JOINT BEARING |
| LEVER | ||
| 388 | N 000472055000 | LOCK RING |
| LEVER | ||
| 388 | N 000472055000 | LOCK RING |
| LEVER | ||
| 392 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 392 | N 071412008102 | GREASE NIPPLE |
| LEVER | ||
| 392 | N 071412008102 | GREASE NIPPLE |
| LEVER | ||
| 395 | N 000937028002 | NUT |
| LEVER TO TORSION BAR | ||
| M 28X1.5 | ||
| 395 | N 000937027004 | NUT |
| LEVER TO TORSION BAR | ||
| M 27X1.5 | ||
| 395 | N 000937027004 | NUT |
| LEVER TO TORSION BAR | ||
| M 27X1.5 | ||
| 397 | N 000094005045 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 397 | N 000094005045 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 400 | A 3403260047 | SHACKLE |
| TORSION BAR TO BEARING BRACKET | ||
| 400 | A 3523260216 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 400 | A 3523260516 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 400 | A 3523260116 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 400 | A 3523260216 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 400 | A 3523260216 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 402 | A 3523260416 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 402 | A 3523260416 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 404 | A 3523260153 | SPACER TUBE |
| TORSION BAR TO BEARING BRACKET | ||
| 407 | A 3603230560 | SEAL RING |
| TORSION BAR TO BEARING BRACKET | ||
| A 3523260274 | PIN | |
| Repalced by: A 3605860332 | ||
| 416 | N 070952035101 | LOCK PLATE |
| SHACKLE TO TORSION BAR | ||
| 419 | N 070852035000 | NUT |
| SHACKLE TO TORSION BAR | ||
| 419A | A 3604270253 | SPACER TUBE |
| BETWEEN THE SHACKLES | ||
| 419A | A 3604270253 | SPACER TUBE |
| BETWEEN THE SHACKLES | ||
| 419C | N 000960012224 | SCREW |
| Repalced by: N 000961012208 | ||
| 419C | N 000961012208 | SCREW |
| SPACER TUBE BETWEEN STABILIZER SHACKLES | ||
| M 12X75 | ||
| 419C | N 000961012208 | SCREW |
| SPACER TUBE BETWEEN STABILIZER SHACKLES | ||
| M 12X75 | ||
| 419E | N 910113012002 | NUT |
| SPACER TUBE BETWEEN STABILIZER SHACKLES | ||
| 419E | N 910113012002 | NUT |
| SPACER TUBE BETWEEN STABILIZER SHACKLES | ||
| 419H | A 3973250041 | STIFFENING |
| BEARING BRACKET TO FRAME,LEFT | ||
| 419H | A 3973250041 | STIFFENING |
| BEARING BRACKET TO FRAME,LEFT | ||
| 419H | A 3973250141 | STIFFENING |
| BEARING BRACKET TO FRAME,RIGHT | ||
| 419H | A 3973250141 | STIFFENING |
| BEARING BRACKET TO FRAME,RIGHT | ||
| 419K | N 000961016108 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X30 | ||
| 419K | N 000961016108 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X30 | ||
| 419K | N 000961016100 | SCREW |
| Repalced by: N 308676016020 | ||
| 419K | N 308676016020 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X35 | ||
| 419K | N 308676016020 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 16X35 | ||
| 419M | N 006798016100 | SERRATED WASHER |
| BEARING BRACKET TO FRAME | ||
| 419M | N 006798016100 | SERRATED WASHER |
| BEARING BRACKET TO FRAME | ||
| 419P | N 910113016001 | NUT |
| BEARING BRACKET TO FRAME | ||
| 419P | N 910113016001 | NUT |
| BEARING BRACKET TO FRAME | ||
| 419R | A 3833260640 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 419R | A 3833260640 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 419T | N 000961014028 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| 419T | N 000961014028 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| 419V | N 912004014100 | LOCK WASHER |
| TORSION BAR TO REAR AXLE | ||
| 419V | N 912004014100 | LOCK WASHER |
| TORSION BAR TO REAR AXLE | ||
| 422 | A 3223200029 | STOP |
| SHACKLE TO GUIDE PLATE | ||
| 422B | A 0003261081 | RUBBER MOUNTING |
| STOP | ||
| 422D | A 0003260350 | BUSHING |
| STOP | ||
| 422F | A 0003260076 | WASHER |
| STOP | ||
| 423 | N 000472050000 | LOCK RING |
| STOP | ||
| 423D | A 0003260057 | SEAL RING |
| STOP | ||
| 10 MM | ||
| 423H | A 0003260157 | SEAL RING |
| STOP | ||
| 7.50 MM | ||
| 423M | A 3403260174 | PIN |
| Repalced by: A 3605860132 | ||
| 423M | N 000937020001 | NUT |
| STOP | ||
| 424 | N 000094004065 | COTTER PIN |
| STOP | ||
| 426 | A 3605860132 | REPAIR KIT |
| Repalced by: A 3603200141 | ||
| 426 | A 3603200141 | REPAIR KIT |
| TORSION BAR,REAR | ||
| 426 | A 3605860332 | REPAIR KIT |
| Repalced by: A 3603200341 | ||
| 426 | A 3603200341 | REPAIR KIT |
| TORSION BAR,REAR | ||
| 430 | A 3523250331 | PLATE |
| Repalced by: A 3523200035 | ||
| 430 | A 3523200035 | PLATE |
| (GUIDE PLATE) | ||
| 430 | A 3523200035 | PLATE |
| (GUIDE PLATE) | ||
| 433 | A 0009810831 | JOINT BEARING |
| 433 | A 0009810831 | JOINT BEARING |
| 433 | A 0009811231 | JOINT BEARING |
| 433 | A 0009811231 | JOINT BEARING |
| 437 | N 000472055000 | LOCK RING |
| 437 | N 000472055000 | LOCK RING |
| 440 | N 071412008302 | GREASE NIPPLE |
| 440 | N 071412008302 | GREASE NIPPLE |
| 445 | A 3833250231 | PLATE |
| REAR SPRING | ||
| 445 | A 3833250231 | PLATE |
| REAR SPRING | ||
| 500 | A 3523201106 | REAR SPRING |
| 10-LEAF | ||
| 500 | A 3523201706 | REAR SPRING |
| 10-LEAF | ||
| 505 | A 3523201093 | SPRING LEAF |
| NO. 1 | ||
| 505 | A 3523202393 | SPRING LEAF |
| N0. 1 | ||
| 509 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 509 | A 3523250150 | BUSHING |
| 509 | A 3853250050 | BUSHING |
| 512 | A 3523241712 | SPRING LEAF |
| NO. 2 | ||
| 512 | A 3523242412 | SPRING LEAF |
| NO. 2 | ||
| 515 | A 3523241713 | SPRING LEAF |
| NO. 3 | ||
| 515 | A 3523242413 | SPRING LEAF |
| NO. 3 | ||
| 516 | A 3523241614 | SPRING LEAF |
| NO. 4 | ||
| 516 | A 3523242214 | SPRING LEAF |
| NO. 4 | ||
| 516F | A 3523241615 | SPRING LEAF |
| NO. 5 | ||
| 516F | A 3523242215 | SPRING LEAF |
| NO. 5 | ||
| 517 | A 3523241616 | SPRING LEAF |
| NO. 6 | ||
| 517 | A 3523242116 | SPRING LEAF |
| NO. 6 | ||
| 517F | A 3523241517 | SPRING LEAF |
| NO. 7 | ||
| 517F | A 3523241917 | SPRING LEAF |
| NO. 7 | ||
| 518 | A 3523241418 | SPRING LEAF |
| NO. 8 | ||
| 518 | A 3523241818 | SPRING LEAF |
| NO. 8 | ||
| 518F | A 3523241119 | SPRING LEAF |
| NO. 9 | ||
| 518F | A 3523241519 | SPRING LEAF |
| NO. 9 | ||
| 519 | A 3523241020 | SPRING LEAF |
| NO. 10 | ||
| 519 | A 3523241420 | SPRING LEAF |
| NO. 10 | ||
| 520 | N 004626012117 | SPRING BOLT |
| 523 | N 000934012010 | NUT |
| 530 | A 3523200163 | SHACKLE |
| Repalced by: A 3523250120 | ||
| 530 | A 3523250120 | SHACKLE |
| REAR SPRING SUSPENSION | ||
| 533 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 533 | A 3523250150 | BUSHING |
| 533 | A 3853250050 | BUSHING |
| A 3523250530 | SHACKLE PIN | |
| Repalced by: A 3855860232 | ||
| A 3853250030 | SHACKLE PIN | |
| Repalced by: A 3855860232 | ||
| A 3855860132 | REPAIR KIT | |
| Repalced by: A 3855860232 | ||
| A 3855860232 | REPAIR KIT | |
| Repalced by: A 3853200065 | ||
| A 3853200065 | SHACKLE PIN | |
| PARTS KIT | ||
| 540 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 545 | A 3523230776 | WASHER |
| Repalced by: A 3523230976 | ||
| 545 | A 3523230876 | WASHER |
| Repalced by: A 3523230976 | ||
| 545 | A 3523231276 | WASHER |
| Repalced by: A 3523230976 | ||
| 545 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 545 | A 3523231376 | WASHER |
| Repalced by: A 3523231076 | ||
| 545 | A 3523231176 | WASHER |
| Repalced by: A 3523231076 | ||
| 545 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 550 | A 0029973040 | SEAL RING |
| SHACKLE PIN | ||
| 554 | A 3529900337 | BOLT |
| SHACKLE PIN TO SPRING BRACKET | ||
| 556 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 556 | N 000125010532 | WASHER |
| SHACKLE PIN TO SPRING BRACKET | ||
| 558 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 558 | N 910113010000 | NUT |
| SHACKLE PIN TO SPRING BRACKET | ||
| 560 | A 3223200029 | STOP |
| SHACKLE TO GUIDE PLATE | ||
| A 3523250331 | PLATE | |
| Repalced by: A 3523200035 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 430 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 433 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 437 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 440 | ||
| 582 | A 3523511225 | U-BOLT |
| Repalced by: A 3523510325 | ||
| 582 | A 3273510425 | U-BOLT |
| Repalced by: A 3523510325 | ||
| 582 | A 3523510325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 350 MM | ||
| 582 | A 3523510325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 350 MM | ||
| 582 | A 3853512425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 350 MM | ||
| 582 | A 3523511225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 330 MM | ||
| 582 | A 3853513225 | U-BOLT |
| Repalced by: A 3853513025 | ||
| 582 | A 3853513025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 330 MM | ||
| 585 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 585 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 585 | A 3859970126 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 588 | N 000934018006 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 588 | N 000934018006 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 588 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 588 | N 308674020000 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 588 | A 0029903551 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 588 | A 0029902551 | NUT |
| Repalced by: N 913004020004 | ||
| 588 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 588 | N 913004020003 | NUT |
| REAR SPRING TO REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
