Transporto priemonė: OF 1617; VIN numerio dalis: 355098

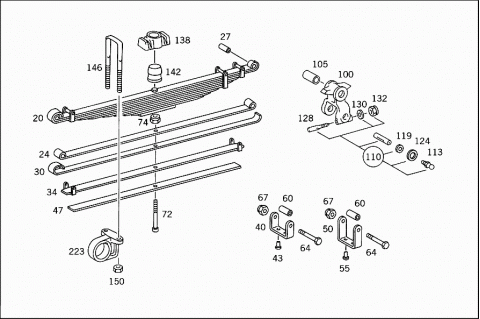

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 020 | A 3553200302 | FRONT SPRING |
| 8-LEAF | ||
| 020 | A 3523202502 | FRONT SPRING |
| 10-LEAF | ||
| 024 | A 3553200294 | SPRING LEAF |
| NO.1 | ||
| 024 | A 3523204194 | SPRING LEAF |
| NO.1 | ||
| 027 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 027 | A 3523250150 | BUSHING |
| 027 | A 3853250050 | BUSHING |
| 030 | A 3553210312 | SPRING LEAF |
| NO.2 | ||
| 030 | A 3523211912 | SPRING LEAF |
| NO.2 | ||
| 034 | A 3553200394 | SPRING LEAF |
| NO.3 | ||
| 034 | A 3523204394 | SPRING LEAF |
| NO.3 | ||
| 040 | A 0003247433 | SPRING CLAMP |
| Repalced by: A 3853210133 | ||
| 040 | A 3853210133 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 040 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 040 | A 6173210333 | SPRING CLAMP |
| 043 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 047 | A 3553210314 | SPRING LEAF |
| NO.4 | ||
| A 3523211914 | SPRING LEAF | |
| NO.4 | ||
| 050 | A 0013212833 | SPRING CLAMP |
| Repalced by: A 0003219433 | ||
| 050 | A 0003219433 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 050 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 050 | A 6173210333 | SPRING CLAMP |
| FRONT SPRING | ||
| 055 | N 910006008024 | RIVET |
| SPRING CLAMP | ||
| 060 | A 0003212553 | SPACER TUBE |
| Repalced by: A 0003212753 | ||
| 060 | A 0003212753 | SPACER TUBE |
| SPRING CLAMP | ||
| 064 | N 000931012144 | SCREW |
| SPRING CLAMP TO SPRING LEAF | ||
| 067 | N 913002012004 | NUT |
| SPRING CLAMP TO SPRING LEAF | ||
| 072 | N 004626012238 | SPRING BOLT |
| FRONT SPRING | ||
| M 12X145 | ||
| 072 | N 004626012241 | SPRING BOLT |
| FRONT SPRING | ||
| M 12X165 | ||
| 074 | N 000934012010 | NUT |
| FRONT SPRING | ||
| 100 | A 3553200062 | SHACKLE |
| Repalced by: A 3963200062 | ||
| 100 | A 3963200062 | SHACKLE |
| FRONT SPRING TO SPRING BRACKET | ||
| 105 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 105 | A 3523250150 | BUSHING |
| 105 | A 3853250050 | BUSHING |
| 110 | A 3523250530 | SHACKLE PIN |
| Repalced by: A 3855860232 | ||
| 110 | A 3853250030 | SHACKLE PIN |
| Repalced by: A 3855860232 | ||
| 110 | A 3855860132 | REPAIR KIT |
| Repalced by: A 3855860232 | ||
| 110 | A 3855860232 | REPAIR KIT |
| Repalced by: A 3853200065 | ||
| 110 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 113 | N 071412010100 | GREASE NIPPLE |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 113 | N 071412010200 | GREASE NIPPLE |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 113 | N 071412010300 | GREASE NIPPLE |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 119 | A 3523230776 | WASHER |
| Repalced by: A 3523230976 | ||
| 119 | A 3523230876 | WASHER |
| Repalced by: A 3523230976 | ||
| 119 | A 3523231276 | WASHER |
| Repalced by: A 3523230976 | ||
| 119 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 119 | A 3523231376 | WASHER |
| Repalced by: A 3523231076 | ||
| 119 | A 3523231176 | WASHER |
| Repalced by: A 3523231076 | ||
| 119 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 124 | A 0029973040 | SEAL RING |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 128 | A 3529900337 | BOLT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 130 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 130 | N 000125010532 | WASHER |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 132 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 132 | N 910113010000 | NUT |
| SHACKLES TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 138 | A 3553220031 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 142 | A 3163240008 | HELPER SPRING |
| 146 | A 3213510525 | U-BOLT |
| Repalced by: A 3523510425 | ||
| 146 | A 3283510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 250 MM | ||
| 146 | A 3523510425 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 220 MM | ||
| 150 | A 0029903551 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||

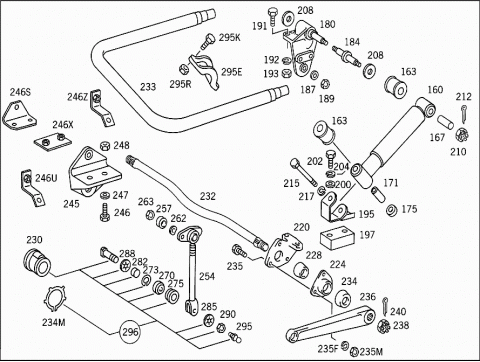

| 160 | A 0013236500 | SHOCK ABSORBER |
| Repalced by: A 0033233700 | ||
| 160 | A 0033230200 | SHOCK ABSORBER |
| Repalced by: A 0033233700 | ||
| 160 | A 0033233700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 160 | A 0033233700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 160 | A 0033239600 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 160 | A 0033239600 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 160 | A 0033237900 | SHOCK ABSORBER |
| Repalced by: A 0033238500 | ||
| 160 | A 0033238500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 160 | A 0033238400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 163 | A 0003232885 | RUBBER MOUNTING |
| TOP AND BOTTOM | ||
| TO 001 323 65 00 | ||
| 163 | A 0003232885 | RUBBER MOUNTING |
| BOTTOM | ||
| TO 003 323 02 00 | ||
| 163 | A 0003232885 | RUBBER MOUNTING |
| BOTTOM | ||
| TO 003 323 37 00 | ||
| 163 | A 0003230785 | RUBBER MOUNTING |
| TOP | ||
| TO 003 323 02 00 | ||
| 163 | A 0003230785 | RUBBER MOUNTING |
| TOP | ||
| TO 003 323 37 00 | ||
| 163 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 163 | A 0003233144 | RUBBER BUFFER |
| TOP AND BOTTOM | ||
| TO 003 323 79 00, 003 323 84 00 | ||
| Repalced by: A 0003238085 | ||
| 163 | A 0003238085 | RUBBER MOUNTING |
| TOP AND BOTTOM | ||
| TO 003 323 79 00, 003 323 84 00 | ||
| 163 | A 0003234685 | RUBBER MOUNTING |
| TOP AND BOTTOM | ||
| TO 003 323 85 00 | ||
| 167 | A 0003230453 | SPACER TUBE |
| Repalced by: A 0003233150 | ||
| 167 | A 0003233150 | SPACER RING |
| TOP | ||
| TO 001 323 65 00 | ||
| 167 | A 0003230553 | SPACER TUBE |
| TOP | ||
| TO 003 323 02 00 | ||
| 167 | A 0003230553 | SPACER TUBE |
| TOP | ||
| TO 003 323 37 00 | ||
| 167 | A 0003234450 | BUSHING |
| TOP | ||
| TO 003 323 79 00 | ||
| 171 | A 0003231553 | SPACER TUBE |
| BOTTOM | ||
| TO 001 323 65 00 | ||
| 171 | A 0003231553 | SPACER TUBE |
| BOTTOM | ||
| TO 003 323 02 00 | ||
| 171 | A 0003234550 | BUSHING |
| BOTTOM | ||
| TO 003 323 79 00 | ||
| 175 | A 0003233185 | RUBBER MOUNTING |
| BOTTOM | ||
| TO 001 323 65 00, 003 323 02 00 | ||
| 180 | A 3523200078 | CONSOLE |
| Repalced by: A 3523200478 | ||
| 180 | A 3523200378 | CONSOLE |
| Repalced by: A 3523200478 | ||
| 180 | A 3523200478 | CONSOLE |
| SHOCK ABSORBER,TOP | ||
| 180 | A 3523200478 | CONSOLE |
| SHOCK ABSORBER,TOP | ||
| 180 | A 3973200378 | CONSOLE |
| SHOCK ABSORBER,TOP | ||
| 184 | A 3523230074 | PIN |
| Repalced by: A 3523230274 | ||
| 184 | A 3523230274 | PIN |
| SHOCK ABSORBER MOUNTING | ||
| 184 | A 3523230374 | PIN |
| SHOCK ABSORBER MOUNTING | ||
| 184 | A 3523230374 | PIN |
| SHOCK ABSORBER MOUNTING | ||
| 184 | A 3973230074 | PIN |
| SHOCK ABSORBER MOUNTING | ||
| 187 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 187 | N 000125017016 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 187 | N 000125017016 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 187 | A 3559900240 | WASHER |
| SHOCK ABSORBER MOUNTING | ||
| 189 | N 913001016000 | NUT |
| SHOCK ABSORBER MOUNTING | ||
| 189 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 189 | N 910113016001 | NUT |
| SHOCK ABSORBER MOUNTING | ||
| 191 | N 308676012010 | HEXAGON HEAD BOLT |
| TOP BEARING BRACKET TO FRAME | ||
| M12X1.5X40 | ||
| 191 | N 308676012010 | HEXAGON HEAD BOLT |
| TOP BEARING BRACKET TO FRAME | ||
| M12X1.5X40 | ||
| 191 | N 308676012010 | HEXAGON HEAD BOLT |
| TOP BEARING BRACKET TO FRAME | ||
| M12X1.5X40 | ||
| 192 | N 912004012100 | LOCK WASHER |
| TOP BEARING BRACKET TO FRAME | ||
| 193 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 193 | N 910113012003 | NUT |
| BEARING BRACKET TO FRAME | ||
| 195 | A 3553200178 | CONSOLE |
| SHOCK ABSORBER,BOTTOM | ||
| 195 | A 3553200178 | CONSOLE |
| SHOCK ABSORBER,BOTTOM | ||
| 195 | A 3553200978 | CONSOLE |
| LEFT BOTTOM | ||
| 195 | A 3553201078 | CONSOLE |
| RIGHT BOTTOM | ||
| 197 | A 3553230184 | SHIM |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 200 | N 006796014100 | CONICAL SPRING WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 200 | N 000125013008 | WASHER |
| 200 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 200 | N 000125015019 | WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 200 | N 000125015019 | WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 200 | A 3559900340 | WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 202 | N 000961014141 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| M 14X28 | ||
| 202 | N 000960014194 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| M 14X60 | ||
| 204 | N 912004014100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 204 | N 912004014100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 208 | A 3529901340 | WASHER |
| Repalced by: A 6249900040 | ||
| 208 | A 6249900040 | WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 208 | A 3523230052 | SPACER WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 208 | A 3523230052 | SPACER WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 208 | A 3553230052 | SPACER WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 208 | N 009021017100 | WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 208 | N 009021017100 | WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 208 | A 3559900240 | WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 210 | N 000979016006 | NUT |
| Repalced by: N 000979016007 | ||
| 210 | N 000979016007 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 210 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 210 | N 910113016001 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 212 | N 000094003219 | COTTER PIN |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 215 | A 3523230071 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 215 | A 3523230071 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 215 | A 3559902001 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 217 | N 912004016101 | LOCK WASHER |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 217 | N 912004016101 | LOCK WASHER |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 220 | A 3553230163 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 223 | A 6173230163 | BEARING BRACKET |
| TORSION BAR,FRONT | ||
| 224 | A 3603230083 | HOUSING |
| Repalced by: A 3523230283 | ||
| 224 | A 3523230283 | HOUSING |
| TORSION BAR TO BEARING BRACKET | ||
| 228 | A 3603230085 | RUBBER MOUNTING |
| TORSION BAR TO BEARING BRACKET | ||
| 230 | A 3873230385 | RUBBER MOUNTING |
| TORSION BAR TO BEARING BRACKET | ||
| 232 | A 3603230365 | TORSION BAR |
| FRONT | ||
| 233 | A 6173260065 | TORSION BAR |
| FRONT | ||
| 234 | A 3403260051 | SPACER RING |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 234 | A 3603230151 | SPACER RING |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 234M | N 000983068000 | LOCK RING |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 235 | N 000933010094 | SCREW |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 235F | N 912004010102 | LOCK WASHER |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 235M | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 235M | N 304032010003 | NUT |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 236 | A 3603230869 | LEVER |
| RUBBER MOUNTING TO BEARING BRACKET | ||
| 238 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 240 | N 000094006317 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 245 | A 3523230963 | BEARING BRACKET |
| Repalced by: A 0003200089 | ||
| 245 | A 3553231863 | BEARING BRACKET |
| TORSION BAR TO FRAME | ||
| 246 | N 000961012025 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X32 | ||
| 246 | N 000961012106 | SCREW |
| BEARING BRACKET TO FRAME | ||
| M 12X35 | ||
| 246 | N 000961012106 | SCREW |
| ROD TO FRAME | ||
| M 12X35 | ||
| 246 | N 000961012106 | SCREW |
| ROD TO BEARING BRACKET | ||
| M 12X35 | ||
| 246 | A 3589901914 | SCREW |
| Repalced by: A 3559900014 | ||
| 246 | A 3559900014 | SCREW |
| Repalced by: N 000961012106 | ||
| 246 | N 000961016118 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 246 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 246 | N 308676012026 | SCREW |
| ROD TO BEARING BRACKET | ||
| 246S | A 3553230073 | LOCK |
| BEARING BRACKET TO FRAME | ||
| 246U | A 3553200043 | BRACKET |
| BEARING BRACKET TO FRAME | ||
| 246X | A 3553200143 | BRACKET |
| BEARING BRACKET TO FRAME | ||
| 246Z | A 3553200243 | BRACKET |
| BEARING BRACKET TO FRAME | ||
| 247 | N 000125013008 | WASHER |
| 247 | N 006796012101 | CONICAL SPRING WASHER |
| ROD TO FRAME | ||
| 247 | N 006796012101 | CONICAL SPRING WASHER |
| ROD TO BEARING BRACKET | ||
| 247 | N 900055012001 | SPRING WASHER |
| BEARING BRACKET TO FRAME | ||
| 247 | N 900055016001 | SPRING WASHER |
| BEARING BRACKET TO FRAME | ||
| N 912004012100 | LOCK WASHER | |
| ROD TO FRAME | ||
| 248 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 248 | N 910113012003 | NUT |
| BEARING BRACKET TO FRAME | ||
| 248 | N 910113012003 | NUT |
| ROD TO FRAME | ||
| 254 | A 3603200289 | ROD |
| Repalced by: A 0003200089 | ||
| 254 | A 0003200089 | ROD |
| TORSION BAR,WITH BEARING BRACKET | ||
| 254 | A 6173200389 | ROD |
| TORSION BAR,LESS BEARING BRACKET | ||
| 257 | A 0003300185 | BOOT |
| Repalced by: A 0003300785 | ||
| 257 | A 0003300785 | BOOT |
| TO 360 320 02 89 | ||
| 257 | A 0003300085 | BOOT |
| Repalced by: A 0004631396 | ||
| 257 | A 0004631396 | BOOT |
| TO 000 320 00 89 | ||
| 262 | N 006796016102 | CONICAL SPRING WASHER |
| ROD TO BEARING BRACKET | ||
| 262 | N 006796016102 | CONICAL SPRING WASHER |
| ROD TO BEARING BRACKET | ||
| 263 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 263 | N 910113014001 | NUT |
| ROD TO BEARING BRACKET | ||
| TO 360 320 02 89 | ||
| 263 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 263 | N 910113016002 | NUT |
| ROD TO FRAME | ||
| TO 000 320 00 89 | ||
| 263 | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 263 | N 308673016001 | NUT |
| ROD TO BEARING BRACKET | ||
| 270 | A 0009810731 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 270 | A 0009810931 | JOINT BEARING |
| Repalced by: A 0009817331 | ||
| 270 | A 0009817331 | JOINT BEARING |
| Repalced by: A 0009817231 | ||
| 270 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 270 | A 0019814631 | JOINT BEARING |
| TORSION BAR,FRONT | ||
| A 0019814831 | JOINT BEARING | |
| TORSION BAR,FRONT | ||
| 273 | N 007993035200 | SNAP RING |
| 273 | N 000472035000 | LOCK RING |
| 275 | A 3603230460 | SEAL RING |
| ROD TO TORSION BAR | ||
| A 3603230274 | PIN | |
| Repalced by: A 3605860032 | ||
| 282 | A 3603230153 | SPACER TUBE |
| ROD TO TORSION BAR | ||
| 285 | N 006797021201 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 288 | N 006797021101 | TOOTHED WASHER |
| ROD TO TORSION BAR | ||
| 290 | N 000936020010 | NUT |
| ROD TO TORSION BAR | ||
| 295 | N 071412010100 | GREASE NIPPLE |
| 295 | N 071412008200 | GREASE NIPPLE |
| 295E | A 6173230040 | BRACKET |
| TORSION BAR | ||
| 295K | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 295K | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO TORSION BAR | ||
| 295R | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 296 | A 3605860032 | REPAIR KIT |
| Repalced by: A 3603200041 | ||
| 296 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||
| 296 | A 6173200128 | REPAIR KIT |
| TORSION BAR,FRONT | ||

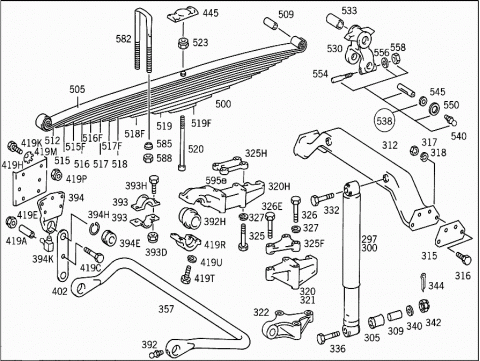

| 297 | A 0013266500 | SHOCK ABSORBER |
| Repalced by: A 0023269600 | ||
| 297 | A 0013267400 | SHOCK ABSORBER |
| Repalced by: A 0023269600 | ||
| 297 | A 0023269600 | SHOCK ABSORBER |
| REAR | ||
| 297 | A 0013263200 | SHOCK ABSORBER |
| Repalced by: A 0023269700 | ||
| 297 | A 0013267500 | SHOCK ABSORBER |
| Repalced by: A 0023269700 | ||
| 297 | A 0023269700 | SHOCK ABSORBER |
| Repalced by: A 0033264900 | ||
| 297 | A 0033264900 | SHOCK ABSORBER |
| REAR | ||
| 300 | A 0023265400 | SHOCK ABSORBER |
| Repalced by: A 0023269900 | ||
| 300 | A 0023265400 | SHOCK ABSORBER |
| Repalced by: A 0023269900 | ||
| 300 | A 0023269900 | SHOCK ABSORBER |
| Repalced by: A 0033268700 | ||
| 300 | A 0033268700 | SHOCK ABSORBER |
| Repalced by: A 0043264100 | ||
| 300 | A 0033268700 | SHOCK ABSORBER |
| Repalced by: A 0043264100 | ||
| 300 | A 0043264100 | SHOCK ABSORBER |
| REAR | ||
| 300 | A 0043264100 | SHOCK ABSORBER |
| REAR | ||
| 300 | A 0043264100 | SHOCK ABSORBER |
| REAR | ||
| 300 | A 0023265300 | SHOCK ABSORBER |
| Repalced by: A 0023269800 | ||
| 300 | A 0023265300 | SHOCK ABSORBER |
| Repalced by: A 0023269800 | ||
| 300 | A 0023269800 | SHOCK ABSORBER |
| Repalced by: A 0043260300 | ||
| 300 | A 0043260300 | SHOCK ABSORBER |
| Repalced by: A 0043264000 | ||
| 300 | A 0043260300 | SHOCK ABSORBER |
| Repalced by: A 0043264000 | ||
| 300 | A 0043264000 | SHOCK ABSORBER |
| REAR | ||
| 300 | A 0043264000 | SHOCK ABSORBER |
| REAR | ||
| 300 | A 0043264000 | SHOCK ABSORBER |
| REAR | ||
| 305 | A 0003233044 | RUBBER BUFFER |
| Repalced by: A 0003233144 | ||
| 305 | A 0003233144 | RUBBER BUFFER |
| TO 003 326 49 00,003 326 87 00 | ||
| Repalced by: A 0003238085 | ||
| 305 | A 0003238085 | RUBBER MOUNTING |
| TO 003 326 49 00,003 326 87 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 326 41 00 | ||
| 305 | A 0003233085 | RUBBER MOUNTING |
| Repalced by: A 0003230785 | ||
| 305 | A 0003260268 | RUBBER BUFFER |
| Repalced by: A 0003230785 | ||
| 305 | A 0003230785 | RUBBER MOUNTING |
| TO 001 326 32 00,001 326 65 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 326 75 00,001 326 74 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 53 00,002 326 54 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 96 00,002 326 97 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 98 00,002 326 99 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 326 03 00,004 326 40 00 | ||
| 309 | A 0003231653 | SPACER TUBE |
| Repalced by: A 0003230553 | ||
| 309 | A 0003260750 | BUSHING |
| Repalced by: A 0003230553 | ||
| 309 | A 0003230553 | SPACER TUBE |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 001 326 32 00,001 326 65 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 001 326 74 00,001 326 75 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 53 00,002 326 54 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 96 00,002 326 97 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 002 326 98 00,002 326 99 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 326 03 00,003 326 49 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 326 40 00 | ||
| 309 | A 0003234450 | BUSHING |
| TO 003 326 87 00,003 326 49 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 004 326 41 00 | ||
| 312 | A 3523100140 | CROSS MEMBER |
| Repalced by: A 3523101440 | ||
| 312 | A 3523101440 | CROSS MEMBER |
| REAR SHOCK ABSORBERS | ||
| 315 | A 3123121557 | MOUNTING PLATE |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 316 | N 000933010157 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 316 | N 007991010000 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 316 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 316 | N 304017010002 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 317 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 317 | N 910113010000 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 317 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 317 | N 304032010003 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 318 | N 912004010102 | LOCK WASHER |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 320 | A 3523261240 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 320H | A 3973260040 | BRACKET |
| TORSION BAR AND SHOCK ABSORBER,LEFT | ||
| 321 | A 3523261340 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 322 | A 3973260140 | BRACKET |
| TORSION BAR AND SHOCK ABSORBER,LEFT | ||
| 325 | N 000960014073 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X110 | ||
| 325 | N 000960014073 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X110 | ||
| 325 | N 000960014073 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X110 | ||
| 325 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| 325 | N 000960014244 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X65 | ||
| 325F | A 3523260496 | SHIM |
| BRACKET TO SPRING SADDLE | ||
| 325H | A 3973260096 | SHIM |
| BRACKET TO SPRING SADDLE | ||
| 326 | N 000960014252 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X140 | ||
| 326 | N 000960014252 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X140 | ||
| 326E | N 000960014143 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| M 14X95 | ||
| 327 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 327 | N 912004014100 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 332 | A 3529901301 | SCREW |
| Repalced by: A 3979900001 | ||
| 332 | A 3979900001 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 336 | A 3529901201 | SCREW |
| Repalced by: A 3859900101 | ||
| 336 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 340 | A 3529901540 | WASHER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 342 | N 000937020001 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 344 | N 000094004074 | COTTER PIN |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 346 | A 3403260051 | SPACER RING |
| REAR STABILIZER | ||
| 350 | A 3553230051 | SPACER RING |
| REAR STABILIZER | ||

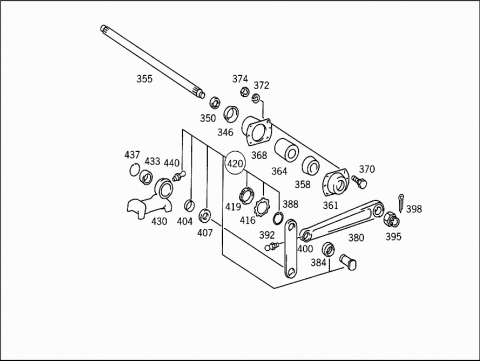

| 355 | A 3603260165 | TORSION BAR |
| REAR | ||
| 357 | A 3833260065 | TORSION BAR |
| Repalced by: A 6193260065 | ||
| 357 | A 6193260065 | TORSION BAR |
| REAR | ||
| 358 | A 3403260181 | RUBBER MOUNTING |
| OUTSIDE | ||
| 361 | A 3403260082 | HOUSING |
| OUTSIDE | ||
| 364 | A 3403260081 | RUBBER MOUNTING |
| INSIDE | ||
| 368 | A 3403260182 | HOUSING |
| INSIDE | ||
| 370 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 370 | N 304017010002 | SCREW |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| 372 | N 912004010102 | LOCK WASHER |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| 374 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 374 | N 304032010003 | NUT |
| RUBBER MOUNTING TO SIDE MEMBER | ||
| 380 | A 3523260469 | LEVER |
| REAR STABILIZER | ||
| 384 | A 0009810831 | JOINT BEARING |
| LINK TO LEVER | ||
| 384 | A 0009811231 | JOINT BEARING |
| LINK TO LEVER | ||
| 388 | N 000472055000 | LOCK RING |
| 392 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 392 | N 071412008102 | GREASE NIPPLE |
| TORSION BAR | ||
| 392H | A 3833260181 | RUBBER MOUNTING |
| TORSION BAR | ||
| 393 | A 3833260740 | BRACKET |
| TORSION BAR | ||
| 393D | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 393D | N 910113014001 | NUT |
| BRACKET TO TORSION BAR | ||
| 393D | N 910113012002 | NUT |
| BRACKET TO TORSION BAR | ||
| 393H | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 393H | N 308676014020 | SCREW |
| BRACKET TO TORSION BAR | ||
| M 14X35 | ||
| 393H | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 393H | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO TORSION BAR | ||
| M12X1.5X25 | ||
| 394 | A 3833260163 | BEARING BRACKET |
| Repalced by: A 3833200678 | ||
| 394 | A 3833200678 | CONSOLE |
| TORSION BAR | ||
| 394E | A 0009810831 | JOINT BEARING |
| 394E | A 0009811231 | JOINT BEARING |
| 394H | N 000472055000 | LOCK RING |
| TORSION BAR | ||
| 394K | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 394K | N 071412008102 | GREASE NIPPLE |
| TORSION BAR | ||
| 395 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 398 | N 000094005045 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 400 | A 3523260116 | LINK |
| LEVER TO GUIDE PLATE | ||
| 400 | A 3523260216 | LINK |
| LEVER TO GUIDE PLATE | ||
| 400 | A 3833260016 | LINK |
| LEVER TO GUIDE PLATE | ||
| 402 | A 3603260016 | LINK |
| Repalced by: A 3853260016 | ||
| 402 | A 3853260016 | LINK |
| TORSION BAR TO BEARING BRACKET | ||
| 404 | A 3523260153 | SPACER TUBE |
| LEVER TO GUIDE PLATE | ||
| 407 | A 3603230560 | SEAL RING |
| LEVER TO GUIDE PLATE | ||
| A 3523260274 | PIN | |
| Repalced by: A 3605860332 | ||
| 416 | N 070952035101 | LOCK PLATE |
| LEVER TO GUIDE PLATE | ||
| 419 | N 070852035000 | NUT |
| LEVER TO GUIDE PLATE | ||
| 419A | A 3604270253 | SPACER TUBE |
| BETWEEN THE SHACKLES | ||
| 419C | N 000960012224 | SCREW |
| Repalced by: N 000961012208 | ||
| 419C | N 000961012208 | SCREW |
| SPACER TUBE BETWEEN STABILIZER SHACKLES | ||
| 419E | N 910113012002 | NUT |
| SPACER TUBE BETWEEN STABILIZER SHACKLES | ||
| 419H | A 3973250041 | STIFFENING |
| BEARING BRACKET TO FRAME,LEFT | ||
| 419H | A 3973250141 | STIFFENING |
| BEARING BRACKET TO FRAME,RIGHT | ||
| 419K | N 000961016108 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 419M | N 006798016100 | SERRATED WASHER |
| BEARING BRACKET TO FRAME | ||
| 419P | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 419P | N 910113016001 | NUT |
| BEARING BRACKET TO FRAME | ||
| 419R | A 3833260640 | BRACKET |
| TORSION BAR TO REAR AXLE | ||
| 419T | N 000961014028 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| 419U | N 912004014100 | LOCK WASHER |
| TORSION BAR TO REAR AXLE | ||
| 420 | A 3605860332 | REPAIR KIT |
| Repalced by: A 3603200341 | ||
| 420 | A 3603200341 | REPAIR KIT |
| TORSION BAR,REAR | ||
| 430 | A 3523250331 | PLATE |
| Repalced by: A 3523200035 | ||
| 430 | A 3523200035 | PLATE |
| FOR SPRING | ||
| 433 | A 0009810831 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 433 | A 0009811231 | JOINT BEARING |
| TORSION BAR,REAR | ||
| 437 | N 000472055000 | LOCK RING |
| 440 | N 071412008302 | GREASE NIPPLE |
| 445 | A 3833250231 | PLATE |
| 500 | A 3553200106 | REAR SPRING |
| 12-LEAF | ||
| 500 | A 3553200406 | REAR SPRING |
| 12-LEAF | ||
| 500 | A 3553200406 | REAR SPRING |
| 12-LEAF | ||
| 505 | A 3553200093 | SPRING LEAF |
| NO.1 | ||
| 505 | A 3553200193 | SPRING LEAF |
| NO.1 | ||
| 505 | A 3553200193 | SPRING LEAF |
| NO.1 | ||
| 509 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 509 | A 3523250150 | BUSHING |
| 509 | A 3853250050 | BUSHING |
| 512 | A 3553240112 | SPRING LEAF |
| NO.2 | ||
| 512 | A 3553240512 | SPRING LEAF |
| NO.2 | ||
| 512 | A 3553240512 | SPRING LEAF |
| NO.2 | ||
| 515 | A 3553240113 | SPRING LEAF |
| NO.3 | ||
| 515 | A 3553240513 | SPRING LEAF |
| NO.3 | ||
| 515 | A 3553240513 | SPRING LEAF |
| NO.3 | ||
| 515F | A 3553240114 | SPRING LEAF |
| NO.4 | ||
| 515F | A 3553240514 | SPRING LEAF |
| NO.4 | ||
| 515F | A 3553240514 | SPRING LEAF |
| NO.4 | ||
| 516 | A 3553240115 | SPRING LEAF |
| NO.5 | ||
| 516 | A 3553240515 | SPRING LEAF |
| NO.5 | ||
| 516 | A 3553240515 | SPRING LEAF |
| NO.5 | ||
| 516F | A 3553240116 | SPRING LEAF |
| NO.6 | ||
| 516F | A 3553240516 | SPRING LEAF |
| NO.6 | ||
| 516F | A 3553240516 | SPRING LEAF |
| NO.6 | ||
| 517 | A 3553240117 | SPRING LEAF |
| NO.7 | ||
| 517 | A 3553240517 | SPRING LEAF |
| NO.7 | ||
| 517 | A 3553240517 | SPRING LEAF |
| NO.7 | ||
| 517F | A 3553240118 | SPRING LEAF |
| NO.8 | ||
| 517F | A 3553240518 | SPRING LEAF |
| NO.8 | ||
| 517F | A 3553240518 | SPRING LEAF |
| NO.8 | ||
| 518 | A 3553240119 | SPRING LEAF |
| NO.9 | ||
| 518 | A 3553240519 | SPRING LEAF |
| NO.9 | ||
| 518 | A 3553240519 | SPRING LEAF |
| NO.9 | ||
| 518F | A 3553240020 | SPRING LEAF |
| NO.10 | ||
| 518F | A 3553240420 | SPRING LEAF |
| NO.10 | ||
| 518F | A 3553240420 | SPRING LEAF |
| NO.10 | ||
| 519 | A 3553240021 | SPRING LEAF |
| NO.11 | ||
| 519 | A 3553240421 | SPRING LEAF |
| NO.11 | ||
| 519 | A 3553240421 | SPRING LEAF |
| NO.11 | ||
| 519F | A 3553240022 | SPRING LEAF |
| NO.12 | ||
| 519F | A 3553240122 | SPRING LEAF |
| NO.12 | ||
| 519F | A 3553240122 | SPRING LEAF |
| NO.12 | ||
| 520 | N 004626012252 | SPRING BOLT |
| REAR SPRING | ||
| 523 | N 000934012010 | NUT |
| REAR SPRING | ||
| 530 | A 3523200163 | SHACKLE |
| Repalced by: A 3523250120 | ||
| 530 | A 3523250120 | SHACKLE |
| REAR SPRING SUSPENSION | ||
| 533 | A 3273255050 | BUSHING |
| Repalced by: A 3523250150 | ||
| 533 | A 3523250150 | BUSHING |
| 533 | A 3853250050 | BUSHING |
| A 3523250530 | SHACKLE PIN | |
| Repalced by: A 3855860232 | ||
| A 3853250030 | SHACKLE PIN | |
| Repalced by: A 3855860232 | ||
| 538 | A 3855860132 | REPAIR KIT |
| Repalced by: A 3855860232 | ||
| 538 | A 3855860232 | REPAIR KIT |
| Repalced by: A 3853200065 | ||
| 538 | A 3853200065 | SHACKLE PIN |
| PARTS KIT | ||
| 540 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 545 | A 3523230776 | WASHER |
| Repalced by: A 3523230976 | ||
| 545 | A 3523230876 | WASHER |
| Repalced by: A 3523230976 | ||
| 545 | A 3523231276 | WASHER |
| Repalced by: A 3523230976 | ||
| 545 | A 3523230976 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 545 | A 3523231376 | WASHER |
| Repalced by: A 3523231076 | ||
| 545 | A 3523231176 | WASHER |
| Repalced by: A 3523231076 | ||
| 545 | A 3523231076 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 550 | A 0029973040 | SEAL RING |
| SHACKLES TO REAR SPRING FRONT AND REAR BRACKETS | ||
| 554 | A 3529900337 | BOLT |
| SHACKLES TO REAR SPRING FRONT AND REAR BRACKETS | ||
| 556 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 556 | N 000125010532 | WASHER |
| SHACKLES TO REAR SPRING FRONT AND REAR BRACKETS | ||
| 558 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 558 | N 910113010000 | NUT |
| SHACKLES TO REAR SPRING FRONT AND REAR BRACKETS | ||
| 582 | A 3213512225 | U-BOLT |
| Repalced by: A 3523510625 | ||
| 582 | A 3523510625 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 390 MM | ||
| 582 | A 3853511425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 390 MM | ||
| 582 | A 3523510325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 370 MM | ||
| 582 | A 3853512425 | U-BOLT |
| Repalced by: A 3853511225 | ||
| 582 | A 3853511325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 380 MM | ||
| 582 | A 3853511325 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 380 MM | ||
| 585 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 585 | A 3859970126 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 588 | N 000934018006 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 588 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 588 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 588 | N 308674020000 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 588 | A 0029902551 | NUT |
| Repalced by: N 913004020004 | ||
| 588 | N 913004020004 | NUT |
| Repalced by: N 913004020003 | ||
| 588 | N 913004020003 | NUT |
| REAR SPRING TO REAR AXLE | ||
| 595 | A 3839910064 | SHEAR BUSHING |
| REAR SPRING TO REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
