Transporto priemonė: OF 1620; VIN numerio dalis: 384079

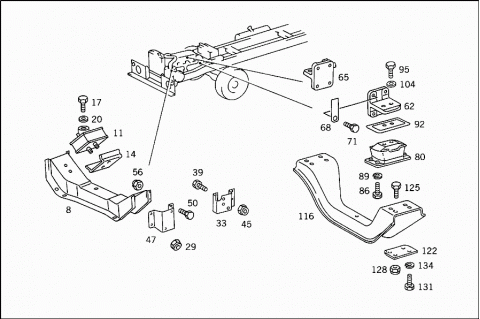

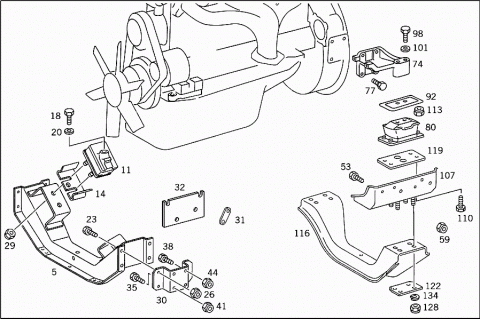

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3762400001 | ENGINE CROSS MEMBER |
| FRONT | ||
| 008 | A 3453120205 | ENGINE CROSS MEMBER |
| FRONT | ||
| N.02 | ||
| 011 | A 3522400417 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 011 | A 3522400417 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 011 | A 3452400317 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 011 | A 3452400317 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 011 | A 3842407117 | RUBBER MOUNTING |
| ENGINE FRONT SUSPENSION | ||
| 014 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 017 | N 000960016249 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 017 | N 000960016249 | SCREW |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 018 | N 000960016261 | SCREW |
| ENGINE TO ENGINE FRONT SUPPORT | ||
| 018 | N 000961016093 | SCREW |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 020 | A 3529902440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 020 | A 3529902440 | WASHER |
| SUPPORTING ARM TO REAR RUBBER MOUNTING | ||
| 020 | A 3529902440 | WASHER |
| ENGINE TO ENGINE FRONT SUPPORT | ||
| 020 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 023 | N 000961010039 | SCREW |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 026 | N 913004010010 | NUT |
| ENGINE FRONT CROSS MEMBER TO ENGINE STAY | ||
| 029 | N 913004012003 | NUT |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 030 | A 3842417109 | ENGINE STAY |
| FRONT RIGHT | ||
| 030 | A 3842407106 | CONSOLE |
| FRONT RIGHT | ||
| 030 | A 3842417009 | ENGINE STAY |
| FRONT LEFT | ||
| 030 | A 3842407006 | CONSOLE |
| FRONT LEFT | ||
| 031 | A 3842417384 | SHIM |
| FRONT LEFT AND RIGHT | ||
| 032 | A 3842417184 | SHIM |
| FRONT LEFT AND RIGHT | ||
| 033 | A 3843128460 | REINFORCEMENT |
| FRONT RIGHT | ||
| 033 | A 3843128360 | REINFORCEMENT |
| FRONT LEFT | ||
| 035 | N 000961010042 | SCREW |
| LEFT AND RIGHT CONSOLES TO FRAME | ||
| 038 | N 000961012209 | SCREW |
| LEFT CONSOLE TO FRAME | ||
| M 12X1.5X50 | ||
| 038 | N 000961012209 | SCREW |
| LEFT CONSOLE TO FRAME | ||
| M 12X1.5X50 | ||
| 038 | N 000961012209 | SCREW |
| RIGHT CONSOLE TO FRAME | ||
| M 12X1.5X50 | ||
| 038 | N 000960012357 | SCREW |
| Repalced by: N 000961012184 | ||
| 038 | N 000961012184 | SCREW |
| LEFT CONSOLE TO FRAME | ||
| M 12X1.5X65 | ||
| 038 | N 000961012155 | SCREW |
| LEFT CONSOLE TO FRAME | ||
| M 12X1.5X45 | ||
| 038 | N 000961012163 | SCREW |
| RIGHT CONSOLE TO FRAME | ||
| M 12X1.5X35 | ||
| 039 | N 000961014088 | SCREW |
| REINFORCEMENT TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 041 | N 913004010010 | NUT |
| LEFT AND RIGHT CONSOLES TO FRAME | ||
| 044 | N 913004012006 | NUT |
| LEFT AND RIGHT CONSOLES TO FRAME | ||
| 044 | N 913004012006 | NUT |
| LEFT AND RIGHT CONSOLES TO FRAME | ||
| 045 | N 913004014005 | NUT |
| REINFORCEMENT TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 047 | A 3443120040 | BRACKET |
| ENGINE FRONT CROSS MEMBER | ||
| 050 | N 000933010174 | SCREW |
| ENGINE SUPPORT TO FRAME | ||
| 053 | N 000961012154 | SCREW |
| ENGINE SUPPORT TO FRAME | ||
| 056 | N 913004010011 | NUT |
| ENGINE SUPPORT TO FRAME | ||
| 059 | N 913004012006 | NUT |
| ENGINE SUPPORT TO FRAME | ||
| 062 | A 6842427005 | SUPPORTING ARM |
| ENGINE LEFT REAR MOUNTING | ||
| 062 | A 6842427005 | SUPPORTING ARM |
| ENGINE LEFT REAR MOUNTING | ||
| 065 | A 6842427105 | SUPPORTING ARM |
| ENGINE RIGHT REAR MOUNTING | ||
| 065 | A 6842427105 | SUPPORTING ARM |
| ENGINE RIGHT REAR MOUNTING | ||
| 065 | A 6842427105 | SUPPORTING ARM |
| ENGINE RIGHT REAR MOUNTING | ||
| 065 | A 6842427105 | SUPPORTING ARM |
| ENGINE REAR MOUNTING | ||
| 068 | A 3874291340 | BRACKET |
| 071 | N 000933016079 | SCREW |
| SUPPORTING ARM TO BELL HOUSING | ||
| 074 | A 3762420101 | ENGINE SUPPORT |
| REAR RIGHT | ||
| 074 | A 3842427001 | ENGINE SUPPORT |
| REAR LEFT | ||
| 077 | N 000933016080 | SCREW |
| ENGINE REAR SUPPORT TO ENGINE | ||
| 080 | A 3922407018 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 080 | A 3862407218 | RUBBER MOUNTING |
| ENGINE REAR SUSPENSION | ||
| 080 | A 6842407018 | RUBBER MOUNTING |
| 080 | A 3812400618 | RUBBER MOUNTING |
| Repalced by: A 3862407218 | ||
| 080 | A 6152400318 | RUBBER MOUNTING |
| Repalced by: A 3862407218 | ||
| 080 | A 6152400218 | RUBBER MOUNTING |
| Repalced by: A 6842407018 | ||
| 080 | A 6152400318 | RUBBER MOUNTING |
| Repalced by: A 6842407018 | ||
| 080 | A 6152400418 | RUBBER MOUNTING |
| Repalced by: A 6842407018 | ||
| 086 | N 000961012160 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M 12X1.5X25 | ||
| 086 | N 000961012163 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M 12X1.5X35 | ||
| 089 | N 000127012201 | LOCK WASHER |
| ENGINE MOUNTING TO CONSOLE | ||
| 092 | A 3812420034 | SCREENING PLATE |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 092 | A 3812420034 | SCREENING PLATE |
| REAR RUBBER MOUNTING | ||
| 095 | N 000961014116 | SCREW |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 098 | N 000960014233 | SCREW |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 101 | A 3609901840 | WASHER |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 104 | A 3459907340 | WASHER |
| ENGINE MOUNTING TO SUPPORTING ARM | ||
| 107 | A 3763110163 | CONSOLE |
| REAR RUBBER MOUNTING | ||
| 110 | N 000961012154 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| M 12X1.5X30 | ||
| 110 | N 000961012163 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| M 12X1.5X35 | ||
| 110 | N 000961012171 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| M 12X1.5X40 | ||
| 113 | N 913004012006 | NUT |
| CROSS MEMBER TO CONSOLE | ||
| 116 | A 3453127107 | ENGINE CROSS MEMBER |
| ENGINE REAR SUSPENSION | ||
| 119 | A 3762420066 | WASHER |
| ENGINE REAR SUSPENSION | ||
| 122 | A 3763127460 | REINFORCEMENT |
| ENGINE LEFT REAR MOUNTING | ||
| 122 | A 3763127560 | REINFORCEMENT |
| ENGINE RIGHT REAR MOUNTING | ||
| 125 | N 000961012163 | SCREW |
| ENGINE REAR CROSS MEMBER TO CONSOLE | ||
| M 12X1.5X35 | ||
| 125 | N 000961012120 | SCREW |
| ENGINE REAR CROSS MEMBER TO CONSOLE | ||
| M 12X1.5X40 | ||
| 125 | N 000961012120 | SCREW |
| ENGINE REAR SUPPORT TO RUBBER MOUNTING | ||
| M 12X1.5X40 | ||
| 128 | N 913004012009 | NUT |
| ENGINE REAR CROSS MEMBER TO CONSOLE | ||
| 131 | N 000961012155 | SCREW |
| ENGINE REAR SUPPORT TO RUBBER MOUNTING | ||
| 131 | N 000961012160 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| 134 | N 000127012201 | LOCK WASHER |
| ENGINE REAR SUPPORT TO RUBBER MOUNTING | ||
| 134 | N 000127012201 | LOCK WASHER |
| ENGINE MOUNTING TO CONSOLE | ||
