Transporto priemonė: OF 1621; VIN numerio dalis: 355099
Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST: | ||
| 739.1 | ||

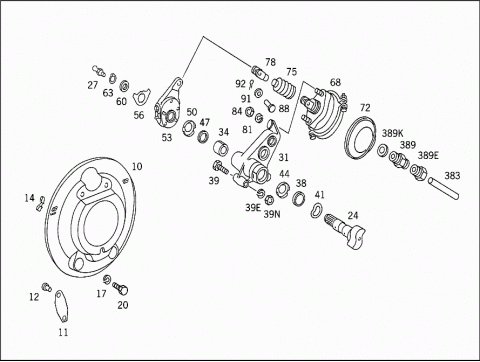

| 010 | A 3354200144 | PROTECTIVE PLATE |
| 011 | A 3174210068 | INSPECTION HOLE COVER |
| 012 | A 3129900096 | RIVET |
| 014 | A 3094210211 | PLUG |
| 017 | N 912004010102 | LOCK WASHER |
| PROTECTIVE PLATE TO STEERING KNUCKLE | ||
| 020 | N 304017010027 | HEXAGON HEAD BOLT |
| PROTECTIVE PLATE TO STEERING KNUCKLE | ||
| 024 | A 3354210336 | BRAKE CAMSHAFT |
| LEFT | ||
| 024 | A 3354210436 | BRAKE CAMSHAFT |
| RIGHT | ||
| 027 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 027 | N 071412008102 | GREASE NIPPLE |
| 031 | A 3354201678 | BEARING BRACKET |
| RIGHT | ||
| 031 | A 3354201778 | BEARING BRACKET |
| LEFT | ||
| 034 | A 3354210350 | BUSHING |
| 038 | A 0029976946 | SEAL RING |
| Repalced by: A 0219972947 | ||
| 038 | A 0219972947 | SEAL RING |
| 039 | N 000960016172 | SCREW |
| BEARING BRACKET TO STEERING KNUCKLE | ||
| 039E | N 912004016101 | LOCK WASHER |
| BEARING BRACKET TO STEERING KNUCKLE | ||
| 039N | N 000934016011 | NUT |
| Repalced by: N 308673016001 | ||
| 039N | N 308673016001 | NUT |
| BEARING BRACKET TO STEERING KNUCKLE | ||
| 041 | A 3354210752 | SPACER WASHER |
| A 3354210652 | SPACER WASHER | |
| Repalced by: A 3354211052 | ||
| 044 | A 3354211052 | SPACER WASHER |
| 047 | A 0059978145 | SEAL RING |
| 050 | A 3354210852 | SPACER WASHER |
| 053 | A 3354200338 | ADJUSTER |
| 056 | A 3354210157 | STOP WASHER |
| Repalced by: A 3614230157 | ||
| 056 | A 3614230157 | STOP WASHER |
| 060 | A 3174210352 | SPACER WASHER |
| 063 | N 000471030000 | LOCK RING |
| 068 | A 0004205524 | BRAKE CYLINDER |
| Repalced by: A 0014203624 | ||
| 068 | A 0014203624 | BRAKE CYLINDER |
| RIGHT | ||
| WABCO | ||
| 068 | A 0004207424 | BRAKE CYLINDER |
| Repalced by: A 0014203924 | ||
| 068 | A 0014203924 | BRAKE CYLINDER |
| RIGHT | ||
| KNORR | ||
| 068 | A 0004209124 | BRAKE CYLINDER |
| Repalced by: A 0014203724 | ||
| 068 | A 0014203724 | BRAKE CYLINDER |
| RIGHT | ||
| GRAU | ||
| 068 | A 0014206724 | BRAKE CYLINDER |
| RIGHT | ||
| BOSCH | ||
| 068 | A 0004205624 | BRAKE CYLINDER |
| Repalced by: A 0014203524 | ||
| 068 | A 0014203524 | BRAKE CYLINDER |
| LEFT | ||
| WABCO | ||
| 068 | A 0004207524 | BRAKE CYLINDER |
| Repalced by: A 0014204024 | ||
| 068 | A 0014204024 | BRAKE CYLINDER |
| LEFT | ||
| KNORR | ||
| 068 | A 0004209224 | BRAKE CYLINDER |
| Repalced by: A 0014203824 | ||
| 068 | A 0014203824 | BRAKE CYLINDER |
| LEFT | ||
| GRAU | ||
| 068 | A 0014206824 | BRAKE CYLINDER |
| LEFT | ||
| BOSCH | ||
| 072 | A 0004212086 | DIAPHRAGM |
| TO 000 420 55 24,000 420 56 24 | ||
| 072 | A 0004311528 | DIAPHRAGM |
| TO 000 420 91 24,000 420 92 24 | ||
| 072 | A 0004311528 | DIAPHRAGM |
| 001 420 37 24, 001 420 38 24 | ||
| 072 | A 0004311828 | DIAPHRAGM |
| Repalced by: A 0004314128 | ||
| 072 | A 0004311428 | DIAPHRAGM |
| Repalced by: A 0004314128 | ||
| 072 | A 0004314128 | DIAPHRAGM |
| TO 001 420 39 24,001 420 40 24 | ||
| 075 | A 0004212286 | CUP |
| Repalced by: A 0004215286 | ||
| 075 | A 0004215286 | CUP |
| TO 000 420 55 24,000 420 56 24 | ||
| 075 | A 0004319786 | CUP |
| TO 000 420 91 24,000 420 92 24, | ||
| 075 | A 0004319786 | CUP |
| 001 420 37 24, 001 420 38 24 | ||
| 075 | A 0014311286 | CUP |
| Repalced by: A 0004216186 | ||
| 075 | A 0004216186 | CUP |
| TO 001 420 39 24,001 420 40 24 | ||
| A 0009978786 | PLUG | |
| TO 001 420 39 24,001 420 40 24 | ||
| 078 | A 0004210763 | GUIDE |
| TO 000 420 55 24,000 420 56 24 | ||
| A 0025863442 | REPAIR KIT | |
| TO 001 420 39 24,001 420 40 24 | ||
| 081 | N 912004016101 | LOCK WASHER |
| 084 | N 000934016012 | NUT |
| TO 000 420 55 24,74 24,91 24, | ||
| 084 | N 000934016012 | NUT |
| 000 420 56 24, 75 24, 92 24 | ||
| 084 | N 915004016004 | SEAL CONE |
| TO 001 420 36 24,39 24,37 24,67 24 | ||
| 084 | N 915004016004 | SEAL CONE |
| TO 001 420 35 24,40 24,38 24,68 24 | ||
| 088 | N 001434014002 | PIN |
| 091 | N 000433015005 | WASHER |
| 092 | N 000094004065 | COTTER PIN |
| A 3354202920 | BRAKE SHOE | |
| Repalced by: A 3354200119 | ||
| A 3354202520 | BRAKE SHOE | |
| Repalced by: A 3354200119 | ||
| A 3354204920 | BRAKE SHOE | |
| Repalced by: A 3354200119 | ||
| A 3354203020 | BRAKE SHOE | |
| Repalced by: A 3354200119 | ||
| A 3354202620 | BRAKE SHOE | |
| Repalced by: A 3354200119 | ||
| A 3354205020 | BRAKE SHOE | |
| Repalced by: A 3354200119 | ||
| A 3354203120 | BRAKE SHOE | |
| Repalced by: A 3354200119 | ||
| A 3354202720 | BRAKE SHOE | |
| Repalced by: A 3354200119 | ||
| A 3354205120 | BRAKE SHOE | |
| Repalced by: A 3354200119 | ||

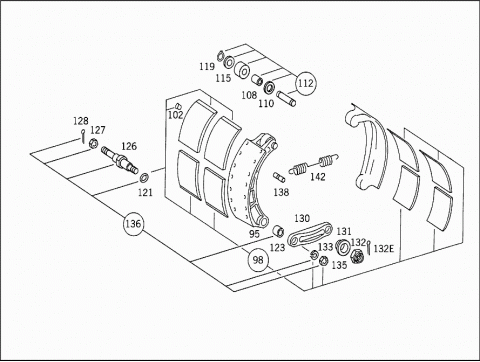

| 095 | A 3354200119 | BRAKE SHOE |
| 098 | A 3494210610 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 15.00 MM,8X 349 421 03 10) | ||
| 098 | A 3494211210 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 15.00 MM,8X 349 421 09 10) | ||
| 098 | A 3494210710 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 15.00 MM,8X 349 421 04 10) | ||
| 098 | A 3494211310 | BRAKE LINING |
| Repalced by: A 3494211410 | ||
| 098 | A 3494211410 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 16.00 MM,8X 349 421 10 10) | ||
| 098 | A 3494210810 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 17.00 MM,8X 349 421 05 10) | ||
| 098 | A 3494211410 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 17.00 MM,8X 349 421 11 10) | ||
| 102 | N 007338008307 | RIVET |
| Repalced by: A 3079900297 | ||
| 102 | A 3079900297 | RIVET |
| Repalced by: A 0009910533 | ||
| 102 | A 0009910533 | PANHEAD RIVET |
| A 3174200139 | ROLLER | |
| Repalced by: A 3014200039 | ||
| A 3464200039 | ROLLER | |
| Repalced by: A 3014200039 | ||
| A 3014200039 | ROLLER | |
| Repalced by: A 3354200039 | ||
| 108 | A 3174210250 | BUSHING |
| Repalced by: A 3464210550 | ||
| 108 | A 3464210250 | BUSHING |
| Repalced by: A 3464210550 | ||
| 108 | A 3464210550 | BUSHING |
| TO 346 420 00 39 | ||
| 108 | A 6204210050 | BUSHING |
| TO 346 420 00 39 | ||
| 108 | A 3014210050 | BUSHING |
| TO 301 420 00 39 | ||
| 110 | A 0039971548 | SEAL RING |
| 112 | A 3354210074 | PIN |
| Repalced by: A 3354200039 | ||
| 112 | A 3354200039 | REPAIR KIT |
| BRAKE SHOE ROLLER | ||
| 115 | A 3179901640 | WASHER |
| AT BRAKE SHOE | ||
| 119 | N 000471017000 | LOCK RING |
| AT BRAKE SHOE | ||
| 121 | A 0089974245 | SEAL RING |
| 123 | A 3354210450 | BUSHING |
| A 3354210018 | PIVOT PIN | |
| Repalced by: A 3354210218 | ||
| 126 | A 3354210218 | PIVOT PIN |
| 127 | N 000935020001 | NUT |
| 128 | N 000094004065 | COTTER PIN |
| 130 | A 3354230044 | THRUST SHACKLE |
| Repalced by: A 3354230144 | ||
| 130 | A 3354230144 | THRUST SHACKLE |
| 131 | A 3174210016 | THRUST PIECE |
| 132 | N 000937022000 | NUT |
| 132E | N 000094005016 | COTTER PIN |
| 133 | N 074361022351 | LOCK WASHER |
| 135 | N 074361022205 | NUT |
| 136 | A 3464200182 | REPAIR KIT |
| BRAKE SHOE BEARING | ||
| 138 | A 3354210174 | PIN |
| TENSION SPRING | ||
| 142 | A 3354210192 | SPRING |
| 146 | A 3024200044 | PROTECTIVE PLATE |
| Repalced by: A 3024230220 | ||
| 146 | A 3024230220 | PROTECTIVE PLATE |
| LEFT | ||
| 150 | A 3024200144 | PROTECTIVE PLATE |
| Repalced by: A 3024230320 | ||
| 150 | A 3024230320 | PROTECTIVE PLATE |
| RIGHT | ||
| 153 | A 3094210211 | PLUG |
| 153 | A 3464210011 | PLUG |
| 156 | N 912004010102 | LOCK WASHER |
| PROTECTIVE PLATE TO BRAKE ANCHOR | ||
| 160 | N 000933010111 | SCREW |
| PROTECTIVE PLATE TO BRAKE ANCHOR | ||

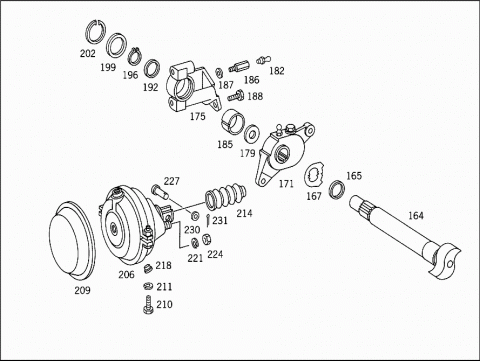

| 164 | A 3554230536 | BRAKE CAMSHAFT |
| LEFT | ||
| 164 | A 3554230436 | BRAKE CAMSHAFT |
| RIGHT | ||
| 165 | A 3614210752 | SPACER WASHER |
| 165 | A 3614210852 | SPACER WASHER |
| 165 | A 3614210952 | SPACER WASHER |
| 167 | A 3614230157 | STOP WASHER |
| 171 | A 3554200238 | ADJUSTER |
| LEFT | ||
| 171 | A 3554200338 | ADJUSTER |
| RIGHT | ||
| A 3554200078 | BEARING BRACKET | |
| Repalced by: A 3554200278 | ||
| 175 | A 3554200278 | BEARING BRACKET |
| LEFT | ||
| A 3554200178 | BEARING BRACKET | |
| Repalced by: A 3554200378 | ||
| 175 | A 3554200378 | BEARING BRACKET |
| RIGHT | ||
| 179 | A 0069977946 | SEAL RING |
| Repalced by: A 0219974647 | ||
| 179 | A 0219974647 | SEAL RING |
| 182 | N 071412010100 | GREASE NIPPLE |
| 185 | A 3024230150 | BUSHING |
| 186 | A 0005731832 | CONNECTOR |
| Repalced by: A 0005731255 | ||
| 186 | A 0005731255 | CONNECTOR |
| GREASE NIPPLE | ||
| 187 | A 0005730260 | SEAL RING |
| GREASE NIPPLE | ||
| 188 | N 000960016052 | SCREW |
| BEARING BRACKET TO REAR AXLE | ||
| 188 | N 000960016078 | SCREW |
| BEARING BRACKET TO REAR AXLE | ||
| 188 | N 000960016059 | SCREW |
| BEARING BRACKET TO REAR AXLE | ||
| 192 | A 3024231152 | SPACER WASHER |
| Repalced by: A 3024231052 | ||
| 192 | A 3024231052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 192 | A 3024231052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.25 MM | ||
| 192 | A 3024230952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 192 | A 3024230852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 192 | A 3024230752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.50 MM | ||
| 192 | A 3024230652 | SPACER WASHER |
| AS REQUIRED | ||
| 2.75 MM | ||
| 192 | A 3024230552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.95 MM | ||
| 196 | N 900055033300 | LOCK RING |
| 199 | A 3029970020 | EXPANSION PLUG |
| Repalced by: A 3609970020 | ||
| 199 | A 3609970020 | EXPANSION PLUG |
| 202 | N 000472062000 | LOCK RING |
| Repalced by: A 0039945241 | ||
| 202 | A 0039945241 | LOCK |
| 206 | A 0034204318 | WHEEL BRAKE CYLINDER |
| 209 | A 0004231286 | DIAPHRAGM |
| 210 | N 000933008119 | SCREW |
| Repalced by: N 304017008042 | ||
| 210 | N 304017008042 | SCREW |
| 211 | N 912004008102 | LOCK WASHER |
| 214 | A 0004212286 | CUP |
| Repalced by: A 0004215286 | ||
| 214 | A 0004215286 | CUP |
| 218 | A 0004210011 | PLUG |
| 221 | N 912004016101 | LOCK WASHER |
| WHEEL CYLINDER TO BEARING BRACKET | ||
| 224 | N 000934016012 | NUT |
| WHEEL CYLINDER TO BEARING BRACKET | ||
| 227 | N 001444014209 | PIN |
| Repalced by: A 3619910005 | ||
| 227 | A 3619910005 | PIN |
| 230 | N 000433015005 | WASHER |
| 231 | N 000094004065 | COTTER PIN |
| A 3174204619 | BRAKE SHOE | |
| Repalced by: A 3174208219 | ||
| A 3174204719 | BRAKE SHOE | |
| Repalced by: A 3174208219 | ||
| A 3174204819 | BRAKE SHOE | |
| Repalced by: A 3174208219 | ||
| 235 | A 3174208219 | BRAKE SHOE |
| 238 | A 3554231910 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 20.00 MM,8X 355 423 09 10) | ||
| 238 | A 3554233110 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 20.00 MM,8X 355 423 28 10) | ||
| 238 | A 3554232010 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 20.80 MM,8X 355 423 10 10) | ||
| 238 | A 3554233210 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 20.80 MM,8X 355 423 29 10) | ||
| 238 | A 3554232110 | BRAKE LINING |
| (PARTS KIT) (BRAKE LINING | ||
| 21.50 MM,8X 355 423 11 10) | ||
| 238 | A 3554233310 | BRAKE LINING |
| (PARTS KIT) (ASBESTOS-FREE BRAKE LINING) | ||
| 21.50 MM,8X 355 423 30 10) | ||
| 240 | A 3079900297 | RIVET |
| Repalced by: A 0009910533 | ||
| 240 | A 0009910533 | PANHEAD RIVET |
| 242 | A 3024210050 | BUSHING |
| 244 | N 000906010000 | SCREW PLUG |
| 247 | A 3174210874 | PIN |
| 250 | N 000471016001 | LOCK RING |
| Repalced by: A 0079942041 | ||
| 250 | A 0079942041 | LOCK |
| A 3174200139 | ROLLER | |
| Repalced by: A 3014200039 | ||
| A 3464200039 | ROLLER | |
| Repalced by: A 3014200039 | ||
| A 3014200039 | ROLLER | |
| Repalced by: A 3174200339 | ||
| A 3174210250 | BUSHING | |
| Repalced by: A 3464210550 | ||
| A 3464210250 | BUSHING | |
| Repalced by: A 3464210550 | ||
| 256 | A 3464210550 | BUSHING |
| TO 346 420 00 39 | ||
| 256 | A 6204210050 | BUSHING |
| TO 346 420 00 39 | ||
| 256 | A 3014210050 | BUSHING |
| TO 301 420 00 39 | ||
| 257 | A 0039971548 | SEAL RING |
| 260 | A 3174210774 | PIN |
| Repalced by: A 3174200339 | ||
| 260 | A 3174200339 | REPAIR KIT |
| BRAKE SHOE ROLLER | ||
| 262 | A 3179901640 | WASHER |
| 265 | N 000471017000 | LOCK RING |
| A 3174230118 | PIVOT PIN | |
| Repalced by: A 3024200082 | ||
| 272 | A 3029970145 | SEAL RING |
| BRAKE SHOE BEARING | ||
| 275 | N 000125023006 | WASHER |
| BRAKE SHOE BEARING | ||
| 278 | N 000935022000 | NUT |
| BRAKE SHOE BEARING | ||
| 280 | N 000094005045 | COTTER PIN |
| BRAKE SHOE BEARING | ||
| 282 | A 3174210652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 282 | A 3174210752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 282 | A 3174210852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 282 | A 3174210952 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 285 | A 3174230044 | THRUST SHACKLE |
| BRAKE SHOE BEARING | ||
| 288 | A 3174210016 | THRUST PIECE |
| BRAKE SHOE BEARING | ||
| 291 | N 000937022000 | NUT |
| BRAKE SHOE BEARING | ||
| 292 | N 000094005045 | COTTER PIN |
| BRAKE SHOE BEARING | ||
| 293 | A 3024200082 | REPAIR KIT |
| BRAKE SHOE BEARING | ||
| 295 | A 3179931010 | SPRING |

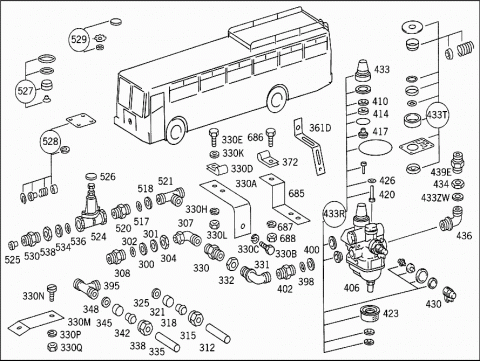

| 300 | N 007603026104 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 300 | N 007603026104 | SEAL RING |
| AT AIR COMPRESSOR | ||
| 301 | A 0004290527 | THRUST RING |
| AT AIR COMPRESSOR | ||
| 302 | A 0009872846 | SEALING CORD |
| AT AIR COMPRESSOR | ||
| 304 | N 074305026202 | NUT |
| AT AIR COMPRESSOR | ||
| 307 | A 0004291838 | ELBOW FITTING |
| AT AIR COMPRESSOR | ||
| 308 | N 074313018201 | FITTING |
| AT AIR COMPRESSOR | ||
| 308 | N 074313018201 | FITTING |
| AT AIR COMPRESSOR | ||
| 312 | A 0005516456 | TUBE |
| FROM AIR COMPRESSOR TO DOUBLE FITTING | ||
| 18 MM | ||
| 312 | A 0005516456 | TUBE |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| 18 MM | ||
| 312 | A 0005516456 | TUBE |
| FROM PRESSURE REGULATOR TO PROTECTIVE VALVE | ||
| 18 MM | ||
| 315 | N 915018018000 | UNION NUT |
| 318 | N 003861018003 | GLAND |
| Repalced by: A 0019901167 | ||
| 318 | A 0019901167 | SEAL CONE |
| TO 18-MM-DIA. COMPRESSED AIR LINES | ||
| 321 | N 915065018101 | THRUST RING |
| TO 18-MM-DIA. COMPRESSED AIR LINES | ||
| 325 | N 915045014100 | SEAL RING |
| TO 18-MM-DIA. COMPRESSED AIR LINES | ||
| 330 | N 074313018201 | FITTING |
| FROM AIR COMPRESSOR TO FITTING | ||
| 330A | A 3524292040 | BRACKET |
| Repalced by: A 3555420240 | ||
| 330A | A 3555420240 | BRACKET |
| Repalced by: A 6674290640 | ||
| 330A | A 6674290640 | BRACKET |
| BRACKET TO CYLINDER HEAD | ||

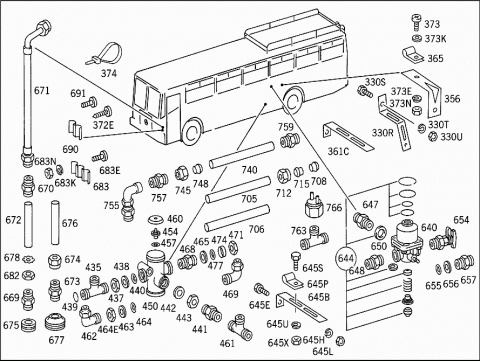

| 330B | N 304017010027 | HEXAGON HEAD BOLT |
| BRACKET TO CYLINDER HEAD | ||
| 330C | N 912004010102 | LOCK WASHER |
| BRACKET TO CYLINDER HEAD | ||
| 330D | A 3609950601 | CLAMP |
| LINE TO BRACKET | ||
| 330E | N 000084006197 | SCREW |
| LINE TO BRACKET | ||
| M 6X16 | ||
| 330E | N 000084006402 | SCREW |
| LINE TO BRACKET | ||
| M 6X18 | ||
| 330H | N 912004006102 | LOCK WASHER |
| LINE TO BRACKET | ||
| 330K | N 000125006421 | WASHER |
| LINE TO BRACKET | ||
| Repalced by: N 000125006449 | ||
| 330K | N 000125006449 | WASHER |
| LINE TO BRACKET | ||
| 330L | N 000934006007 | NUT |
| LINE TO BRACKET | ||
| 330M | A 3524292140 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 330N | N 000084006197 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| M 6X16 | ||
| 330P | N 912004006102 | LOCK WASHER |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 330Q | N 000934006007 | NUT |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 330R | A 3604312640 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 330S | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 330S | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 8X25 | ||
| 330T | N 912004008102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 330U | N 000934008020 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 331 | A 0009903371 | ELBOW FITTING |
| AT SIDE MEMBER | ||
| 332 | N 074305026202 | NUT |
| ELBOW FITTING TO SIDE MEMBER | ||
| A 0004290201 | LINE | |
| Repalced by: A 0005516256 | ||
| 335 | A 0005516256 | TUBE |
| AIR RESERVOIR,RELAY VALVE,TWO-WAY VALVE,HAND BRAKE VALVE | ||
| 15 MM | ||
| 335 | A 0005516256 | TUBE |
| PRESSURE REGULATOR,PRESSURE SAFETY VALVE,AIR RESERVOIR | ||
| 15 MM | ||
| 335 | A 0005516256 | TUBE |
| FROM OVERFLOW VALVE TO CONNECTOR | ||
| 15 MM | ||
| 335 | A 0005516256 | TUBE |
| BRAKE VALVE,BRAKE POWER REGULATOR | ||
| 15 MM | ||
| 335 | A 0005516256 | TUBE |
| FROM REGULATING VALVE TO BRAKE CYLINDER | ||
| 15 MM | ||
| 338 | N 915018015000 | UNION NUT |
| TO 15-MM-DIA. COMPRESSED AIR LINES | ||
| 342 | N 003861015004 | GLAND |
| TO 15-MM-DIA. COMPRESSED AIR LINES | ||
| 345 | N 915065015101 | THRUST RING |
| TO 15-MM-DIA. COMPRESSED AIR LINES | ||
| N 915045012100 | SEAL RING | |
| Repalced by: N 007603012121 | ||
| N 007603012121 | SEAL RING | |
| TO 15-MM-DIA. COMPRESSED AIR LINES | ||
| 348 | N 915045015100 | SEAL RING |
| TO 15-MM-DIA. COMPRESSED AIR LINES | ||

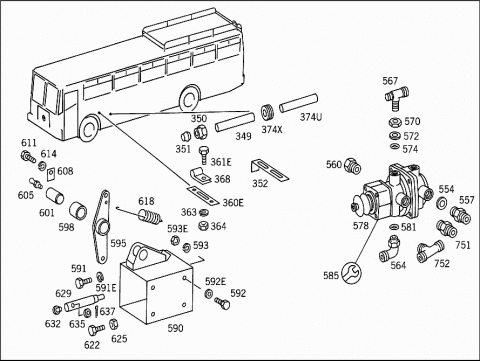

| 349 | A 0004290801 | LINE |
| 8X0.7 MM | ||
| 350 | N 915017008100 | UNION NUT |
| 8X0.7 MM | ||
| 351 | N 003861008005 | GLAND |
| 8X0.7 MM | ||
| 352 | A 3464295640 | BRACKET |
| Repalced by: A 3464296040 | ||
| 352 | A 3464296040 | BRACKET |
| COMPRESSED AIR LINES TO FRAME | ||
| 356 | A 3144290140 | BRACKET |
| Repalced by: A 3184291540 | ||
| 356 | A 3184291540 | BRACKET |
| COMPRESSED AIR LINES TO FRAME | ||
| 360 | A 3524281740 | BRACKET |
| Repalced by: A 3184280240 | ||
| 360 | A 3184280240 | BRACKET |
| COMPRESSED AIR LINES TO FRAME | ||
| 360E | A 3524281640 | BRACKET |
| COMPRESSED AIR LINES TO FRAME | ||
| 361 | A 3214760036 | BRACKET |
| COMPRESSED AIR LINES TO FRAME | ||
| 361C | A 3524290740 | BRACKET |
| COMPRESSED AIR LINES TO FRAME | ||
| 361D | A 3604312640 | BRACKET |
| COMPRESSED AIR LINES TO FRAME | ||
| 361E | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 361E | N 304017008021 | HEXAGON HEAD BOLT |
| COMPRESSED AIR LINES TO FRAME | ||
| M8X20 | ||
| 362 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 362 | N 304017008034 | SCREW |
| COMPRESSED AIR LINES TO FRAME | ||
| M 8X25 | ||
| 362 | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 8X25 | ||
| 363 | N 912004008102 | LOCK WASHER |
| COMPRESSED AIR LINES TO FRAME | ||
| 364 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 364 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 364 | N 304032008006 | NUT |
| COMPRESSED AIR LINES TO FRAME | ||
| 365 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 365 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 365 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 365 | N 000000000319 | CLAMP |
| COMPRESSED AIR LINES TO FRAME | ||
| 368 | A 3609950501 | CLAMP |
| Repalced by: A 3609952001 | ||
| 368 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 368 | A 6739950001 | CLAMP |
| COMPRESSED AIR LINES TO FRAME | ||
| 372 | A 3609950601 | CLAMP |
| COMPRESSED AIR LINES TO FRAME | ||
| 372E | N 007971005211 | SHEET METAL SCREW |
| COMPRESSED AIR LINES TO FRAME | ||
| 373 | N 000084006134 | SCREW |
| COMPRESSED AIR LINES TO FRAME | ||
| M 6X12 | ||
| 373 | N 000084006197 | SCREW |
| COMPRESSED AIR LINES TO FRAME | ||
| M 6X16 | ||
| 373 | N 000084006426 | SCREW |
| COMPRESSED AIR LINES TO FRAME | ||
| M 6X18 | ||
| 373 | N 000000001147 | SCREW |
| COMPRESSED AIR LINE TO FRAME | ||
| M 6X20 | ||
| 373E | N 912004006102 | LOCK WASHER |
| COMPRESSED AIR LINES TO FRAME | ||
| 373K | N 000125006421 | WASHER |
| COMPRESSED AIR LINES TO FRAME | ||
| Repalced by: N 000125006449 | ||
| 373K | N 000125006449 | WASHER |
| COMPRESSED AIR LINES TO FRAME | ||
| 373N | N 000934006007 | NUT |
| COMPRESSED AIR LINES TO FRAME | ||

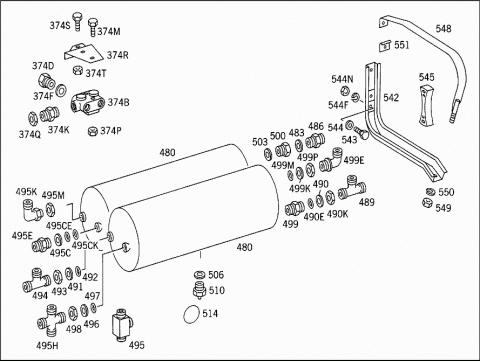

| 374 | A 0019978390 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| 374B | A 0004294137 | DISTRIBUTOR |
| EXHAUST BRAKE,COMPRESSED AIR OPERATED | ||
| 374D | N 000908012003 | SCREW PLUG |
| Repalced by: N 000908012009 | ||
| 374D | N 000908012009 | SCREW PLUG |
| AT DISTRIBUTOR | ||
| 374F | N 007603012405 | SEAL RING |
| AT DISTRIBUTOR | ||
| 374K | A 0039977572 | FITTING |
| AT DISTRIBUTOR | ||
| 374M | N 000931006134 | SCREW |
| DISTRIBUTOR TO BRACKET | ||
| 374P | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 374P | N 913004006001 | NUT |
| Repalced by: N 910113006000 | ||
| 374P | N 910113006000 | NUT |
| DISTRIBUTOR TO BRACKET | ||
| 374Q | N 080705014002 | NUT |
| FITTING TO FRAME SIDE MEMBER | ||
| 374R | A 3604291440 | BRACKET |
| DISTRIBUTOR | ||
| 374R | A 3604291440 | BRACKET |
| DISTRIBUTOR | ||
| A 3604291540 | BRACKET | |
| DISTRIBUTOR | ||
| A 3604291540 | BRACKET | |
| DISTRIBUTOR | ||
| 374S | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 374S | N 304017008034 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 374T | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 374T | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 374U | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 374U | A 0009872627 | PLASTIC PIPE |
| BLACK | ||
| 6X4 MM | ||
| 374X | A 3469975081 | GROMMET |
| LINE THRU FRAME | ||
| 375 | A 3554200048 | BRAKE HOSE |
| 378 | N 074310013024 | HOSE |
| FROM FITTING TO BRAKE HOSE | ||
| 381 | A 0009950565 | CLAMP |
| Repalced by: A 0029973890 | ||
| 381 | A 0029973890 | LOOM TIE |
| Repalced by: N 916017020000 | ||
| 381 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 381 | N 000000000667 | CLAMP |
| FROM FITTING TO BRAKE HOSE | ||
| 381 | N 000000000667 | CLAMP |
| FROM FITTING TO BRAKE HOSE | ||

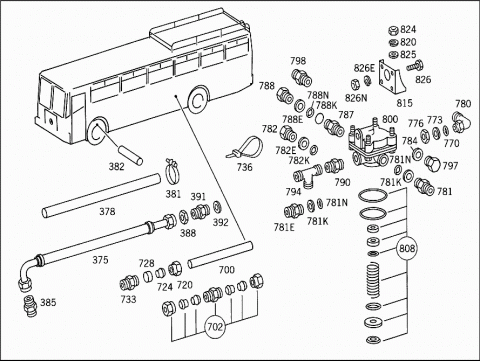

| 382 | N 916027013006 | HOSE |
| FROM FITTING TO BRAKE HOSE | ||
| 383 | A 3434293608 | LINE |
| FRONT LEFT AND RIGHT,DIAPHRAGM CYLINDERS | ||
| 385 | N 074313016401 | FITTING |
| Repalced by: A 0019972372 | ||
| 385 | A 0019972372 | FITTING |
| AT LEFT AND RIGHT SIDE MEMBERS,CENTER OF FRONT AXLE | ||
| 388 | N 074305022202 | NUT |
| AT LEFT AND RIGHT SIDE MEMBERS,CENTER OF FRONT AXLE | ||
| 389 | A 0029971872 | FITTING |
| FRONT AXLE,DIAPHRAGM CYLINDER | ||
| 389 | A 0029971872 | FITTING |
| FRONT AXLE,DIAPHRAGM CYLINDER | ||
| 389E | N 915001013002 | UNION NUT |
| AT LEFT AND RIGHT SIDE MEMBERS,CENTER OF FRONT AXLE | ||
| 389E | N 915001013002 | UNION NUT |
| AT LEFT AND RIGHT SIDE MEMBERS,CENTER OF FRONT AXLE | ||
| 389K | N 915045012100 | SEAL RING |
| Repalced by: N 007603012121 | ||
| 389K | N 007603012121 | SEAL RING |
| AT LEFT AND RIGHT SIDE MEMBERS,CENTER OF FRONT AXLE | ||
| 389K | N 007603012121 | SEAL RING |
| AT LEFT AND RIGHT SIDE MEMBERS,CENTER OF FRONT AXLE | ||
| 391 | A 0009974172 | FITTING |
| DIAPHRAGM CYLINDER | ||
| 392 | N 007603016401 | SEAL RING |
| DIAPHRAGM CYLINDER | ||
| 395 | A 0009902370 | T-FITTING |
| BETWEEN THE REAR AXLE BRAKE CYLINDERS | ||
| 398 | A 0009870446 | O-RING |
| DIAPHRAGM CYLINDER | ||
| 400 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 400 | A 0009940203 | THRUST RING |
| DIAPHRAGM CYLINDER | ||
| 402 | N 074299026300 | DOUBLE FITTING |
| 402 | N 074298022203 | DOUBLE FITTING |
| DIAPHRAGM CYLINDER | ||

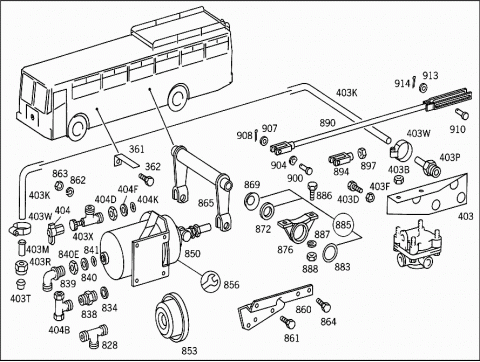

| 403 | A 3934290640 | BRACKET |
| BRAKE HOSE | ||
| 403B | N 913004008004 | NUT |
| BRACKET TO RELAY VALVE | ||
| 403D | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 403D | N 304017008021 | HEXAGON HEAD BOLT |
| BRACKET TO RELAY VALVE | ||
| 403F | N 080705018002 | NUT |
| BRAKE HOSE TO BRACKET | ||
| A 3875462143 | BRACKET | |
| LINE TO HOSE | ||
| 403K | N 916027011014 | HOSE |
| CONNECTION TO TRISTOP CYLINDER | ||
| 11X700 MM | ||
| 403M | A 0004290541 | FITTING |
| CONNECTION TO TRISTOP CYLINDER | ||
| 403M | A 0004290541 | FITTING |
| CONNECTION TO TRISTOP CYLINDER | ||
| 403P | A 0004290641 | FITTING |
| CONNECTION TO TRISTOP CYLINDER | ||
| 403R | N 915017012100 | UNION NUT |
| CONNECTION TO TRISTOP CYLINDER | ||
| Repalced by: N 000000006239 | ||
| 403R | N 000000006239 | UNION NUT |
| CONNECTION TO TRISTOP CYLINDER | ||
| 403R | N 915017012100 | UNION NUT |
| CONNECTION TO TRISTOP CYLINDER | ||
| Repalced by: N 000000006239 | ||
| 403R | N 000000006239 | UNION NUT |
| CONNECTION TO TRISTOP CYLINDER | ||
| 403T | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 403T | A 0019901967 | SEAL CONE |
| CONNECTION TO TRISTOP CYLINDER | ||
| 403T | A 0019901967 | SEAL CONE |
| CONNECTION TO TRISTOP CYLINDER | ||
| 403W | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 403W | N 000000000666 | CLAMP |
| CONNECTION TO TRISTOP CYLINDER | ||
| 403W | N 000000000666 | CLAMP |
| CONNECTION TO TRISTOP CYLINDER | ||
| 403X | A 0009909470 | T-FITTING |
| LEFT TRISTOP CYLINDER,CONNECTION: | ||
| "1,2" | ||
| N 915039012205 | HOLLOW SCREW FITTING | |
| LEFT TRISTOP CYLINDER,CONNECTION: | ||
| "1,2" | ||
| 403X | A 0009909470 | T-FITTING |
| LEFT TRISTOP CYLINDER,CONNECTION: | ||
| "1,2" | ||
| N 007603016401 | SEAL RING | |
| LEFT TRISTOP CYLINDER,CONNECTION: | ||
| "1,2" | ||
| 404 | A 0004312031 | TEST CONNECTION |
| WITH INTERNAL THREAD | ||
| 404 | A 0004314531 | TEST CONNECTION |
| WITH INTERNAL THREAD | ||
| 404 | A 0004314831 | TEST CONNECTION |
| WITH INTERNAL THREAD | ||
| 404 | A 0004316131 | TEST CONNECTION |
| WITH INTERNAL THREAD | ||
| 404B | A 0009904270 | T-FITTING |
| RIGHT TRISTOP CYLINDER,CONNECTION: | ||
| "1,2" | ||
| A 0019905370 | T-FITTING | |
| RIGHT TRISTOP CYLINDER,CONNECTION: | ||
| "1,2" | ||
| N 915036012203 | HOLLOW SCREW | |
| RIGHT TRISTOP CYLINDER,CONNECTION: | ||
| "1,2" | ||
| 404D | N 080705016003 | NUT |
| RIGHT TRISTOP CYLINDER,CONNECTION: | ||
| "1,2" | ||
| 404D | N 080705016003 | NUT |
| LEFT TRISTOP CYLINDER,CONNECTION: | ||
| "1,2" | ||
| 404F | A 0004290927 | THRUST RING |
| RIGHT TRISTOP CYLINDER,CONNECTION: | ||
| "1,2" | ||
| 404F | A 0004290927 | THRUST RING |
| LEFT TRISTOP CYLINDER,CONNECTION: | ||
| "1,2" | ||
| 404K | A 0009971548 | SEAL RING |
| RIGHT TRISTOP CYLINDER,CONNECTION: | ||
| "1,2" | ||
| 404K | A 0009971548 | SEAL RING |
| LEFT TRISTOP CYLINDER,CONNECTION: | ||
| "1,2" | ||
| 406 | A 0004319206 | PRESSURE REGULATOR |
| Repalced by: A 0004319106 | ||
| 406 | A 0004319106 | PRESSURE REGULATOR |
| 406 | A 0004319106 | PRESSURE REGULATOR |
| 410 | A 0007630253 | SLEEVE |
| Repalced by: A 0007630553 | ||
| 410 | A 0007630553 | SLEEVE |
| 414 | A 0004318360 | SEAL RING |
| 417 | A 0004311081 | VALVE DISC |
| 420 | A 0004310681 | VALVE DISC |
| 423 | A 0004311434 | STRAINER |
| 426 | A 0004311381 | VALVE DISC |
| 430 | A 0004314787 | PROTECTIVE CAP |
| Repalced by: A 0009979486 | ||
| 430 | A 0009979486 | PROTECTIVE CAP |
| 433 | A 0004315687 | PROTECTIVE CAP |

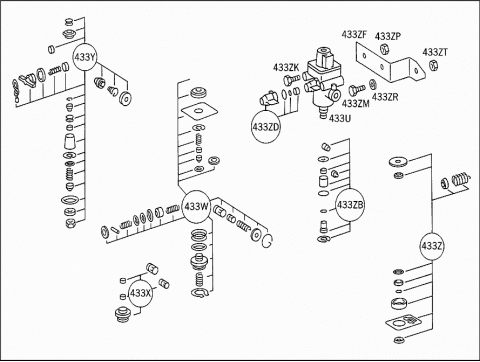

| 433R | A 0025864143 | REPAIR KIT |
| TO 000 431 92 06,BOSCH 0 481 039 012 | ||
| 433R | A 0025865043 | REPAIR KIT |
| TO 000 431 92 06,BOSCH 0 481 039 012 | ||
| 433T | A 0025864243 | REPAIR KIT |
| TO 000 431 91 06,BOSCH 0 481 039 011 | ||
| A 0014314106 | PRESSURE REGULATOR | |
| Repalced by: A 0024313506 | ||
| 433U | A 0024313506 | PRESSURE REGULATOR |
| Repalced by: A 0024315906 | ||
| 433U | A 0024315906 | PRESSURE REGULATOR |
| "BOSCH" | ||
| 433U | A 0014314306 | PRESSURE REGULATOR |
| Repalced by: A 0024316006 | ||
| 433U | A 0014312206 | PRESSURE REGULATOR |
| Repalced by: A 0024316006 | ||
| 433U | A 0024316006 | PRESSURE REGULATOR |
| Repalced by: A 0024315906 | ||
| 433U | A 0024315906 | PRESSURE REGULATOR |
| WABCO | ||
| 433W | A 0015864343 | REPAIR KIT |
| Repalced by: A 0004301107 | ||
| 433W | A 0004301107 | REPAIR KIT |
| TO 001 431 22 06,WABCO 975 300 111 0 | ||
| 433X | A 0024304681 | REPAIR KIT |
| VALVE KIT | ||
| TO 001 431 22 06,WABCO 975 300 111 0 | ||
| 433Y | A 0025866743 | REPAIR KIT |
| TO 001 431 46 06,KNORR | ||
| 433Z | A 0015868543 | REPAIR KIT |
| Repalced by: A 0004301407 | ||
| 433Z | A 0004301407 | REPAIR KIT |
| TO 001 431 41 06,BOSCH 0 481 039 102 | ||
| 433ZB | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| TO 002 431 35 06,BOSCH 0 481 039 222, | ||
| 433ZB | A 0004301768 | REPAIR KIT |
| DIAPHRAGM | ||
| 002 431 59 06, BOSCH 0 481 039 202 | ||
| 433ZD | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| TO 002 431 35 06,BOSCH 0 481 039 222, | ||
| 433ZD | A 0004307960 | REPAIR KIT |
| TIRE INFLATING CONNECTION | ||
| 002 431 59 06, BOSCH 0 481 039 202 | ||
| 433ZF | A 3524316340 | BRACKET |
| PRESSURE REGULATOR | ||
| 433ZK | N 000931008228 | SCREW |
| Repalced by: N 000933008134 | ||
| 433ZK | N 000933008134 | SCREW |
| PRESSURE REGULATOR TO BRACKET | ||
| M 8X80 | ||
| 433ZM | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 433ZM | N 304017008027 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 8X30 | ||
| 433ZP | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 433ZP | N 913004008001 | NUT |
| PRESSURE REGULATOR TO BRACKET | ||
| 433ZR | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 433ZR | N 000125008443 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 433ZT | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 433ZT | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 433ZW | N 000125028001 | WASHER |
| ELBOW FITTING TO SIDE MEMBER | ||
| 434 | N 074305026202 | NUT |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 435 | N 074302022202 | T-FITTING |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 436 | A 0004293238 | ELBOW FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 437 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 437 | N 074305022202 | NUT |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 438 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 438 | A 0009940203 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 438 | A 0009940203 | THRUST RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 439 | A 0009870446 | O-RING |
| PRESSURE REGULATOR,CONNECTION "21" | ||
| 439 | A 0009870446 | O-RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 439E | A 0029974372 | FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 440 | N 007603022102 | SEAL RING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 440 | N 007603022102 | SEAL RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 441 | N 074298022203 | DOUBLE FITTING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 441 | N 074313018201 | FITTING |
| 441 | N 074313018201 | FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 441 | N 074299026300 | DOUBLE FITTING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 442 | N 007603022102 | SEAL RING |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| 443 | N 074305026202 | NUT |
| PRESSURE REGULATOR,CONNECTION "1" | ||
| A 0004317206 | VALVE | |
| Repalced by: A 0004316806 | ||
| 450 | A 0004316806 | VALVE |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 454 | A 0004311981 | VALVE DISC |
| 021-024,TO 000 431 68 06/72 06 | ||
| 454 | A 0004312081 | VALVE DISC |
| BOTTOM | ||
| 021-024,TO 000 431 72 06 | ||
| 457 | A 0007630454 | SEAL |
| 021-024 | ||
| 460 | A 0004315086 | CUP |
| 021-024 | ||
| A 0014312086 | CUP | |
| Repalced by: A 0014312386 | ||
| A 0014312386 | CUP | |
| 104-101 | ||
| A 0004350780 | GASKET | |
| 104-101 | ||
| A 0004317987 | PROTECTIVE CAP | |
| 104-101 | ||
| A 0004315323 | VALVE | |
| 104-101 | ||
| A 0009934905 | SPRING | |
| 104-101 | ||
| A 0049977945 | SEAL RING | |
| Repalced by: A 0179974148 | ||
| A 0179974148 | SEAL RING | |
| 104-101 | ||
| 461 | N 074302022202 | T-FITTING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 462 | N 074301022203 | ELBOW FITTING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 463 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 463 | A 0009940203 | THRUST RING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 464 | A 0009870446 | O-RING |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 464E | N 074305022202 | NUT |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 465 | N 007603022102 | SEAL RING |
| 468 | N 074313016401 | FITTING |
| Repalced by: A 0019972372 | ||
| 468 | A 0019972372 | FITTING |
| INSIDE AIR RESERVOIR,FRONT CONNECTION | ||
| 469 | N 074301022203 | ELBOW FITTING |
| INSIDE AIR RESERVOIR,FRONT CONNECTION | ||
| 471 | N 074305022202 | NUT |
| INSIDE AIR RESERVOIR,FRONT CONNECTION | ||
| 474 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 474 | A 0009940203 | THRUST RING |
| INSIDE AIR RESERVOIR,FRONT CONNECTION | ||
| 477 | A 0009870446 | O-RING |
| INSIDE AIR RESERVOIR,FRONT CONNECTION | ||
| 480 | A 3604303205 | RESERVOIR |
| OUTSIDE AND INSIDE | ||
| 483 | N 007603022102 | SEAL RING |
| INSIDE AND REAR AIR RESERVOIRS | ||
| 486 | N 074298022203 | DOUBLE FITTING |
| INSIDE AND REAR AIR RESERVOIRS | ||
| 489 | N 074302022202 | T-FITTING |
| INSIDE AND REAR AIR RESERVOIRS | ||
| 490 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 490 | A 0009940203 | THRUST RING |
| INSIDE AND REAR AIR RESERVOIRS | ||
| 490E | A 0009870446 | O-RING |
| INSIDE AND REAR AIR RESERVOIRS | ||
| 490K | N 074305022202 | NUT |
| INSIDE AND REAR AIR RESERVOIRS | ||
| 491 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 491 | A 0009940203 | THRUST RING |
| OUTSIDE AIR RESERVOIR,FRONT CONNECTION | ||
| 492 | A 0009870446 | O-RING |
| OUTSIDE AIR RESERVOIR,FRONT CONNECTION | ||
| 493 | N 074305022202 | NUT |
| OUTSIDE AIR RESERVOIR,FRONT CONNECTION | ||
| 494 | N 074302022202 | T-FITTING |
| OUTSIDE AIR RESERVOIR,FRONT CONNECTION | ||
| 495 | A 0009901670 | T-FITTING |
| AT OUTSIDE AIR RESERVOIR | ||
| 495C | N 007603022102 | SEAL RING |
| AT OUTSIDE AIR RESERVOIR | ||
| 495CE | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 495CE | A 0009940203 | THRUST RING |
| AT OUTSIDE AIR RESERVOIR | ||
| 495CK | A 0009870446 | O-RING |
| AT OUTSIDE AIR RESERVOIR | ||
| 495E | N 074313016401 | FITTING |
| Repalced by: A 0019972372 | ||
| 495E | A 0019972372 | FITTING |
| AT OUTSIDE AIR RESERVOIR | ||
| 495H | A 0009900787 | CROSS FITTING |
| AT OUTSIDE AIR RESERVOIR | ||
| 495K | N 074301022203 | ELBOW FITTING |
| OUTSIDE AIR RESERVOIR,REAR CONNECTION | ||
| 495M | N 074305022202 | NUT |
| OUTSIDE AIR RESERVOIR,REAR CONNECTION | ||
| 496 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 496 | A 0009940203 | THRUST RING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 497 | A 0009870446 | O-RING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 498 | N 074305022202 | NUT |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 499 | N 074298022203 | DOUBLE FITTING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 499E | N 074301022203 | ELBOW FITTING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 499K | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 499K | A 0009940203 | THRUST RING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 499M | A 0009870446 | O-RING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 499P | N 074305022202 | NUT |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 500 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 500 | N 000908022011 | SCREW PLUG |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 503 | N 007603022102 | SEAL RING |
| INSIDE AIR RESERVOIR, REAR CONNECTION | ||
| 506 | N 007603022102 | SEAL RING |
| DRAIN | ||
| 510 | A 0004320407 | VALVE |
| Repalced by: A 0004320807 | ||
| 510 | A 0004320607 | VALVE |
| Repalced by: A 0004321107 | ||
| 510 | A 0004321107 | VALVE |
| AIR RESERVOIR DRAIN | ||
| Repalced by: A 0004322407 | ||
| 510 | A 0004322407 | DRAIN VALVE |
| AIR RESERVOIR DRAIN | ||
| Repalced by: A 0004322107 | ||
| 510 | A 0004322107 | DRAIN VALVE |
| AIR RESERVOIR DRAIN | ||
| 510 | A 0004322107 | VALVE |
| AIR RESERVOIR DRAIN | ||
| 510 | A 0004322407 | VALVE |
| AIR RESERVOIR DRAIN | ||
| Repalced by: A 0004322107 | ||
| 510 | A 0004322107 | DRAIN VALVE |
| AIR RESERVOIR DRAIN | ||
| 514 | A 0005830296 | RING |
| DRAIN VALVE | ||
| TO 000 432 08 07 | ||
| 517 | A 0009870446 | O-RING |
| OVERFLOW VALVE | ||
| 518 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 518 | A 0009940203 | THRUST RING |
| OVERFLOW VALVE | ||
| 520 | N 074298022203 | DOUBLE FITTING |
| OVERFLOW VALVE | ||
| 521 | A 3609900070 | T-FITTING |
| OVERFLOW VALVE | ||
| 524 | A 0004296344 | VALVE |
| Repalced by: A 0014295244 | ||
| 524 | A 0004297544 | VALVE |
| Repalced by: A 0014299844 | ||
| 524 | A 0014299844 | VALVE |
| (OVERFLOW VALVE) | ||
| BOSCH | ||
| 524 | A 0024290044 | VALVE |
| Repalced by: A 0044293144 | ||
| 524 | A 0044293144 | VALVE |
| (OVERFLOW VALVE) | ||
| WABCO | ||
| 524 | A 0014297944 | VALVE |
| (OVERFLOW VALVE) | ||
| GRAU | ||
| 524 | A 0024297044 | VALVE |
| Repalced by: A 0044293244 | ||
| 524 | A 0044293244 | VALVE |
| (OVERFLOW VALVE) | ||
| GRAU | ||
| 524 | A 0014295244 | VALVE |
| (OVERFLOW VALVE) | ||
| WABCO | ||
| 524 | A 0014296544 | VALVE |
| Repalced by: A 0044293144 | ||
| 524 | A 0044293144 | VALVE |
| (OVERFLOW VALVE) | ||
| WABCO | ||
| 524 | A 0034290244 | VALVE |
| (OVERFLOW VALVE) | ||
| KNORR | ||
| 525 | A 0024298844 | VALVE |
| TO 001 429 79 44,002 429 70 44 GRAU | ||
| A 0004290645 | DIAPHRAGM | |
| Repalced by: A 0004290745 | ||
| 526 | A 0004290745 | DIAPHRAGM |
| TO 001 429 79 44,002 429 70 44 GRAU | ||
| A 0004290645 | DIAPHRAGM | |
| Repalced by: A 0004290745 | ||
| A 0004290745 | DIAPHRAGM | |
| TO 004 429 32 44 | ||
| 527 | A 0015862642 | REPAIR KIT |
| TO 002 429 98 44,002 429 00 44,BOSCH | ||
| 528 | A 0015862042 | REPAIR KIT |
| TO 001 429 52 44,001 429 65 44,WABCO | ||
| 529 | A 0004303260 | REPAIR KIT |
| TO 003 429 02 44,KNORR | ||
| 530 | A 0039972072 | FITTING |
| OVERFLOW VALVE | ||
| 530 | A 0009970172 | FITTING |
| Repalced by: A 0019970172 | ||
| 530 | A 0019970172 | FITTING |
| Repalced by: A 0009970171 | ||
| 530 | A 0009970171 | FITTING |
| OVERFLOW VALVE | ||
| 534 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 534 | A 0009940203 | THRUST RING |
| FROM OVERFLOW VALVE TO FITTING | ||
| 536 | A 0009870446 | O-RING |
| FROM OVERFLOW VALVE TO FITTING | ||
| 538 | N 074305022202 | NUT |
| FROM OVERFLOW VALVE TO FITTING | ||
| 542 | A 3554300011 | CONSOLE |
| AIR RESERVOIR | ||
| 542 | A 3524302211 | CONSOLE |
| AIR RESERVOIR | ||
| A 0004317987 | PROTECTIVE CAP | |
| 104-101 | ||
| 543 | N 000961012189 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X1.5X50 | ||
| 543 | N 000961012189 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X1.5X50 | ||
| 543 | N 000960014249 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X1.5X55 | ||
| 543 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 543 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X1.5X55 | ||
| 543 | N 308676012026 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X1.5X55 | ||
| 543 | N 000960014194 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 14X1.5X60 | ||
| 544 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 544 | N 007349013005 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 544 | N 007349015009 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 544 | A 3609900640 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 544 | A 3609900640 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 544 | A 3978910010 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 544F | N 912004012100 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 544N | N 913002012004 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 545 | A 3354320218 | BASE |
| AIR RESERVOIR TO CONSOLE | ||
| 548 | A 3604300040 | STRAP |
| AIR RESERVOIR TO CONSOLE | ||
| 549 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 549 | N 304032010003 | NUT |
| AIR RESERVOIR TO CONSOLE | ||
| 550 | N 912004012100 | LOCK WASHER |
| AIR RESERVOIR TO CONSOLE | ||
| 551 | A 3354320126 | PLATE |
| Repalced by: A 3434320026 | ||
| 551 | A 3434320026 | PLATE |
| AIR RESERVOIR TO CONSOLE | ||
| 551 | A 3434320026 | PLATE |
| CONSOLE TO SIDE MEMBER | ||
| 554 | N 007603022102 | SEAL RING |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 557 | N 074298022102 | DOUBLE FITTING |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 560 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 560 | N 000908022011 | SCREW PLUG |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 564 | N 074301022203 | ELBOW FITTING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 567 | A 0004295032 | T-FITTING |
| Repalced by: A 0009902970 | ||
| 567 | A 0009902970 | T-FITTING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 570 | N 074305022202 | NUT |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 572 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 572 | A 0009940203 | THRUST RING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 574 | A 0009870446 | O-RING |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 578 | A 0004319105 | BRAKE VALVE |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 581 | A 0029974148 | SEAL RING |
| 585 | A 0005868643 | REPAIR KIT |
| 590 | A 3554300211 | CONSOLE |
| Repalced by: A 3554301111 | ||
| 590 | A 3554301111 | CONSOLE |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 590 | A 3554300311 | CONSOLE |
| Repalced by: A 3554301211 | ||
| 590 | A 3554301211 | CONSOLE |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 591 | N 000933010128 | SCREW |
| TRUCK-TRACTOR BRAKE VALVE TO CONSOLE | ||
| 591E | N 912004010102 | LOCK WASHER |
| TRUCK-TRACTOR BRAKE VALVE TO CONSOLE | ||
| 592 | N 000933010145 | SCREW |
| CONSOLE TO FRAME | ||
| 592E | A 3129903540 | WASHER |
| CONSOLE TO FRAME | ||
| 593 | N 912004010102 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 593E | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 593E | N 304032010003 | NUT |
| CONSOLE TO FRAME | ||
| 595 | A 3554300023 | LEVER |
| (DOUBLE LEVER) | ||
| 595 | A 3554300123 | LEVER |
| (DOUBLE LEVER) | ||
| 598 | A 3529920801 | BUSHING |
| 601 | A 3604310074 | PIN |
| DOUBLE LEVER TO CONSOLE | ||
| 605 | N 071412010100 | GREASE NIPPLE |
| DOUBLE LEVER TO CONSOLE | ||
| 608 | A 3149940101 | LOCK |
| DOUBLE LEVER TO CONSOLE | ||
| 611 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 611 | N 304017008039 | SCREW |
| DOUBLE LEVER TO CONSOLE | ||
| 614 | N 912004008102 | LOCK WASHER |
| DOUBLE LEVER TO CONSOLE | ||
| 618 | A 3559930010 | SPRING |
| DOUBLE LEVER | ||
| 622 | N 000933006127 | SCREW |
| DOUBLE LEVER | ||
| 625 | N 000439006204 | NUT |
| Repalced by: N 304035006001 | ||
| 625 | N 304035006001 | NUT |
| DOUBLE LEVER | ||
| 629 | A 3554310092 | ROD |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 632 | A 3529910007 | PIN |
| ROD TO DOUBLE LEVER | ||
| 635 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 635 | N 000125010532 | WASHER |
| ROD TO DOUBLE LEVER | ||
| 637 | N 000094003219 | COTTER PIN |
| ROD TO DOUBLE LEVER | ||
| 640 | A 0004304881 | VALVE |
| Repalced by: A 0014306481 | ||
| 640 | A 0014306481 | VALVE |
| (REGULATING VALVE) | ||
| 644 | A 0005867343 | REPAIR KIT |
| Repalced by: A 0034304381 | ||
| 644 | A 0034304381 | REPAIR KIT |
| 645B | A 3524281740 | BRACKET |
| Repalced by: A 3184280240 | ||
| 645B | A 3184280240 | BRACKET |
| REGULATING VALVE | ||
| 645E | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 645E | N 304017008021 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME SIDE MEMBER | ||
| 645H | N 912004008102 | LOCK WASHER |
| REGULATING VALVE TO SIDE MEMBER | ||
| 645L | N 304032008006 | NUT |
| REGULATING VALVE TO SIDE MEMBER | ||
| 645P | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 645P | A 6739950001 | CLAMP |
| AT BRACKET | ||
| 645S | N 000084006197 | SCREW |
| AT BRACKET | ||
| 645U | N 912004006102 | LOCK WASHER |
| AT BRACKET | ||
| 645X | N 000934006007 | NUT |
| AT BRACKET | ||
| 647 | N 074298022203 | DOUBLE FITTING |
| REGULATING VALVE | ||
| 648 | A 0009974172 | FITTING |
| REGULATING VALVE | ||
| 648 | A 0029971172 | FITTING |
| Repalced by: N 000000006191 | ||
| 648 | N 000000006191 | FITTING |
| 650 | N 007603022102 | SEAL RING |
| REGULATING VALVE | ||
| 654 | A 0004312031 | TEST CONNECTION |
| REGULATING VALVE | ||
| VOSS | ||
| 654 | A 0004314531 | TEST CONNECTION |
| REGULATING VALVE | ||
| SCHAEFER | ||
| 654 | A 0004314831 | TEST CONNECTION |
| REGULATING VALVE | ||
| WABCO | ||
| 654 | A 0004316131 | TEST CONNECTION |
| REGULATING VALVE | ||
| WIRA | ||
| A 0009979486 | PROTECTIVE CAP | |
| 655 | A 0009870446 | O-RING |
| (REGULATING VALVE) | ||
| 656 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 656 | A 0009940203 | THRUST RING |
| (REGULATING VALVE) | ||
| 656 | A 0004290927 | THRUST RING |
| (REGULATING VALVE) | ||
| 657 | A 0039972072 | FITTING |
| REGULATING VALVE | ||
| 657 | A 0029978172 | FITTING |
| REGULATING VALVE | ||
| 660 | A 0004290701 | LINE |
| Repalced by: A 0004296201 | ||
| 660 | A 0004296201 | LINE |
| FROM TRUCK-TRACTOR BRAKE VALVE TO DOUBLE FITTING | ||
| 6X0.7 MM | ||
| 660 | A 0004296201 | LINE |
| FROM DOUBLE FITTING TO COMPRESSED AIR HOSE | ||
| 6X0.7 MM | ||
| 664 | N 915017006100 | UNION NUT |
| COMPRESSED AIR LINE | ||
| 6 MM | ||
| 666 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 666 | A 0019901667 | SEAL CONE |
| COMPRESSED AIR LINE | ||
| 6 MM | ||
| 669 | A 0019972872 | FITTING |
| Repalced by: A 0039979072 | ||
| 669 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 669 | A 0029906071 | FITTING |
| 670 | N 074298012201 | DOUBLE FITTING |
| BETWEEN THE LINES | ||
| 671 | A 3525420335 | HOSE |
| 674 | A 3525407561 | ELECTRIC CABLE |
| Repalced by: A 0089976082 | ||
| 672 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 672 | A 0009872627 | PLASTIC PIPE |
| BLACK,BRAKE PRESSURE MONITORING | ||
| 4X6 MM | ||
| 673 | A 0019973572 | FITTING |
| Repalced by: N 915059004000 | ||
| 673 | N 915059004001 | FITTING |
| BRAKE PRESSURE CONTROL | ||
| 673 | A 0019975072 | FITTING |
| BRAKE PRESSURE CONTROL | ||
| 673 | A 0009973472 | FITTING |
| BRAKE PRESSURE CONTROL | ||
| 674 | N 915017006200 | UNION NUT |
| BRAKE PRESSURE CONTROL | ||
| 675 | A 3819970881 | GROMMET |
| BRAKE PRESSURE CONTROL | ||
| 676 | N 040621010200 | INSULATING HOSE |
| BRAKE PRESSURE CONTROL | ||
| 677 | A 0009972481 | GROMMET |
| PRESSURE GAUGE LINE TO CAB FLOOR | ||
| 677 | A 0009972481 | GROMMET |
| BRAKE LINE THRU CAB FLOOR | ||
| 678 | N 006797012153 | TOOTHED WASHER |
| 682 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 682 | N 308675012000 | NUT |
| 683 | A 3129950033 | CLAMP |
| PRESSURE GAUGE LINE TO FRONT PANEL | ||
| 683E | N 007985005193 | SCREW |
| PRESSURE GAUGE LINE TO FRONT PANEL | ||
| 683K | N 912004005103 | LOCK WASHER |
| PRESSURE GAUGE LINE TO FRONT PANEL | ||
| 683N | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 683N | N 304032005005 | NUT |
| PRESSURE GAUGE LINE TO FRONT PANEL | ||
| 685 | A 3525420440 | BRACKET |
| Repalced by: A 3525422840 | ||
| 685 | A 3525422840 | BRACKET |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 686 | N 000933010128 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 687 | N 912004010102 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 688 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 688 | N 304032010003 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 690 | A 3129950332 | CLAMP |
| Repalced by: A 3609950101 | ||
| 690 | A 3609950101 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 691 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 691 | N 000000000460 | SHEET METAL SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 693 | A 3609950101 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 694 | N 000084006197 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 694E | N 912004006102 | LOCK WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 694K | N 000125006421 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| Repalced by: N 000125006449 | ||
| 694K | N 000125006449 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 694N | N 000934006007 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 695 | A 3609950401 | CLAMP |
| 696 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 696 | N 913002006009 | NUT |
| A 0004290201 | LINE | |
| Repalced by: A 0005516256 | ||
| 700 | A 0005516256 | TUBE |
| FROM REGULATING VALVE TO BRAKE CYLINDER | ||
| 15 MM | ||
| 702 | A 0049971772 | FITTING |
| Repalced by: A 0029906171 | ||
| 702 | A 0029906171 | FITTING |
| (PARTS KIT),LINE RUPTURE | ||
| TO 010 997 59 82 | ||
| 705 | A 0109975982 | HOSE |
| Repalced by: A 0009872827 | ||
| 705 | A 0009872827 | PLASTIC PIPE |
| FROM RELAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 9X12 MM | ||
| 705 | A 0009872827 | PLASTIC PIPE |
| LEFT AND RIGHT COMBINATION CYLINDERS; CONNECTION: | ||
| 9X12 MM,"11,12" | ||
| N 915052009009 | BANJO UNION | |
| LEFT AND RIGHT COMBINATION CYLINDERS; CONNECTION: | ||
| "11,12" | ||
| 706 | A 0004291001 | LINE |
| 708 | A 0009921505 | BUSHING |
| Repalced by: N 915062009000 | ||
| 708 | N 915062009000 | SLEEVE |
| 712 | N 915017012100 | UNION NUT |
| Repalced by: N 000000006239 | ||
| 712 | N 000000006239 | UNION NUT |
| 715 | N 003861012007 | GLAND |
| Repalced by: A 0019901967 | ||
| 715 | A 0019901967 | SEAL CONE |
| 720 | N 915018015000 | UNION NUT |
| 724 | N 003861015004 | GLAND |
| 728 | N 915065015101 | THRUST RING |
| 733 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 733 | A 0029905971 | FITTING |
| 736 | A 0019978390 | LOOM TIE |
| 737 | A 0004295235 | HOSE |
| 737E | N 916026010000 | CLAMP |
| Repalced by: N 000000000665 | ||
| 737E | N 000000000665 | CLAMP |
| 738 | A 3604296909 | LINE |
| FROM COMPRESSED AIR HOSE TO HAND BRAKE VALVE | ||
| 8X0.7 MM | ||
| 738 | A 3554294501 | LINE |
| Repalced by: A 3604296909 | ||
| 740 | A 0004290301 | LINE |
| FROM T-FITTING TO RELAY VALVE | ||
| 8X1 MM | ||
| 745 | N 915017008100 | UNION NUT |
| TO 8-MM-DIA.COMPRESSED AIR LINES | ||
| 748 | N 003861008005 | GLAND |
| TO 8-MM-DIA.COMPRESSED AIR LINES | ||
| 751 | N 074298022203 | DOUBLE FITTING |
| 752 | N 074302022304 | T-FITTING |
| 755 | A 0009909671 | ELBOW FITTING |
| Repalced by: A 0029901271 | ||
| 755 | A 0029901271 | ELBOW FITTING |
| 757 | N 074313016401 | FITTING |
| Repalced by: A 0019972372 | ||
| 757 | A 0019972372 | FITTING |
| 759 | A 0019972672 | FITTING |
| Repalced by: A 0039978972 | ||
| 759 | A 0039978972 | FITTING |
| Repalced by: A 0029905971 | ||
| 759 | A 0029905971 | FITTING |
| PARKING BRAKE | ||
| A 3609950201 | CLAMP | |
| Repalced by: A 3604300143 | ||
| A 3604300143 | CLAMP | |
| Repalced by: N 916016008200 | ||
| N 916016008200 | CLAMP | |
| Repalced by: N 000000000319 | ||
| N 000000000319 | CLAMP | |
| LINE MOUNTING | ||
| N 000933006122 | SCREW | |
| Repalced by: N 304017006034 | ||
| N 304017006034 | SCREW | |
| LINE MOUNTING | ||
| N 000084006197 | SCREW | |
| LINE MOUNTING | ||
| N 000934006007 | NUT | |
| LINE MOUNTING | ||
| N 912004006102 | LOCK WASHER | |
| LINE MOUNTING | ||
| 763 | A 0009901070 | T-FITTING |
| BETWEEN THE LINES | ||
| 8 MM | ||
| 766 | A 0005455414 | SWITCH |
| SPRING-LOAD BRAKE PRESSURE SWITCH | ||
| 770 | A 0009870446 | O-RING |
| AT RELAY VALVE | ||
| 770 | A 0009870446 | O-RING |
| RELAY VALVE,CONNECTION "1" | ||
| 773 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 773 | A 0009940203 | THRUST RING |
| AT RELAY VALVE | ||
| 773 | A 0009940203 | THRUST RING |
| RELAY VALVE,CONNECTION "1" | ||
| 776 | N 074305022202 | NUT |
| RELAY VALVE,CONNECTION "1" | ||
| 780 | N 074301022203 | ELBOW FITTING |
| RELAY VALVE,CONNECTION "1" | ||
| 781 | A 0029971572 | FITTING |
| RELAY VALVE,CONNECTION "2" | ||
| 781E | N 074313008104 | FITTING |
| Repalced by: A 0029979572 | ||
| 781E | A 0029979572 | FITTING |
| RELAY VALVE,CONNECTION "4" | ||
| 781K | A 0004290927 | THRUST RING |
| RELAY VALVE;CONNECTIONS: | ||
| "2,4" | ||
| 781N | A 0009971548 | SEAL RING |
| RELAY VALVE;CONNECTIONS: | ||
| "2,4" | ||
| 782 | N 000908016001 | SCREW PLUG |
| RELAY VALVE,CONNECTION "2",FRONT | ||
| 782E | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION "2",FRONT | ||
| 782K | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION "2",FRONT | ||
| 784 | N 007603022102 | SEAL RING |
| AT RELAY VALVE | ||
| 787 | N 074298022203 | DOUBLE FITTING |
| CONNECTION "Z" | ||
| 788 | N 000908016001 | SCREW PLUG |
| CONNECTION "Z" | ||
| 788 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 788 | N 000908022011 | SCREW PLUG |
| CONNECTION "Z" | ||
| 788E | A 0009971548 | SEAL RING |
| CONNECTION "Z" | ||
| 788K | A 0009870446 | O-RING |
| CONNECTION "Z" | ||
| 788N | A 0004290927 | THRUST RING |
| CONNECTION "Z" | ||
| 788N | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 788N | A 0009940203 | THRUST RING |
| CONNECTION "Z" | ||
| 790 | A 0009970171 | FITTING |
| 794 | A 0009903970 | T-FITTING |
| Repalced by: A 0019901070 | ||
| 794 | A 0019901070 | T-FITTING |
| CONNECTION "Z" | ||
| 797 | N 000908022001 | SCREW PLUG |
| Repalced by: N 000908022011 | ||
| 797 | N 000908022011 | SCREW PLUG |
| CONNECTION "Z" | ||
| 798 | N 003952012101 | FITTING |
| Repalced by: A 0019902771 | ||
| 798 | A 0019902771 | ELBOW FITTING |
| CONNECTION "Z" | ||
| 800 | A 0004296544 | VALVE |
| RELAY | ||
| WABCO | ||
| 800 | A 0014293044 | VALVE |
| RELAY | ||
| GRAU | ||
| 800 | A 0014295444 | VALVE |
| Repalced by: A 0034295244 | ||
| 800 | A 0034295244 | VALVE |
| RELAY | ||
| KNORR | ||
| 800 | A 0034291644 | VALVE |
| RELAY VALVE | ||
| BOSCH | ||
| 800 | A 0014299144 | VALVE |
| RELAY VALVE | ||
| GRAU | ||
| 800 | A 0034295344 | VALVE |
| RELAY VALVE | ||
| KNORR | ||
| 800 | A 0014296844 | VALVE |
| RELAY VALVE | ||
| WABCO | ||
| 801 | A 0059972648 | SEAL RING |
| TO 001 429 30 44,001 429 91 44 | ||
| 22.3X2.4 MM, TO 001 429 30 44, | ||
| 802 | A 0004312788 | VALVE SEAT |
| TO 001 429 30 44,001 429 91 44 | ||
| 803 | A 0059972748 | SEAL RING |
| 80X3 MM,TO 000 429 28 95, GRAU | ||
| 804 | A 0014311660 | SEAL RING |
| 28X2 MM,TO 001 429 30 44,001 429 91 44 | ||
| 805 | A 0014311760 | SEAL RING |
| 86X2 MM,TO 001 429 30 44,001 429 91 44 | ||
| 806 | A 0004311980 | GASKET |
| TO 001 429 30 44,001 429 91 44 | ||
| 34X2X6 MM, TO 001 429 30 44, | ||
| 807 | A 0025863542 | REPAIR KIT |
| TO 001 429 54 44, 003 429 52 44 | ||
| 807 | A 0025863542 | REPAIR KIT |
| TO 003 429 53 44,KNORR | ||
| 808 | A 0005865742 | REPAIR KIT |
| TO 000 429 65 44,WABCO | ||
| 808 | A 0005865742 | REPAIR KIT |
| TO 001 429 68 44,WABCO | ||
| 809 | A 0025865642 | REPAIR KIT |
| Repalced by: A 0004201071 | ||
| 809 | A 0004201071 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 44,BOSCH; UP TO 03.82 | ||
| 809 | A 0004201271 | VALVE |
| GASKET KIT | ||
| TO 003 429 16 44,BOSCH; FROM 04.82 | ||
| 810 | A 0025865742 | REPAIR KIT |
| Repalced by: A 0004301109 | ||
| 810 | A 0004301109 | REPAIR KIT |
| BLEEDER VALVE | ||
| TO 003 429 16 44,BOSCH | ||
| 815 | A 3554320140 | BRACKET |
| RELAY VALVE | ||
| 820 | N 912004008102 | LOCK WASHER |
| RELAY VALVE TO BRACKET | ||
| 824 | N 304032008006 | NUT |
| RELAY VALVE TO BRACKET | ||
| 825 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 825 | N 000125008443 | WASHER |
| RELAY VALVE TO BRACKET | ||
| 826 | N 000933010164 | SCREW |
| 826E | N 912004010102 | LOCK WASHER |
| RELAY VALVE TO SIDE MEMBER | ||
| 826N | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 826N | N 304032010003 | NUT |
| RELAY VALVE TO SIDE MEMBER | ||
| 828 | A 0009902370 | T-FITTING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 834 | N 007603016401 | SEAL RING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 838 | A 0009974172 | FITTING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 839 | N 074315012100 | FITTING |
| Repalced by: A 0019903371 | ||
| 839 | A 0019903371 | ELBOW FITTING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 840 | A 0004290927 | THRUST RING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 840E | N 080705016003 | NUT |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 841 | A 0029971640 | SEAL RING |
| Repalced by: A 0009971548 | ||
| 841 | A 0009971548 | SEAL RING |
| SPRING LOAD ACCUMULATOR CYLINDER | ||
| 850 | A 0004315014 | BRAKE CYLINDER |
| Repalced by: A 0014316514 | ||
| 850 | A 0014316514 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR | ||
| A 0004310649 | SLIDE | |
| TO 000 431 50 14 | ||
| 853 | A 0004318786 | CUP |
| TO 000 431 50 14 | ||
| 853 | A 0014311786 | CUP |
| TO 001 431 65 14 | ||
| A 0004318186 | CUP | |
| Repalced by: A 0015864342 | ||
| 856 | A 0015864342 | REPAIR KIT |
| Repalced by: A 0034201724 | ||
| 856 | A 0034201724 | REPAIR KIT |
| TO 001 431 65 14 | ||
| 860 | A 3554311740 | BRACKET |
| LEFT | ||
| 860 | A 3554311840 | BRACKET |
| RIGHT | ||
| 861 | N 000961012151 | SCREW |
| BRAKE CYLINDER TO CONSOLE | ||
| 862 | N 912004012100 | LOCK WASHER |
| BRAKE CYLINDER TO CONSOLE | ||
| 863 | N 000934012022 | NUT |
| BRAKE CYLINDER TO CONSOLE | ||
| 864 | N 000961012151 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 865 | A 3554200180 | BRAKE INTERMEDIATE SHAFT |
| 869 | A 3274270058 | SEAL HOLDER |
| BRAKE INTERMEDIATE SHAFT | ||
| 872 | A 3279970040 | SEAL RING |
| BRAKE INTERMEDIATE SHAFT | ||
| 876 | A 3584200278 | BEARING BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| 883 | N 000470052000 | EXPANSION PLUG |
| A 3024260083 | SPHERICAL PIECE | |
| Repalced by: A 3025860242 | ||
| 885 | A 3025860242 | REPAIR KIT |
| Repalced by: A 3534200067 | ||
| 885 | A 3534200067 | REPAIR KIT |
| Repalced by: A 3534200167 | ||
| 885 | A 3534200167 | BALL CUP |
| REPAIR KIT | ||
| 886 | N 000961012151 | SCREW |
| BEARING BRACKET TO FRONT CROSS MEMBER | ||
| 887 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO FRONT CROSS MEMBER | ||
| 888 | N 000934012022 | NUT |
| BEARING BRACKET TO FRONT CROSS MEMBER | ||
| 890 | A 3554200274 | ROD |
| FROM BRAKE SHAFT TO BRAKE LEVER | ||
| 894 | N 071752012002 | YOKE |
| 897 | N 000934012021 | NUT |
| 900 | A 3529910207 | PIN |
| PULL RODS TO BRAKE LEVERS | ||
| 904 | N 900055012001 | SPRING WASHER |
| PULL RODS TO BRAKE LEVERS | ||
| 907 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 907 | N 000433013010 | WASHER |
| PULL RODS TO BRAKE LEVERS | ||
| 908 | N 000094003210 | COTTER PIN |
| PULL RODS TO BRAKE LEVERS | ||
| 910 | A 3529910107 | PIN |
| PULL RODS TO BRAKE LEVERS | ||
| 913 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 913 | N 000433013010 | WASHER |
| PULL RODS TO BRAKE LEVERS | ||
| 914 | N 000094003210 | COTTER PIN |
| PULL RODS TO BRAKE LEVERS | ||
| 915 | N 007985008142 | SCREW |
| PROTECTIVE PLATE TO CAB FLOOR | ||
| 916 | N 912004008102 | LOCK WASHER |
| PROTECTIVE PLATE TO CAB FLOOR | ||
| 917 | A 3554270034 | COVERING |
| AT CAB FLOOR | ||
| 918 | N 007985008142 | SCREW |
| PROTECTIVE PLATE TO CAB FLOOR | ||
| 919 | N 912004008102 | LOCK WASHER |
| PROTECTIVE PLATE TO CAB FLOOR | ||
| 920 | N 007603014405 | SEAL RING |
| AT HAND BRAKE VALVE,TO CONNECT COMPRESSED AIR LINE | ||
| 923 | A 0009972072 | FITTING |
| Repalced by: A 0039979972 | ||
| 923 | A 0039979972 | FITTING |
| AT HAND BRAKE VALVE,TO CONNECT COMPRESSED AIR LINE | ||
| 930 | A 0004305581 | VALVE |
| HAND BRAKE VALVE | ||
| WABCO | ||
| 930 | A 0004306681 | VALVE |
| HAND BRAKE VALVE | ||
| KNORR | ||
| 932 | A 0004305760 | REPAIR KIT |
| TO 000 430 55 81,WABCO | ||
| 935 | A 0005868043 | REPAIR KIT |
| Repalced by: A 0004305760 | ||
| 940 | A 3464316040 | BRACKET |
| HAND BRAKE VALVE TO SEAT BOX | ||
| 943 | N 000966006000 | SCREW |
| HAND BRAKE VALVE TO SEAT BOX | ||
| 944 | A 3554310684 | SHIM |
| HAND BRAKE VALVE TO SEAT BOX | ||
| 946 | N 912004006102 | LOCK WASHER |
| HAND BRAKE VALVE TO SEAT BOX | ||
| 948 | N 000934006007 | NUT |
| HAND BRAKE VALVE TO SEAT BOX | ||
| 950 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 950 | N 304017008021 | HEXAGON HEAD BOLT |
| BRACKET TO CAB | ||
| 952 | N 912004008102 | LOCK WASHER |
| BRACKET TO CAB | ||
| 954 | N 304032008006 | NUT |
| BRACKET TO CAB | ||
| 956 | A 3812951340 | BRACKET |
| LINE TO HAND BRAKE VALVE | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | HEXAGON HEAD BOLT | |
| BRACKET TO SIDE MEMBER | ||
| N 913004008004 | NUT | |
| Repalced by: N 913004008001 | ||
| N 913004008001 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 958 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 958 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 958 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 958 | N 000000000319 | CLAMP |
| 960 | N 000084006197 | SCREW |
| 962 | N 913002006005 | NUT |
| Repalced by: N 913002006009 | ||
| 962 | N 913002006009 | NUT |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
