Transporto priemonė: OF 1621; VIN numerio dalis: 355099
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

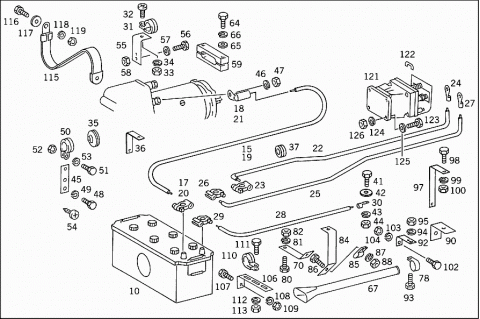

| 010 | A 0005418001 | BATTERY |
| Repalced by: A 3875400801 | ||
| 010 | A 3875400801 | BATTERY |
| Repalced by: A 0035410101 | ||
| 010 | A 0035410101 | BATTERY |
| Repalced by: A 0035411801 | ||
| 010 | A 0035411801 | BATTERY |
| Repalced by: A 0025412301 | ||
| 010 | A 0025412301 | BATTERY |
| 12 V/135 AH | ||
| 010 | A 0045414801 | BATTERY |
| FILLED AND CHARGED | ||
| 12V/170AH | ||
| 010 | A 0035410501 | BATTERY |
| FILLED AND CHARGED | ||
| 12V/180AH | ||
| 010 | A 0045414901 | BATTERY |
| FILLED AND CHARGED | ||
| 12V/200AH | ||
| 010 | A 0045419301 | BATTERY |
| FILLED AND CHARGED | ||
| 12V/220AH | ||
| A 0005421190 | BLIND CAP | |
| TO A 004 541 48 01,49 01 | ||
| A 3525404173 | BRACKET | |
| A 3525403973 | BRACKET | |
| A 3525404273 | BRACKET | |
| A 3525400021 | TRAY | |
| A 3525400221 | TRAY | |
| N 000961012027 | SCREW | |
| N 912004012100 | LOCK WASHER | |
| A 3209906040 | WASHER | |
| A 3525400019 | MOUNTING BOW | |
| A 3525400223 | MOUNTING FRAME | |
| A 3525400619 | MOUNTING BOW | |
| A 3525400419 | MOUNTING BOW | |
| A 3525400519 | MOUNTING BOW | |
| A 3525400719 | MOUNTING BOW | |
| N 304032008006 | NUT | |
| A 3129901940 | WASHER | |
| A 3525401930 | POSITIVE CABLE | |
| Repalced by: N 072551070880 | ||
| A 3525403530 | POSITIVE CABLE | |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 015 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 015 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 017 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 018 | N 046234010007 | CABLE SHOE |
| STARTING MOTOR | ||
| A 3525404430 | POSITIVE CABLE | |
| Repalced by: N 922002070000 | ||
| 019 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 019 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 019 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 020 | N 072332013100 | SOLDERING TERMINAL |
| FROM BATTERY TO STARTING MOTOR | ||
| 021 | N 046234010007 | CABLE SHOE |
| FROM BATTERY TO STARTING MOTOR | ||
| A 3525402030 | POSITIVE CABLE | |
| Repalced by: N 072551070880 | ||
| A 3525401130 | POSITIVE CABLE | |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 022 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 022 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO BATTERY CHANGE-OVER SWITCH | ||
| 023 | N 072332013100 | SOLDERING TERMINAL |
| POS. POLE | ||
| 024 | N 046234010007 | CABLE SHOE |
| BATTERY CHANGE-OVER SWITCH | ||
| A 3525400131 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 025 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 025 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO BATTERY CHANGE-OVER SWITCH | ||
| 026 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 027 | N 046234010007 | CABLE SHOE |
| BATTERY CHANGE-OVER SWITCH | ||
| A 3145400631 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| A 3635400531 | NEG. CABLE | |
| Repalced by: N 072551070880 | ||
| N 072551070880 | ELECTRIC CABLE | |
| Repalced by: N 922002070000 | ||
| 028 | N 922002070000 | ELECTRIC CABLE |
| Repalced by: A 6735460013 | ||
| 028 | A 6735460013 | ELECTRIC CABLE |
| FROM BATTERY TO GROUND AT SIDE MEMBER | ||
| 029 | N 072332013200 | SOLDERING TERMINAL |
| NEG.POLE | ||
| 030 | N 046234010007 | CABLE SHOE |
| NEG. CABLE | ||
| 031 | N 916016022206 | CLAMP |
| STARTING MOTOR BRANCH-OFF | ||
| Repalced by: N 916016022203 | ||
| 031 | N 916016022203 | CLAMP |
| STARTING MOTOR BRANCH-OFF | ||
| 031 | N 916016022206 | CLAMP |
| STARTING CABLE TO STARTING MOTOR | ||
| Repalced by: N 916016022203 | ||
| 031 | N 916016022203 | CLAMP |
| STARTING CABLE TO STARTING MOTOR | ||
| 031 | N 916016022203 | CLAMP |
| STARTING CABLE TO STARTING MOTOR | ||
| 032 | N 000000001147 | SCREW |
| STARTING MOTOR BRANCH-OFF | ||
| M 6X20 | ||
| 032 | N 000000001147 | SCREW |
| STARTING CABLE TO STARTING MOTOR | ||
| M 6X20 | ||
| 032 | N 000000001147 | SCREW |
| STARTING CABLE TO STARTING MOTOR | ||
| M 6X20 | ||
| 033 | N 000934006007 | NUT |
| STARTING MOTOR BRANCH-OFF | ||
| 033 | N 000934006007 | NUT |
| STARTING CABLE TO STARTING MOTOR | ||
| 033 | N 000934006007 | NUT |
| STARTING CABLE TO STARTING MOTOR | ||
| 034 | N 912004006102 | LOCK WASHER |
| STARTING MOTOR BRANCH-OFF | ||
| 034 | N 912004006102 | LOCK WASHER |
| STARTING CABLE TO STARTING MOTOR | ||
| 034 | N 912004006102 | LOCK WASHER |
| STARTING CABLE TO STARTING MOTOR | ||
| 035 | A 3529970281 | GROMMET |
| BATTERY CABLE THRU SIDE MEMBER | ||
| A 3525410640 | BRACKET | |
| AT BELL HOUSING | ||
| 036 | A 3525422840 | BRACKET |
| AT BELL HOUSING | ||
| 037 | A 3129970581 | GROMMET |
| AT BELL HOUSING | ||
| 041 | N 000933010105 | SCREW |
| NEGATIVE CABLE TO SIDE MEMBER | ||
| 042 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 042 | N 009021010209 | WASHER |
| NEGATIVE CABLE TO SIDE MEMBER | ||
| 043 | N 912004010102 | LOCK WASHER |
| NEGATIVE CABLE TO SIDE MEMBER | ||
| 044 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 044 | N 304032010003 | NUT |
| NEGATIVE CABLE TO SIDE MEMBER | ||
| 045 | A 3525462243 | BRACKET |
| Repalced by: A 3184923441 | ||
| 045 | A 3184923441 | BRACKET |
| BATTERY CABLE TO STARTING MOTOR | ||
| 046 | N 912004010102 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| 047 | N 913021010001 | NUT |
| Repalced by: N 304035010001 | ||
| 047 | N 304035010001 | NUT |
| CABLE TO STARTING MOTOR,TERMINAL 30 | ||
| 048 | N 304017010027 | HEXAGON HEAD BOLT |
| BATTERY CABLE TO STARTING MOTOR | ||
| M10X16 | ||
| 049 | N 912004010102 | LOCK WASHER |
| BATTERY CABLE TO STARTING MOTOR | ||
| A 0009954801 | CLAMP | |
| Repalced by: N 916016018201 | ||
| 050 | N 916016018201 | CLAMP |
| LINE TO SIDE MEMBER | ||
| 050 | N 916016018201 | CLAMP |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 051 | N 007985005149 | SCREW |
| LINE TO SIDE MEMBER | ||
| 5X20 MM | ||
| 052 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 052 | N 304032005005 | NUT |
| LINE TO SIDE MEMBER | ||
| 053 | N 912004005103 | LOCK WASHER |
| LINE TO SIDE MEMBER | ||
| 054 | N 007981004244 | SHEET METAL SCREW |
| Repalced by: N 000000000453 | ||
| 054 | N 000000000453 | TAPPING SCREW |
| BATTERY CABLE TO CAB CROSS MEMBER | ||
| 4.2X13 | ||
| 055 | A 3585460143 | BRACKET |
| STARTING CABLE TO STARTING MOTOR | ||
| 055 | A 3585460143 | BRACKET |
| STARTING CABLE TO STARTING MOTOR | ||
| 056 | N 000933006127 | SCREW |
| STARTING CABLE TO STARTING MOTOR | ||
| 056 | N 000933006127 | SCREW |
| STARTING CABLE TO STARTING MOTOR | ||
| 056 | N 000933006127 | SCREW |
| BATTERY CABLE TO STARTING MOTOR | ||
| 057 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 057 | N 009021006208 | WASHER |
| STARTING CABLE TO STARTING MOTOR | ||
| 057 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 057 | N 009021006208 | WASHER |
| BATTERY CABLE TO STARTING MOTOR | ||
| 058 | N 000934006007 | NUT |
| STARTING CABLE TO STARTING MOTOR | ||
| 058 | N 000934006007 | NUT |
| STARTING CABLE TO STARTING MOTOR | ||
| 058 | N 000934006007 | NUT |
| BATTERY CABLE TO STARTING MOTOR | ||
| 058 | N 000934006007 | NUT |
| BATTERY CABLE TO STARTING MOTOR | ||
| 059 | A 3525460444 | CLAMPING PIECE |
| CABLE HARNESS MOUNTING | ||
| 064 | N 000931006191 | SCREW |
| CABLE HARNESS MOUNTING | ||
| M6X55 | ||
| 065 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 065 | N 009021006208 | WASHER |
| CABLE HARNESS MOUNTING | ||
| 066 | N 912004006102 | LOCK WASHER |
| CABLE HARNESS MOUNTING | ||
| 067 | A 3225460585 | PROTECTIVE TUBE |
| Repalced by: A 3055460385 | ||
| 067 | A 3055460385 | PROTECTIVE TUBE |
| ELECTRIC CABLE TO FRAME | ||
| 070 | A 3555420240 | BRACKET |
| Repalced by: A 6674290640 | ||
| 070 | A 6674290640 | BRACKET |
| CABLE CONDUIT | ||
| 078 | A 3229950301 | CLAMP |
| PROTECTIVE TUBE TO BRAKE BOOSTER BRACKET | ||
| 078 | A 3229950301 | CLAMP |
| PROTECTIVE TUBE TO BRAKE BOOSTER BRACKET | ||
| 078 | A 3229950301 | CLAMP |
| CABLE CONDUIT | ||
| 078 | A 3229950301 | CLAMP |
| SPEEDOMETER CABLE TO BRACKET | ||
| 080 | N 000933006102 | SCREW |
| CABLE CONDUIT | ||
| 081 | N 912004006102 | LOCK WASHER |
| CABLE CONDUIT | ||
| 082 | N 000934006007 | NUT |
| CABLE CONDUIT | ||
| A 3525410440 | BRACKET | |
| PROTECTIVE TUBE TO EXHAUST PIPE MOUNTING | ||
| 084 | A 3555420340 | BRACKET |
| PROTECTIVE TUBE TO EXHAUST PIPE MOUNTING | ||
| 085 | A 3229950301 | CLAMP |
| PROTECTIVE TUBE TO EXHAUST PIPE MOUNTING | ||
| 086 | N 000933006102 | SCREW |
| PROTECTIVE TUBE TO EXHAUST PIPE MOUNTING | ||
| 087 | N 912004006102 | LOCK WASHER |
| PROTECTIVE TUBE TO EXHAUST PIPE MOUNTING | ||
| 088 | N 000934006007 | NUT |
| PROTECTIVE TUBE TO EXHAUST PIPE MOUNTING | ||
| 090 | A 3525410540 | BRACKET |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 090 | A 3525410540 | BRACKET |
| AT BRAKE BOOSTER | ||
| 090 | A 3525410540 | BRACKET |
| AT TRUCK-TRACTOR BRAKE VALVE | ||
| 090 | A 3525410540 | BRACKET |
| EXHAUST PIPE SUSPENSION | ||
| 090 | A 3525410540 | BRACKET |
| EXHAUST PIPE SUSPENSION | ||
| A 3525420840 | BRACKET | |
| EXHAUST PIPE SUSPENSION | ||
| A 3525422640 | BRACKET | |
| AT ENGINE CROSS MEMBER | ||
| A 3525422640 | BRACKET | |
| AT LEFT SIDE MEMBER | ||
| 092 | A 3274925419 | BRACKET |
| Repalced by: A 6205240340 | ||
| 092 | A 6205240340 | BRACKET |
| AT BRAKE BOOSTER | ||
| 092 | A 6205240340 | BRACKET |
| AT BRAKE BOOSTER | ||
| 092 | A 6205240340 | BRACKET |
| ENGINE REAR SUSPENSION | ||
| 092 | A 6205240340 | BRACKET |
| AT BRAKE BOOSTER | ||
| 093 | N 000933006102 | SCREW |
| PROTECTIVE TUBE TO BRAKE BOOSTER BRACKET | ||
| 093 | N 000933006102 | SCREW |
| PROTECTIVE TUBE TO BRAKE BOOSTER BRACKET | ||
| 094 | N 912004006102 | LOCK WASHER |
| PROTECTIVE TUBE TO BRAKE BOOSTER BRACKET | ||
| 094 | N 912004006102 | LOCK WASHER |
| PROTECTIVE TUBE TO BRAKE BOOSTER BRACKET | ||
| 095 | N 000934006007 | NUT |
| PROTECTIVE TUBE TO BRAKE BOOSTER BRACKET | ||
| 095 | N 000934006007 | NUT |
| PROTECTIVE TUBE TO BRAKE BOOSTER BRACKET | ||
| 097 | A 3524760036 | BRACKET |
| Repalced by: A 3274925819 | ||
| 097 | A 3274925819 | BRACKET |
| 098 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 098 | N 304017010002 | SCREW |
| CABLE CONDUIT TO BRACKET | ||
| M 10X30 | ||
| 099 | N 912004010102 | LOCK WASHER |
| CABLE CONDUIT TO BRACKET | ||
| 100 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 100 | N 304032010003 | NUT |
| CABLE CONDUIT TO BRACKET | ||
| 102 | N 000961012056 | SCREW |
| Repalced by: N 308676012038 | ||
| 102 | N 308676012038 | SCREW |
| BRACKET TO BRAKE BOOSTER BEARING BRACKET | ||
| 102 | N 308676012038 | SCREW |
| AT BRAKE BOOSTER | ||
| 103 | N 912004012102 | LOCK WASHER |
| BRACKET TO BRAKE BOOSTER BEARING BRACKET | ||
| 103 | N 912004012102 | LOCK WASHER |
| BRACKET TO BRAKE BOOSTER BEARING BRACKET | ||
| 104 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 104 | N 308673012002 | HEXAGON NUT |
| BRACKET TO BRAKE BOOSTER BEARING BRACKET | ||
| 104 | N 308673012002 | HEXAGON NUT |
| BRACKET TO BRAKE BOOSTER BEARING BRACKET | ||
| A 3354760136 | BRACKET | |
| Repalced by: A 6224760036 | ||
| 106 | A 6224760036 | BRACKET |
| FUEL LINE | ||
| 106 | A 6224760036 | BRACKET |
| CABLE CONDUIT | ||
| 107 | N 000933010128 | SCREW |
| BRACKET MOUNTING | ||
| 10X20 MM | ||
| 108 | N 912004010102 | LOCK WASHER |
| BRACKET MOUNTING | ||
| 109 | N 000934001014 | NUT |
| BRACKET MOUNTING | ||
| A 0009954801 | CLAMP | |
| Repalced by: N 916016018201 | ||
| 110 | N 916016018201 | CLAMP |
| SPEEDOMETER CABLE TO BRACKET | ||
| 111 | N 000933006102 | SCREW |
| CLAMP MOUNTING | ||
| 6X15 MM | ||
| 112 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 113 | N 000934006007 | NUT |
| CLAMP MOUNTING | ||
| 115 | A 3525400041 | GROUND STRAP |
| AT BELL HOUSING | ||
| 116 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 116 | N 304017010002 | SCREW |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 117 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 117 | N 009021010209 | WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 118 | N 912004010102 | LOCK WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 119 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 119 | N 304032010003 | NUT |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 121 | A 0005450908 | SWITCH |
| STARTING CHANGE-OVER SWITCH | ||
| 122 | A 0005450334 | FUSE |
| 80 A | ||
| 123 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 123 | N 304017008021 | HEXAGON HEAD BOLT |
| FROM BATTERY CHANGE-OVER SWITCH TO BATTERY SUPPORT | ||
| M8X20 | ||
| 123 | N 000933008161 | SCREW |
| Repalced by: N 304017008028 | ||
| 123 | N 304017008028 | SCREW |
| FROM BATTERY CHANGE-OVER SWITCH TO BATTERY SUPPORT | ||
| 8X50 MM | ||
| 124 | N 912004008102 | LOCK WASHER |
| FROM BATTERY CHANGE-OVER SWITCH TO BATTERY SUPPORT | ||
| 125 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 125 | N 009021008213 | WASHER |
| FROM BATTERY CHANGE-OVER SWITCH TO BATTERY SUPPORT | ||
| Repalced by: N 000000003250 | ||
| 125 | N 000000003250 | WASHER |
| FROM BATTERY CHANGE-OVER SWITCH TO BATTERY SUPPORT | ||
| 126 | N 304032008006 | NUT |
| FROM BATTERY CHANGE-OVER SWITCH TO BATTERY SUPPORT | ||
| 130 | A 0001545906 | REGULATOR AND CUT-OUT |
| ALTERNATOR | ||
| A 0011549206 | REGULATOR AND CUT-OUT | |
| Repalced by: A 0021543606 | ||
| 132 | A 0021543606 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021547406 | ||
| 132 | A 0021547406 | REGULATOR AND CUT-OUT |
| ALTERNATOR | ||
| 134 | N 007985006154 | SCREW |
| Repalced by: A 0029903712 | ||
| 134 | A 0029903712 | SCREW |
| Repalced by: N 000000001149 | ||
| 134 | N 000000001149 | HEXALOBULAR BOLT |
| REGULATOR MOUNTING | ||
| 6X25 MM | ||
| 134 | N 000000001147 | SCREW |
| REGULATOR MOUNTING | ||
| M 6X20 | ||
| 135 | N 912004006102 | LOCK WASHER |
| REGULATOR MOUNTING | ||
| 136 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 136 | N 913004006001 | NUT |
| Repalced by: N 910113006000 | ||
| 136 | N 910113006000 | NUT |
| REGULATOR MOUNTING | ||
| 138 | A 0015452518 | RESISTOR |
| CHARGE CONTROL | ||
| 140 | A 3525401939 | ELECTRIC CABLE |
| FROM ALTERNATOR TO REGULATOR | ||
| A 3525402139 | ELECTRIC CABLE | |
| FROM ALTERNATOR TO REGULATOR | ||
| 142 | A 3129952020 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 143 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 143 | N 000000000460 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| 4.8X13 | ||
| A 3525404973 | BRACKET | |
| Repalced by: A 3525408573 | ||
| 145 | A 3525408573 | BRACKET |
| CABLE HARNESS MOUNTING | ||
| 146 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 146 | N 000000000460 | SHEET METAL SCREW |
| BRACKET TO CAB FLOOR | ||
| 4.8X13 | ||
| 147 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 147 | N 000433005304 | WASHER |
| BRACKET TO CAB FLOOR | ||
| A 0005460543 | BRACKET | |
| Repalced by: A 0039971490 | ||
| A 0039971490 | LOOM TIE | |
| CABLE HARNESS MOUNTING | ||
| A 3529850185 | EDGE GUARD SECTION | |
| Repalced by: A 3309850151 | ||
| 149 | A 3309850151 | METAL SECTION |
| A 0015428020 | HORN | |
| Repalced by: A 0025426220 | ||
| A 0015427920 | HORN | |
| Repalced by: A 0025426220 | ||
| A 0025426220 | HORN | |
| Repalced by: A 0035423220 | ||
| 151 | A 0035423220 | HORN |
| Repalced by: A 6315420120 | ||
| 151 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 151 | A 0035422720 | HORN |
| A 0025425320 | HORN | |
| Repalced by: A 0025426420 | ||
| 151 | A 0025426420 | HORN |
| Repalced by: A 6315420120 | ||
| 151 | A 6315420120 | HORN |
| Repalced by: A 0035422720 | ||
| 151 | A 0035422720 | HORN |
| 152 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE TO HORN | ||
| 153 | N 007985004123 | SCREW |
| ELECTRIC CABLE TO HORN | ||
| 4X6 MM | ||
| 155 | A 3525420540 | BRACKET |
| HORN | ||
| 156 | N 000933010128 | SCREW |
| BRACKET TO FRAME | ||
| 10X20 MM | ||
| 156 | N 000933010105 | SCREW |
| HORN TO BRACKET | ||
| 10X25 MM | ||
| 156 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 156 | N 304017010002 | SCREW |
| HORN TO ENGINE CROSS MEMBER | ||
| M 10X30 | ||
| 157 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 157 | N 000125010532 | WASHER |
| HORN TO ENGINE CROSS MEMBER | ||
| 158 | N 912004010102 | LOCK WASHER |
| HORN TO ENGINE CROSS MEMBER | ||
| 159 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 159 | N 304032010003 | NUT |
| HORN TO ENGINE CROSS MEMBER | ||
| A 0025453524 | SWITCH,AUTOMATIC | |
| Repalced by: A 0035458324 | ||
| A 0035458124 | SWITCH,AUTOMATIC | |
| Repalced by: A 0035458324 | ||
| 161 | A 0035458324 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 163 | A 0005452637 | BUTTON |
| 165 | N 000966005027 | SCREW |
| 167 | A 0015458228 | PLUG HOUSING |
| 8-POLE | ||
| 169 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 3149970281 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 171 | A 3359970081 | GROMMET |
| STEERING-COLUMN-MOUNTED-SWITCH CABLE THRU BODY | ||
| 173 | A 3129952020 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 376 MM | ||
| 174 | N 912004005103 | LOCK WASHER |
| CABLE HARNESS MOUNTING | ||
| 175 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 175 | N 304032005005 | NUT |
| CABLE HARNESS MOUNTING | ||
| 176 | N 007985005175 | SCREW |
| CABLE HARNESS MOUNTING | ||
| 5X16 MM | ||
| 178 | A 0005449932 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| A 0015441232 | SENDER UNIT | |
| Repalced by: A 0015447532 | ||
| 178 | A 0015447532 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| A 0015445032 | SENDER UNIT | |
| Repalced by: A 0025447732 | ||
| A 0025440732 | SENDER UNIT | |
| Repalced by: A 0025447732 | ||
| 180 | A 0025447732 | SENDER UNIT |
| HAZARD WARNING LIGHT | ||
| A 0015448032 | SENDER UNIT | |
| HAZARD WARNING LIGHT | ||
| A 0025440932 | SENDER UNIT | |
| Repalced by: A 0025447332 | ||
| A 0015447932 | SENDER UNIT | |
| Repalced by: A 0025447332 | ||
| 180 | A 0025447332 | SENDER UNIT |
| HAZARD WARNING LIGHT SENDER UNIT | ||
| 180 | A 0025447332 | SENDER UNIT |
| HAZARD WARNING LIGHT SENDER UNIT | ||
| 182 | A 3525422140 | BRACKET |
| BLINKER SENDER UNIT MOUNTING | ||
| 184 | A 3525422440 | BRACKET |
| BLINKER SENDER UNIT MOUNTING | ||
| 186 | N 007985005175 | SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 5X16 MM | ||
| 187 | N 912004005103 | LOCK WASHER |
| BLINKER SENDER UNIT MOUNTING | ||
| 188 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 188 | N 304032005005 | NUT |
| BLINKER SENDER UNIT MOUNTING | ||
| A 0005454509 | SWITCH | |
| Repalced by: A 0005456009 | ||
| 190 | A 0005456009 | SWITCH |
| STOP LIGHT | ||

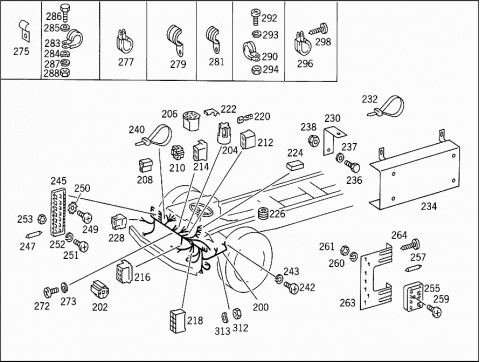

| 200 | A 3525403705 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 200 | A 3585400205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 200 | A 3585400805 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 200 | A 3585401205 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 200 | A 3525404905 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 200 | A 3585400305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 200 | A 3585400905 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 200 | A 3585401305 | CABLE HARNESS |
| CAB MAIN CABLE HARNESS | ||
| 202 | A 0025451728 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 204 | A 0045451428 | PLUG |
| HAZARD WARNING LIGHT SWITCH | ||
| 206 | A 0065455528 | PIN BUSHING HOUSING |
| HAZARD WARNING LIGHT SWITCH | ||
| 208 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 210 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 212 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 214 | A 0015454128 | PIN BUSHING HOUSING |
| 216 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 218 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| A 0005454526 | PIN BUSHING | |
| Repalced by: A 0005453726 | ||
| 220 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 220 | A 0075458426 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 220 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 220 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 220 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 220 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 220 | A 0005454026 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 220 | A 0005454626 | PIN BUSHING |
| WITH DETENT;LESS CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 220 | A 0025454026 | FLAT PIN BUSHING |
| Repalced by: A 0035455326 | ||
| 220 | A 0035455326 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6 MM2 | ||
| 222 | A 0005453626 | PIN BUSHING |
| Repalced by: A 0075457426 | ||
| 222 | A 0075457426 | PIN BUSHING |
| 4 MM2 | ||
| 224 | A 0005451745 | BOOT |
| 226 | A 3609970281 | GROMMET |
| 226 | A 0059971981 | GROMMET |
| 228 | A 0025459528 | PIN BUSHING HOUSING |
| A 3604292040 | BRACKET | |
| Repalced by: A 3604292940 | ||
| 230 | A 3604292940 | BRACKET |
| MAIN CABLE HARNESS TO CROSS MEMBER | ||
| 232 | A 0019978490 | LOOM TIE |
| MAIN CABLE HARNESS TO CROSS MEMBER | ||
| 376 MM | ||
| A 3555400080 | COVERING | |
| Repalced by: A 3855400180 | ||
| 234 | A 3855400180 | COVERING |
| AT SIDE MEMBER | ||
| 236 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 236 | N 304017008027 | SCREW |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 8X30 | ||
| 237 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 237 | N 000125008443 | WASHER |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| 238 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 238 | N 913004008001 | NUT |
| PROTECTIVE PLATE TO SIDE MEMBER | ||
| A 0019979590 | LOOM TIE | |
| Repalced by: A 0019978390 | ||
| 240 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| 240 | A 0019978490 | LOOM TIE |
| 242 | N 000084006132 | SCREW |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 243 | N 912004006102 | LOCK WASHER |
| CABLE TO STARTING MOTOR,TERMINAL 50 | ||
| 245 | A 3145450001 | FUSE BOX |
| A 0005454834 | FUSE | |
| Repalced by: A 0005458334 | ||
| 247 | A 0005458334 | FUSE |
| 16 A | ||
| N 914028004100 | COMBINATION BOLT | |
| Repalced by: N 007985004136 | ||
| 249 | N 007985004136 | SCREW |
| CABLE TO FUSE BOX | ||
| 4X12 MM | ||
| 250 | N 006797004333 | TOOTHED WASHER |
| CABLE TO FUSE BOX | ||
| 251 | N 007985005175 | SCREW |
| FUSE BOX TO BRACKET | ||
| 5X16 MM | ||
| 252 | N 912004005103 | LOCK WASHER |
| FUSE BOX TO BRACKET | ||
| 253 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 253 | N 304032005005 | NUT |
| FUSE BOX TO BRACKET | ||
| 255 | A 0005457901 | FUSE BOX |
| 4-POLE | ||
| 257 | A 0005458234 | FUSE |
| Repalced by: N 072581008101 | ||
| 257 | N 072581008101 | FUSE |
| 259 | N 007985005175 | SCREW |
| FUSE BOX TO BRACKET | ||
| 5X16 MM | ||
| 260 | N 912004005103 | LOCK WASHER |
| FUSE BOX TO BRACKET | ||
| 261 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 261 | N 304032005005 | NUT |
| FUSE BOX TO BRACKET | ||
| 263 | A 3365450086 | CLAMP |
| FUSE BOX | ||
| 264 | N 007981006208 | SHEET METAL SCREW |
| 6.3X13 MM | ||

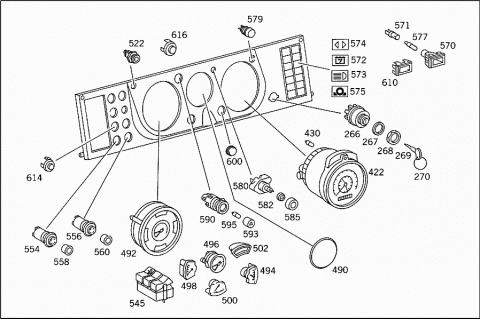

| 266 | A 0005453013 | SWITCH |
| (IGNITION AND LIGHT SWITH) | ||
| A 0005450176 | WASHER | |
| Repalced by: A 0005450376 | ||
| 267 | A 0005450376 | WASHER |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| A 0005450672 | NUT | |
| Repalced by: A 0005451072 | ||
| 268 | A 0005451072 | NUT |
| IGNITION SWITCH TO INSTRUMENT PANEL | ||
| 269 | A 0005451235 | KEY |
| IGNITION AND LIGHT SWITCH | ||
| 270 | A 0005830296 | RING |
| IGNITION AND LIGHT SWITCH | ||
| 272 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 272 | N 000000001145 | SCREW |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 6X12 MM | ||
| 273 | N 912004006102 | LOCK WASHER |
| MAIN CABLE HARNESS GROUND TO WINDOW SILL LOWER PART | ||
| 275 | N 072571001025 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 12 MM | ||
| A 0009959501 | CLAMP | |
| Repalced by: N 916016022203 | ||
| 277 | N 916016022206 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 22 MM | ||
| Repalced by: N 916016022203 | ||
| 277 | N 916016022203 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 22 MM | ||
| 279 | A 1369950135 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 26 MM | ||
| 281 | A 1869950037 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| A 0009952101 | CLAMP | |
| Repalced by: N 916016012200 | ||
| 283 | N 916016012200 | CLAMP |
| 283 | N 916016012201 | CLAMP |
| CLAMP TO ALTERNATOR | ||
| 284 | N 000137005203 | SPRING WASHER |
| CLAMP TO ALTERNATOR | ||
| 285 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 285 | N 009021005205 | WASHER |
| CLAMP TO ALTERNATOR | ||
| 286 | N 000933005059 | SCREW |
| CLAMP TO ALTERNATOR | ||
| 5 X 12 MM | ||
| 287 | N 912004005103 | LOCK WASHER |
| CLAMP TO ALTERNATOR | ||
| 288 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 288 | N 304032005005 | NUT |
| CLAMP TO ALTERNATOR | ||
| 290 | N 916016012200 | CLAMP |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR BRACKET | ||
| 292 | N 000933006102 | SCREW |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR BRACKET | ||
| M 6X15 | ||
| 293 | N 912004006102 | LOCK WASHER |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR BRACKET | ||
| 294 | N 000934006000 | NUT |
| Repalced by: N 304032006004 | ||
| 294 | N 304032006004 | NUT |
| ALTERNATOR BRANCH-OFF TO ALTERNATOR BRACKET | ||
| A 0009957901 | CLAMP | |
| Repalced by: N 916016028202 | ||
| 296 | N 916016028204 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 298 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 298 | N 000000000460 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| 4.8X13 | ||
| 300 | N 000000001147 | SCREW |
| CABLE HARNESS MOUNTING | ||
| M 6X20 | ||
| 300 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 300 | N 000000001145 | SCREW |
| CABLE HARNESS MOUNTING | ||
| 6X12 MM | ||
| 302 | A 3152920140 | BRACKET |
| CABLE HARNESS MOUNTING | ||
| 304 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 304 | N 913004006001 | NUT |
| Repalced by: N 910113006000 | ||
| 304 | N 910113006000 | NUT |
| CABLE HARNESS MOUNTING | ||
| A 0009954801 | CLAMP | |
| Repalced by: N 916016018201 | ||
| 306 | N 916016018201 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 18 MM | ||
| 308 | N 000966006009 | SCREW |
| Repalced by: N 000966006044 | ||
| 308 | N 000966006044 | SCREW |
| CABLE HARNESS MOUNTING | ||
| M6X30 | ||
| 309 | N 912004006102 | LOCK WASHER |
| CABLE HARNESS MOUNTING | ||
| 310 | N 000934006007 | NUT |
| CABLE HARNESS MOUNTING | ||
| 311 | N 000137006204 | SPRING WASHER |
| 312 | N 304032008006 | NUT |
| CABLE TO ALTERNATOR | ||
| 313 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 313 | N 000137008212 | SPRING WASHER |
| 315 | N 916016006200 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 316 | N 007981004258 | TAPPING SCREW |
| CABLE HARNESS MOUNTING | ||
| A 3219950040 | CLAMP | |
| Repalced by: A 0005460875 | ||
| 318 | A 0005460875 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| A 3529950040 | CLAMP | |
| Repalced by: A 3099950140 | ||
| 320 | A 3099950140 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 322 | A 3816820086 | BRACKET |
| CABLE HARNESS MOUNTING | ||
| 322 | A 3816820086 | BRACKET |
| CABLE HARNESS MOUNTING | ||
| 323 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 323 | N 000000000460 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| 4.8X13 | ||
| 325 | A 0019978590 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 325 | A 0019978490 | LOOM TIE |
| MAIN CABLE HARNESS TO WINDOW LEVEL GIRDER | ||
| 376 MM | ||
| 325 | A 0019978390 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 280 MM | ||
| A 3219970281 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 327 | A 3359970081 | GROMMET |
| MAIN CABLE HARNESS TO FIRE WALL | ||

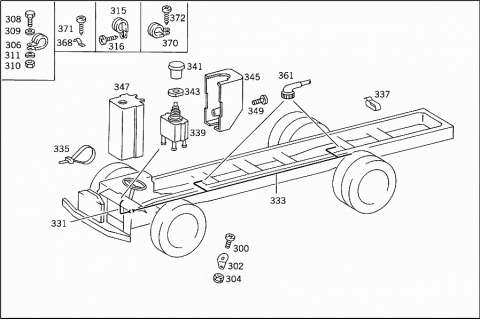

| 331 | A 3525401137 | ELECTRIC CABLE |
| FROM BIPOLAR PLUG CONNECTION TO TWOSPEED REAR AXLE CONTROL SWITCH | ||
| 333 | A 3605403437 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REDUCTION GEARING 3/2-WAY VALVE SWITCH | ||
| 335 | N 900262009100 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 335 | N 900263009017 | STRAP |
| CABLE HARNESS MOUNTING | ||
| 337 | A 3219950040 | CLAMP |
| ELECTRIC CABLE TO CROSS MEMBER AT REAR AXLE | ||
| 339 | A 0015452411 | SWITCH |
| TWO-SPEED REAR AXLE CONTROL | ||
| 341 | A 0005453837 | BUTTON |
| TWO-SPEED REAR AXLE CONTROL | ||
| 343 | A 0029906251 | NUT |
| SWITCH TO SHIFT LEVER BRACKET | ||
| 345 | A 0005450730 | SHELL |
| SWITCH TO SHIFT LEVER BRACKET | ||
| 347 | A 0005450830 | SHELL |
| SWITCH TO SHIFT LEVER BRACKET | ||
| 349 | N 007985004163 | SCREW |
| CASE TO SHIFT LEVER BRACKET | ||
| 4X18 | ||
| A 3585405627 | ELECTRIC CABLE | |
| Repalced by: A 3585405727 | ||
| 351 | A 3585405727 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 351 | A 3585406327 | ELECTRIC CABLE |
| Repalced by: A 3585406427 | ||
| 351 | A 3585406427 | ELECTRIC CABLE |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 353 | A 0015456028 | PLUG HOUSING |
| 355 | A 0015458228 | PLUG HOUSING |
| 357 | A 0015458628 | PLUG |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 357 | A 0025450628 | PLUG |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 359 | A 0005453726 | PIN BUSHING |
| Repalced by: A 0075458426 | ||
| 359 | A 0075458426 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| 359 | A 0005453826 | PIN BUSHING |
| Repalced by: A 0075458226 | ||
| 359 | A 0075458226 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM2 | ||
| A 0005400181 | PLUG SOCKET | |
| Repalced by: A 3805400181 | ||
| A 0005400481 | PLUG SOCKET | |
| Repalced by: A 3805400181 | ||
| A 3805400181 | PLUG SOCKET | |
| Repalced by: A 3805402181 | ||
| 361 | A 3805402181 | PLUG SOCKET |
| REPAIR SIZE | ||
| M 24 X 1 | ||
| A 0005400281 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| A 0005400581 | PLUG SOCKET | |
| Repalced by: A 3805400281 | ||
| A 3805400281 | PLUG SOCKET | |
| Repalced by: A 3805402281 | ||
| 361 | A 3805402281 | PLUG SOCKET |
| REPAIR SIZE | ||
| M 27X1 | ||
| 363 | A 3525403073 | BRACKET |
| CABLE HARNESS MOUNTING | ||
| 365 | N 000000001147 | SCREW |
| CABLE HARNESS MOUNTING | ||
| M 6X20 | ||
| 366 | N 912004006102 | LOCK WASHER |
| CABLE HARNESS MOUNTING | ||
| 368 | N 072571001025 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 370 | N 916016018201 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| 370 | N 916016012200 | CLAMP |
| CABLE HARNESS MOUNTING | ||
| B 4.8X16 | ||
| 371 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 371 | N 000000000460 | SHEET METAL SCREW |
| CABLE HARNESS MOUNTING | ||
| 4.8X13 | ||
| 372 | N 007981004258 | TAPPING SCREW |
| CABLE HARNESS MOUNTING | ||
| A 3529950040 | CLAMP | |
| Repalced by: A 3099950140 | ||
| 374 | A 3099950140 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| A 3129951040 | CLAMP | |
| Repalced by: A 0005460875 | ||
| A 3219950040 | CLAMP | |
| Repalced by: A 0005460875 | ||
| 376 | A 0005460875 | CLAMP |
| CABLE BRANCH-OFF TO HORN TO FRAME SIDE MEMBER | ||
| 378 | A 0019978490 | LOOM TIE |
| TO MOUNT FUEL-GAUGE-SENDER-UNIT CABLE BRANCH-OFF | ||
| A 0009881678 | CLIP | |
| N 007985006193 | SCREW | |
| Repalced by: N 000000001146 | ||
| N 000000001146 | SCREW | |
| TO MOUNT FUEL-GAUGE-SENDER-UNIT CABLE BRANCH-OFF | ||
| M 6X16 | ||
| N 912004006102 | LOCK WASHER | |
| TO MOUNT FUEL-GAUGE-SENDER-UNIT CABLE BRANCH-OFF | ||
| N 000934006007 | NUT | |
| TO MOUNT FUEL-GAUGE-SENDER-UNIT CABLE BRANCH-OFF | ||
| 380 | A 3559970081 | GROMMET |
| CABLE BRANCH-OFF TO FUEL GAUGE SENDER UNIT THRU SIDE MEMBER | ||
| 382 | A 3129970481 | GROMMET |
| CABLE BRANCH-OFF TO FUEL GAUGE SENDER UNIT THRU SIDE MEMBER | ||
| 384 | A 0005466141 | CABLE CONNECTOR |
| 6-POLE; REAR | ||
| 386 | A 0005460781 | COVERING |
| WITH GASKET | ||
| 388 | N 007985004130 | SCREW |
| REAR CABLE CONNECTOR | ||
| 4X20 MM | ||
| 390 | N 009021004108 | WASHER |
| Repalced by: N 009021004207 | ||
| 390 | N 009021004207 | WASHER |
| REAR CABLE CONNECTOR | ||
| 392 | N 912004004102 | LOCK WASHER |
| REAR CABLE CONNECTOR | ||
| 394 | N 000934004006 | NUT |
| REAR CABLE CONNECTOR | ||
| A 0045421310 | TACHOGRAPH | |
| Repalced by: A 0055428810 | ||
| 422 | A 0055428810 | TACHOGRAPH |
| A 0075422906 | SPEEDOMETER | |
| Repalced by: A 0075429610 | ||
| A 0075429610 | TACHOGRAPH | |
| Repalced by: A 0085425310 | ||
| 422 | A 0085425310 | TACHOGRAPH |
| ONE-DAY REGISTRATION;READING IN KILOMETERS;MEASURING RANGE,125KM/H | ||
| 425 | A 0005421347 | COUPLER |
| 425 | A 0005421347 | COUPLER |
| 425 | A 0005422447 | COUPLER |
| A 0005421994 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| TO 005 542 88 10 | ||
| A 0005423394 | DIAGRAM PAPER | |
| SET = 100 PIECES | ||
| TO 007 542 96 10,008 542 53 10,27 10 | ||
| 430 | N 072601012800 | BULB |
| 2 W | ||
| 430 | A 0015442594 | BULB |
| Repalced by: A 0005453419 | ||
| 430 | A 0005453419 | SOCKET LAMP |
| 12 V 1.2 W | ||
| A 3525840540 | DECALCOMANIA | |
| MEASURING RANGE,90 KM OR 60 MPH | ||
| A 3605842240 | DECALCOMANIA | |
| MEASURING RANGE,90 KM OR 60 MPH | ||

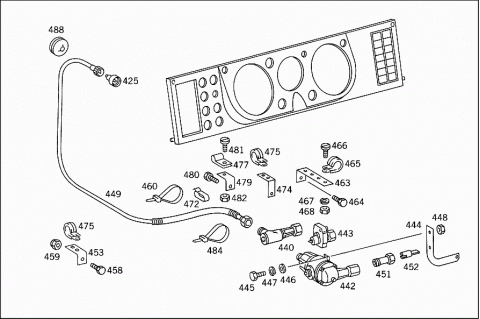

| 440 | A 0025422730 | ANGLE DRIVE |
| USED WITH REAR AXLE RATIO 39:8 AND WITH 10.00-20 TIRES | ||
| A 0015422230 | ANGLE DRIVE | |
| Repalced by: A 0035423530 | ||
| 440 | A 0035423530 | ANGLE DRIVE |
| USED WITH REAR AXLE RATIO 43:7 AND WITH 10.00-20 TIRES | ||
| 440 | A 0025429930 | ANGLE DRIVE |
| USED WITH REAR AXLE RATIO 43:7 AND WITH 9.00-20,OR 10-22.5,TIRES | ||
| 442 | A 0015424530 | REDUCTION GEARING |
| 443 | A 3875422209 | ADAPTER |
| 444 | A 3375425140 | BRACKET |
| REDUCTION GEARING | ||
| 445 | N 000933005049 | SCREW |
| REDUCTION GEARING | ||
| 5X18 MM | ||
| 446 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 446 | N 000433005304 | WASHER |
| REDUCTION GEARING | ||
| 447 | N 912004005103 | LOCK WASHER |
| REDUCTION GEARING | ||
| 448 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 448 | N 304032005005 | NUT |
| REDUCTION GEARING | ||
| A 0025426007 | FLEXIBLE SHAFT | |
| Repalced by: A 0045427207 | ||
| 449 | A 0045427207 | FLEXIBLE SHAFT |
| 3050 MM | ||
| 449 | A 0045427207 | FLEXIBLE SHAFT |
| 3050 MM | ||
| A 0055420807 | FLEXIBLE SHAFT | |
| Repalced by: A 0025429807 | ||
| 449 | A 0025429807 | FLEXIBLE SHAFT |
| 3120 MM | ||
| 449 | A 0025429807 | FLEXIBLE SHAFT |
| 3120 MM | ||
| 449 | A 0025429807 | FLEXIBLE SHAFT |
| 3120 MM | ||
| 449 | A 0045420207 | FLEXIBLE SHAFT |
| 3350 MM | ||
| 449 | A 0045420207 | FLEXIBLE SHAFT |
| 3350 MM | ||
| A 0025426207 | FLEXIBLE SHAFT | |
| Repalced by: A 0055422707 | ||
| A 0055422707 | FLEXIBLE SHAFT | |
| Repalced by: A 0045424307 | ||
| 449 | A 0045424307 | FLEXIBLE SHAFT |
| 3650 MM | ||
| 449 | A 0045424307 | FLEXIBLE SHAFT |
| 3650 MM | ||
| 449 | A 0055422007 | FLEXIBLE SHAFT |
| 3890 MM | ||
| 451 | A 0005420846 | CONNECTOR |
| FLEXIBLE SHAFT | ||
| 452 | A 0005420947 | COUPLER |
| FLEXIBLE SHAFT | ||
| A 3524292240 | BRACKET | |
| Repalced by: A 3974290140 | ||
| 453 | A 3974290140 | BRACKET |
| Repalced by: A 6205243040 | ||
| 453 | A 6205243040 | BRACKET |
| FLEXIBLE SHAFT TO FRAME | ||
| 453 | A 6205243040 | BRACKET |
| AT CROSS MEMBER | ||
| 458 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 458 | N 304017008027 | SCREW |
| BRACKET | ||
| M 8X30 | ||
| 459 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 459 | N 913004008001 | NUT |
| BRACKET | ||
| 460 | A 0019978490 | LOOM TIE |
| FLEXIBLE SHAFT TO FRAME SIDE MEMBER | ||
| 376 MM | ||
| A 3874292940 | BRACKET | |
| Repalced by: A 3852670040 | ||
| 463 | A 3852670040 | BRACKET |
| FLEXIBLE SHAFT TO FRAME SIDE MEMBER | ||
| 464 | N 000933010105 | SCREW |
| AT ENGINE FRONT CROSS MEMBER | ||
| A 0009957901 | CLAMP | |
| Repalced by: N 916016028202 | ||
| 465 | N 916016028204 | CLAMP |
| FLEXIBLE SHAFT TO FRAME | ||
| 28 MM | ||
| A 0009952101 | CLAMP | |
| Repalced by: N 916016012200 | ||
| 465 | N 916016012200 | CLAMP |
| FLEXIBLE SHAFT TO FRAME | ||
| 12 MM | ||
| 466 | N 000084006137 | SCREW |
| FLEXIBLE SHAFT TO FRAME | ||
| 6X20 MM | ||
| 466 | N 000000001147 | SCREW |
| FLEXIBLE SHAFT TO FRAME | ||
| M 6X20 | ||
| 466 | N 000084006197 | SCREW |
| FLEXIBLE SHAFT TO FRAME | ||
| 6X16 MM | ||
| 467 | N 912004006102 | LOCK WASHER |
| FLEXIBLE SHAFT TO FRAME | ||
| 468 | N 000934006007 | NUT |
| FLEXIBLE SHAFT TO FRAME | ||
| A 3529950040 | CLAMP | |
| Repalced by: A 3099950140 | ||
| 472 | A 3099950140 | CLAMP |
| AT LEFT SIDE MEMBER | ||
| 474 | A 3274925419 | BRACKET |
| Repalced by: A 6205240340 | ||
| 474 | A 6205240340 | BRACKET |
| FLEXIBLE SHAFT MOUNTING | ||
| 474 | A 6205240340 | BRACKET |
| FLEXIBLE SHAFT MOUNTING | ||
| A 0009954801 | CLAMP | |
| Repalced by: N 916016018201 | ||
| 475 | N 916016018201 | CLAMP |
| FLEXIBLE SHAFT TO BRACKET | ||
| 477 | A 3609951701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 477 | N 916016018202 | CLAMP |
| AT ENGINE FRONT CROSS MEMBER | ||
| 22 MM | ||
| A 3609950501 | CLAMP | |
| Repalced by: A 3609952001 | ||
| 477 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 477 | A 6739950001 | CLAMP |
| AT ENGINE FRONT CROSS MEMBER | ||
| 15 MM | ||
| 479 | A 3604280243 | ANGLE |
| AT ENGINE CROSS MEMBER,FRONT | ||
| 480 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 480 | N 304017008034 | SCREW |
| AT ENGINE CROSS MEMBER,FRONT | ||
| M 8X25 | ||
| 481 | N 000084006197 | SCREW |
| AT ENGINE CROSS MEMBER,FRONT | ||
| 6X16 MM | ||
| 482 | N 000934006007 | NUT |
| AT ENGINE CROSS MEMBER,FRONT | ||
| 484 | A 0019978490 | LOOM TIE |
| FLEXIBLE SHAFT | ||
| 376 MM | ||
| A 0005460543 | BRACKET | |
| Repalced by: A 0039971490 | ||
| A 0039971490 | LOOM TIE | |
| FLEXIBLE SHAFT | ||
| 135 MM | ||
| A 3219970081 | GROMMET | |
| Repalced by: A 3359970081 | ||
| 488 | A 3359970081 | GROMMET |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 488 | A 1109970481 | GROMMET |
| FLEXIBLE SHAFT THRU WINDOW SILL | ||
| 490 | A 3816890308 | COVERING |
| Repalced by: A 3816890808 | ||
| A 3819940045 | LOCK | |
| Repalced by: A 3816890808 | ||
| 490 | A 3816890808 | COVERING |
| A 0015402847 | INSTRUMENT CLUSTER | |
| 492 | A 0025402247 | INSTRUMENT CLUSTER |
| 494 | A 0025426005 | TEMPERATURE GAUGE |
| 494 | A 0035421005 | TEMPERATURE GAUGE |
| 496 | A 0005427608 | AIR PRESSURE GAUGE |
| 496 | A 0005429208 | AIR PRESSURE GAUGE |
| Repalced by: A 0005429108 | ||
| 496 | A 0005429108 | AIR PRESSURE GAUGE |
| 498 | A 0015424102 | OIL PRESSURE GAUGE |
| 500 | A 0005428503 | FUEL GAUGE DASH UNIT |
| 502 | A 0005420332 | TELL-TALE LAMP |
| BRAKE PRESSURE | ||
| 504 | N 007603014403 | SEAL RING |
| INSTRUMENT CLUSTER | ||
| 10X16 MM | ||
| A 0015424917 | SENDER UNIT | |
| Repalced by: A 0045428917 | ||
| 506 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| M 14X1.5 | ||
| 508 | A 0015422317 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 510 | N 007603014400 | SEAL RING |
| SENDER UNIT | ||
| 14X18 MM | ||
| A 0025456324 | SWITCH,AUTOMATIC | |
| Repalced by: A 0045455524 | ||
| A 0025457824 | SWITCH,AUTOMATIC | |
| Repalced by: A 0045455524 | ||
| 512 | A 0045455524 | SWITCH,AUTOMATIC |
| COOLING WATER TEMPERATURE CONTROL | ||
| 514 | N 007603014403 | SEAL RING |
| TEMPERATURE SWITCH | ||
| A 0009888878 | CLIP | |
| Repalced by: A 0039887978 | ||
| 516 | A 0039887978 | CLIP |
| Repalced by: A 0059888178 | ||
| 516 | A 0059888178 | CLIP |
| TEMPERATURE SWITCH | ||
| A 0009951159 | SHACKLE | |
| Repalced by: A 0019978390 | ||
| A 0019978390 | LOOM TIE | |
| TEMPERATURE SWITCH | ||
| A 0005421023 | BUZZER | |
| COOLING WATER TEMPERATURE WARNING | ||
| 520 | A 0005423523 | BUZZER |
| Repalced by: A 0015423223 | ||
| 520 | A 0015423223 | BUZZER |
| COOLING WATER TEMPERATURE WARNING | ||
| A 0005453526 | PLUG SOCKET | |
| Repalced by: A 0015458526 | ||
| A 0005453926 | PLUG SOCKET | |
| Repalced by: A 0015458526 | ||
| A 0005454426 | PLUG SOCKET | |
| Repalced by: A 0015458526 | ||
| 522 | A 0015458526 | PLUG SOCKET |
| HAND LAMP | ||
| 545 | A 0005454807 | SWITCH |
| 549 | A 0029882278 | CLIP |
| SWITCH | ||
| 554 | A 0005459311 | SWITCH |
| WINDSHIELD WIPER O F F O N | ||
| 556 | A 0005459211 | SWITCH |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 558 | A 0005451483 | CAP |
| WINDSHIELD WIPER O F F O N | ||
| 560 | A 0005451583 | CAP |
| WINDSHIELD WIPER,"SLOW-FAST" | ||
| 562 | A 0005425027 | WARNING INDICATOR |
| AIR CLEANER | ||
| 563 | A 0109977082 | HOSE |
| FROM WARNING INDICATOR TO AIR CLEANER | ||
| A 0009920105 | BUSHING | |
| Repalced by: N 915062004000 | ||
| 564 | N 915062004000 | SLEEVE |
| FROM WARNING INDICATOR TO AIR CLEANER | ||
| 565 | N 073379006206 | HOSE |
| FROM WARNING INDICATOR TO AIR CLEANER | ||
| 566 | A 0019978390 | LOOM TIE |
| FROM WARNING INDICATOR TO AIR CLEANER | ||
| 280 MM | ||
| A 0015450615 | TELL-TALE LAMP | |
| Repalced by: A 0005451630 | ||
| 570 | A 0005451630 | SHELL |
| INSTRUMENT PANEL | ||
| 571 | A 0005452319 | SOCKET |
| 572 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| 573 | A 0005451190 | LENS |
| HIGH BEAM | ||
| 574 | A 0005451290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 575 | A 0005451790 | LENS |
| PARKING BRAKE | ||
| 577 | N 072601012800 | BULB |
| 2 W | ||
| A 0005453914 | SWITCH | |
| Repalced by: A 0005456314 | ||
| A 0005456314 | SWITCH | |
| Repalced by: A 0015450214 | ||
| A 0015450214 | SWITCH | |
| Repalced by: A 0015454914 | ||
| 579 | A 0015454914 | SWITCH |
| STARTING AT INSTRUMENT PANEL | ||
| A 0005421425 | POTENTIOMETER | |
| Repalced by: A 3015420025 | ||
| 580 | A 3015420025 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 580 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 582 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| 582 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING SWITCH | ||
| A 0005420689 | KNOB | |
| Repalced by: A 0005421189 | ||
| A 0005421189 | KNOB | |
| Repalced by: A 0005421889 | ||
| 585 | A 0005421889 | KNOB |
| INSTRUMENT LIGHTING | ||
| A 0035453924 | SWITCH,AUTOMATIC | |
| Repalced by: A 0025457124 | ||
| 590 | A 0025457124 | SWITCH,AUTOMATIC |
| HAZARD WARNING LIGHT | ||
| 590 | A 0045450224 | SWITCH |
| HAZARD WARNING LIGHT | ||
| 593 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 595 | N 072601012110 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 2 W | ||
| 595 | N 072601012800 | BULB |
| HAZARD WARNING LIGHT SWITCH | ||
| 600 | A 3149870340 | RUBBER BUFFER |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
| 610 | A 0009973535 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 614 | A 0009970425 | EXPANSION PLUG |
| PUSHBUTTON SWITCH | ||
| 616 | A 0009970525 | EXPANSION PLUG |
| PUSH BUTTON SWITCH | ||
| 616 | A 0009970525 | EXPANSION PLUG |
| BRACKET TO BRAKE BOOSTER BEARING BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
