Transporto priemonė: OF 1621; VIN numerio dalis: 355099

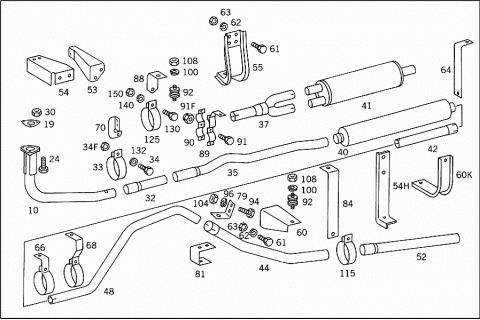

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3524900319 | EXHAUST PIPE |
| FRONT; FIRST PART | ||
| 010 | A 3524901319 | EXHAUST PIPE |
| FRONT; FIRST PART | ||
| 010 | A 3554900219 | EXHAUST PIPE |
| FRONT; FIRST PART | ||
| 019 | A 3024900080 | FLANGE GASKET |
| Repalced by: A 4424920080 | ||
| 019 | A 4424920080 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 019 | A 3554920080 | FLANGE GASKET |
| Repalced by: A 3504920080 | ||
| 019 | A 3504920080 | FLANGE GASKET |
| Repalced by: A 6004920080 | ||
| 019 | A 6004920080 | FLANGE GASKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 024 | N 000931012132 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 12X50 MM | ||
| 024 | N 000931012182 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 12X55 MM | ||
| 024 | N 900170012026 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 12X60 MM | ||
| 030 | N 913004012010 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 030 | N 000934012033 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 030 | N 000934014017 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 3604920107 | CONNECTOR | |
| Repalced by: A 3024920509 | ||
| 032 | A 3024920509 | CONNECTOR |
| FRONT | ||
| 032 | A 3554920007 | CONNECTOR |
| FRONT | ||
| 033 | N 071555075502 | CLAMP |
| CLAMP TO CONNECTOR | ||
| 034 | N 000933010105 | SCREW |
| CLAMP TO CONNECTOR | ||
| 034F | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 034F | N 910113010000 | NUT |
| CLAMP TO CONNECTOR | ||
| 035 | A 3524922401 | FRONT EXHAUST PIPE |
| FRONT;SECOND PART | ||
| 035 | A 3604925301 | FRONT EXHAUST PIPE |
| FRONT;SECOND PART | ||
| 035 | A 3524924501 | FRONT EXHAUST PIPE |
| FRONT;SECOND PART | ||
| 035 | A 3554920501 | FRONT EXHAUST PIPE |
| FRONT;SECOND PART | ||
| 037 | A 3554900119 | EXHAUST PIPE |
| FRONT,FOR MUFFLER | ||
| 040 | A 3604900001 | EXHAUST MUFFLER |
| Repalced by: A 3834900201 | ||
| 040 | A 3834900101 | EXHAUST MUFFLER |
| Repalced by: A 3834900201 | ||
| 040 | A 3834900201 | EXHAUST MUFFLER |
| 041 | A 3834900301 | EXHAUST MUFFLER |
| 042 | A 3604922307 | CONNECTOR |
| Repalced by: A 3834921007 | ||
| 042 | A 3834921007 | CONNECTOR |
| REAR | ||
| 042 | A 3554920107 | CONNECTOR |
| REAR | ||
| 044 | A 3604920804 | REAR EXHAUST PIPE |
| Repalced by: A 3604923505 | ||
| 044 | A 3604923505 | REAR EXHAUST PIPE |
| 048 | A 3604925304 | REAR EXHAUST PIPE |
| CENTRAL | ||
| 048 | A 3604920905 | REAR EXHAUST PIPE |
| CENTRAL | ||
| 052 | A 3604920214 | END PIECE |
| Repalced by: A 3834920907 | ||
| 052 | A 3834920907 | CONNECTOR |
| REAR EXHAUST PIPE | ||
| 053 | A 3524910016 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 053 | A 3524910016 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 054 | A 3224910016 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 054H | A 3604910516 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 055 | A 3814910016 | SUPPORT |
| EXHAUST MUFFLER TO SUPPORT AND TO PIPE | ||
| 060 | A 3604910916 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 060K | A 3834910316 | SUPPORT |
| REAR EXHAUST PIPE TO FRAME | ||
| 061 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 061 | N 304017008021 | HEXAGON HEAD BOLT |
| SUPPORT TO SIDE MEMBER | ||
| M8X20 | ||
| 061 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 061 | N 304017008034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 061 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 061 | N 304017008021 | HEXAGON HEAD BOLT |
| SUPPORT TO SIDE MEMBER | ||
| M8X20 | ||
| 061 | N 000933010105 | SCREW |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| M 10X25 | ||
| 062 | N 912004008102 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 063 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 063 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| M 8 | ||
| 063 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 063 | N 910113010000 | NUT |
| FRONT EXHAUST PIPE TO REAR EXHAUST PIPE | ||
| M 10X25 | ||
| 064 | A 3604921341 | BRACKET |
| Repalced by: A 3814923841 | ||
| 064 | A 3814923841 | BRACKET |
| EXHAUST | ||
| 335 MM | ||
| 066 | A 3834923541 | BRACKET |
| Repalced by: A 3834927941 | ||
| 066 | A 3834927941 | BRACKET |
| EXHAUST | ||
| 068 | A 3834927541 | BRACKET |
| EXHAUST | ||
| A 3604920319 | BRACKET | |
| Repalced by: A 3604921319 | ||
| 070 | A 3604921319 | BRACKET |
| AT CROSS MEMBER | ||
| 079 | A 3604921041 | BRACKET |
| Repalced by: A 3094921819 | ||
| 079 | A 3094921819 | BRACKET |
| AT CROSS MEMBER | ||
| 081 | A 3604924441 | BRACKET |
| REAR EXHAUST PIPE TO CROSS MEMBER | ||
| A 3524923319 | BRACKET | |
| REAR EXHAUST PIPE | ||
| A 3554920041 | BRACKET | |
| REAR EXHAUST PIPE | ||
| A 3604921519 | BRACKET | |
| REAR EXHAUST PIPE | ||
| 084 | A 3604921441 | BRACKET |
| Repalced by: A 3524920441 | ||
| 084 | A 3524920441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 200 MM | ||
| 084 | A 3604921941 | BRACKET |
| BRAKE BOOSTER | ||
| 084 | A 3604921841 | BRACKET |
| Repalced by: A 3524920441 | ||
| 084 | A 3524920441 | BRACKET |
| EXHAUST PIPE | ||
| 95 MM | ||
| 088 | A 3554920341 | BRACKET |
| Repalced by: A 3524920441 | ||
| 088 | A 3524920441 | BRACKET |
| EXHAUST PIPE | ||
| 120 MM | ||
| 088 | A 3814920041 | BRACKET |
| EXHAUST PIPE | ||
| 089 | A 3554900040 | BRACKET |
| EXHAUST PIPE | ||
| 090 | A 3834920940 | CLAMP |
| EXHAUST PIPE | ||
| 091 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 091 | N 304017010002 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X30 | ||
| 091F | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 091F | N 910113010000 | NUT |
| CLAMP TO BRACKET | ||
| A 0019873140 | RUBBER BUFFER | |
| Repalced by: A 0019875340 | ||
| 092 | A 0019875340 | RUBBER BUFFER |
| BRACKET TO SUPPORT | ||
| 094 | N 000933008145 | SCREW |
| BRACKET TO FRAME | ||
| 8X18 MM | ||
| 094 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 094 | N 304017008021 | HEXAGON HEAD BOLT |
| BRACKET TO SUPPORT | ||
| M8X20 | ||
| 094 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 094 | N 308676012012 | HEXAGON HEAD BOLT |
| BRACKET TO CONSOLE | ||
| M12X1.5X25 | ||
| 096 | N 912004008102 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 100 | N 912004010102 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 104 | N 304032008006 | NUT |
| BRACKET TO SUPPORT | ||
| 108 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 108 | N 304032010003 | NUT |
| BRACKET TO SUPPORT | ||
| 108 | N 910113012002 | NUT |
| BRACKET TO CONSOLE | ||
| 115 | N 071555060500 | CLAMP |
| Repalced by: N 000000001642 | ||
| 115 | N 000000001642 | CLAMP |
| EXHAUST PIPE | ||
| 60.5 MM | ||
| 115 | N 071555063500 | CLAMP |
| EXHAUST PIPE | ||
| 63.5 MM | ||
| 115 | N 071555065501 | CLAMP |
| EXHAUST PIPE | ||
| 65.5 MM | ||
| 115 | N 071555075502 | CLAMP |
| EXHAUST PIPE | ||
| 75.5 MM | ||
| 125 | N 071555078502 | CLAMP |
| EXHAUST PIPE | ||
| 78.5 MM | ||
| 125 | N 071555090502 | CLAMP |
| EXHAUST PIPE | ||
| 90.5 MM | ||
| 125 | N 071555094502 | CLAMP |
| EXHAUST PIPE | ||
| 94.5 MM | ||
| 130 | N 000933008145 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 8 X 15 MM | ||
| 130 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 130 | N 304017008021 | HEXAGON HEAD BOLT |
| CLAMP TO BRACKET AND TO PIPE | ||
| M8X20 | ||
| 130 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 130 | N 304017008021 | HEXAGON HEAD BOLT |
| CLAMP TO BRACKET AND TO PIPE | ||
| M8X20 | ||
| 130 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 130 | N 304017008034 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8X25 | ||
| 130 | N 000933010157 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 10X28 MM | ||
| 132 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 132 | N 000125008443 | WASHER |
| CLAMP TO BRACKET AND TO PIPE | ||
| 140 | N 912004008102 | LOCK WASHER |
| CLAMP TO BRACKET AND TO PIPE | ||
| 140 | N 912004010102 | LOCK WASHER |
| CLAMP TO BRACKET AND TO PIPE | ||
| 140 | N 912004012100 | LOCK WASHER |
| CLAMP TO BRACKET AND TO PIPE | ||
| 150 | N 304032008006 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 150 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 150 | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 150 | N 000934012022 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
