Transporto priemonė: OF 1621; VIN numerio dalis: 355099
Grupė: 31 FRAME

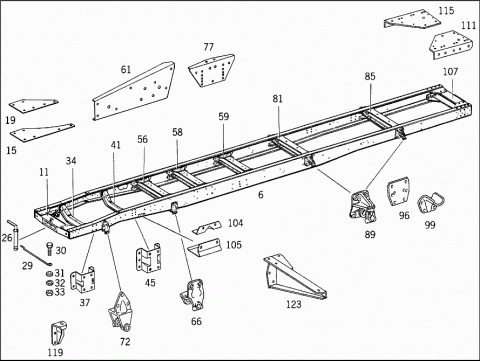

29060
# Kodas Pavadinimas
006 A 3553101901 FRAME
006 A 3553104201 FRAME
011 A 3523100222 CROSS MEMBER
FRONT
015 A 3523120387 GUSSET PLATE
FRONT BOTTOM
019 A 3603120687 GUSSET PLATE
Repalced by: A 3523120087
019 A 3523120087 GUSSET PLATE
FRONT TOP
N 000933010238 SCREW
Repalced by: N 304017010028
N 304017010028 HEXAGON HEAD BOLT
CROSS MEMBER TO SIDE MEMBERS
M10X20
N 000933010157 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 10X28
N 000934010014 NUT
Repalced by: N 304032010003
N 304032010003 NUT
CROSS MEMBER TO SIDE MEMBERS
026 A 3143150206 COUPLING PIN
Repalced by: A 3143150406
026 A 3143150406 COUPLING PIN
FRONT
029 A 3143150173 LOCK
COUPLING PIN
030 N 000933008154 SCREW
Repalced by: N 304017008021
030 N 304017008021 HEXAGON HEAD BOLT
LOCK TO FRONT CROSS MEMBER
031 N 000125008418 WASHER
Repalced by: N 000125008443
031 N 000125008443 WASHER
LOCK TO FRONT CROSS MEMBER
032 N 912004008102 LOCK WASHER
LOCK TO FRONT CROSS MEMBER
033 N 304032008006 NUT
LOCK TO FRONT CROSS MEMBER
034 A 3523120305 ENGINE CROSS MEMBER
NO.2
037 A 3523120360 REINFORCEMENT
LEFT
037 A 3523120460 REINFORCEMENT
RIGHT
N 000933010128 SCREW
ENGINE CROSS MEMBER TO SIDE MEMBERS
M 10X20
N 912004010102 LOCK WASHER
ENGINE CROSS MEMBER TO SIDE MEMBERS
N 000934010014 NUT
Repalced by: N 304032010003
N 304032010003 NUT
ENGINE CROSS MEMBER TO SIDE MEMBERS
041 A 3523120009 CROSS MEMBER
NO.3
041 A 3603120009 CROSS MEMBER
NO.3
045 A 3523100609 BRACKET
ENGINE CROSS MEMBER
NO.2
N 000933010105 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
M 10X25
N 000934010014 NUT
Repalced by: N 304032010003
N 304032010003 NUT
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
N 000961012052 SCREW
Repalced by: N 308676012012
N 308676012012 HEXAGON HEAD BOLT
BRACKET TO CROSS MEMBER
M12X1.5X25
N 308676012012 HEXAGON HEAD BOLT
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
M12X1.5X25
N 000961014154 SCREW
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
M 14X25
N 000934014019 NUT
Repalced by: N 308673014001
N 308673014001 HEXAGON NUT
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
N 000961012151 SCREW
BRACKET TO CROSS MEMBER
M 12X30
N 000125013008 WASHER
N 912004012100 LOCK WASHER
BRACKET TO CROSS MEMBER
N 000934012022 NUT
BRACKET TO CROSS MEMBER
N 000934012022 NUT
CROSS MEMBER AND GUSSET PLATE TO SIDE MEMBERS
056 A 3553100036 CROSS MEMBER
Repalced by: A 3553100236
056 A 3553100336 CROSS MEMBER
Repalced by: A 3553100236
056 A 3553100236 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.4
058 A 3603100036 CROSS MEMBER
Repalced by: A 3553100436
058 A 3553100436 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.5
058 A 3553100436 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.5
058 A 3553100536 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.5
059 A 3553100136 CROSS MEMBER
Repalced by: A 3553100536
059 A 3553100536 CROSS MEMBER
NO.6
061 A 3523112860 REINFORCEMENT
LEFT;FRONT SPRING FRONT BRACKET
061 A 3523112960 REINFORCEMENT
RIGHT;FRONT SPRING FRONT BRACKET
066 A 3553220101 FRONT SPRING BRACKET
FRONT
066 A 3553220201 FRONT SPRING BRACKET
FRONT
072 A 3553220001 FRONT SPRING BRACKET
REAR
A 3559900901 SCREW
Repalced by: A 3589900414
A 3589900414 SCREW
Repalced by: A 3589900714
A 3589900714 SCREW
Repalced by: A 3859901814
A 3859901814 SCREW
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
N 913004014002 NUT
Repalced by: N 910113014001
N 910113014001 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
N 913004016005 NUT
Repalced by: N 910113016001
N 910113016001 NUT
FRONT SPRING FRONT BRACKET TO SIDE MEMBER
077 A 3523230795 REINFORCEMENT
BEARING BRACKET TO SIDE MEMBER
077 A 3523230995 REINFORCEMENT
BEARING BRACKET TO SIDE MEMBER
081 A 3603100142 CROSS MEMBER
Repalced by: A 3813120017
081 A 3813120017 CROSS MEMBER
REAR SPRING FRONT BRACKET
NO.7
081 A 3813120017 CROSS MEMBER
REAR SPRING FRONT BRACKET
NO.8
A 3833120360 REINFORCEMENT
081 A 3973100038 CROSS MEMBER
REAR SPRING FRONT BRACKET
NO.7
085 A 3603100042 CROSS MEMBER
Repalced by: A 3603100142
089 A 3523250101 REAR SPRING BRACKET
FRONT AND REAR
096 A 3523250041 STIFFENING
Repalced by: A 3813250041
096 A 3813250041 STIFFENING
FRAME SIDE MEMBER
099 A 3523250417 HELPER SPRING BRACKET
HELPER SPRING
104 A 3523220008 STAY
HELPER SPRING
105 A 3523220108 STAY
HELPER SPRING
107 A 3523120235 CROSS MEMBER
REAR
111 A 3213120087 GUSSET PLATE
LEFT TOP,USED FOR REAR CROSS MEMBER
115 A 3213120187 GUSSET PLATE
RIGHT TOP,USED FOR REAR CROSS MEMBER
A 3523120287 GUSSET PLATE
LEFT BOTTOM,FOR REAR CROSS MEMBER
A 3523120187 GUSSET PLATE
RIGHT BOTTOM;USED FOR REAR CROSS MEMBER
X XXXXXXXXXXXX PART NAME MISSING
MOUNTING USED FOR FRAME CONNECTION PARTS
Y YYYYYYYYYYYY PART NAME MISSING
DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER:
Y YYYYYYYYYYYY PART NAME MISSING
THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH
Y YYYYYYYYYYYY PART NAME MISSING
N 000609010004 FITTED SCREW
M 10X11X14X28
N 000610010003 FITTED SCREW
M 10X11X25X38
N 000609010014 FITTED SCREW
M 10X11X24X40
A 3859900514 SCREW
M 10X11X26.5X46
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900714 SCREW
M 12X12X10X25
A 3859901414 SCREW
M 12X12X11X26
A 0039900901 SCREW
Repalced by: A 0029908201
A 0029908201 SCREW
M 12X12X12X28
A 3859901514 SCREW
M 12X12X12X28
A 0029908201 SCREW
M 12X12X14X30
A 3859902114 SCREW
M 12X12X15X30
A 0029908301 SCREW
Repalced by: N 308676012013
N 308676012013 HEXAGON HEAD BOLT
M12X1.5X30
A 3859902214 SCREW
M 12X12X17X32
Y YYYYYYYYYYYY PART NAME MISSING
A 6209900114 SCREW
M 12X13X12X29
A 3969900314 SCREW
M 12X13X13X30
A 3589901914 SCREW
M 12X13X15X32
A 3559900014 SCREW
M 12X13X18X35
A 3589900614 SCREW
M 12X13X21X38
A 6179900114 SCREW
M 12X13X23X40
A 6249900014 SCREW
M 12X13X25X42
A 3859900214 SCREW
M 12X13X35X52
A 6689900114 SCREW
M 12X13X58X80
A 6689900014 SCREW
M 12X13X63X85
Y YYYYYYYYYYYY PART NAME MISSING
A 3229903101 SCREW
M 14X14X14X32
A 3859900814 SCREW
Repalced by: A 3229903101
A 3229903101 SCREW
M 14X14X16X32
A 3859902014 SCREW
M 14X14X18X34
A 3559900114 SCREW
M 12X14X13X35
A 3219901601 SCREW
Repalced by: A 3169900014
A 3169900014 SCREW
M 14X14X17X35
A 3219901901 SCREW
M 14X14X22X40
A 3559900501 SCREW
M 14X14X24X42
A 3409900201 SCREW
M 14X14X27X45
A 3609902001 SCREW
M 14X14X32X50
Y YYYYYYYYYYYY PART NAME MISSING
A 3589900114 SCREW
M 14X15X15X32
A 3589900814 SCREW
M 14X15X17X34
A 6459900014 SCREW
M 14X15X15X35
A 3589901014 SCREW
M 14X15X19X36
A 3589900214 SCREW
M 14X15X21X38
A 3589900414 SCREW
M 14X15X25X42
A 3589900714 SCREW
M 14X15X27X44
A 3589900914 SCREW
M 14X15X29X46
A 3859900414 SCREW
M 14X15X31X48
A 3859900314 SCREW
M 14X15X35X52
Y YYYYYYYYYYYY PART NAME MISSING
A 3859900914 SCREW
Repalced by: N 308676016020
N 308676016020 SCREW
M 16X16X18X36
A 3859901714 SCREW
M 16X16X20X38
A 3859901014 SCREW
M 16X16X22X40
A 3859901114 SCREW
Repalced by: N 000961016118
N 000961016118 SCREW
M 16X16X24X42
A 0029909901 SCREW
Repalced by: A 3959900501
A 3959900501 SCREW
M 16X16X20X45
A 3859901814 SCREW
M 16X16X30X48
A 3859901914 SCREW
M 16X16X32X50
A 6259900301 SCREW
M 16X16X38X90
Y YYYYYYYYYYYY PART NAME MISSING
A 3589900514 SCREW
M 16X17X22X42
A 6459900714 SCREW
M 16X17X24X44
A 3609900114 SCREW
Repalced by: A 0009906314
A 0009906314 SCREW
M 16X1MX28X48
Y YYYYYYYYYYYY PART NAME MISSING
A 3469900014 SCREW
M 16X18X18X40
A 3859902314 SCREW
M 18X18X23X45
A 6209900014 SCREW
M 16X18X26X48
A 3469900114 SCREW
M 16X18X31X50
A 3859902414 SCREW
Repalced by: N 000961018043
N 000961018043 SCREW
M 18X18X33X55
A 6229900014 SCREW
M 16X18X38X60
A 3919900014 SCREW
M 16X18X63X85
Y YYYYYYYYYYYY PART NAME MISSING
N 000610018004 FITTED SCREW
M 18X19X25X45
N 000610018009 FITTED SCREW
M 18X19X33X55
N 000610018006 FITTED SCREW
M 18X19X38X60
N 000609018000 FITTED SCREW
M 18X19X57X85
Y YYYYYYYYYYYY PART NAME MISSING
N 913004010011 NUT
N 913004012009 NUT
Repalced by: N 910113012003
N 910113012003 NUT
N 913004014005 NUT
Repalced by: N 910113014000
N 910113014000 NUT
N 913004016005 NUT
Repalced by: N 910113016001
N 910113016001 NUT
N 913004018004 NUT
Y YYYYYYYYYYYY PART NAME MISSING
N 910005010009 RIVET
10X22 MM
N 910005010014 RIVET
10X26 MM
N 910005010016 RIVET
10X28 MM
N 910005010020 RIVET
10X32 MM
N 910005012012 RIVET
12X36 MM
N 910005012073 RIVET
12X28 MM
N 910005012080 RIVET
12X42 MM
N 910005012087 RIVET
12X58 MM
N 910005014056 RIVET
14X45 MM
N 910005014057 RIVET
14X48 MM
N 910005014059 RIVET
14X50 MM
119 A 3523103367 BODY SUPPORT
Repalced by: A 3523104467
119 A 3523104467 BODY SUPPORT
LEFT
119 A 3523103467 BODY SUPPORT
Repalced by: A 3523104567
119 A 3523104567 BODY SUPPORT
RIGHT
N 000933010129 SCREW
Repalced by: N 304017010002
N 304017010002 SCREW
BODY SUPPORT TO SIDE MEMBER
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
BODY SUPPORT TO SIDE MEMBER
123 A 3523103867 BODY SUPPORT
DRIVER'S SEAT PEDESTAL
123 A 3523103967 BODY SUPPORT
DRIVER'S SEAT PEDESTAL
N 000961012122 SCREW
BODY SUPPORT TO CAB CONSOLE
M 12X40
N 000961012097 SCREW
Repalced by: N 308676012026
N 308676012026 SCREW
BODY SUPPORT TO CAB CONSOLE
M 12X35
N 000125013008 WASHER
N 007349013003 WASHER
Repalced by: N 007349013005
N 007349013005 WASHER
BODY SUPPORT TO CAB CONSOLE
N 912004012100 LOCK WASHER
BODY SUPPORT TO CAB CONSOLE
N 000934012022 NUT
BODY SUPPORT TO CAB CONSOLE
N 000961012142 SCREW
BODY SUPPORT TO CAB CONSOLE
M 12X28
N 000961012097 SCREW
Repalced by: N 308676012026
N 308676012026 SCREW
BODY SUPPORT TO CAB CONSOLE
M 12X35
N 000125013008 WASHER
N 912004012100 LOCK WASHER
BODY SUPPORT TO CAB CONSOLE
N 000934012022 NUT
BODY SUPPORT TO CAB CONSOLE
N 000933010105 SCREW
BODY SUPPORT TO SIDE MEMBER
N 912004010102 LOCK WASHER
BODY SUPPORT TO SIDE MEMBER
N 000934010014 NUT
Repalced by: N 304032010003
N 304032010003 NUT
BODY SUPPORT TO SIDE MEMBER
