Transporto priemonė: OF 1621; VIN numerio dalis: 355099

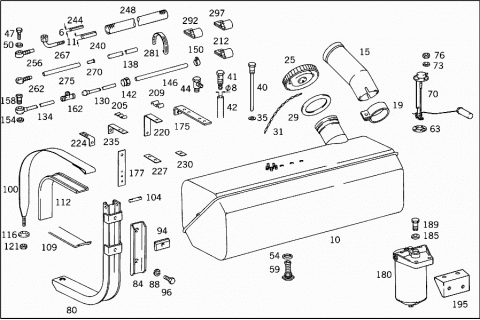

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3604700101 | FUEL TANK |
| Repalced by: A 3834700901 | ||
| 010 | A 3604700101 | FUEL TANK |
| 010 | A 3834700901 | FUEL TANK |
| 135 L | ||
| 010 | A 3604700501 | FUEL TANK |
| Repalced by: A 3834701101 | ||
| 010 | A 3604700501 | FUEL TANK |
| 010 | A 3834701101 | FUEL TANK |
| 135 L | ||
| 015 | A 3524700820 | FILLER NECK |
| FUEL TANK | ||
| A 3049970340 | SEAL RING | |
| FILLER PIPE TO FUEL TANK | ||
| 019 | A 3529950235 | CLAMP |
| FILLER PIPE TO FUEL TANK | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| FILLER PIPE TO FUEL TANK | ||
| M 8X25 | ||
| N 912004008102 | LOCK WASHER | |
| FILLER PIPE TO FUEL TANK | ||
| N 304032008006 | NUT | |
| FILLER PIPE TO FUEL TANK | ||
| 025 | A 3044700005 | FILLER CAP |
| Repalced by: A 3094700005 | ||
| 025 | A 3524700405 | FILLER CAP |
| Repalced by: A 3094700005 | ||
| 025 | A 3094700005 | FILLER CAP |
| 025 | A 0004718030 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 025 | A 0004710530 | FILLER CAP |
| Repalced by: A 0004717930 | ||
| 025 | A 0004717930 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 025 | A 0004700305 | FILLER CAP |
| 025 | A 0004700105 | FILLER CAP |
| Repalced by: A 0004700305 | ||
| 029 | A 3049970340 | SEAL RING |
| 031 | A 3034700031 | CHAIN |
| TO FILLER CAP | ||
| 035 | N 915035000014 | SEAL RING |
| RISING PIPE | ||
| 16X20 MM | ||
| A 3524700526 | RISING PIPE | |
| Repalced by: A 3554700026 | ||
| A 3554700026 | RISING PIPE | |
| FUEL LINE TO TANK | ||
| 040 | A 3604700126 | RISING PIPE |
| Repalced by: A 3609900263 | ||
| 040 | A 3524705126 | RISING PIPE |
| Repalced by: A 3609900263 | ||
| A 3524700078 | HOLLOW SCREW | |
| Repalced by: A 3609900263 | ||
| 041 | A 3609900263 | HOLLOW SCREW |
| FUEL LINE TO TANK | ||
| 042 | A 0089975482 | HOSE |
| FUEL LINE TO TANK | ||
| 387 MM | ||
| 044 | A 0004710020 | FITTING |
| FUEL TANK | ||
| 047 | N 915036012203 | HOLLOW SCREW |
| FUEL LINE TO TANK | ||
| 050 | A 0029971640 | SEAL RING |
| Repalced by: A 0009971548 | ||
| 050 | A 0009971548 | SEAL RING |
| FUEL LINE TO TANK | ||
| N 007604014101 | SCREW PLUG | |
| AT TANK | ||
| 14X1.5 MM | ||
| N 007603014405 | SEAL RING | |
| AT TANK | ||
| 14X18 MM | ||
| 054 | A 0029977245 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 059 | A 3604700006 | FUEL STRAINER |
| Repalced by: A 3074700106 | ||
| 059 | A 3074700106 | FUEL STRAINER |
| FUEL TANK | ||
| 059 | A 0004710235 | FUEL STRAINER |
| 063 | A 3524710080 | GASKET |
| Repalced by: A 4044710080 | ||
| 063 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 063 | A 0119970745 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 070 | A 0015421917 | SENDER UNIT |
| FUEL GAUGE | ||
| 070 | A 0045424617 | SENDER UNIT |
| Repalced by: A 0055423417 | ||
| 070 | A 0055423417 | SENDER UNIT |
| Repalced by: A 0085427717 | ||
| 070 | A 0085427717 | SENDER UNIT |
| FUEL GAUGE | ||
| 073 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 076 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 076 | N 304032005005 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| A 3524700242 | SUPPORT | |
| FUEL TANK | ||
| 080 | A 3524702542 | SUPPORT |
| Repalced by: A 3524703042 | ||
| 080 | A 3524703042 | SUPPORT |
| Repalced by: A 3834701442 | ||
| 080 | A 3834701442 | SUPPORT |
| Repalced by: A 3834701842 | ||
| 080 | A 3834701842 | SUPPORT |
| FUEL TANK | ||
| A 3524703942 | SUPPORT | |
| FUEL TANK | ||
| 084 | A 3524750026 | REINFORCEMENT |
| SUPPORT TO SIDE MEMBER | ||
| 088 | N 912004012100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 088 | N 912004014100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 094 | A 3604750084 | SHIM |
| Repalced by: A 6245611240 | ||
| 094 | A 6245611240 | BRACKET |
| SUPPORT TO SIDE MEMBER | ||
| 094 | A 3604750284 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 094 | A 3524750084 | SHIM |
| Repalced by: A 3604750484 | ||
| 094 | A 3604750484 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 094 | A 3604750484 | SHIM |
| SUPPORT TO SIDE MEMBER | ||
| 096 | N 000961012151 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X1.5X30 | ||
| 096 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 096 | N 308676012026 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X1.5X35 | ||
| 096 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 096 | N 308676014020 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X35 | ||
| 100 | A 3524700140 | STRAP |
| FUEL TANK TO SUPPORT | ||
| 100 | A 3604700240 | STRAP |
| FUEL TANK TO SUPPORT | ||
| 100 | A 3834700140 | STRAP |
| Repalced by: A 6174700440 | ||
| 100 | A 6174700440 | STRAP |
| FUEL TANK TO SUPPORT | ||
| 104 | N 001443016203 | PIN |
| STRAP TO SUPPORT | ||
| N 000094004065 | COTTER PIN | |
| STRAP TO SUPPORT | ||
| A 3609870014 | RUBBER STRIP | |
| FUEL TANK TO SUPPORT | ||
| A 3529870114 | RUBBER STRIP | |
| FUEL TANK TO SUPPORT | ||
| 109 | A 3634750220 | PAD |
| FUEL TANK TO SUPPORT | ||
| 61 MM | ||
| 112 | A 3634750320 | PAD |
| FUEL TANK TO SUPPORT | ||
| 46 MM | ||
| 116 | A 3609970126 | WASHER |
| FUEL TANK TO SUPPORT | ||
| 121 | N 000934012022 | NUT |
| FUEL TANK TO SUPPORT | ||
| M 12X1.5 | ||
| 121 | N 000934012021 | NUT |
| M 12 | ||
| A 3524702466 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524707265 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3584701264 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524705065 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524705265 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3584701664 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524705465 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524705665 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3584701464 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3584701864 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3584702064 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3584702264 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524706065 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524705865 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524703666 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524700867 | LINE | |
| Repalced by: A 3404702165 | ||
| A 3524704764 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3524700864 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3524704864 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3524704764 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3524700364 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3524703866 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3524700467 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3524700464 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3524703766 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3524701966 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3524702066 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3524700964 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3524708365 | LINE | |
| Repalced by: A 3404701465 | ||
| A 3525400667 | CASE | |
| Repalced by: A 3404701465 | ||
| 130 | A 3404702165 | LINE |
| WITH SEAL CONE | ||
| 134 | A 3404701465 | LINE |
| WITH BANJO UNION | ||
| 138 | A 3404761402 | LINE |
| Repalced by: A 0004290901 | ||
| 138 | A 0004290901 | LINE |
| CONNECTION OF FUEL LINES ONE BELOW THE OTHER | ||
| 142 | N 915017010201 | UNION NUT |
| FUEL LINE | ||
| 146 | A 3124760026 | HOSE |
| Repalced by: A 3054760126 | ||
| 146 | A 3054760126 | HOSE |
| TO CONNECT THE FUEL LINES | ||
| 150 | N 916026016001 | CLAMP |
| Repalced by: A 0059970190 | ||
| 150 | A 0059970190 | HOSE CLAMP |
| HOSE | ||
| 154 | N 007603014405 | SEAL RING |
| CONNECTION OF FUEL LINES | ||
| 158 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 158 | N 915036010108 | HOLLOW SCREW |
| CONNECTION OF FUEL LINES | ||
| 162 | N 007619008001 | T-FITTING |
| CONNECTION OF FUEL LINES | ||
| 175 | A 3524760736 | BRACKET |
| FUEL LINE | ||
| 177 | A 3125420038 | SHIM |
| Repalced by: A 3184924841 | ||
| 177 | A 3184924841 | BRACKET |
| FUEL LINE | ||
| 180 | A 3244770001 | FUEL FILTER |
| Repalced by: A 0014779801 | ||
| 180 | A 0014779801 | FUEL FILTER |
| A 4220900051 | FILTER ELEMENT | |
| Repalced by: A 0000901451 | ||
| A 0000901451 | TS FILTER INSERT | |
| TO 001 477 98 01 | ||
| A 0004773180 | SEAL RING | |
| TO 001 477 98 01 | ||
| A 4220900007 | HOUSING | |
| TO 001 477 98 01 | ||
| N 007603008109 | SEAL RING | |
| TO 001 477 98 01 | ||
| 185 | N 007603014405 | SEAL RING |
| FUEL FILTER | ||
| 14X18 MM | ||
| 189 | A 3529970772 | HOLLOW SCREW |
| Repalced by: A 6159900263 | ||
| 189 | A 6159900263 | HOLLOW SCREW |
| FUEL FILTER | ||
| N 000961012122 | SCREW | |
| FUEL FILTER TO BRACKET | ||
| M 12X1.5X40 | ||
| N 912004012100 | LOCK WASHER | |
| FUEL FILTER TO BRACKET | ||
| N 000934012022 | NUT | |
| FUEL FILTER TO BRACKET | ||
| 195 | A 3224770541 | BRACKET |
| FUEL FILTER | ||
| N 000933010105 | SCREW | |
| BRACKET TO FRAME | ||
| M 10X25 | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO FRAME | ||
| N 000934010014 | NUT | |
| Repalced by: N 304032010003 | ||
| N 304032010003 | NUT | |
| BRACKET TO FRAME | ||
| 205 | A 3129950232 | CLAMP |
| Repalced by: A 4429955032 | ||
| 209 | A 3179950832 | CLAMP |
| Repalced by: A 3609950301 | ||
| 212 | A 3609950301 | CLAMP |
| FUEL LINE | ||
| N 000084006197 | SCREW | |
| CLAMP MOUNTING | ||
| M 6X12 | ||
| N 912004006102 | LOCK WASHER | |
| CLAMP MOUNTING | ||
| N 000934006007 | NUT | |
| CLAMP MOUNTING | ||
| 220 | A 3525420440 | BRACKET |
| Repalced by: A 3525422840 | ||
| 220 | A 3525422840 | BRACKET |
| FUEL LINE | ||
| 224 | A 3524281740 | BRACKET |
| Repalced by: A 3184280240 | ||
| 224 | A 3184280240 | BRACKET |
| FUEL LINE | ||
| 227 | A 3144760237 | BRACKET |
| Repalced by: A 3124761236 | ||
| 227 | A 3124761236 | BRACKET |
| Repalced by: A 3604293140 | ||
| 227 | A 3604293140 | BRACKET |
| FUEL LINE | ||
| 230 | A 3124761036 | BRACKET |
| Repalced by: A 3124761236 | ||
| 230 | A 3124761236 | BRACKET |
| Repalced by: A 3604293140 | ||
| 230 | A 3604293140 | BRACKET |
| FUEL LINE | ||
| 235 | A 3524760036 | BRACKET |
| Repalced by: A 3274925819 | ||
| 235 | A 3274925819 | BRACKET |
| FUEL LINE | ||
| N 000933010128 | SCREW | |
| FUEL LINE TO SIDE MEMBER | ||
| 10X20 MM | ||
| N 912004010102 | LOCK WASHER | |
| FUEL LINE TO SIDE MEMBER | ||
| N 000934010014 | NUT | |
| Repalced by: N 304032010003 | ||
| N 304032010003 | NUT | |
| FUEL LINE TO SIDE MEMBER | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | HEXAGON HEAD BOLT | |
| CLAMP TO BRACKET | ||
| M8X20 | ||
| N 912004008102 | LOCK WASHER | |
| CLAMP TO BRACKET | ||
| N 304032008006 | NUT | |
| CLAMP TO BRACKET | ||
| 240 | A 0089975482 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 8X11 MM | ||
| 244 | A 0109977082 | HOSE |
| TRANSPARENT,LEAK OIL LINE AT RESERVOIR | ||
| 6X4 MM | ||
| 248 | N 040621025200 | INSULATING HOSE |
| FROM PUMP TO HEATER CASE | ||
| 248 | N 040621011200 | INSULATING HOSE |
| FEED LINE | ||
| A 3879900078 | CONNECTOR | |
| FEED LINE AND RETURN LINE | ||
| N 915062008000 | SLEEVE | |
| FEED LINE AND RETURN LINE | ||
| A 3054760126 | HOSE | |
| FEED LINE AND RETURN LINE | ||
| 281 | A 0029978790 | CLIP |
| FEED LINE AND RETURN LINE | ||
| 248 | A 0009905088 | BANJO UNION |
| Repalced by: N 915052008019 | ||
| 248 | N 915052008019 | BANJO UNION |
| FUEL LINE | ||
| 16 MM | ||
| 256 | A 0009904188 | BANJO UNION |
| Repalced by: N 915052008001 | ||
| 256 | N 915052008019 | BANJO UNION |
| FROM RETURN LINE TO FUEL TANK | ||
| 256 | N 915052008016 | BANJO UNION |
| Repalced by: N 000000000363 | ||
| 256 | N 000000000363 | BANJO UNION |
| FUEL LINE TO FEED PUMP | ||
| 262 | A 0009904288 | BANJO UNION |
| Repalced by: N 915052004002 | ||
| 262 | N 915052004019 | BANJO UNION |
| LEAK LINE | ||
| 262 | A 0009908188 | BANJO UNION |
| FEED LINE | ||
| 267 | A 0004760524 | ELBOW FITTING |
| FOR LINES | ||
| A 0019975272 | FITTING | |
| RETURN LINE | ||
| N 915017008201 | UNION NUT | |
| RETURN LINE | ||
| A 0009920205 | BUSHING | |
| Repalced by: N 915062004000 | ||
| N 915062004000 | SLEEVE | |
| 270 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 270 | N 915062004000 | SLEEVE |
| LEAK LINE | ||
| 275 | N 073379006203 | HOSE |
| LEAK LINE | ||
| N 900288010001 | CLAMP | |
| HOSE | ||
| A 0089979082 | HOSE | |
| FUEL LINE TO SENDER UNIT | ||
| 500 MM | ||
| N 916026010000 | CLAMP | |
| Repalced by: N 000000000665 | ||
| N 000000000665 | CLAMP | |
| FUEL LINE TO SENDER UNIT | ||
| 281 | A 0009972490 | LOOM TIE |
| Repalced by: A 0009974390 | ||
| 281 | A 0009974390 | LOOM TIE |
| FUEL LINE | ||
| 281 | A 0019978390 | LOOM TIE |
| FUEL LINE | ||
| 280 MM | ||
| 281 | A 0019978490 | LOOM TIE |
| FUEL LINE | ||
| 376 MM | ||
| 281 | A 3464765036 | BRACKET |
| FUEL LINE | ||
| N 304017010027 | HEXAGON HEAD BOLT | |
| BRACKET TO SUBSTRUCTURE | ||
| M10X16 | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO SUBSTRUCTURE | ||
| A 3874760136 | BRACKET | |
| Repalced by: A 6454310740 | ||
| A 6454310740 | BRACKET | |
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| N 912004008102 | LOCK WASHER | |
| FUEL LINE | ||
| N 304032008006 | NUT | |
| FUEL LINE | ||
| A 3179950832 | CLAMP | |
| FUEL LINE | ||
| N 000933006102 | SCREW | |
| CLAMP MOUNTING | ||
| M 6X15 | ||
| N 912004006102 | LOCK WASHER | |
| CLAMP MOUNTING | ||
| N 000934006007 | NUT | |
| CLAMP MOUNTING | ||
| 292 | A 3609951701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 292 | N 916016018202 | CLAMP |
| FUEL LINE | ||
| N 000933008047 | SCREW | |
| CLAMP MOUNTING | ||
| M 8X20 | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| CLAMP MOUNTING | ||
| M 8X15 | ||
| N 000125008418 | WASHER | |
| Repalced by: N 000125008443 | ||
| N 000125008443 | WASHER | |
| CLAMP MOUNTING | ||
| N 304032008006 | NUT | |
| CLAMP MOUNTING | ||
| 297 | A 3609950701 | CLAMP |
| Repalced by: N 916016018202 | ||
| 297 | N 916016018202 | CLAMP |
| FUEL LINE | ||
| N 000933006102 | SCREW | |
| CLAMP MOUNTING | ||
| M 6X15 | ||
| N 912004006102 | LOCK WASHER | |
| CLAMP MOUNTING | ||
| N 000934006007 | NUT | |
| CLAMP MOUNTING | ||
| A 3604280243 | ANGLE | |
| FUEL LINE TO BELL HOUSING | ||
| A 3469975081 | GROMMET | |
| FUEL LINE TO FRAME | ||
| A 4069975081 | GROMMET | |
| FUEL LINE TO FRAME | ||
| A 3229971581 | GROMMET | |
| FUEL LINE TO FRAME | ||
| N 007603014405 | SEAL RING | |
| FUEL LINES TO ENGINE | ||
| 14X18 MM | ||
| N 915036010204 | HOLLOW SCREW | |
| Repalced by: N 915036010108 | ||
| N 915036010108 | HOLLOW SCREW | |
| FUEL LINES TO ENGINE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
