Transporto priemonė: OF 1621; VIN numerio dalis: 355099

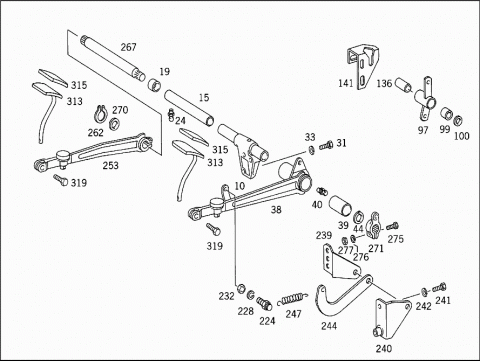

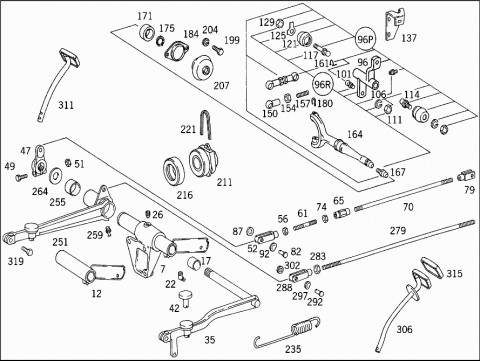

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3552900219 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 007 | A 3552900419 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 007 | A 3552900419 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 007 | A 3552900919 | BEARING BRACKET |
| Repalced by: A 3552901119 | ||
| 007 | A 3552901119 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 010 | A 3552900319 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 010 | A 3552900519 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 010 | A 3552900519 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 010 | A 3552900819 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 012 | A 3552900220 | BEARING |
| BEARING TUBE | ||
| 012 | A 3552900420 | BEARING |
| Repalced by: A 3552900236 | ||
| 012 | A 3552900236 | BEARING TUBE |
| BEARING TUBE | ||
| 015 | A 3552900320 | BEARING |
| BEARING TUBE | ||
| 017 | A 3529920901 | BUSHING |
| CLUTCH PEDAL | ||
| 017 | A 3529922001 | BUSHING |
| CLUTCH PEDAL | ||
| 019 | A 3529920701 | BUSHING |
| BEARING TUBE | ||
| 022 | N 071412010200 | GREASE NIPPLE |
| BEARING TUBE | ||
| 024 | N 071412010100 | GREASE NIPPLE |
| BEARING TUBE | ||
| 026 | A 3529900080 | SCREW |
| BEARING TUBE TO BRACKET | ||
| 031 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 031 | N 308676012026 | SCREW |
| BEARING BRACKET TO STEERING | ||
| M12X35 | ||
| 031 | N 000960012189 | SCREW |
| Repalced by: N 308676012031 | ||
| 031 | N 308676012031 | SCREW |
| Repalced by: N 308676012011 | ||
| 031 | N 308676012011 | SCREW |
| BEARING BRACKET TO STEERING | ||
| M12X50 | ||
| 031 | N 000960012246 | SCREW |
| Repalced by: N 000960012353 | ||
| 031 | N 000960012353 | SCREW |
| BEARING BRACKET TO STEERING | ||
| M12X60 | ||
| 031 | N 000960012221 | SCREW |
| BEARING BRACKET TO STEERING | ||
| M12X80 | ||
| 031 | N 000960012184 | SCREW |
| BEARING BRACKET TO STEERING | ||
| M12X85 | ||
| 033 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO STEERING | ||
| N 000960016105 | SCREW | |
| BEARING BRACKET TO STEERING BRACKET | ||
| M 16X80 | ||
| N 000960016105 | SCREW | |
| BEARING BRACKET TO STEERING BRACKET | ||
| M 16X80 | ||
| N 000960016077 | SCREW | |
| BEARING BRACKET TO STEERING BRACKET | ||
| M 16X45 | ||
| N 913004016005 | NUT | |
| Repalced by: N 910113016001 | ||
| N 910113016001 | NUT | |
| BEARING BRACKET TO STEERING BRACKET | ||
| N 910113016001 | NUT | |
| BEARING BRACKET TO STEERING BRACKET | ||
| 035 | A 3522901716 | PEDAL |
| CLUTCH | ||
| 035 | A 3522903216 | PEDAL |
| CLUTCH | ||
| 035 | A 3522904616 | PEDAL |
| CLUTCH | ||
| 035 | A 3522904616 | PEDAL |
| CLUTCH | ||
| 038 | A 3522902416 | PEDAL |
| Repalced by: A 3522904016 | ||
| 038 | A 3522904016 | PEDAL |
| CLUTCH | ||
| 038 | A 3522904516 | PEDAL |
| CLUTCH | ||
| 038 | A 3522904516 | PEDAL |
| CLUTCH | ||
| 038 | A 3552900116 | PEDAL |
| CLUTCH | ||
| 039 | A 3529920401 | BUSHING |
| CLUTCH PEDAL | ||
| 040 | N 071412010100 | GREASE NIPPLE |
| CLUTCH PEDAL | ||
| 042 | A 3529870240 | RUBBER BUFFER |
| CLUTCH PEDAL | ||
| N 000094004051 | COTTER PIN | |
| CLUTCH PEDAL | ||
| 044 | N 000471040002 | LOCK RING |
| CLUTCH PEDAL TO SHAFT | ||
| 047 | A 3522930310 | LEVER |
| CLUTCH | ||
| 047 | A 3522932910 | LEVER |
| CLUTCH | ||
| 049 | N 304017010030 | HEXAGON HEAD BOLT |
| Repalced by: N 304017010053 | ||
| 049 | N 304017010053 | SCREW |
| CLUTCH LEVER TO PEDAL SHAFT | ||
| 051 | N 913004010014 | NUT |
| Repalced by: N 910113010003 | ||
| 051 | N 910113010003 | NUT |
| CLUTCH LEVER TO PEDAL SHAFT | ||
| 052 | A 0009961501 | YOKE |
| CLUTCH LINKAGE | ||
| 056 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 056 | N 304032010003 | NUT |
| YOKE TO ROD | ||
| 061 | N 900331010667 | PULL ROD |
| CLUTCH OPERATION | ||
| 065 | N 001479010000 | TURNBUCKLE |
| CLUTCH ADJUSTMENT | ||
| 070 | N 900331010657 | PULL ROD |
| CLUTCH OPERATION | ||
| 070 | N 900331010656 | PULL ROD |
| CLUTCH OPERATION | ||
| 074 | N 000934010035 | NUT |
| CLUTCH ADJUSTMENT | ||
| 079 | A 0009961401 | YOKE |
| CLUTCH LINKAGE | ||
| A 3552900133 | BRACKET | |
| CLUTCH LINKAGE | ||
| 082 | A 3529910007 | PIN |
| PULL ROD TO PEDAL LEVER AND TO COMPENSATING LEVER | ||
| 087 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 087 | N 000433010510 | WASHER |
| PULL ROD TO PEDAL LEVER AND TO COMPENSATING LEVER | ||
| N 000094003219 | COTTER PIN | |
| PULL ROD TO PEDAL LEVER AND TO COMPENSATING LEVER | ||
| 092 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 092 | N 000137010205 | SPRING WASHER |
| PULL ROD TO PEDAL LEVER AND TO COMPENSATING LEVER | ||
| 096 | A 3522900328 | LEVER |
| Repalced by: A 3525860229 | ||
| 096 | A 3522900328 | LEVER |
| Repalced by: A 3522905839 | ||
| 096 | A 3522901428 | LEVER |
| Repalced by: A 3525860229 | ||
| 096 | A 3522901428 | LEVER |
| Repalced by: A 3522905839 | ||
| 096 | A 3522901728 | LEVER |
| Repalced by: A 3525860229 | ||
| 096 | A 3522901828 | LEVER |
| Repalced by: A 3522905839 | ||
| 096 | A 3522901628 | LEVER |
| Repalced by: A 3525860329 | ||
| 096P | A 3525860229 | REPAIR KIT |
| Repalced by: A 3522905639 | ||
| 096P | A 3522905639 | REPAIR KIT |
| CLUTCH ACTUATING PARTS | ||
| 096P | A 3522905839 | REPAIR KIT |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 096R | A 3525860329 | REPAIR KIT |
| Repalced by: A 3522905739 | ||
| 096R | A 3522905739 | REPAIR KIT |
| Repalced by: A 3522901628 | ||
| 097 | A 3522902028 | LEVER |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 097 | A 3522902328 | LEVER |
| Repalced by: A 3552900028 | ||
| 097 | A 3552900028 | LEVER |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 097 | A 3522902228 | LEVER |
| Repalced by: A 3552900128 | ||
| 097 | A 3552900128 | LEVER |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 099 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 099 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 099 | A 0119813410 | NEEDLE BEARING |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| A 3552930050 | BUSHING | |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 100 | A 0089978046 | SEAL RING |
| Repalced by: A 0069979147 | ||
| 100 | A 0069979147 | SEAL RING |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| N 913021012002 | NUT | |
| Repalced by: N 000936012017 | ||
| N 000936012017 | NUT | |
| Repalced by: N 000936012005 | ||
| N 000936012005 | NUT | |
| Repalced by: N 308675012000 | ||
| N 308675012000 | NUT | |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| N 071805016300 | SNAP RING | |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 101 | A 3529910415 | BALL PIVOT |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 101 | A 3029910015 | BALL PIVOT |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 106 | N 912004012100 | LOCK WASHER |
| BALL PIVOT TO LEVER | ||
| 111 | N 000934012021 | NUT |
| BALL PIVOT TO LEVER | ||
| 114 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 114 | N 071412008102 | GREASE NIPPLE |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 117 | A 3529910115 | BALL PIVOT |
| Repalced by: A 3529910615 | ||
| 117 | A 3529910615 | BALL PIVOT |
| LEVER TO TRANSMISSION CASE | ||
| 121 | A 3522930060 | SEAL RING |
| LEVER TO TRANSMISSION CASE | ||
| 125 | N 000463013002 | LOCK PLATE |
| LEVER TO TRANSMISSION CASE | ||
| 129 | N 000934012021 | NUT |
| LEVER TO TRANSMISSION CASE | ||
| 136 | A 3184310150 | BUSHING |
| Repalced by: A 3184310053 | ||
| 136 | A 3184310053 | SPACER TUBE |
| DOUBLE LEVER TO BRACKET | ||
| A 3554310074 | PIN | |
| DOUBLE LEVER TO BRACKET | ||
| N 000931010239 | SCREW | |
| DOUBLE LEVER TO BRACKET | ||
| N 000931010348 | SCREW | |
| DOUBLE LEVER TO BRACKET | ||
| N 913004010008 | NUT | |
| Repalced by: N 910113010000 | ||
| N 910113010000 | NUT | |
| DOUBLE LEVER TO BRACKET | ||
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| DOUBLE LEVER TO BRACKET | ||
| 137 | A 3522930636 | BEARING BRACKET |
| CLUTCH OPERATION | ||
| 137 | A 3522932036 | BEARING BRACKET |
| CLUTCH OPERATION | ||
| 141 | A 3522930736 | BEARING BRACKET |
| CLUTCH OPERATION | ||
| 141 | A 3522932136 | BEARING BRACKET |
| CLUTCH OPERATION | ||
| N 000961012151 | SCREW | |
| BEARING BRACKET TO FRAME | ||
| A 3522900933 | BRACKET | |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| A 3552900433 | BRACKET | |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| A 3552900533 | BRACKET | |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| A 3522930153 | SPACER TUBE | |
| ENGINE ALONGSIDE MOUNTING BRACKET | ||
| N 000960016066 | SCREW | |
| ENGINE ALONGSIDE MOUNTING BRACKET | ||
| N 000912016100 | SCREW | |
| ENGINE ALONGSIDE MOUNTING BRACKET | ||
| M 16X100 | ||
| N 000912016099 | SCREW | |
| ENGINE ALONGSIDE MOUNTING BRACKET | ||
| M 16X35 | ||
| N 913004016004 | NUT | |
| Repalced by: N 910113016002 | ||
| N 910113016002 | NUT | |
| ENGINE ALONGSIDE MOUNTING BRACKET | ||
| N 001440016000 | WASHER | |
| ENGINE ALONGSIDE MOUNTING BRACKET | ||
| N 912004016100 | LOCK WASHER | |
| ENGINE ALONGSIDE MOUNTING BRACKET | ||
| A 3529910815 | BALL PIVOT | |
| DOUBLE LEVER TO BEARING BRACKET | ||
| A 3522930160 | SEAL RING | |
| DOUBLE LEVER TO BEARING BRACKET | ||
| N 000125013008 | WASHER | |
| N 912004012100 | LOCK WASHER | |
| DOUBLE LEVER TO BEARING BRACKET | ||
| A 3522905439 | ROD | |
| PULL RODS TO LEVER AND TO RELEASE YOKE | ||
| N 000934012022 | NUT | |
| DOUBLE LEVER TO BEARING BRACKET | ||
| 150 | A 0009916222 | BALL SOCKET |
| PULL RODS TO LEVER AND TO RELEASE YOKE | ||
| N 071805016300 | SNAP RING | |
| PULL RODS TO LEVER AND TO RELEASE YOKE | ||
| 154 | N 000936010008 | NUT |
| PULL RODS TO LEVER AND TO RELEASE YOKE | ||
| 157 | N 900331010653 | PULL ROD |
| FROM INTERMEDIATE LEVER II TO RELEASE YOKE | ||
| 161 | N 071805016402 | CIRCLIP |
| PULL RODS TO LEVER AND TO RELEASE YOKE | ||
| N 900327016000 | BALL SOCKET | |
| FROM INTERMEDIATE LEVER II TO RELEASE YOKE | ||
| 164 | A 3272500313 | RELEASE LEVER |
| Repalced by: A 3272540308 | ||
| 164 | A 3272500813 | RELEASE LEVER |
| Repalced by: A 3272540308 | ||
| 164 | A 3272540308 | RELEASE LEVER |
| CLUTCH | ||
| 164 | A 3552540008 | RELEASE LEVER |
| CLUTCH | ||
| 167 | A 3179910515 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 167 | A 3029910015 | BALL PIVOT |
| RELEASE LEVER | ||
| 167 | A 3529910415 | BALL PIVOT |
| RELEASE LEVER | ||
| A 3272540097 | BOOT | |
| RELEASE LEVER | ||
| 171 | A 0009810631 | JOINT BEARING |
| RELEASE LEVER | ||
| 175 | A 0009947541 | LOCK |
| Repalced by: N 912009029100 | ||
| 175 | N 912009029100 | SNAP RING |
| RELEASE LEVER | ||
| 180 | A 3402540013 | SPRING LOCK |
| RELEASE YOKE TO RELEASE BEARING | ||
| A 3739930025 | SPRING | |
| RELEASE YOKE TO RELEASE BEARING | ||
| 184 | A 3272500055 | COVER |
| BELL HOUSING | ||
| 199 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 199 | N 304017008016 | SCREW |
| COVER TO BELL HOUSING | ||
| 204 | N 912004008102 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 207 | A 3522540097 | BOOT |
| Repalced by: A 3142540197 | ||
| 207 | A 3142540197 | BOOT |
| COVER TO BELL HOUSING | ||
| 211 | A 3272501115 | RELEASE BEARING |
| Repalced by: A 3052500615 | ||
| 211 | A 3052500015 | RELEASE BEARING |
| Repalced by: A 3052500615 | ||
| 211 | A 3052500615 | RELEASE BEARING |
| CLUTCH | ||
| 216 | A 0009814425 | BALL BEARING |
| CLUTCH | ||
| 221 | A 3129870110 | STRIP |
| Repalced by: A 3409830010 | ||
| 221 | A 3409830010 | STRIP |
| RELEASE BEARING LUBRICATION | ||
| A 3552500015 | RELEASE BEARING | |
| Repalced by: A 0002506715 | ||
| A 0002506715 | RELEASE BEARING | |
| CLUTCH | ||
| N 071428004102 | SCREW-IN FITTING | |
| RELEASE BEARING LUBRICATION | ||
| A 3072510208 | INTERMEDIATE PIECE | |
| RELEASE BEARING LUBRICATION | ||
| N 912004014100 | LOCK WASHER | |
| RELEASE BEARING LUBRICATION | ||
| N 000936014010 | NUT | |
| Repalced by: N 308675014000 | ||
| N 308675014000 | NUT | |
| Repalced by: N 308675014002 | ||
| N 308675014002 | NUT | |
| RELEASE BEARING LUBRICATION | ||
| N 003411002001 | GREASE CUP | |
| RELEASE BEARING LUBRICATION | ||
| N 071428004102 | SCREW-IN FITTING | |
| RELEASE BEARING LUBRICATION | ||
| A 3059971982 | HOSE | |
| RELEASE BEARING LUBRICATION | ||
| N 003862004001 | DOUBLE TAPER RING | |
| RELEASE BEARING LUBRICATION | ||
| N 003871004102 | UNION SCREW | |
| RELEASE BEARING LUBRICATION | ||
| 224 | A 3522910474 | PIN |
| Repalced by: A 3522910674 | ||
| 224 | A 3522910674 | PIN |
| CLUTCH PEDAL RELEASE SPRING | ||
| 224 | A 3552910074 | PIN |
| CLUTCH PEDAL RELEASE SPRING | ||
| 228 | N 912004014100 | LOCK WASHER |
| CLUTCH PEDAL RELEASE SPRING | ||
| 232 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 232 | N 308673014001 | HEXAGON NUT |
| CLUTCH PEDAL RELEASE SPRING | ||
| 235 | A 3529930810 | SPRING |
| Repalced by: A 3559930110 | ||
| 235 | A 3529931110 | SPRING |
| Repalced by: A 3559930110 | ||
| 235 | A 3559930110 | SPRING |
| CLUTCH PEDAL RESET | ||
| 239 | A 3522910440 | BRACKET |
| 240 | A 3552900233 | BRACKET |
| CLUTCH PEDAL RELEASE SPRING | ||
| 240 | A 3552910640 | BRACKET |
| CLUTCH PEDAL RELEASE SPRING | ||
| 240 | A 3552900333 | BRACKET |
| CLUTCH PEDAL RELEASE SPRING | ||
| N 000125015013 | WASHER | |
| Repalced by: N 000125015019 | ||
| N 000125015019 | WASHER | |
| CLUTCH PEDAL RELEASE SPRING | ||
| 241 | N 000933012064 | SCREW |
| CLUTCH PEDAL RELEASE SPRING | ||
| 242 | N 912004012100 | LOCK WASHER |
| CLUTCH PEDAL RELEASE SPRING | ||
| 244 | A 3522910332 | LEVER |
| CLUTCH PEDAL RESET | ||
| 244 | A 3552910032 | LEVER |
| Repalced by: A 3552910132 | ||
| 244 | A 3552910132 | LEVER |
| CLUTCH PEDAL RESET | ||
| 247 | A 3379930210 | SPRING |
| Repalced by: A 3529931210 | ||
| 247 | A 3529931210 | SPRING |
| CLUTCH PEDAL RESET | ||
| 251 | A 3552900318 | PEDAL |
| Repalced by: A 3522900718 | ||
| 251 | A 3522900718 | PEDAL |
| BRAKE | ||
| 251 | A 3552900418 | PEDAL |
| BRAKE | ||
| 253 | A 3522901018 | PEDAL |
| BRAKE | ||
| 253 | A 3522901318 | PEDAL |
| BRAKE | ||
| 253 | A 3522901318 | PEDAL |
| BRAKE | ||
| 255 | A 3529920401 | BUSHING |
| BRAKE PEDAL | ||
| 259 | N 071412010100 | GREASE NIPPLE |
| BRAKE PEDAL | ||
| A 3529870240 | RUBBER BUFFER | |
| BRAKE PEDAL | ||
| N 000094004065 | COTTER PIN | |
| BRAKE PEDAL | ||
| 262 | N 000471040002 | LOCK RING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 264 | A 3039910345 | RING |
| LEVER TO BEARING TUBE | ||
| 267 | A 3522900736 | BEARING TUBE |
| BRAKE PEDAL | ||
| 267 | A 3552900036 | BEARING TUBE |
| BRAKE PEDAL | ||
| A 3529920201 | BUSHING | |
| 270 | A 3523230976 | WASHER |
| 271 | A 3522920031 | LEVER |
| BRAKE | ||
| 275 | N 000931010258 | SCREW |
| LEVER TO SHAFT | ||
| 276 | N 912004010102 | LOCK WASHER |
| 277 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 277 | N 910113010000 | NUT |
| LEVER TO SHAFT | ||
| 279 | N 900331010673 | PULL ROD |
| FROM PEDAL BEARING BRACKET TO TRUCKTRACTOR BRAKE VALVE | ||
| 279 | N 900331010672 | PULL ROD |
| FROM PEDAL BEARING BRACKET TO TRUCKTRACTOR BRAKE VALVE | ||
| 283 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 283 | N 304032010003 | NUT |
| PULL ROD TO BRAKE PEDAL AND TO BRAKE BOOSTER DOUBLE LEVER | ||
| A 0009961501 | YOKE | |
| BRAKE PEDAL | ||
| 288 | A 3419960001 | YOKE |
| TRUCK-TRACTOR BRAKE VALVE | ||
| 292 | A 3529910007 | PIN |
| PULL ROD TO BRAKE PEDAL AND TO BRAKE BOOSTER DOUBLE LEVER | ||
| 297 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 297 | N 000137010205 | SPRING WASHER |
| PULL ROD TO BRAKE PEDAL AND TO BRAKE BOOSTER DOUBLE LEVER | ||
| 302 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 302 | N 000433010510 | WASHER |
| PULL ROD TO BRAKE PEDAL AND TO BRAKE BOOSTER DOUBLE LEVER | ||
| N 000094003219 | COTTER PIN | |
| PULL ROD TO BRAKE PEDAL AND TO BRAKE BOOSTER DOUBLE LEVER | ||
| 306 | A 3522900524 | PEDAL PLATE |
| CLUTCH | ||
| 311 | A 3522900124 | PEDAL PLATE |
| BRAKE | ||
| 313 | A 3522900224 | PEDAL PLATE |
| CLUTCH AND BRAKE | ||
| 315 | A 3522900324 | PEDAL PLATE |
| Repalced by: A 3522900524 | ||
| 315 | A 3202925082 | PAD |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 319 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| A 3226880024 | WASHER | |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
