Transporto priemonė: OF 1621; VIN numerio dalis: 355099

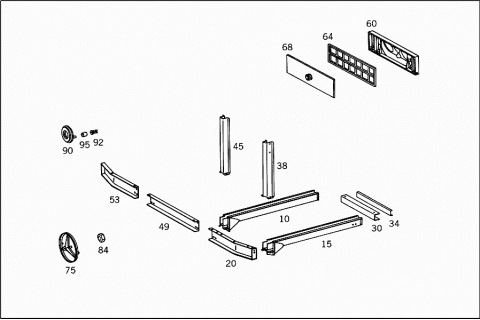

Grupė: 60 PLATFORM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3526002002 | BODY SHELL | |
| Repalced by: A 3526003102 | ||
| A 3526003102 | BODY SHELL | |
| A 3526002202 | BODY SHELL | |
| Repalced by: A 3526003202 | ||
| A 3526003202 | BODY SHELL | |
| 010 | A 3526103210 | SIDE MEMBER |
| Repalced by: A 3526104110 | ||
| 010 | A 3526104110 | SIDE MEMBER |
| CENTRAL | ||
| 010 | A 3526104110 | SIDE MEMBER |
| CENTRAL | ||
| 015 | A 3526103010 | SIDE MEMBER |
| OUTSIDE | ||
| 015 | A 3526104010 | SIDE MEMBER |
| OUTSIDE | ||
| A 3526201530 | SUPPORT | |
| Repalced by: A 3526200930 | ||
| 020 | A 3526200930 | SUPPORT |
| FRONT LEFT | ||
| N 000933008153 | SCREW | |
| Repalced by: N 304017008034 | ||
| N 304017008034 | SCREW | |
| CROSS MEMBER TO SUBSTRUCTURE | ||
| M 8X25 | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| CROSS MEMBER TO SUBSTRUCTURE | ||
| 8X16MM | ||
| N 912004008102 | LOCK WASHER | |
| CROSS MEMBER TO SUBSTRUCTURE | ||
| N 304032008006 | NUT | |
| CROSS MEMBER TO SUBSTRUCTURE | ||
| 030 | A 3526123814 | CROSS MEMBER |
| REAR | ||
| 034 | A 3526121035 | END PIECE |
| 038 | A 3526200513 | PILLAR |
| FRONT OUTSIDE | ||
| 038 | A 3526200713 | PILLAR |
| FRONT OUTSIDE | ||
| 045 | A 3526210710 | PILLAR |
| FRONT INSIDE | ||
| 049 | A 3526220834 | SUPPORT |
| FRONT | ||
| 053 | A 3526201630 | SUPPORT |
| Repalced by: A 3526201030 | ||
| 053 | A 3526201030 | SUPPORT |
| FRONT RIGHT | ||
| N 000933010105 | SCREW | |
| CROSS MEMBER TO SUBSTRUCTURE | ||
| M 10X25 | ||
| N 912004010102 | LOCK WASHER | |
| CROSS MEMBER TO SUBSTRUCTURE | ||
| N 000934010014 | NUT | |
| Repalced by: N 304032010003 | ||
| N 304032010003 | NUT | |
| CROSS MEMBER TO SUBSTRUCTURE | ||
| A 3146800690 | INSTRUMENT PANEL | |
| 060 | A 3146800790 | INSTRUMENT PANEL |
| Repalced by: A 3146800890 | ||
| A 3146800890 | INSTRUMENT PANEL | |
| Repalced by: A 3356806090 | ||
| A 3356806090 | INSTRUMENT PANEL | |
| 064 | A 3356885034 | FRAME |
| Repalced by: A 3356885134 | ||
| 064 | A 3356885134 | FRAME |
| 068 | A 3148210238 | COVER |
| INSTRUMENT PANEL | ||
| 075 | A 3358175016 | BADGE |
| Repalced by: A 3818170216 | ||
| 075 | A 3818170216 | BADGE |
| N 009021008205 | WASHER | |
| Repalced by: N 009021008213 | ||
| N 009021008213 | WASHER | |
| MERCEDES STAR TO RADIATOR GRILLE | ||
| Repalced by: N 000000003250 | ||
| N 000000003250 | WASHER | |
| MERCEDES STAR TO RADIATOR GRILLE | ||
| N 912004008102 | LOCK WASHER | |
| MERCEDES STAR TO RADIATOR GRILLE | ||
| N 304032008006 | NUT | |
| MERCEDES STAR TO RADIATOR GRILLE | ||
| 084 | A 0009841422 | SHEET METAL NUT |
| MERCEDES STAR TO RADIATOR GRILLE | ||
| N 000125006421 | WASHER | |
| MERCEDES STAR TO RADIATOR GRILLE | ||
| Repalced by: N 000125006449 | ||
| N 000125006449 | WASHER | |
| MERCEDES STAR TO RADIATOR GRILLE | ||
| N 912004006102 | LOCK WASHER | |
| MERCEDES STAR TO RADIATOR GRILLE | ||
| N 000934006007 | NUT | |
| MERCEDES STAR TO RADIATOR GRILLE | ||
| A 3148170016 | BADGE | |
| Repalced by: A 3148170416 | ||
| 090 | A 3148170416 | BADGE |
| 092 | A 0009887778 | CLIP |
| BADGE | ||
| 095 | A 3148170098 | SEAL |
| Repalced by: A 0019941345 | ||
| 095 | A 0019941345 | LOCK |
| BADGE | ||
