Transporto priemonė: OF 1621; VIN numerio dalis: 355099

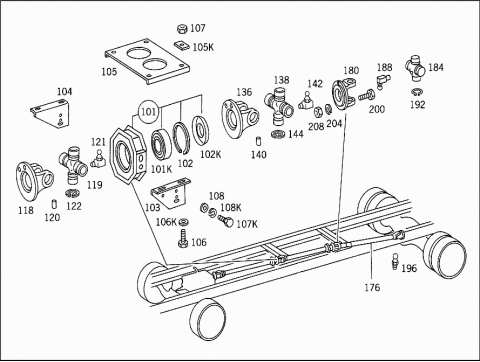

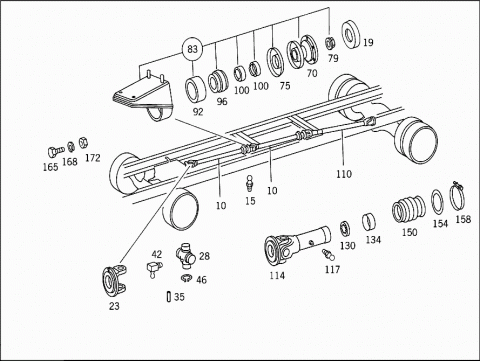

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3604102101 | PROPELLER SHAFT |
| TO INTERMEDIATE SHAFT BEARINGS I AND II | ||
| 1938 MM | ||
| 010 | A 3854101404 | PROPELLER SHAFT |
| TO INTERMEDIATE SHAFT BEARINGS I AND II | ||
| 1796 MM | ||
| 015 | N 071412010100 | GREASE NIPPLE |
| 019 | A 3374130061 | PROTECTIVE CAP |
| 019 | A 3854130161 | PROTECTIVE CAP |
| 019 | A 3854130461 | PROTECTIVE CAP |
| 023 | A 3544110011 | DRIVE FLANGE |
| 023 | A 3854111711 | DRIVE FLANGE |
| 028 | A 3174100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100131 | ||
| 028 | A 3854100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 028 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 028 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 035 | A 0009811587 | NEEDLE |
| TO 317 410 01 31 | ||
| 042 | N 071412008302 | GREASE NIPPLE |
| 046 | A 3379945035 | SNAP RING |
| AS REQUIRED | ||
| 2.80 MM | ||
| 046 | A 3379945435 | SNAP RING |
| AS REQUIRED | ||
| 2.85 MM | ||
| 046 | A 3379945135 | SNAP RING |
| AS REQUIRED | ||
| 2.90 MM | ||
| 046 | A 3379945235 | SNAP RING |
| AS REQUIRED | ||
| 2.95 MM | ||
| 046 | A 3379945335 | SNAP RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 046 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 046 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 046 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 046 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 046 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 046 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 046 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 046 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| 070 | A 3544100030 | CENTERING FLANGE |
| PROPELLER SHAFT BEARING | ||
| 070 | A 3604100130 | CENTERING FLANGE |
| PROPELLER SHAFT BEARING | ||
| 075 | A 3374130061 | PROTECTIVE CAP |
| 075 | A 3854130161 | PROTECTIVE CAP |
| 075 | A 3854130461 | PROTECTIVE CAP |
| 079 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 079 | A 3853510072 | NUT |
| Repalced by: A 3853510172 | ||
| 079 | A 3853510172 | NUT |
| 083 | A 3604100140 | BRACKET |
| Repalced by: A 3525860141 | ||
| 083 | A 3525860141 | REPAIR KIT |
| Repalced by: A 3524100110 | ||
| 083 | A 3524100110 | REPAIR KIT |
| INTERMEDIATE SHAFT BEARING | ||
| 092 | A 3384130012 | RUBBER MOUNTING |
| A 3634100051 | BALL BEARING | |
| Repalced by: A 3544100051 | ||
| 096 | A 3544100051 | BALL BEARING |
| 100 | A 3374130131 | BEARING RING |
| TO 354 410 00 51 | ||
| 100 | A 3634100034 | BEARING RING |
| TO 363 410 00 51 | ||
| 101 | A 3854100110 | REPAIR KIT |
| Repalced by: A 3854100122 | ||
| 101 | A 3854100122 | INTERMEDIATE BEARING |
| Repalced by: A 3854100922 | ||
| 101 | A 3854100922 | INTERMEDIATE BEARING |
| Repalced by: A 3854101722 | ||
| 101 | A 3854101722 | INTERMEDIATE BEARING |
| Repalced by: A 9734100022 | ||
| 101 | A 9734100022 | INTERMEDIATE BEARING |
| PROPELLER SHAFT | ||
| 101K | A 0019818125 | BALL BEARING |
| Repalced by: A 0079818525 | ||
| 101K | A 0079818525 | BALL BEARING |
| 102 | N 912009100200 | SNAP RING |
| 102K | A 3854130061 | PROTECTIVE CAP |
| A 9734110052 | SPACER WASHER | |
| PROPELLER SHAFT BEARING | ||
| 103 | A 3854132542 | BRACKET |
| LEFT,PROPELLER SHAFT BEARING I | ||
| 103 | A 3854134042 | BRACKET |
| LEFT,PROPELLER SHAFT BEARING II | ||
| 104 | A 3854132642 | BRACKET |
| RIGHT,PROPELLER SHAFT BEARING I | ||
| 104 | A 3854134142 | BRACKET |
| RIGHT,PROPELLER SHAFT BEARING II | ||
| 105 | A 3854130011 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 105K | A 3524130011 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 105K | A 3854130111 | REINFORCEMENT |
| BRACKET TO CROSS MEMBER | ||
| 106 | N 000961010042 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 106 | N 000960010026 | SCREW |
| Repalced by: N 000961010031 | ||
| 106 | N 000961010031 | SCREW |
| Repalced by: N 308676010023 | ||
| 106 | N 308676010023 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 106K | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 106K | N 007349010007 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 107 | N 913002010010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 107K | N 000931010282 | SCREW |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| M 10X40 | ||
| 107K | N 000933010105 | SCREW |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| M 10X25 | ||
| 108 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 108 | N 007349010007 | WASHER |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| 108K | N 912004010102 | LOCK WASHER |
| FRONT PROPELLER SHAFT TO BRACKET | ||
| 110 | A 3544100202 | PROPELLER SHAFT |
| Repalced by: A 6744103902 | ||
| 110 | A 6744103902 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1524 MM | ||
| 114 | A 3544100008 | UNIVERSAL JOINT YOKE |
| 117 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 117 | N 071412008102 | GREASE NIPPLE |
| 118 | A 3544110011 | DRIVE FLANGE |
| 119 | A 3174100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100131 | ||
| 119 | A 3854100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 120 | A 0009811587 | NEEDLE |
| TO 317 410 01 31 | ||
| 121 | N 071412008302 | GREASE NIPPLE |
| 122 | A 3379945035 | SNAP RING |
| AS REQUIRED | ||
| 2.80 MM | ||
| 122 | A 3379945435 | SNAP RING |
| AS REQUIRED | ||
| 2.85 MM | ||
| 122 | A 3379945135 | SNAP RING |
| AS REQUIRED | ||
| 2.90 MM | ||
| 122 | A 3379945235 | SNAP RING |
| AS REQUIRED | ||
| 2.95 MM | ||
| 122 | A 3379945335 | SNAP RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 130 | A 3374130080 | SEAL RING |
| 134 | A 3374130258 | SEAL HOLDER |
| 136 | A 3544110011 | DRIVE FLANGE |
| 136 | A 3814110811 | DRIVE FLANGE |
| 138 | A 3174100131 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3854100131 | ||
| 138 | A 3854100131 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 138 | A 6174100031 | UNIVERSAL JOINT CROSS |
| Repalced by: A 0004104031 | ||
| 138 | A 0004104031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 140 | A 0009811587 | NEEDLE |
| TO 317 410 01 31 | ||
| 142 | N 071412008302 | GREASE NIPPLE |
| 144 | A 3379945035 | SNAP RING |
| AS REQUIRED | ||
| 2.80 MM | ||
| 144 | A 3379945435 | SNAP RING |
| AS REQUIRED | ||
| 2.85 MM | ||
| 144 | A 3379945135 | SNAP RING |
| AS REQUIRED | ||
| 2.90 MM | ||
| A 0039944441 | LOCK | |
| Repalced by: A 0059949441 | ||
| A 0059949441 | LOCK | |
| Repalced by: N 000472042001 | ||
| N 000472042001 | LOCK RING | |
| AS REQUIRED | ||
| 1.750 MM | ||
| 144 | A 3379945235 | SNAP RING |
| AS REQUIRED | ||
| 2.95 MM | ||
| A 0039945041 | LOCK | |
| Repalced by: A 0059949941 | ||
| A 0059949941 | LOCK | |
| AS REQUIRED | ||
| 1.875 MM | ||
| 144 | A 3379945335 | SNAP RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| A 0059941041 | LOCK | |
| Repalced by: A 0069940441 | ||
| A 0069940441 | LOCK | |
| AS REQUIRED | ||
| 2.000 MM | ||
| 150 | A 3384100180 | BOOT |
| 154 | A 3214110053 | WIRE RING |
| 158 | N 916002080100 | CLAMP |
| 165 | A 3529900401 | SCREW |
| Repalced by: A 3529904701 | ||
| 165 | A 3529904701 | SCREW |
| Repalced by: A 0079901001 | ||
| 165 | A 0079901001 | SCREW |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 168 | N 912004010102 | LOCK WASHER |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 172 | N 000934010010 | NUT |
| TO MOUNT THE PROPELLER SHAFTS | ||
| 176 | A 3854100402 | PROPELLER SHAFT |
| Repalced by: A 3854104807 | ||
| 176 | A 3854104807 | PROPELLER SHAFT |
| FROM INTERMEDIATE BEARING II TO REAR AXLE | ||
| 1670 MM | ||
| 180 | A 3604110611 | DRIVE FLANGE |
| Repalced by: A 3854111711 | ||
| 180 | A 3854111711 | DRIVE FLANGE |
| 184 | A 3854100531 | UNIVERSAL JOINT CROSS |
| Repalced by: A 3814100231 | ||
| 184 | A 3814100231 | UNIVERSAL JOINT CROSS |
| Repalced by: A 9734100031 | ||
| 184 | A 9734100031 | UNIVERSAL JOINT CROSS |
| WITH BUSHINGS | ||
| 188 | N 071412008302 | GREASE NIPPLE |
| 192 | A 0029941341 | LOCK |
| Repalced by: A 0069940841 | ||
| 192 | A 0069940841 | LOCK |
| AS REQUIRED | ||
| 1.70 MM | ||
| 192 | A 0029941441 | LOCK |
| Repalced by: N 000472048000 | ||
| 192 | N 000472048000 | LOCK RING |
| AS REQUIRED | ||
| 1.75 MM | ||
| 192 | A 0029941741 | LOCK |
| Repalced by: A 0069941241 | ||
| 192 | A 0069941241 | LOCK |
| AS REQUIRED | ||
| 1.80 MM | ||
| 192 | A 0029941841 | LOCK |
| Repalced by: A 0069941441 | ||
| 192 | A 0069941441 | LOCK |
| AS REQUIRED | ||
| 1.85 MM | ||
| 192 | A 0039943641 | LOCK |
| AS REQUIRED | ||
| 1.90 MM | ||
| 196 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 196 | N 071412008102 | GREASE NIPPLE |
| 200 | A 3609901901 | SCREW |
| Repalced by: A 3609903001 | ||
| 200 | A 3609903001 | SCREW |
| PROPELLER SHAFT TO FLANGE | ||
| 204 | N 912004012100 | LOCK WASHER |
| PROPELLER SHAFT TO FLANGE | ||
| 208 | N 000934012034 | NUT |
| PROPELLER SHAFT TO FLANGE | ||
