Transporto priemonė: OF 1621; VIN numerio dalis: 355099

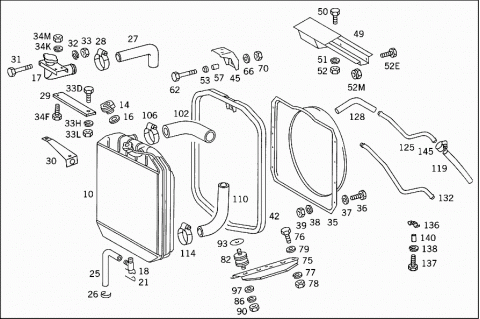

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3525010701 | RADIATOR |
| BEHR | ||
| 010 | A 3525011701 | RADIATOR |
| BEHR | ||
| 010 | A 3555011001 | RADIATOR |
| BEHR | ||
| 014 | A 0005010215 | RADIATOR CAP |
| Repalced by: A 0005012915 | ||
| 014 | A 0005012915 | RADIATOR CAP |
| 014 | A 0005013515 | RADIATOR CAP |
| 016 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 017 | A 0005010007 | T-FITTING |
| 018 | A 0009976436 | VALVE |
| Repalced by: A 0009970436 | ||
| 018 | A 0009970436 | VALVE |
| RADIATOR | ||
| 021 | A 0009930225 | SPRING |
| RADIATOR | ||
| 025 | A 3129970682 | HOSE |
| Repalced by: A 3049972582 | ||
| 025 | A 3529971282 | HOSE |
| Repalced by: A 3049972582 | ||
| 025 | A 3049972582 | HOSE |
| HOSE TO COOLING WATER DRAIN VALVE | ||
| N 900262005000 | LOOM TIE | |
| HOSE | ||
| 026 | N 900263005000 | STRAP |
| HOSE | ||
| 027 | A 3055010882 | HOSE |
| FILLER NECK | ||
| 027 | A 3555010382 | HOSE |
| FILLER NECK | ||
| 028 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 028 | N 000000000671 | CLAMP |
| FILLER NECK | ||
| 029 | A 3525010120 | BRACKET |
| FILLER NECK | ||
| 030 | A 3555420140 | BRACKET |
| MAINTENANCE OF AIR CLEANER | ||
| 031 | N 000931004029 | SCREW |
| FILLER NECK | ||
| 032 | N 912004004102 | LOCK WASHER |
| FILLER NECK | ||
| 033 | N 000934004006 | NUT |
| FILLER NECK | ||
| 033D | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 033D | N 304017008016 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X15 | ||
| 033H | N 912004008102 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 033L | N 304032008006 | NUT |
| BRACKET TO SUPPORT | ||
| 034F | N 000933006102 | SCREW |
| FITTING TO BRACKET | ||
| M 6X15 | ||
| 034K | N 912004006001 | LOCK WASHER |
| FITTING TO BRACKET | ||
| 034M | N 000934006010 | NUT |
| FITTING TO BRACKET | ||
| 035 | A 3525050355 | FAN SHROUD |
| 035 | A 3555050155 | FAN SHROUD |
| 036 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 036 | N 304017008021 | HEXAGON HEAD BOLT |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| 036 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 036 | N 304017008034 | SCREW |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| 037 | N 000433008406 | WASHER |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| 038 | N 912004008102 | LOCK WASHER |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| 039 | N 304032008006 | NUT |
| RADIATOR BLOCK AND AIR BAFFLE TO BASE FRAME | ||
| 042 | A 3525001227 | SUPPORT |
| RADIATOR | ||
| 045 | A 3525040940 | BRACKET |
| RADIATOR | ||
| 049 | A 3525001827 | SUPPORT |
| RADIATOR | ||
| 049 | A 3525001927 | SUPPORT |
| RADIATOR | ||
| 050 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 050 | N 304017008016 | SCREW |
| BRACKET TO RADIATOR | ||
| M 8X15 | ||
| 050 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 050 | N 304017008053 | SCREW |
| BRACKET TO RADIATOR | ||
| M 8X60 | ||
| 051 | N 912004008102 | LOCK WASHER |
| BRACKET TO RADIATOR | ||
| 052 | N 304032008006 | NUT |
| BRACKET TO RADIATOR | ||
| 052E | N 000933010157 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 10X28 | ||
| 052M | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 052M | N 910113010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 053 | A 3275045082 | RUBBER RING |
| BASE FRAME TO BRACKET | ||
| 057 | A 3199910540 | SPACER TUBE |
| BASE FRAME TO BRACKET | ||
| 062 | N 000933010282 | SCREW |
| BASE FRAME TO BRACKET | ||
| 062 | N 000933010283 | SCREW |
| Repalced by: N 304014010015 | ||
| 062 | N 304014010015 | SCREW |
| BASE FRAME TO BRACKET | ||
| M 10X140 | ||
| 066 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 066 | N 009021010209 | WASHER |
| BASE FRAME TO BRACKET | ||
| 070 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 070 | N 304032010003 | NUT |
| BASE FRAME TO BRACKET | ||
| 075 | A 3525040701 | SUPPORT |
| RADIATOR | ||
| 076 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 076 | N 304017010028 | HEXAGON HEAD BOLT |
| SUPPORT TO BASE FRAME | ||
| M10X20 | ||
| 077 | N 912004010102 | LOCK WASHER |
| SUPPORT TO BASE FRAME | ||
| 078 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 078 | N 304032010003 | NUT |
| SUPPORT TO BASE FRAME | ||
| 079 | N 000125010532 | WASHER |
| SUPPORT TO BASE FRAME | ||
| 082 | A 3225040312 | RUBBER MOUNTING |
| Repalced by: A 3605040012 | ||
| 082 | A 3605040012 | RUBBER MOUNTING |
| Repalced by: A 3605040112 | ||
| 082 | A 3605040112 | RUBBER MOUNTING |
| RUBBER BUFFER TO BASE FRAME AND TO CONSOLE | ||
| 086 | N 912004010102 | LOCK WASHER |
| RUBBER BUFFER TO BASE FRAME AND TO CONSOLE | ||
| 090 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 090 | N 304032010003 | NUT |
| RUBBER BUFFER TO BASE FRAME AND TO CONSOLE | ||
| 093 | A 3529900440 | WASHER |
| RUBBER BUFFER TO BASE FRAME AND TO CONSOLE | ||
| 097 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 097 | N 000125010532 | WASHER |
| RUBBER BUFFER TO BASE FRAME AND TO CONSOLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| HEATING WATER LINES | ||
| 102 | A 3525011382 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 106 | A 0009971690 | LOOM TIE |
| Repalced by: N 916018040000 | ||
| 106 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 106 | N 000000000671 | CLAMP |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 106 | A 0009971590 | LOOM TIE |
| Repalced by: N 916018040000 | ||
| 106 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 106 | N 000000000671 | CLAMP |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 110 | A 3525011182 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 114 | A 0009971590 | LOOM TIE |
| Repalced by: N 916018040000 | ||
| 114 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 114 | N 000000000671 | CLAMP |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 119 | N 900271015037 | HOSE |
| 180 MM | ||
| 119 | N 900271015037 | HOSE |
| 160 MM | ||
| 119 | N 900271015037 | HOSE |
| 200 MM | ||
| 125 | A 3525060660 | PIPE |
| FEED | ||
| 128 | A 3525010982 | HOSE |
| 132 | A 3525060460 | PIPE |
| Repalced by: A 3525060760 | ||
| 132 | A 3525060760 | PIPE |
| RETURN | ||
| 136 | A 3219950332 | CLAMP |
| COOLING WATER PIPE | ||
| 137 | N 000933006127 | SCREW |
| CLAMP MOUNTING | ||
| M 6X25 | ||
| 138 | N 912004006102 | LOCK WASHER |
| CLAMP MOUNTING | ||
| 140 | A 3529910340 | SPACER TUBE |
| Repalced by: A 4082910153 | ||
| 140 | A 4082910153 | SPACER TUBE |
| CLAMP MOUNTING | ||
| A 0009971290 | LOOM TIE | |
| Repalced by: N 916018020000 | ||
| A 0009971390 | LOOM TIE | |
| Repalced by: N 916018020000 | ||
| 145 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 145 | N 000000000667 | CLAMP |
