Transporto priemonė: OF 1621; VIN numerio dalis: 355099
Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR REAR AXLE, SEE UNIT STANDARD VERSION,MODEL: | ||

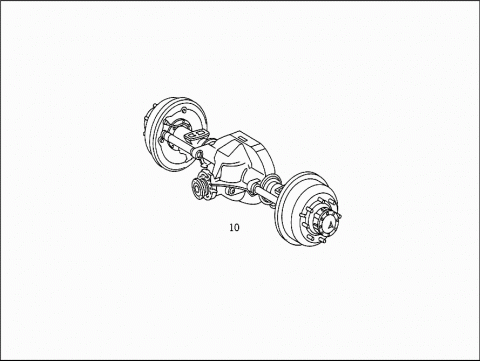

| 010 | A 3553501900 | REAR AXLE |
| RATIO: | ||
| 8:39 | ||
| 010 | A 3553500901 | REAR AXLE |
| RATIO: | ||
| 7:43 | ||

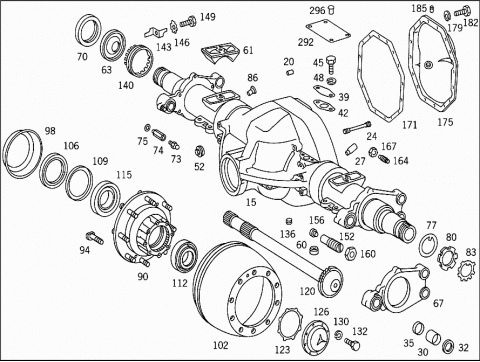

| 015 | A 3553501620 | AXLE HOUSING |
| Repalced by: A 3873504820 | ||
| 015 | A 3873504820 | AXLE HOUSING |
| WITH REAR AXLE TUBES AND DIFFERENTIAL CASE BEARING CAPS | ||
| 020 | N 000007012201 | CYLINDRICAL PIN |
| 024 | N 000960018062 | SCREW |
| 027 | A 3273510174 | PIN |
| 030 | A 3614230050 | BUSHING |
| 032 | A 0029976946 | SEAL RING |
| Repalced by: A 0219972947 | ||
| 032 | A 0219972947 | SEAL RING |
| 035 | A 3024230282 | COVER |
| 039 | A 3279970065 | FLANGE |
| 042 | A 3273510079 | GASKET |
| 045 | N 000933010164 | SCREW |
| 048 | N 912004010102 | LOCK WASHER |
| 052 | N 000906018000 | SCREW PLUG |
| 060 | A 3279970001 | PLUG |
| 061 | A 3703510214 | BEARING BRACKET |
| 063 | A 3023570182 | OIL COLLECTOR |
| 067 | A 3024230106 | BRAKE ANCHOR |
| 070 | A 3603560415 | THRUST RING |
| LEFT AND RIGHT | ||
| 073 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 073 | N 071412008102 | GREASE NIPPLE |
| 074 | A 0005731832 | CONNECTOR |
| Repalced by: A 0005731255 | ||
| 074 | A 0005731255 | CONNECTOR |
| 075 | A 0005730260 | SEAL RING |
| 077 | A 3603560052 | SPACER WASHER |
| 080 | N 070852075000 | NUT |
| Repalced by: A 3853560026 | ||
| 080 | A 3853560026 | GROOVED NUT |
| 083 | N 070952075103 | LOCK PLATE |
| 086 | A 3123501090 | VALVE |
| Repalced by: A 3833510065 | ||
| 086 | A 3833510065 | FITTING |
| 090 | A 3703560101 | WHEEL HUB |
| STEEL | ||
| 090 | A 3853560101 | WHEEL HUB |
| Repalced by: A 3853561101 | ||
| 090 | A 3853561101 | WHEEL HUB |
| CASTING | ||
| 094 | A 3814010371 | WHEEL MOUNTING BOLT |
| Repalced by: A 3894010171 | ||
| 094 | A 3894010171 | WHEEL MOUNTING BOLT |
| TO 370 356 01 01 | ||
| Repalced by: A 0004014471 | ||
| 094 | A 0004014471 | WHEEL MOUNTING BOLT |
| TO 370 356 01 01 | ||
| 094 | A 3814011171 | WHEEL MOUNTING BOLT |
| TO 385 356 01 01 | ||
| Repalced by: A 0004014071 | ||
| 094 | A 0004014071 | WHEEL MOUNTING BOLT |
| TO 385 356 01 01 | ||
| 098 | A 3603560082 | OIL COLLECTOR |
| Repalced by: A 3853560282 | ||
| 098 | A 3853560282 | OIL COLLECTOR |
| 102 | A 3174231201 | BRAKE DRUM |
| 106 | A 0069970546 | SEAL RING |
| A 3853500168 | REPAIR KIT | |
| Repalced by: A 3853500268 | ||
| A 3853500268 | REPAIR KIT | |
| (PARTS KIT),REAR WHEEL HUB SEALING | ||
| 109 | A 3603560051 | SPACER RING |
| 112 | A 0029818605 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 112 | A 0029818905 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 115 | A 0029819005 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 115 | A 0009809602 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 115 | A 0039818605 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 120 | A 3603570201 | REAR AXLE SHAFT |
| Repalced by: A 3853571501 | ||
| 120 | A 3853571501 | REAR AXLE SHAFT |
| 123 | A 3273560180 | GASKET |
| Repalced by: A 9433340080 | ||
| 123 | A 9433340080 | GASKET |
| 126 | A 3273560120 | HUB CAP |
| 130 | N 912004008102 | LOCK WASHER |
| 132 | N 000933008145 | SCREW |
| 136 | A 3529970032 | SCREW PLUG |
| 140 | A 3543530025 | SCREW COLLAR |
| SETTING | ||
| 143 | A 3273530373 | LOCK |
| 146 | N 006797008120 | TOOTHED WASHER |
| 149 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 149 | N 304017008016 | SCREW |
| 152 | A 3173530276 | SET SCREW |
| Repalced by: A 3853530376 | ||
| 152 | A 3853530376 | SET SCREW |
| RING GEAR CHECK | ||
| 156 | A 3173530049 | SLIDE |
| RING GEAR CHECK | ||
| 160 | N 000936030000 | NUT |
| RING GEAR CHECK | ||
| 164 | A 3543510071 | SCREW |
| 167 | N 080705014002 | NUT |
| 171 | A 3173510280 | GASKET |
| Repalced by: A 3833510580 | ||
| 171 | A 3833510580 | GASKET |
| 175 | A 3023500021 | COVER |
| 179 | N 912004010102 | LOCK WASHER |
| 182 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 182 | N 304017010028 | HEXAGON HEAD BOLT |
| 185 | A 3529970032 | SCREW PLUG |

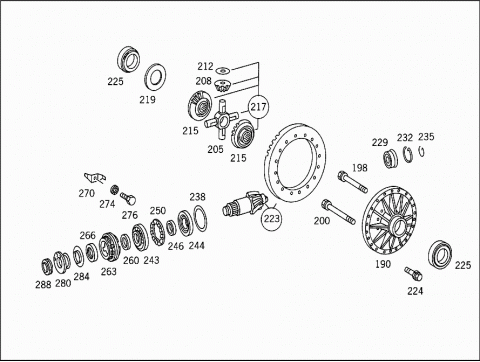

| 190 | A 3613507223 | DIFFERENTIAL GEAR |
| Repalced by: A 3523502623 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| DIFFERENTIAL SPIDER;PIVOT: | ||
| 30 MM | ||
| 190 | A 3523502623 | DIFFERENTIAL GEAR |
| DIFFERENTIAL SPIDER;PIVOT: | ||
| 29 MM | ||
| 190 | A 3613500027 | DIFFERENTIAL CASE |
| Repalced by: A 3613507223 | ||
| 190 | A 3853500727 | DIFFERENTIAL CASE |
| Repalced by: A 3613507223 | ||
| 198 | A 3279900201 | SCREW |
| COVER TO DIFFERENTIAL CASE | ||
| 198 | A 3279900101 | SCREW |
| COVER TO DIFFERENTIAL CASE | ||
| 198 | A 3619900104 | SCREW |
| DIFFERENTIAL SPIDER;PIVOT: | ||
| 30 MM | ||
| 200 | A 3619900004 | SCREW |
| DIFFERENTIAL SPIDER;PIVOT: | ||
| 30 MM | ||
| N 914112014310 | SCREW | |
| DIFFERENTIAL SPIDER;PIVOT: | ||
| 29 MM | ||
| 205 | A 3703530020 | DIFFERENTIAL SPIDER |
| Repalced by: A 3603530020 | ||
| 205 | A 3603530020 | DIFFERENTIAL SPIDER |
| 30 MM | ||
| 205 | A 3013530020 | DIFFERENTIAL SPIDER |
| 29 MM | ||
| 208 | A 3703530014 | DIFFERENTIAL PINION |
| Repalced by: A 3543530014 | ||
| 208 | A 3543530014 | DIFFERENTIAL PINION |
| DIFFERENTIAL SPIDER;PIVOT: | ||
| 30 MM | ||
| 208 | A 3853530114 | DIFFERENTIAL PINION |
| DIFFERENTIAL SPIDER;PIVOT: | ||
| 29 MM | ||
| 212 | A 3273530162 | THRUST WASHER |
| Repalced by: A 3273534662 | ||
| 212 | A 3273534662 | THRUST WASHER |
| DIFFERENTIAL PINION | ||
| 1.50X30 MM | ||
| 212 | A 3273534762 | THRUST WASHER |
| DIFFERENTIAL PINION | ||
| 1.50X30 MM | ||
| 212 | A 3853533762 | THRUST WASHER |
| DIFFERENTIAL PINION | ||
| 1.00 X 29 MM | ||
| 212 | A 3853531262 | THRUST WASHER |
| DIFFERENTIAL PINION | ||
| 1.00 X 29 MM | ||
| 215 | A 3543530015 | SIDE GEAR |
| DIFFERENTIAL SPIDER;PIVOT: | ||
| 30 MM | ||
| 215 | A 3013530115 | SIDE GEAR |
| DIFFERENTIAL SPIDER;PIVOT: | ||
| 29 MM | ||
| 217 | A 3545860035 | REPAIR KIT |
| DIFFERENTIAL SPIDER;PIVOT: | ||
| 30 MM | ||
| 217 | A 3523500040 | REPAIR KIT |
| DIFFERENTIAL SPIDER;PIVOT: | ||
| 29 MM | ||
| 219 | A 3273530062 | THRUST WASHER |
| Repalced by: A 3273533262 | ||
| 219 | A 3273533262 | THRUST WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 219 | A 3273531362 | THRUST WASHER |
| Repalced by: A 3273533462 | ||
| 219 | A 3273533462 | THRUST WASHER |
| AS REQUIRED | ||
| 1.60 MM | ||
| 219 | A 3273531562 | THRUST WASHER |
| Repalced by: A 3273533662 | ||
| 219 | A 3273533662 | THRUST WASHER |
| AS REQUIRED | ||
| 1.70 MM | ||
| 219 | A 3273531662 | THRUST WASHER |
| Repalced by: A 3273533762 | ||
| 219 | A 3273533762 | THRUST WASHER |
| AS REQUIRED | ||
| 1.80 MM | ||
| 223 | A 3023501439 | RING GEAR AND PINION |
| Repalced by: A 3023502339 | ||
| 223 | A 3023502339 | RING GEAR AND PINION |
| 8:39 | ||
| 223 | A 3613501239 | RING GEAR AND PINION |
| Repalced by: A 3023502139 | ||
| 223 | A 3023502139 | RING GEAR AND PINION |
| 7:43 | ||
| 224 | A 3279901601 | SCREW |
| RING GEAR TO DIFFERENTIAL CASE | ||
| 224 | A 3859901001 | SCREW |
| Repalced by: A 3859901101 | ||
| 224 | A 3859901101 | SCREW |
| RING GEAR TO DIFFERENTIAL CASE | ||
| 225 | A 0069810405 | TAPERED ROLLER BEARING |
| 225 | A 0019816405 | TAPERED ROLLER BEARING |
| 225 | A 0019817205 | TAPERED ROLLER BEARING |
| 225 | A 0049817405 | TAPERED ROLLER BEARING |
| 229 | A 0019810001 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0009819701 | ||
| 229 | A 0009819701 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 229 | A 0039811701 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 229 | A 0069811901 | CYLINDR. ROLLER BEARING |
| DRIVE PINION BEARING | ||
| 232 | A 3179940037 | SNAP RING |
| 235 | A 3029940037 | SNAP RING |
| 238 | A 3173531352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 238 | A 3173531452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 238 | A 3173531552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 243 | A 0009817705 | TAPERED ROLLER BEARING |
| ON FLANGE END | ||
| 243 | A 0019819905 | TAPERED ROLLER BEARING |
| ON FLANGE END | ||
| 243 | A 0009816505 | TAPERED ROLLER BEARING |
| ON FLANGE END | ||
| 244 | A 0039811205 | TAPERED ROLLER BEARING |
| ON PINION END | ||
| 244 | A 0039811905 | TAPERED ROLLER BEARING |
| ON PINION END | ||
| 246 | A 3703530051 | SPACER RING |
| 250 | A 3703530152 | SPACER WASHER |
| AS REQUIRED | ||
| 6.80 MM | ||
| 250 | A 3703530452 | SPACER WASHER |
| AS REQUIRED | ||
| 6.86 MM | ||
| 250 | A 3703530552 | SPACER WASHER |
| AS REQUIRED | ||
| 6.88 MM | ||
| 250 | A 3703530752 | SPACER WASHER |
| AS REQUIRED | ||
| 6.92 MM | ||
| 250 | A 3703530852 | SPACER WASHER |
| AS REQUIRED | ||
| 6.94 MM | ||
| 250 | A 3703530952 | SPACER WASHER |
| AS REQUIRED | ||
| 6.96 MM | ||
| 250 | A 3703531052 | SPACER WASHER |
| AS REQUIRED | ||
| 6.98 MM | ||
| 250 | A 3703531352 | SPACER WASHER |
| AS REQUIRED | ||
| 7.04 MM | ||
| 250 | A 3703531652 | SPACER WASHER |
| AS REQUIRED | ||
| 7.10 MM | ||
| 250 | A 3703531952 | SPACER WASHER |
| AS REQUIRED | ||
| 7.16 MM | ||
| 250 | A 3703532252 | SPACER WASHER |
| AS REQUIRED | ||
| 7.22 MM | ||
| 250 | A 3703532552 | SPACER WASHER |
| AS REQUIRED | ||
| 7.28 MM | ||
| 250 | A 3703532752 | SPACER WASHER |
| AS REQUIRED | ||
| 7.32 MM | ||
| 250 | A 3703532852 | SPACER WASHER |
| AS REQUIRED | ||
| 7.34 MM | ||
| 250 | A 3703533152 | SPACER WASHER |
| AS REQUIRED | ||
| 7.40 MM | ||
| 260 | A 3273532562 | THRUST WASHER |
| Repalced by: A 3853531062 | ||
| 260 | A 3853531062 | THRUST WASHER |
| 263 | A 3173530125 | SCREW COLLAR |
| DRIVE PINION | ||
| 266 | A 0109975746 | SEAL RING |
| Repalced by: A 0089970747 | ||
| 266 | A 0089970747 | SEAL RING |
| Repalced by: A 0169976847 | ||
| 266 | A 0169976847 | SEAL RING |
| 270 | A 3273530373 | LOCK |
| SCREW COLLAR | ||
| 274 | N 006797008120 | TOOTHED WASHER |
| 276 | N 000933008130 | SCREW |
| Repalced by: N 304017008039 | ||
| 276 | N 304017008039 | SCREW |
| 280 | A 3603500045 | FLANGE |
| 130 MM | ||
| 284 | A 3273530291 | PROTECTIVE PLATE |
| 288 | A 3853510072 | NUT |
| Repalced by: A 3853510172 | ||
| 288 | A 3853510172 | NUT |
| 292 | A 3855847024 | UNIT IDENTIFICATION PLATE |
| Repalced by: A 4375840624 | ||
| 292 | A 4375840624 | UNIT IDENTIFICATION PLATE |
| 296 | A 3859900096 | RIVET |

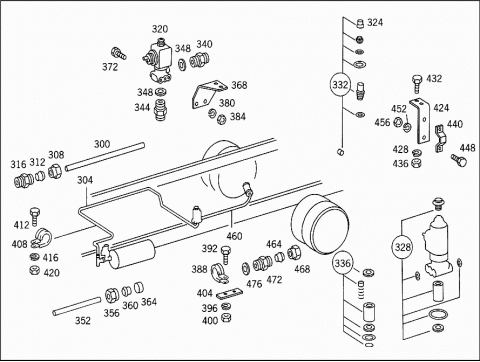

| 300 | A 0089979082 | HOSE |
| AXLE BREATHING | ||
| 304 | A 0004296201 | LINE |
| 6X0.7 | ||
| 308 | N 915017006100 | UNION NUT |
| 312 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 312 | A 0019901667 | SEAL CONE |
| 316 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 316 | A 0029906071 | FITTING |
| BETWEEN THE LINES | ||
| 316 | A 0029906071 | FITTING |
| THREE-WAY VALVE | ||
| 320 | A 0019971836 | VALVE |
| Repalced by: A 0039971736 | ||
| 320 | A 0039971736 | VALVE |
| Repalced by: A 0029975836 | ||
| 320 | A 0029975836 | VALVE |
| 3/2-WAY | ||
| HERION | ||
| 324 | A 0014310087 | PROTECTIVE CAP |
| TO 003 997 17 36,WABCO 472 123 111 0 | ||
| 328 | A 0015863843 | REPAIR KIT |
| Repalced by: A 0024302260 | ||
| 328 | A 0024302260 | REPAIR KIT |
| TO 001 997 18 36,WABCO 472 100 111 0 | ||
| 332 | A 0004305660 | REPAIR KIT |
| TO 003 997 17 36,WABCO 472 123 111 0 | ||
| 336 | A 0015861526 | REPAIR KIT |
| Repalced by: A 0012608357 | ||
| 336 | A 0012608357 | REPAIR KIT |
| TO 002 997 58 36,HERION.9301828/0735 | ||
| 340 | A 0039979072 | FITTING |
| Repalced by: A 0029906071 | ||
| 340 | A 0029906071 | FITTING |
| THREE-WAY VALVE | ||
| 344 | N 003901008001 | SCREW-IN FITTING |
| THREE-WAY VALVE | ||
| 348 | N 007603012405 | SEAL RING |
| THREE-WAY VALVE | ||
| 352 | A 0089976082 | HOSE |
| Repalced by: A 0009872627 | ||
| 352 | A 0009872627 | PLASTIC PIPE |
| 4X6 MM | ||
| 356 | N 915017006100 | UNION NUT |
| 360 | N 003861006007 | GLAND |
| Repalced by: A 0019901667 | ||
| 360 | A 0019901667 | SEAL CONE |
| 364 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 364 | N 915062004000 | SLEEVE |
| 368 | A 3603530140 | BRACKET |
| 3/2-WAY VALVE TO CROSS MEMBER AT REAR SPRING REAR BRACKET | ||
| 372 | N 000931008362 | SCREW |
| Repalced by: N 304017008028 | ||
| 372 | N 304017008028 | SCREW |
| 3/2-WAY VALVE TO CROSS MEMBER AT REAR SPRING REAR BRACKET | ||
| M 8X55 | ||
| 372 | N 000933008045 | SCREW |
| 3/2-WAY VALVE TO CROSS MEMBER AT REAR SPRING REAR BRACKET | ||
| M 8X20 | ||
| 380 | N 912004008102 | LOCK WASHER |
| 3/2-WAY VALVE TO CROSS MEMBER AT REAR SPRING REAR BRACKET | ||
| 384 | N 304032008006 | NUT |
| 3/2-WAY VALVE TO CROSS MEMBER AT REAR SPRING REAR BRACKET | ||
| 388 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 388 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 388 | N 000000000319 | CLAMP |
| LINE MOUNTING | ||
| 392 | N 000084006118 | SCREW |
| 396 | N 912004006102 | LOCK WASHER |
| 400 | N 000934006000 | NUT |
| Repalced by: N 304032006004 | ||
| 400 | N 304032006004 | NUT |
| 404 | A 3124761236 | BRACKET |
| Repalced by: A 3604293140 | ||
| 404 | A 3604293140 | BRACKET |
| LINE MOUNTING | ||
| 408 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 408 | N 916016008200 | CLAMP |
| Repalced by: N 000000000319 | ||
| 408 | N 000000000319 | CLAMP |
| LINE MOUNTING | ||
| 412 | N 000084006153 | SCREW |
| LINE MOUNTING | ||
| 416 | N 912004006102 | LOCK WASHER |
| LINE MOUNTING | ||
| 420 | N 000934006007 | NUT |
| LINE MOUNTING | ||
| 424 | A 3603530340 | BRACKET |
| TWO-SPEED REAR AXLE | ||
| 428 | N 912004008102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 432 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 432 | N 304017008021 | HEXAGON HEAD BOLT |
| BRACKET TO CROSS MEMBER | ||
| 436 | N 304032008006 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 440 | A 3609950210 | CLAMP |
| HOSE TO BRACKET | ||
| 440 | A 3609950010 | CLAMP |
| Repalced by: N 001593019001 | ||
| 440 | N 001593019001 | CLAMP |
| HOSE TO BRACKET | ||
| 448 | N 000933006103 | SCREW |
| Repalced by: N 304017006018 | ||
| 448 | N 304017006018 | SCREW |
| HOSE TO BRACKET | ||
| 452 | N 912004006102 | LOCK WASHER |
| HOSE TO BRACKET | ||
| 456 | N 000934006000 | NUT |
| Repalced by: N 304032006004 | ||
| 456 | N 304032006004 | NUT |
| HOSE TO BRACKET | ||
| 460 | A 3529971082 | HOSE |
| HOSE TO VALVE | ||
| 464 | N 915017008100 | UNION NUT |
| HOSE TO VALVE | ||
| 468 | N 003861008005 | GLAND |
| HOSE TO VALVE | ||
| 472 | N 003901008000 | SCREW-IN FITTING |
| COMPRESSED AIR CYLINDER | ||
| 476 | N 007603012405 | SEAL RING |
| COMPRESSED AIR CYLINDER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
