Transporto priemonė: OF 1730; VIN numerio dalis: 384063

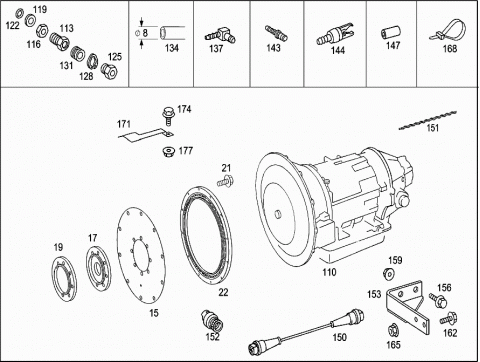

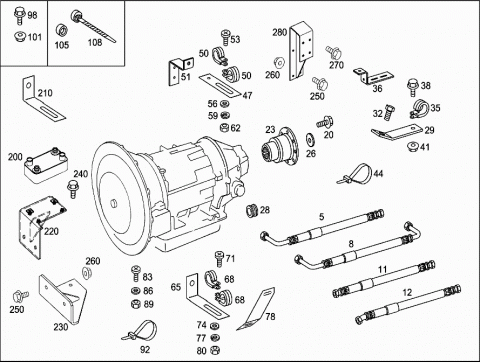

Grupė: 27 AUTOMATIC TRANSMISSION - 750 TRANSMISSION ATTACHMENT PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3849978682 | HOSE |
| OIL LINE TO AIR COOLED OIL COOLER | ||
| 005 | A 3849978882 | HOSE |
| FROM OIL COOLER TO TRANSMISSION,LEFT | ||
| 005 | A 3849970354 | HOSE ASSEMBLY |
| FROM TRANSMISSION OIL LINE TO OIL COOLER LINE | ||
| 2790 MM | ||
| 005 | A 3849970754 | HOSE ASSEMBLY |
| FROM TRANSMISSION OIL LINE TO OIL COOLER LINE | ||
| 2790 MM | ||
| 008 | A 3849970454 | HOSE ASSEMBLY |
| OIL LINE COMING FROM OIL COOLER TO TRANSMISSION | ||
| 1660 MM | ||
| 008 | A 3849970854 | HOSE ASSEMBLY |
| OIL LINE COMING FROM OIL COOLER TO TRANSMISSION | ||
| 1660 MM | ||
| 008 | A 3849978582 | HOSE |
| (OIL LINE) FROM OIL COOLER TO TRANSMISSION | ||
| 2565 MM | ||
| 008 | A 3849978782 | HOSE |
| FROM OIL COOLER TO TRANSMISSION,LEFT | ||
| 675 MM | ||
| 011 | A 3849970254 | HOSE ASSEMBLY |
| FROM OIL COOLER TO TRANSMISSION,LEFT | ||
| 620 MM | ||
| 011 | A 3849970654 | HOSE ASSEMBLY |
| FROM OIL COOLER TO TRANSMISSION,LEFT | ||
| 620 MM | ||
| 011 | A 3849970954 | HOSE ASSEMBLY |
| FROM OIL COOLER TO TRANSMISSION,LEFT | ||
| 620 MM | ||
| 012 | A 3849970154 | HOSE ASSEMBLY |
| FROM OIL COOLER TO TRANSMISSION,LEFT | ||
| 670 MM | ||
| 012 | A 3849970554 | HOSE ASSEMBLY |
| FROM OIL COOLER TO TRANSMISSION,LEFT | ||
| 670 MM | ||
| A 3842707036 | FOLLOWER | |
| 015 | A 3822770033 | DIAPHRAGM |
| 015 | A 3822770033 | DIAPHRAGM |
| 017 | A 3822710052 | SPACER WASHER |
| 017 | A 3822710052 | SPACER WASHER |
| 017 | A 3822710052 | SPACER WASHER |
| 019 | A 3822710152 | SPACER WASHER |
| 019 | A 3822710152 | SPACER WASHER |
| 019 | A 3822710152 | SPACER WASHER |
| 020 | N 910105012013 | SCREW |
| FOLLOWER DISC ON RING GEAR | ||
| M 12X1,5X25 | ||
| 021 | N 910105012016 | SCREW |
| FOLLOWER DISC ON RING GEAR | ||
| M12X55 MM | ||
| 021 | N 910105012016 | SCREW |
| FOLLOWER DISC ON RING GEAR | ||
| M12X55 MM | ||
| 021 | N 910105012020 | HEXAGON HEAD BOLT |
| FOLLOWER DISC ON RING GEAR | ||
| Repalced by: N 308676012014 | ||
| 021 | N 308676012014 | HEXAGON HEAD BOLT |
| FOLLOWER DISC ON RING GEAR | ||
| M12X1.5X35 | ||
| 021 | N 308676012014 | HEXAGON HEAD BOLT |
| FOLLOWER DISC ON RING GEAR | ||
| 022 | A 3662570045 | FLANGE |
| FLYWHEEL HOUSING | ||
| 022 | A 3662570045 | FLANGE |
| FLYWHEEL HOUSING | ||
| 023 | A 3852700020 | FLANGE |
| 023 | A 3852720445 | FLANGE |
| 026 | A 3092620162 | WASHER |
| 028 | A 0002510283 | PLUG |
| BELL HOUSING | ||
| 029 | A 3842790140 | BRACKET |
| 032 | A 3859900301 | SCREW |
| 035 | N 916016038201 | CLAMP |
| Repalced by: N 000000000350 | ||
| 035 | N 000000000350 | CLAMP |
| 035 | N 916017020000 | CLAMP |
| 036 | A 3454667240 | BRACKET |
| 038 | N 910105006005 | SCREW |
| 038 | N 000000001149 | SCREW |
| 041 | N 913023006002 | NUT |
| 041 | N 913023006002 | NUT |
| 044 | A 3459977790 | LOOM TIE |
| 044 | A 3459977490 | LOOM TIE |
| 047 | A 3444297040 | BRACKET |
| HOSE LINE TO ENGINE,REAR | ||
| 050 | N 916016012200 | CLAMP |
| HOSE LINE TO ENGINE,REAR | ||
| 050 | N 916017020000 | CLAMP |
| HOSE LINE TO ENGINE,REAR | ||
| 051 | A 6934299340 | BRACKET |
| 053 | N 007985006513 | SCREW |
| HOSE LINE TO ENGINE,REAR | ||
| 053 | N 000000001422 | SCREW |
| HOSE LINE TO ENGINE,REAR | ||
| M6X30 | ||
| 053 | N 910105010009 | SCREW |
| HOSE LINE TO ENGINE,REAR | ||
| 056 | N 000125006420 | WASHER |
| HOSE LINE TO ENGINE,REAR | ||
| 059 | N 912004006100 | LOCK WASHER |
| HOSE LINE TO ENGINE,REAR | ||
| 062 | N 000934006006 | NUT |
| HOSE LINE TO ENGINE,REAR | ||
| 062 | N 913023010002 | NUT |
| HOSE LINE TO ENGINE,REAR | ||
| 065 | A 3824667040 | BRACKET |
| HOSE LINE TO TRANSMISSION | ||
| 068 | N 916016028200 | CLAMP |
| HOSE LINE TO TRANSMISSION | ||
| 068 | N 916016028200 | CLAMP |
| HOSE LINE TO TRANSMISSION | ||
| 071 | N 007985006513 | SCREW |
| HOSE LINE TO TRANSMISSION | ||
| 071 | N 000000001149 | SCREW |
| HOSE LINE TO TRANSMISSION | ||
| 074 | N 000125006420 | WASHER |
| HOSE LINE TO TRANSMISSION | ||
| 077 | N 912004006100 | LOCK WASHER |
| HOSE LINE TO TRANSMISSION | ||
| 078 | A 3444667140 | BRACKET |
| 080 | N 000934006006 | NUT |
| HOSE LINE TO TRANSMISSION | ||
| 080 | N 913023006002 | NUT |
| HOSE LINE TO TRANSMISSION | ||
| 083 | N 000000001149 | SCREW |
| HOSE LINE TO BRACKET | ||
| 083 | N 007985006517 | SCREW |
| HOSE LINE TO BRACKET | ||
| 086 | N 000125006421 | WASHER |
| HOSE LINE TO BRACKET | ||
| 089 | N 913023006002 | NUT |
| HOSE LINE TO BRACKET | ||
| 089 | N 913004006003 | NUT |
| HOSE LINE TO BRACKET | ||
| 092 | A 3459977490 | LOOM TIE |
| HOSE LINE TO BRACKET | ||
| 092 | A 3459977790 | LOOM TIE |
| HOSE LINE TO BRACKET | ||
| A 3822700165 | LINKAGE | |
| 098 | N 910105010003 | SCREW |
| TO PEDESTAL | ||
| M 10X60 | ||
| 098 | N 910105010009 | SCREW |
| TO PEDESTAL | ||
| M 10X25 | ||
| 098 | N 910105006006 | SCREW |
| AT CLAMP | ||
| 101 | N 913023010002 | NUT |
| TO PEDESTAL | ||
| 101 | N 913023006002 | NUT |
| AT CLAMP | ||
| 105 | A 3609902340 | WASHER |
| CONTROL CABLE | ||
| 108 | A 3849977090 | LOOM TIE |
| 110 | A 3822700601 | AUTOMATIC TRANSMISSION |
| ATTACHMENT PARTS | ||
| 110 | A 3822700401 | AUTOMATIC TRANSMISSION |
| Repalced by: A 3842700001 | ||
| 110 | A 3842700001 | AUTOMATIC TRANSMISSION |
| ATTACHMENT PARTS | ||
| 110 | A 3822700501 | AUTOMATIC TRANSMISSION |
| ATTACHMENT PARTS | ||
| 110 | A 3822701501 | AUTOMATIC TRANSMISSION |
| ATTACHMENT PARTS | ||
| 113 | A 0004297234 | ADAPTER FITTING |
| 116 | N 080705012000 | NUT |
| 119 | A 0009940103 | THRUST RING |
| 122 | A 0019875046 | SEAL RING |
| 125 | A 0009970834 | UNION SCREW |
| M16X1,5 / VOSS 230 | ||
| 128 | A 0009941248 | RETAINING CLAMP |
| TO M16 / VOSS 230 | ||
| 131 | A 0009940047 | SEAL RING |
| TO M16 / VOSS 230 | ||
| 134 | A 0009874927 | PLASTIC PIPE |
| 6 X 8 MM | ||
| 137 | A 0019907971 | ELBOW FITTING |
| TO M16 / 6MM / VOSS 230 | ||
| 143 | A 0009906678 | CONNECTOR |
| 143 | A 0009906678 | CONNECTOR |
| 143 | A 0009906778 | CONNECTOR |
| 144 | A 0019976389 | COUPLING |
| 6 MM | ||
| 147 | N 040621008208 | INSULATING HOSE |
| COLOR CODE YELLOW | ||
| 147 | N 040621008206 | INSULATING HOSE |
| COLOR CODE BLUE | ||
| 150 | A 3825400108 | CABLE HARNESS |
| ELECTRONIC TACHOGRAPH | ||
| 150 | A 6885404608 | CABLE HARNESS |
| ELECTRONIC TACHOGRAPH | ||
| 150 | A 6885404608 | CABLE HARNESS |
| ELECTRONIC TACHOGRAPH | ||
| 151 | A 6959887070 | LEAD SEAL |
| PULSE SENDER UNIT | ||
| 151 | A 6959887070 | LEAD SEAL |
| PULSE SENDER UNIT | ||
| 152 | A 3825427017 | SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 152 | A 0095421017 | PULSE SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 152 | A 0095421017 | PULSE SENDER UNIT |
| ELECTRONIC TACHOGRAPH | ||
| 153 | A 3822780340 | BRACKET |
| 156 | N 910105012007 | SCREW |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| 159 | N 913023012002 | NUT |
| BRACKET TO FRAME | ||
| 162 | N 910105008016 | SCREW |
| AT BRACKET | ||
| M8X30 | ||
| 165 | N 913023008003 | NUT |
| AT BRACKET | ||
| 168 | A 3459977390 | LOOM TIE |
| 171 | A 3825410540 | BRACKET |
| MODULATOR | ||
| 174 | N 910105006004 | HEXAGON HEAD BOLT |
| BRACKET TO PEDESTAL | ||
| M 6X16 | ||
| 174 | N 910105006004 | HEXAGON HEAD BOLT |
| SWITCH TO BRACKET | ||
| M 6X16 | ||
| 177 | N 913023006002 | NUT |
| SWITCH TO BRACKET | ||
| 200 | A 3842700095 | OIL COOLER |
| AUTOMATIC ZF-ECOMAT TRANSMISSION | ||
| 210 | A 3464295840 | BRACKET |
| AUTOMATIC ZF-ECOMAT TRANSMISSION | ||
| 220 | A 3842700141 | BRACKET |
| AUTOMATIC ZF-ECOMAT TRANSMISSION | ||
| 230 | A 3842700041 | BRACKET |
| AUTOMATIC ZF-ECOMAT TRANSMISSION | ||
| 240 | N 910105010006 | SCREW |
| OIL COOLER TO SUPPORT | ||
| M10X20 MM | ||
| 250 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO CROSS MEMBER | ||
| M10X30 | ||
| 250 | N 910105010001 | HEXAGON HEAD BOLT |
| BRACKET TO CROSS MEMBER | ||
| M10X30 | ||
| 250 | N 910105008016 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M8X30 | ||
| 260 | N 913023010002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 260 | N 913023010002 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 270 | N 910105008041 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M8 X 16 | ||
| 280 | A 3842700241 | BRACKET |
| AUTOMATIC ZF-ECOMAT TRANSMISSION | ||
